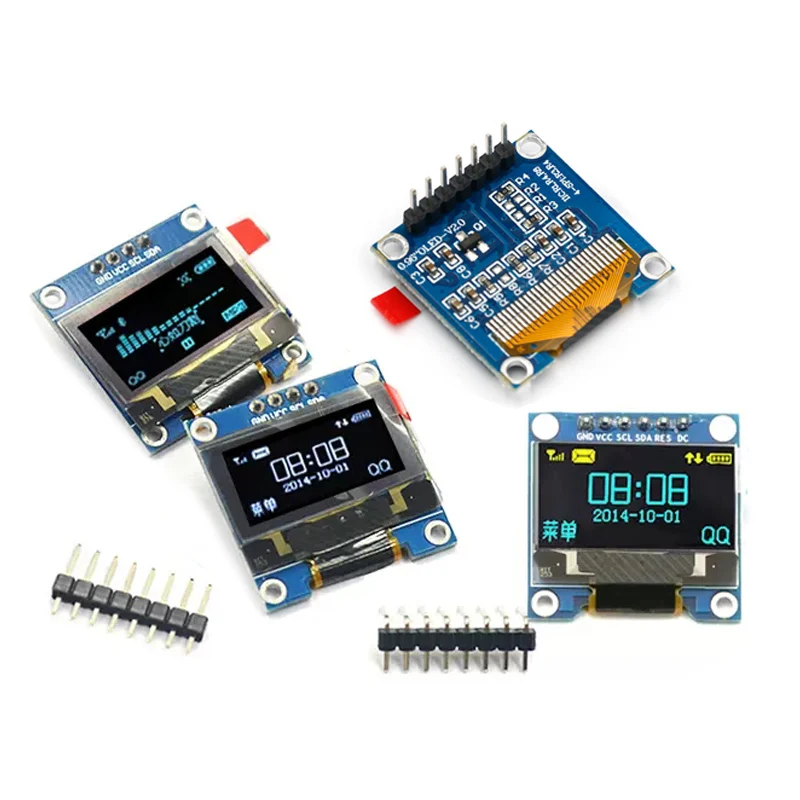

0.96 inch OLED IIC Serial White OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board For Arduino
$6.07
Reference price: $14.54
Save 58%
Qty:
- Fast delivery
- 30-day returns
Ships to Canada · Delivery Approximately 5 days (supplier estimate)
Sold by TBII
Interface type: IIC interface

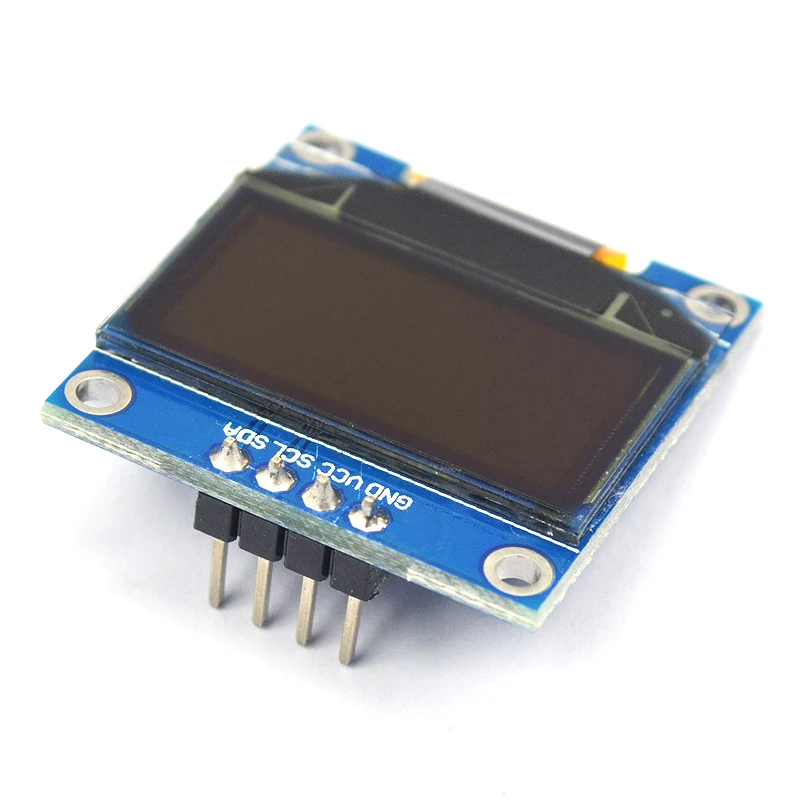

Pin definition: GND,VCC,SCL,SDA
1:GND(OLED power supply)
2:VCC (OLED 3.3~5V)
3:SCL(OLED IIC Clock line)
4:SDA(OLED IIC Cable
The instructions on four needles IIC interface module
Four needles iic interface is relatively simple,only two signal lines
1. The GND power supply
2. The VCC power supply is (3 ~ 5.5 V)
3. The SCL OLED D0 feet,for the clock pin in the IIC communication
4. The SDA OLED D1 feet,in the IIC communication pin for the data
7PIN:
Drive IC: SSD1306

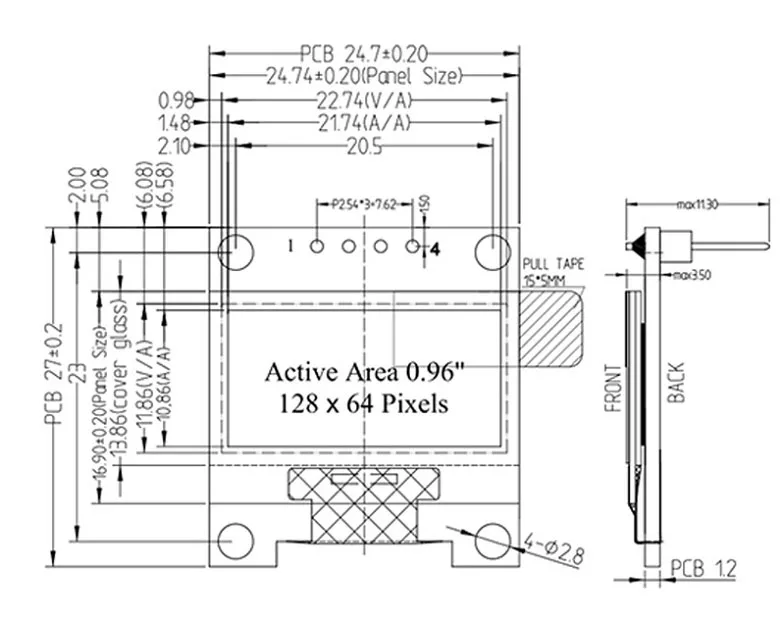

Resolution: 128*64
PIN NO.: 7Pin
Color: White
Interface: SPI and IIC interface
Provide detail datasheet
Interface Definition
1>GND =Ground Power
2>VCC = VDD(2.8V~5.5V)
3> D0 = Clock Line
4> D1 = Data Line
5> RES = Reset
6> DC = data/command
7> CS = Chip Selection
