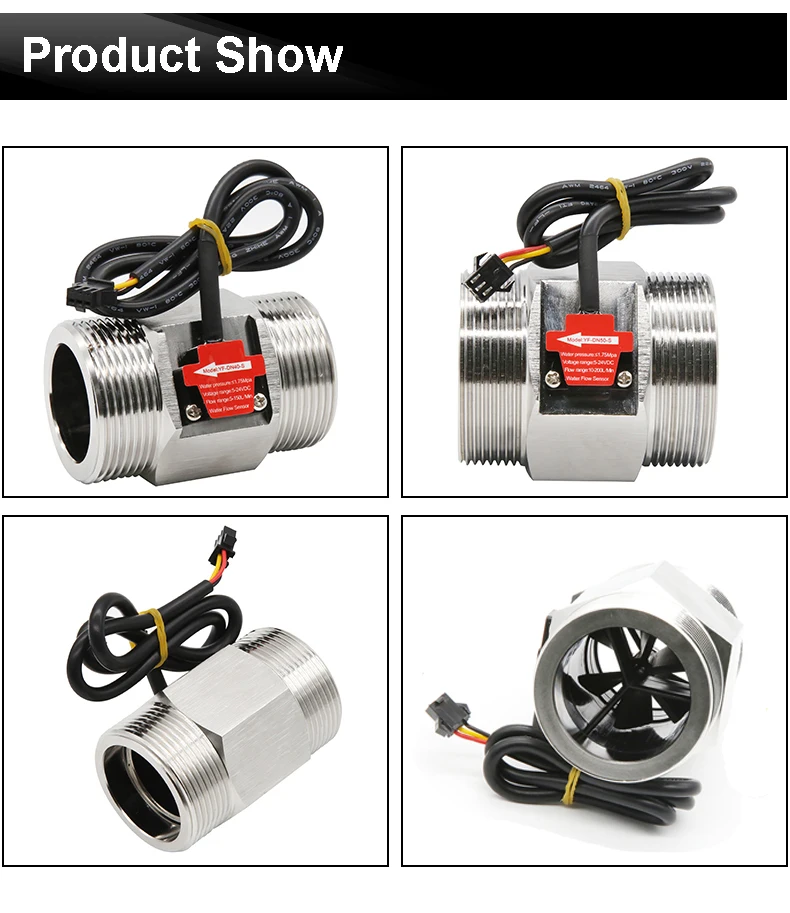

1/2" 3/4" 1'' 1-1/4'' 1-1/2'' 2 Inch Stainless Steel Hall Flow Sensor Water Flow Sensor Flowmeter Control Liquid Sensor Switch

4. The temperature of the medium should not exceed 120℃

3. Vertical installation, the inclination does not exceed 5 degrees

2. Throwing or collision is strictly prohibited

1. Severe impact and chemical erosion are strictly prohibited

Precautions:

Black GND connect to negative pole

Yellow OUT signal output line

Red IN is connected to the positive pole

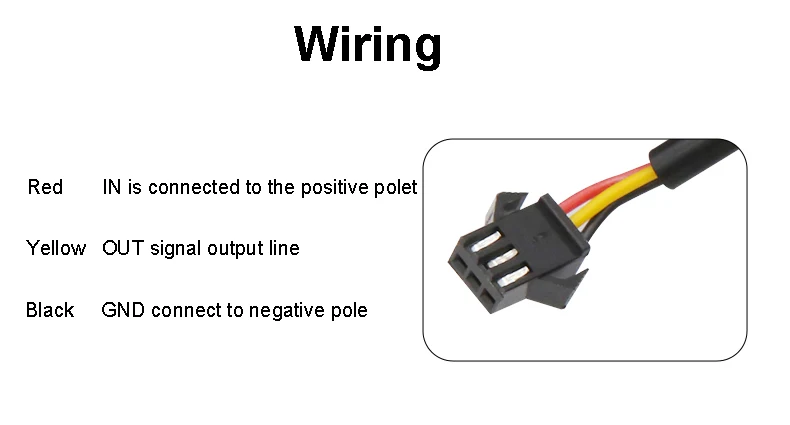

Wiring:

Error±5%

2''           12 pulses per liter of water

1-1/2''     27 pulses per liter of water

1-1/4''    108 pulses per liter of water

1''           595 pulses per liter of water

3/4''       897 pulses per liter of water

1/2''        1177 pulses per liter of water

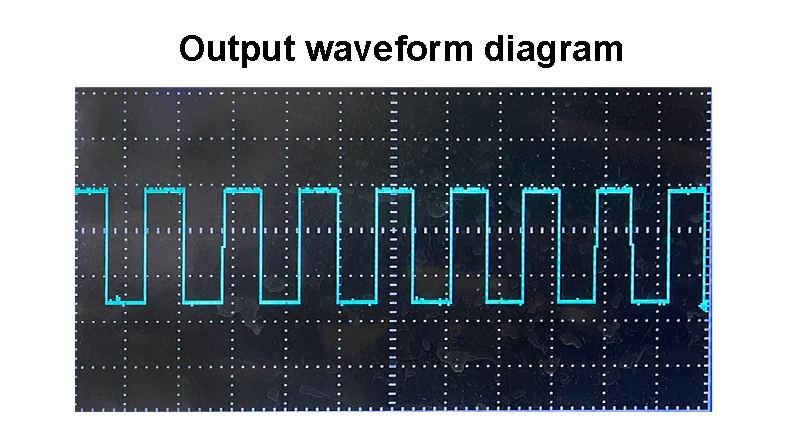

Flow pulse characteristics

Flow Ranges: 1/2" 0.5-25L/min, 3/4" 1-30L/min, 1" 2-50L/min, 1-1/2" 5-150L/min, 2" 10-200L/min

The lowest rated working voltage: DC 5V-24V

Maximum operating current: 15 mA (DC 5V)

Working voltage range: DC5~18V

Load capacity: 10 mA (DC5V)

Operating humidity range: 35%~90%RH (no frost)

Allowing pressure: pressure 1.75Mpa

temperature: -25~+80

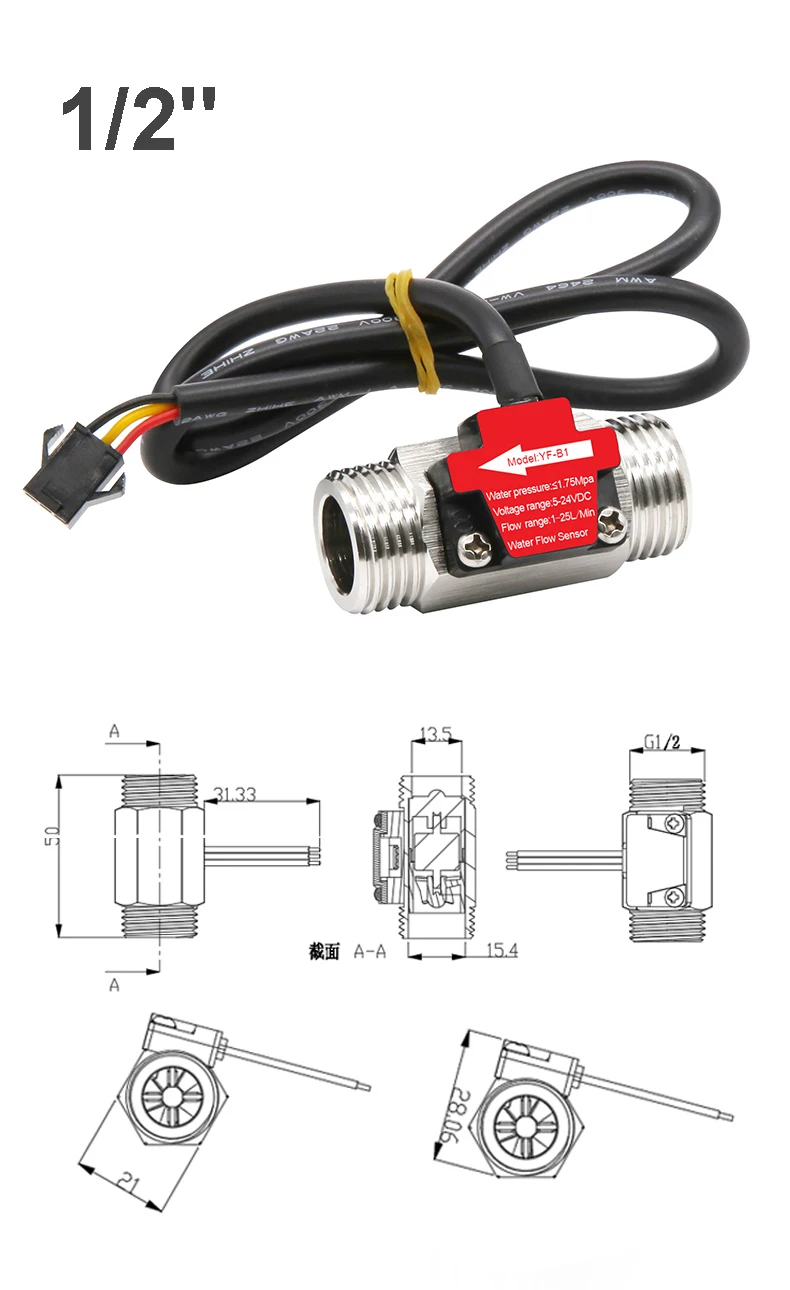

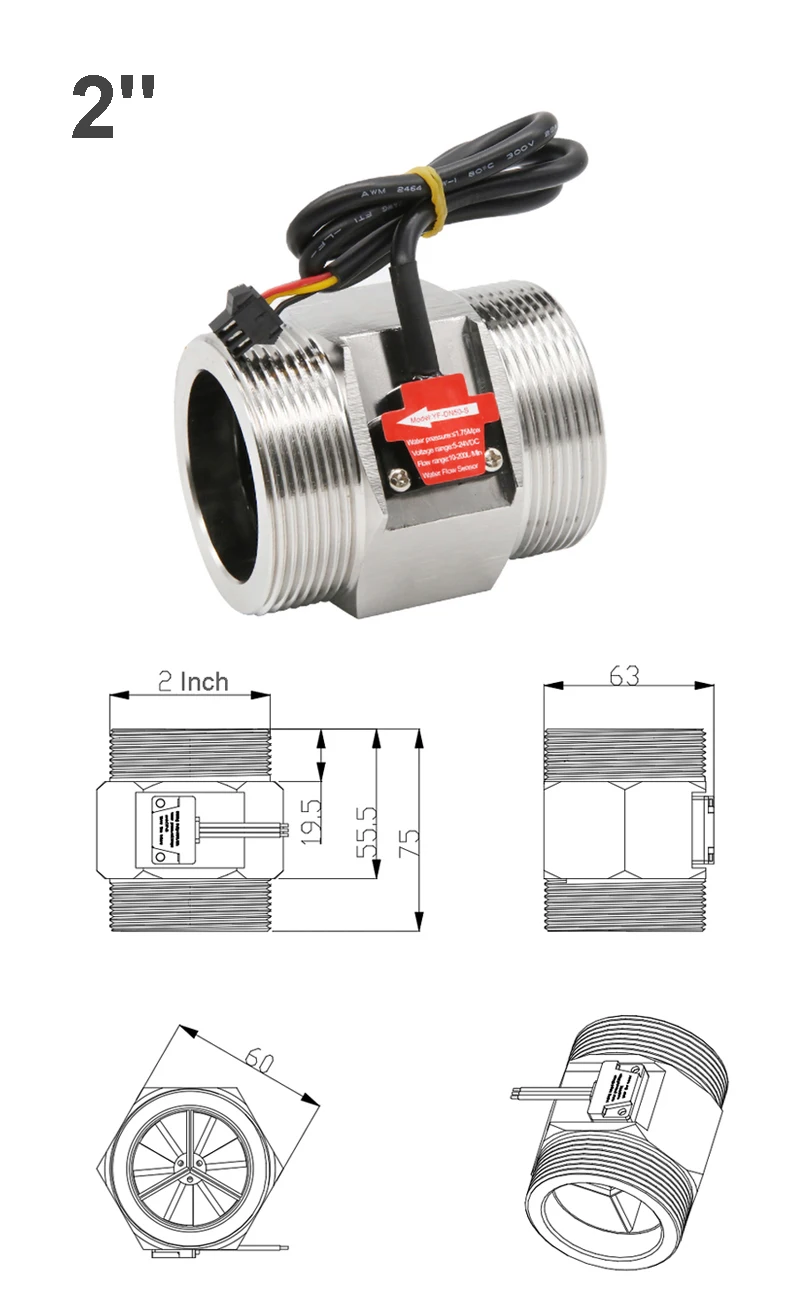

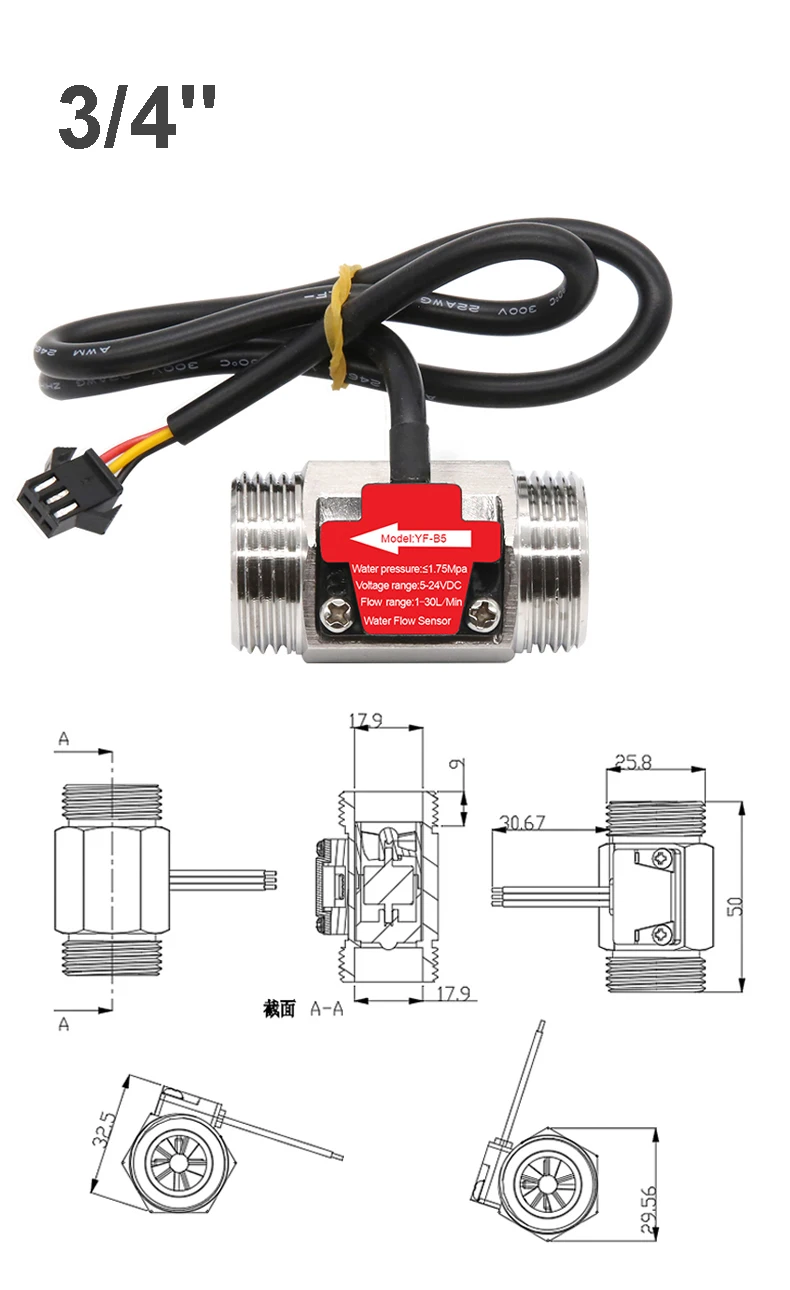

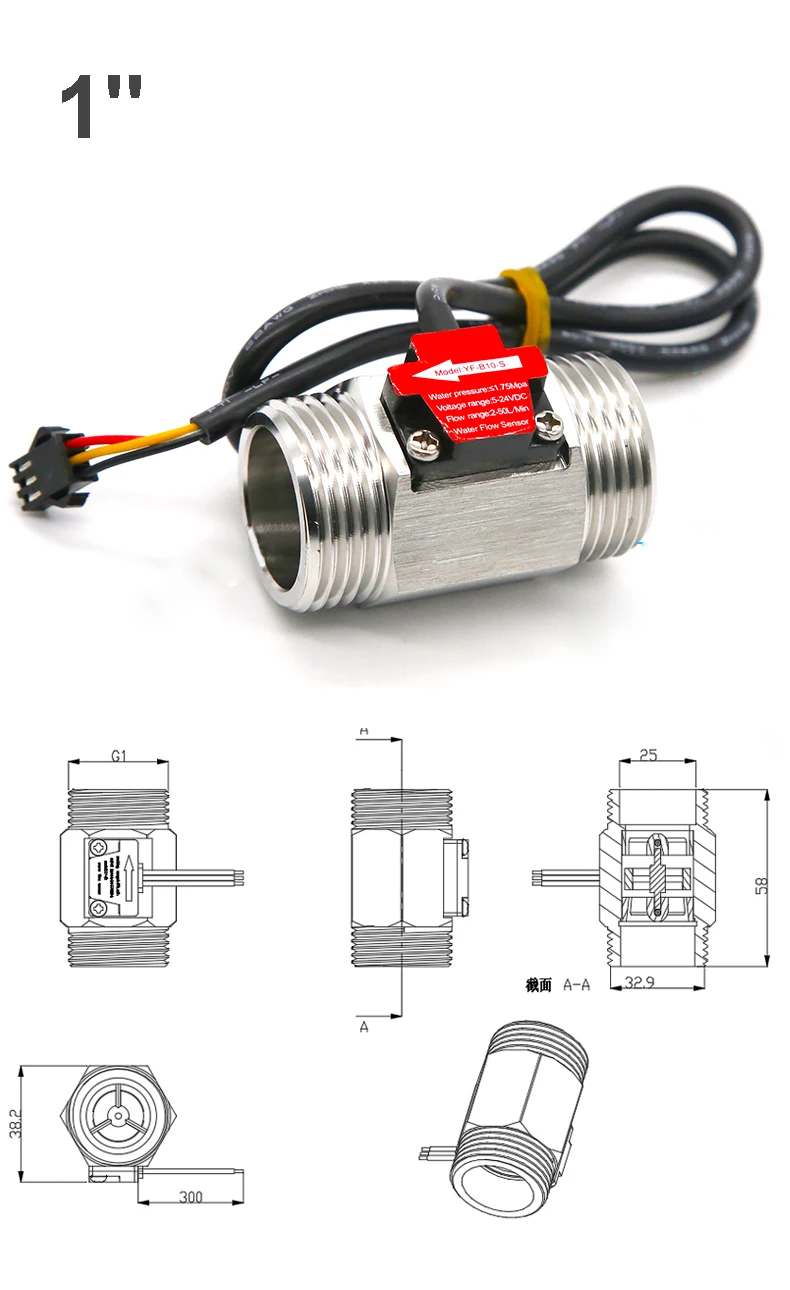

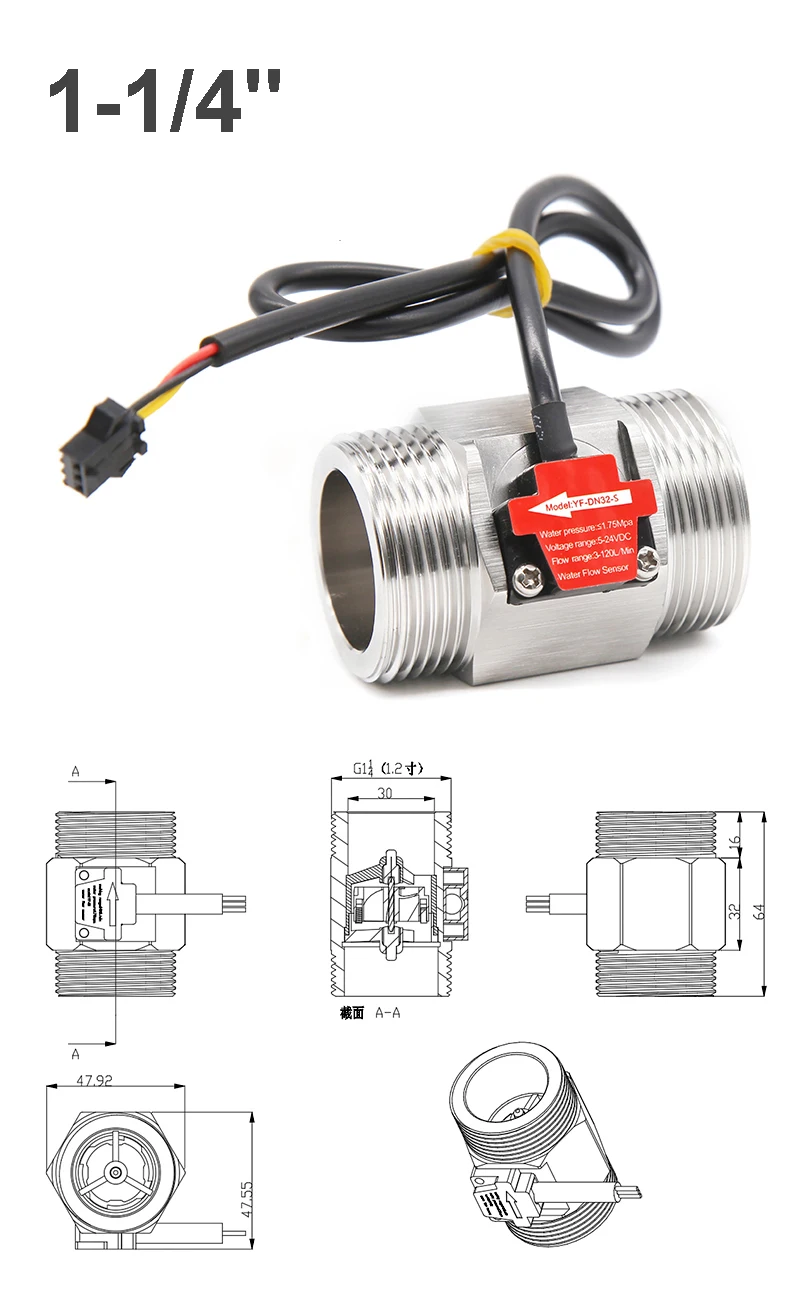

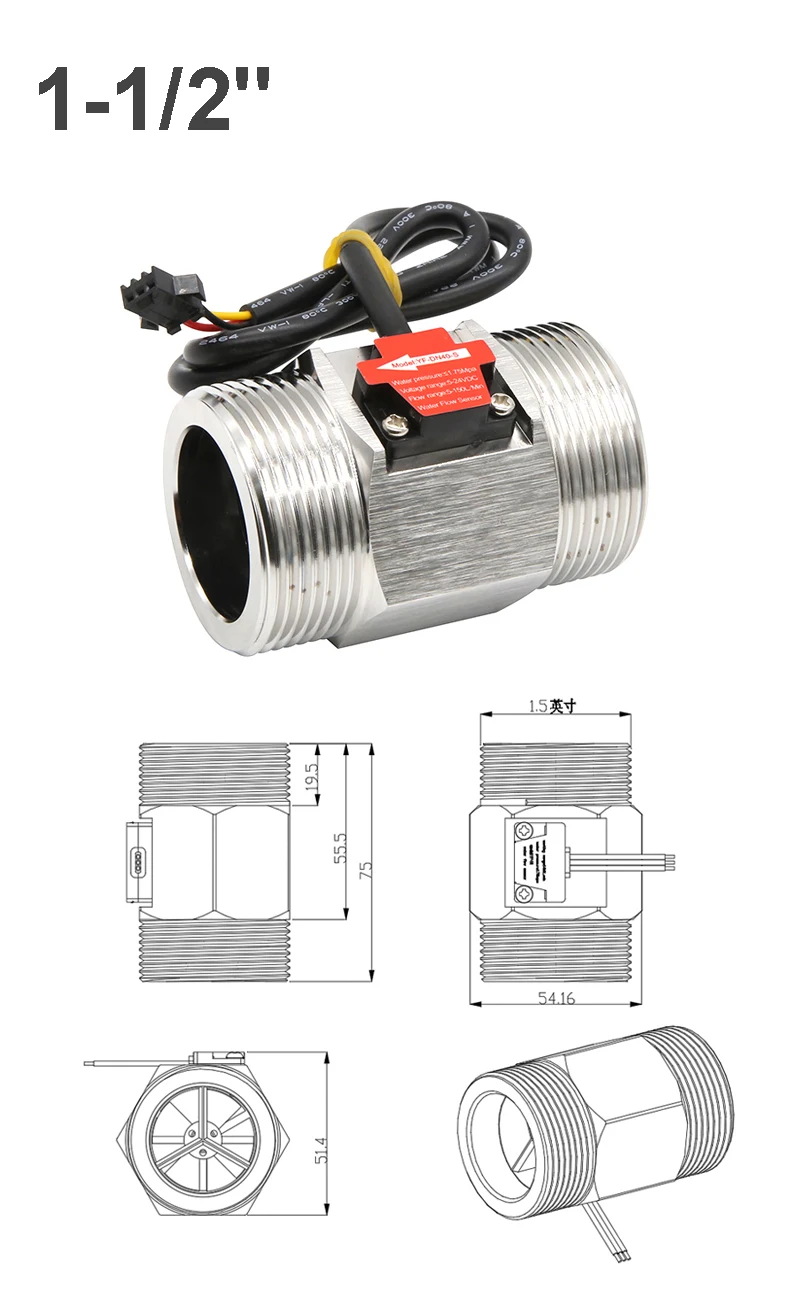

External threads: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

Specifications:

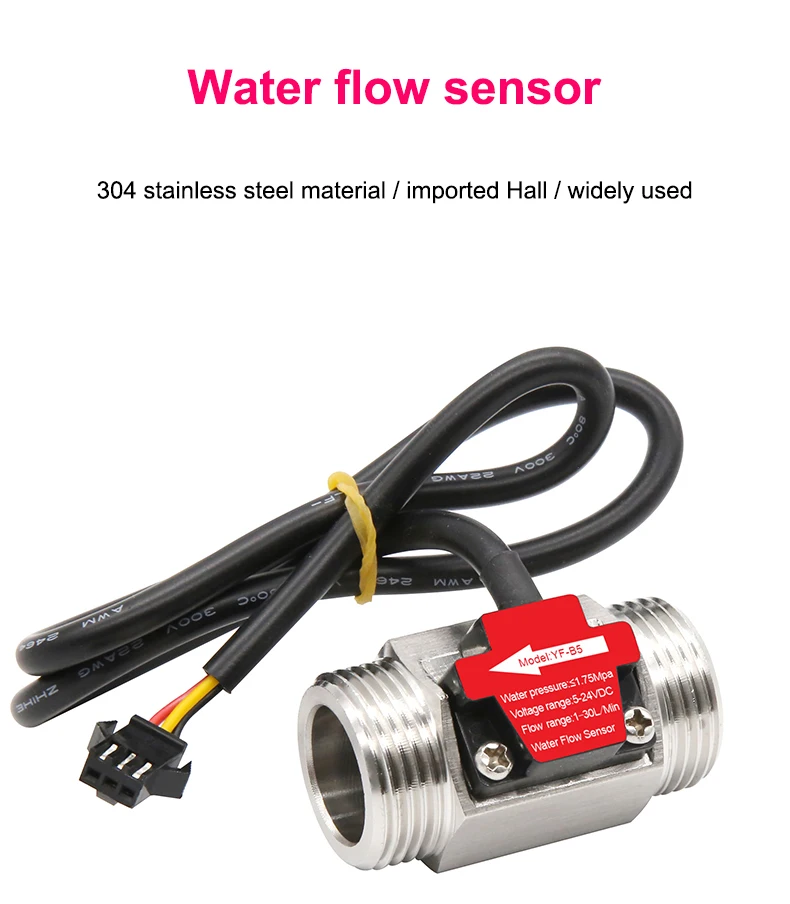

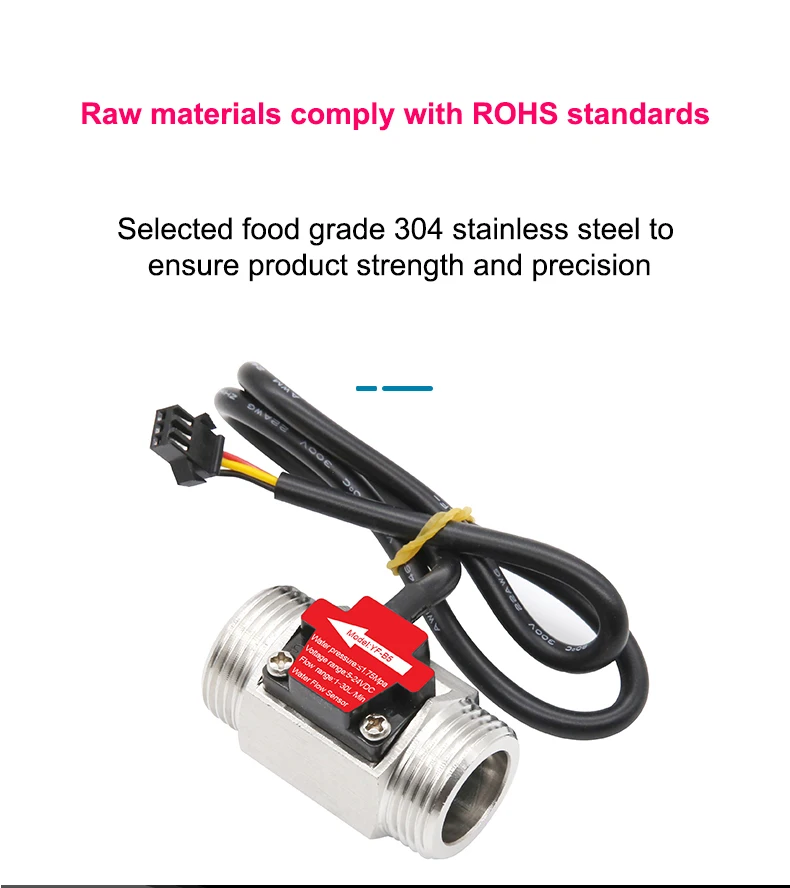

The water flow sensor is mainly composed of a brass valve body, a water flow rotor assembly and a Hall sensor. It is installed at the water inlet end of the water heater to detect the water flow rate. When the water passes through the water flow rotor assembly, the magnetic rotor rotates and the speed changes with the flow rate. The Hall sensor outputs the corresponding pulse signal and feeds it back to the controller. The device judges the size of the water flow and regulates it.

Description:
