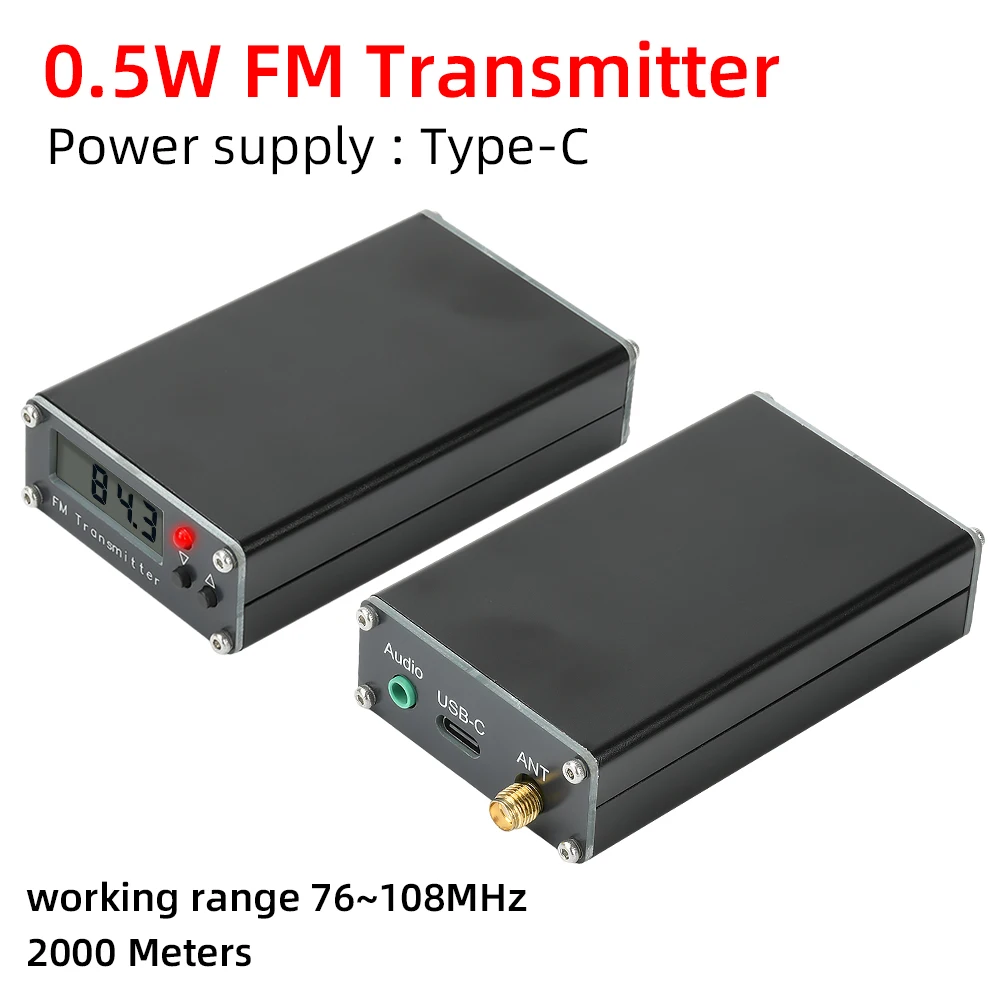

2000M FM Transmitter, 76-108MHz 0.5W LCD Digital Display Adjustable-Frequency Transmitter, Type C Interface

Product Features:

1. Digital FM transmitter supporting the 76–108 MHz frequency band, with 320 selectable frequencies.

2. Output power: 0.5 W (500 mW); measured transmission range in open terrain reaches 2 kilometers.

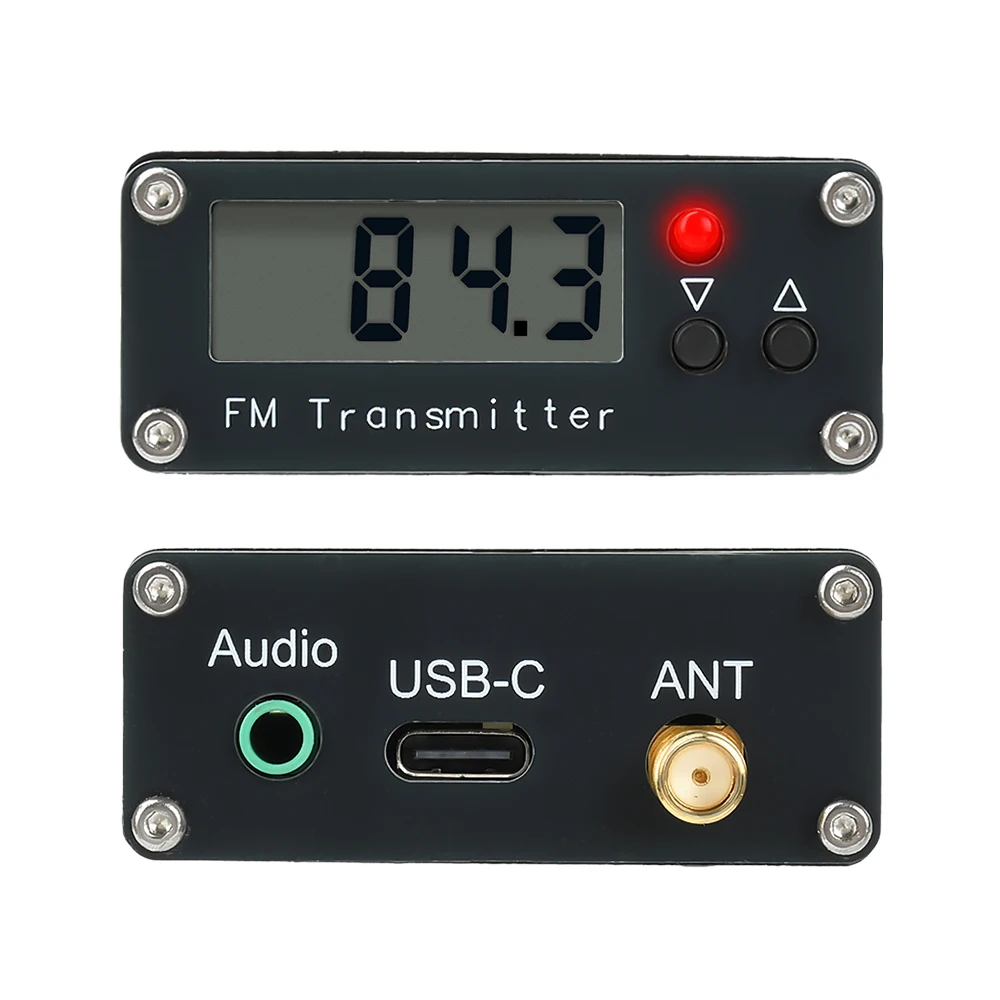

3. Equipped with an LCD display that shows the current transmission frequency in real time, making operation intuitive.

4. Supports stereo audio input with a signal-to-noise ratio of 63 dB, delivering clear and stable sound quality.

5. Compact and portable dimensions of 8.5 x 5 x 2 cm; includes accessories such as a telescoping antenna and power cord.

Product Specifications:

Interface: USB Type-C

Supply Voltage: 5V

Supply Current: 500mA

Input Signal: Stereo audio, standard 3.5mm jack

Signal-to-Noise Ratio: 63dB, 0.05% THD

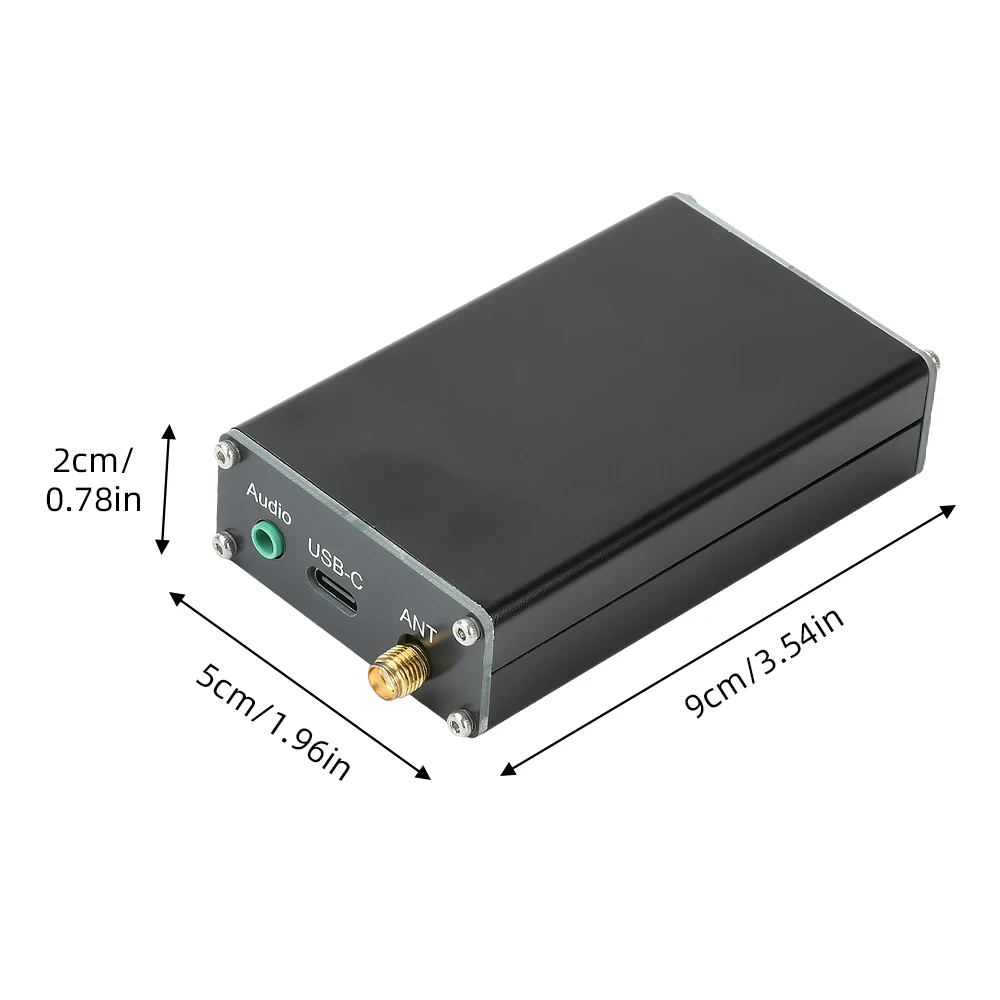

Dimensions: 8.5 x 5 x 2 cm (excluding protruding parts)

Output Frequency: Adjustable frequency, operating range 76–108 MHz, 1 MHz or 0.1 MHz steps, totaling 320 transmission frequencies, with memory function.

Output Power: 10–500 mW (0.01–0.5 W) @ 88–108 MHz.

Receiving Devices: Standard radios; any radio capable of receiving FM broadcasts can reliably receive signals transmitted by this transmitter.

Display: LCD display showing the current transmission frequency. See the manual for details. Includes instructions for building an FM transmission antenna; field tests show this transmitter can reach distances of up to 2,000 meters in open areas.

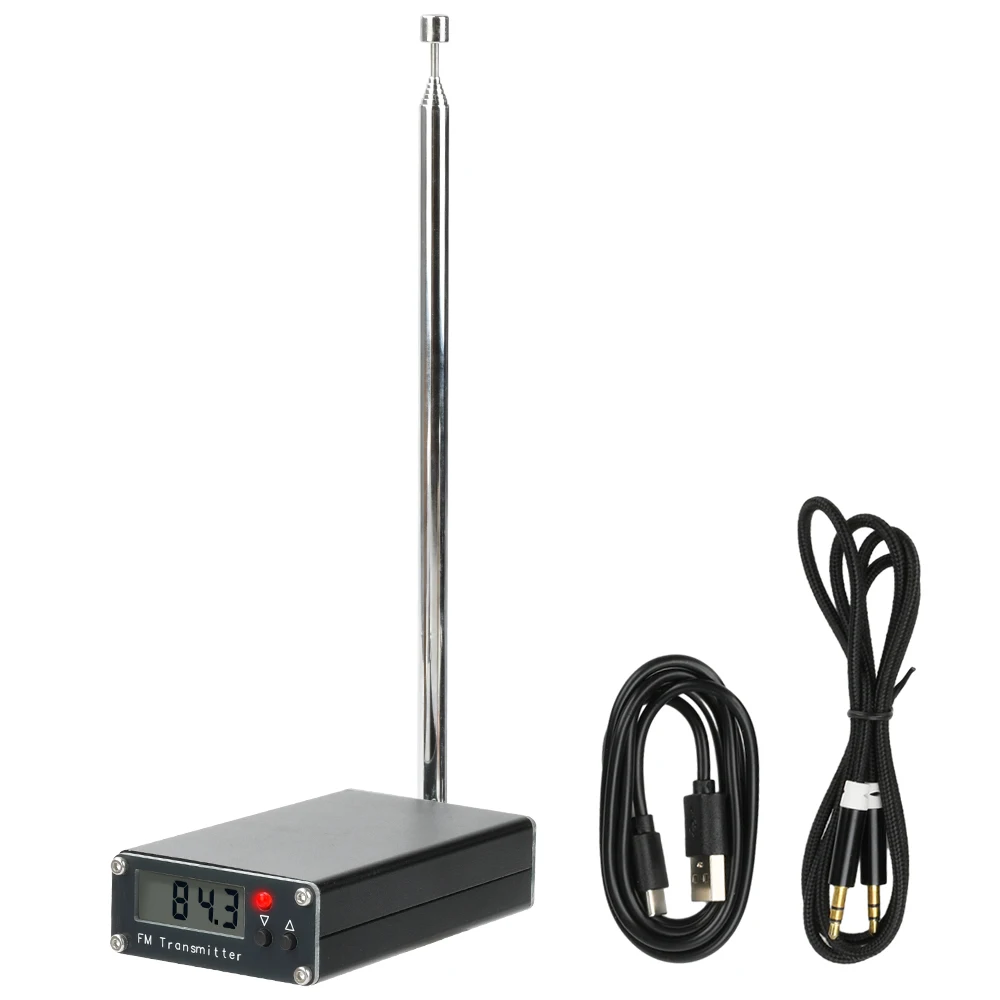

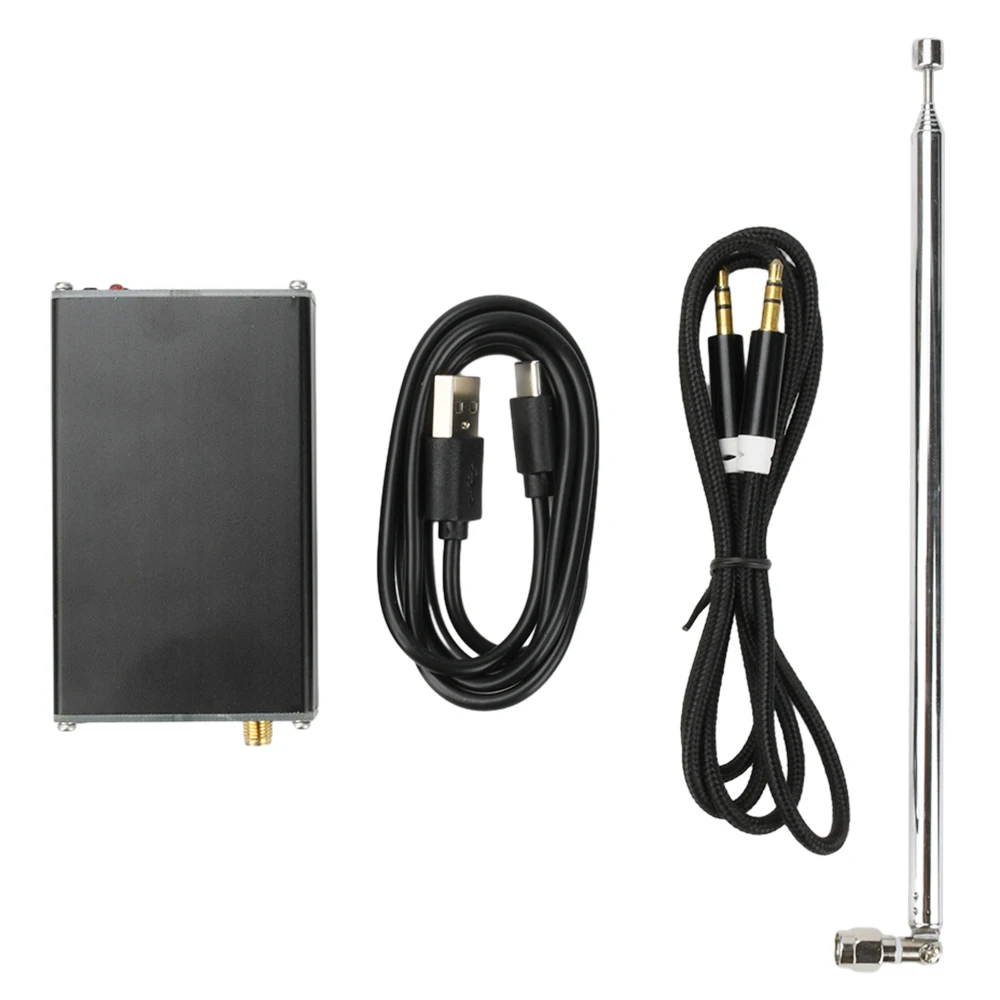

Contents:

1x Main Unit

1x Telescopic Antenna (1 meter)

1x Power Cord

1x Audio Cable

Notes:

1. This is a transmitter, not a radio!

2. This transmitter cannot be directly connected to a microphone; it does not support microphone input!

3. The transmitter does not contain a battery and requires an external power source.

4. This is a transmitter and cannot be used to boost radio signals. To boost signals, please purchase an outdoor antenna or an antenna amplifier.

5. Areas on the transmitter—such as sockets and buttons—that require repeated force have been manually re-soldered to prevent damage.

Disclaimer: When using wireless transmitting equipment, please comply with the relevant regulations of your local radio regulatory commission and national laws. This store assumes no responsibility for any unauthorized modifications to increase transmission power or extend the operating range.
