-46%
2021 Tecsun PL-368 64-108MHz Full Band Radio Stereo Radio SSB DSP Radio Digital Demodulation USB Charge
$263.12
Reference price: $487.26
Save 46%
Qty:
- Fast delivery
- 30-day returns
Ships to Canada · Delivery Approximately 7 days (supplier estimate)
Sold by TBII
For Tecsun PL-368 Full Band Radio Stereo Radio SSB DSP Radio Digital Demodulation USB Charge Black
Advantages:
- Full band: global broadcasting system
- SSB minimum step 10Hz
- SYNC synchronous detection
- DSP digital signal processing
- Smart meter band display
- 9K/10K medium wave step selection
- Keyboard lock function
- ETM+ convenient tuning
- ATS automatic station search/save station
- Memorize 850pcs stations
- FM coverage 64-108MHz, 87-108MHz
- RSSI & SNR
- Broadband/Narrowband AM bandwidth selection
- Direct input frequency/address
- Smart sleep shutdown
- Timing boot
- Thermometer
- FM stereo
- Smart screen lighting
- Lithium battery powered
- USB smart charging
Function Introduction:
- Friendly human-machine interface and easy operation
- Can receive FM stereo, medium wave, long wave, short wave, single sideband (SSB) communication signals
-Use modern DSP digital demodulation technology to improve listening sensitivity, selectivity, signal-to-noise ratio and anti-interference ability
- FM reception range 64-108MHz, suitable for global FM broadcast reception
- Shortwave single sideband (SSB) minimum step 10Hz, upper sideband (USB) and lower sideband (LSB) are received independently
- Apply synchronous detection technology to suppress adjacent channel interference
-7 ways to select channels: convenient tuning (ETM+), automatic search and browse radio frequency, automatic search and browse stored radio stations, manual search for radio frequency (VF), manual search for stored radio stations (VM), direct input of frequency numbers, direct input of saved radio station's address number
- Enhanced convenient tuning (ETM+), ETM is carried out in the unit of hour for short wave and 6 time periods for medium wave, which is more convenient for tuning
-It can store up to 850 radio frequencies manually, semi-automatically and fully automatic (ATS), among which 100 frequency points for FM/long wave/single sideband/synchronous detection can be stored, 150 for medium wave, and 300 for short wave
- Multifunctional display: It can display the working status of radio frequency, electric field intensity,
signal-to-noise ratio, temperature, battery capacity, etc.
- Adopt high-quality and high-sensitivity speakers, beautiful sound, you can use headphones to hear FM stereo
- With broadcast timing automatic power-on function
-Very user-friendly power switch function: you can set automatic shutdown after 1-120 minutes after booting, or cancel automatic shutdown function

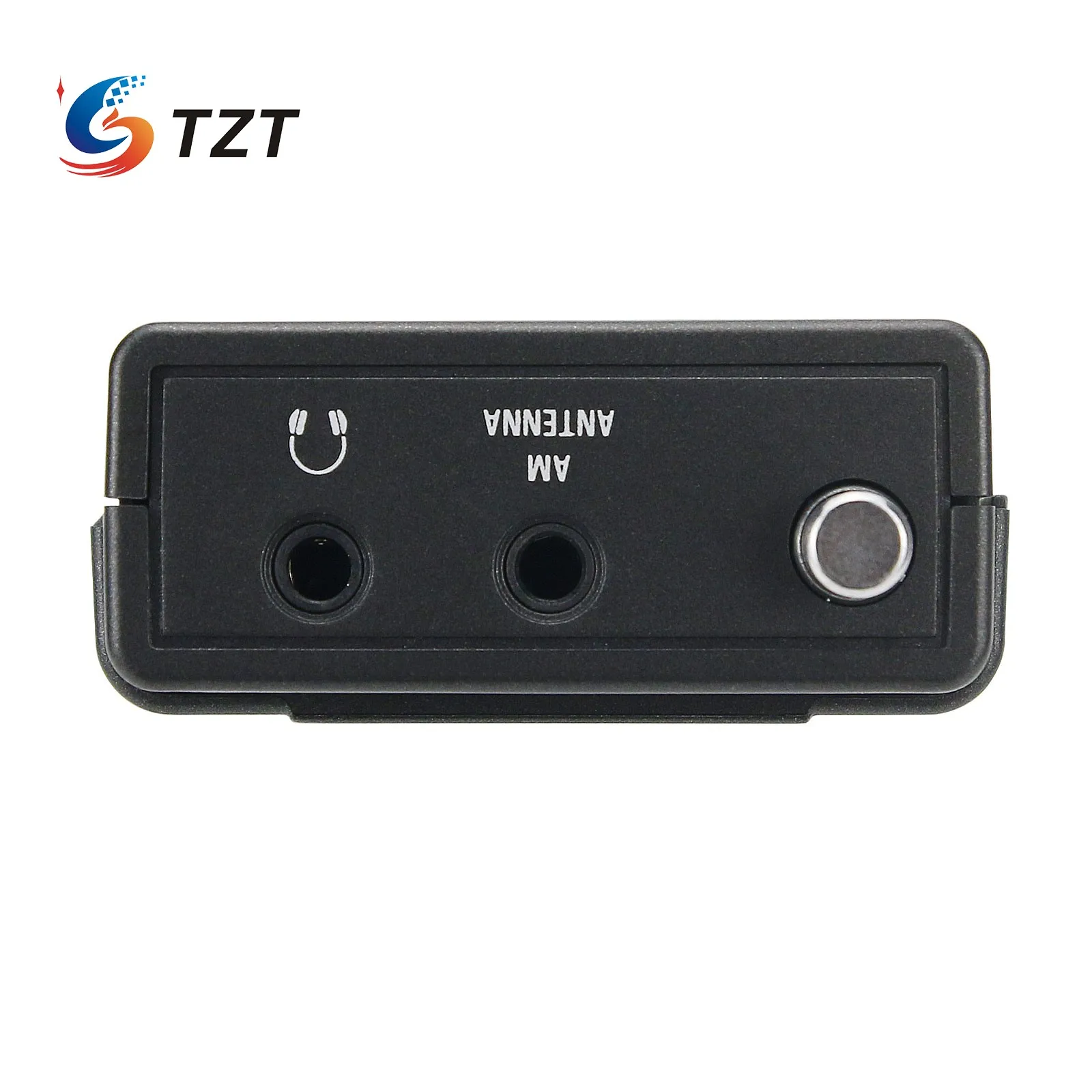

- With medium wave external antenna socket
- Powered by lithium battery or USB power supply, or be charged
- Product size: 53x162x26mm (WxHxThickness)
Performance Parameters:
Frequency range and tuning step:
* Long wave (LW): 153-513kHz
* Medium Wave (MW): 520-1710kHz/522-1620kHz
* Shortwave (SW1): 1711-29999kHz
* Frequency Modulation (FM): 64-108MHz/76-108MHz/87-108MHz/88-108MHz
Noise limit sensitivity:
* Long wave (S/N=26dB): <10mV/m
* Medium wave (S/N=26dB): <1mV/m
* Shortwave (S/N=26dB): <20μV
* Frequency modulation (S/N=30dB): <3μV
Selectivity:
* Long wave: >60dB
* Medium wave: >60dB
* Shortwave: >60dB
* Frequency modulation: >60dB
* Locking range of synchronous detection frequency: ±1kHz
* Intermediate frequency (DSP): AM 45kHz; FM 128KHz
* FM stereo separation: ≥35dB
* Speaker: diameter 40mm, 16Ω, 0.5W
Storable frequency address (excluding ETM):
* Longwave/FM: 100 each
* Single sideband/synchronous detection: 100 each
* Medium Wave: 150
* Shortwave: 300
* Maximum output power: about 350mW
Quiescent current:
* Long wave/medium wave/frequency modulation: <25mA
* Shortwave: <45mA
* Standby current: <90μA
Power supply:
* 3.7V (one BL-5C lithium battery)
* External DC power supply USB Micro Type-B 5V current ≥500mA
* Charger/power adapter: USB DC 5V, current ≥500mA (purchase separately)
* Product size: 162x53x26mm (The telescopic antenna is stowed, without the size of the external magnetic rod antenna)
* Net weight: about 130g (excluding the weight of the external magnetic rod antenna of the lithium battery box)
Package Included:
- 1 x Set of Stereo Radio
Advantages:
- Full band: global broadcasting system
- SSB minimum step 10Hz
- SYNC synchronous detection
- DSP digital signal processing
- Smart meter band display
- 9K/10K medium wave step selection
- Keyboard lock function
- ETM+ convenient tuning
- ATS automatic station search/save station
- Memorize 850pcs stations
- FM coverage 64-108MHz, 87-108MHz
- RSSI & SNR
- Broadband/Narrowband AM bandwidth selection
- Direct input frequency/address
- Smart sleep shutdown
- Timing boot
- Thermometer
- FM stereo
- Smart screen lighting
- Lithium battery powered
- USB smart charging
Function Introduction:
- Friendly human-machine interface and easy operation
- Can receive FM stereo, medium wave, long wave, short wave, single sideband (SSB) communication signals
-Use modern DSP digital demodulation technology to improve listening sensitivity, selectivity, signal-to-noise ratio and anti-interference ability
- FM reception range 64-108MHz, suitable for global FM broadcast reception
- Shortwave single sideband (SSB) minimum step 10Hz, upper sideband (USB) and lower sideband (LSB) are received independently
- Apply synchronous detection technology to suppress adjacent channel interference
-7 ways to select channels: convenient tuning (ETM+), automatic search and browse radio frequency, automatic search and browse stored radio stations, manual search for radio frequency (VF), manual search for stored radio stations (VM), direct input of frequency numbers, direct input of saved radio station's address number
- Enhanced convenient tuning (ETM+), ETM is carried out in the unit of hour for short wave and 6 time periods for medium wave, which is more convenient for tuning
-It can store up to 850 radio frequencies manually, semi-automatically and fully automatic (ATS), among which 100 frequency points for FM/long wave/single sideband/synchronous detection can be stored, 150 for medium wave, and 300 for short wave
- Multifunctional display: It can display the working status of radio frequency, electric field intensity,
signal-to-noise ratio, temperature, battery capacity, etc.
- Adopt high-quality and high-sensitivity speakers, beautiful sound, you can use headphones to hear FM stereo
- With broadcast timing automatic power-on function
-Very user-friendly power switch function: you can set automatic shutdown after 1-120 minutes after booting, or cancel automatic shutdown function
- With medium wave external antenna socket
- Powered by lithium battery or USB power supply, or be charged
- Product size: 53x162x26mm (WxHxThickness)
Performance Parameters:
Frequency range and tuning step:
* Long wave (LW): 153-513kHz
* Medium Wave (MW): 520-1710kHz/522-1620kHz
* Shortwave (SW1): 1711-29999kHz
* Frequency Modulation (FM): 64-108MHz/76-108MHz/87-108MHz/88-108MHz
Noise limit sensitivity:
* Long wave (S/N=26dB): <10mV/m
* Medium wave (S/N=26dB): <1mV/m
* Shortwave (S/N=26dB): <20μV
* Frequency modulation (S/N=30dB): <3μV
Selectivity:
* Long wave: >60dB
* Medium wave: >60dB
* Shortwave: >60dB
* Frequency modulation: >60dB
* Locking range of synchronous detection frequency: ±1kHz
* Intermediate frequency (DSP): AM 45kHz; FM 128KHz
* FM stereo separation: ≥35dB
* Speaker: diameter 40mm, 16Ω, 0.5W
Storable frequency address (excluding ETM):
* Longwave/FM: 100 each
* Single sideband/synchronous detection: 100 each
* Medium Wave: 150
* Shortwave: 300
* Maximum output power: about 350mW
Quiescent current:
* Long wave/medium wave/frequency modulation: <25mA
* Shortwave: <45mA
* Standby current: <90μA
Power supply:
* 3.7V (one BL-5C lithium battery)
* External DC power supply USB Micro Type-B 5V current ≥500mA
* Charger/power adapter: USB DC 5V, current ≥500mA (purchase separately)
* Product size: 162x53x26mm (The telescopic antenna is stowed, without the size of the external magnetic rod antenna)
* Net weight: about 130g (excluding the weight of the external magnetic rod antenna of the lithium battery box)
Package Included:
- 1 x Set of Stereo Radio
