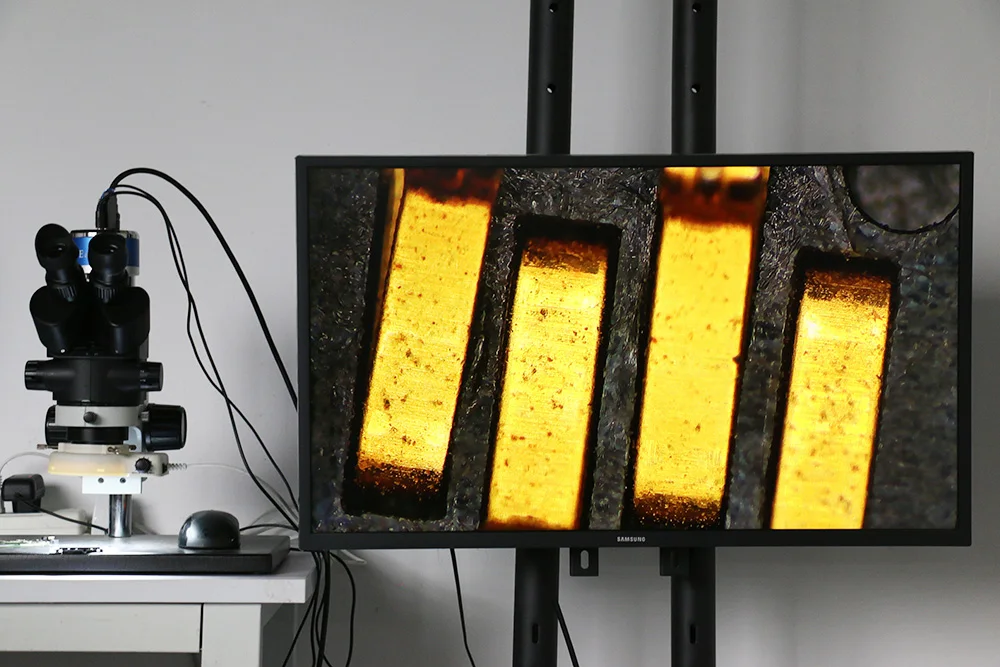

3.5X-180X Zoom Industry Stereo Trinocular Microscope 48MP 4K 2K HDMI USB Video Camera Desktop Folding Stand PCB Soldering Kit

Note: The microscope is packaged in a foam box. Some accessories will be placed in slots on the back of the two foam boxes. The microscope's 76mm diameter supports only one screw for securing it. If you have any questions, please contact customer service. Thank you.

Stereo microscopes are easy to operate and widely used.
1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.

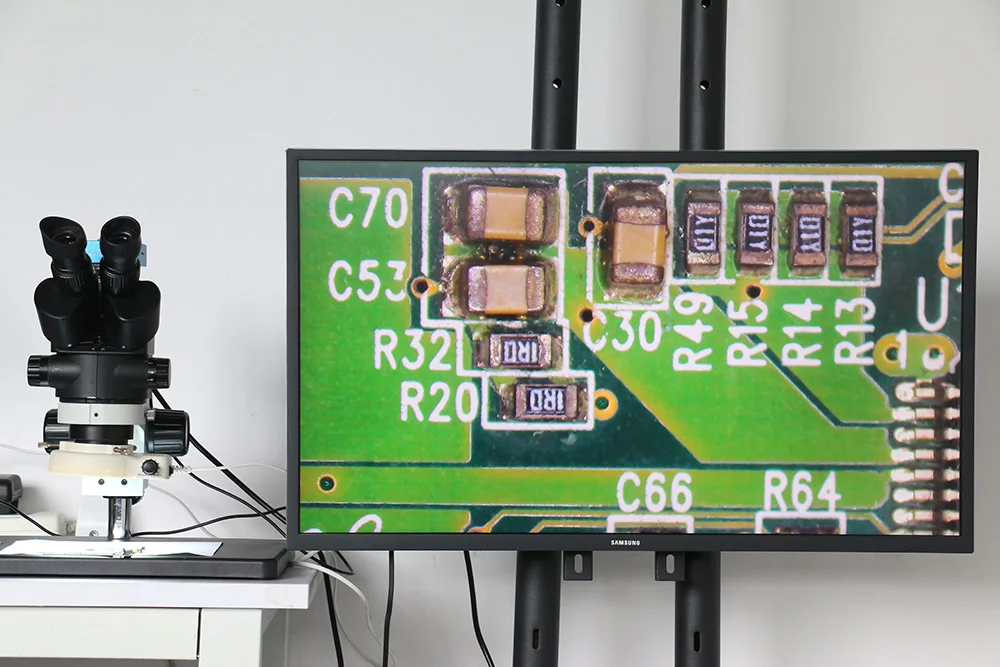

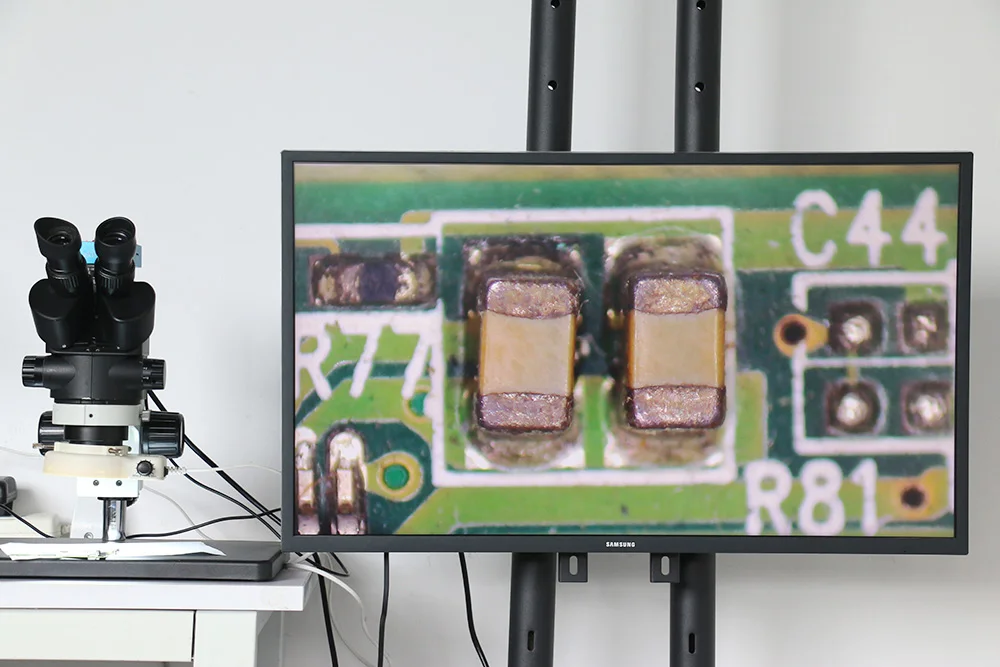

3. In the electronics industry, it is used as operating tools such as transistor soldering, mobile phone electronic maintenance, watch maintenance and inspection.
4. In biological anatomy, applied to local anatomy.
5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.
6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.
7. Cultural relics, books, coins, calligraphy and paintings, the inspection
8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.

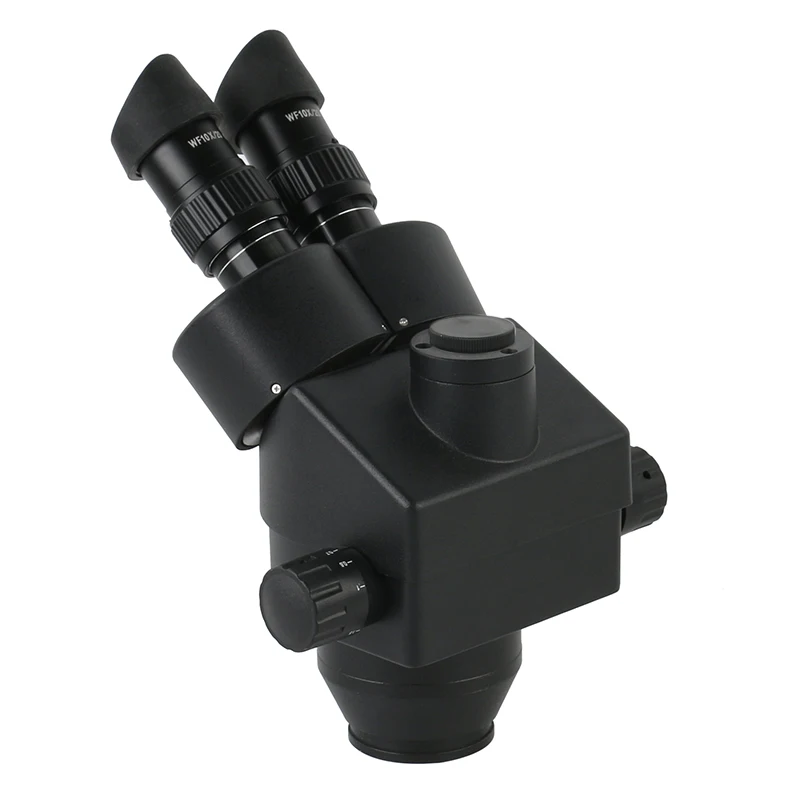

Microscope Head Feature:

7X - 45X Continuous Zoom Magnification Power
45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
Trinocular port for adding photo or video capability
30mm Super Widefield WF10X Eyepieces with 20mm Field of View
High Resolution with Great Flatness and Contrast
Sharp Stereo Erect Images over a Wide Field View
Crystal Clear Original True Color Images
Large Working Distance
Accurate Alignment Ensuring a Fatigue-Free Viewing
Full Optical Glass Elements
Precise Ground Glass Lens
All Metal Mechanical Components
Adjustable Interpupillary Distance
Manufactured under ISO 9001 Quality Control Standard

Specifications:Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8" to 3"(54-76mm)
Field of View: 1-1/4" (33mm)
Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)
Head Mounting Size: 3" (76mm) diameter
Accessory Mounting Size: 1-7/8" (48mm female thread) diameter

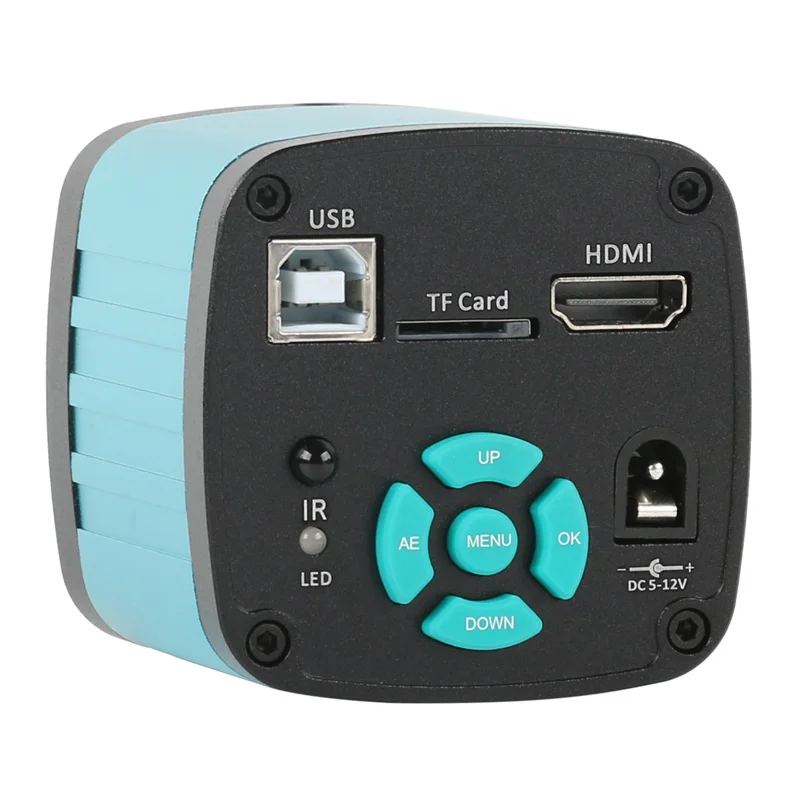

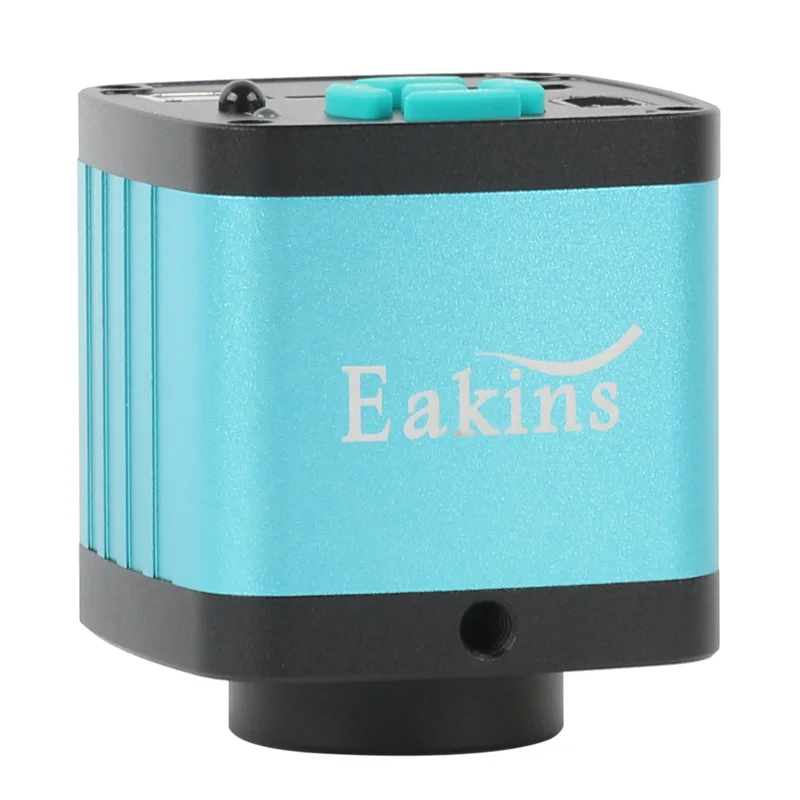

55MP 4K 2K HDMI USB Feature:

Picture Pixel: 9885X5560  55M Pixel  9280X5220  48M Pixel
Video Frame rate: 4K(4:3)@24fps/2K@30fps/1080P@60fps
CMOS censer: SONY  1/2.33 inch
CMOS pixel: 1.33um x 1.33um
Color setting: Auto
White balance: Auto/one button calibration/Manual
EV: Auto/Manual
Camera mode HDMI output: 1080P @60 FPS
Grid line: 8 horizontal lines, 8 vertical lines
TF card: 4GB (Up to 128GB max)
Cross line: Overlap or Cancel
Lens jack: Standard C
Power: 5V-12V/1A
Size: 68x68x33mm
Weight: 200g
Working temperature: 0-70℃

HDMI VGA Type-c Feature:
Sensor type:1/2.8" Sony Color CMOS
Effective pixels:1920H*1080V
Data bits: 16bit
Pixel size:2.9μm*2.9μm
Frame rate:60 frames per second (HDMI or VGA), 30 frames per second (UVC)
Definition:The maximum definition is above 1000TV lines
Scanning method:Progressive
Shutter Type:Electronic Shutter
Dynamic range:>90dB
Signal-to-noise ratio:55dB
Sensitivity:2.0 V/lux-sec (550nm)
Exposure mode:manual/automatic
White balance:automatic/manual
Lens interface:C/CS
Video interface:GA, HDMI and Type-C UVC synchronous output
Output resolution: 1920*1080(16:9) / 1920*1080(16:10) / 1280*720 / 1024*768 (4:3)
Power supply:Type-C power supply, DC 5-12V/1A
Language:Chinese, English, Japanese, Korean, Portuguese, Spanish, Russian, Italian, German!
Menu function:1, crosshairs:1-30 groups, optional color, adjustable size.
2. Scale bar, center cursor, center line


48MP 2K HDMI USB  Features:
Specification:
Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Panasonic sensor
Frame rate: 60F/S @ HDMI output
Movie size:4K(30fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A

4K HDMI TYPE-C
Sensor:1/2.8 Sony IMX 415 Sensor
Pixel Size:1.45μm * 1.45μm
HDMI Output:4K 3840*2160 30/Fps 1920*1080 60/Fps
TYPE-Coutput:3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
Lens Interface:C/CS
Exposure:Automatic/manual/one key exposure
Exposure Compensation:Support
White Balance:Automatic/manual/one-key white balance, support RGB adjustable
Input Voltage:DC 5V
Parallel Lines:Support 16 straight/vertical lines, adjustable in color, thickness and position
Housing:Aluminum Alloy
Camera Interface:C/CS C Mount
Video Display:HDMI Monitor or PC
Video Recording:4K/1080P
Image:4K/3840*2160 1080P/1920*1080 720P/1280*720
Digital Magnification:1X-5X digital zoom
White Balance:Auto/Manual/One Key Exposure
Thread Mounting Diameter:25mm
Cross Cursor:Support Multi-color, Size Adjustable
TF Card Interface:Max 64G
Video Format:MOV
Language:Chinese/English
Image Freezing:Support
Image Flip:Support
Video and Pictures Storage:Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Color:Color and Black and White
Image Mirroring:Horizontal,Vertical,Inverted,Normal
Remote:Infrared Remote Control
Brightness:1-50 Adjustable
Contrast:1-50 Adjustable
Saturation:1-50 Adjustable
Clarity:1-20 Adjustable
Power Supply:5V 1A Type-c Power Supply

HDMI TYPE-C
Chip Structure:ARM dual-core architecture
Operating System:LINUX
Core Structure:Dual-core ARM Cortex-A7
Main Frequency:900MHz
Sensor Type:1/2.8" Sony IMX307 Color CMOS
Video Interface:HDMI USB Type-C Output
Material:Aluminum Alloy
Effective Pixel:Full HD
Operation Mode:USB Mouse
Operation Interface:UI



HDMI Video Resolution Output:1080P 60fps@1920*1080/60fps@1280*720
USB Video Resolution Output:1080P 60fps@1920*1080
Video Recording:1080P 60FPS;720P 30FPS
Pixel Size:2.90*2.90μm
Frame Rate:60 frames per second (HDMI)
Exposure Time:0-999MS
Exposure Mode:Manual/Automatic
White Balance:Automatic/Manual
Video Format:AVI
Image Format:JPG
U disk Support Format:FAT32
U disk Supports Maximum Storage:128G
Language:Chinese, English,Japanese, Korean
Electronics Digital Zoom:1-10x
Picture and Video Storage:Support U disk Storage
Video and Picture Playback:Support
Basic function:Brightness, Contrast,Saturation, White Balance
UI Interface:Easymouse Control
Measuring Function:Straight Line, Circle, Rectangle, Parallel line, etc
Mirroring,B&W Pictures,Image Freezing,Image Flip:Support
Reticle:8 Sets of reticle,can adjust color,size,shift and hide
Objective Zoom Magnification:1.0-100
Eyepiece Zoom Magnification:1.0-2.0
Monitor Size:Optional
Wide Dynamic Range:Suppor
Regional Zoom Magnification:Suppor
Center Scale:Suppor
Anti-flicker:Automatic/50Hz/60Hz
Color Temperature:2961K-9000K
Acutance:0-100% Adjustable
Brightness:0-100% Adjustable
Contrast:0-100% Adjustable
Saturation:0-100% Adjustable
Noise Reduction:0-100% Adjustable
Clarity:0-100% Adjustable
Flip:Horizontal Flip or Vertical Flip
BW Mode:Suppor
Power:DC-12V/1A
Size:55*55*58.16mm
Weight:0.22kg

76mm Microscope Stand Features:
Expand the scope of operations,any orientation and angle observed the objectives.
Vertical Height : 260mm
Horizontal Distance:400mm
Fix: Screw
Applicable: 32mm or 25mm focusing
Maximum working distance: 400mm
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm or 76mm
50mm apply monocular lens
76mm apply stereo microscope

Package Including:
1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X22MM Eyepieces
1 x Pair of Super Widefield 20X10MM Eyepieces
1 x Pair of Eye-Guards
1 x Dust Cover
1 x C-mount Adapter
1 x 56-LED Ring Light with Adapter
1 x High Temperature Insulation Pad
1 x Articulating Arm Set
1 x 0.5X C-mount Adapter
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 160 mm)
1 x 0.7X Microscope Auxiliary Objective Lens(Working Distance 120 mm)
1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)
(Optional)
1 x Microscope Camera
1 x 12V Power Adapter
1 x HDMI Cable

Please note. Kit items, including camera and options without camera, the price of the item without camera is the lowest, please pay attention to your choice!
