45KG Waterproof IP68 Digital Servo Coreless Motor 180/270/360 Degree High Torque RC Model Car Industrial Grade Robotic Servo
$102.64
Qty:
- Fast delivery
- 30-day returns
Ships to Canada · Delivery Approximately 7 days (supplier estimate)
Sold by TBII
45KG Waterproof IP68 Digital Servo Coreless Motor 180/270/360 Degree High Torque RC Model Car Industrial Grade Robotic Servo
Please note: 360° continuous rotation servo, angle cannot be controlled.
Please note: 360° continuous rotation servo, angle cannot be controlled.
Specification | ||
Operating Voltage | 6.4V-8.4V | |
Standby Current | ≤ 20mA | |
Stall Current | 6.0V | ≤ 5A |
7.4V | ≤ 8A | |
8.4V | ≤ 9A | |
No Load Speed | 6.0V | ≤ 0.14sec/60° |
7.4V | ≤ 0.11sec/60° | |
8.4V | ≤ 0.1sec/60° | |
Max.Torque | 6.0V | ≥ 36 kgf.cm |
7.4V | ≥ 42 kgf.cm | |
8.4V | ≥ 48 kgf.cm | |
Rotating Direction | CCW(500-2500us) | |
Pulse Width Range | 500-2500us | |
Neutral Position | 1500us | |
Operating Travel Angle | 180±10'(500-2500us) | |
Max,Operating Travel Angle | 358°+10*(500-2500us) | |
Mechanical timit Angle | 360° | |
Dead Band Width | ≤ 2 us | |
Oporating Temparature Range | -20℃-+80℃ | |
Storage Temperature Range | -20℃-+60℃ | |
Weight | 100g | |

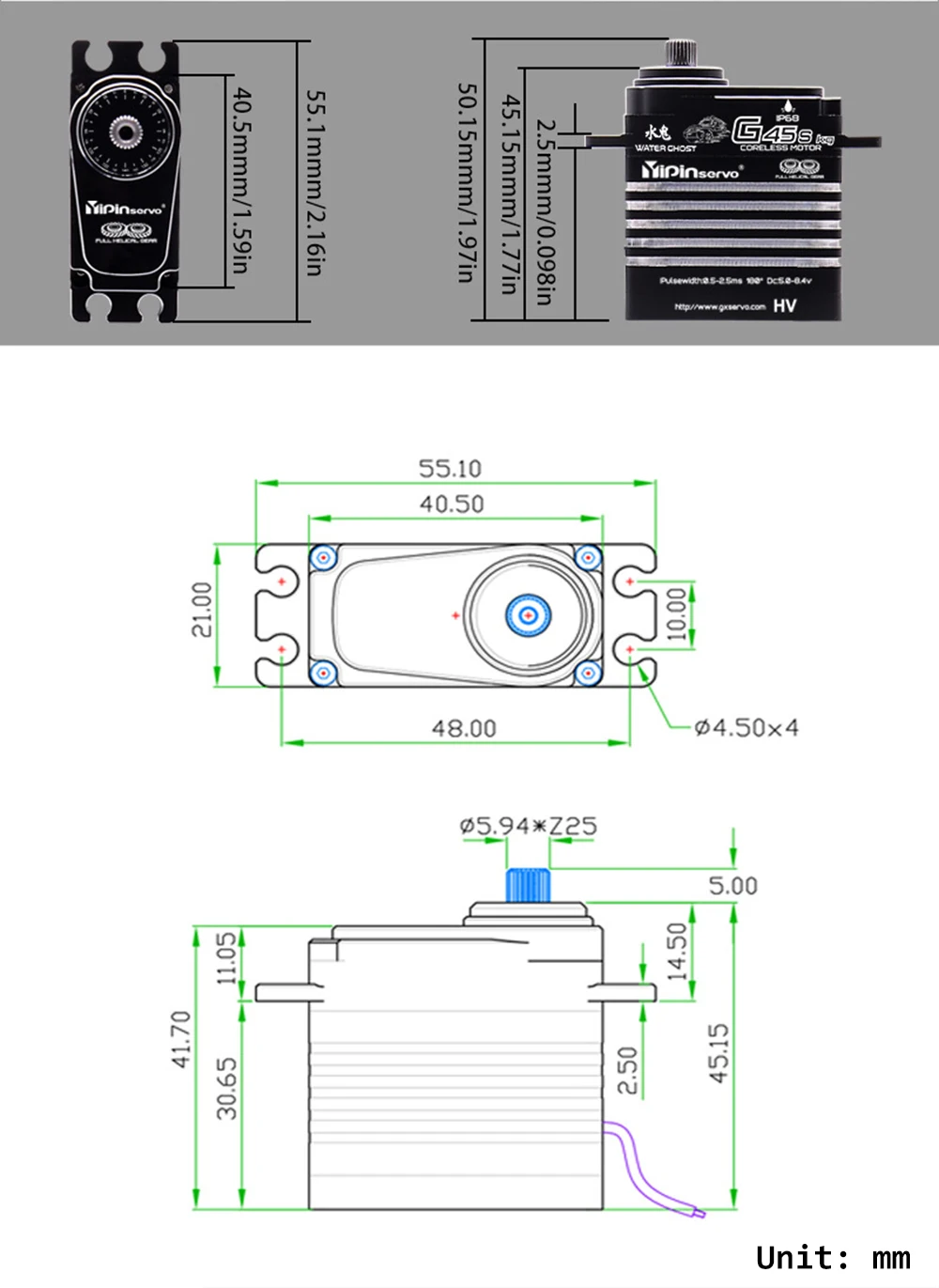

sizes | 41x20x28.5mm | |
Case Material | Aluminium Alloy | |
Gear Set Material | Metal gear | |
Motor Type | Coreless motor | |
Waterproof | IP68 |

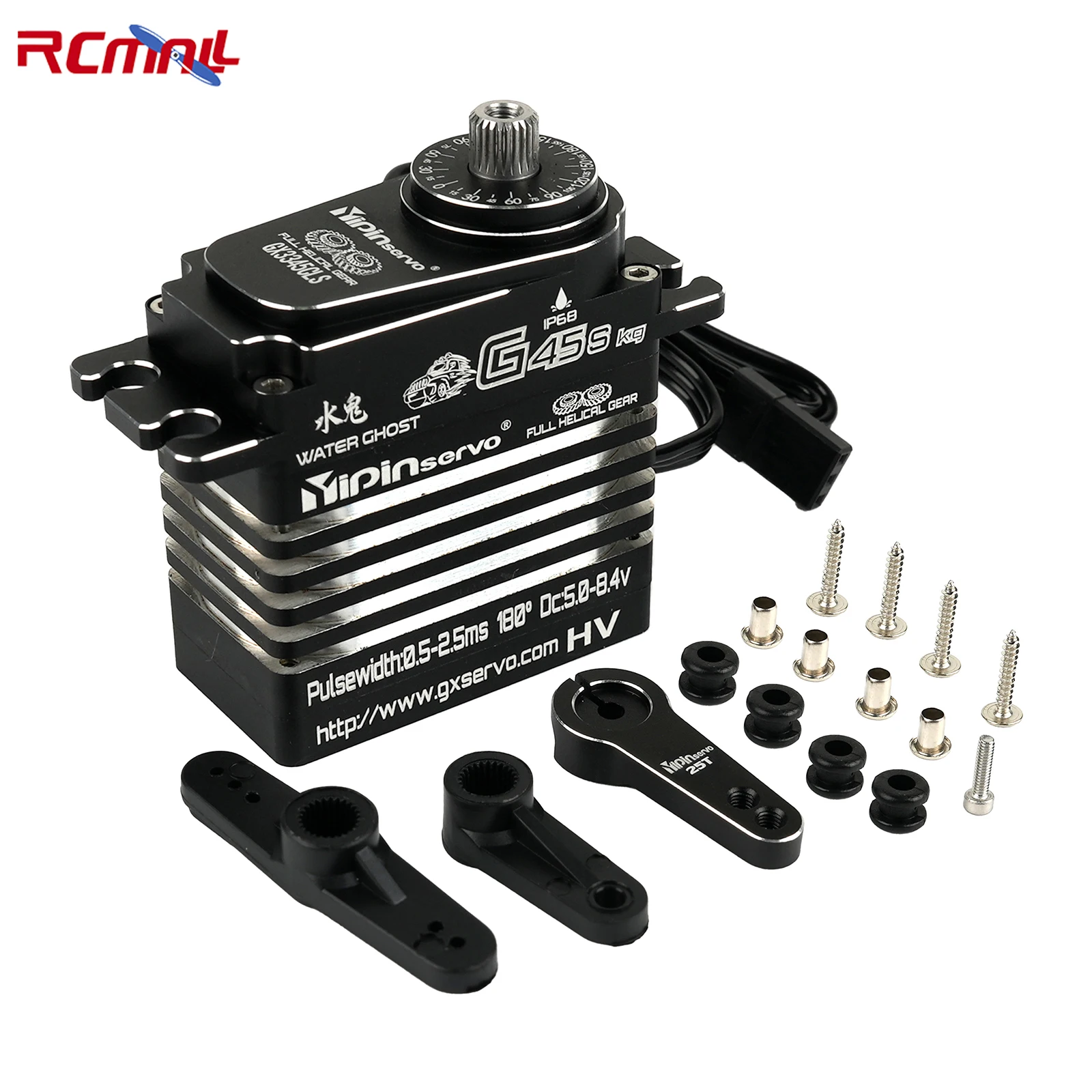

Package inlcudes:
1 x servo with 25T metal arm
