4K Digital Microscope For Anti-Glare Inspection, 1/1.8in IMX678 Sensor HDMI USB Microscope Camera , 215X Lens Video Microscope

🔥Microscope chip showcase

🔥215X Microscope Kit

The advantages of this 215X microscope kit are its high magnification and anti-glare performance, allowing you to clearly observe surface details of metals and solder joints. It is suitable for the following applications: PCB solder joint inspection, soldering check, watch repair, metal surface inspection of jewellery, IC and chip pin inspection, metal surface defect detection, precision hardware parts inspection, connector and terminal inspection, and more.

If you need a long working distance for PCB soldering work, you can try our 150X microscope kit. If you want a microscope kit that supports zooming in and out while keeping the lens in the same position, our 180X microscope kit is a good option.

🔥Important Notes

After assembling the microscope, the first step is to prioritize using the one-clickexposure function. Then, place a piece of white paper horizontally directly below the lens and perform a one-click white balance. In most cases, this will achieve the most suitable results for your working environment. (Don't forget to turn on the LED light.)

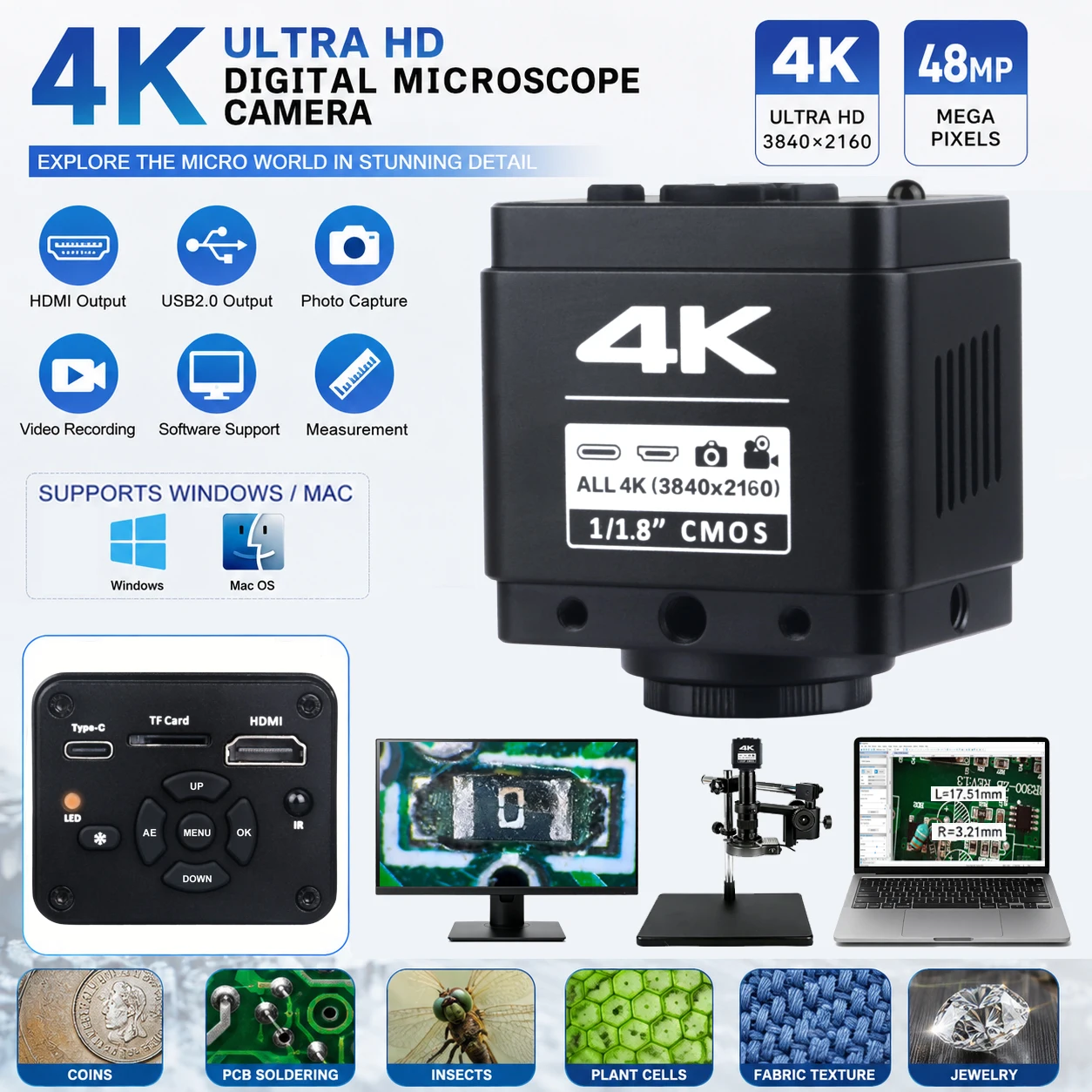

🔥4K 48MP SONY IMX678 Ultra HD Camera

◆Using 8.29 million pixel Sony CMOS image sensor;
◆Using 1/1.8 inch image sensor;
◆HDMI 3840*2160 30 frames/1080P 60 frames image output;
◆USB2.0 driver-free output 3840*2160 30 frames of image output;
◆4K video recording;
◆4K photo taking
◆One-button freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 16-line drawing function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking when taking pictures, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Sturdy metal shell;

🔥Specifications:

Sensor: 1/1.8-inch Sony 8.29 million pixel CMOS sensor
Pixel size: 2µm × 2µm
HDMI output: 3840*2160 30 frames/1920*1080 60 frames
USB output: 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
Lens interface: C/CS
Exposure: automatic/manual
Exposure compensation: support
White balance: automatic/manual, support R, G, B adjustable
Storage: maximum support 64GB
Input voltage: DC 5V
Line drawing: support 16 straight lines, color, thickness and position adjustable
Center line: support
Menu language: English/Chinese/Traditional
Remote control: support
Packaging size: 145*130*70mm

🔥Connect to PC via USB for operation.

You can first switch the language to your preferred one in the PC software. It allows you to take photos, record videos and adjust the video image more conveniently. There is also an additional measurement function, which will be of great help to your work.

🔥Effect of Exposure Adjustment on the Image

Whether you connect the device to a monitor or TV via HDMI, or connect it to a computer via USB, exposure is a key parameter. Properly setting the optimal value will help you obtain the best image quality.
How to adjust:
Under unchanged lighting conditions, turn on Auto Exposure and increase the gain value when ambient light is insufficient. When ambient light is too strong and causes overexposure, turn on Auto Exposure and lower the gain value.

🔥Function of White Balance

Correct light color cast and restore the true original color of objects.
1, Different light sources (indoor yellow lights, fluorescent lamps, natural overcast light and ambient lights) all have inherent color cast. White balance can correct yellowish, bluish and reddish tones in the image.
2, Under any ambient light environment, it ensures white paper, white housings and white electronic components are captured without yellow or cold tint. It calibrates the overall image color with white as the reference standard.
3, When shooting circuit boards, metal accessories and product appearances, the presented colors are exactly the same as what the naked eye sees, without color distortion or color cast. It is perfectly suitable for taking photos and recording videos for product display.

🔥Application Scenarios:

PCB inspection, electronic component documentation, mobile phone PCB repair, SMD soldering repair, PCB rework and repair, PCB dimensional inspection, PCB solder joint defect detection, SMT assembly inspection, PCB manufacturing quality control, PCB repair, Electronics rework, Phone motherboard repair, Soldering, SMT inspection, SMD component inspection, PCBA inspection, FPC inspection, PCB solder joint inspection, PCB trace inspection, metalworking, Tool inspection, Tool edge inspection, Die & mold inspection, Mechanical parts inspection, Bearing inspection, Gear inspection, Metal surface inspection, Plating layer inspection, Jewelry microscope, Gemstone microscope, Watch repair, Precision jewelry inspection, Gem grading, Watch movement inspection, Dentistry, SA care, Vet care, Pet care, Animal med, Vet med

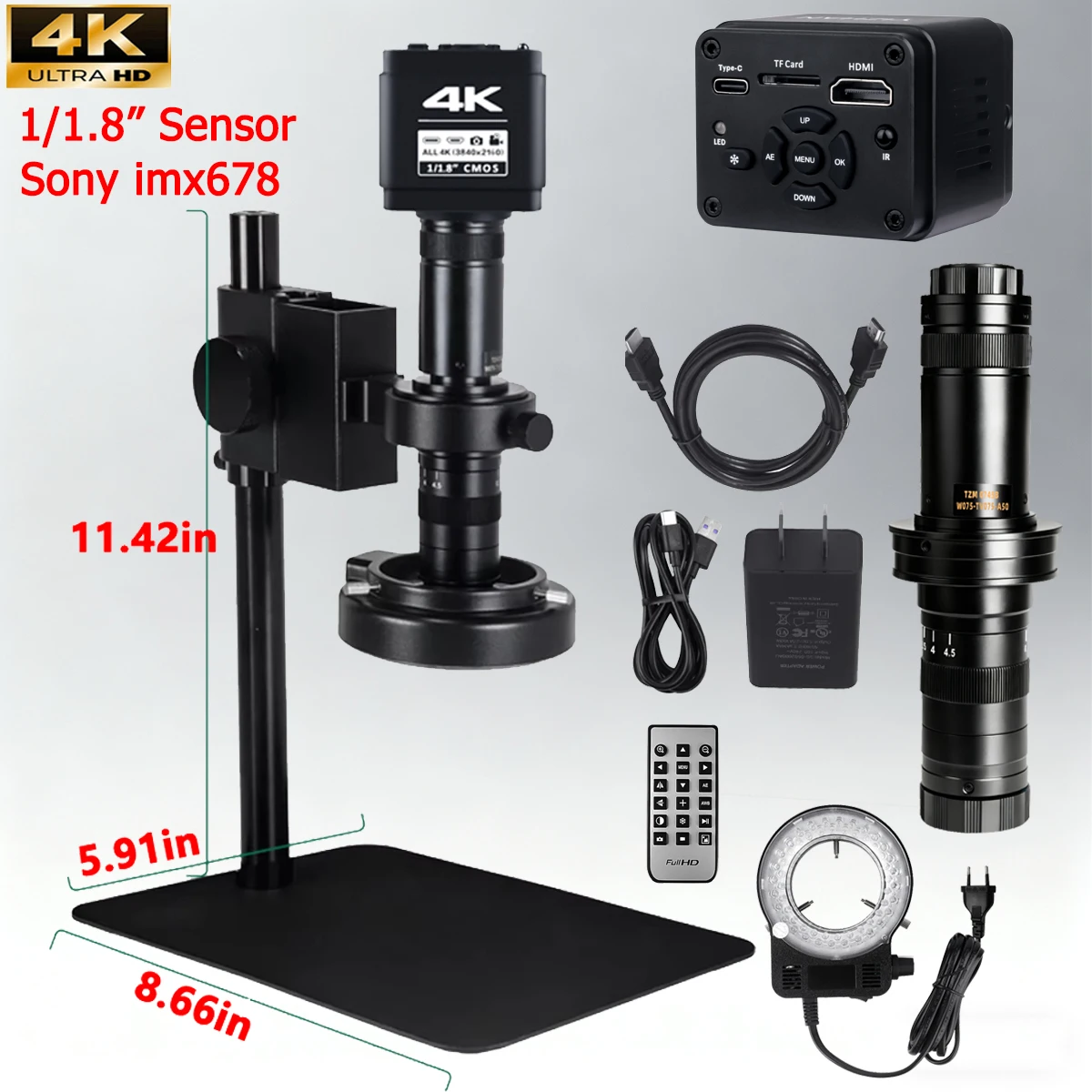

🔥Packa Listing

1 * Microscope camera
1 * Microscope lens
1 * LED light
1 * Stand
1 * Remote Control
1 * Instruction manual
1 * Type-C cable
1 * HDMI cable
1 * Power cord
1 * Software (not included in the package, please contact customer service for assistance)

🔥4K 60MP GC8613 Ultra HD Camera

◆ Chip: GC8613
◆ Using 8.29 million pixel CMOS image sensor;
◆ Using 1/2.7 inch image sensors;
◆ HDMI 3840 * 2160 30 frames/1080P 60 frames image output;
◆ Type-C driver free output 3840 * 2160 30 frame image output;
◆ 4K video recording;
◆ 4K photography
◆ 60 million photos, JPG format;
◆ One click freezing/unfreezing function;
◆ 48 million pixel photography and 4K video recording;
◆ Electronic zoom function;
◆ Support manual/automatic exposure/one key exposure and exposure compensation value adjustment;
◆ Support manual/automatic white balance/one button white balance, red, green and blue can be adjusted;
◆ Provide 16 lines with adjustable color, thickness and position;
◆ Provide central crosshair display/closing;
◆ Support TF card storage, with a maximum of 64GB;
◆ Support remote control operation, and take pictures without shaking images more clearly;
◆ Support English Arabic, Russian, Japanese, Portuguese, Italian, Spanish, German, French menu languages;
◆ Support the saving of shutdown setting parameters;
◆ Aluminum alloy shell processed by CNC precision milling technology;

🔥4K 48MP SONY IMX415 Ultra HD Camera

◆Using Sony sensor;
◆Using a 1/2.8-inch image sensor, the viewing angle is wider than that of 1/3-inch;
◆HDMI 1080P 60 frames image output;
◆TYPE-C driver-free output 1080P 30 frames image output;
◆4K video recording;
◆48 million photos, JPG format;
◆One-click freeze/thaw function;
◆1080P video recording;
◆Electronic zoom function;
◆Supports manual/automatic exposure/one-click exposure, exposure compensation value adjustment;
◆Supports manual/automatic white balance/one-click white balance, red, green and blue are adjustable;
◆Provides 16 line functions, with adjustable line color, thickness and position;
◆Provide center crosshair display/off;
◆Support TF card storage, up to 64GB;
◆Support remote control operation, take pictures without shaking and the image will be clearer;
◆Support Chinese, Traditional Chinese, and English menu languages;
◆Supports saving shutdown setting parameters;
◆Aluminum alloy shell processed by CNC precision milling technology;

🔥13MP SONY IMX323 Ultra HD Camera

Model: Camera with HDMI VGA two output
Sensor: 1/3 inch 14MP
Image resolution: 1920×1080 (for HDMI), 1920×1080 (for VGA)
Video resolution: 1920×1080@ 60F/S
Language: Supports ten languages: Russian, English, Chinese, Spanish, Portuguese, Korean, Japanese, German, Italian, Traditional Chinese
Crosshair:Can adjust color, line size, hide or display,16 horizontal line , 16 vertical line,any positions
Exposure: automatic exposure
Eliminate reflections: Support
White Balance:one-key white balance, support R/G/B adjustable
Mirroring: Support
Electron zoom:Support 1-4x
Light freqency:50Hz/60Hz
Color:Color/ black and white switching
Monitor:16:9/4:3/16:10
Brightness: 0-100 Adjustable
Contrast: 0-100 Adjustable
Saturation:0-100 Adjustable
Definition: Adjustable
Lens interface: C mount
Remote:infrared remote control
Power:DC 12V/1A

🔥215X Optical Zoom Lens

Working Distance : 100mm
Magnification : 35X-215X(21in displayer)
X-axis Visual Field :2.2mm-14mm
mounting dimensionr : Φ50mm
Optical Zoom: 0.7X-4.5x
zooming ratio: 1：6.5
View of field : 2.67-22.85mm
lens diameter Φ25.5mm

🔥56 bright white LED bulbs：

100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Working distance:400mm

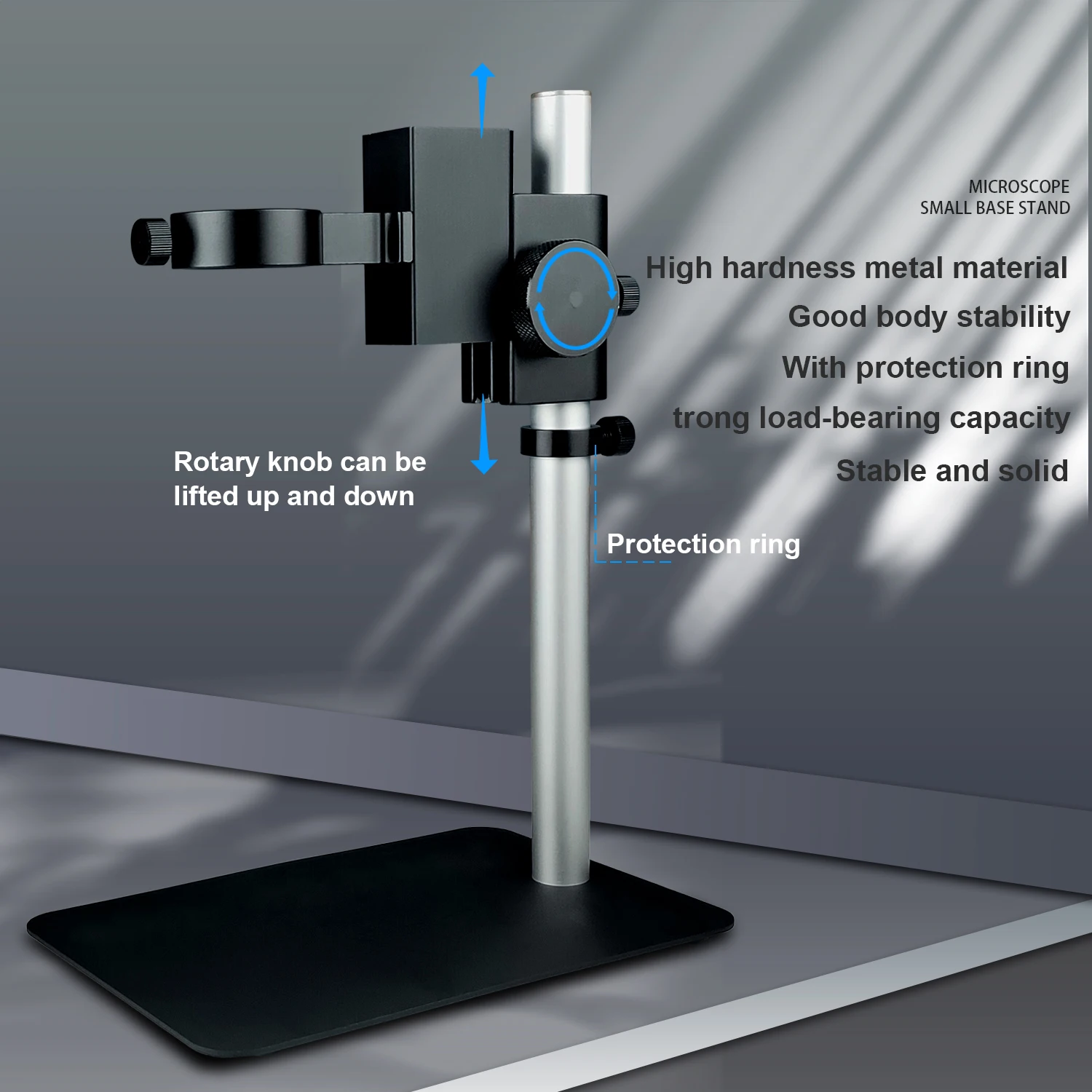

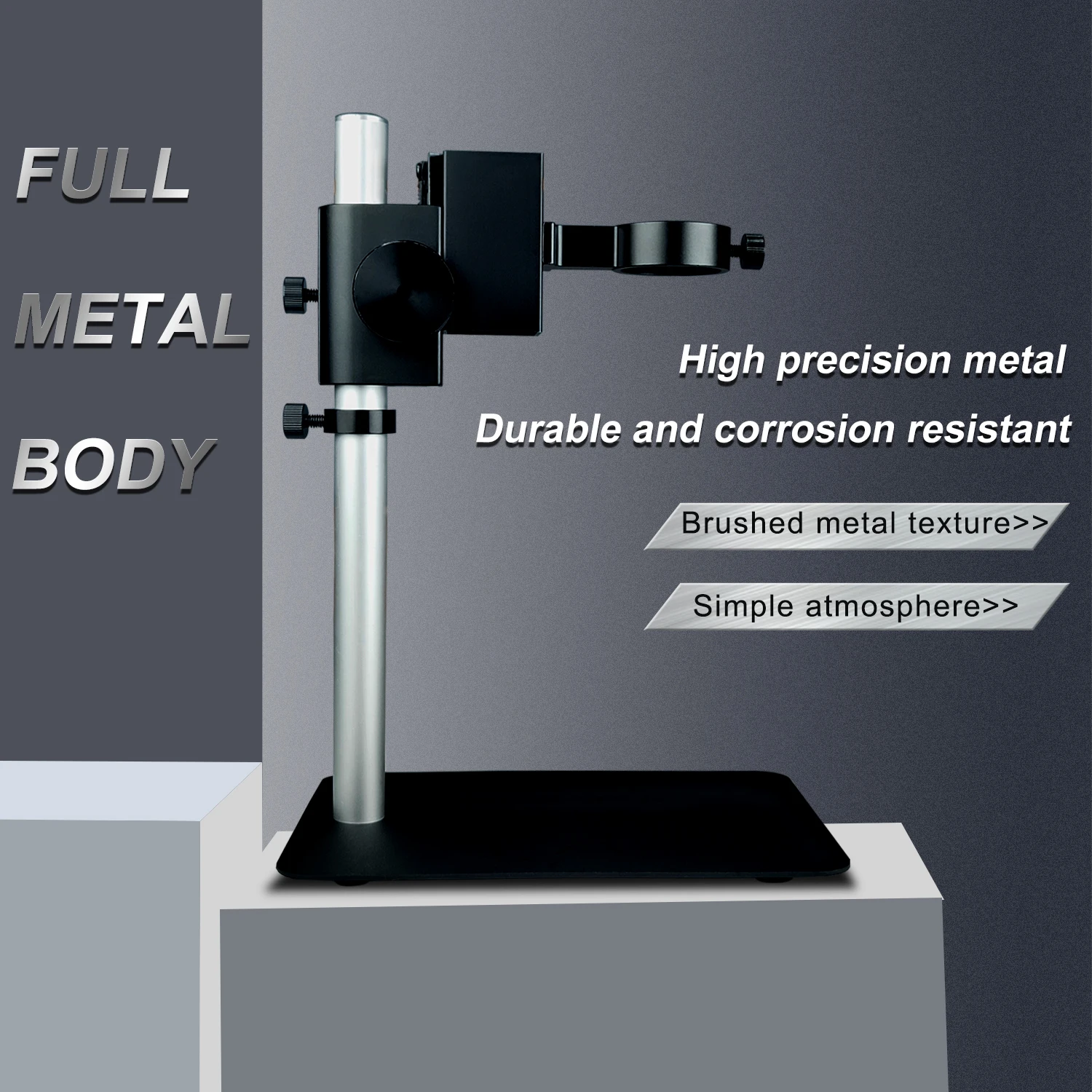

🔥Microscope base
