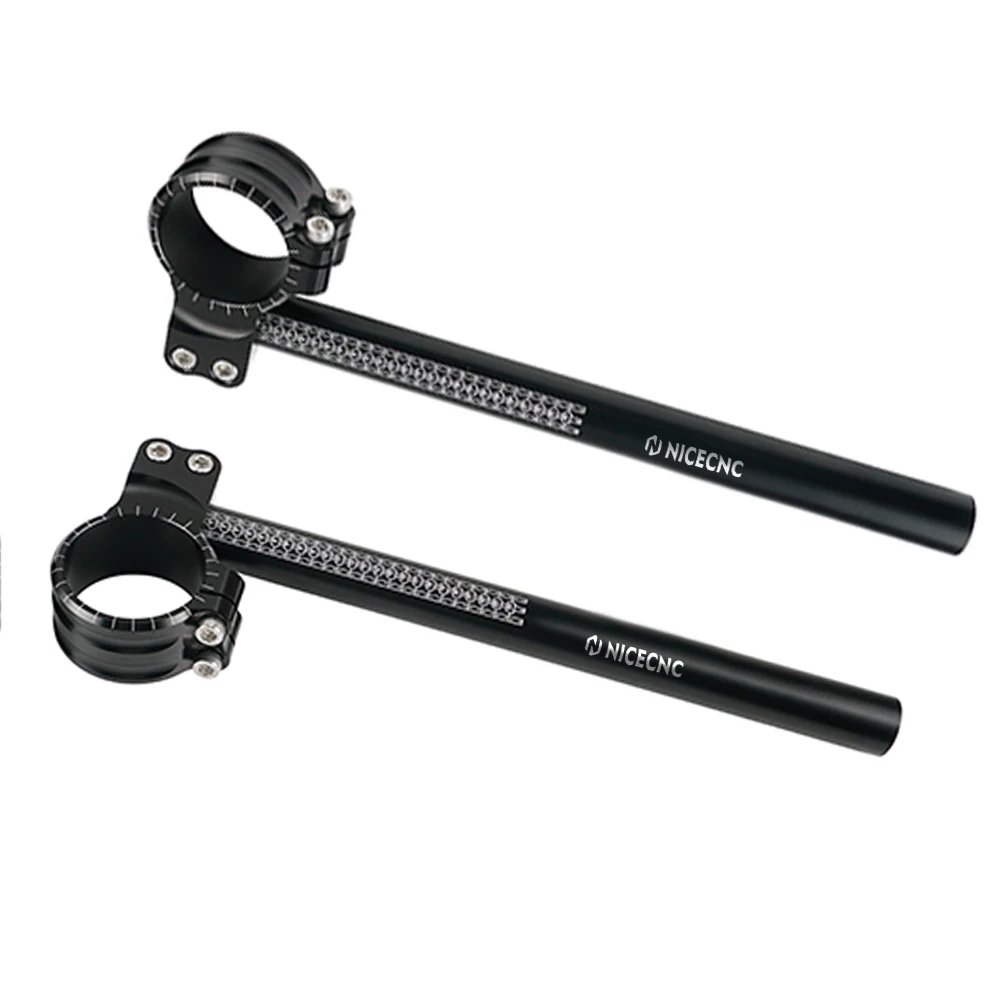

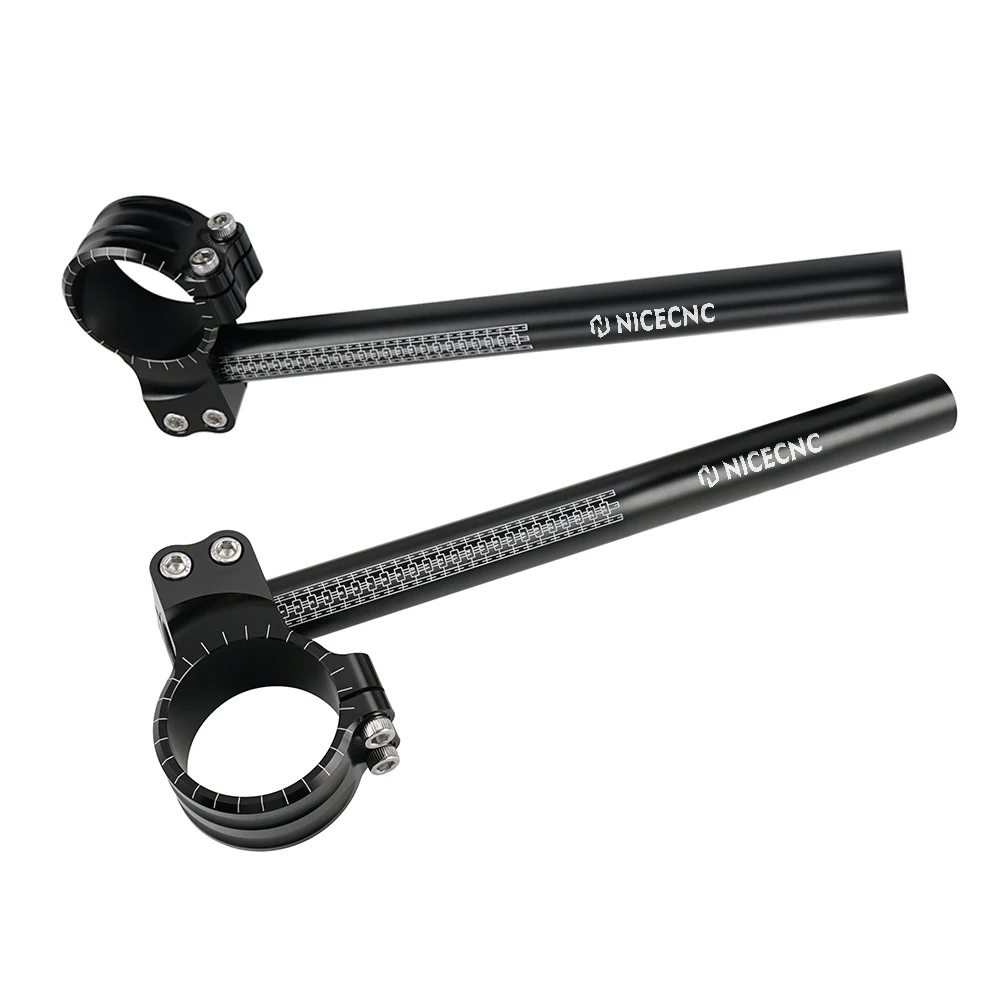

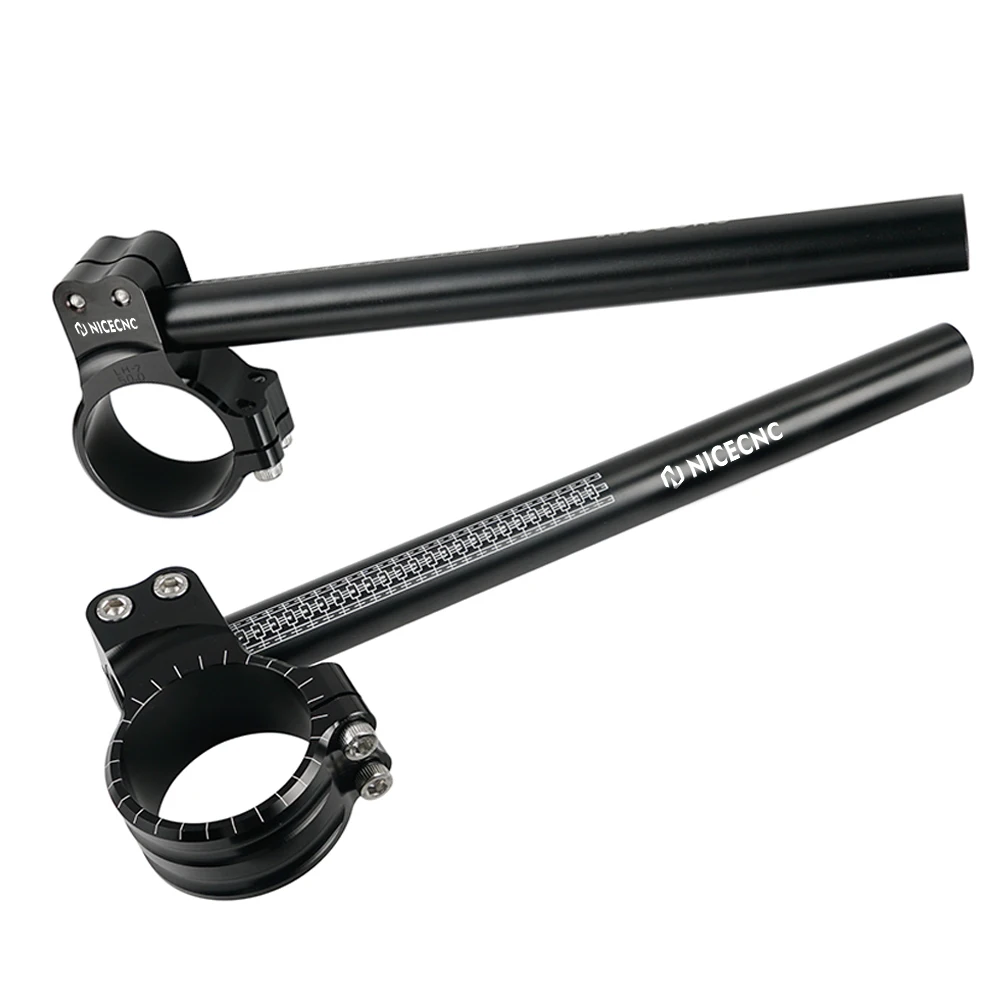

50mm Clip-Ons 7 Degree Handlebar For Honda CBR1000RR CBR929RR CBR954RR Suzuki GSXR 600 750 1000 1300 Kawasaki Yamaha YZF-R1 R6

Description

Improved Clip-ons for proper installation

Fork clamps machined from 7075 T-6 billet aluminum and anodized black for a factory look, and feature lazer-etched positioning marks in the upper surface every 5mm
Handlebar tubes machined from 7010 aluminum and hard anodized for increased wear resistance from controls
Removable nylon bar end inserts for protection of the grips

CNC machined Clip-On Handlebars are an economical replacement handlebar with amazing strength. They are machined from solid billet with a removable handlebar. In the event of a crash, you simply replace the handlebar tube instead of the entire Clip-on. Handlebars sit at a 7 degree angle giving racers and street riders the ultimate handlebar position. Lightweight, great looks, improved strength, adjustability and easy installation.

Stainless steel fasteners and Delrin plastic ends add the finishing touches.

Note

clip-on handlebars are primarily designed for race use and may not fit to a standard bike without other modifications

Item Specifications

--Condition:100% Brand New
-- Type:7° Clip-Ons Handlebar for 50mm Forks
-- Bar Length: 28cm
-- Bar Size: 22.2 mm/Aprx 7/8 inch
-- Clip Ons Diameter: 50mm
-- Color: Black
-- Material:Billet Aluminium
-- Placement on Vehicle:Front

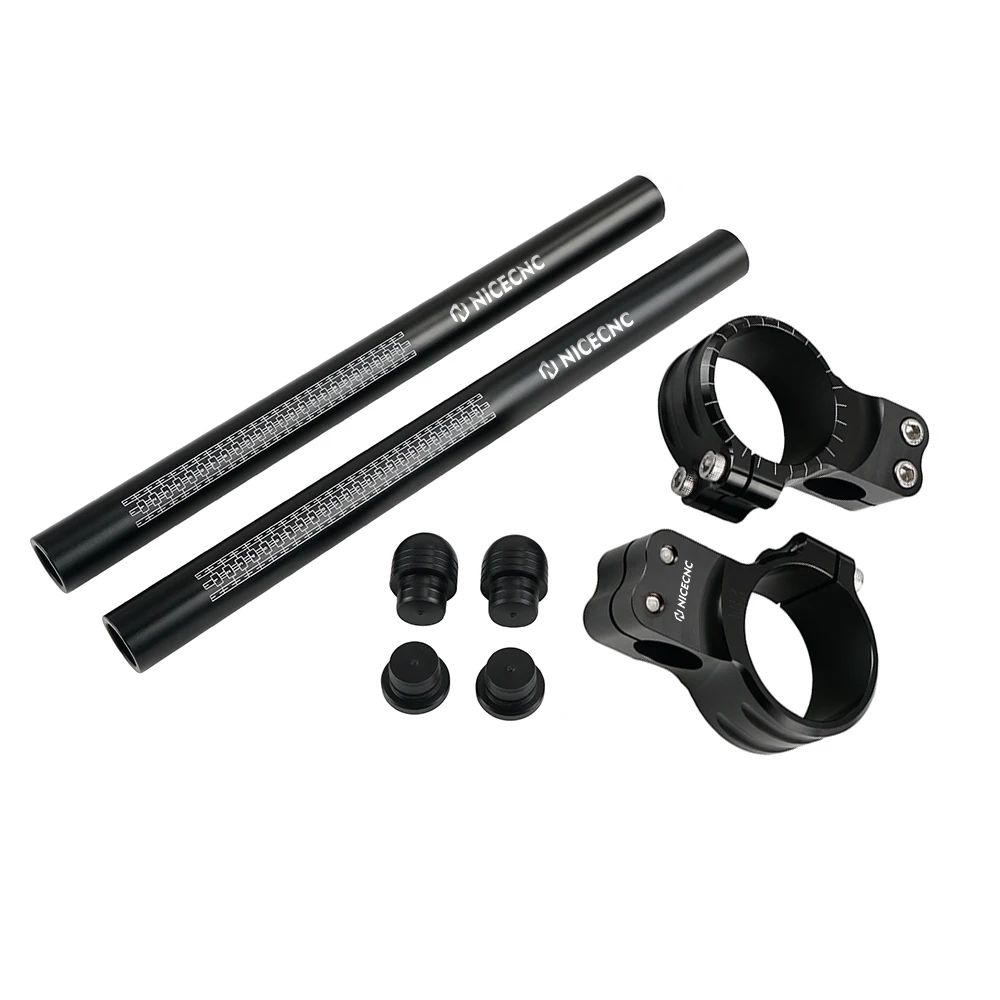

Package Include

1 pair 50mm Clip-ons Handlebars

Fitment

Universal Fit Most 50 mm Fork Tubes
Honda CBR929RR 2000-2001
Honda CBR954RR 2002-2003
Honda CBR1000RR 2004-2018
Kawasaki Ninaja ZX-6R 2003-2008
Kawasaki Ninaja ZX-6R 2013-2018
Kawasaki Ninaja ZX-10R 2004-2018
Suzuki GSXR600 1994-1996
Suzuki GSXR600 2004-2018 （2006-2010 Please ensure that your fork size is 50mm before making a purchase）
Suzuki GSXR750 1993-2018 （2006-2010 Please ensure that your fork size is 50mm before making a purchase）
Suzuki GSXR1000 2001-2018
Suzuki GSXR1100 1995-1998
Suzuki Hayabusa GSXR1300 1999-2018
Suzuki TL1000S 1997-1999
Suzuki TL1000R 1998-2003
Yamaha YZF-R6 2005-2018
Yamaha YZF-R1 1998-2002
Yamaha YZF-R1 2004-2018

Installation Note

1. These clip ons are not OEM replacement parts. clip ons are for
race use only.
2. Remove old clip ons and clean mounting areas free of grime, dirt, etc.
3. Install both collars and snug screws.
4. Install handlebar tubes and adjust both bodies to desired angle. Ensure
that bars are in a position that will not interfere with turning.
5. Tighten bodies to fork legs.
6. Adjust handlebar tubes to desired length and tighten.
7. Turn steering from lock to lock and be sure there are no obstructions when doing so.
8. You may need to drill small hole(s) in the throttle and/or clutch side handlebar tube(s) for the control switch housing.
9. Install controls and check again to make sure there are no obstructions when turning from lock to lock.
10. When all steps are complete, you’re ready to ride. Always check bolts before riding to ensure they are tight

Disclaimer

NICECNC parts are not sponsored or endorsed by, or affiliated with the brands its parts fit, including KTM, Husqvarna, Honda, Yamaha, Kawasaki, Suzuki, Beta, GASGAS, Sherco, etc.
