BSIDE Handheld Oscilloscope 3.2” TFT LCD Digital Scope Tester OT3/OT5 10MHz/50Mhz Potable Automotive Auto/Nomal/Single Trigger

BSIDE OT3/OT5 Handheld Digital Oscilloscope 3.2” TFT LCD Scope Tester, 10MHz/48MSa/s,Potable Automotive Auto/Nomal/Single Trigger

This product is a practical and cost-effective handheld oscilloscope launched by the BSIDE brand for the electronic maintenance industry and the development and education industry.

This oscilloscope has a real-time sampling rate of 48MS/s, 10MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non periodic digital signals, and can measure up to ± 400V voltage with an efficient one click AUTO, which can display the measured waveform without complicated adjustments.

Equipped with a 3.2-inch 320*240 resolution HD LCD screen and a built-in 1800mAh high-quality lithium battery, it can be used for about 7 hours when fully charged.

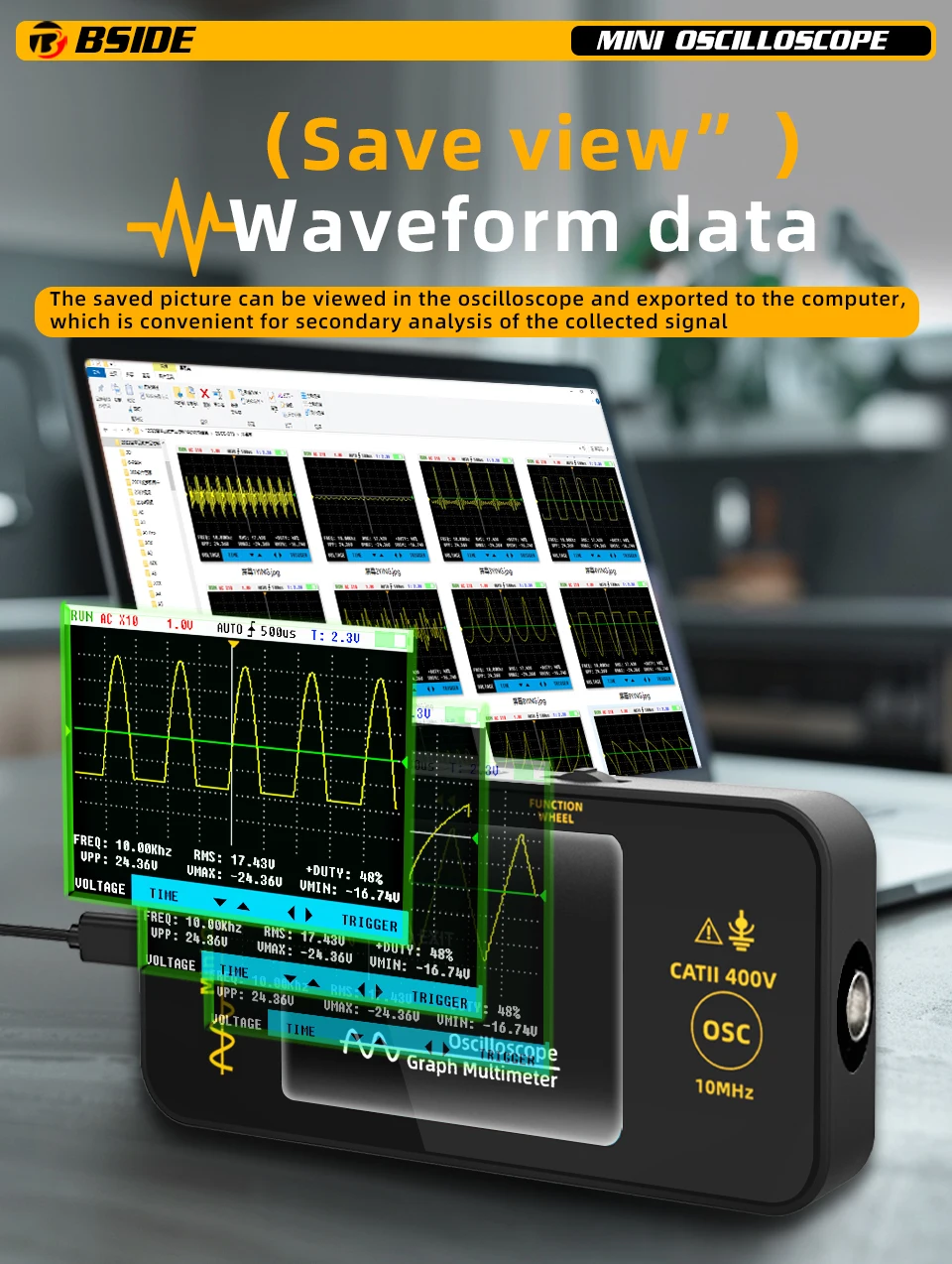

[Data Storage and Export]: The data of this graphic oscilloscope meter can be saved and exported to your flash drive, computer, PC, etc.

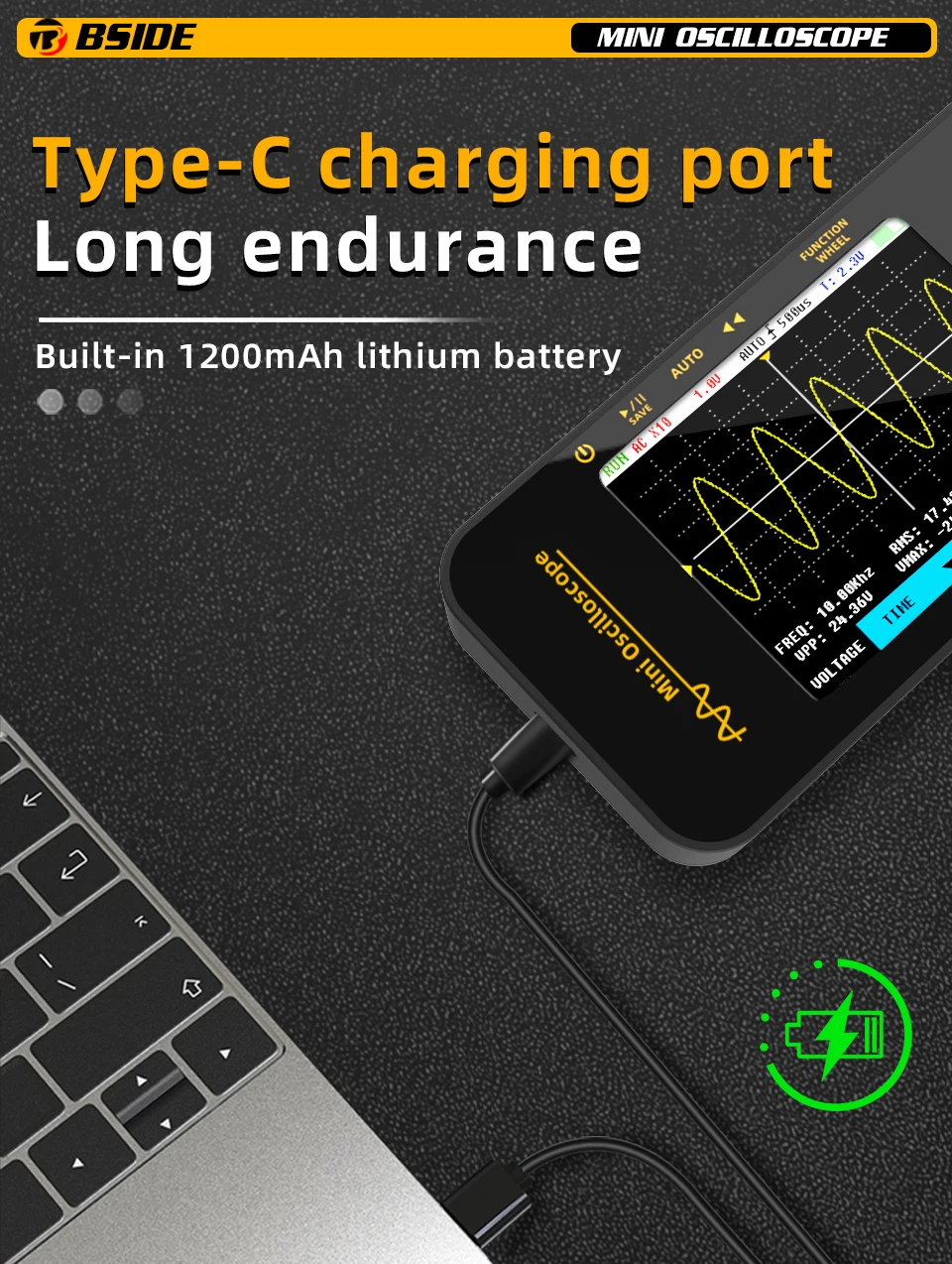

[Rechargeable]: The handheld oscilloscope comes with a rechargeable battery and charging cable, ensuring that you never have to worry about running out of power during the measurement.

[Carrying case]: The digital oscilloscope comes with a high-quality EVA carrying case, which is perfect for use on the go.

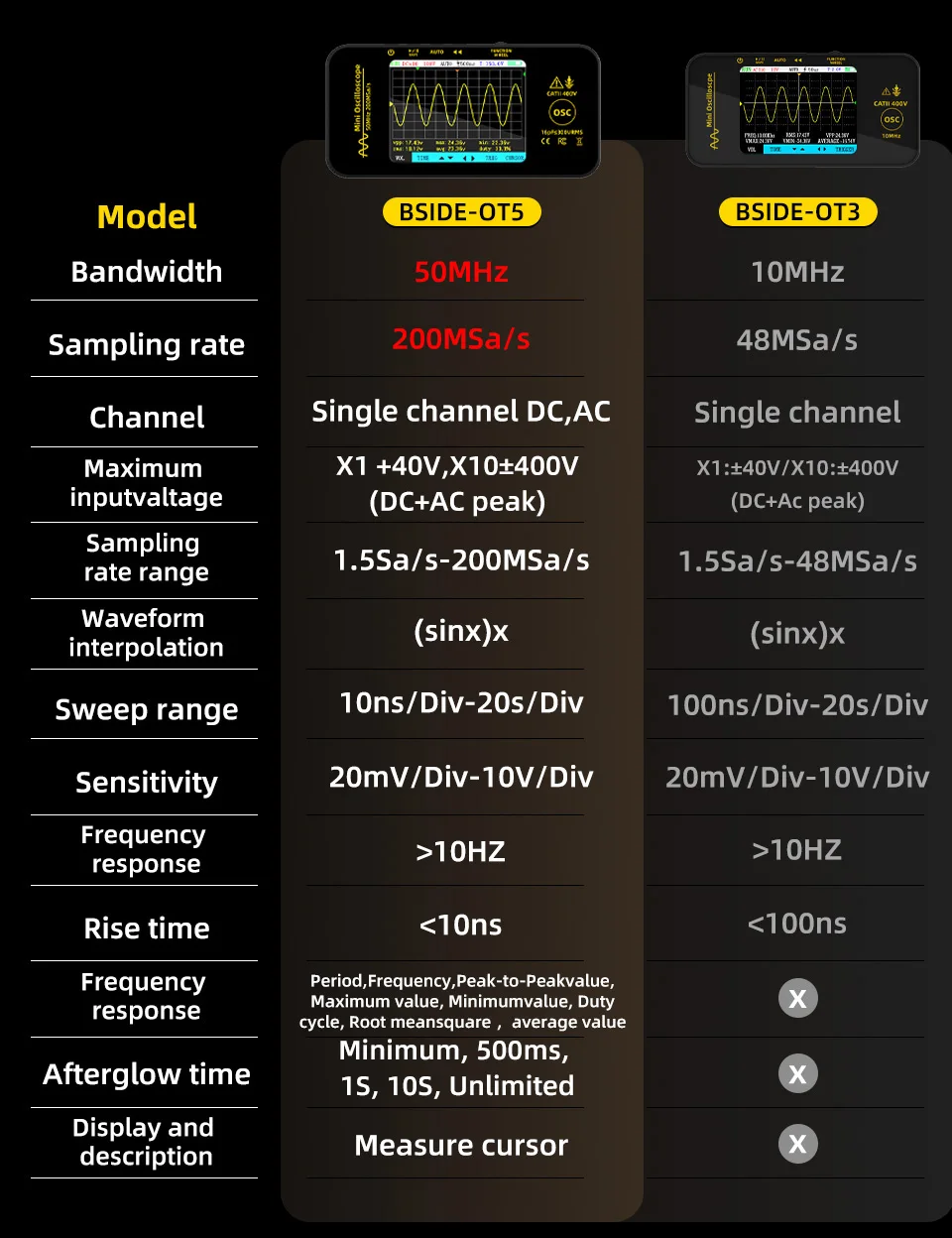

The parameter differences between BSIDE OT3/OT5:

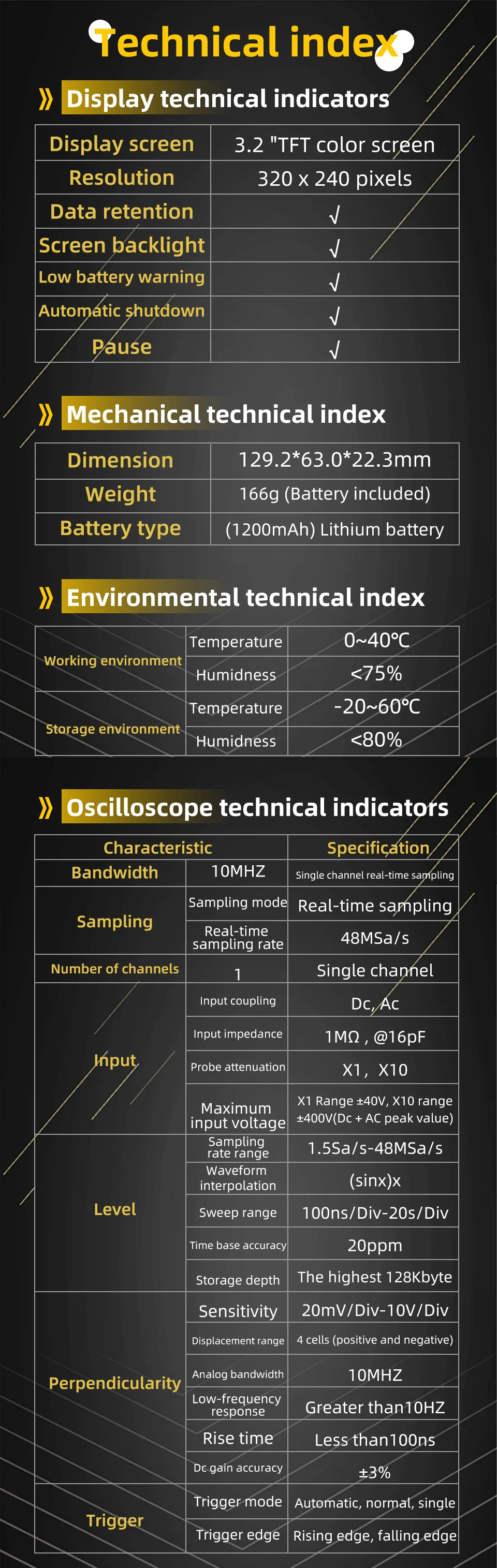

Specification:

Screen size: 3.2 inches

Bandwidth: 10MHz

Real-time scan rate: 48MSa/s

Input impedance: 1MΩ

Maximum input voltage: ×1 range±40V, ×10 range±400V (DC+AC peak)

Horizontal seconds range: 100ns/div -20s/div

Vertical sensitivity: 20mV/div -10V/div

Trigger mode: automatic/normal/one-time

Coupling mode: AC/DC

USB charging: 5V/1A

Power supply: 1200mA

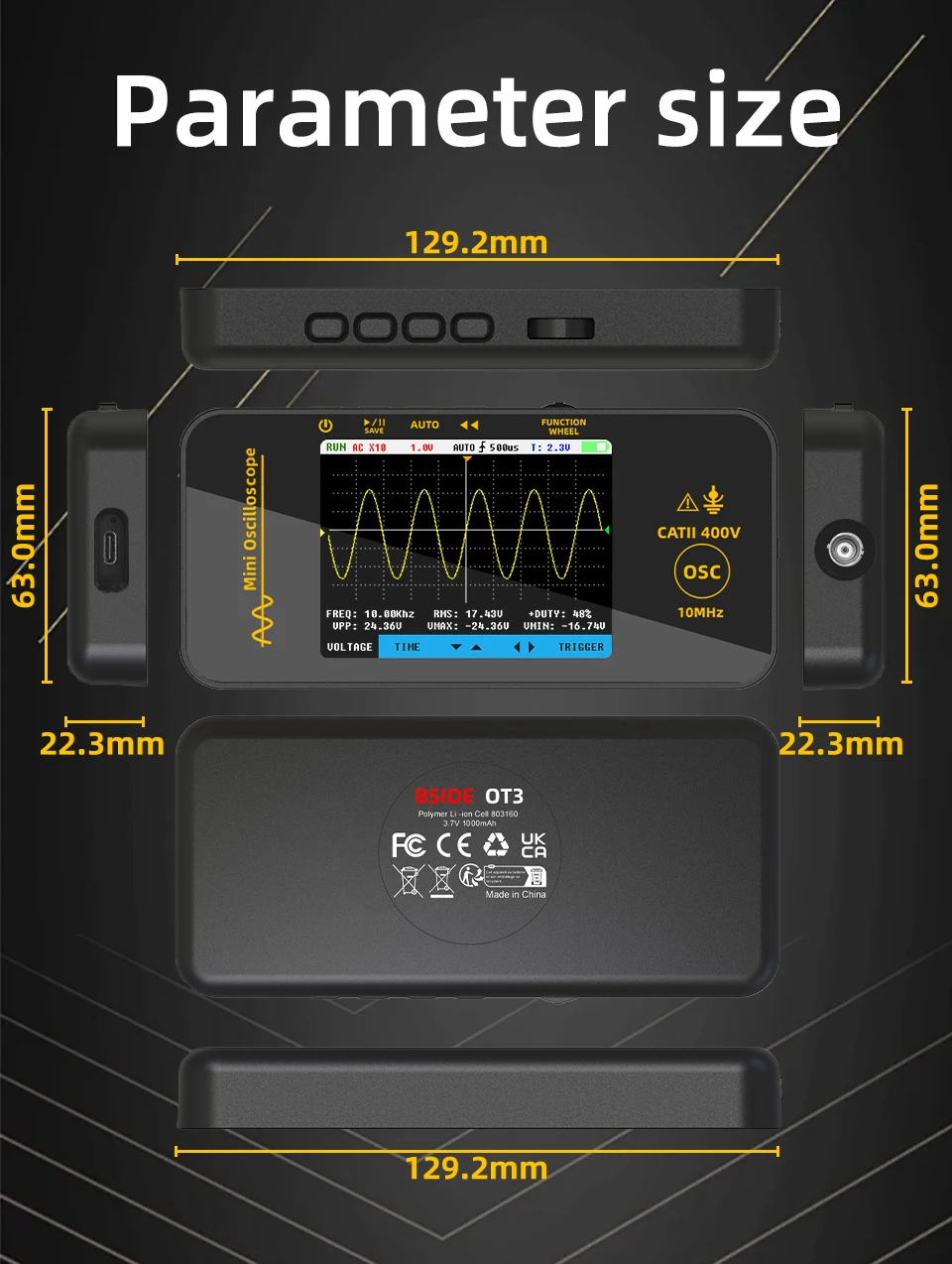

Size: 13x6.3x2.3cm

Weight: 143g

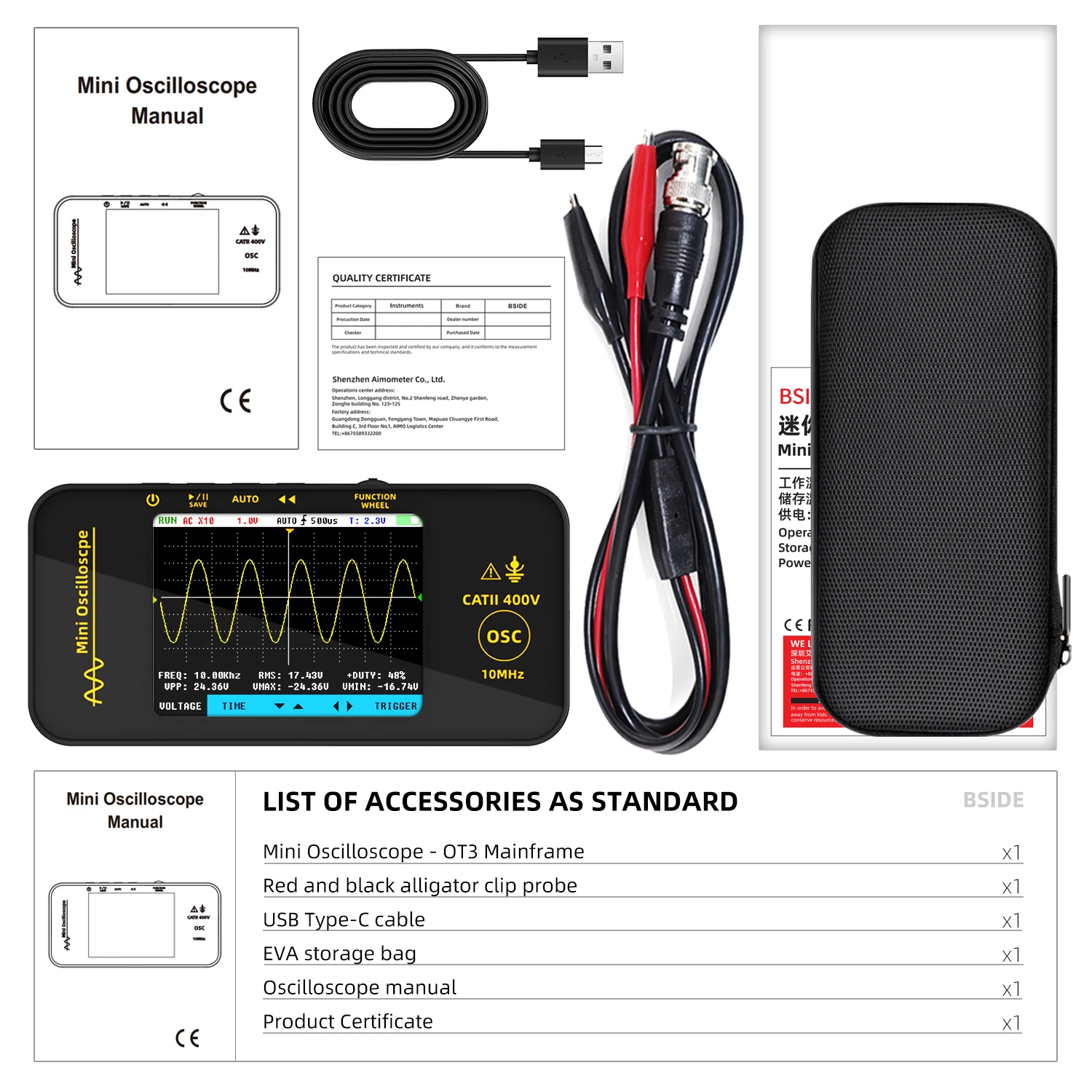

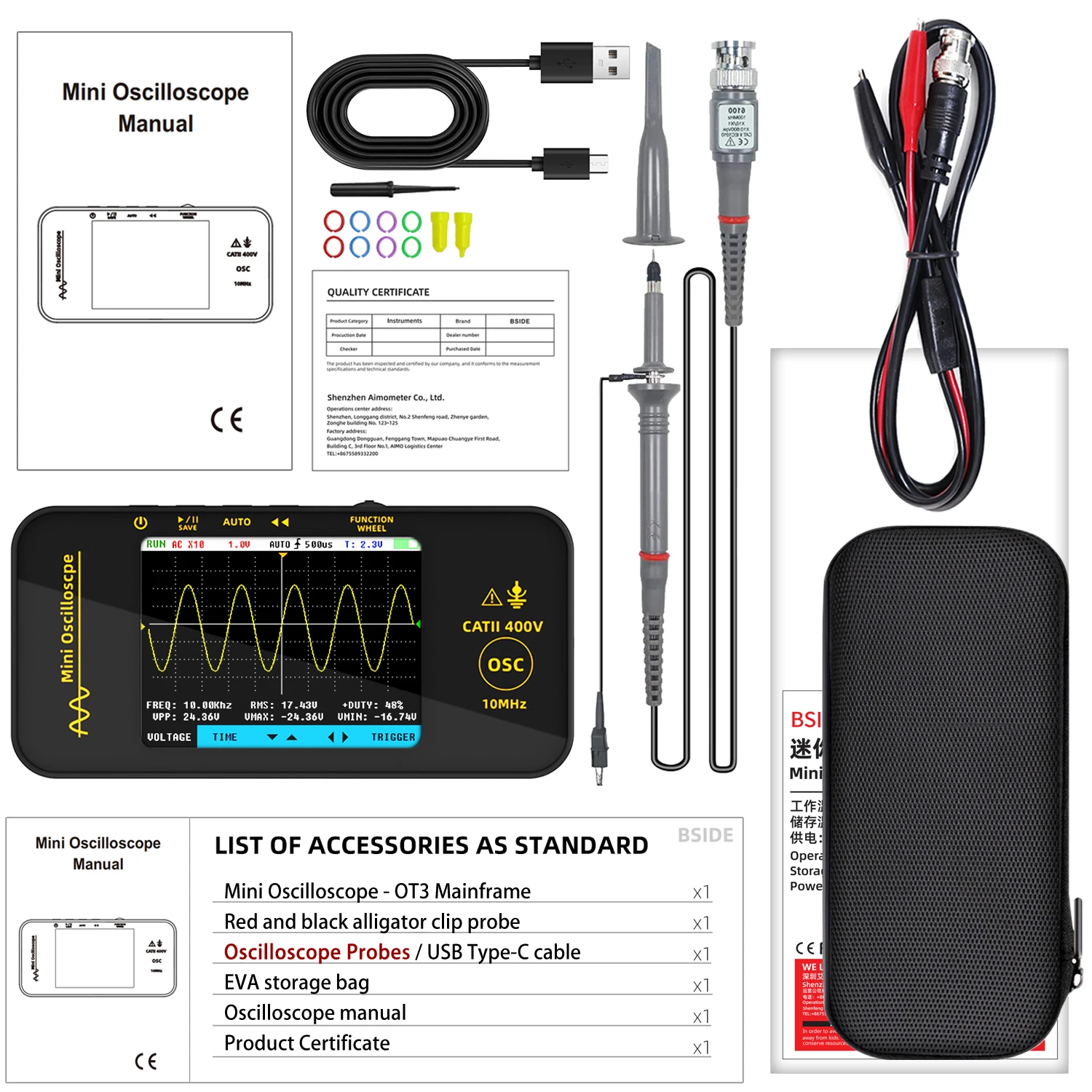

Package includes:

1* OT3 oscilloscope.

1* Crocodile Clip Probe.

1* Oscilloscope Probe(Optional).

1* Quality EVA bag.

1* Charging cable.

1* Certificate of Conformity (12 months).

1* User Manual.

1* Color box.
