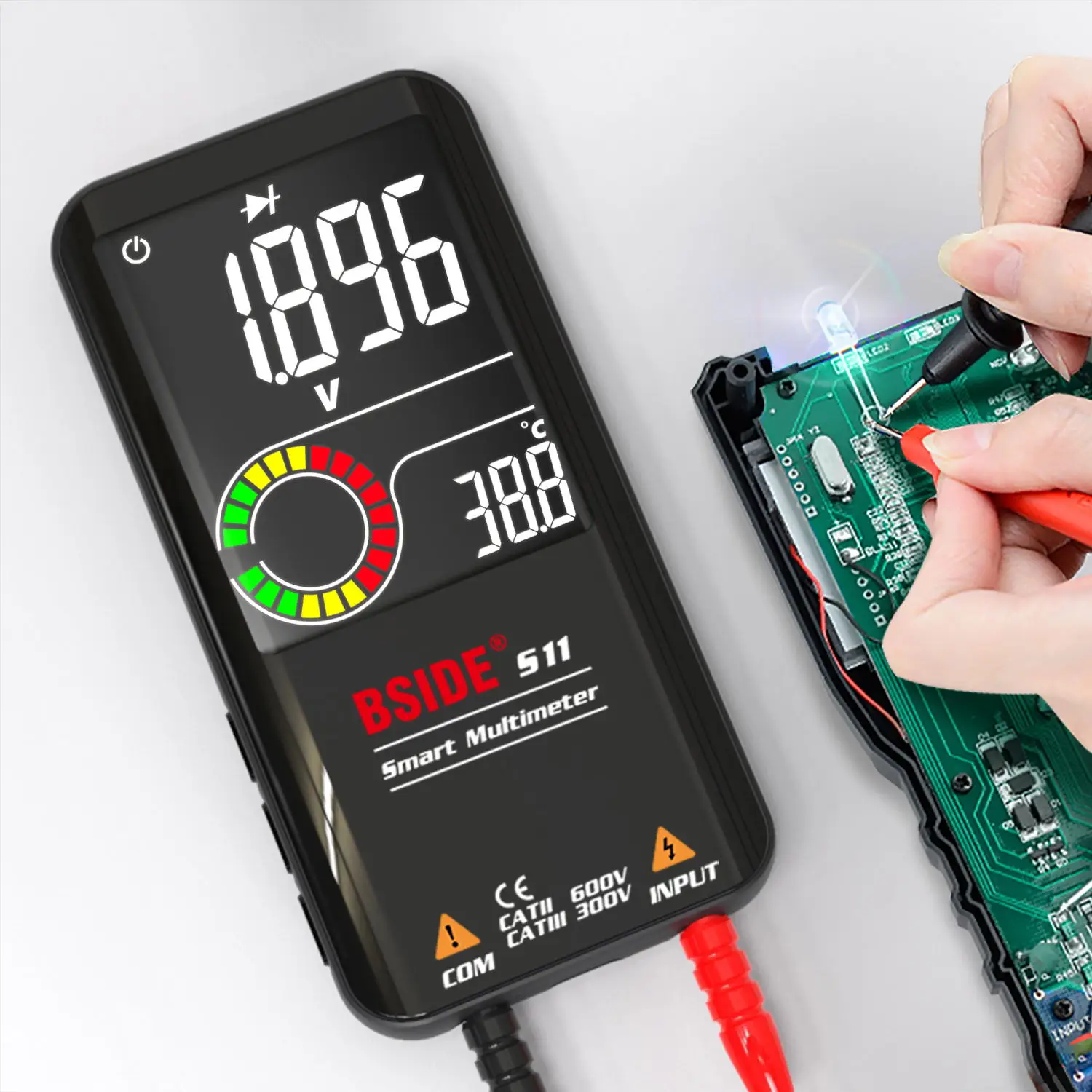

BSIDE S10 / S11 Digital Smart Multimeter Color LCD Display 9999 Digital DC AC Voltage Capacitor Ohm Diode NCV Hz Tester DMM

BSIDE S11 Digital Smart Multimeter Color LCD Display 9999 Digital DC AC Voltage Capacitor Ohm Diode NCV Hz Tester DMM

Are you worry about how to choose a gift?

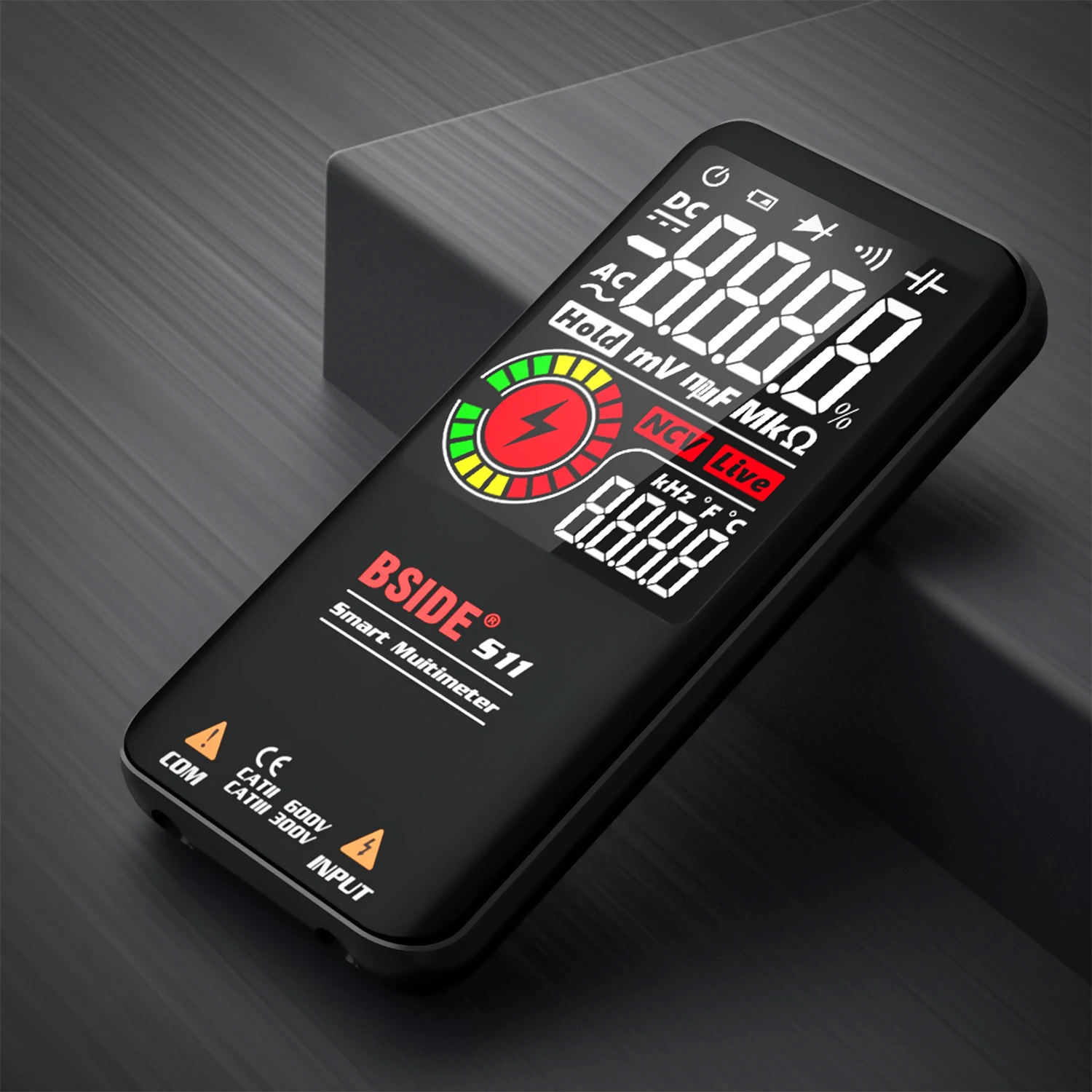

Our S11 smart multimeter has a distinctive appearance and exquisite quality. It's easy to use, suitable for any electricians. Or friends who are interested in home appliance inspection.

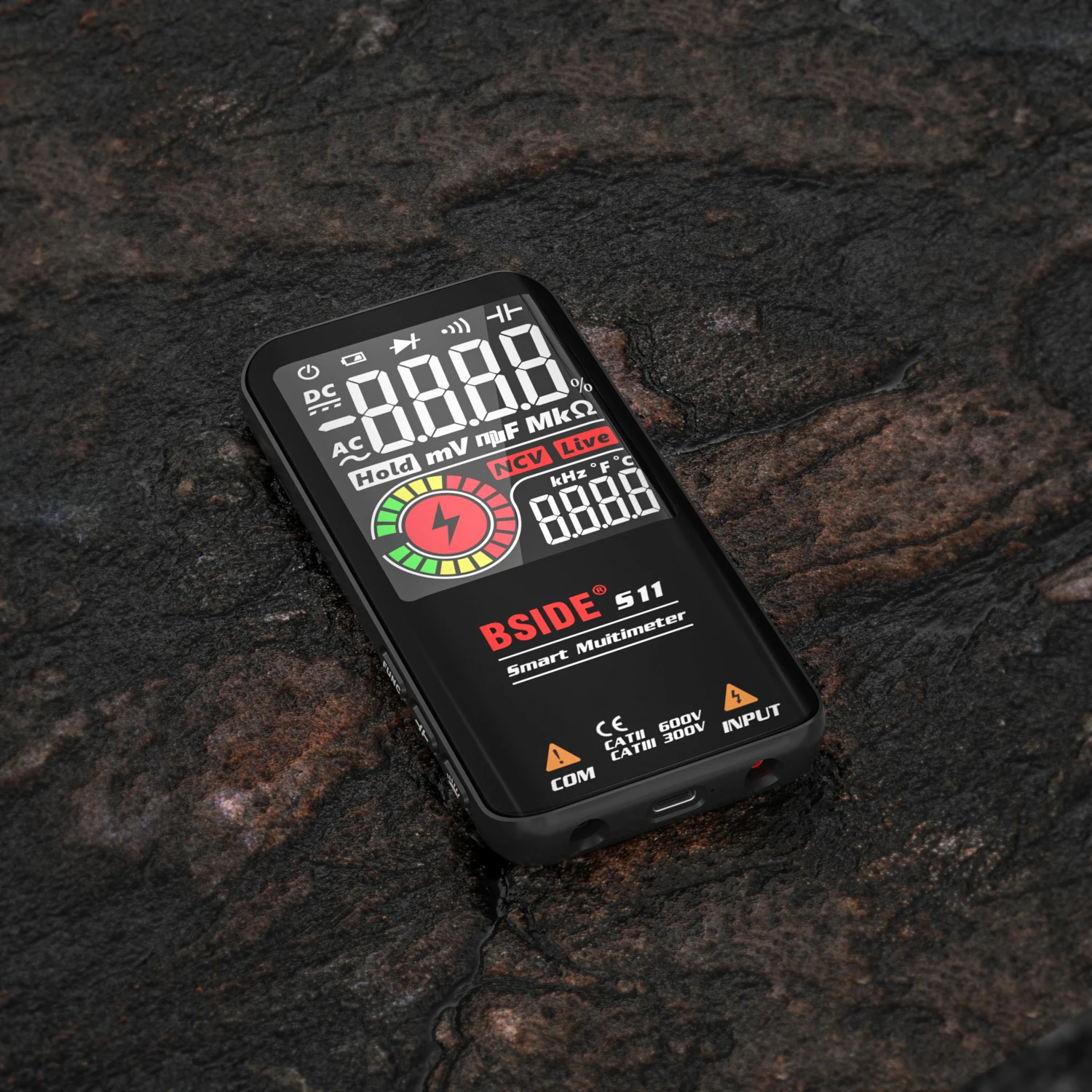

Do you know how thin it is?

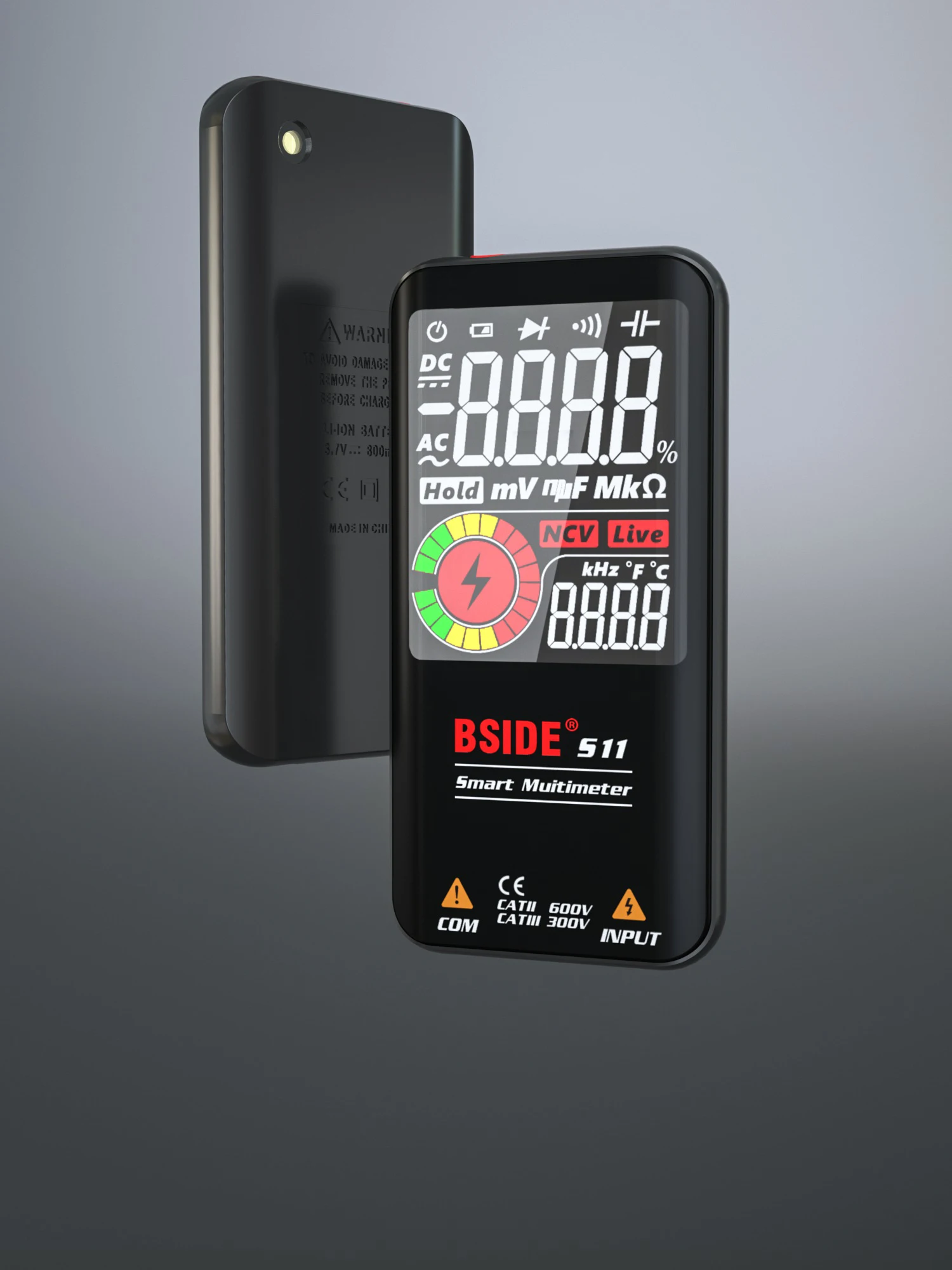

It just 16mm thickness, when you hold it you can make a joke say this is a cell phone. Really interesting. Have you ever

seen a multimeter that is thinner than it?

Have a guess what's the size of the large screen?

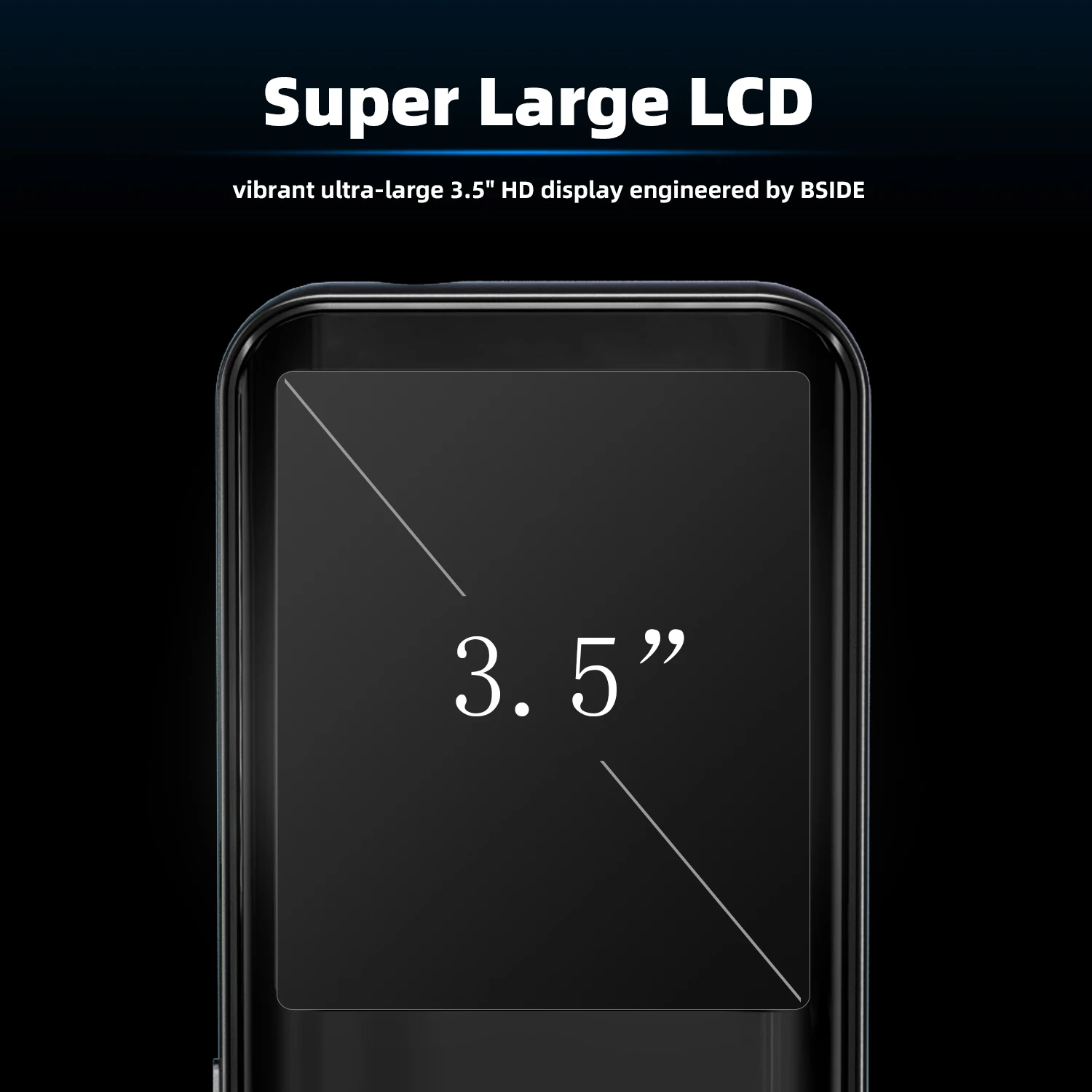

This is a brand new style 3.5 inch super large screen multimeter.Not only the screen is super large, but also triple line

display can show both ACV and Hz on the screen, shocking your vision.

Need a multimeter that won't leave your not-so-tech-savvy family member dumbfounded?

Maybe grandpa needs a multimeter, or your significant other isn't so great with technology.

 Or-and don't be embarrassed-maybe you just want a multimeter for yourself that's real simple.

S11 offer most commonly used functions without overdoing it. Here are our top five bullet points:

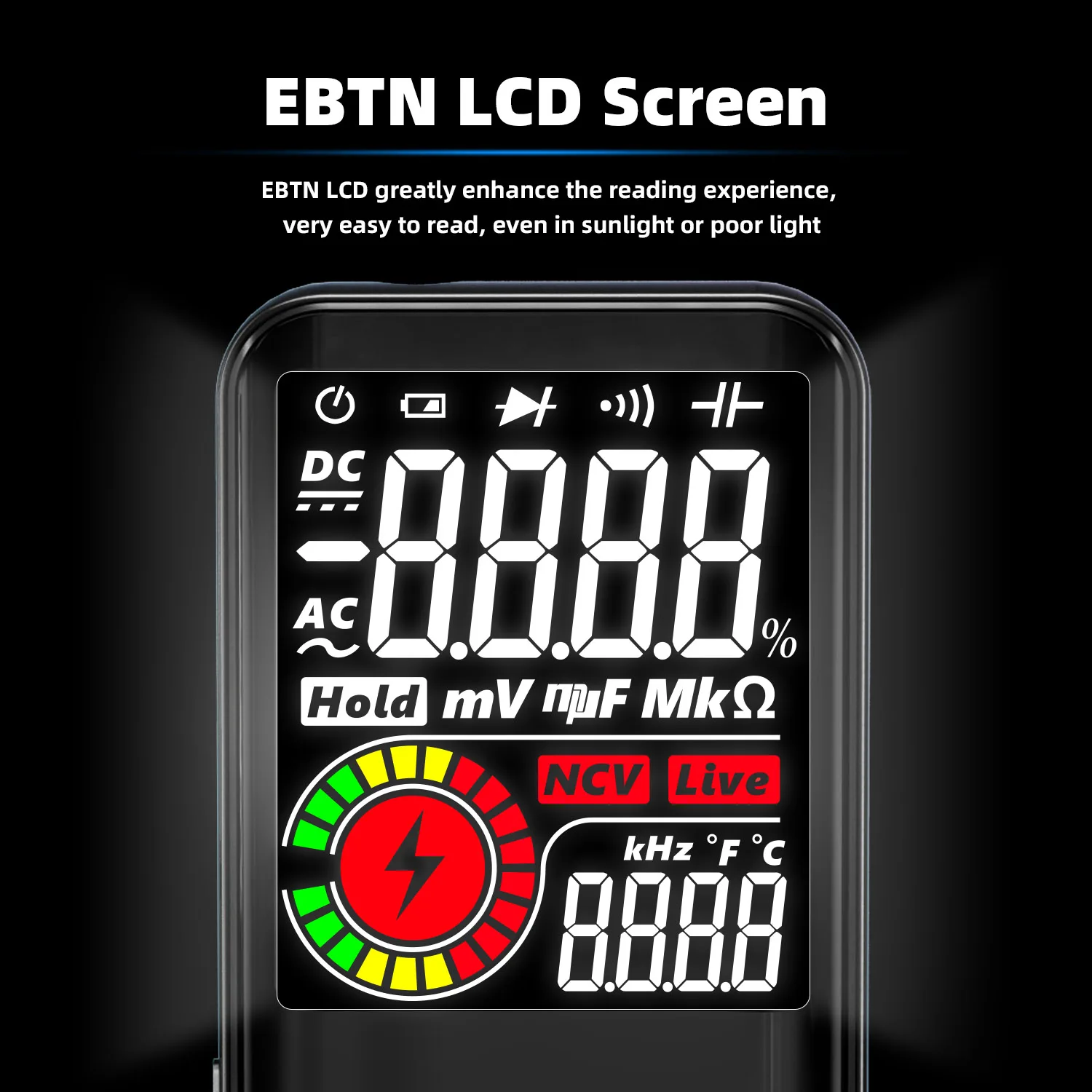

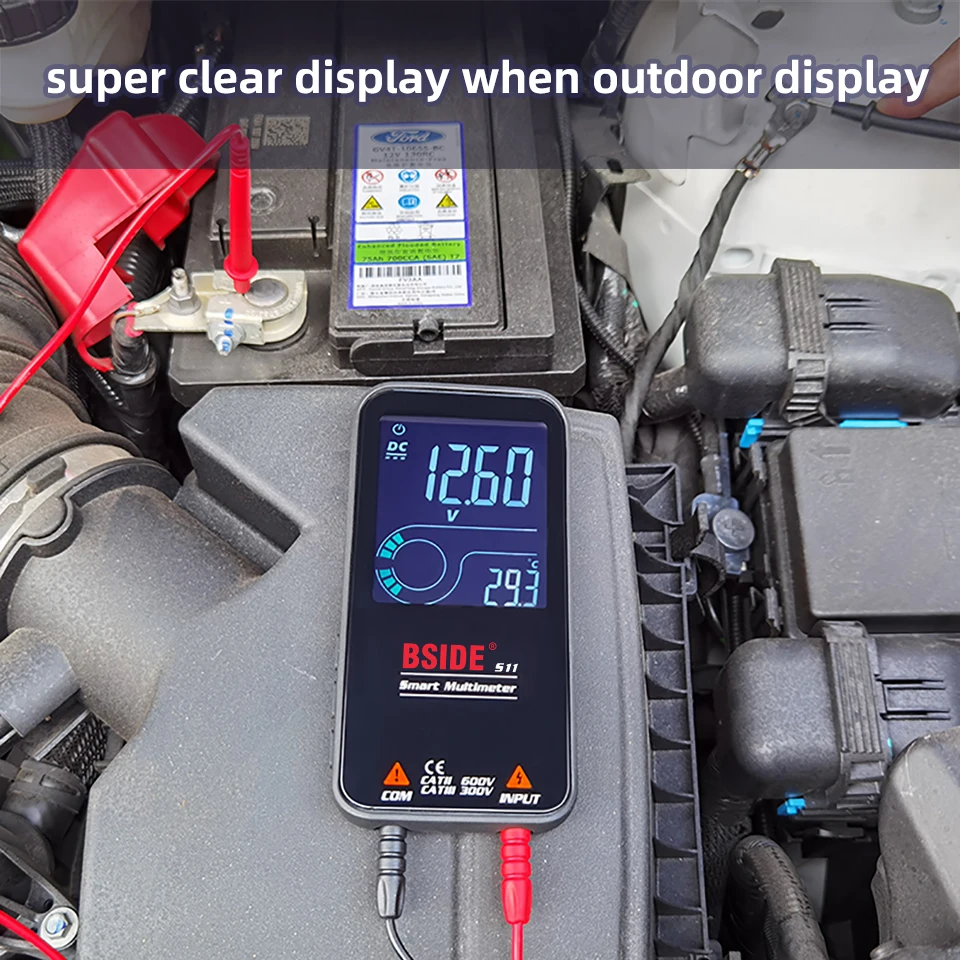

[EBTN LCD display]: The EBTN LCD display greatly enhances the reading experience. The numbers and letters with a bright black background and color analog bars are very easy to read even in bright sunlight or under low light conditions.

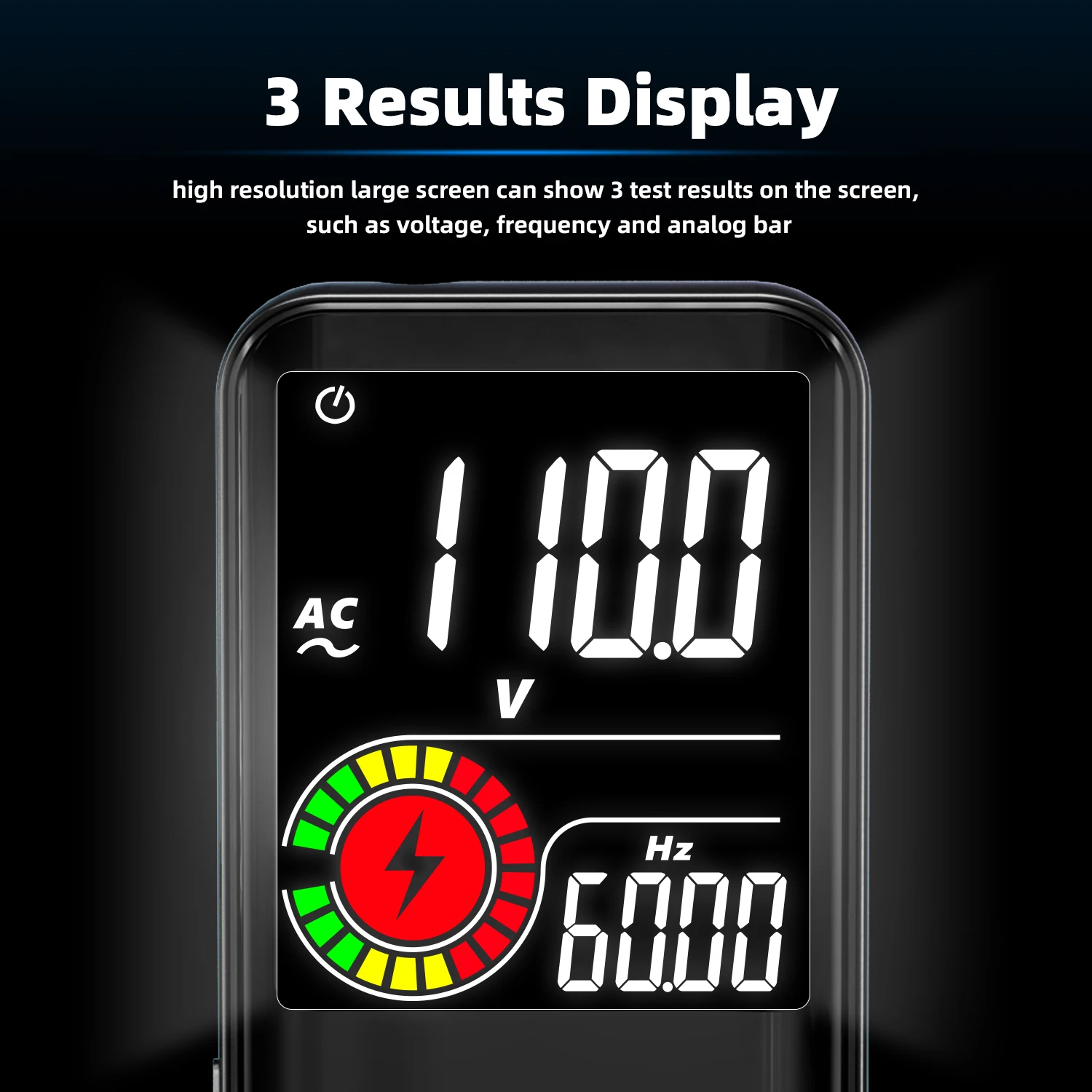

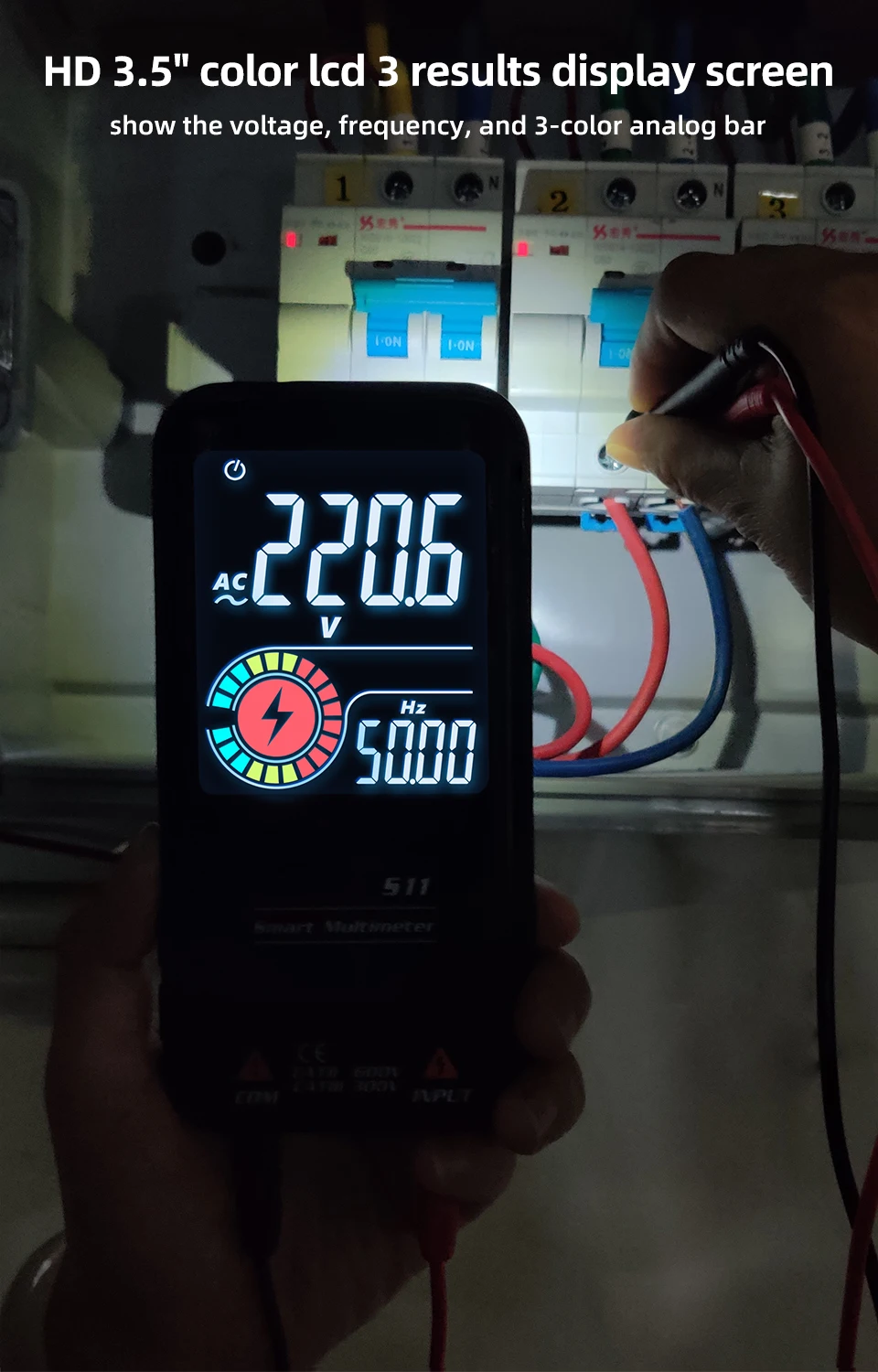

[3 Results Display]: The high-resolution large screen can display 3 test results on the screen, such as voltage, frequency and analog bars.

[Automatic identification]: Automatic identification can greatly improve test efficiency. BSIDE intelligent technology enables the multimeter to automatically identify the parameters of the test and select the required range.

[Protective cover]: Durable protective cover to prevent vibration, friction and collision. This case is detachable and easy to replace.

[Upgraded flashlight]: The upgraded flashlight can change the dark environment.

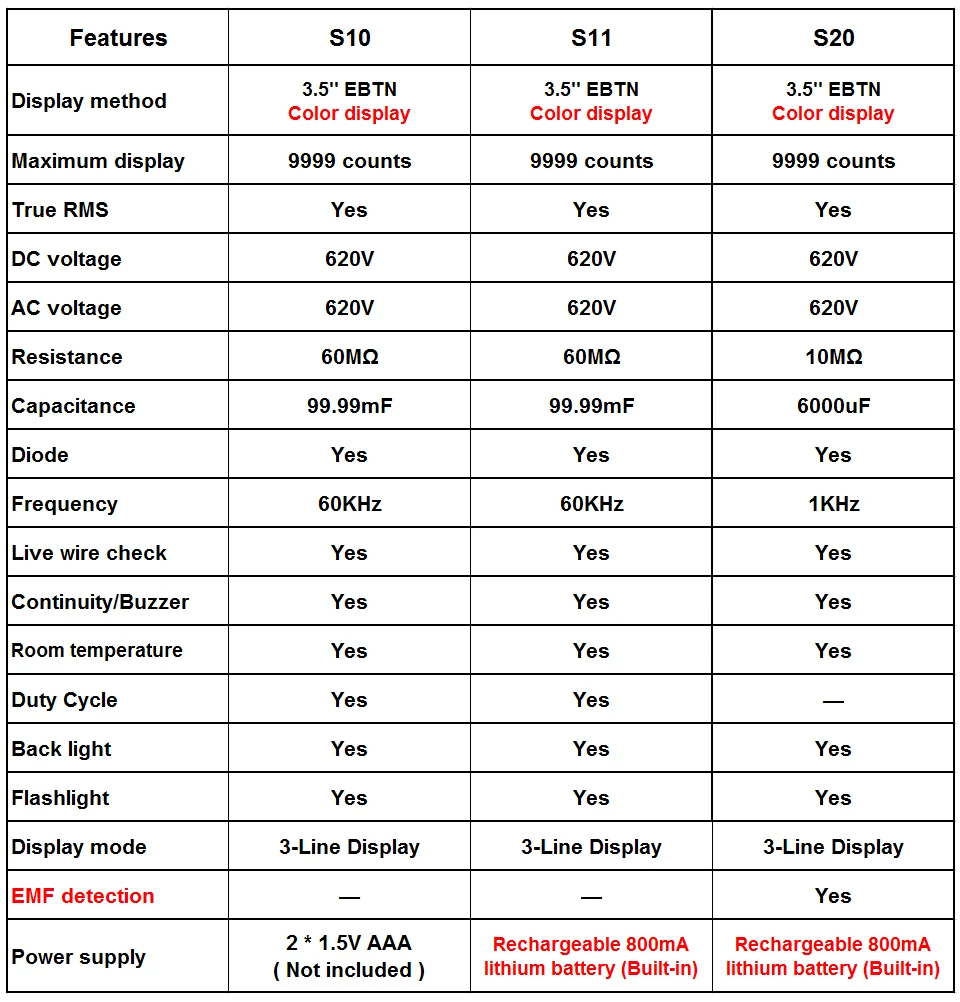

S10 Specifications:

Display: 9999 counts

Screen: 3.5 inch

DC Voltage: 0.8V-620V ±(0.5%+3); Resolution: 0.001V

AC Voltage: 2.2V-620V ±(0.5%+5); Resolution: 0.001V

Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω

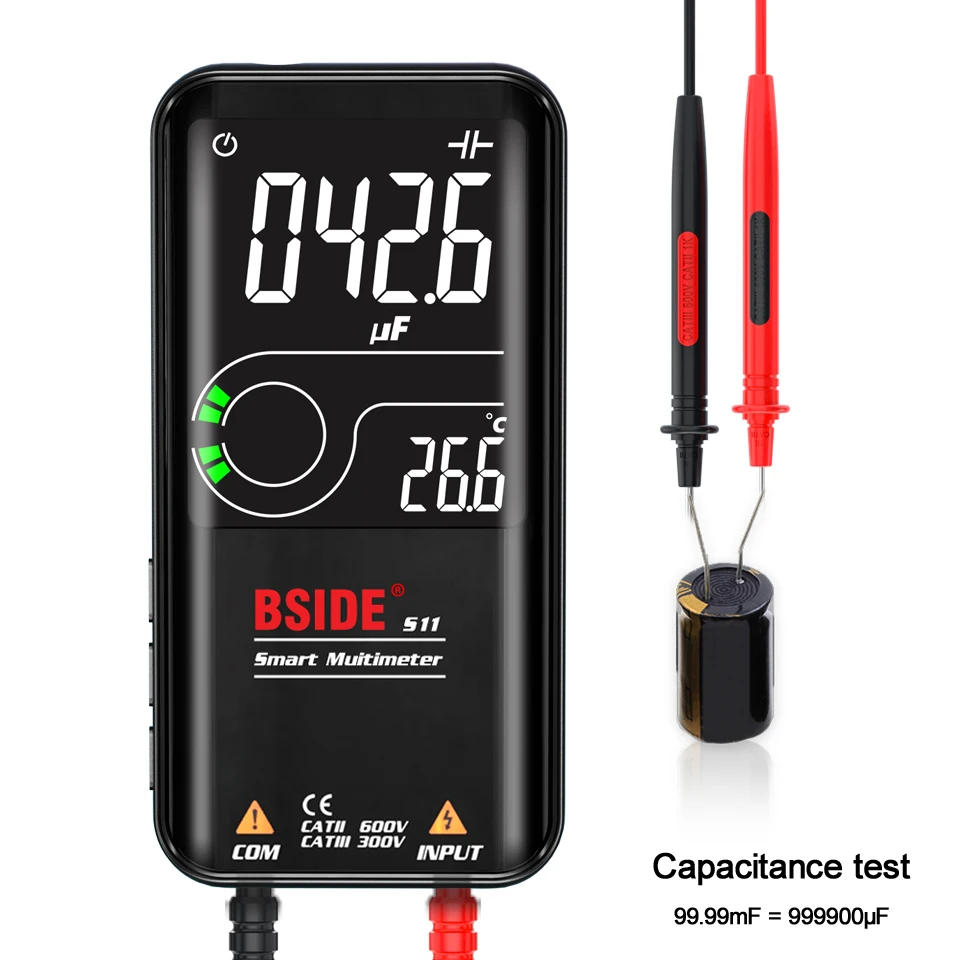

Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF

Frequency:

1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz

1KHz-60KHz ±(1.0%+5) (ACV:10V-620V);

Resolution: 0.001Hz

Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%

Diode: Auto identify diode if less than 3.0V

V-Alert(non-contact voltage detection): beep alarm sounds

Live Check: alarm beep sounds, LCD screen display stripe

[Color LCD Display]: Color LCD display greatly enhance the reading experience, the lighted up numbers & letters with black background make it very easy to read, even in bright sunlight or poor light.

3 Results Display]: High resolution large screen can show 3 test results on the screen, such as voltage, frequency and analog bar.

[Automatic Identification]: Automatic identification greatly improves your test efficiency. BSIDE smart technology make this multimeter can automatically identifies the tested parameters and choose their required range.

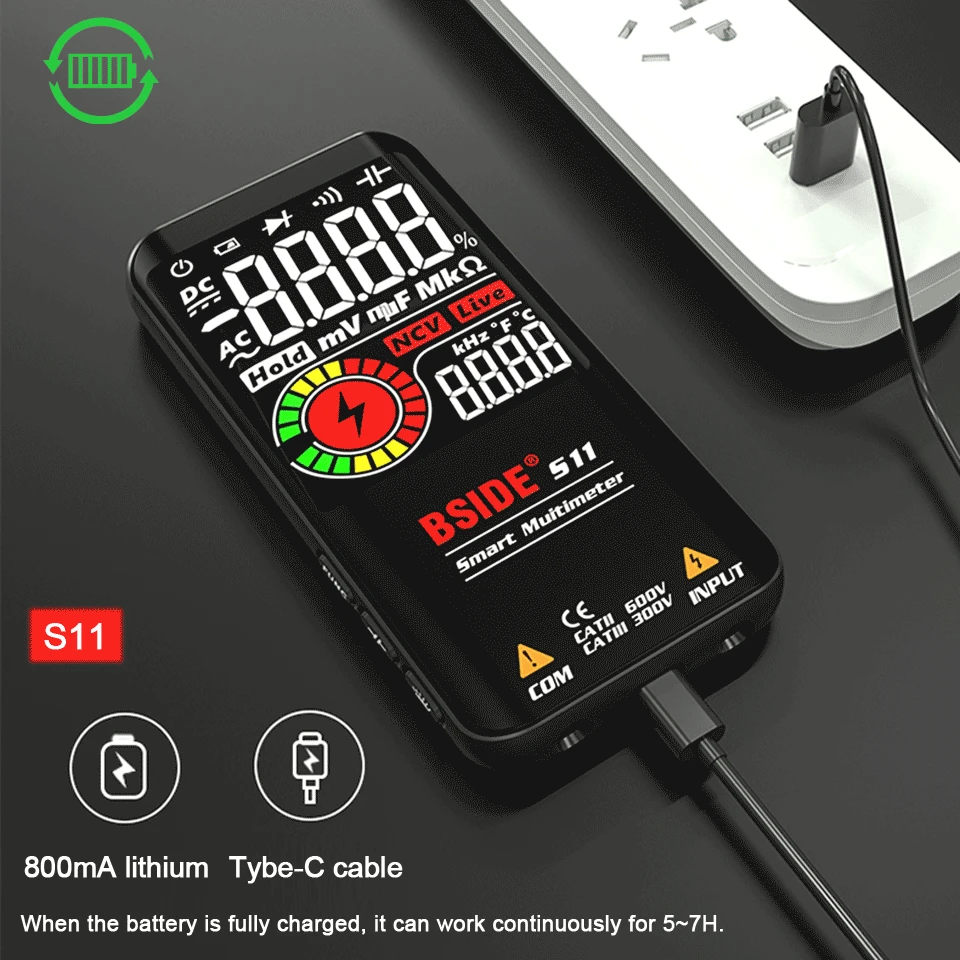

[Rechargeable]: Come with a rechargeable li-ion battery & charging cable, you will never worry about power problem.

[EMF Detector]: Integrated EMF detector design greatly enhance your experience, suitable for home, office, factory, outdoor, etc.

S20 Specifications:

Max Display: 9999 counts
Display Type: Color display
Screen: 3.5 inch
DC Voltage: 0.5V-620V ±(0.8%+3); Resolution: 0.001V
AC Voltage: 1.0V-620V ±(1.2%+5); Resolution: 0.001V
Resistance:1Ω-10.0MΩ ±(1.2%+3); Resolution: 0.1Ω
Capacitance: 0.5uF-1000uF ±(3.5%+8), 1000uF-6000uF ±(4.5%+10); Resolution: 0.1uF
Frequency: 10Hz-1000Hz ±(2.0%+10); Resolution: 1Hz
Diode: Measure diodes within 1.0V
EMF Detect: alarm beep sounds, LCD screen display stripe
Live Check: alarm beep sounds, LCD screen display stripe
Continuity: If the resistance is less than 30Ω, the beeper sounds
Power: Rechargeable 3.7 V * 1 battery (included)
Size: 143*69*17mm
Weight: 320g

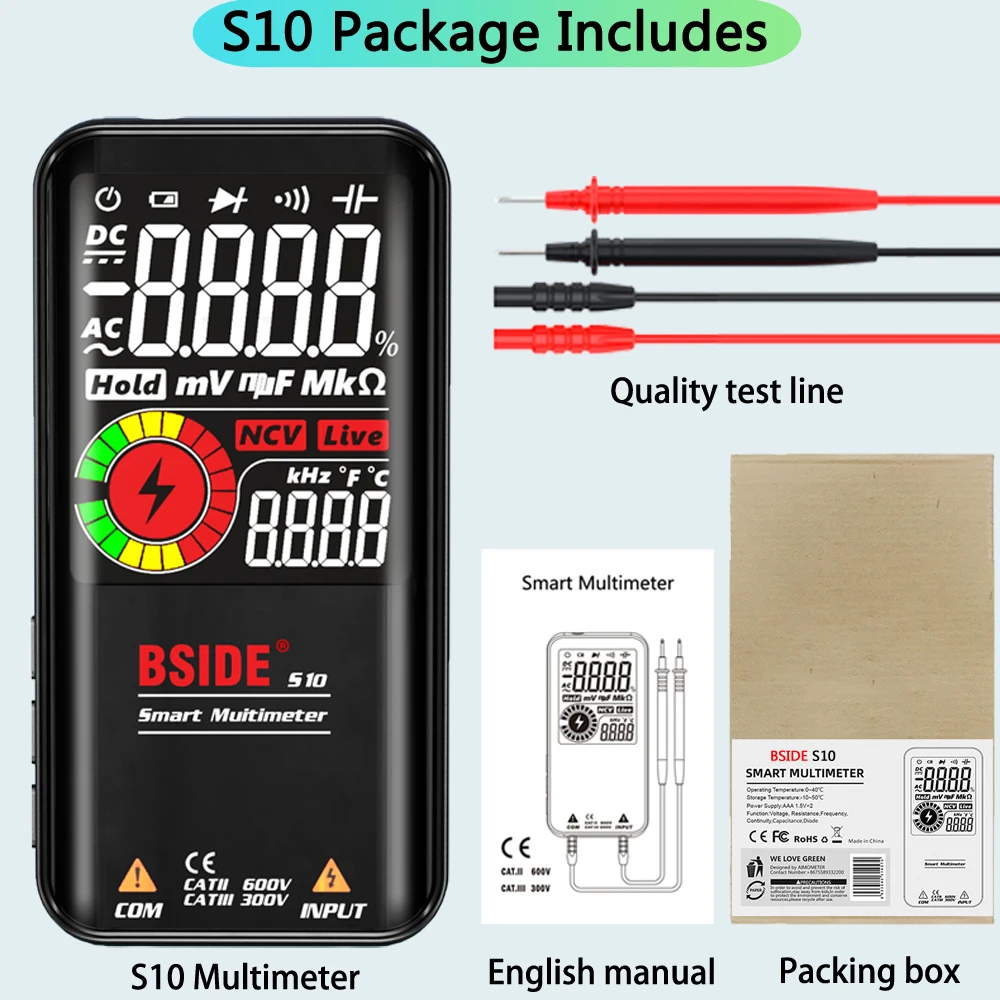

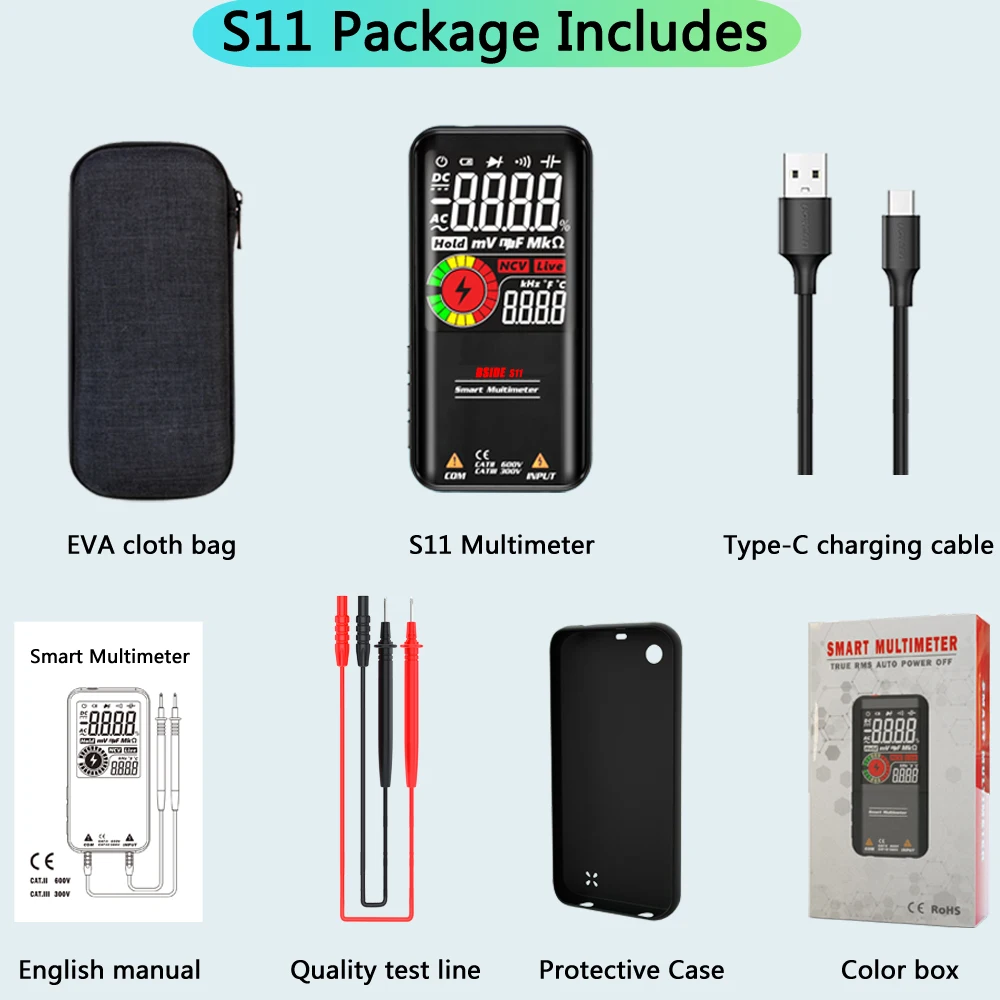

Package Includes:

1 * Multimeter. 1 * Test Lead.

1 * English user Manual. 1 * Packing Box.

1 * USB charging cable.（S11/S20）

1 * EVA portable cloth bag.（S11/S20）

1 * Protective shell.（S11/S20）
