CWT-MB317T 32DO(NPN) 32-Channel Digital Output Transistor Output Modbus Controller
- Fast delivery
- 30-day returns
CWT-MB series Modbus IO Module | ||||||
AI + AO | ||||||
CWT-MB307B | 8AI | View | CWT-MB307C | 4AO | View | |
CWT-MB307J | 16AI | View | CWT-MB307A | 8AI+4AO | View | |
CWT-MB308Z | 24AI | View | CWT-MB308J | 16AI+4AO | View | |
CWT-MB308F | 32AI | View | CWT-MB308Q | 32AI+4AO | View | |
DI + DO | ||||||
CWT-MB307G | 16DI | View | CWT-MB307P | 8DI+4DO | View | |
CWT-MB308D | 32DI | View | CWT-MB307E | 8DI+8DO | View | |
CWT-MB307N | 4DO | View | CWT-MB328B | 8DI+16DO | View | |
CWT-MB328A | 16DO | View | CWT-MB308K | 16DI+12DO | View | |
CWT-MB308M | 24DO | View | CWT-MB308L | 24DI+6DO | View | |
AI + AO + DI + DO | ||||||
CWT-MB307F | 8AI+8DI | View | CWT-MB307D | 8AI+8DI+8DO | View | |
CWT-MB308W | 8AI+24DI | View | CWT-MB308E | 8AI+8DI+12DO | View | |
CWT-MB308U | 16AI+16DI | View | CWT-MB308T | 8AI+16DI+6DO | View | |
CWT-MB308H | 24AI+8DI | View | CWT-MB308R | 16AI+8DI+6DO | View | |
CWT-MB308C | 24AI+6DO | View | CWT-MB308N | 8AI+4AO+8DI+8DO | View | |
CWT-MB307L | 8AI+4DO | View | CWT-MB308V | 8AI+4AO+8DI+12DO | View | |
CWT-MB308Y | 16AI+12DO | View | CWT-MB308P | 8AI+4AO+16DI+6DO | View | |
CWT-MB307K | 4AO+8DI | View | CWT-MB308S | 16AI+4AO+8DI+6DO | View | |
CWT-MB307R | 4AO+6DO | View | CWT-MB328C | 8AI+16DO | View | |
DI + DO(NPN) | ||||||
CWT-MB317H | 16NPN | View | CWT-MB317A | 8AI+8NPN | View | |
CWT-MB317T | 32NPN | View | CWT-MB317D | 8AI+8DI+8NPN | View | |
CWT-MB317E | 8DI+8NPN | View | CWT-MB317Q | 16AI+8DI+8NPN | View | |
CWT-MB317F | 16DI+16NPN | View | ||||
PT100 + AI (input 4+20mA / 0+5V / 0+10V) + AO + DI + DO | ||||||
CWT-MB318A | 4PT | View | CWT-MB318L | 8PT+16AI | View | |
CWT-MB318B | 4PT+4AI | View | CWT-MB318W | 8PT+8AI+8DI | View | |
CWT-MB318G | 4PT+3AI+8DI+8DO | View | CWT-MB318K | 8PT+8DI+6DO | View | |
CWT-MB318F | 4PT+4AI+2AO+8DI+6DO | View | CWT-MB318D | 12PT | View | |
CWT-MB318C | 8PT | View | CWT-MB318E | 12PT+4AI | View | |
CWT-MB318M | 4PT+11AI+16DI | View | CWT-MB318S | 4PT+11AI+8DI+6DO | View | |
CWT-MB317T 32DO(NPN) 32-Channel Digital Output Transistor Output Modbus Controller

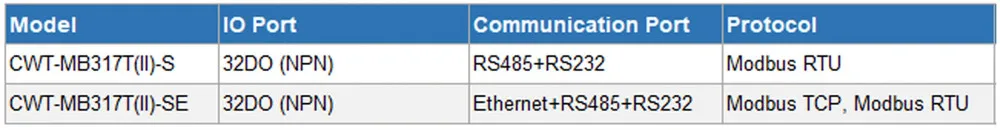

The second generation options:

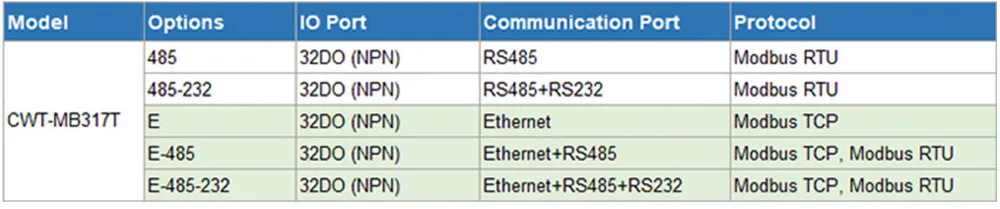

The first generation options:

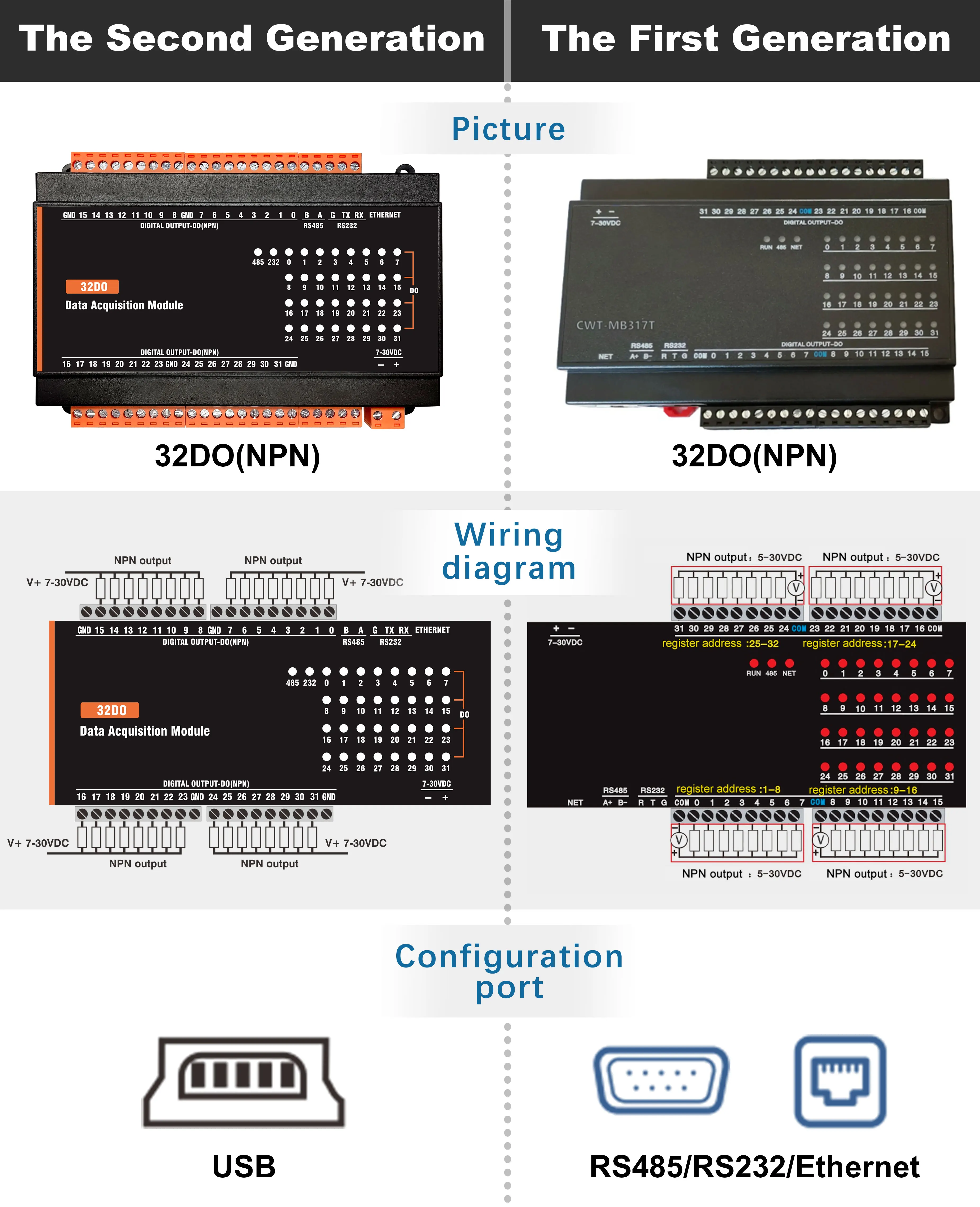

Digital output
Output type | NPN transistor output |
Isolation | opt coupler isolation |
Load voltage | 5-30VDC |
Load current | 100mA |
System parameters
CPU | 32-bit ATMEL ARM, 72MHZ |
OS | GCOS,10ms scheduling mechanism |
Power | 7-35VDC @2W, power supply reverse protection, isolation design |
Installation | DIN rail mounting or screw fixing |
Working Environment | -40℃~85℃,5%~95%RH(non-condensing) |
Protection | IP20 |
Watchdog | 1.5m guard |
Series port parameters
Port type | 1RS485 & 1RS232 |
Protection | DCDC isolation design, 2500V lightning protection, ESD, overvoltage, overcurrent protection |
Baud rate | 1200~115200,default 9600 |
Parity | Even, Odd, None |
start bit | 1 bit |
data bits | 8 bit |
Stopbits | 1,2bits |
Protocol | MODBUS RTU |
default | 9600.N.8.1,slave id is 1 |
Ethernet
Port type | RJ45 |
Communicate protocol | MODBUS TCP,MODBUS UDP |
Communicate rate | 1000 times/s |
bandwidth | 10M/100Mbps |
IP address | 192.168.1.75 |
Port | 502 |
