DC 12V 24V High Pressure Ultra Water Pump 1/2" Male Thread Interface Low Noise 800L/H Fish Tank Pump 8/10/12/16mm Connection 1Pc

1. No maintenance required, small size, high efficiency, low power consumption, strong anti-interference ability, and smooth operation.

2. No carbon brush, no pollution, electronic reversing, long service life.

3. The bottom plate of the water pump can be replaced with shock-absorbing silicone to absorb vibration and reduce noise. The position of the silicone can be adjusted for easy installation.

4. The stator and circuit board of the motor are sealed with epoxy resin and completely isolated from the rotor, solving the leakage problem caused by long-term submergence of the motor type DC water pump and completely waterproof.

5. Solved a series of problems such as water pump jamming and sudden failure to start in complex environments.

6. The pump shaft is made of high-performance ceramic (zirconia) (stainless steel shaft can be selected to reduce costs), which has high accuracy and good wear resistance. Due to the precise fit between the high-precision shaft sleeve and the ceramic shaft.

Package Includes: 5 types for you to choose

Type1: 1Pc x 1/2" Male Thread 12V DC Water Pumpor 24V DC Water Pump

Type2:

• 1Pc x 1/2" Male Thread 12V DC Water Pumpor 24V DC Water Pump

• 1Pc x 16mm Plastic Nipple Joint

Type3:

• 1Pc x 1/2" Male Thread 12V DC Water Pumpor 24V DC Water Pump

• 1Pc x 8mm or 10mm or 12mm Multi-Barb Copper Pagoda Joint

Type4:

• 1Pc x 1/2" Male Thread 12V DC Water Pumpor 24V DC Water Pump

• 1Pc x 16mm Plastic Nipple Joint

• 1Pc x Water Pump DC12V or DC24V Plug

• Type5:
  1Pc x 1/2" Male Thread 12V DC Water Pumpor 24V DC Water Pump

• 1Pc x 8mm or 10mm or 12mm Multi-Barb Copper Pagoda Joint

• 1Pc x Water Pump DC12V or DC24V Plug


Notes

1. This water pump is a submersible centrifugal water pump. The water pump must be submerged in water, or the water level of the external water source must be lower than the inlet nozzle of this water pump when the pipeline is connected, so that the air in the inlet chamber of the water pump can be discharged before the water pump can pump normally.

When selecting a water pump, it is necessary to provide the operating environment, such as continuous working time, water temperature, medium, etc. If the power of the water pump exceeds 24W, it is not suitable for long-term continuous operation at water temperatures above 65 degrees Celsius

3. The above current is the opening current of the water pump, which is the current when the water pump is directly placed in the water without connecting to any system. It is also the maximum current of the water pump. After the water pump is connected to the system, the working current of the water pump will decrease to 70% -85% of the maximum load current.

The head of the water pump is the maximum water delivery height, which means that the flow rate to reach the maximum head point is zero.

5. The flow rate of the water pump is the horizontal flow rate, that is, the flow rate of horizontal pumping.

6. This water pump cannot operate without water for a long time.

WARNINGS

1. Due to different computer display colors, the actual color may differ slightly from the above pictures. Thank you for your understanding.

2. Please allow slight dimension differences due to different manual measurements. Thank you!

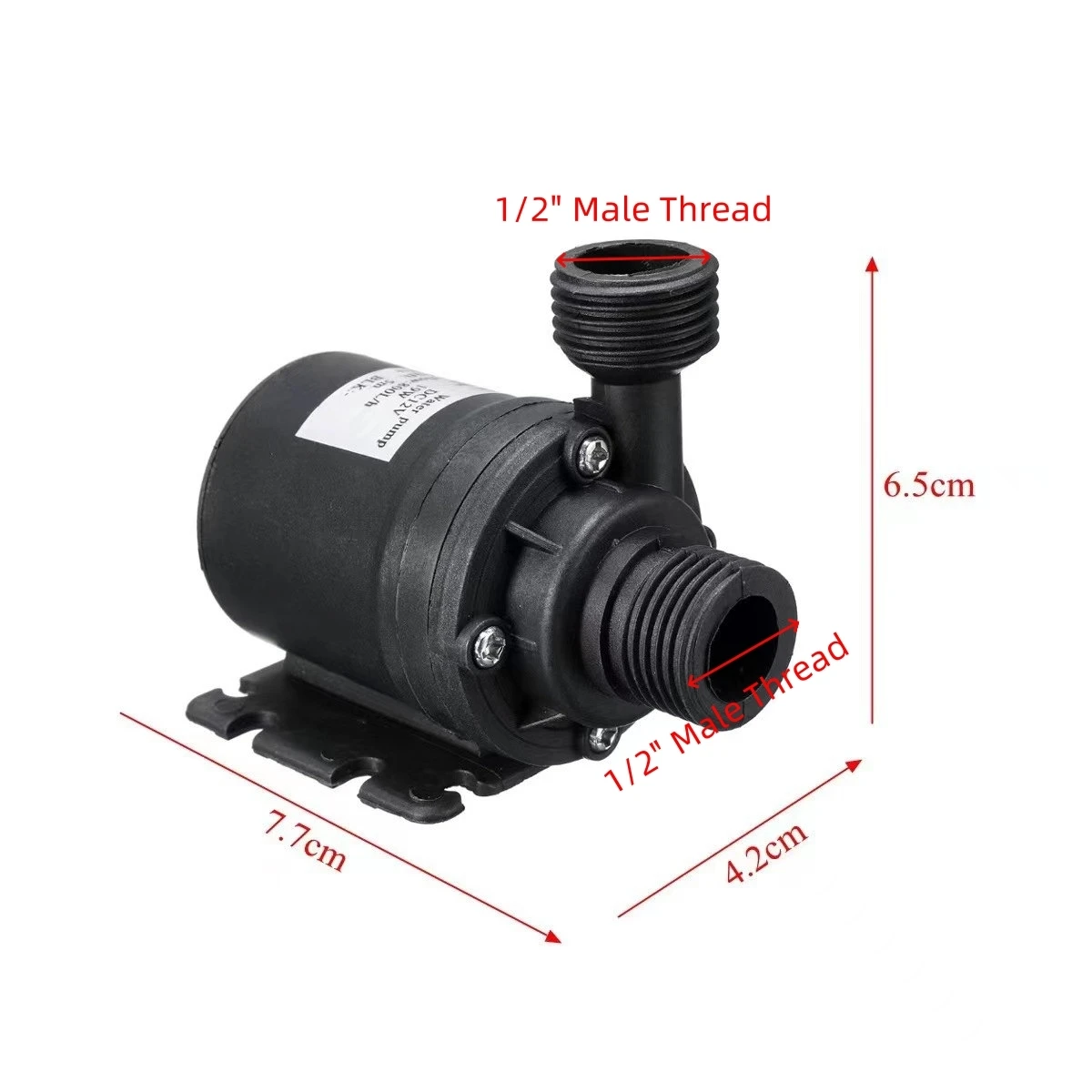

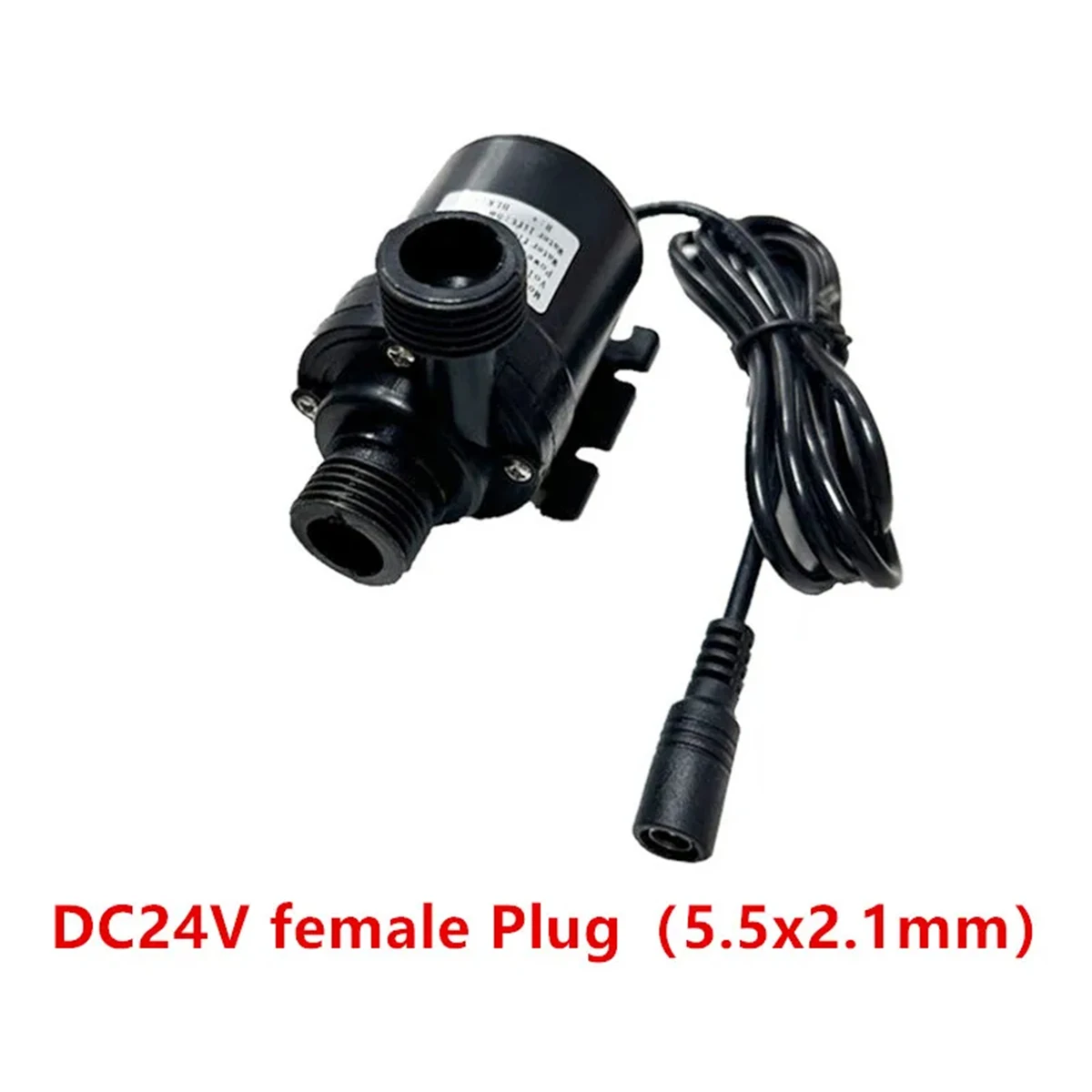

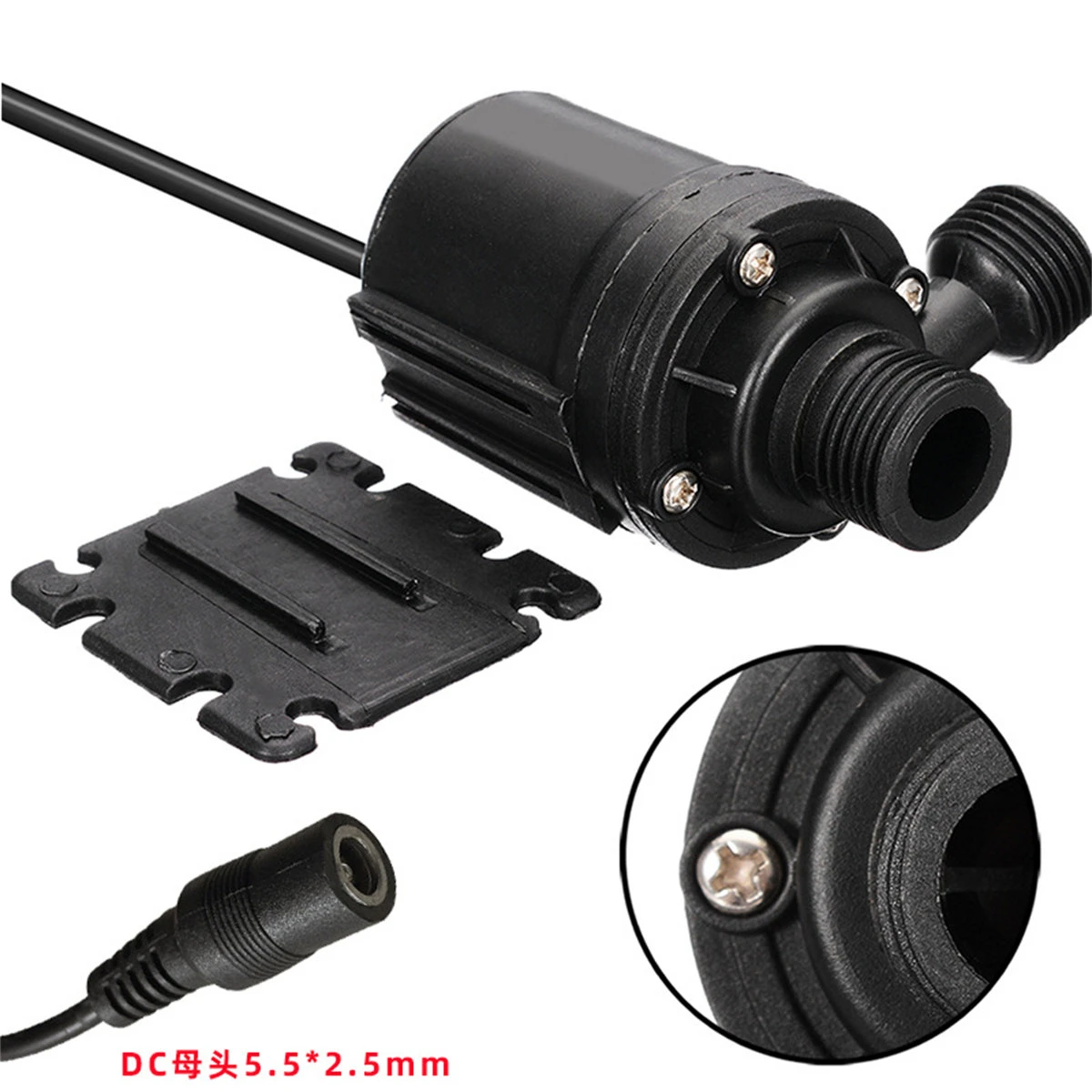

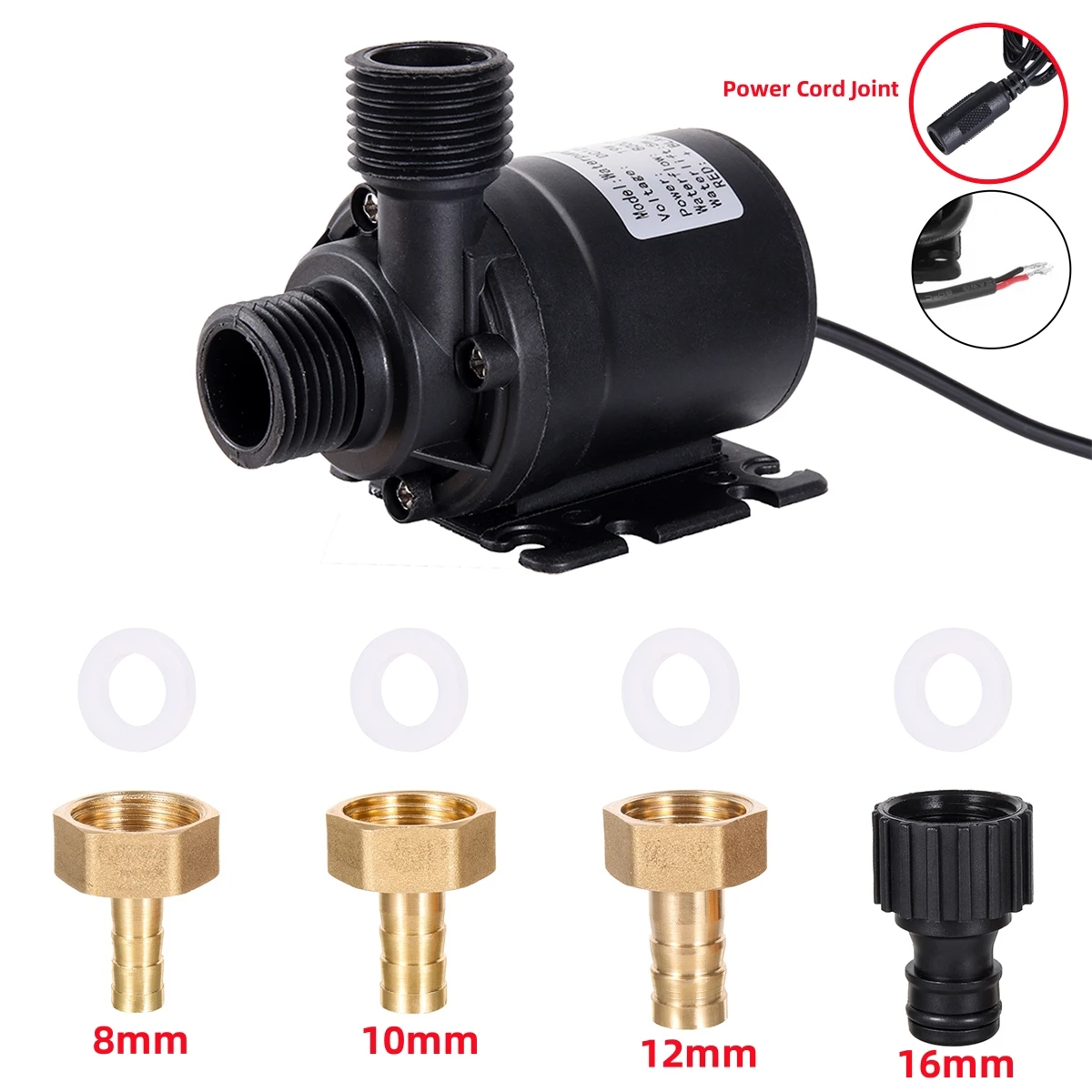

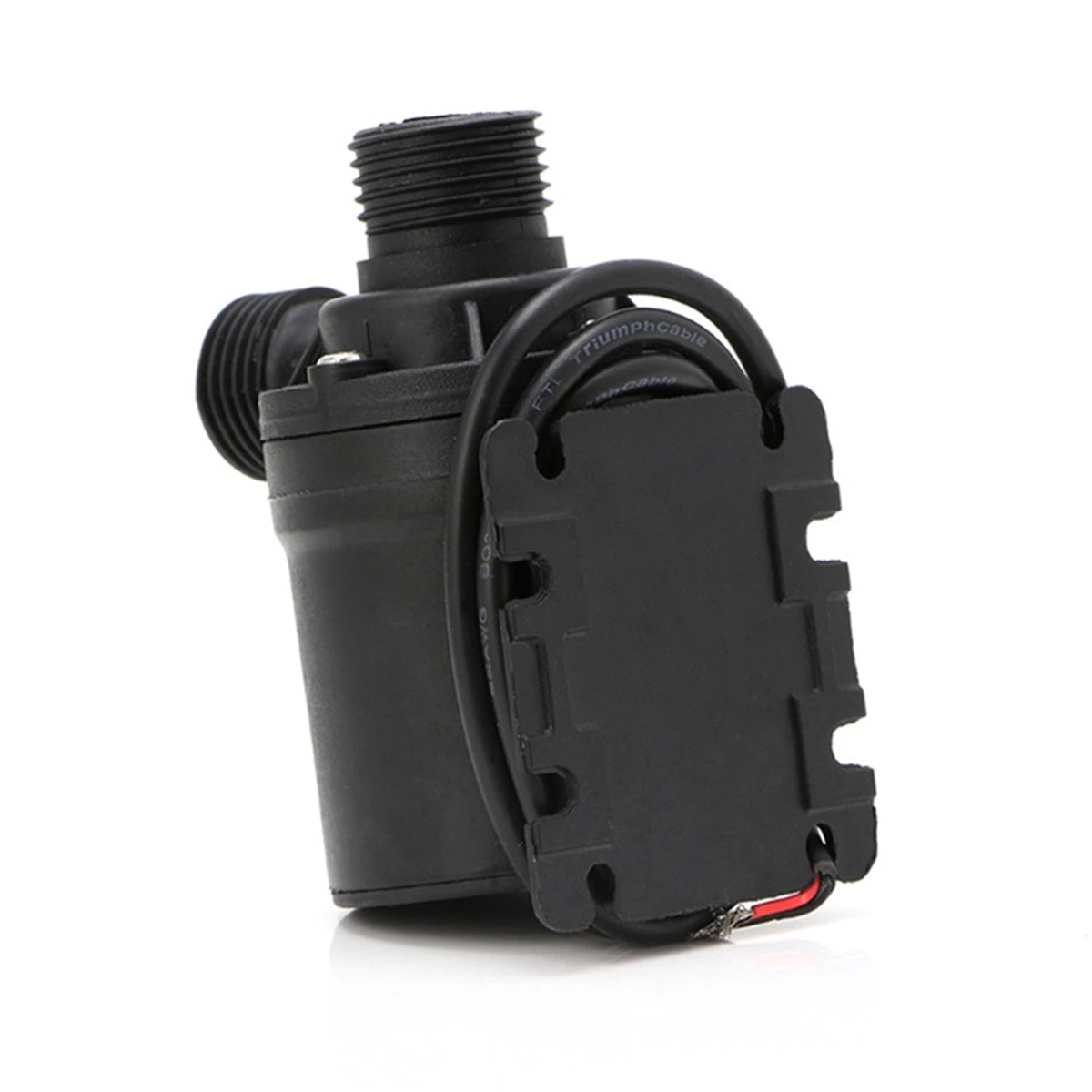

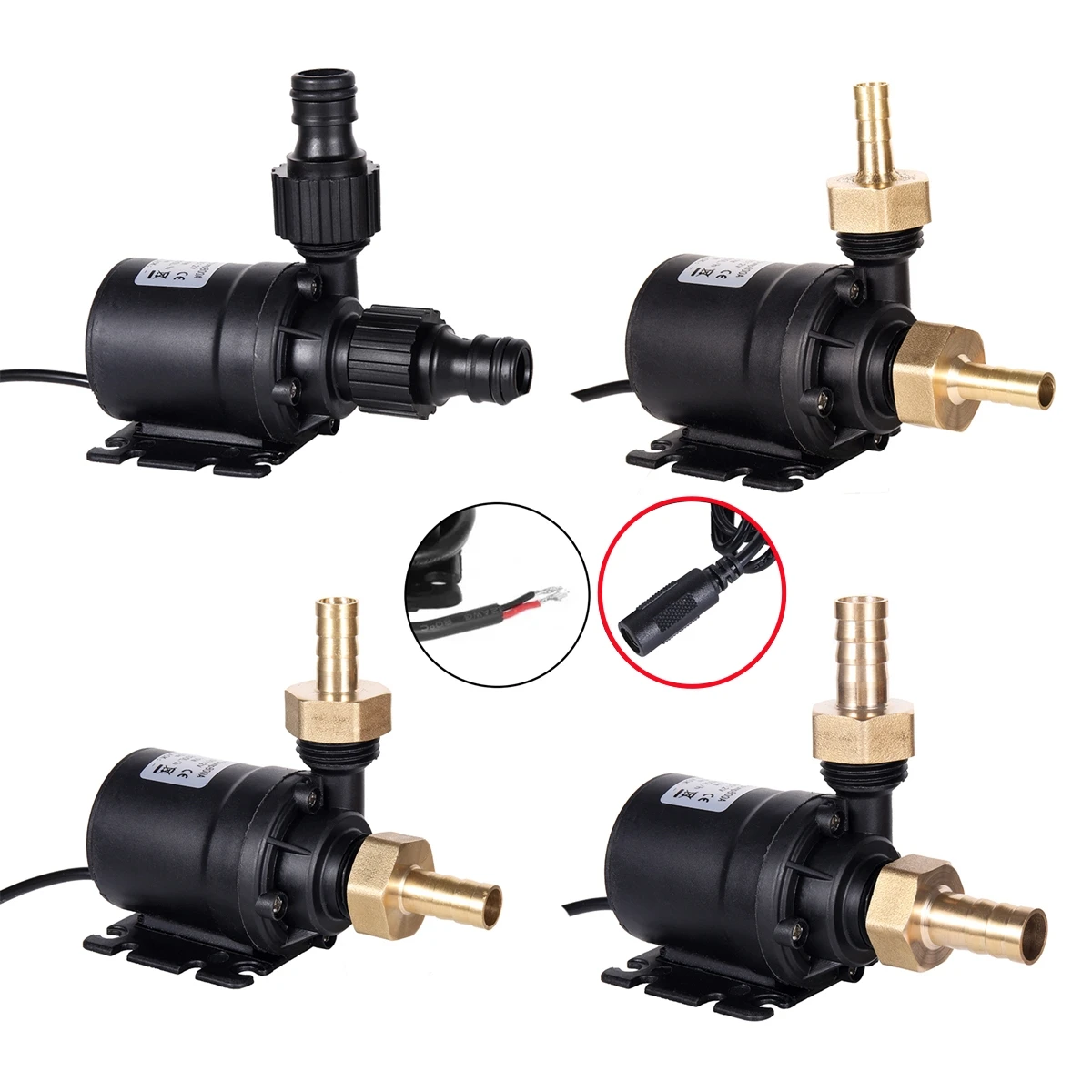

PRODUCT PICTURES
