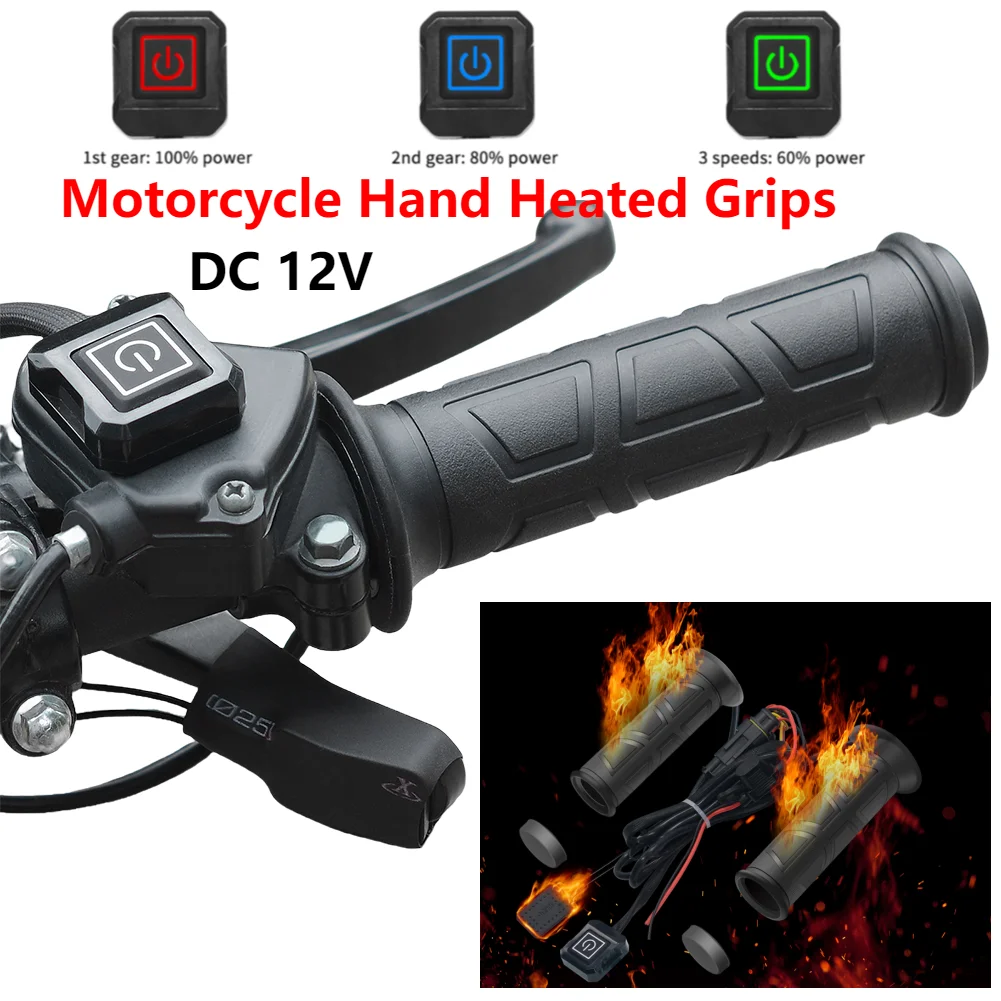

DC 12V ATV Handlebar Heater Smart Temperature Control Handlebar Hand Warmer Waterproof Electric Heated Grips for Motorcycles ATV



DC 12V ATV Handlebar Heater Smart Temperature Control Handlebar Hand Warmer Waterproof Electric Heated Grips for Motorcycles ATV

Features:
1. and Weather-resistant Design: The motorcycle hand heated grips are crafted with an integrated design to prevent rain and dust from entering and corroding the internal components, ensuring a longer lifespan and safer use.
2. Smart Temperature Control: The ATV heated grip features a built-in smart temperature control chip with three adjustable settings, allowing you to easily adjust the temperature according to your needs for a safer and more comfortable ride.
3. Universal Fit for ATVs: Designed with a 12V input voltage and a 22mm universal handlebar diameter, these hand warmer grips are perfect for most ATVs without a throttle, including beach vehicles.
4. Convenient and Aesthetic Design: The scooter bar hand warmer comes with a sealable or open-end design, allowing you to install handlebar end caps or other decorative accessories without any hassle. It also includes a standby mode that maintains a constant temperature of around 50 degrees Celsius for added convenience.
5. Safety Features and Thumb Heater: The ATV handlebar heater includes a 5A fuse with a waterproof cover to automatically cut off power in case of vehicle issues, preventing accidents. Additionally, it features a thumb heater to keep your thumb warm while pressing the throttle button.

Specification:
Origin: Mainland China
Product material: nitrile rubber
Product color: black
Handle length: Left hand handle: 125mm; right hand handle: 125mm
Suitable pipe diameter: 22mm
Input voltage: DC12V
Handle power: First gear red: 31W; Second gear blue: 23W; Third gear green: 14W
Thumb power: First gear red: 1.6W; second gear blue: 1.2W; third gear green: 0.8W
Working ring mirror temperature: -20°C--+50°C
Handle type: sealable, portable, electric heating handle
Switch type: aluminum alloy multi-speed adjustable temperature control switch
Applicable models: 12V ATV ATV with a handle diameter of 22mm
Package size: 20x13x6cm
Operation instructions:
1.Power on: red light, blue light, green light each flashes once and then goes off
2.Working status: The indicator light is always on (high-end: red light is always on, mid-range: blue light is always on, low-end: green light is always on)
3.Press and hold the switch button for 3 seconds: enter standby state or turn off
4.Click the switch button: switch gears
How to use the switch: Press and hold for 3 seconds to turn on, the red breathing light will enter the standby state, and it will automatically turn into a blue mid-range after reaching a certain temperature; tap to change to a blue light, the temperature is medium temperature; tap twice to turn green, the temperature is the lowest; press three times to red, the third-gear high temperature; press and hold for 3 seconds to turn off
Installation instructions:
1.First remove the original handlebar with tools, and then clean up the handlebar
2.Then wet the inner holes with soapy water with the left and right hands of the product, and install the left and right hands on the handlebar separately. The twisting amplitude should not be too large during installation.
3.Put the finger heater on the ATV throttle button, put it on with a heat-shrinkable sleeve, bake the heat-shrinkable sleeve with a hot air gun or lighter, shrink the heat-shrinkable sleeve to a suitable size, and fix the thumb heater on the throttle button.
4.When connecting to the power cord, the red wire of the product is connected to the positive electrode of the car's power supply, and the black wire of the product is connected to the negative electrode of the car's power supply. After confirming the positive and negative electrodes, connect it again, do not connect the reverse.
5.Because the switch of this product has two fixing methods (rearview mirror fixing, glue fixing), the aluminum alloy switch can be fixed to the iron bracket with small screws, and then the iron bracket is fixed to the base of the rearview mirror and tightened; or directly use film to stick to the back of the aluminum alloy switch, and then stick the glue to the car to fix it in a suitable position.
Precautions: When installing the handle, don't twist the handle too much. Excessive twisting will cause the electric heating wire to shift.
Wiring method:
1.Connected to the positive and negative positions of the battery, the red wire is connected to the positive electrode of the battery+, and the black wire is connected to the negative electrode of the battery-
2.Connected to the positive and negative positions of the electric door lock, the red wire is connected to the positive output line of the electric door lock, and the black wire is connected to the negative electrode of the battery-or take the iron
Warm reminder: When wiring, the red is connected to the positive electrode, and the black is connected to the negative electrode. If the switch is reversed, the switch will burn, but the handle will heat up, so when wiring, please make sure that the positive and negative extremes are connected before wiring to prevent burning.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

Electric Hot Heated Handlebar DC 12V Scooter Bar Hand Warmer 5-Gear Electric Heating Handle Smart Temperature Control for Winter

Feature:
1. Built-in Power Memory Function: These motorcycle ATV hand heated grips come with a built-in power memory function. They automatically start and shut off with the key, ensuring that each time you turn on your motorcycle or ATV, they resume the heating level from the last time they were turned off.
2. Intelligent Heating Chip: Equipped with an intelligent heating chip, the electric hot heated handlebar offers five levels of adjustment for quick heating. Say goodbye to the cold and enjoy a warm ride, no matter the weather conditions.
3. Smart Temperature Control Chip: The warm hand grips feature a smart temperature control chip that ensures safe and worry-free riding. It includes over-discharge protection, preventing battery drain when not in use.
4. Easy Temperature Adjustment: Designed with a temperature adjustment button, the  scooter bar hand warmer allows for simple control of high and low heat settings. The operation is straightforward, providing convenience while riding.
5. IP66 Waterproof Rating: With an IP66 waterproof rating, the electric heating handle can be easily cleaned using a wet cloth. They are waterproof and dustproof, providing durability and protection against the elements. The textured surface design increases friction between the palm and the handlebar, offering a comfortable and slip-resistant grip.

Specification:
Origin: Mainland China
Product material: TPV
Product colour: black
Input voltage: DC 12V
Working voltage: 11.5V-16V
Output power: 20-50W
Applicable tube diameter: 22mm
Scope of application: Suitable for DC12V scooters, motorbikes, beach bikes, three-wheeled motorbikes installed use
Package size: 243x180x73mm/9.57x7.09x2.87inch

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

Electric Heating Handle Temperature Regulation Motorcycle Heating Handlebar Electric Hot Heated Grip Motorcycle Parts for Winter

Feature:
1. High-Temperature Resistant: These motorcycle hand heated grips are made of high-temperature resistant nitrile rubber, providing durability and heat resistance. The right-hand grip is designed with a larger inner diameter to accommodate motorcycles with throttle cores, offering compatibility for various models.
2. Cross-Wound Heating Wire: The heating wire is cross-wound, ensuring excellent comfort during use. With half the power consumption compared to similar products, these electric molded grips are truly efficient and energy-saving. Experience warmth without compromising performance.
3. Ultra-Thin Dedicated Heating Grip: Equipped with an ultra-thin dedicated heating grip switch, these  scooter bar hand warmers offer easy control over the heating function. The switch is specifically designed for convenience and allows you to adjust the temperature according to your preference.
4. Silicone Resin Fiber Sheath: The throttle wire of the right adjustable hot grip handle is encased in a silicone resin fiber sheath, ensuring flexibility without affecting throttle operation. This design provides reliable and smooth handling while maintaining the integrity of the heating system.
5. Electronic Temperature Control: Featuring an advanced electronic temperature control system, these electric heating handles provide efficient power consumption. This system not only keeps your hands warm but also effectively protects the motorcycle's battery. Additionally, the grips come with high-quality switches that surpass the craftsmanship of original motorcycle hand grips.

Specification:
Item Type: Grips
Origin: Mainland China
Model Name: Motorcycle Hand Heated Grips
Product colour: black
Handle length: left handle: 125x35mm/4.92x1.38inch; right handle: 127x35mm/5x1.38inch
Handle diameter: 22mm
Input voltage: 12V
Handle Type: Sealable and pass-through electric handle
Installation instructions:
1. Remove the original handlebar.
2.Wet the inside hole of the left handlebar with soapy water, and do not twist it too much when installing it.
3. When installing the balance iron on the left handlebar, adjust the position of the balance iron to slightly separate from the handlebar, and do not squeeze the handle when tightening the screws.
4. If the left handlebar slides on the steel pipe during use, remove the balancing iron and fix it with a few drops of 502 glue from the end of the handlebar.
5. Connect the red wire to the positive pole and the black wire to the negative pole (not reversed).
6. When installing the left handlebar, the power cable should leave enough margin for rotation.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

100% Brand new and high quality.
If cold hands are making your life a misery when you're on the road, it's time to feel the heat with these adhesive heated pads which stick under your motorcycle's grips.
Keep your hands warm in cold weather.
Flexible and adhesive, the pads fit under your grips without causing any loss of control.
Quick warm up time
Work with all bikes.
The heated pads come with connection wires and on/off switch. Please note that wiring instructions aren't included but you can find tutorials on the web and it should only take you 10 to 15 minutes to wire in. Alternatively, any mechanic or electrician would be able to help.
Don't suffer any longer - get your heated handlebar grip pads now.
Power: 10W.
Color: As the picture
Heated grip pads size: Approx. 9 x 9cm (L*W)
Heat resistant cover size: Approx. 11 x 6.5cm (L*W)




      1 x Motorcycle Hand Heated Grips
2pcs x Heated Handle
1 x Wire Harness
2pcs x Port Cover
2pcs x Soft Rubber Gasket
4pcs x Throttle Cradle
2pcs x Screw
1 x Hexagonal Spanner
1set x Motorcycle Hand Heated Grips

1 x Heated grip pads (with connection wires and on/off switch)

2 x Heat resistant covers

1 x Adhesive tape
