Digital Multimeter Voltage Tester Voltmeter SZ06 SZ308 TRMS 2000 Counts Auto-Ranging Ohm Volt Amp Meter Measuring AC/DC Voltage
- Fast delivery
- 30-day returns
Features:

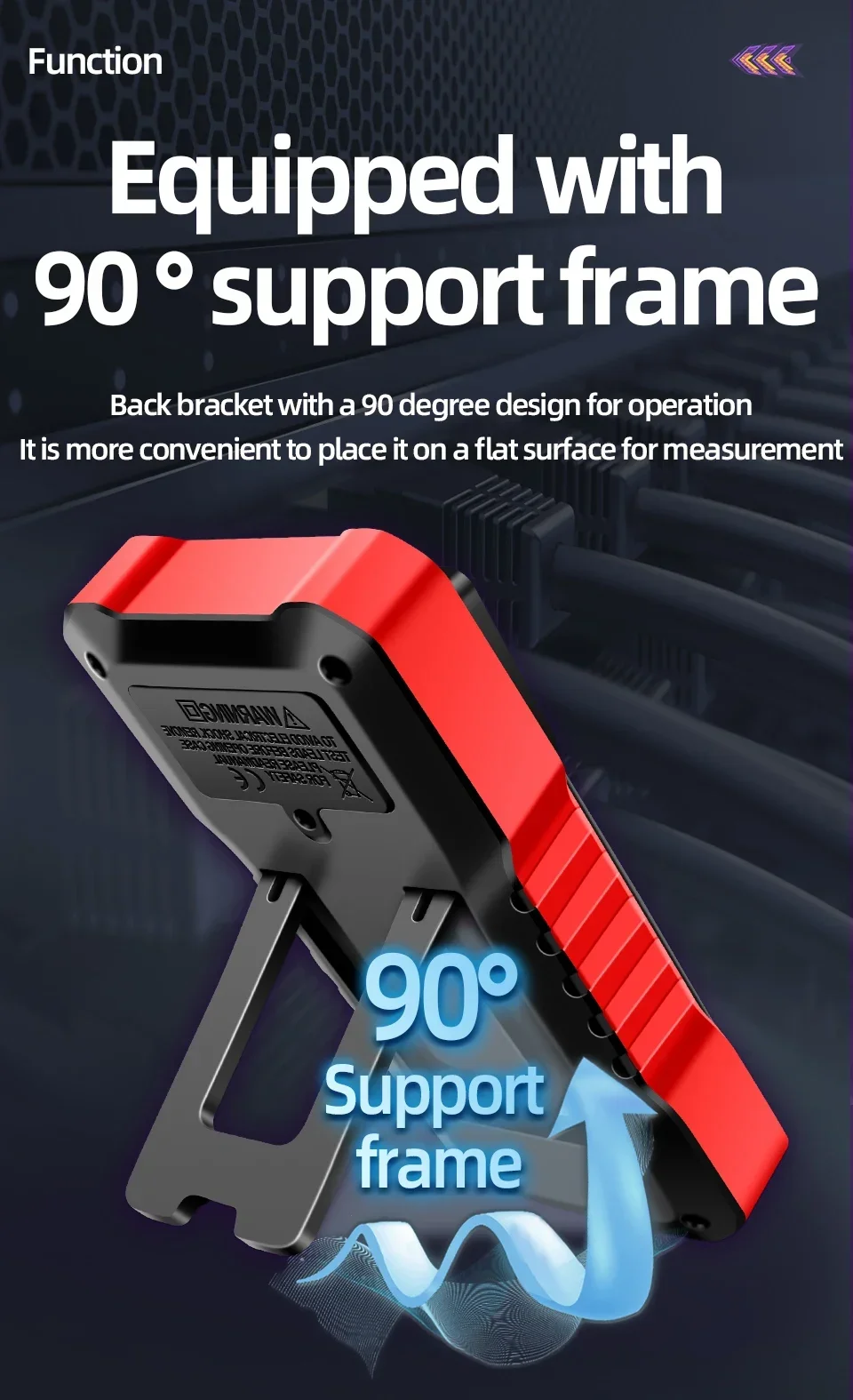

1.90 ° bracket support placement contraction: There is an extended support bracket on the back, which effectively supports the multimeter. When measuring, it can be tilted on the table for easy standing operation

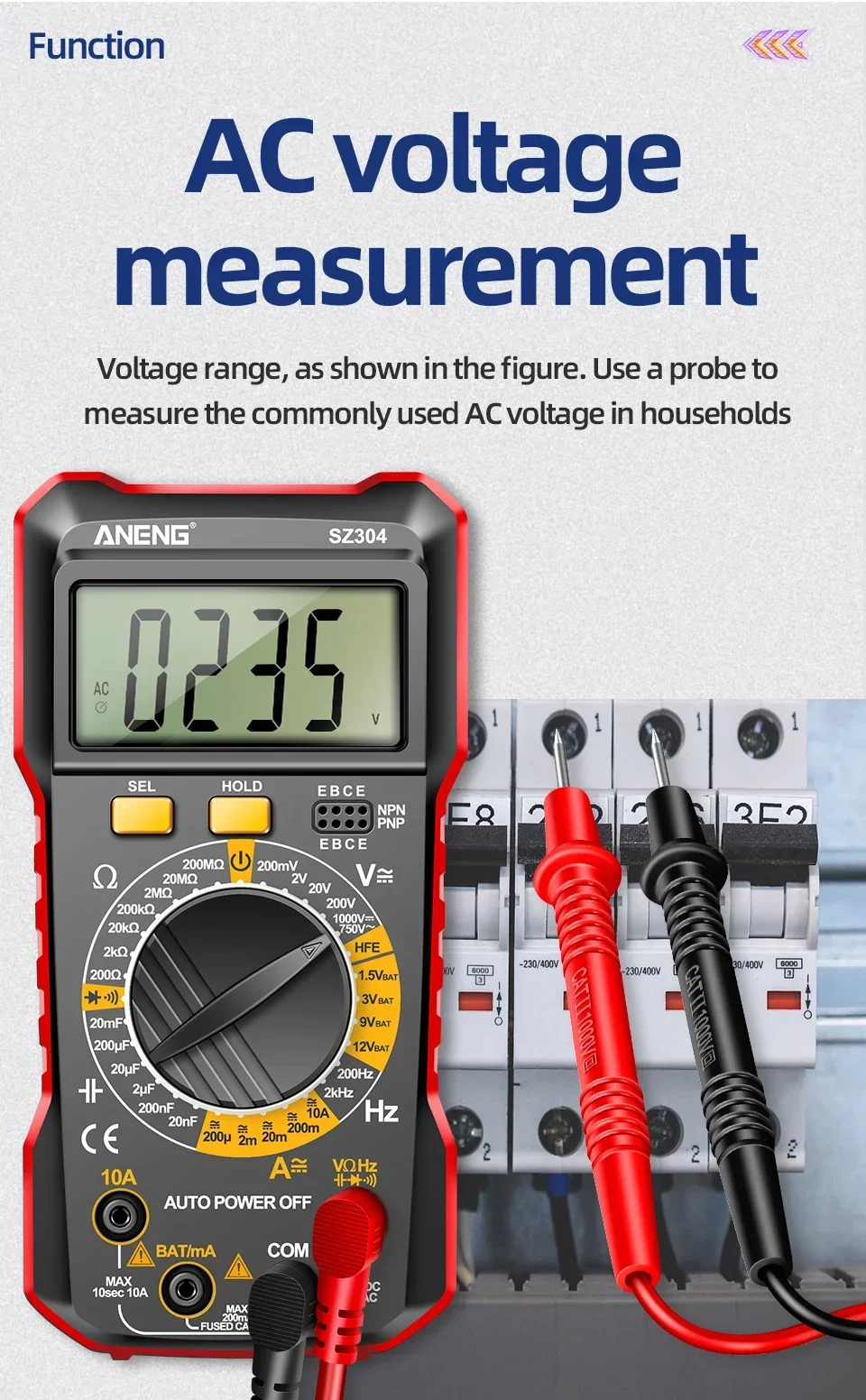

2. AC voltage measurement, simpler operation: Use a pen to measure the voltage range at home, commonly used AC voltage, easy to use, and fast measurement
3. High definition backlight digital display: The backlight function is not afraid of darkness, and data is clearly visible
4. Automatic shutdown intelligent multimeter: compact body, easy to put into pocket, portable for travel, 15 minutes of no operation, the machine will automatically shut down, long-lasting battery life
5. Anti burn safety tube overload protection is safer: built-in safety tube, multi-directional anti burn protection, automatic identification to avoid misoperation and achieve anti burn protection
Parameters:
Model: SZ06
DC voltage: 200mV~600V
AC voltage: 20V~600V
DC current: 20mA~10A
Resistance: 0 Ω~20M Ω
Milliampere DC current: 20mA~200mA
Maximum count: 2000
Color: Red/Grey
On/Off Beep: √

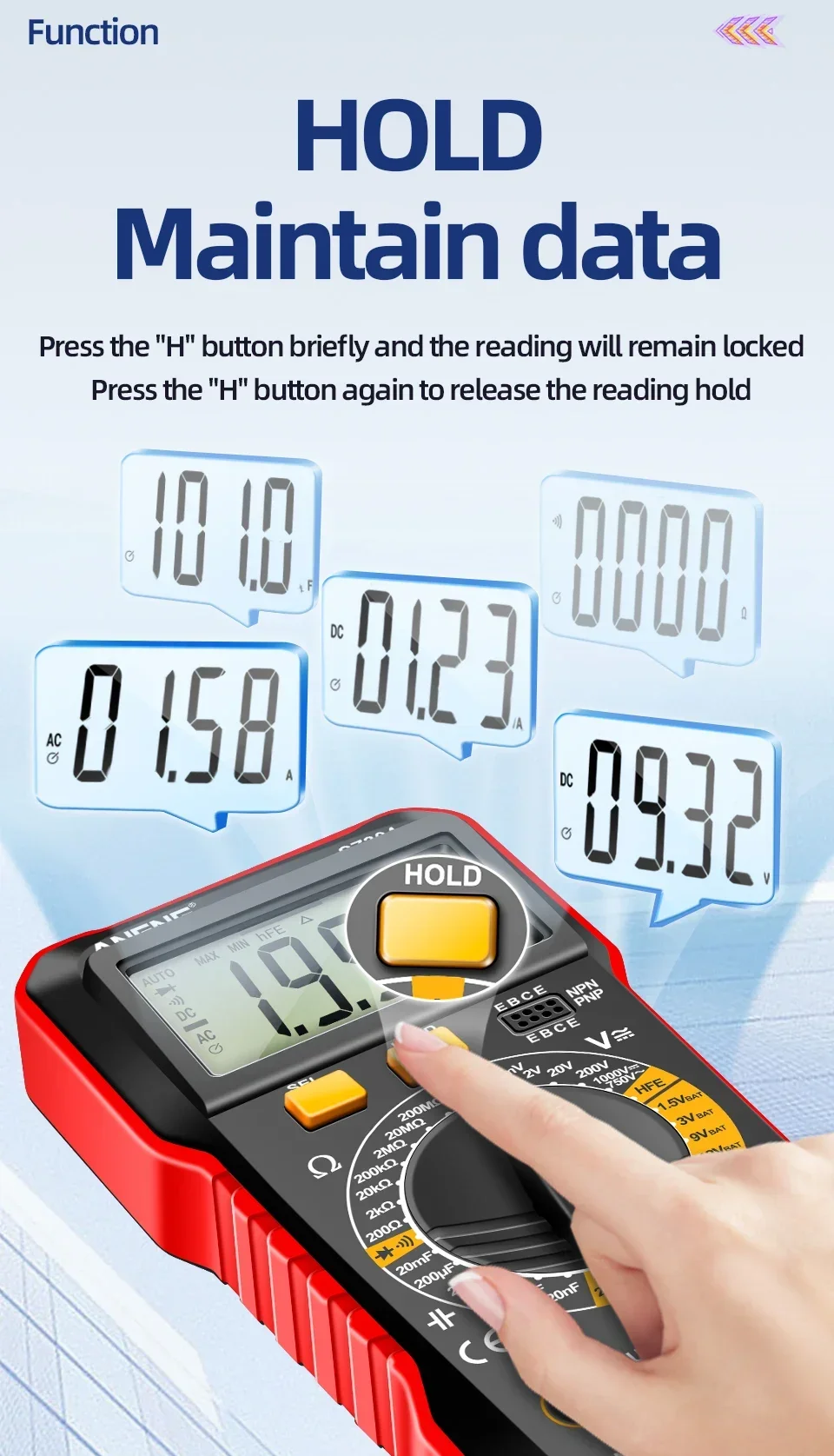

Maintain data: √
Automatic shutdown: √
Equipped with support frame: √
Diode: √
Backlit screen: √
Safety tube: √
Pen line length: 88cm
Product material: ABS
Battery: 2 * AAA (shipped without battery)
Package include:
Paper box packaging
Host * 1
Instructions * 1
Pen * 1
feature:
1. Applicable to multiple scenarios: to meet your needs in multiple scenarios, electronic component maintenance and testing
2. AC voltage measurement: easier to use, higher precision, and faster measurement
3. hFE transistor measurement: When measuring, turn the function dial to the hFE transistor position and make sure the transistor is of PNP or NPN type.
4.9V battery life: Push the battery cover upward according to the arrow guide of the battery compartment. Use 6F22 9V battery life. Pay attention to the positive and negative poles. Install the positive pole corresponding to the negative pole.
5. Small size and easy to carry: The ultra-thin body does not occupy any space, making measurement easier and bringing more convenience to travel.
parameter:
Maximum display: 1999
AC voltage: 0V-750V, resolution: 0.1-1V, accuracy: ± (1.0% reading + 15 words)
DC voltage: 200mV-1000V, resolution: 0.1mV-1V, accuracy: ± (1.0% reading + 15 words)
DC current: 2mA-10A, resolution: 0.01mA-0.01A, accuracy: ± (1.5% reading + 5 digits)
Resistance: 0Ω-2000kΩ, resolution: 0.1Ω-1kΩ, accuracy: ± (1.2% reading + 5 digits)
Transistor:√
Diode:√
Buzzer:√
Square wave measurement:√
Low battery indicator:√
Material: ABS
Battery: 6F22 9V battery (delivered without battery)
Test lead total length: 70cm / 27.5 inch
Package Included:
Multimeter*1
Instruction manual*1
Test pen*1
Features:
Model Number: M118A
Display:6000 counts
DIY Supplies: Electrical
Operating Mode: Automatic
DC Voltage Range: 0.5V~600V
AC Voltage Range: 0.5V~600V
AC Current Range:20mA/10A
DC Current Range: 20mA/10A
Measuring Resistance Range: 0.1~50 Ohm
Display Type: Digital Display
Flash Light, Back light,Auto-power Off
NCV test,TRUE-RMS,Data Hold
Sample Rate: 3 times per second
Packing List:（Without Battery）
1 * Digital Multimeter
1 * Test leads
1 * English user Manual

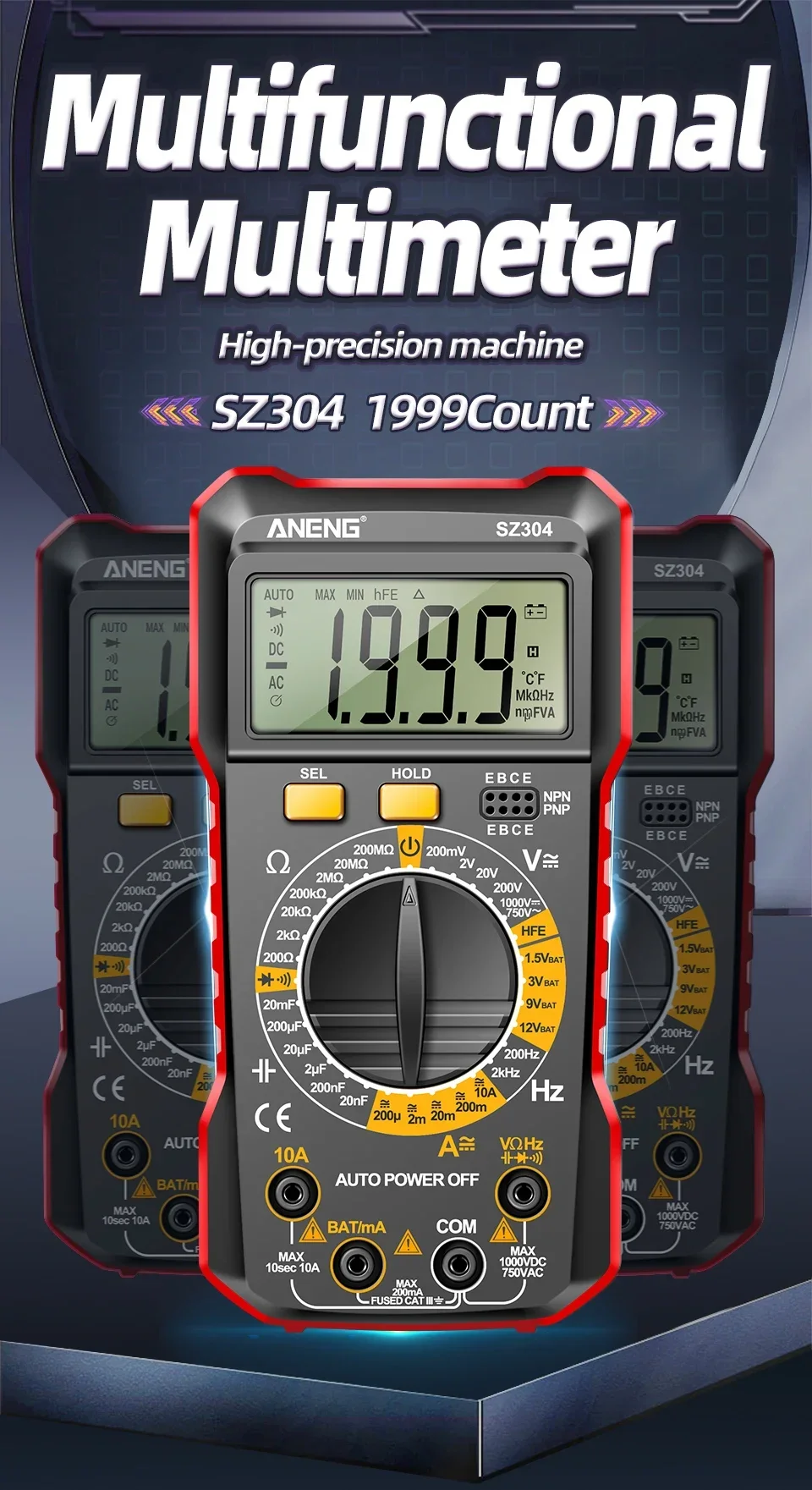

Model: SZ304 | |||
Function | Range | Resolving power | Accuracy |
DC voltage | 200mV-1000V | 0.1mV-1V | ±(1.5%+5d) |
AC voltage | 200mV-750V | 0.1mV-1V | ±(1.5%+10d) |
DC current | 200uA-10A | 0.1uA-10mA | ±(2.0%+10d) |
AC current | 200uA-10A | 0.1uA-10mA | ±(2.5%+10d) |
Resistance | 0Ω-200MΩ | 0.1Ω-100kΩ | ±(5.0%+ 10d) |
Capacitance | 0nF-20mF | 0.01nF-10uF | ±(6.0%+ 20d) |
Hz frequency | 0Hz-2kHz | 0.1Hz-1Hz | ±(1.5%+8d) |
Diode | √ | Data retention | √ |
Triode | √ | Digital display screen | √ |
On/Off Beep | √ | Automatic shutdown | √ |
Battery detection | 1.5/3/9/12V | Material quality | ABS |
Max count | 2000 Counts | ||
Packaging content:
