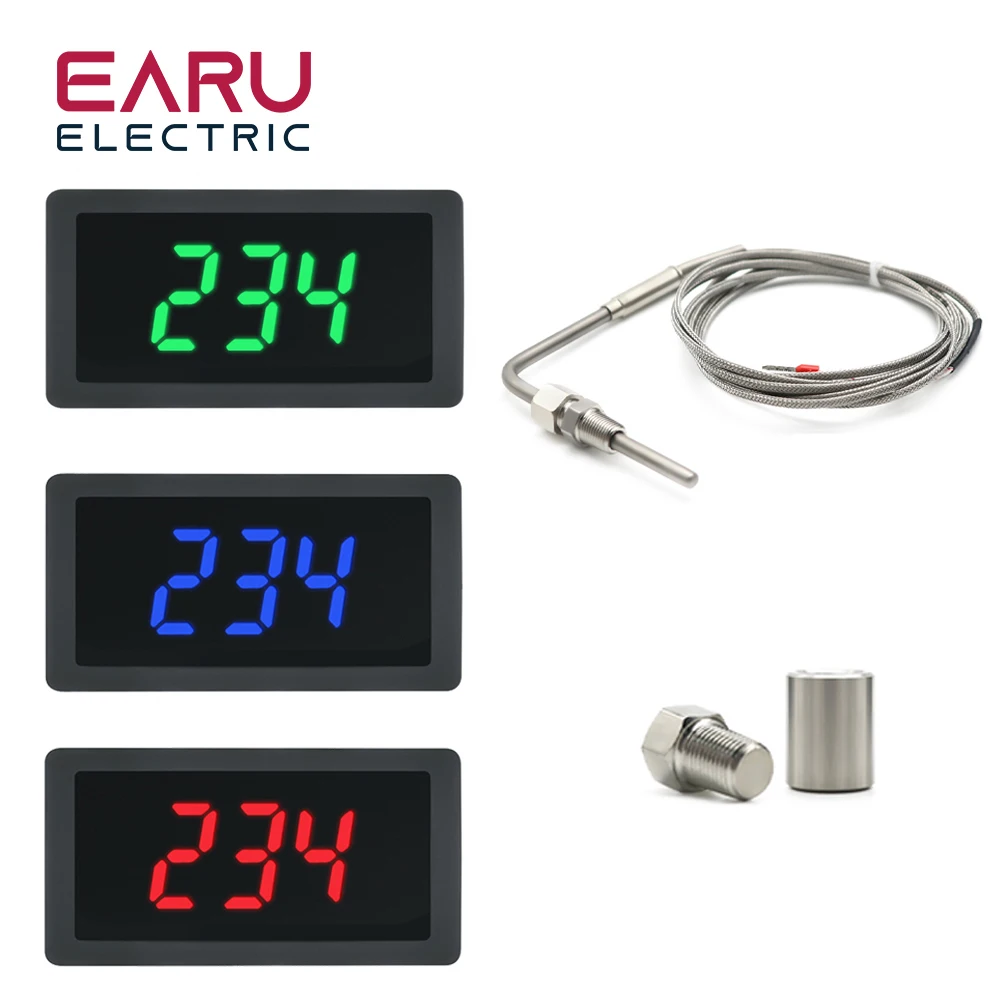

EARU LED Digital Thermometer with EGT Temperature Sensor Weld Bund Combo Kit Fahrenheit Celsius Adjustable Universal Use PT100 K

• 100% Brand New item

• High quality stainless steel EGT probe against rust

• Stylish two-color (blue, green, red) EGT watch

• Stainless steel weld bund with matching plug


Specifications:

EGT Probe :

• Probe Material : Stainless Steel 304

• Probe Diameter : 5mm (0.2”)

• Probe Length : L1 80mm (3.15”) L2 30mm (1.18”)

• Threads : 1/8” NPT Adjustable Compression Fittings

• Cable Length : 2m (6.6')

• Cable Insulation : Fiberglass braiding with stainless steel overbraiding

• Type : Ungrounded

• Connector : Spade connector

• Temperature Range : -100 ~ 1250 degree Celcius (-150 ~ 2300 F)

EGT Gauge :

• Power supply:DC5~12V

• Measurement accuracy: ≤0.2%FS ≤1 word

• Power consumption::≤30mA

• Signal range: 10 kinds of thermocouples, 2 kinds of RTDs

• Sampling rate: 5 times / sec.

• Display range:-1999~9999

• Display mode: 0.56 inch LED display, red, blue, green three-colour optional

• Temperature drift:60PPm/°C

• Operating temperature:-10~50°C

• Relative humidity:≤85%RH, no strong corrosive gas

• Mounting hole size:76.5x39.2 mm

Weld Bund with Plug :

• Material : Stainless Steel

• Threads : 1/8” NPT

• Outer Diameter : 0.5" (12mm)

• Length : 0.6" (15mm)
