EIZZ 3 Ways 4 Ways 3 Positions Rotary Switch Signal Source Selector Rotary Signal Selection Rotary Adjust Switch HIFI Audio AMP

Hello friend, this product has been updated and the new shell is silver plated. New and old models will be randomly sent out.

Brand New EIZZ Rotary Switch/Selector

Type 1: EZ-3003-800 (12 Gold Plated Copper Pins)
3 Positions, 3 Ways
3 Ways Signal Input, 1 Way Signal Output

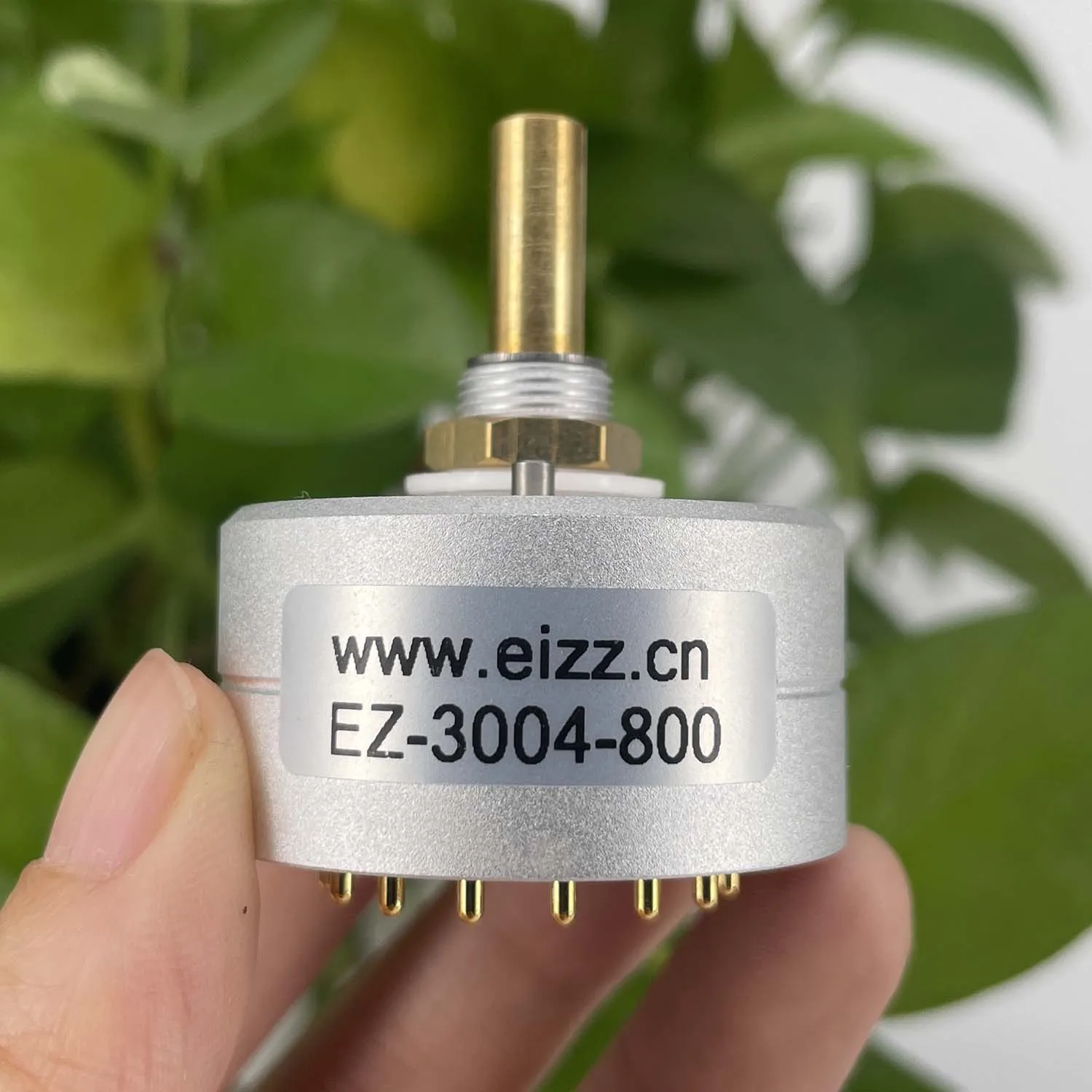

Type 2: : EZ-3004-800 (15 Gold Plated Copper Pins)
4 Positions 3 Ways
4 Ways signal input, 1 Way Signal Output

Type 3: EZ-4003-800
3 Positions 4 Ways
3 Ways Input, 1 Way Output. (16 Gold Plated Copper Pins)

Machined aluminum shield: Color: silver gray, Surface finish: anodized,

24k gold plated copper pins

Round Brass shaft

Shaft diameter: 6mm

EZ-3003-800 and EZ-4003-800 Shaft length: 10mm

EZ-3004-800 Shaft length: 15mm

Panel cut out: 11.50mm

Overall diameter: 38mm

Overall length: 47mm

Quantity: 1PC／lot
