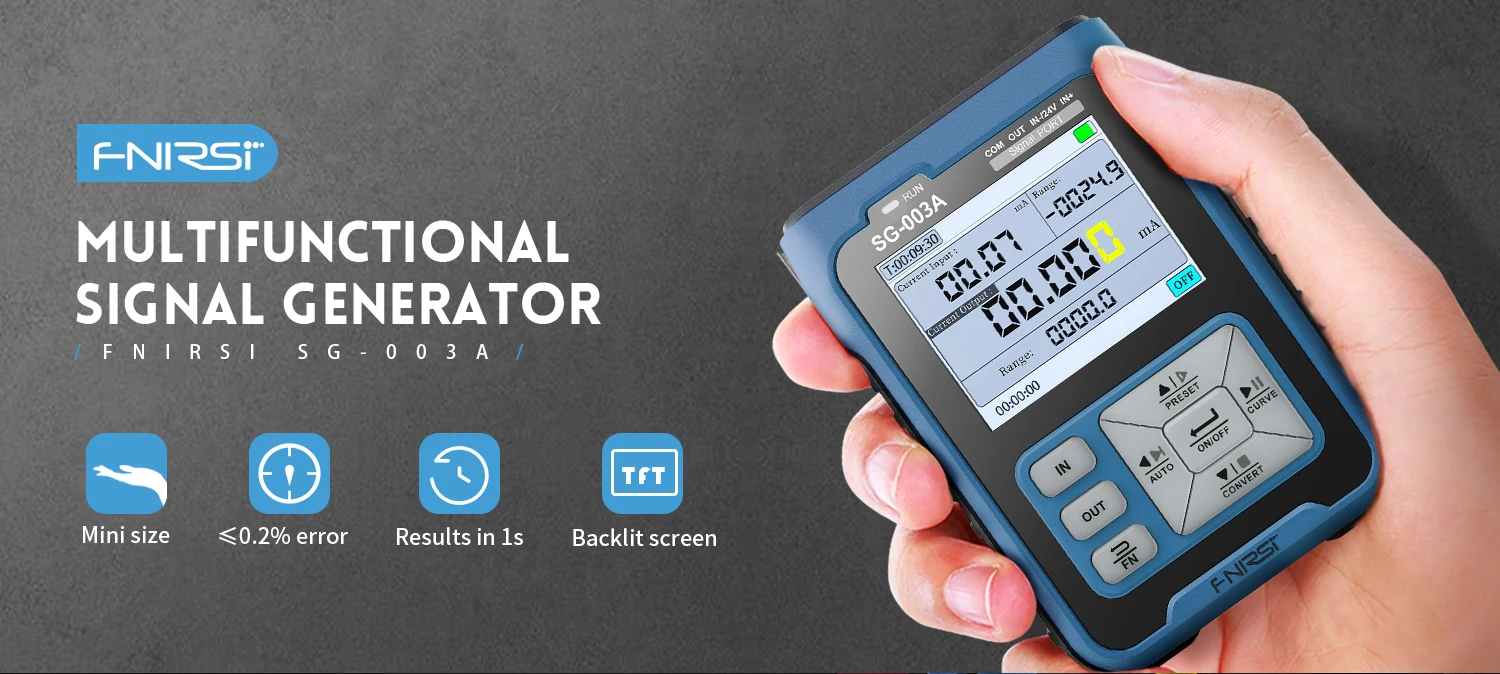

FNIRSI SG-003A Signal Generators 0-10V 4-20mA Adjustable Current Voltage Simulator PWM Pulse Output TFT Full-color LCD Display

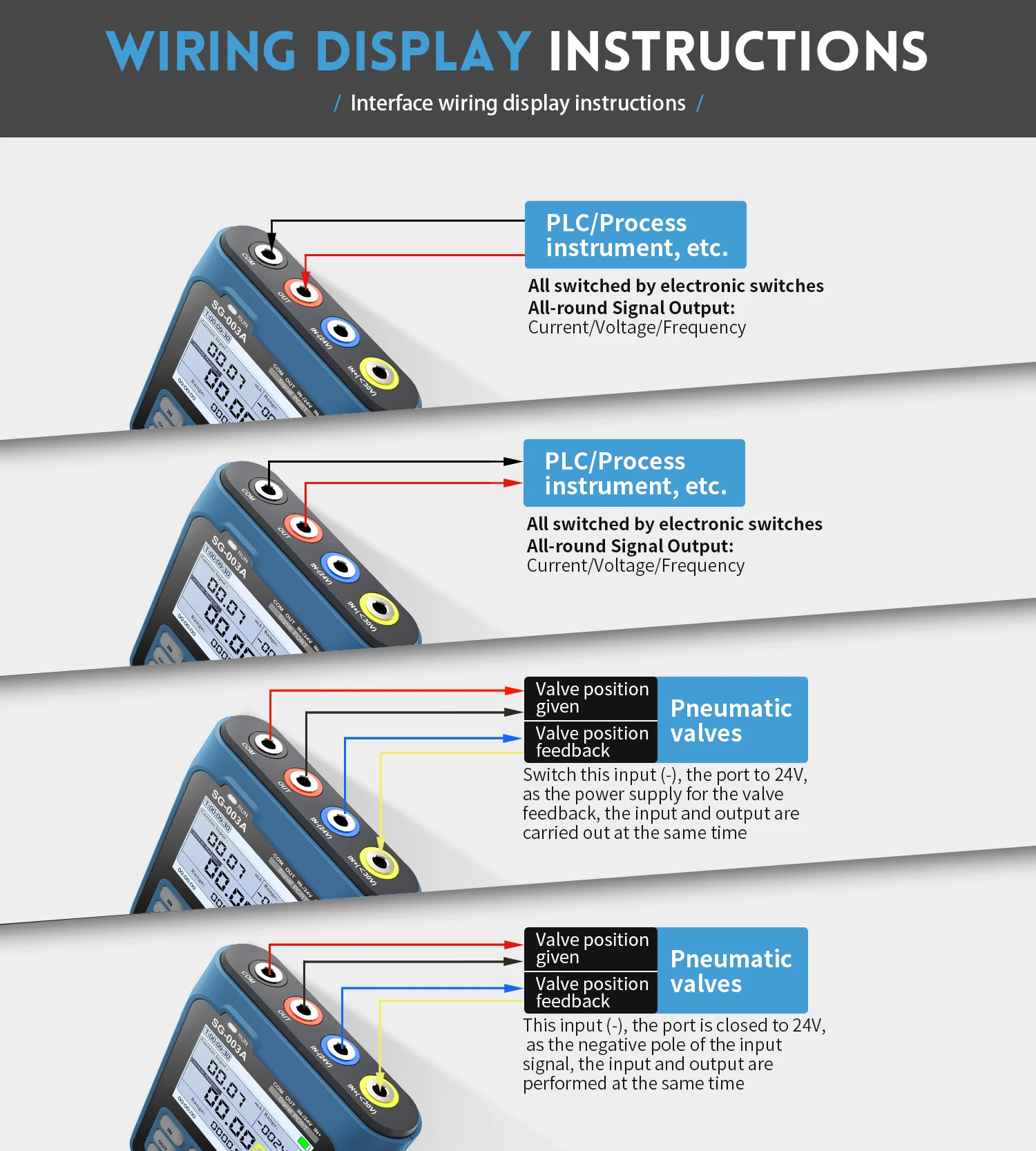

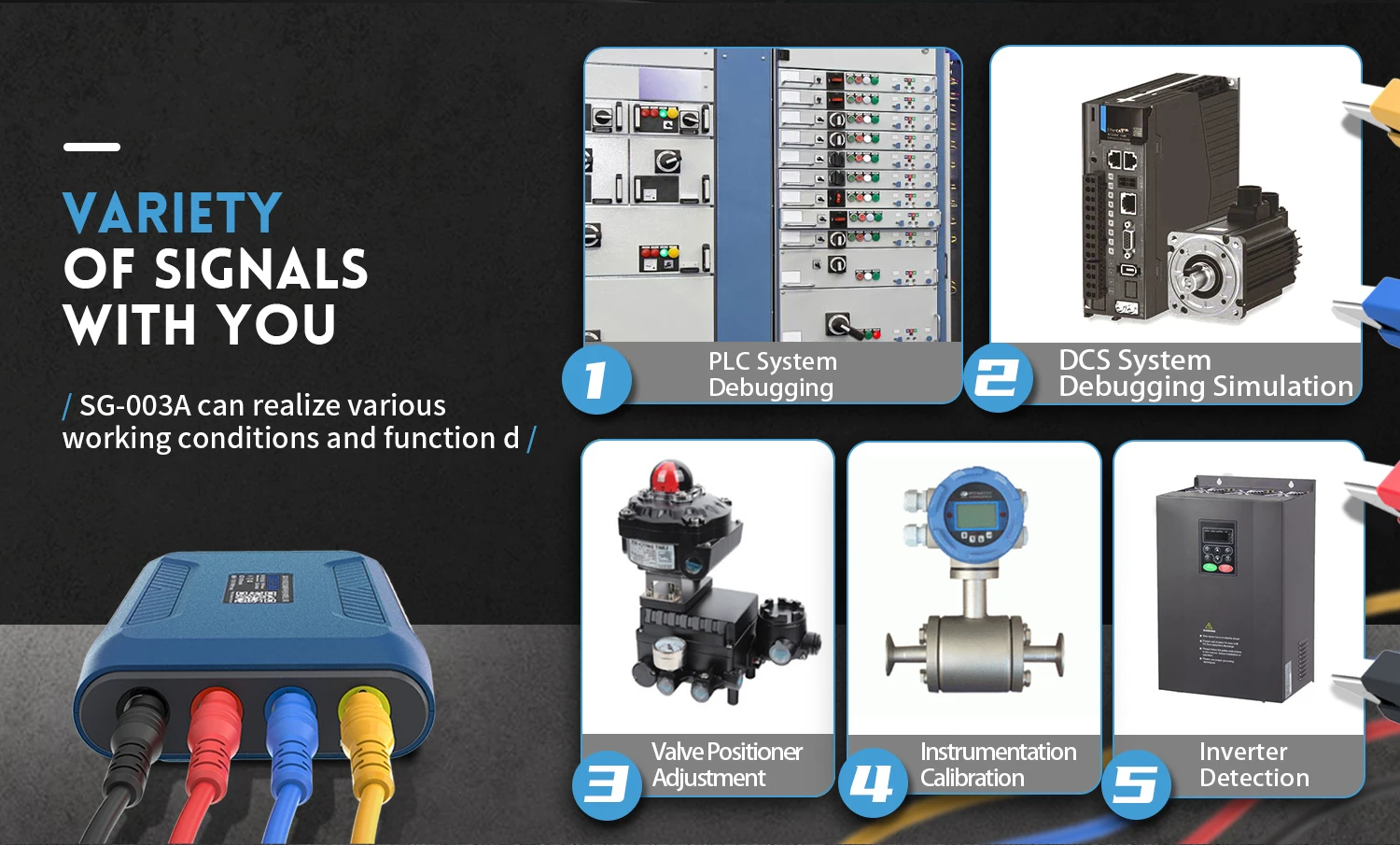

FNIRSI SG-003A signal generator is mainly used for debugging industrial field PLC, process instrumentation, electric valve, and so forth. The friendly operation interface is easy to use.

The FNIRSI SG-003A signal generator is small and light but has a long standby time and high precision. Easy to carry when you go out to work.

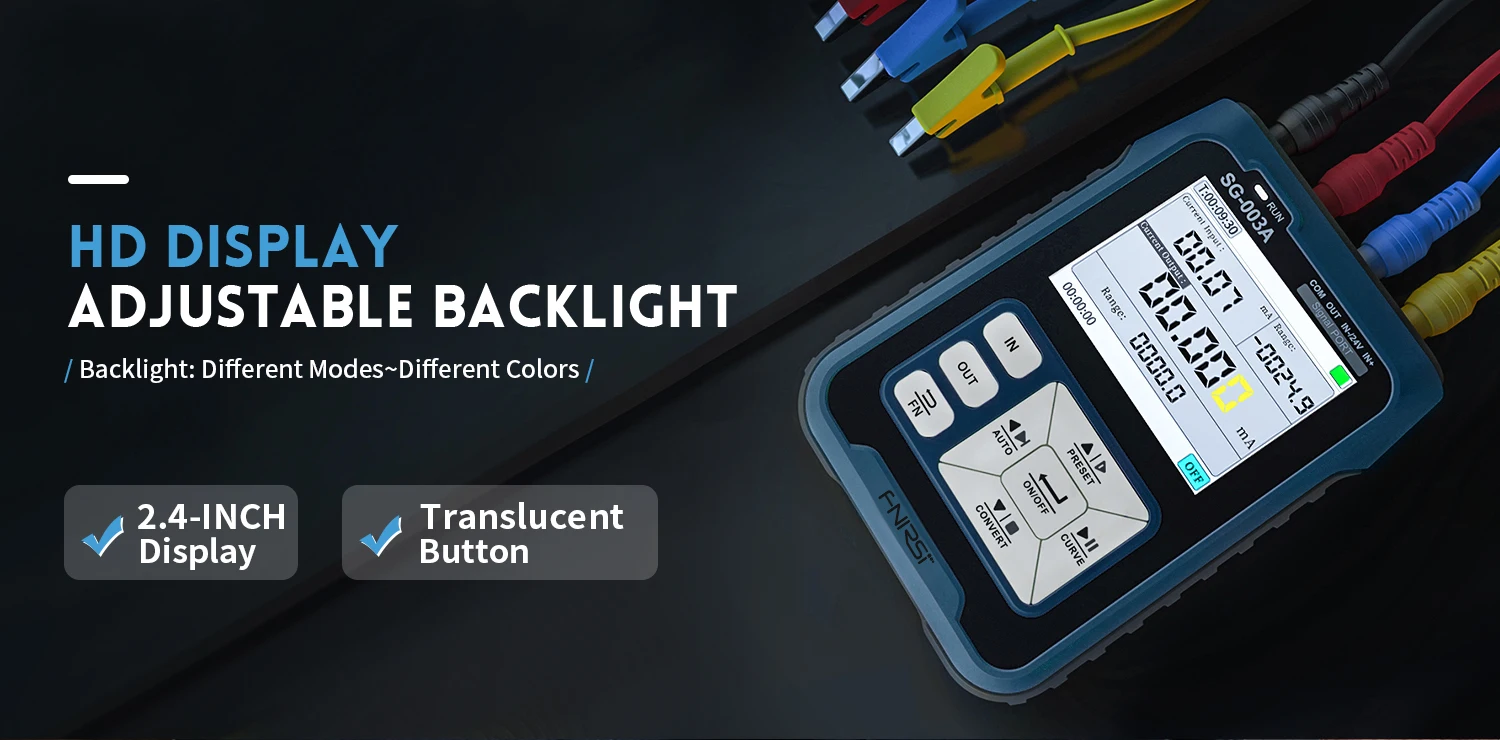

The adjustable button backlight and high-definition TFT color LCD screen make it more convenient for users to operate at night and during the day.

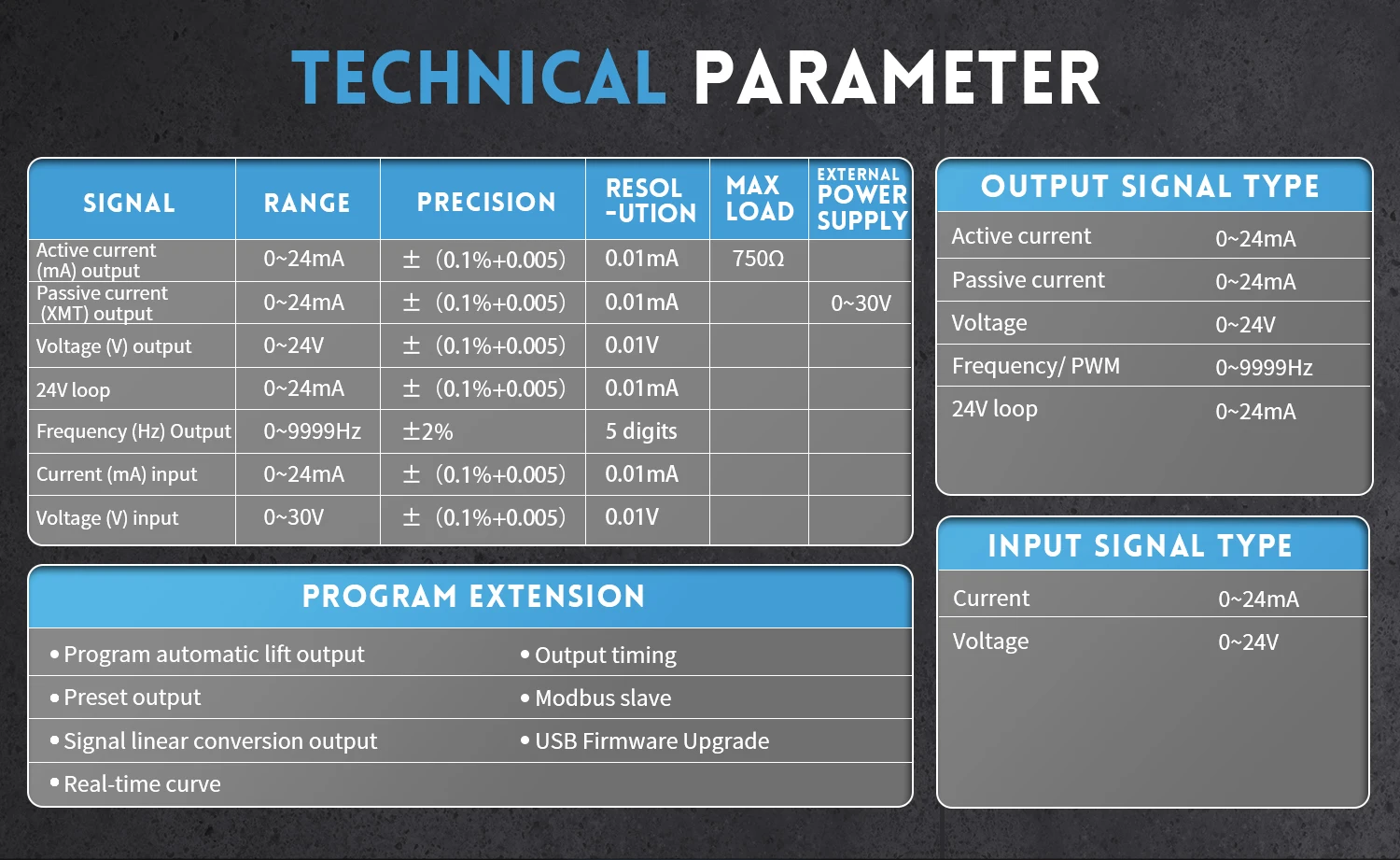

1. Active current output: range: 0~24mA; resolution: 0.01 mA; maximum load: 750Ω;Precision:±(0.1%+0.005)

2. Passive current output: range: 0-24 mA; resolution: 0.01 mA; external power supply up to 30V;Precision:±(0.1%+0.005)

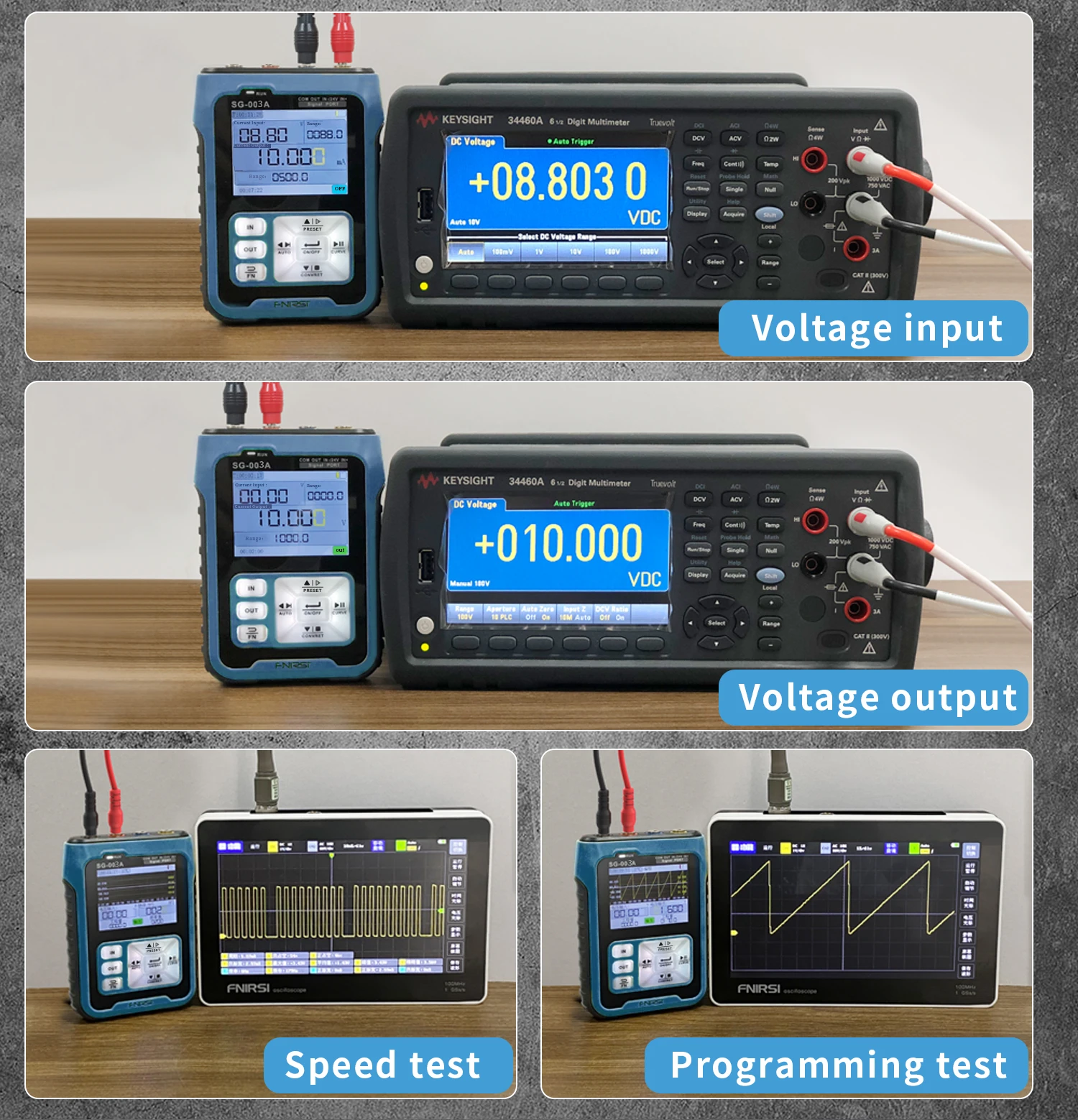

3. Voltage output: range: 0-24 V; resolution: 0.01v; maximum current 30mA;Precision:±(0.1%+0.005)

4. 24V voltage output: drive current: 24mA;resolution: 0.01 mA;Precision:±(0.1%+0.005)

5. Current input measurement: range: 0-24 mA; resolution: 0.01 mA; input impedance:100Ω;Precision:±(0.1%+0.05)

6. Voltage input measurement: range: 0-30 V; resolution: 0.01 V; input impedance: 2MΩ;Precision:±(0.1%+0.05)

7. PWM output (frequency):Range: 0-9999Hz

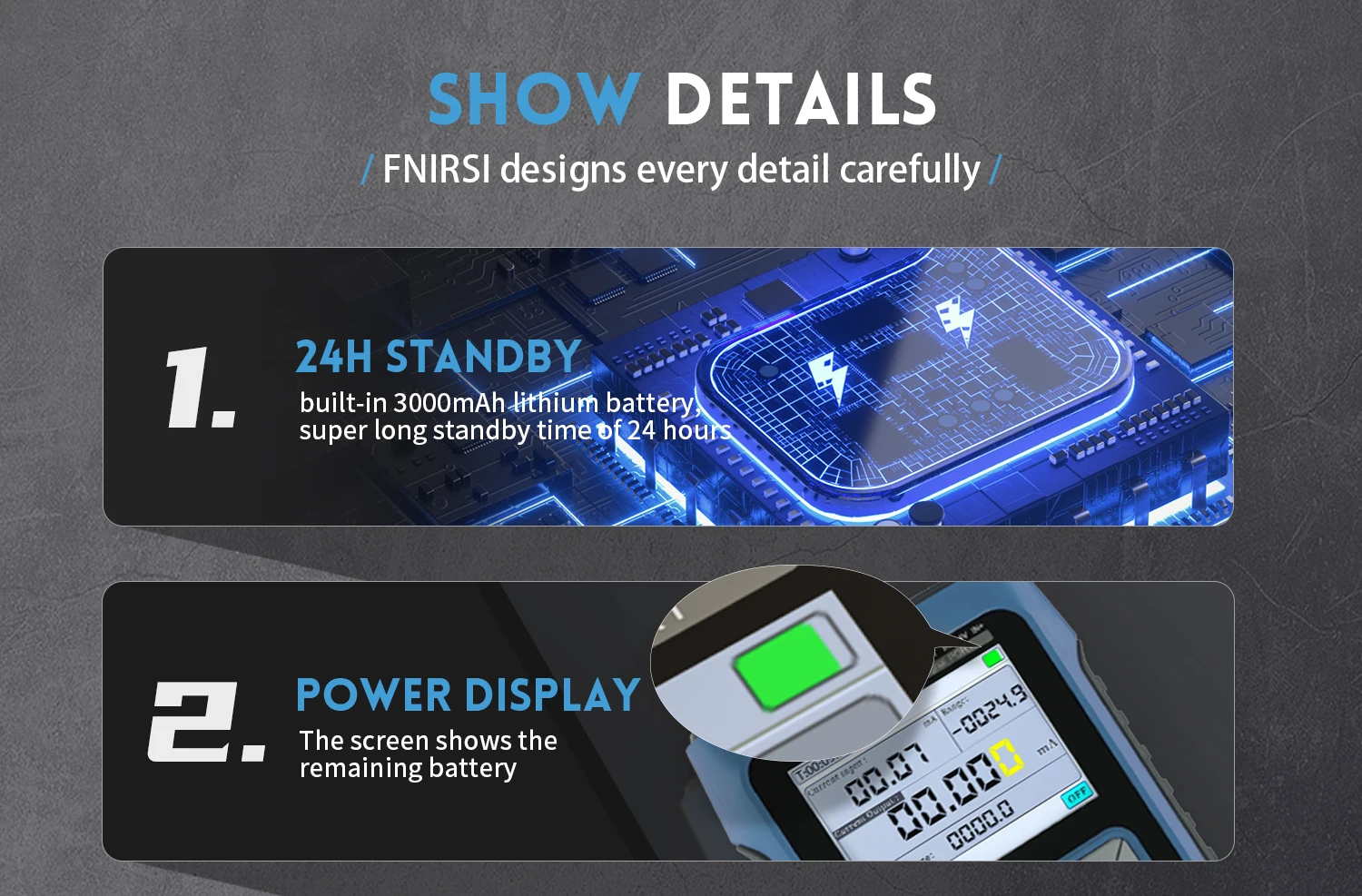

8. A single 3.7V 3000mAh lithium battery power supply; Standby time is 26 hours; the using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output)

9. Operating environment: 0 °C - 50 °C.

10. Internal reverse and overcurrent protection; protection voltage:30V

11. Output automatically

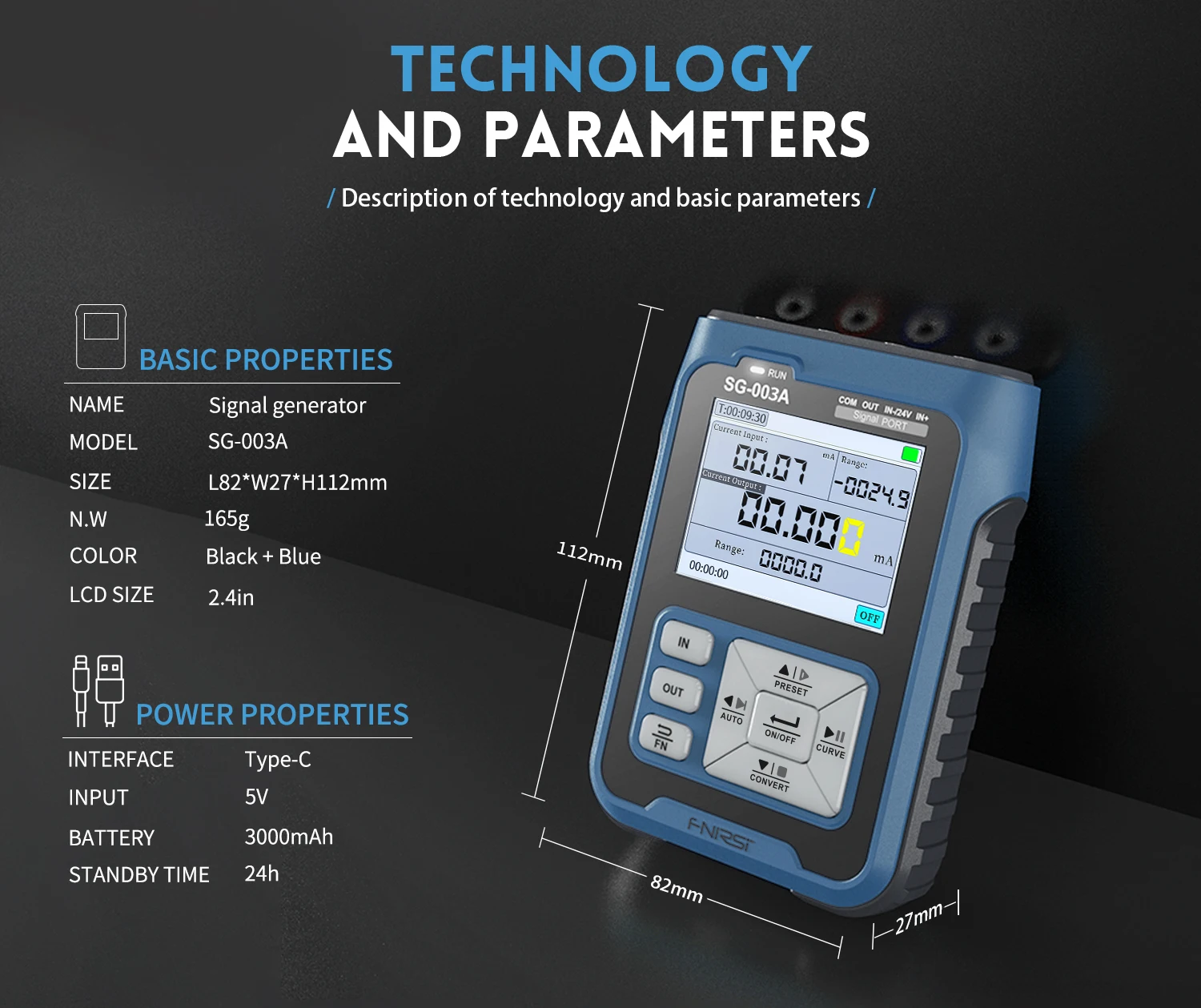

12. Size: 92mm*72mm*30mm

13. Weight:165g

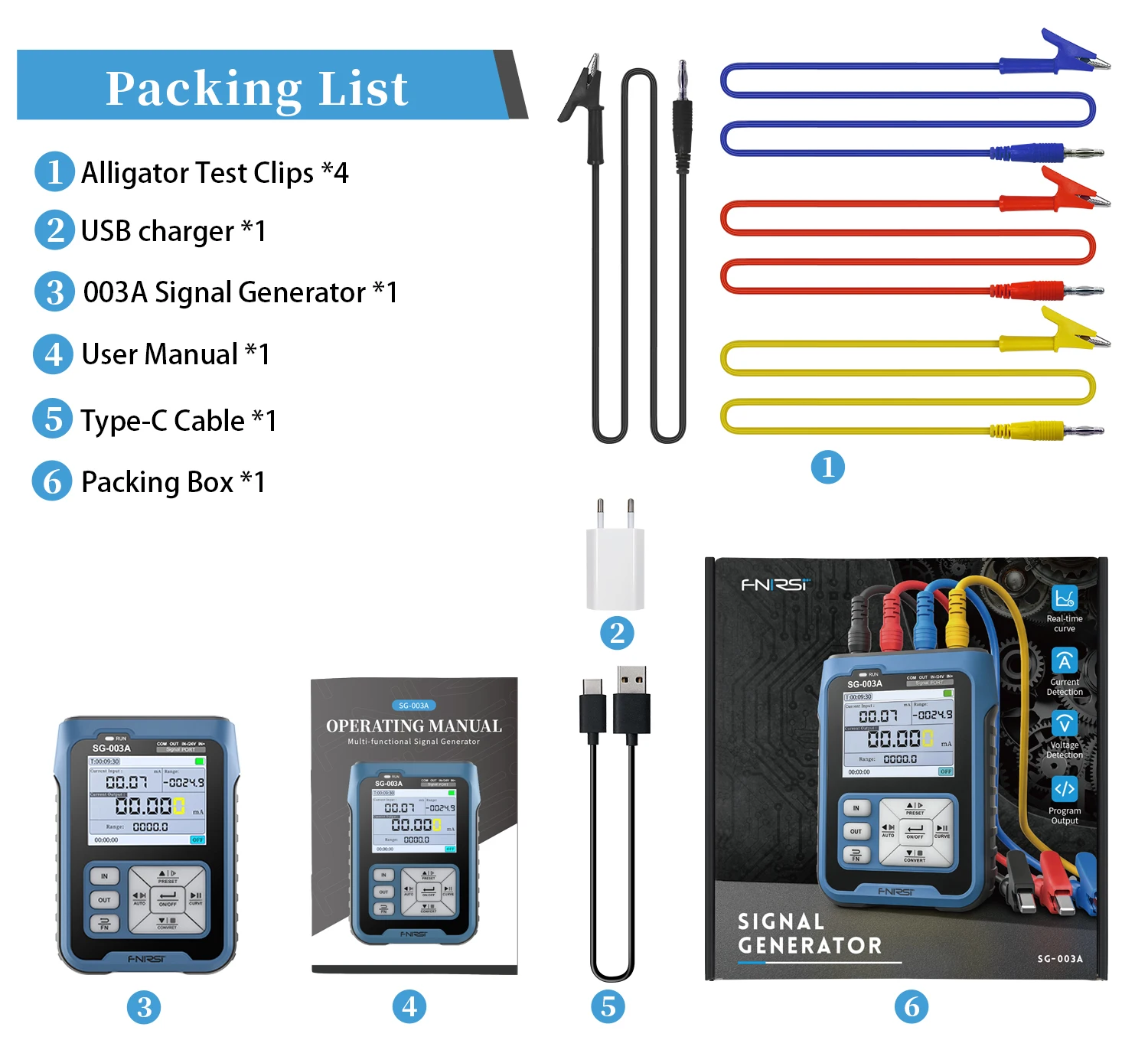

1*FNIRSI SG-003A Multifunctional Signal Generator Calibrator

4*Test Clip

1*Type-C Charging Cable

1*EU Charger
