Handheld Thermal Imager 32x32 -20~1000℃ 2.8" Screen 2600mAh Battery 8GB SD Thermal/Visual Fusion LED Light for HVAC/Electrical/Industrial

✨ Product Highlights:

[20×240 High IR Resolution with Visible Light Fusion]

Equipped with 320×240 infrared detector, the thermal camera captures tiny temperature differences clearly. Dual-light fusion helps you quickly locate heat sources for electrical, HVAC and floor heating inspection.

[Ultra-wide Temperature Range: -20°C ~ 1000°C]

Supports measurement from low-temperature cold storage to high-temperature industrial equipment. Wider range than ordinary thermal imagers, suitable for both household maintenance and industrial high-temperature testing.

[2.8" Large TFT Display & Built-in 8GB Storage]

2.8-inch big screen brings clearer real-time viewing. 8GB built-in memory stores thousands of thermal images; you can export photos easily via Type-C cable for later analysis.

[Built-in Rechargeable Lithium Battery Included]

Comes with integrated rechargeable battery out of the box, no extra battery purchase needed. Type-C fast charging design offers long working time for outdoor on-site detection.

[Complete CE, FCC & RoHS Certifications]

Fully compliant with EU and US safety & environmental standards. Complete certification documents support cross-border platform sales and customs clearance without trouble.

📋 Product Parameter:

Sensor Type: Uncooled infrared thermopile array sensor

Infrared Resolution: 32 x 32 (1024)

Infrared Response Band: 8 to 14μm

NETD: ~150mK @ 1Hz

Field of View: 33° x 33°

Focus Mode: Fixed focus

Temperature Range: -20°C to +1000°C (-4°F to 1832°F)

Temperature Accuracy: ±2°C or ±2% (whichever is greater)

Temperature Resolution: 0.1°C

Temperature Modes: Center point / Highest temperature / Lowest temperature

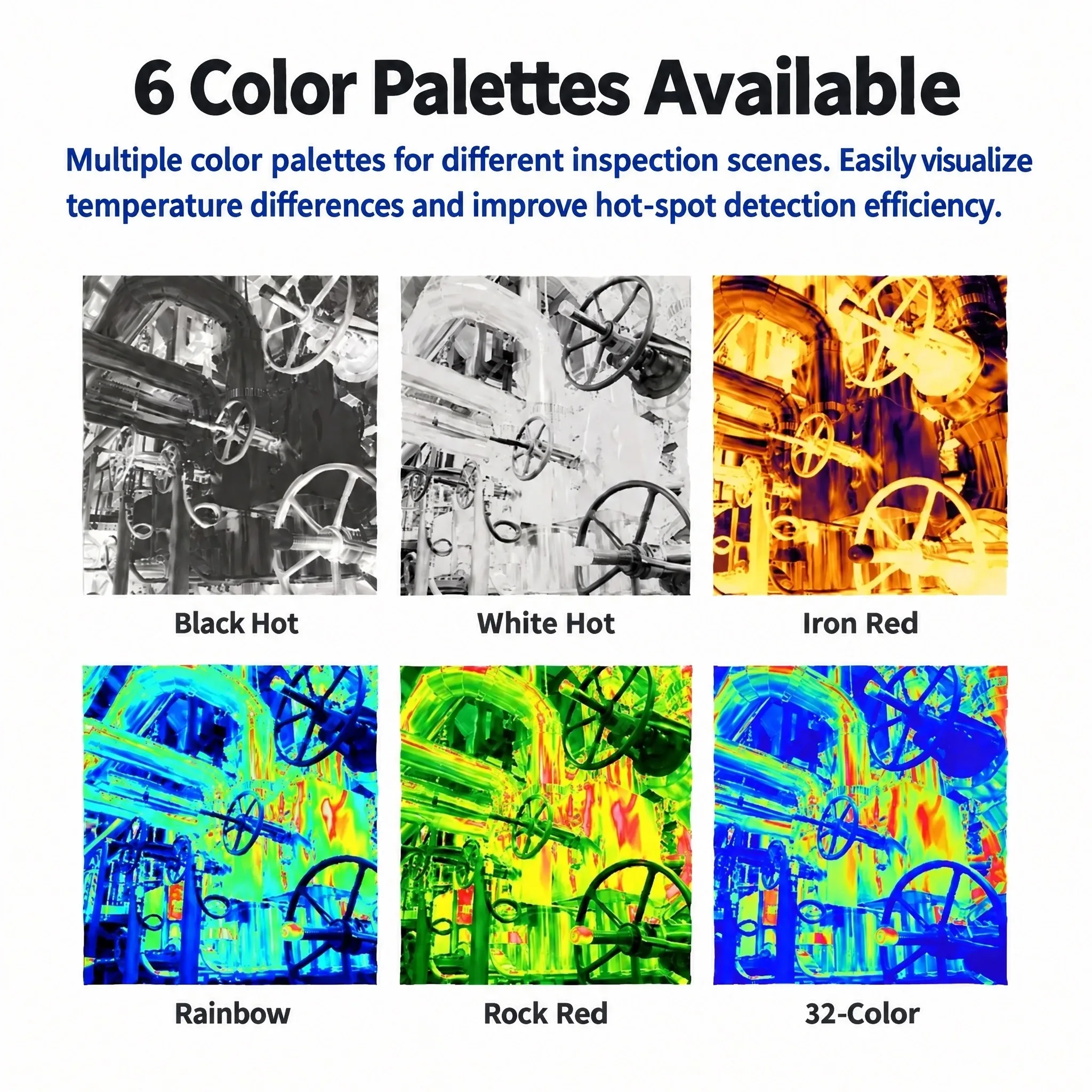

Color Palettes: 32 colors / Rainbow / Iron red / Lava rock / White hot / Black hot

Emissivity Setting: 0.01 to 1.00 adjustable

Thermal Imaging Frame Rate: ≤9Hz

Visible Light Resolution: 320 x 240

Display Size: 2.8 inch (240 x 320)

Image Display Modes: Infrared / Visible light / Dual-light fusion

Device Storage: 8GB TF card

Image Format: BMP

Image Export: Via USB connection to PC

Menu Languages: Multiple languages

Battery Type: Built-in rechargeable lithium battery (18650)

Battery Capacity: 2600mAh

Operating Time: ≥5 hours

Power Interface: Type-C

Auto Shutdown Settings: Off / 3 minutes / 5 minutes / 10 minutes / 30 minutes / 60 minutes

Operating Temperature: -5°C to +40°C

Storage Temperature: -10°C to +50°C

Relative Humidity: 10% to 85% RH (Non-condensing)

Product Weight: 295g

Product Dimensions: 210mm x 70mm x 68mm

📦 What's in the Box

1 x Thermal Imager | 1 x TYPE-C Charging Cable | 1 x 8GB TF Card | 1 x User Manual
