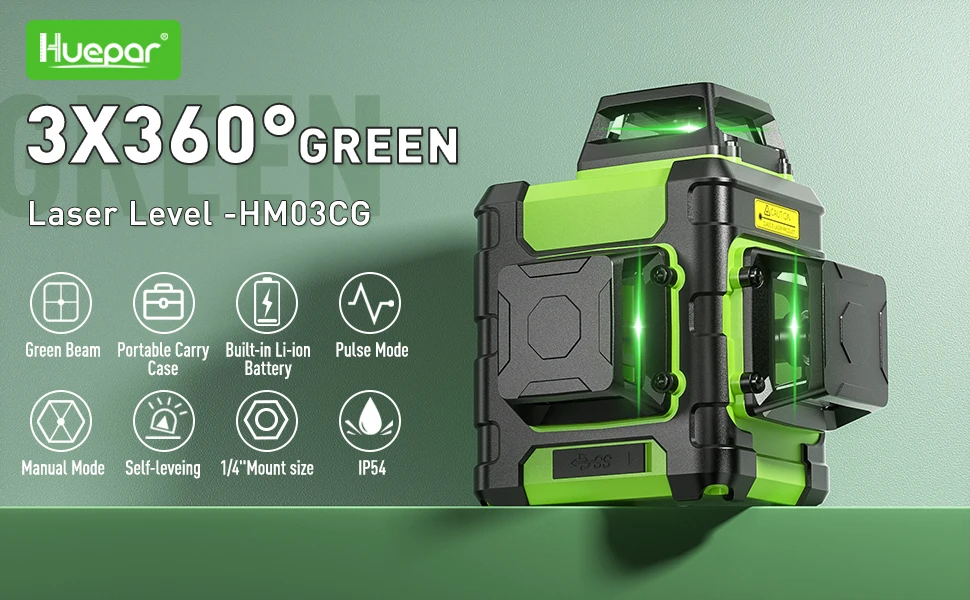

Huepar 3D Laser Level Osram Green Beam Self-Leveling Cross Line Laser Level Tool Set With Laser Detector,Magnetic Bracket HM03CG

Specifications Of Huepar HM03CG Model

Brand: Huepar

Model: HM03CG

Power Source: 3.7V / 4000mAh Li-ion battery (built-in the machine)

Power Adapter: 5V=1A

Charging Port: Type-C

Laser Light 12 Line: 3x 360° (4/8/12/lines are adjustable)

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW

Laser Wavelength: 505-520nm

Leveling Accuracy: ±3mm/10m (±1/9 in. at33 ft)

Leveling/Compensation Range: ±3°

Self-leveling Time: 3S

Reference Working Distance(100lux): 30m / 98ft

Reference Working Distance(with Laser Receiver): 40-60m/ 130-197ft

Reference Operating Time: About 8 hours with all laser beams on

Charging Time: About 5 hours

Handle Material: ABS+TPE Rubber

Protection level: IP54 waterproof, dustproof and shockproof

Applicable Scenarios: Indoor & outdoor

Operation Temperature Range: -10°C ~ +50°C

Storage Temperature Range: -20°C ~ +70°C

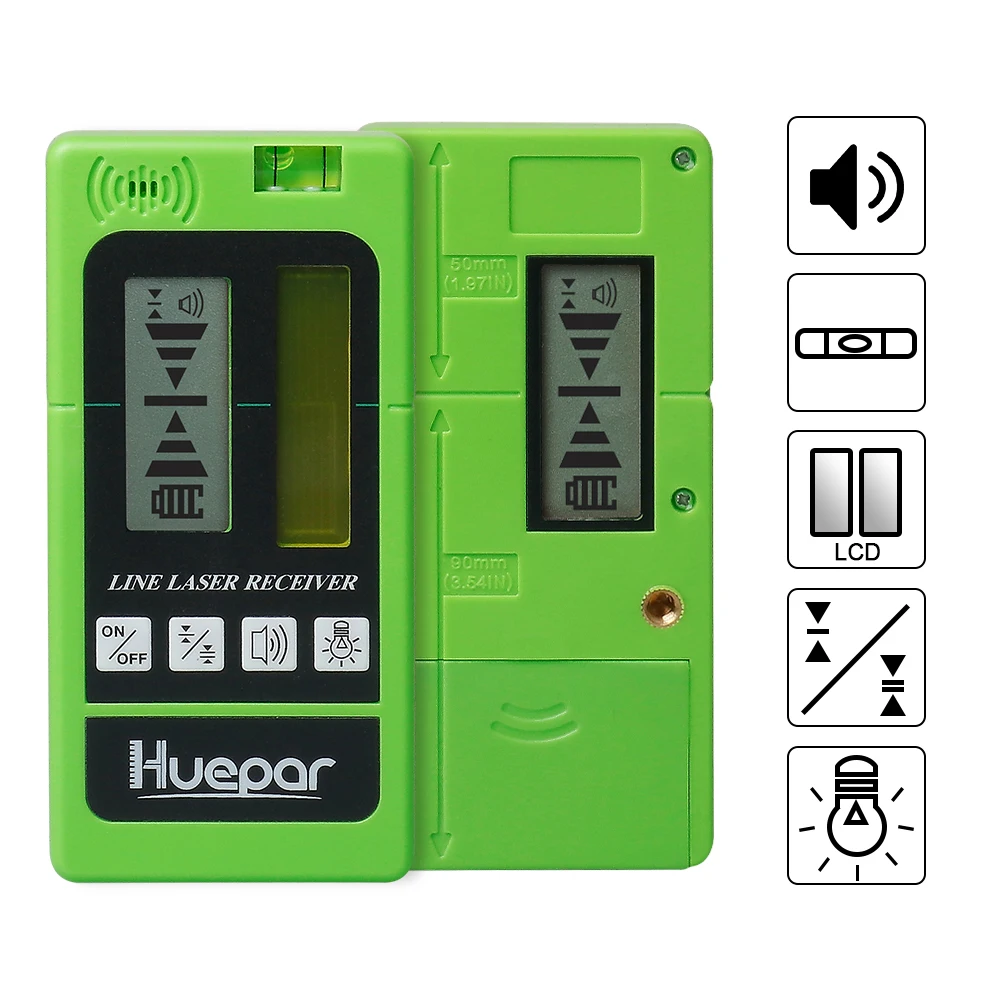

LR-5RG-GN Laser Receiver Specifications:

Pulse duration: 50 μsPWM: 5:5

Frequency: 10KHz (Matched PWM and frequency, Line lasers can work with LR-5RG Laser Receiver)

Display: Dual LCD Display

Leveling Accuracy (High): ≤2mm(1/13in)

Leveling Accuracy (Low): ≤3mm(1/9in)

Working Distance: 130ft~200ft (typical) depend on light source

Operating Time: 20 hours;

Auto Power Off (with No Signal Detected): 10min

Power Source: 2*AA Batteries (Alkaline)

Dimension (LxWxH): 140mm×68mm×26mm;

Weight: 140g

Package Contents:

1 x Huepar HM03CG Laser Level

1 x Type-C Power Cord

1 x 360° Magnetic Pivoting Base

1 x Multilingual User Manual

1 x Hard Case

1 x LR-5RG Detector(Green Shell/ Orange Shell)

Huepar 3D 12 Lines Cross Line Laser Level Features:

Dual Modes & Self-Leveling:

Huepar 3D laser level with slide switch enables you to set 2 modes. In self-leveling mode, the laser beam blink fast when the tool is out of self-leveling range ±3°. Locking the pendulum initiates manual mode which locks the lines for manual alignment at other angles which are often required in decorating projects. Installing wainscoting on the stairs suddenly becomes a snap

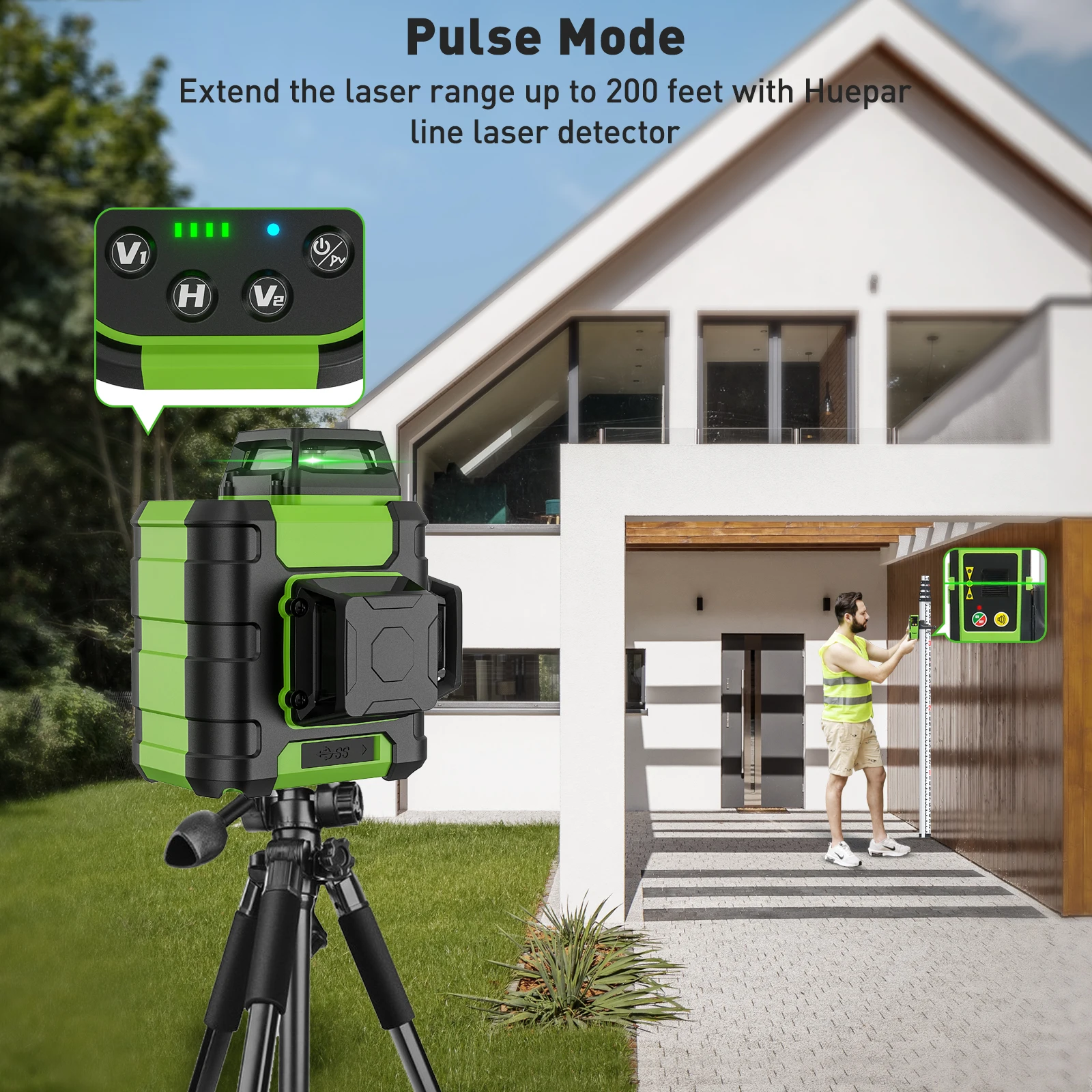

360° Coverage & Pulse Mode:

Huepar Laser Level has One 360° horizontal and two 360° vertical planes for users to cover the floor, wall, and ceiling all around the room. Through the "H" and "V" buttons, the three 360 °laser lines can be selected depends on job site applications. The green beam is twice bright as the red laser with working range up to 98 feet of accuracy within ±1/9" at 33 Feet. The outdoor pulse mode extends the laser range up to 200 feet with Huepar Line Laser Detector.

Type-C Charging Port and Durable Battery:

Huepar HM03CG Laser Level is powered by a built-in 4000mAh 3.7V Li-ion rechargeable battery that provides 8 hours of continuous running time. 4 battery indicators on the keypad allow users to know the current battery volume and charging protection helps prevent overcharging. With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.

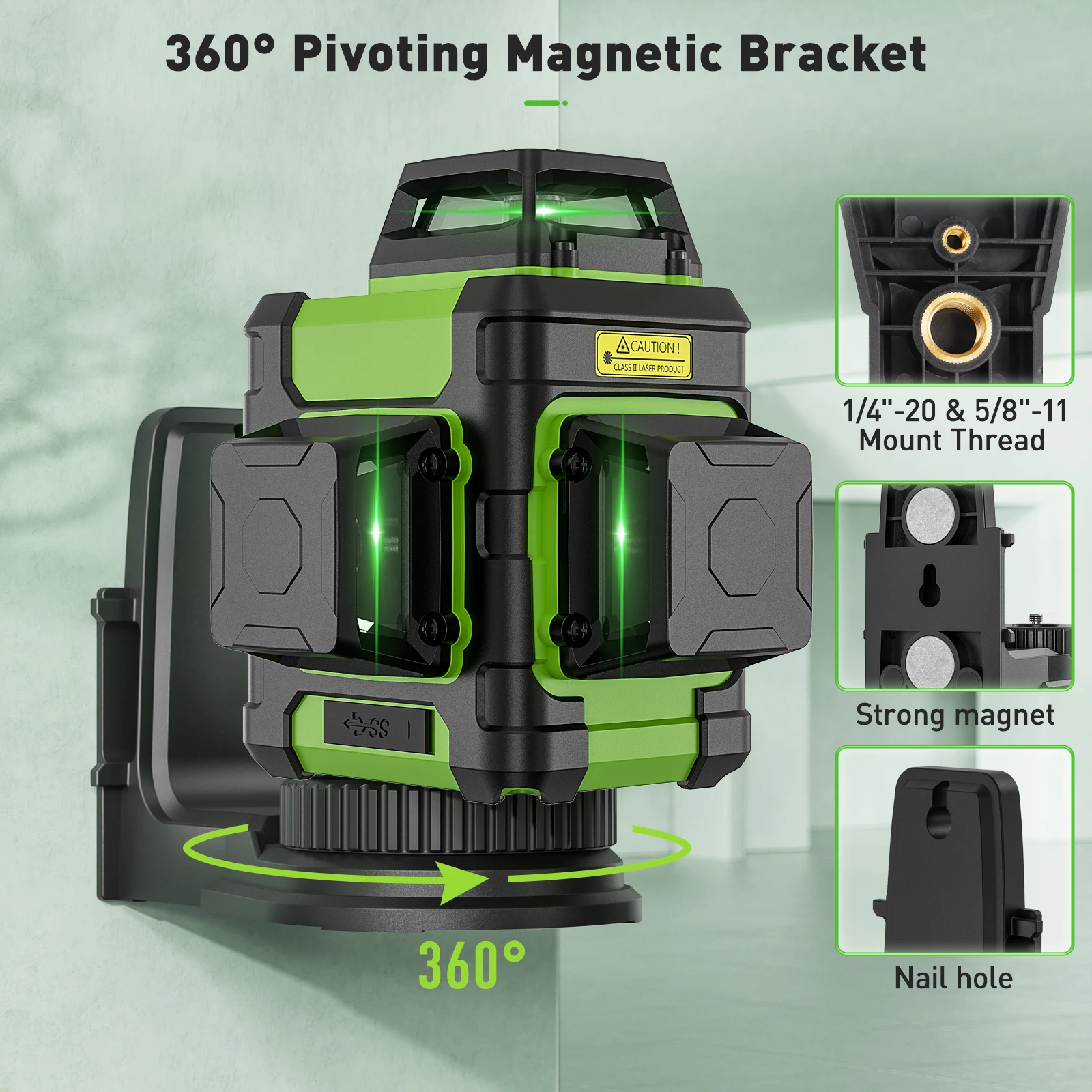

Mounting Thread&360° Magnetic Bracket:

This green line laser has 1/4"-20 mount thread to be fixed on a tripod. 360°Strong magnetic bracket allows for quick positioning to metal surfaces to hang the laser tool to the required angle and offers 1/4"-20 & 5/8"-11 mounting threads to suit different tripod threads. Two nail holes for more fixing methods when working. Two nail holes on the bracket for more fixing methods and suitable for picture & wallpaper hanging at home projects.

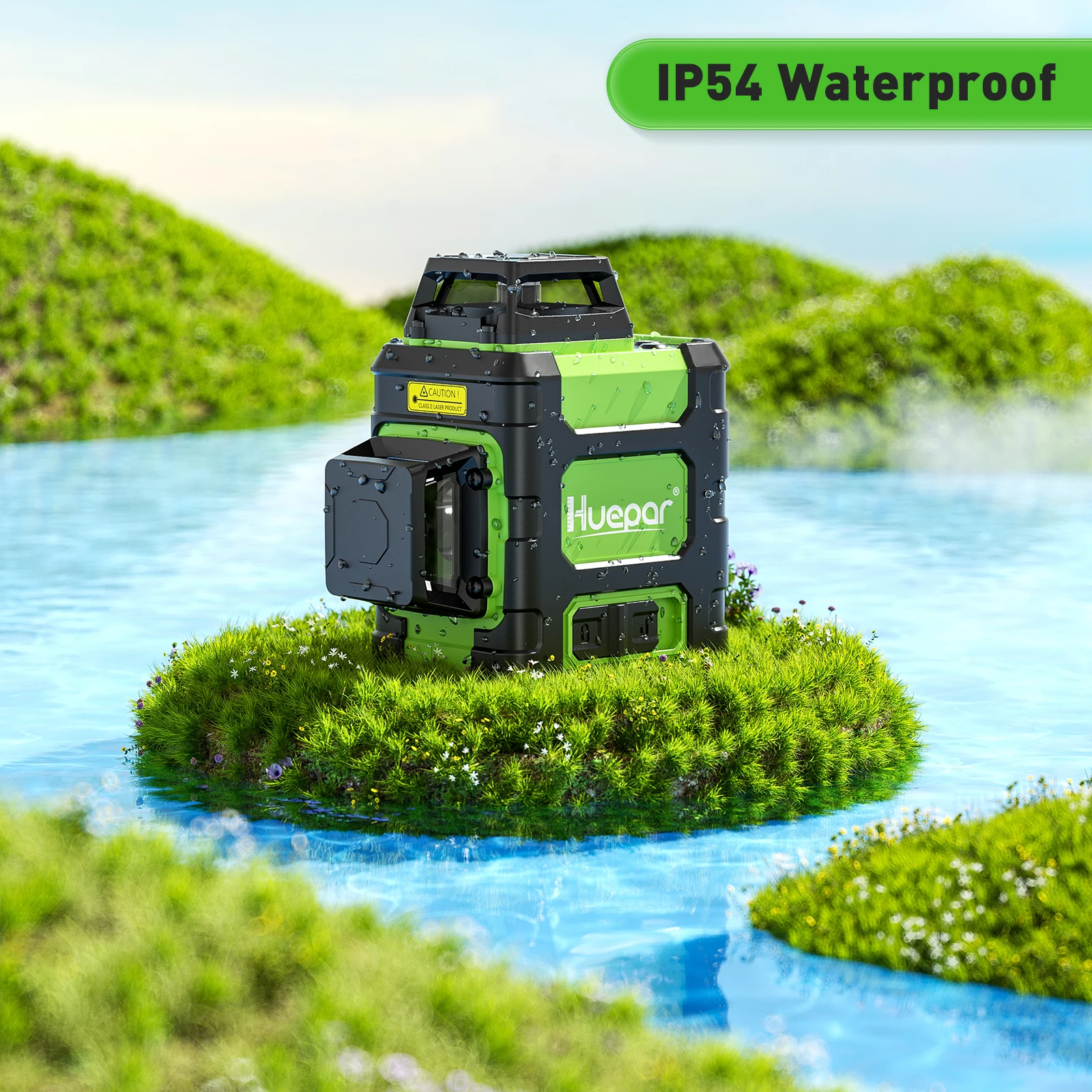

Portable design & IP54 Materials :

IP54 waterproof design protects the unit from water splashes, dust, and construction debris and ensures you work well in hazardous working conditions. The kit has a hard carry case for much more convenient carrying and storing the laser tool. We provide a 24-Month after-sale service and lifetime technical support. Please contact us freely if you have any concerns.

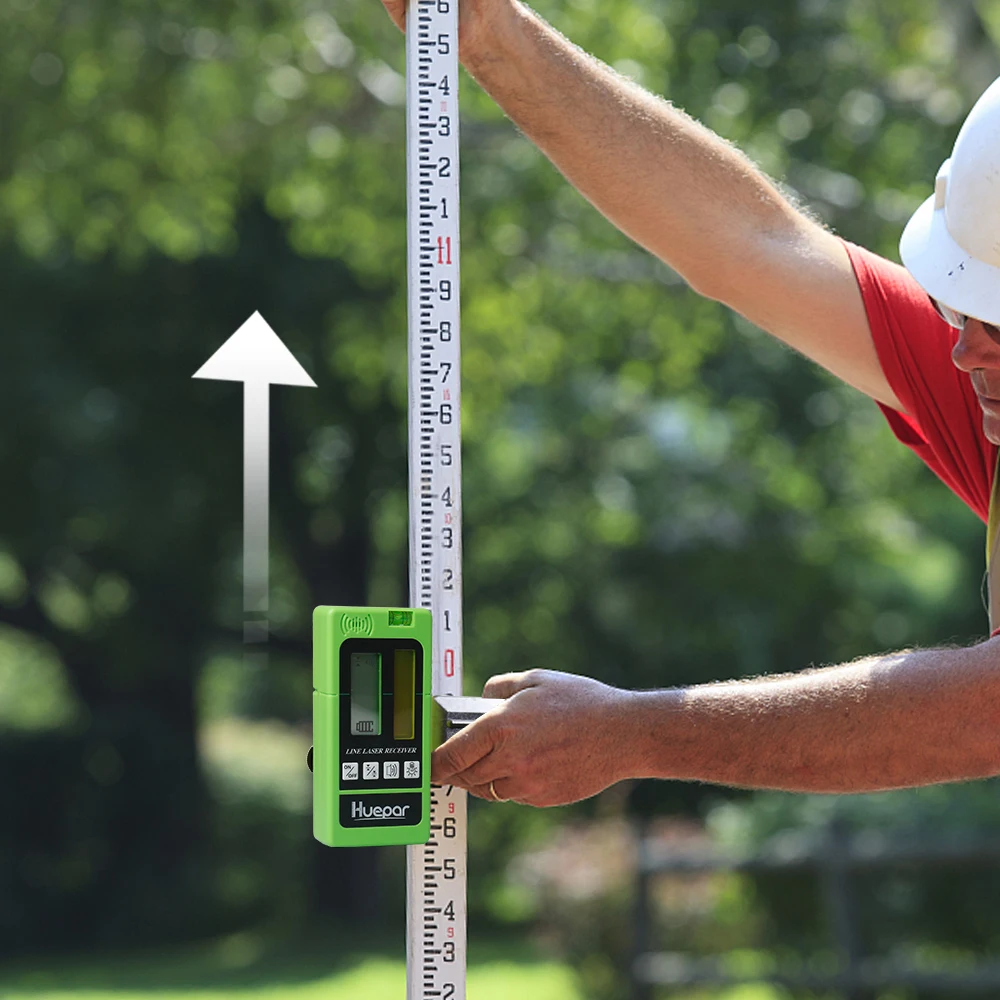

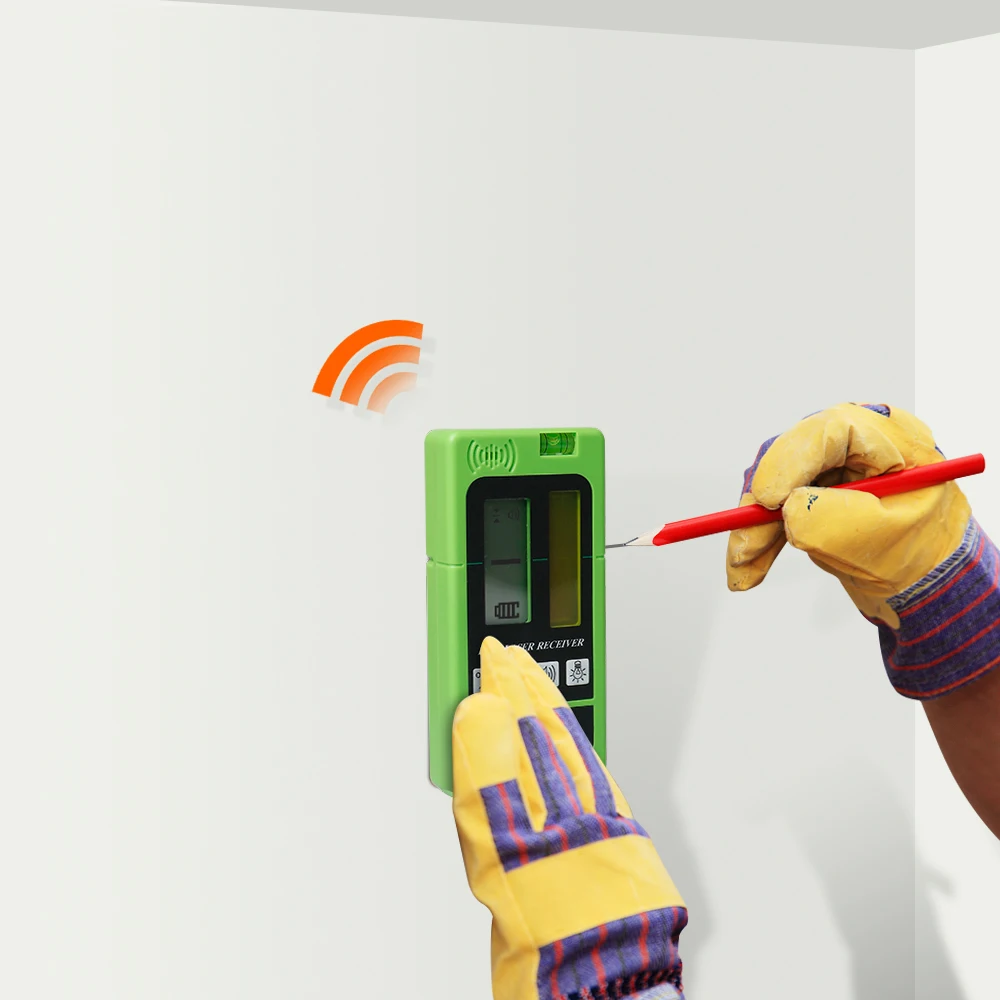

As for the Huepar LR-8RG Laser Detector detail:

1. Short press to turn on/off the machine

2. Long press to switch the buzzer on/off.

3 Automatic shutdown without operation for 10 minutes.

4. The sound of the buzzer can reach up to 90 decibels, ensuring that the signal can still be recognized and received in noisy construction sites or at a distance of more than 40 meters

5. There are magnets on the top and sides

6. Left light: The power on indicator light remains red for a long time and flashes slowly under power.

7. Right light: The red light only comes on when the sound is muted, and does not come on when the buzzer is turned on.

8.Working distance:long axis direction of indoor level, greater than 60 meters, short axis direction of indoor level, approximately 40 meters
