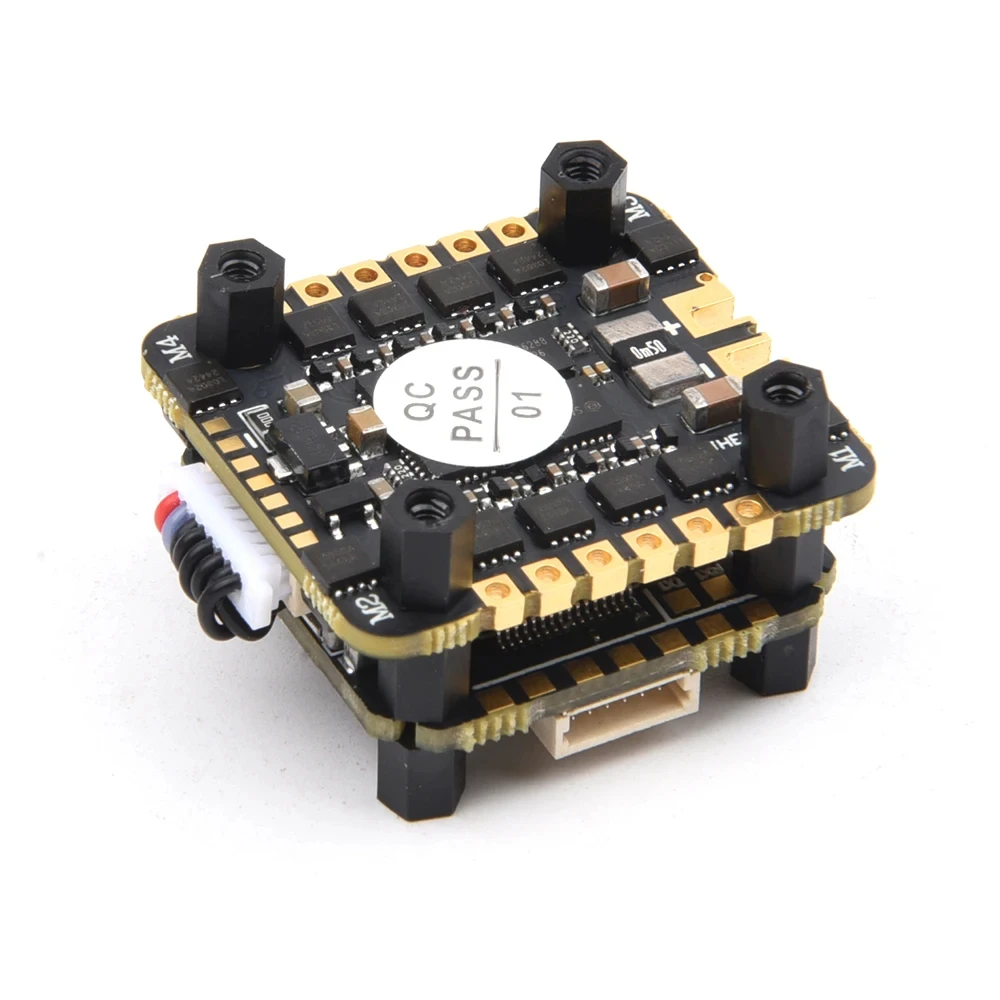

JHEMCU F405 NOXE V2 Flight Controller / JHEMCU EM40A 40A 4in1 ESC 20x20mm Supports 2-6S LiPo for FPV Freestyle Drone

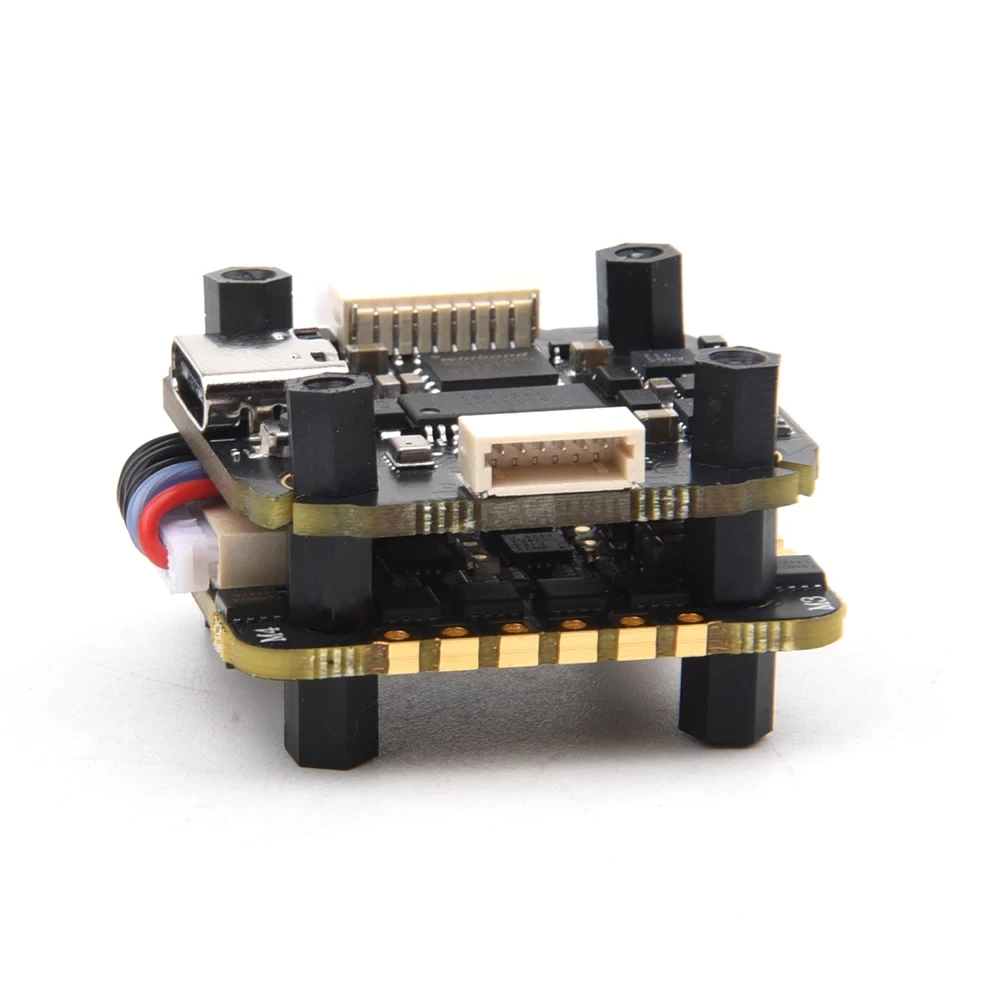

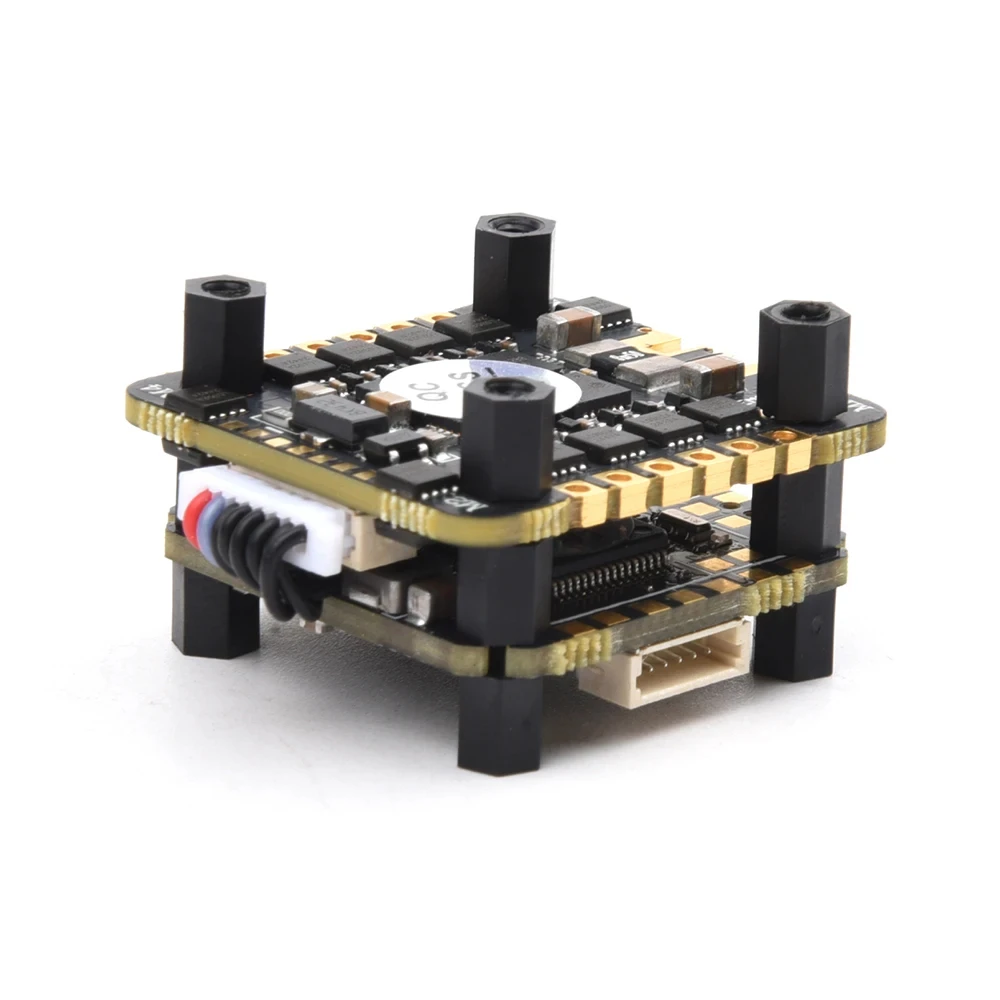

JHEMCU F405 NOXE V2 Flight Controller with EM40A 40A 4in1 ESC 20x20mm Supports 2-6S LiPo for FPV Freestyle Drone

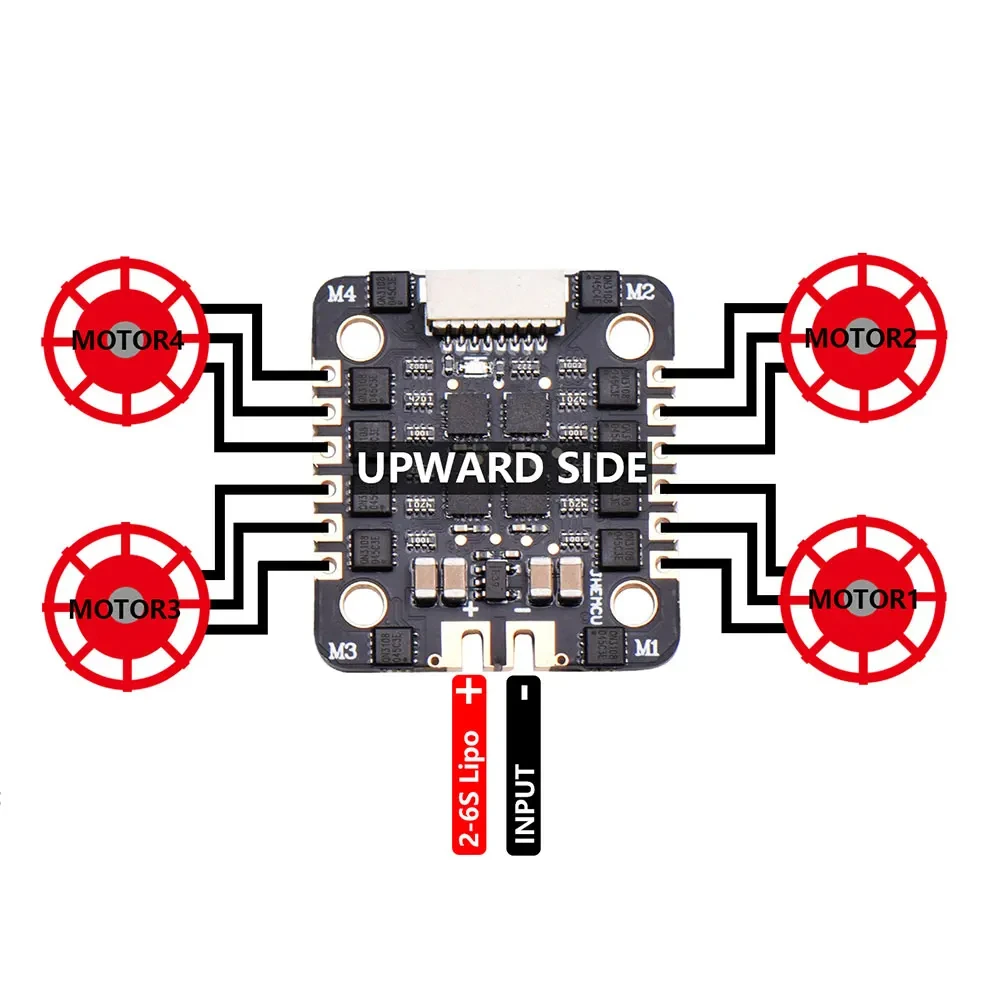

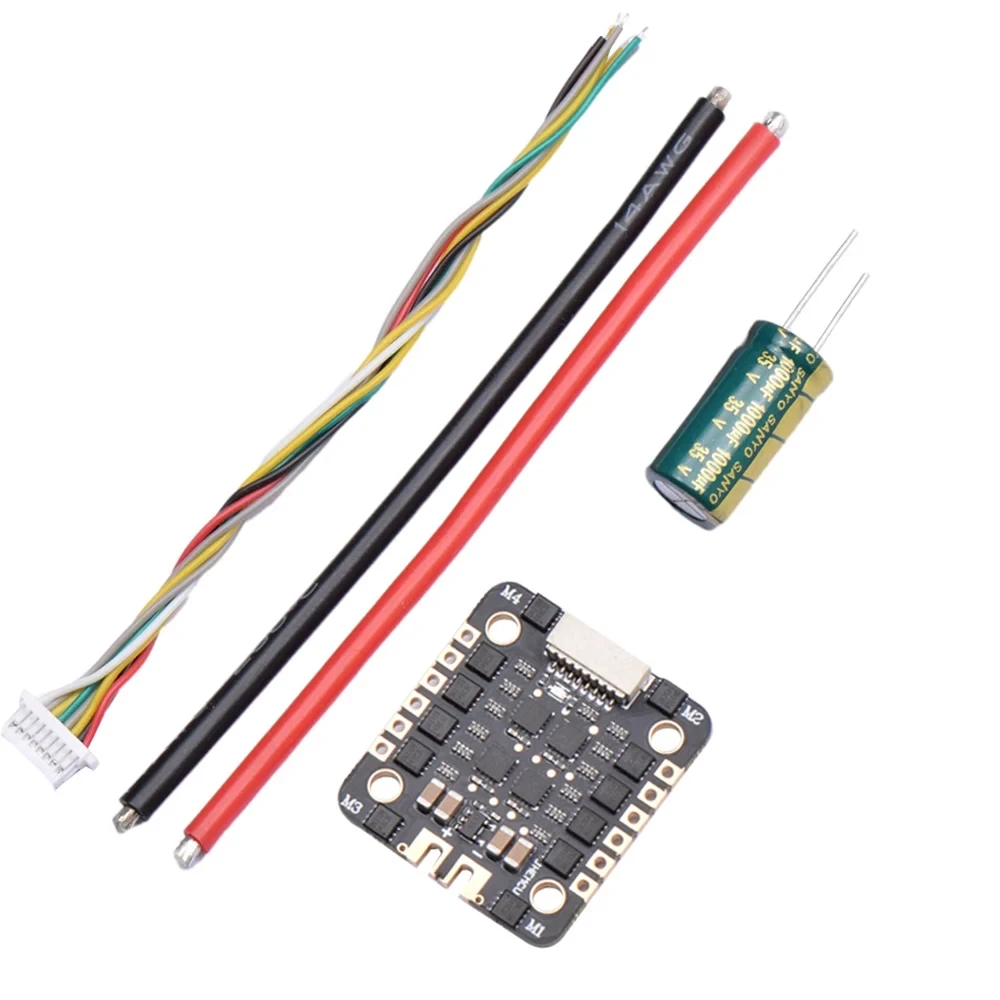

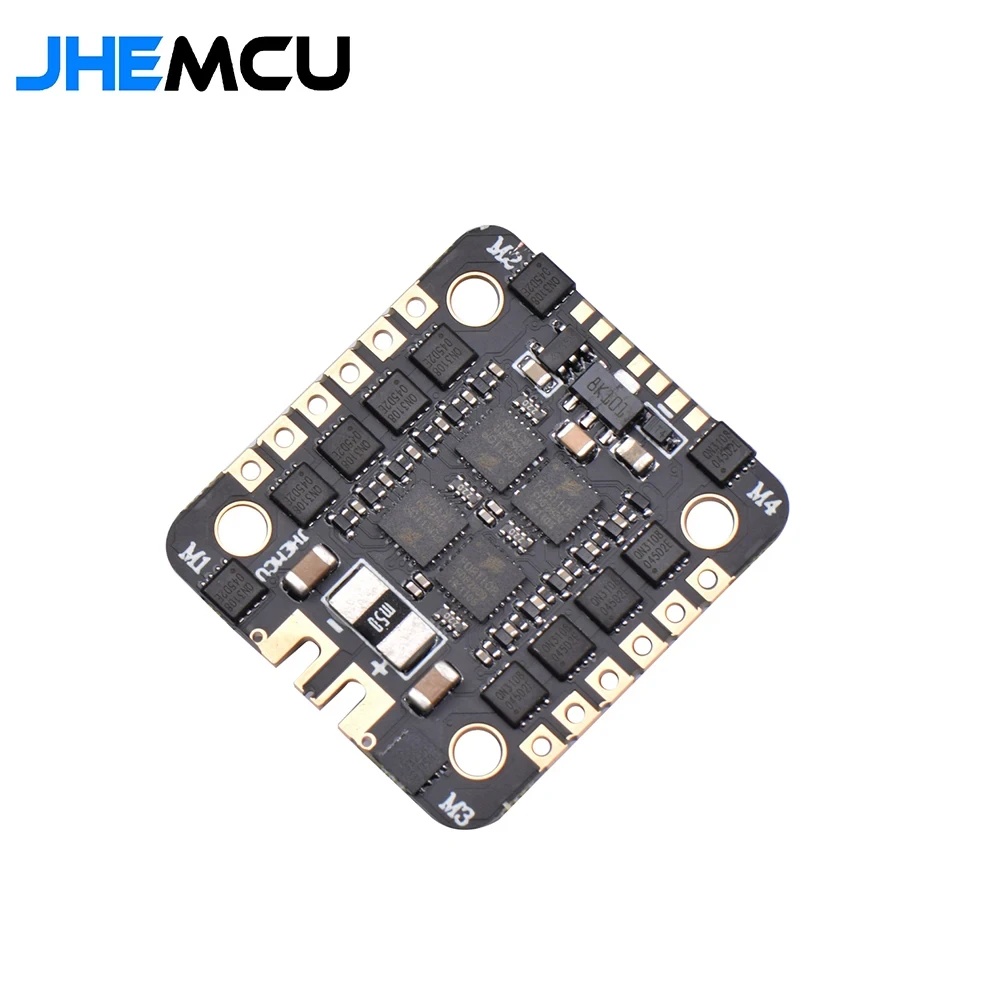

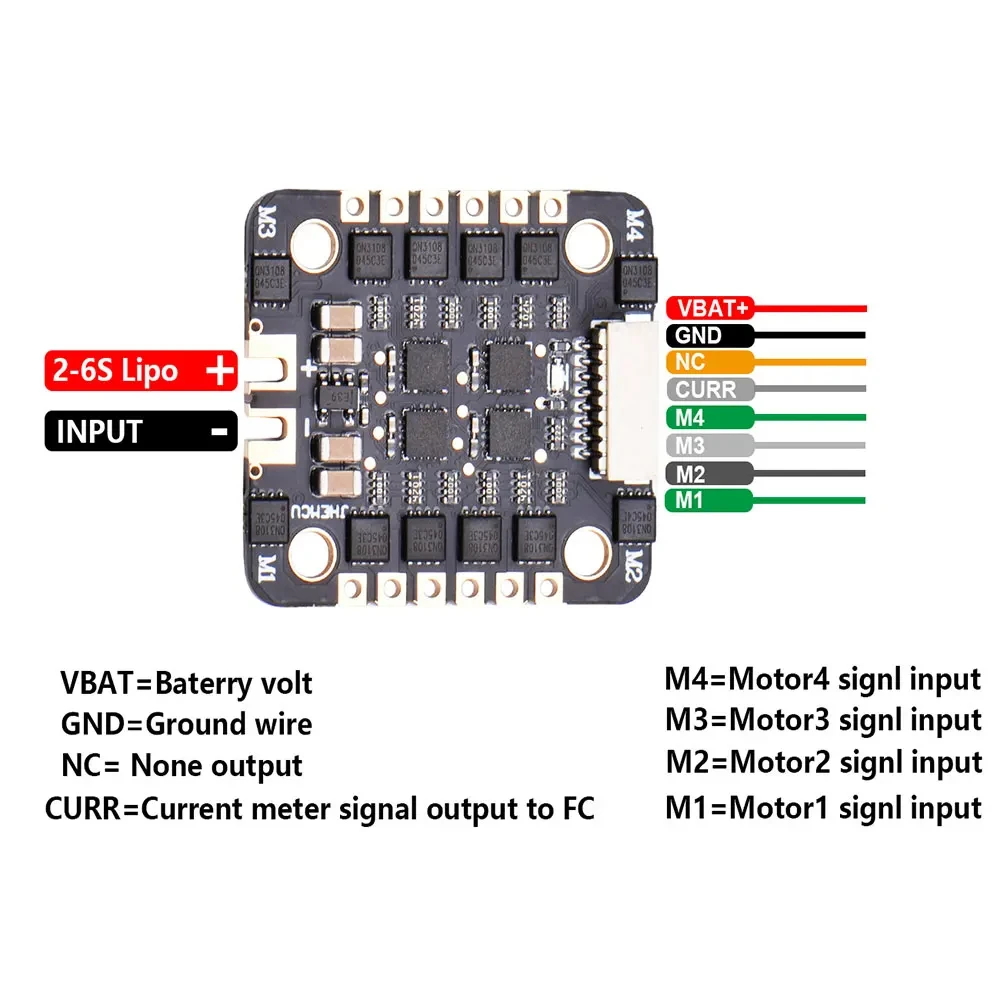

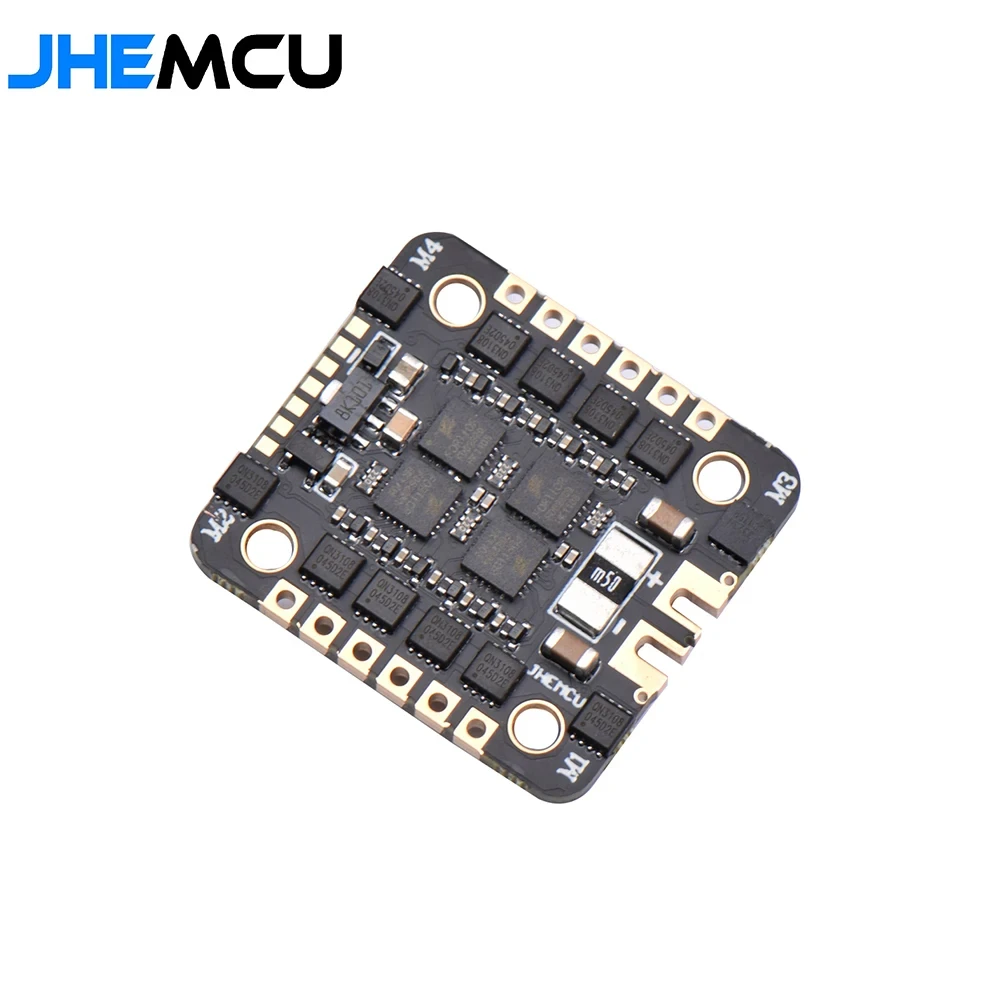

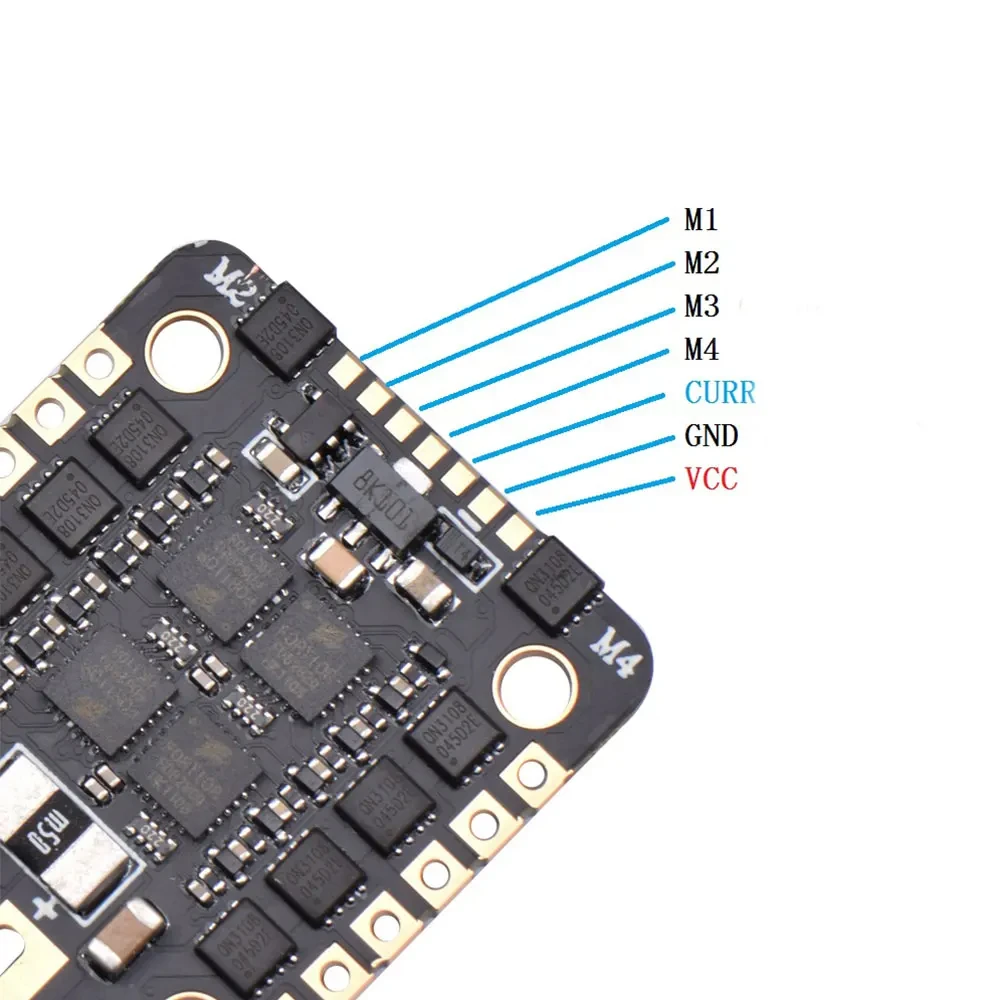

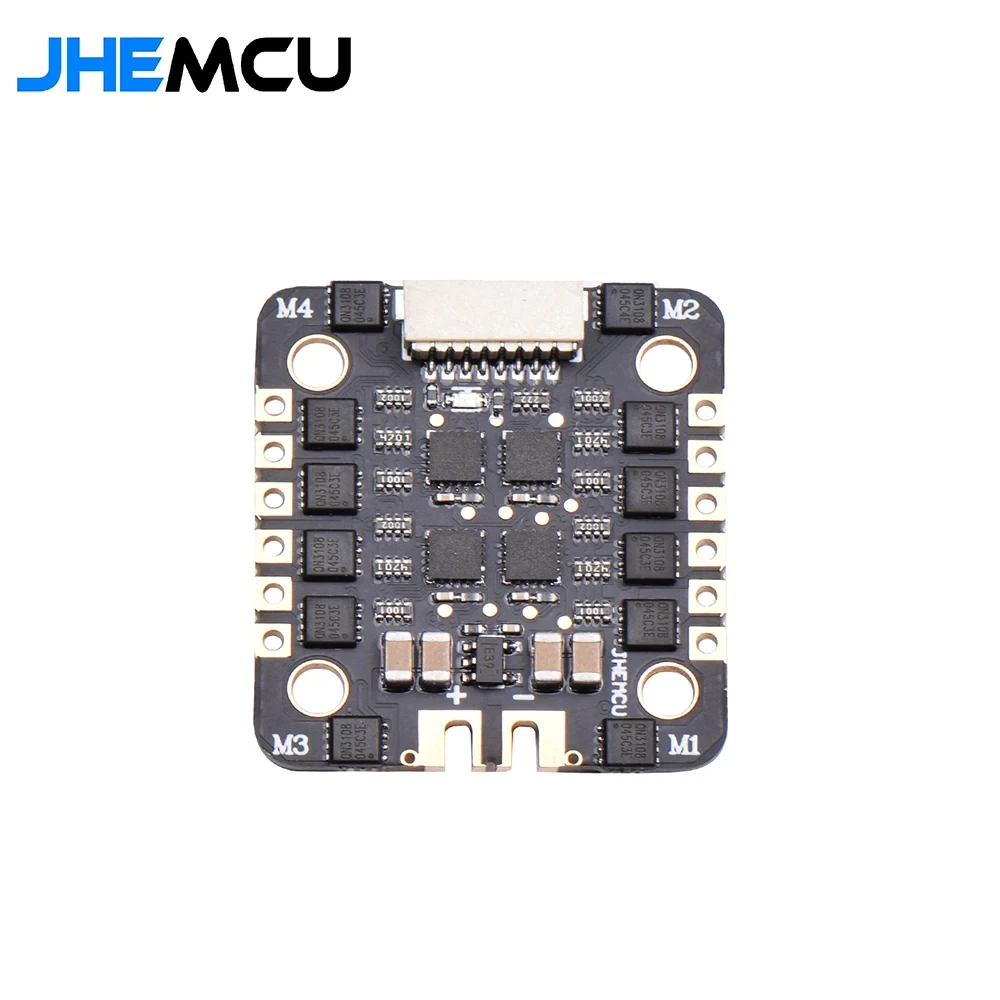

JHEMCU EM40A 40A 4in1 ESC:

Parameters:

Brand: JHEMCU

Input voltage: 2-6S LiPo

Continue current: 40A * 4

BEC: No

Ammeter: Yes

Installation: hole distance 20mm / M2

Dimensions: 27*29MM

Firmware: BLHELI_S

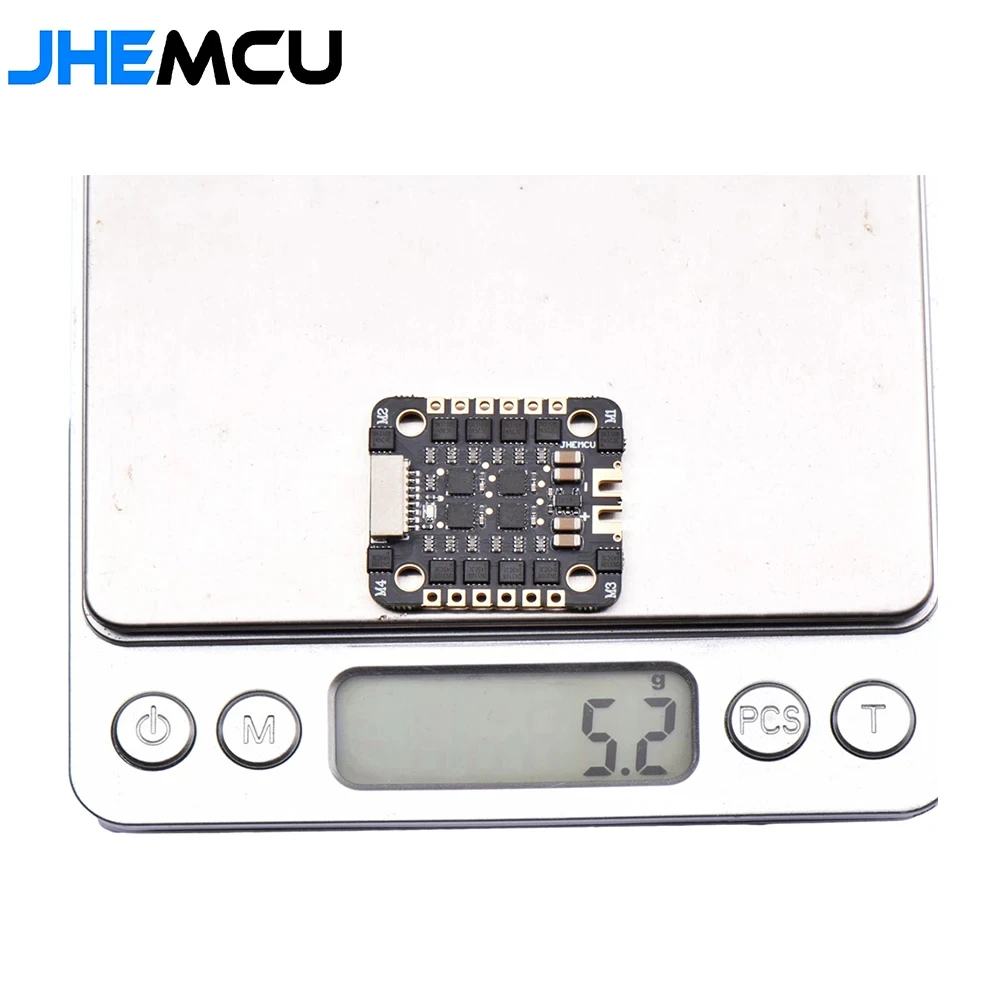

Weight: 5.2 g

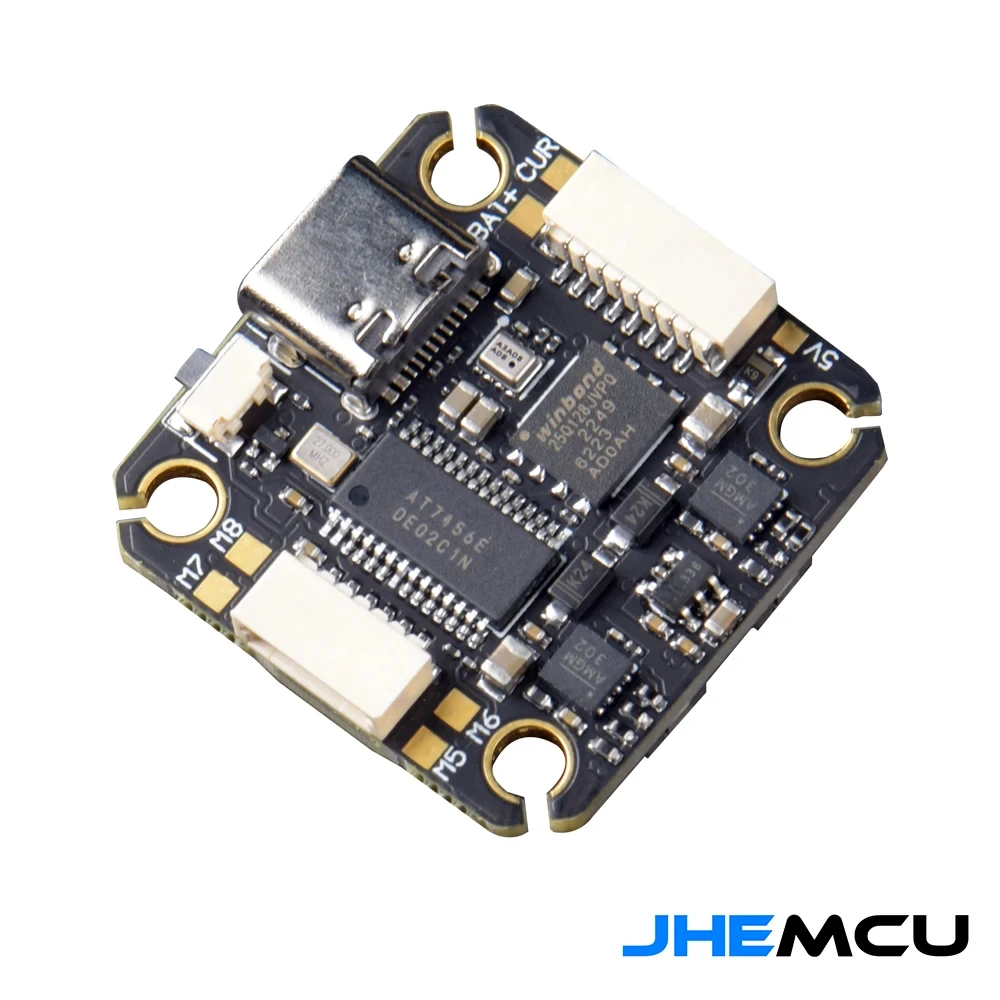

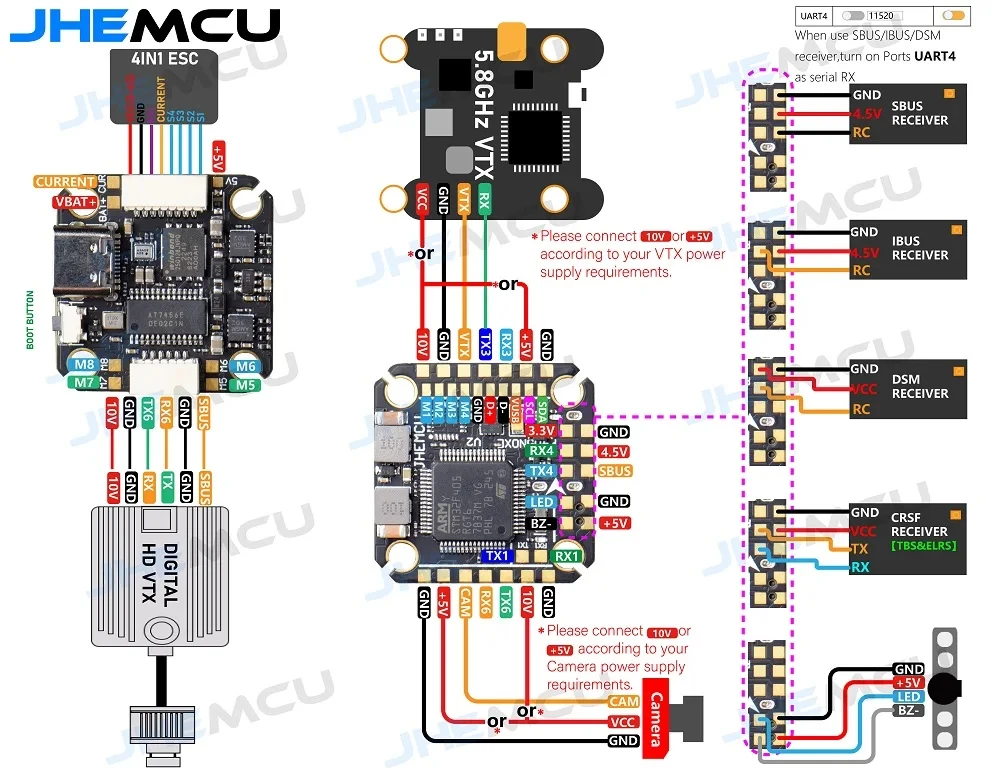

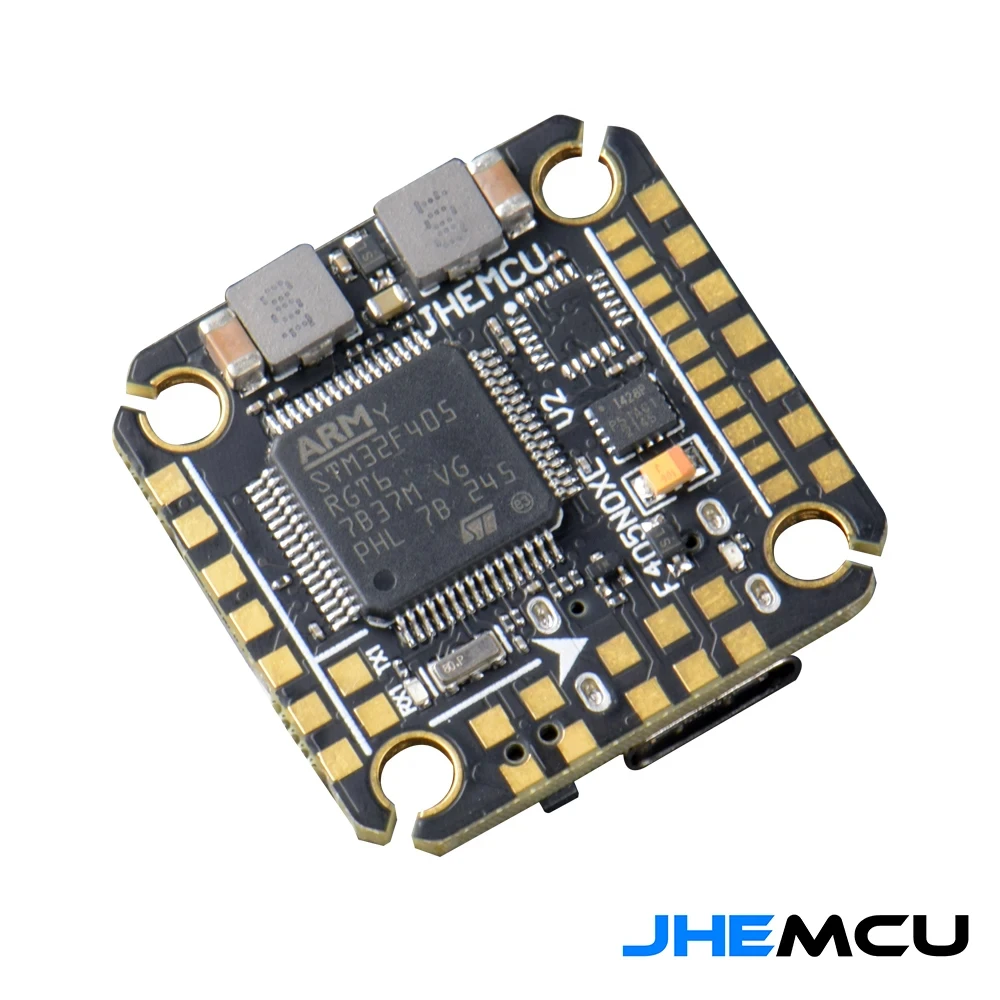

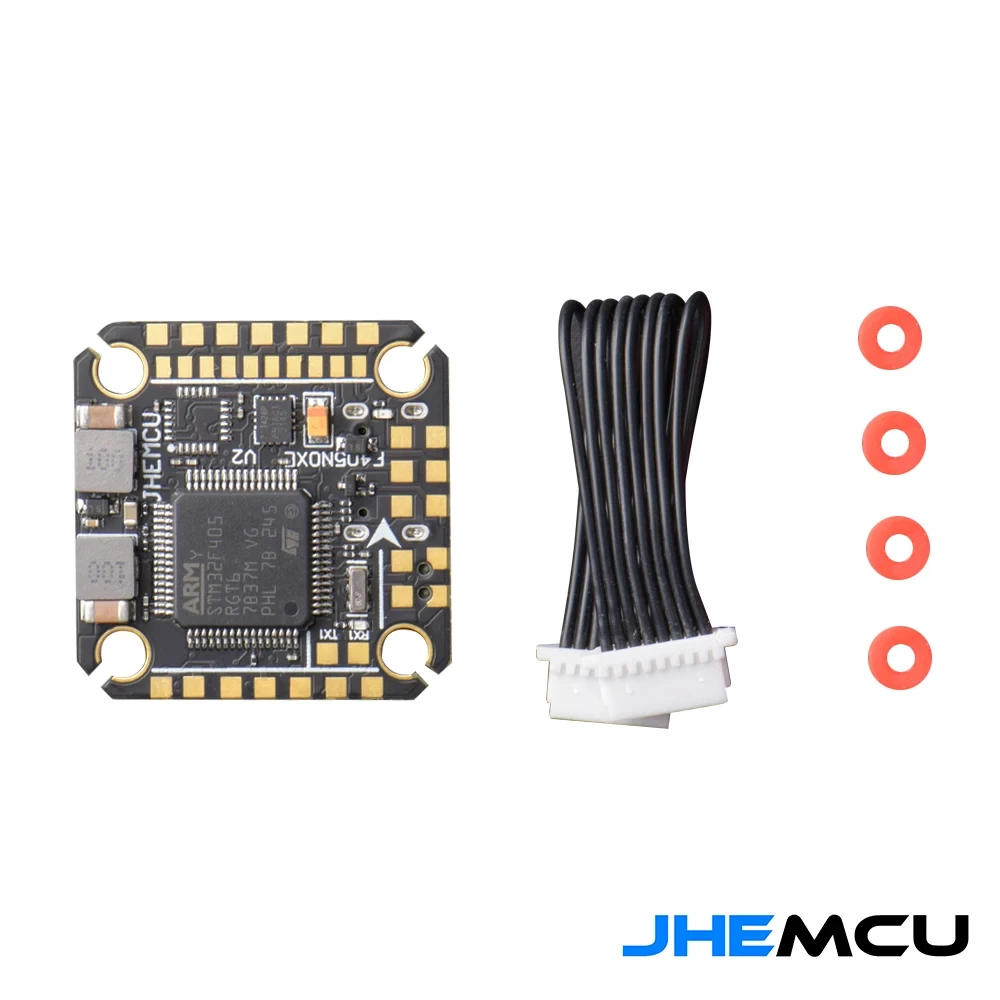

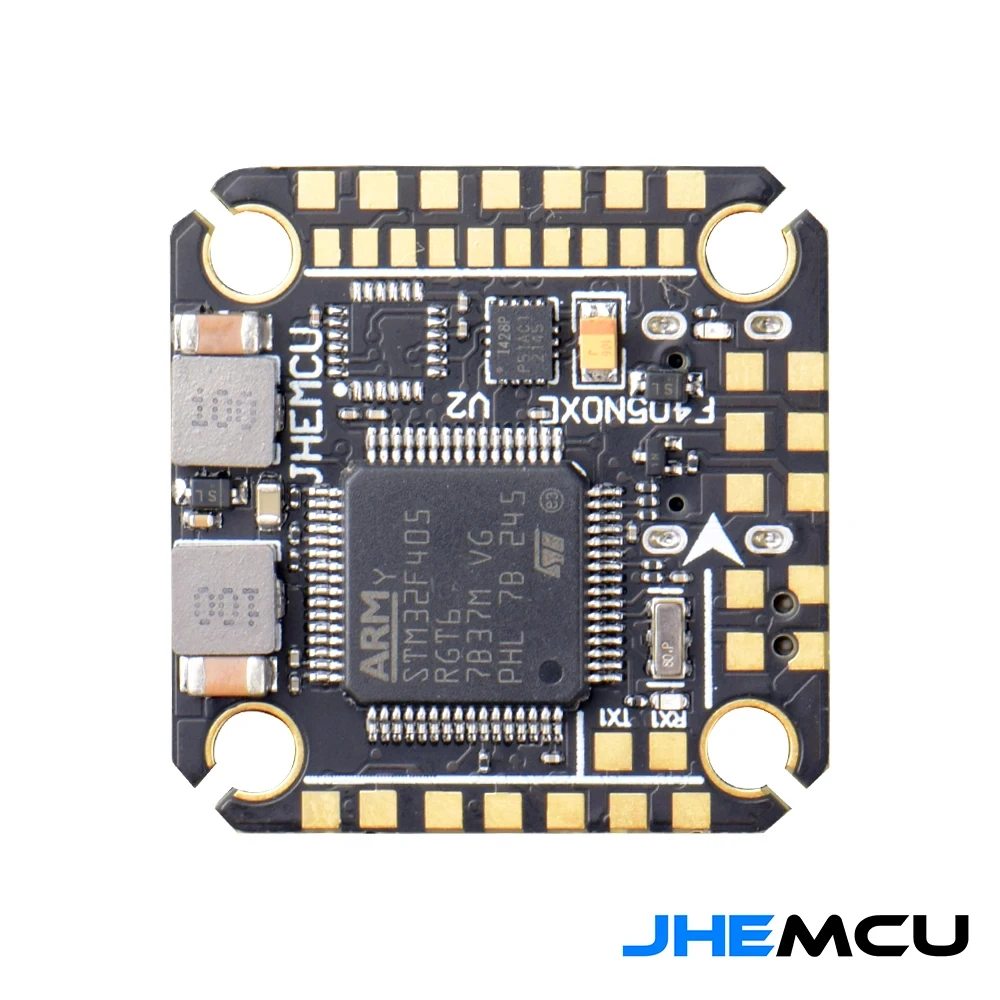

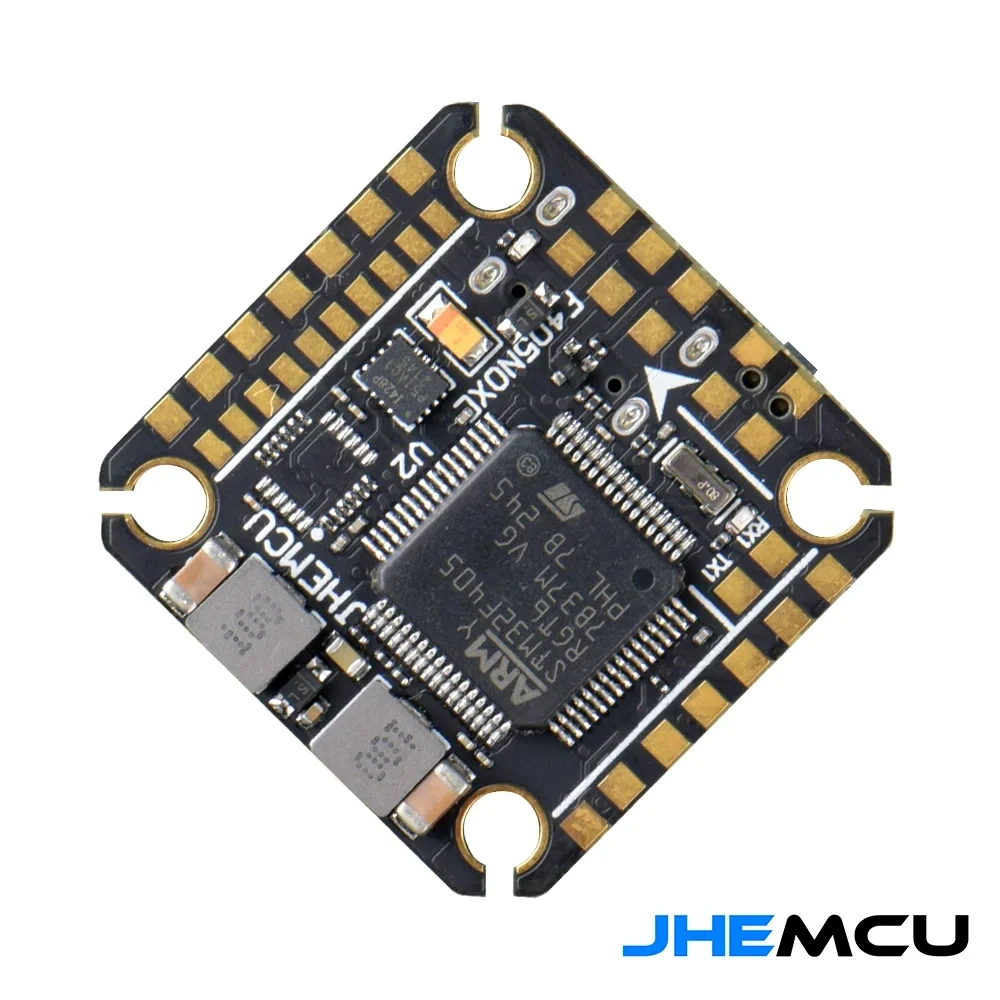

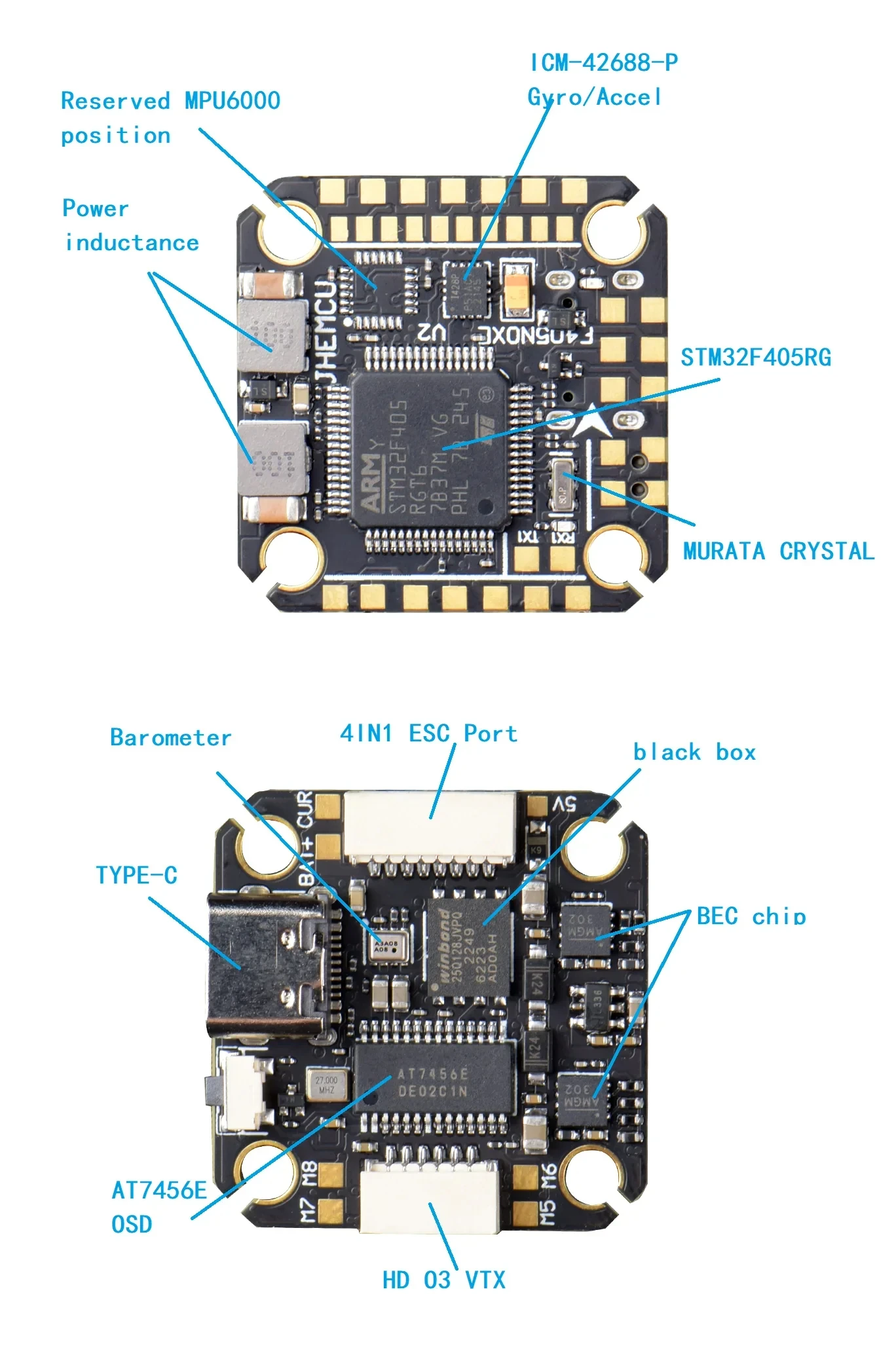

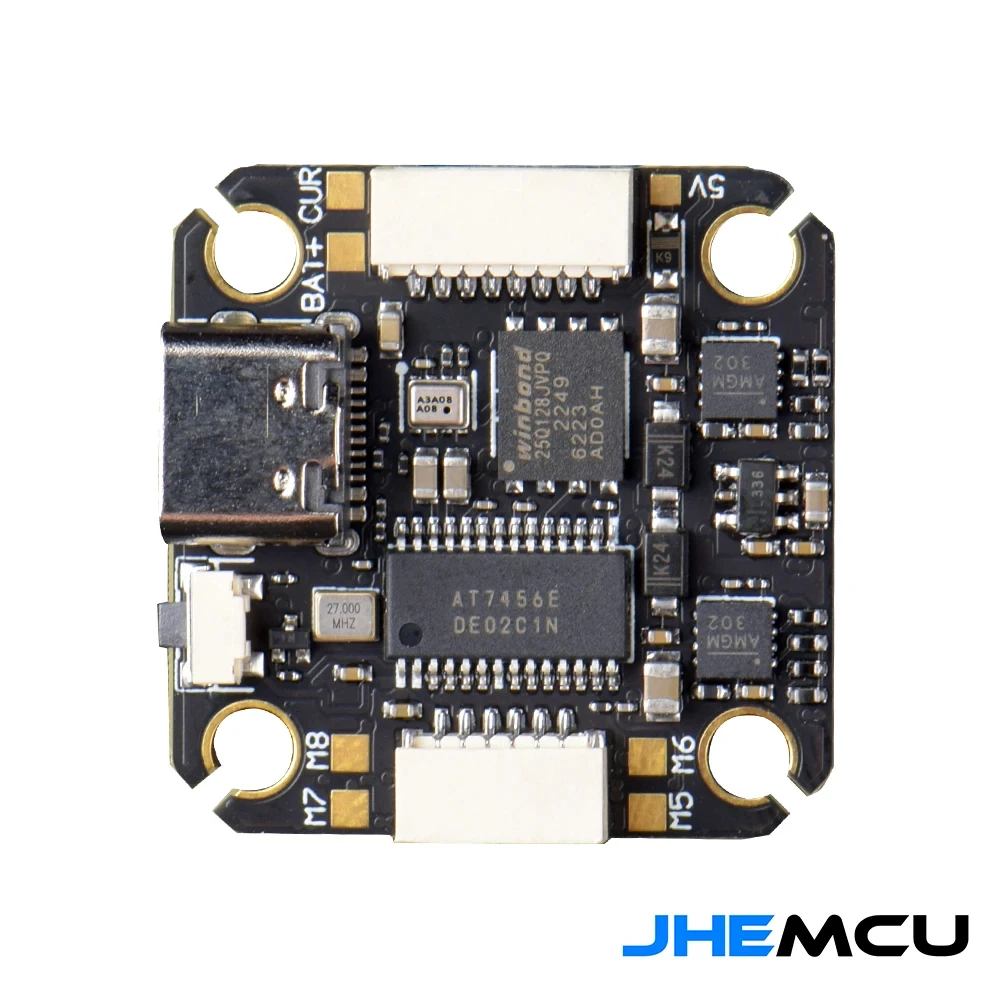

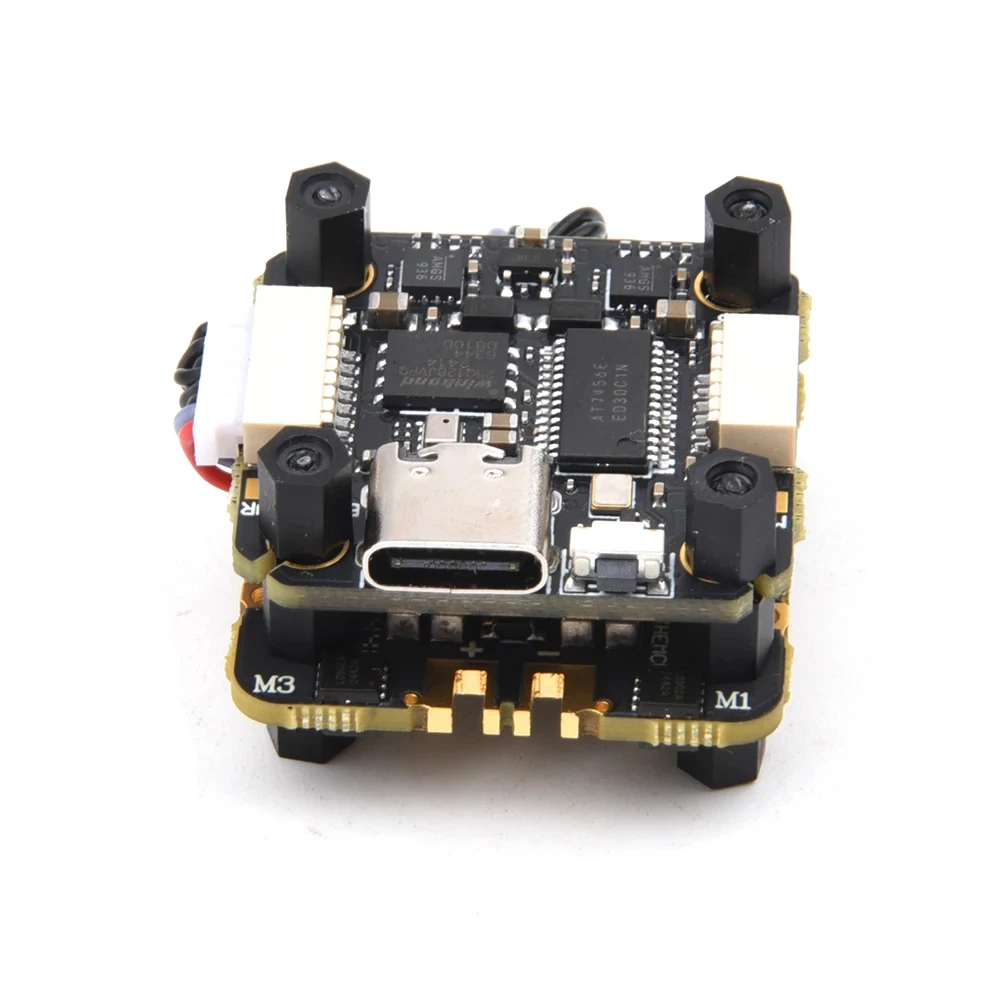

JHEMCU F405 NOXE V2 Flight Controller:

Brand Name Model: JHEMCU F405 NOXE V2

MCU:STM32F405/168MHZ

IMU:ICM-42688-P/Gyro/Accel

OSD:AT7456E

Baro:YES

Blackbox:16MB

Input voltage:3S-6S(11.5V-26V)

5V-BEC:5V/2.5A ±0.1V

10V-BEC:10V/2A ±0.1V

Receiver:ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX

GPS:YES

Compass:YES

HD O3:YES

USART:UART1,UART3,UART4,UART6

IIC:IIC1

Led_Strip:YES

Buzzer:5V

ESC signal:Dshot150,Dshot300,Dshot600

USB:Micro USB

Current port:YES

Voltage sensor:YES

DFU button:YES

FC Firmware:betaflight_4.4.2 JHEF405PRO.HEX

Size:27*27MM

Mounting Hole:20*20mm

Weight:4.6g
