JJC ES-2 35mm Film Digitizing Adapter Set Kit for Negative Copying and Converts 35mm Film & Slides to Digital Files Photo

Two models: FDA-K1 (Not including LED) and FDA-S1 (including LED light)

JJC ES-2 35mm Film Digitizing Adapter Set Kit for Negative Copying and Converts 35mm Film & Slides to Digital Files Photo(NO LDE Light)

Note: NO LDE Light

Features:

The JJC FDA-K1 includes a barrel, five adapters, a slide mount holder and a strip film holder.

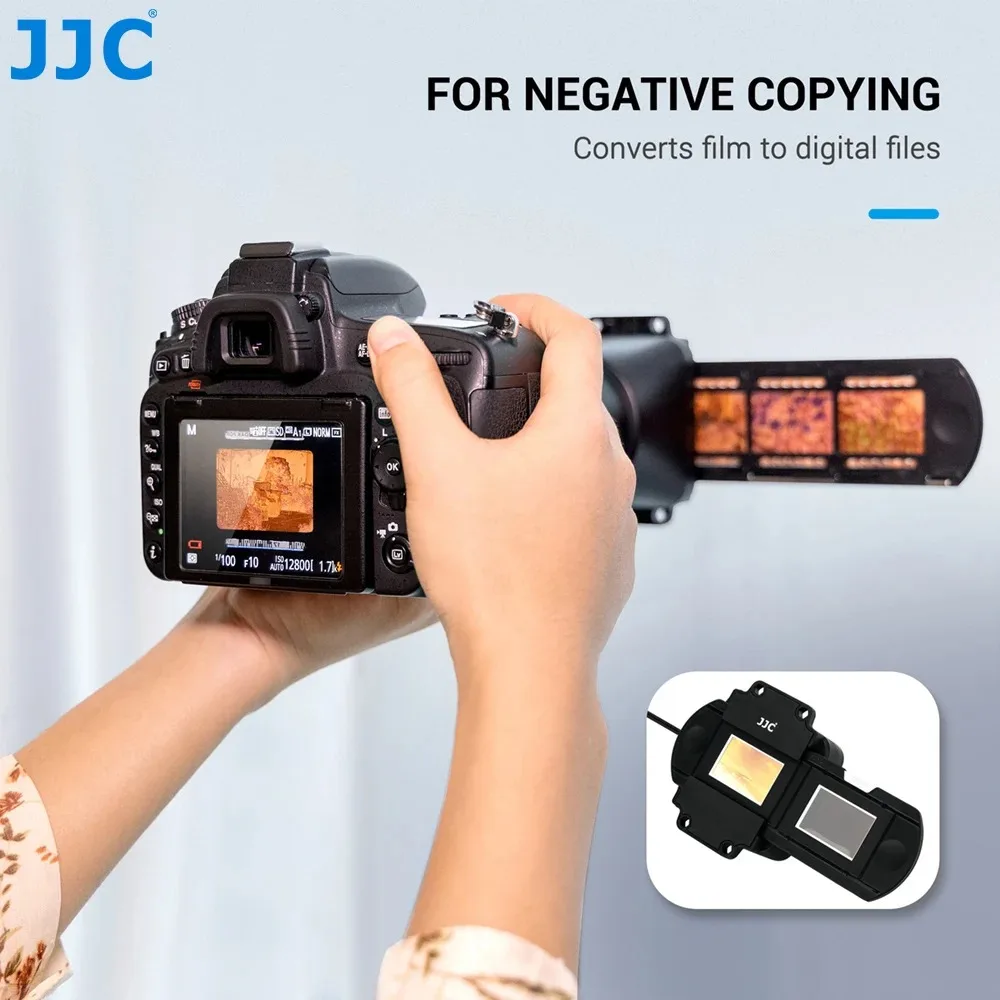

The set is specially designed for negative copying and converts film to digital files.

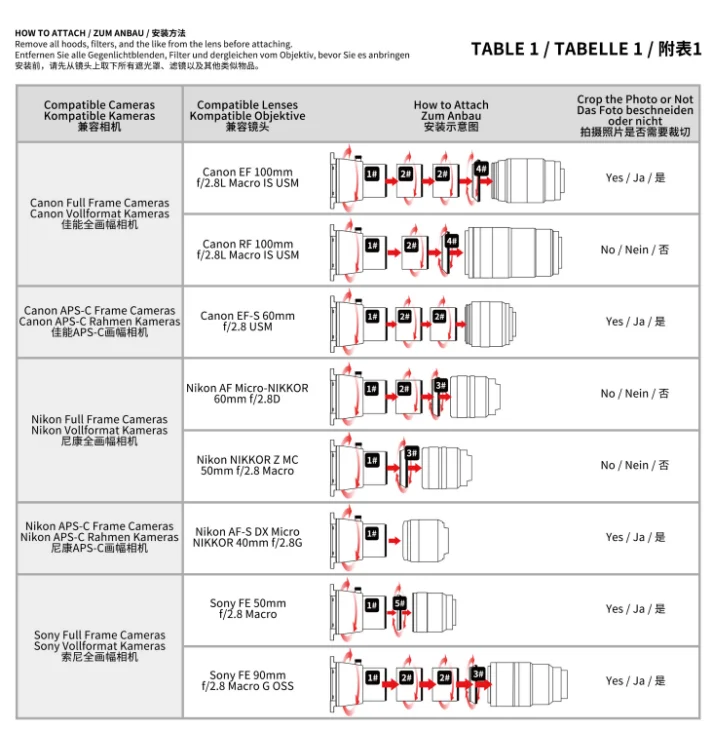

It can be used to photograph 35mm film and is compatible with the following select Canon, Nikon and Sony lenses1:

Canon EF 100mm f/2.8L Macro IS USM Lens [requires supplied Adapter 4# and Adapter 2# (2pcs)]

Canon RF 100mm f/2.8L Macro IS USM Lens (requires supplied Adapter 4# and Adapter 2#)

Canon EF-S 60mm f/2.8 USM Lens [requires supplied Adapter 2# (2pcs)]

Nikon AF Micro-NIKKOR 60mm f/2.8D Lens (requires supplied Adapter 3# and Adapter 2#)

Nikon NIKKOR Z MC 50mm f/2.8 Macro Lens (requires supplied Adapter 3#)

Nikon AF-S DX Micro NIKKOR 40mm f/2.8G Lens

Sony FE 50mm f/2.8 Macro Lens (requires supplied Adapter 5#)

Sony FE 90mm f/2.8 Macro G OSS Lens [requires supplied Adapter 3# and Adapter 2# (2pcs)]

The supplied adapters allow you to attach the set to different lenses and the angle of view and tilt can be adjusted by using the view angle adjustment ring on the barrel. Dedicated film holders for both film strips and mounted slides2 are included, as well, to help hold the film taut and to benefit handling. Beside that, the set is particularly well-suited for the Nikon D850 camera due to its dedicated Negative Digitizer mode and ability to automatically reverse colors in-camera to expedite the digitizing process. Additionally, it is recommended to use natural light or a light source with a high Ra (color rendering index)3 such as a light box or high-CRI fluorescent lamp when carrying on a negative copying. You can also use the set together with the JJC FDA-LED1 LED Light Set for Negative Copying4 (sold separately).

Product Highlights

1.Specially designed for negative copying

2.Converts film to digital files

3.For use with select Canon, Nikon and Sony lenses

4.Holds 35mm film strips and slides

Note:

1. It is recommended to select the image stabilizer switch of the lens to "OFF" when using the FDA-K1.

2. The slide mounts are not included.

3. When using an incandescent light source, keep the diffuser screen at least 30cm (1 ft.) from the bulb. If the adapter is placed too close to an incandescent bulb or left too long in its vicinity, the heat may damage the film or deform the holder.

4. Do NOT place the film in front of the turned-on LED light for a long time to avoid damage.

Package Includes

Barrel 1# x 1

52~52mm Adapter 2# x 2

62~52mm Adapter 3# x 1

67~52mm Adapter 4# x 1

55~52mm Adapter 5# x 1

Slide Mount Holder x 1

Strip Film Holder x 1

Instruction Manual x 1

JJC ES-2 35mm Film Digitizing Adapter Set Kit for Negative Copying and Converts 35mm Film & Slides to Digital Files Photo(Include LED light)

Note: Include LED light

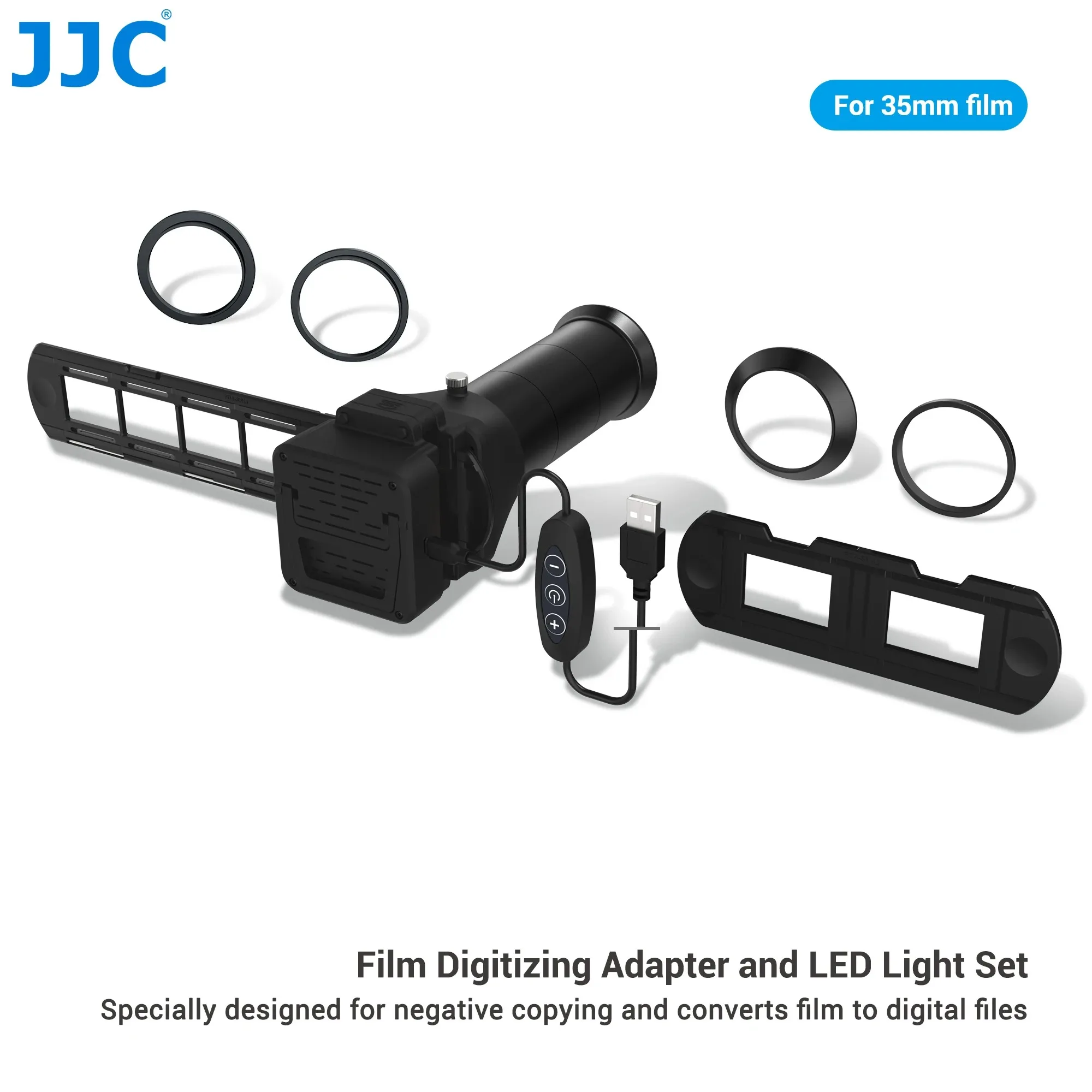

The JJC FDA-S1 includes a barrel, eight adapters, a slide mount holder, a strip film holder and an LED light.

The set is specially designed for negative copying and converts film to digital files.

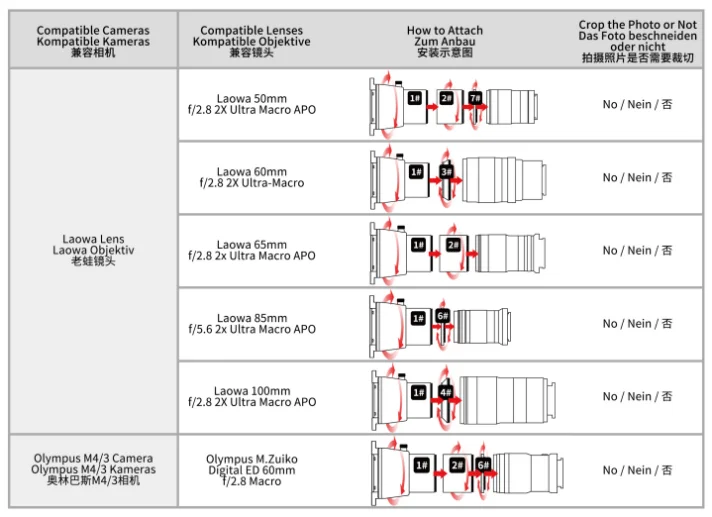

It can be used to photograph 35mm film and is compatible with the following select CAN., NIK., SON., Laowa and OLY. lenses 1:

CAN. EF 100mm f/2.8L Macro IS USM Lens [requires supplied Adapter 4# and Adapter 2# (2pcs)]

CAN. RF 100mm f/2.8L Macro IS USM Lens (requires supplied Adapter 4# and Adapter 2#)

CAN. EF-S 60mm f/2.8 USM Lens [requires supplied Adapter 2# (2pcs)]

CAN. EF 100mm f/2.8 Macro USM Lens [requires supplied Adapter 8# and Adapter 2# (2pcs)]

NIK. AF Micro-NIKKOR 60mm f/2.8D Lens (requires supplied Adapter 3# and Adapter 2#)

NIK. NIKKOR Z MC 50mm f/2.8 Macro Lens (requires supplied Adapter 3#)

NIK. AF-S DX Micro NIKKOR 40mm f/2.8G Lens

NIK. NIKKOR Z MC 105mm f/2.8 VR S Macro Lens (requires supplied Adapter 3# and Adapter 2#)

SON. FE 50mm f/2.8 Macro Lens (requires supplied Adapter 5#)

SON. FE 90mm f/2.8 Macro G OSS Lens [requires supplied Adapter 3# and Adapter 2# (2pcs)]

Laowa 50mm f/2.8 2X Ultra Macro APO Lens (requires supplied Adapter 2# and Adapter 7#)

Laowa 60mm f/2.8 2X Ultra-Macro Lens (requires supplied Adapter 3#)

Laowa 65mm f/2.8 2x Ultra Macro APO Lens (requires supplied Adapter 2#)

Laowa 85mm f/5.6 2x Ultra Macro APO Lens (requires supplied Adapter 6#)

Laowa 100mm f/2.8 2X Ultra Macro APO Lens (requires supplied Adapter 4#)

OLY. M.Zuiko Digital ED 60mm f/2.8 Macro Lens (requires supplied Adapter 2# and Adapter 6#)

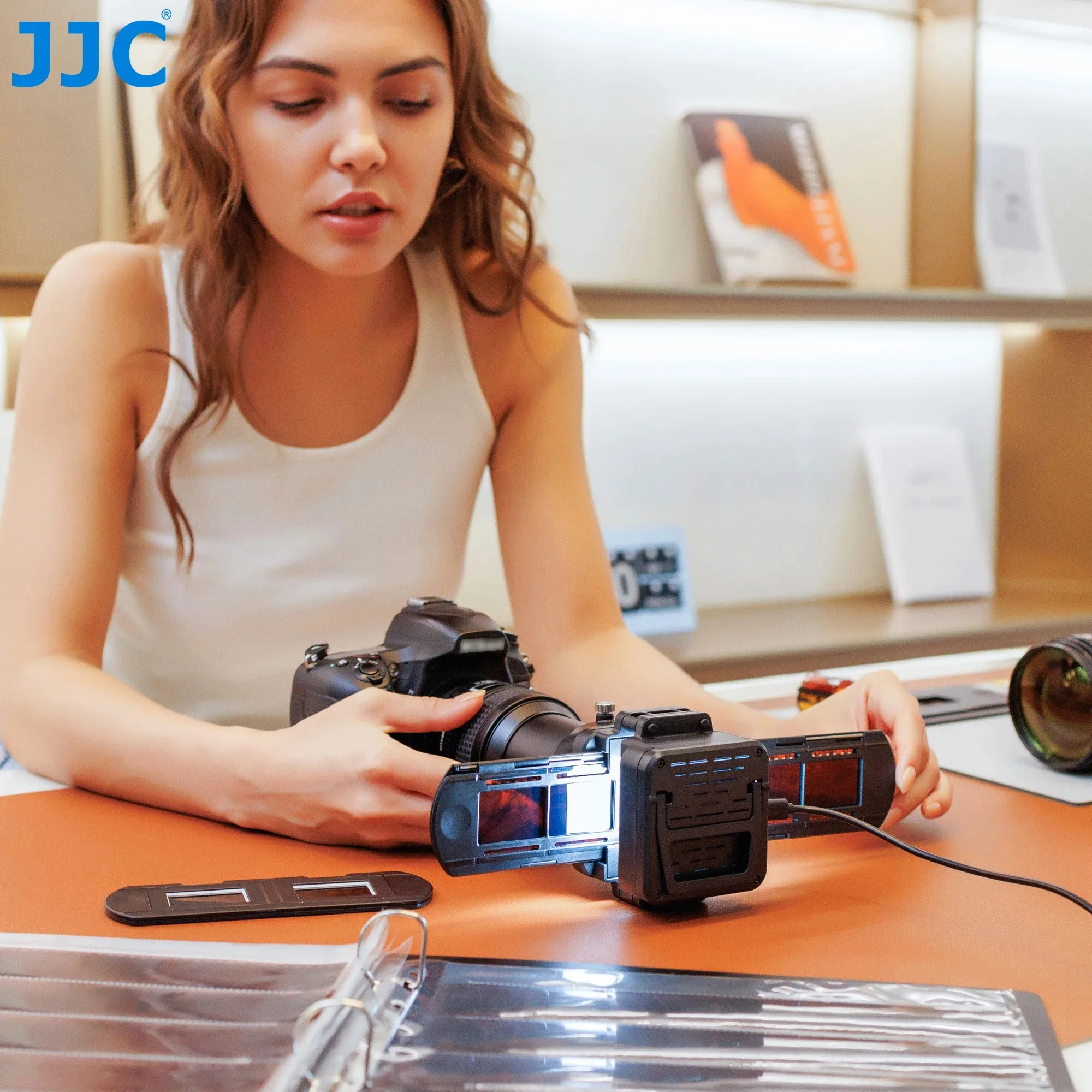

The supplied adapters allow you to attach the set to different lenses and the angle of view and tilt can be adjusted by using the view angle adjustment ring on the barrel. Dedicated film holders for both film strips and mounted slides2 are included, as well, to help hold the film taut and to benefit handling. Besides that, the set is particularly well-suited for the NIK. D850 camera due to its dedicated Negative Digitizer mode and ability to automatically reverse colors in-camera to expedite the digitizing process. Additionally, you can use the set together with the included LED Light3 to get high quality light source and improve image sharpness.

The supplied LED light features 42 built-in ultra-bright LEDs and those LEDs are covered with a screen to produce a soft and even light. The color difference can be effectively reduced for the LED's 95+ color rendering index and 6500K color temperature. Besides that, the connection cable of the LED is about 1.5m / 4.9' and it requires a 5V-2A USB power adapter (not included) for power supply. The controller on the cable allows you to turn on or turn off the LED and enables you to adjust the brightness of this light (the brightness has 10 levels available). You can insert the slide mount holder or strip film holder into the holder insertion slot on the LED to provide high quality light source when carrying on a negative copying. Additionally, the support on its back is designed for using on a flat surface; the 1/4"-20 female thread on the bottom is designed for mounting on a tripod or stand.

Product Highlights

Specially designed for negative copying

Converts film to digital files

For use with select CAN., NIK., SON., Laowa and OLY. lenses

Holds 35mm film strips and slides

Includes a LED light to get high quality light source and improve image sharpness

Note:

1.It is recommended to select the image stabilizer switch of the lens to "OFF" when using the FDA-S1.

2.The slide mounts are not included.

3.Do NOT place the film in front of the turned-on LED light for a long time to avoid damage.

Specifications:

LED Light

Net Weight: approx. 73g

Dimension: 71 x 91.2 x 52.8mm / 2.8 x 3.6 x 2.1"

Material: ABS

LED Quantity: 42

Color Rendering Index(CRI): 95+

Color Temperature: 6500K

Illuminance: 10cm / 3.9" , 6392lux; 20cm / 7.9", 1473lux; 30cm / 11.8", 988lux

Brightness: 10 levels

Power Draw: 7.5W

Interface: Micro USB

Cable Length: approx. 1.5m / 4.9'

Slide Mount Holder:

Holds two mounted 35mm slides

Net Weight: approx. 16g

Dimension: 155 x 52 x 4.7mm / 6.1 x 2.0 x 0.2"

Strip Film Holder

Holds six-frame strip of 35mm film

Net Weight: approx. 35g

Dimension: 275 x 52 x 4.7mm / 10.8 x 2.0 x 0.2"

Package Includes:

Barrel 1# x 1

52~52mm Adapter 2# x 2

62~52mm Adapter 3# x 1

67~52mm Adapter 4# x 1

55~52mm Adapter 5# x 1

46~52mm Adapter 6# x 1

49~52mm Adapter 7# x 1

58~52mm Adapter 8# x 1

Slide Mount Holder x 1

Strip Film Holder x 1

LED Light x 1

Instruction Manual x 1
