LILYGO® T-Beam V1.2 ESP32 LoRa Module LoRaWAN Long Range 433MHz 868MHz 915MHz ESP32-DOWDQ6 Development Board GPS WIFI AXP2101
- Fast delivery
- 30-day returns

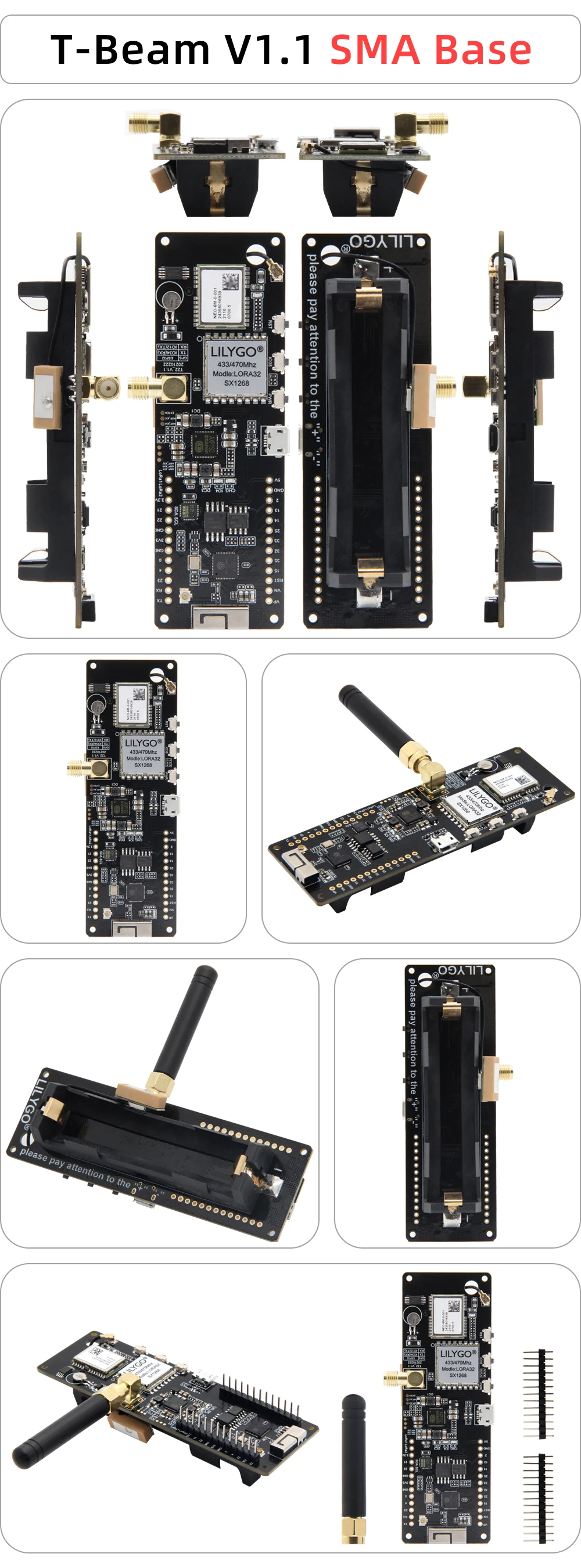

T-Beam V1.1 Introduce

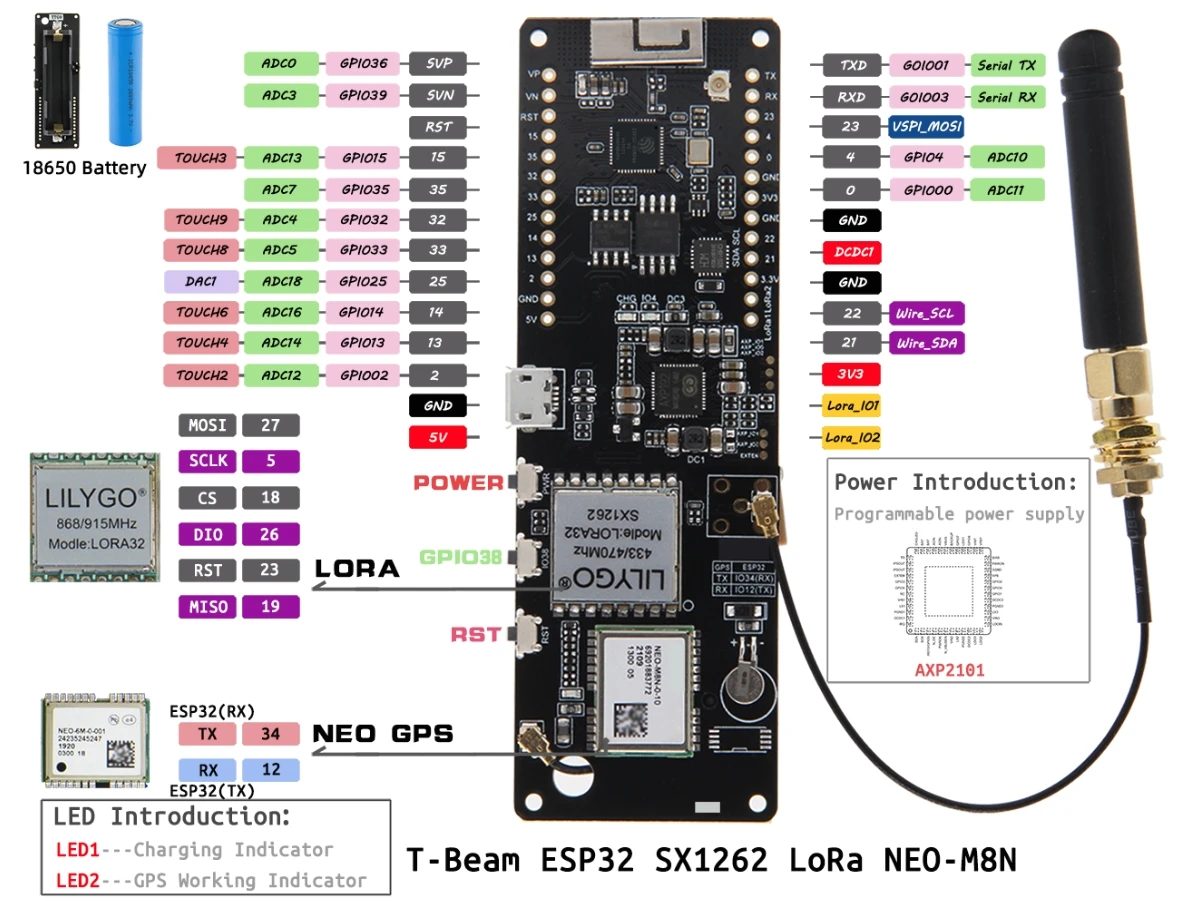

T-Beam V1.1 is a low-power development board that integrates ESP32, LoRa, and GPS and supports Wi-Fi Bluetooth short-range LoRa long-distance communication functions.
T-Beam V1.1 IPEX NEO-M8N GNSS Version, change GPS / LoRa chip and LoRa antenna based on T-Beam V1.1.

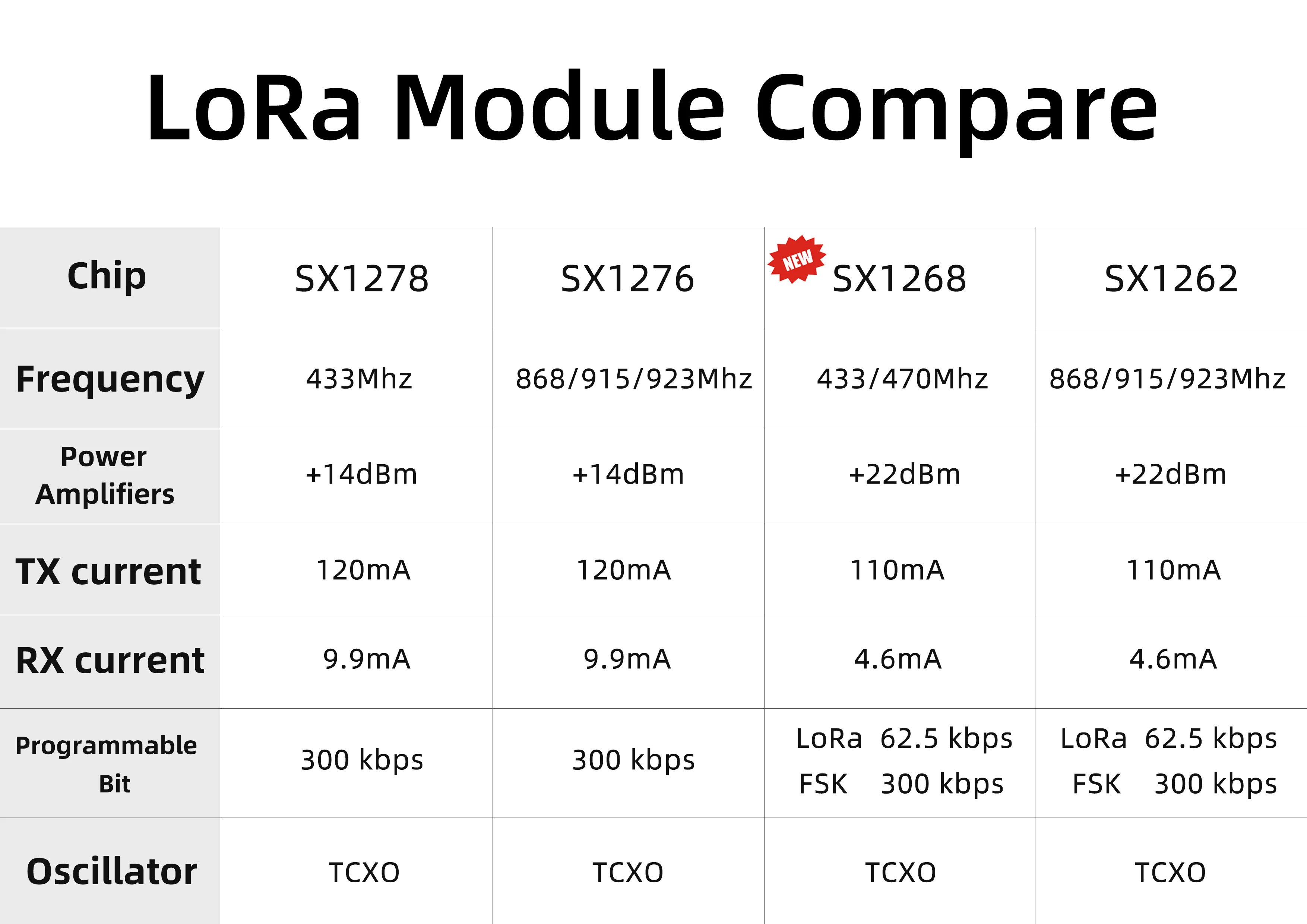

LoRa chip using Semtech SX1262 LoRa RF transceiver chip design, works in the 868/915MHz ISM frequency band, integrates a highly stable TCXO 32MHz crystal oscillator, half-duplex transceiver module, power up to +22dBm, too -139dBm receiving sensitivity.

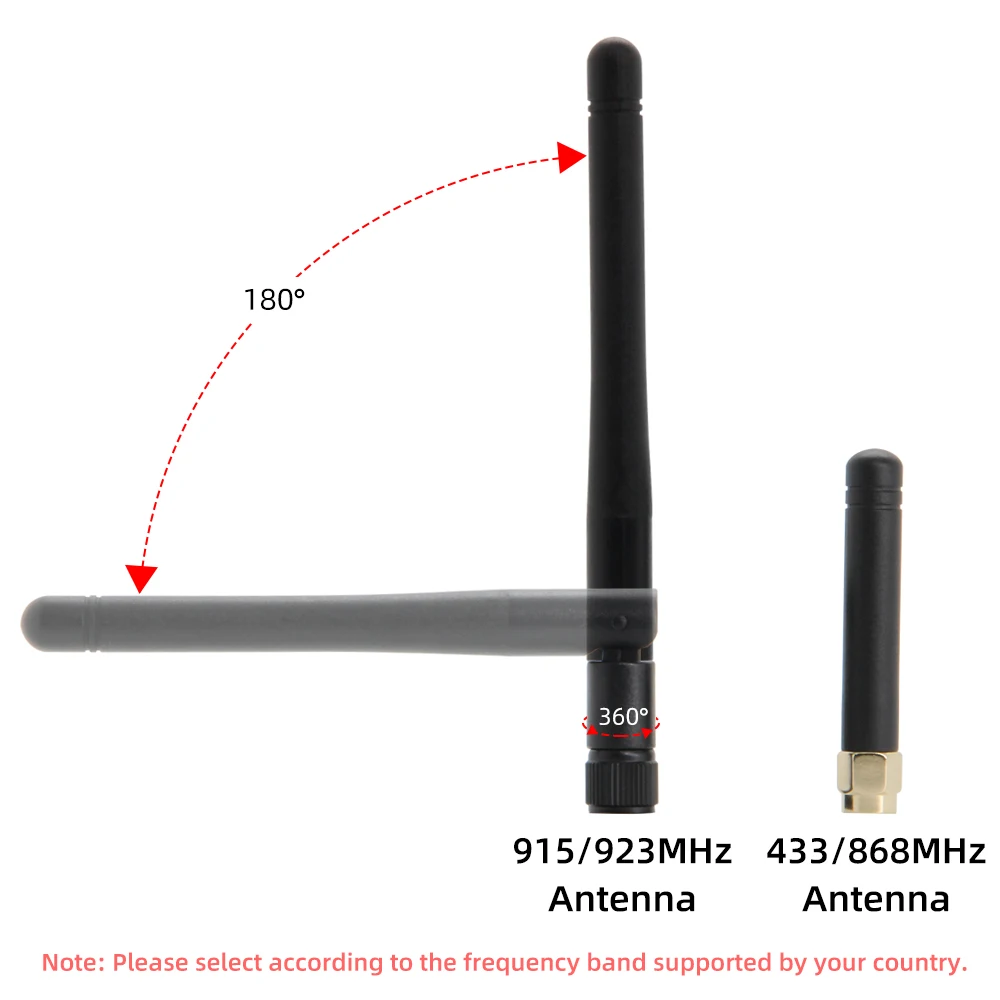

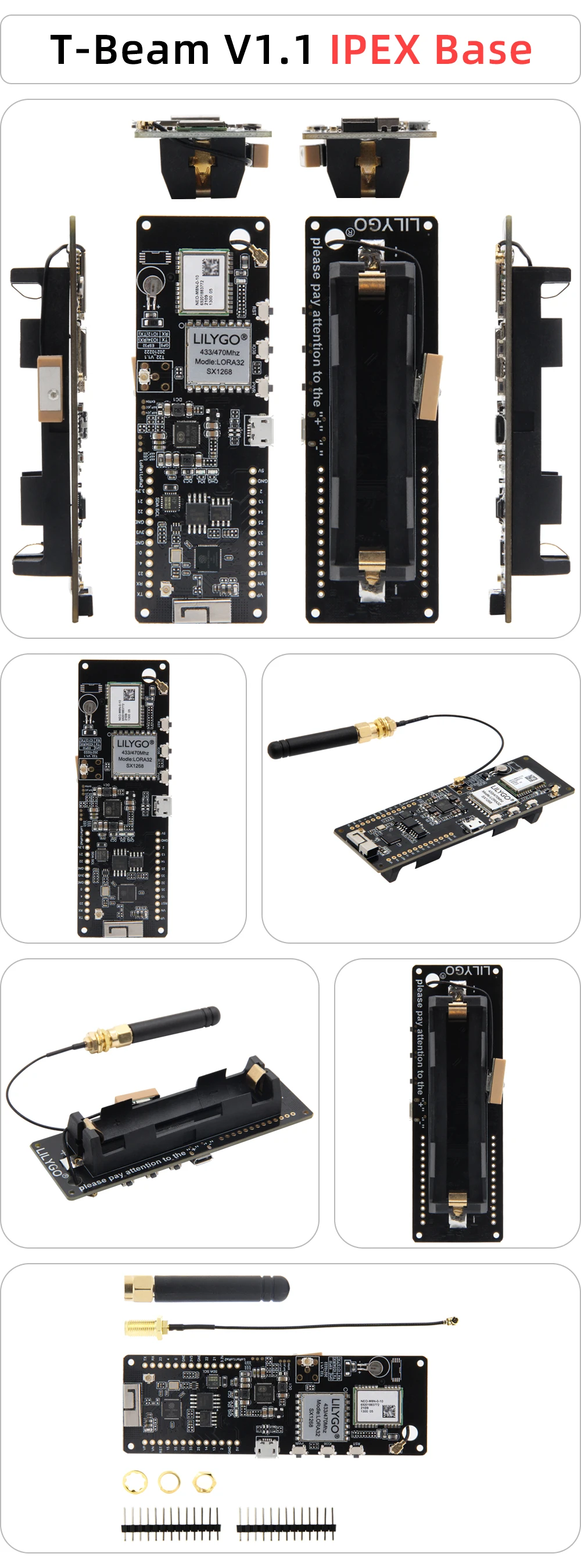

The LoRa antenna interface is changed from SMA to IPEX, which is more convenient to store.

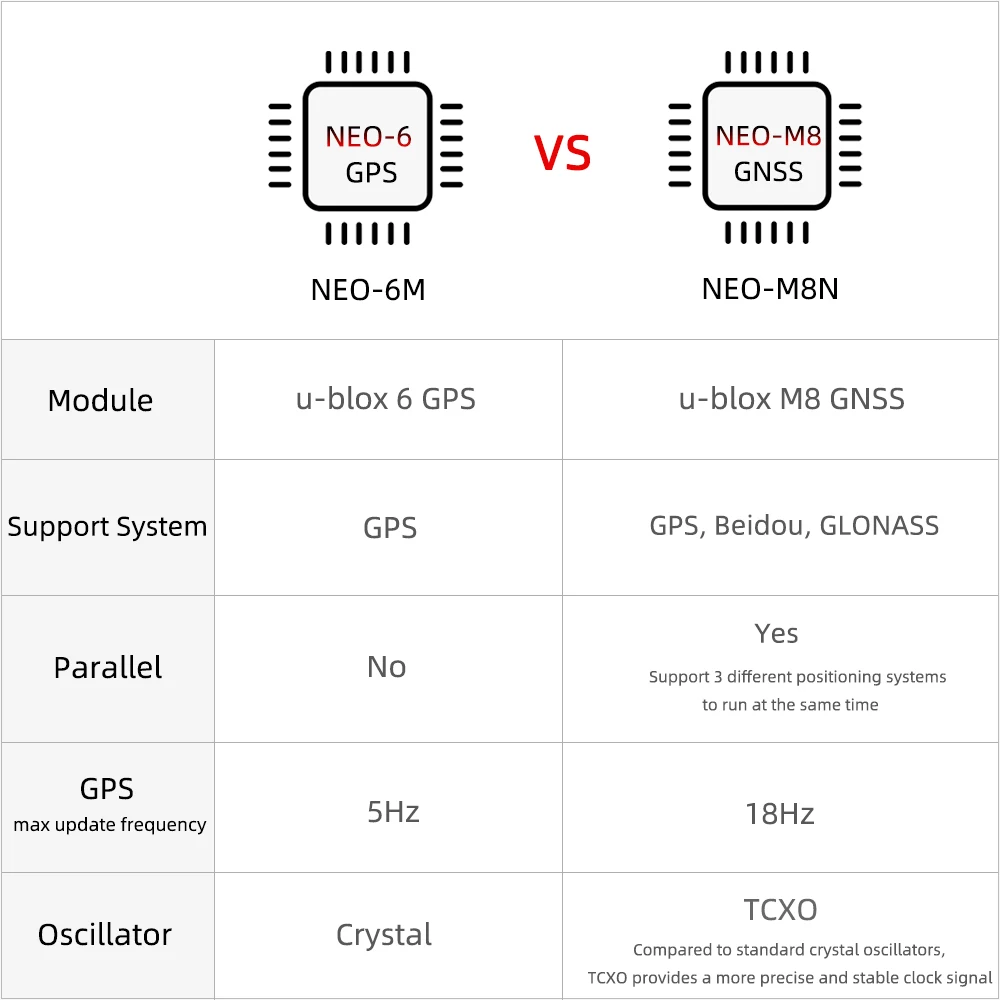

GPS chip using Semtech NEO-M8N GNSS chip design, also support GPS Beidou GLONASS, stronger positioning signal, The positioning speed is faster.
Product upgrade changes:(Compared with V1.0）
Add reverse battery protection module

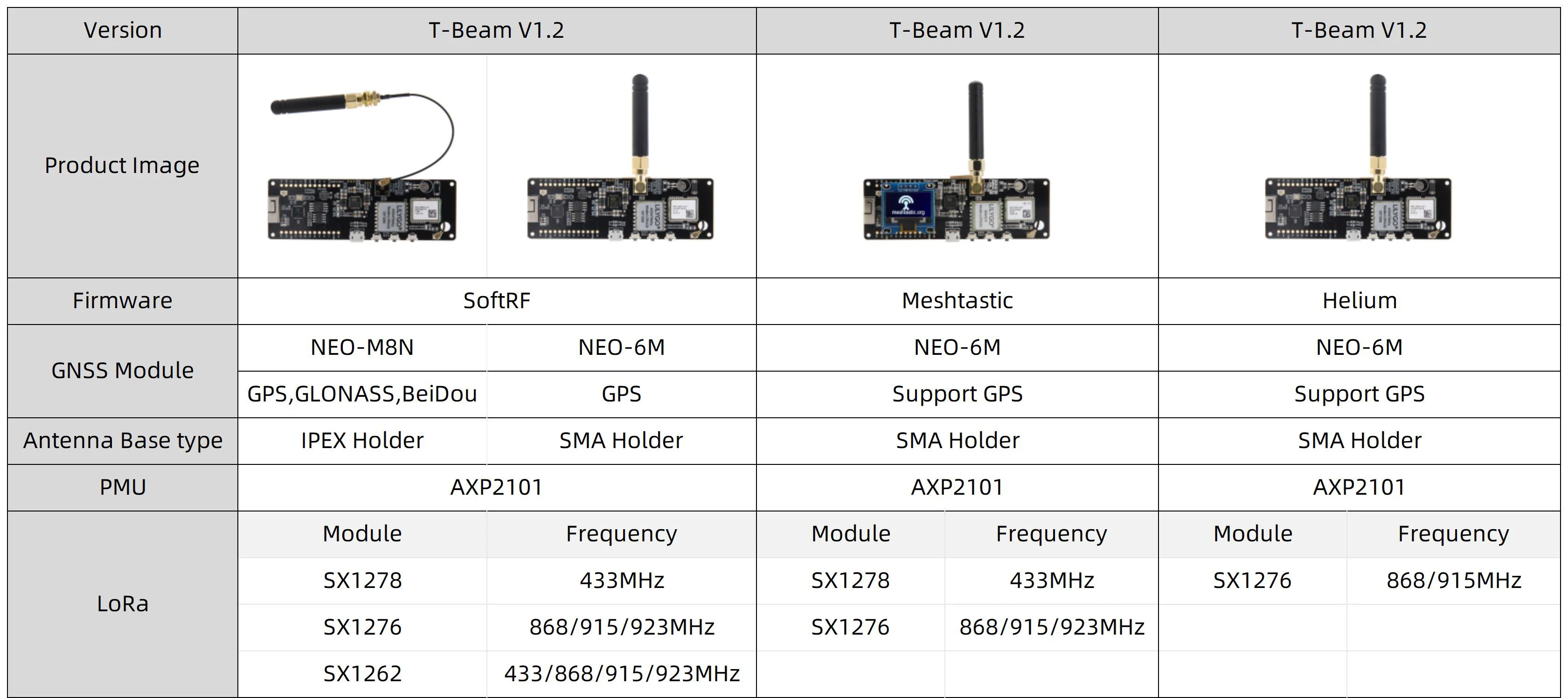

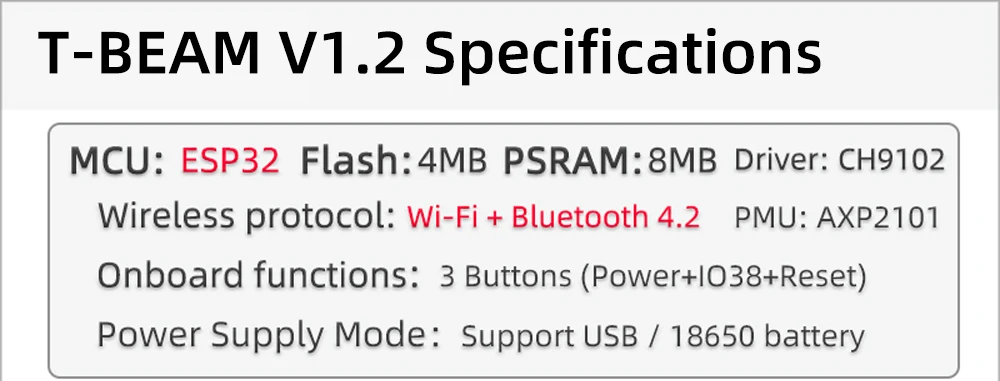

June 28, 2023 New version T-Beam V1.2

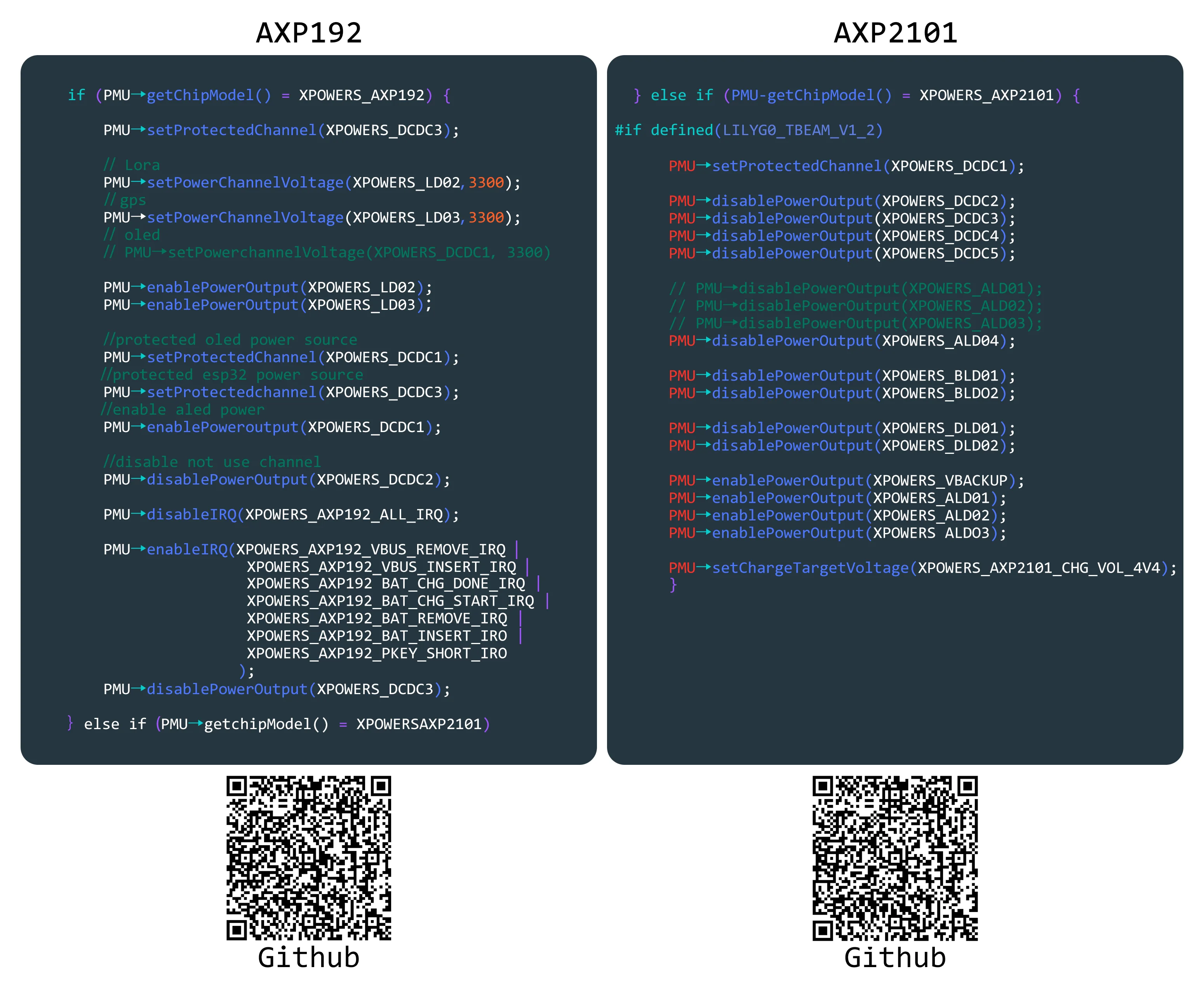

Since AXP192 is out of production, it has been replaced by AXP2101 now. The old and new versions will be delivered randomly.
More information:
https://github.com/Xinyuan-LilyGO/LilyGO-T-Beam

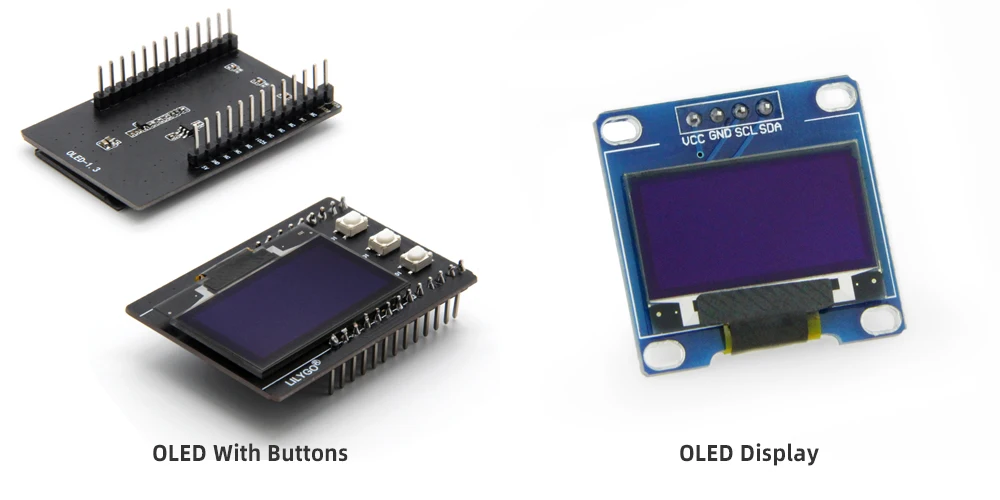

You can use it with OLED.
OLED With Buttons:
https://www.aliexpress.com/item/1005003510957337.html
OLED Display:
https://www.aliexpress.com/item/32922106384.html
