LS236 Coating Thickness Gauge Paint Thickness Gauge Thickness Gauge Low Temperature Resistant for Automotive Car Body
$470.12
Reference price: $971.86
Save 52%
Qty:
- Fast delivery
- 30-day returns
Ships to Canada · Delivery Approximately 7 days (supplier estimate)
Sold by TBII

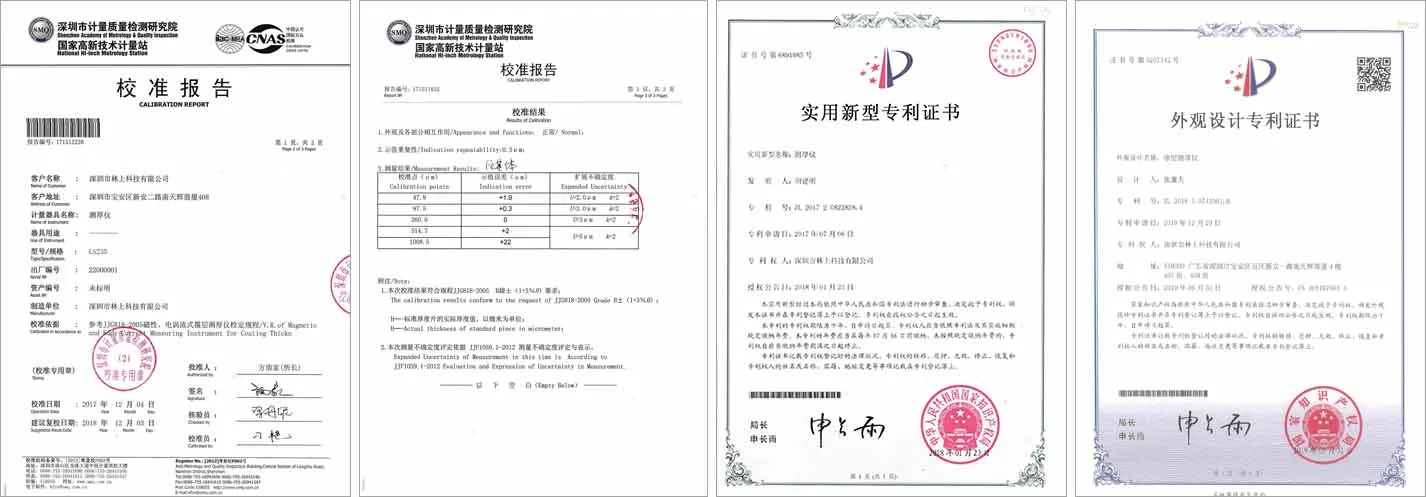

Coating Thickness Gauge Calibration Certificate LS236 Car Parts Dry Film Paint Thickness Gauge
Overview
LS236 Car Paint Meter
LS236 paint film instrument is professionally used for automotive paint thickness inspection. It features the classic function of automatically identifying iron, aluminum body and plastic substrate. In addition, LS236 adopts new intelligent identification algorithm, which can detect accident cars refined with metallic putty, and can also automatically identify galvanized-iron high-grade anti-corrosion body. Equipped with high-definition LCD screen and ultra-low temperature LCD screen, it can be used normally in strong light and -40 °C temperature environment. The dual-screen design ensures that users can read quickly when measuring the car at any angle. paint mil gaugepaint mil thickness testingpaint mill gauge
coating thickness gauge costcoating thickness gauge calibration certificate
Features
1. Various functions, practical and convenient
1. Various functions, practical and convenient
Automotive Paint meter has multiple functions and powerful performance which can quickly discover iron, aluminum, iron galvanized and non-metallic materials on.
2. Detect the metallic putty quickly
If a car shell has been repaired with metallic putty, LS235 car paint meter can dig out it accompanied two buzzers in the
automatic measurement pattern (FE/NFE pattern) and red light is on.
automatic measurement pattern (FE/NFE pattern) and red light is on.
3. Motor vehicle body's material reminder with three backlights.
Red, green and white backlight indicates different material recognized by the car paint meter. Bright red represents metallic powder , iron galvanized is recognized as bright green, while others are bright white.
Paramenters
Probe tip | Ruby |
Measuring principle | Fe: Hall Effect / NFe: Eddy current |
Probe type | Built-in integrated probe |
Measuring rang | 0.0-2000μm |
Resolution | 0.1μm:(0μm-99.9μm) |
1μm:(100μm-999μm) | |
0.01mm:(1.00mm-2.00mm) | |
Accuracy | ≤±(3% reading+2μm) |
Unit | μm / mil |
Measuring interval | 0.5s |
Minimum measuring area | Ø = 25mm |
Minimum curvature | Convex:5mm / Concave:25mm |
Minimum substrate thickness | Fe:0.2mm / NFe:0.05mm |
Display | Front: 128×48 dot matrix LCD, top: 128×64 dot matrix OLED |
Language | Chinese, English, Русский, Türkçe |
Power supply | 2 pcs of 1.5V AAA alkaline battery |
Range of operation temperature | -40℃-50℃ |
Storage temperature range | -50℃-60℃ |
Host size | 101*60*24 mm |
weight | 80g |
Qualification and Standards
* GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
* GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
* DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
* JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
* GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy Current
* DIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
* JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
