M503 Magnetic Scale DRO Display Integrated Embedded Magnet Measurement System Magnetic Tape with Stain Belt Profile Woodworking

M503 Magnetic Scale Display Integrated Embedded Magnet Measurement System Magnetic Tape for Cutting Machine Woodworking

Package content

Option "Display only"

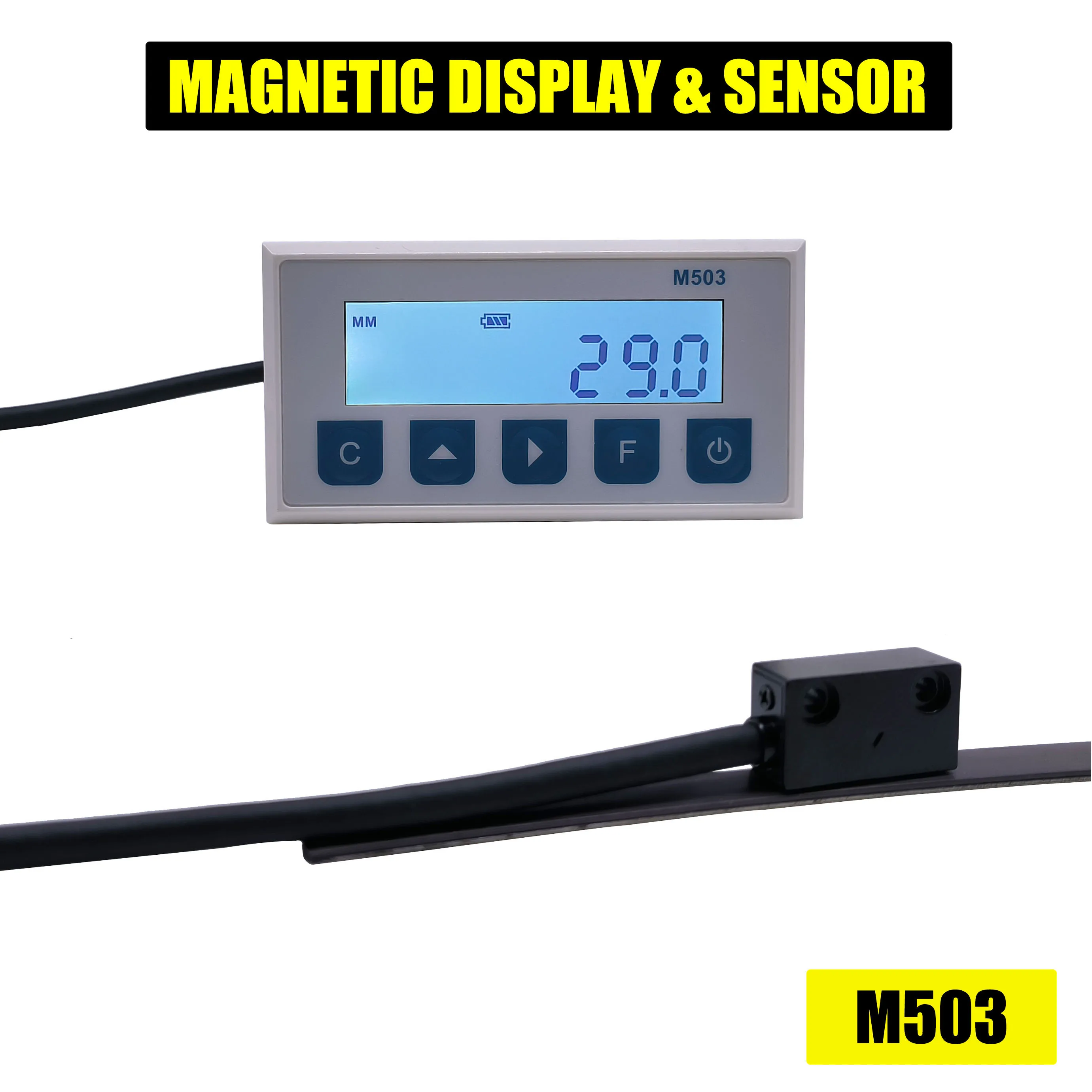

(M503 magnetic display with sensor )
If pay option "Display only", it will send a display and a magnetic sensor together, no magentic tape.

Option"Display with magnetic tape"
If need a complete set, display +sensor+tape. it need to pay both ( Display only + Magnetic tape).


Note: The display do not include battary, because it unable ship the battary by shipping company.

Please contact us if any question. thank you

Parameter

System accuracy: + (0.03+0.01*L) mm
Repeatability: Max. + 0.01mm
Display range: -1999999-9999999
Consumption current: Max.500UA (backlight not opened)
Power supply: two batteries No. 5 (AA)
Operating temperature: 0 degrees Celsius -60 degrees Celsius
Storage temperature: -10 degrees Celsius -70 degrees Celsius

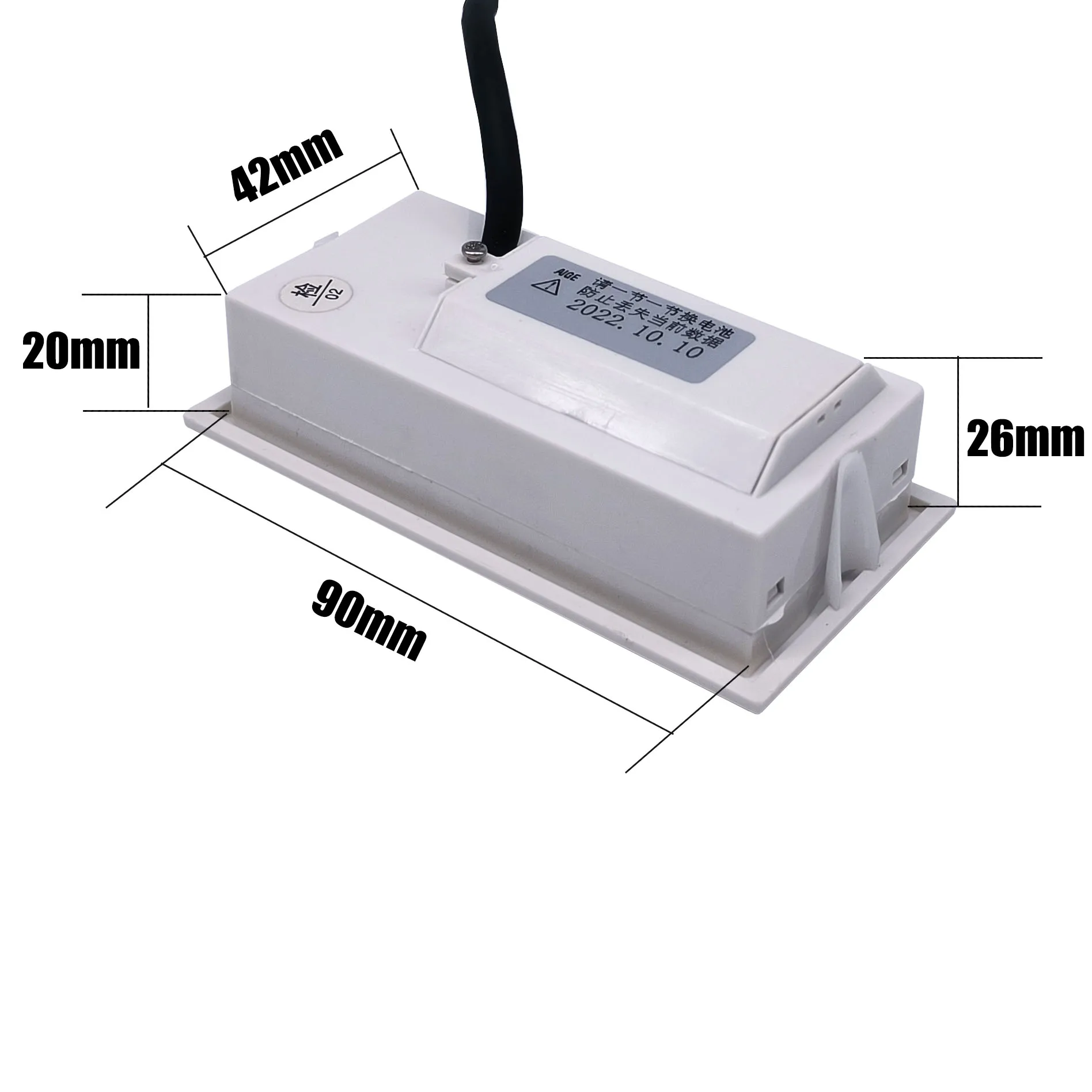

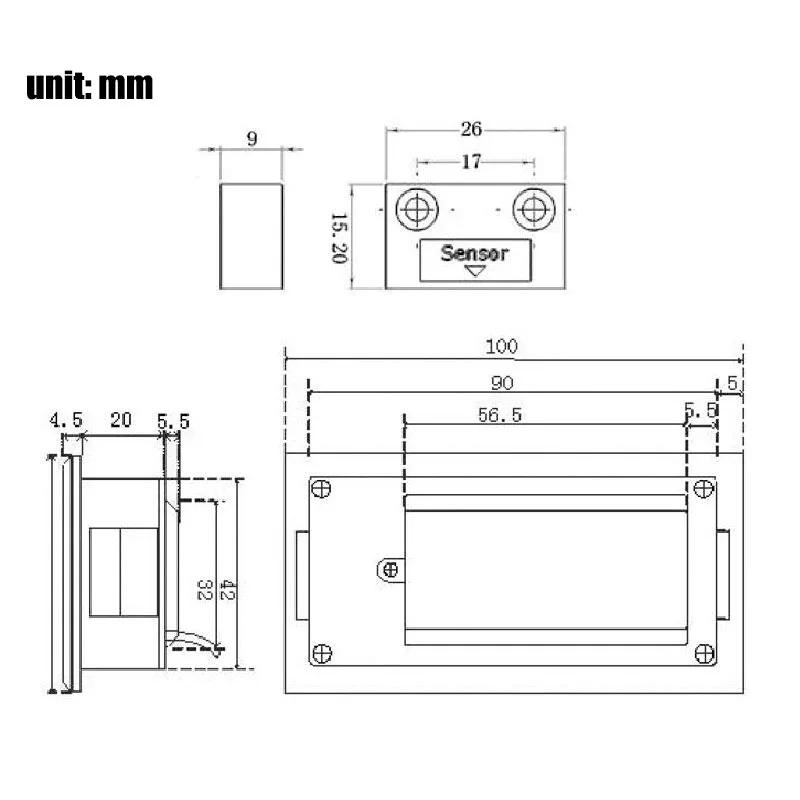

Outline size: 100*52*30mm
Opening size: 92*42mm
Read line length: 1m customizable (2M 3M 5M 6M).
Mobile speed: Max.5m/s
Read gap: Max.2.5mm, recommended 1.5mm
Matching magnetic stripe: FT50
Waterproof grade: digital display IP40, read head IP60
Weight: Max.150g

Basic datasheet

Resolution: 0.01mm /0.1mm / 1mm
Display mode:MM / INCH
Measuring: Length / Angle
