Maytech GPS Remote Controller MTSKR26WF V5.0 IP68 Waterproof Wirless Hand Controller with GPS Tilt Protection for Efoil Esurf

Notice:

Above video is for your reference. Some functions maybe updated according to cusotmers feedbacks. Some details of firmware is subject to change without prior notice.

Maytech GPS Remote Controller MTSKR26WF V5.0 IP68 Waterproof Wirless Hand Controller with GPS Tilt Protection for Efoil Esurf

Functions:
● Equipped with GPS (GPS Speed / Distance / Max Speed / Average Speed)
● Equipped with Tilted protection (IMU tilt sensor), protection angle can be adjusted to 30°/45°/60° tilt degree of your board in case of flipping over, separation of the rider from the board, or an accidental fall.
IMU degree can be calibrated according to the receiver position to be placed on your board.
And Tilt protection can be turned off for experienced users.
● with 3 adjustable speed modes;
● with throttle lock function for safety;
● with Eco and Pro modes for different signal strength;
● compatible to Maytech new 32bit MTSF160A-WP32 / MTSF300A-WP32 / MTSF300A-WP32-HV / MTSF300A-WP32-HVPRO ESCs to read current/votlage/rpm/temperature datas, etc;
● add a page to display main battery voltage percentage;
● This version contains functions of old firmware versions MTSKSR1905WF V3.0 (excluding the built-in relay switch)
● Waterproof function: Two layers of nanometer-coating are added to remote PCB and Screen, and they're also double protected by waterproof glue.

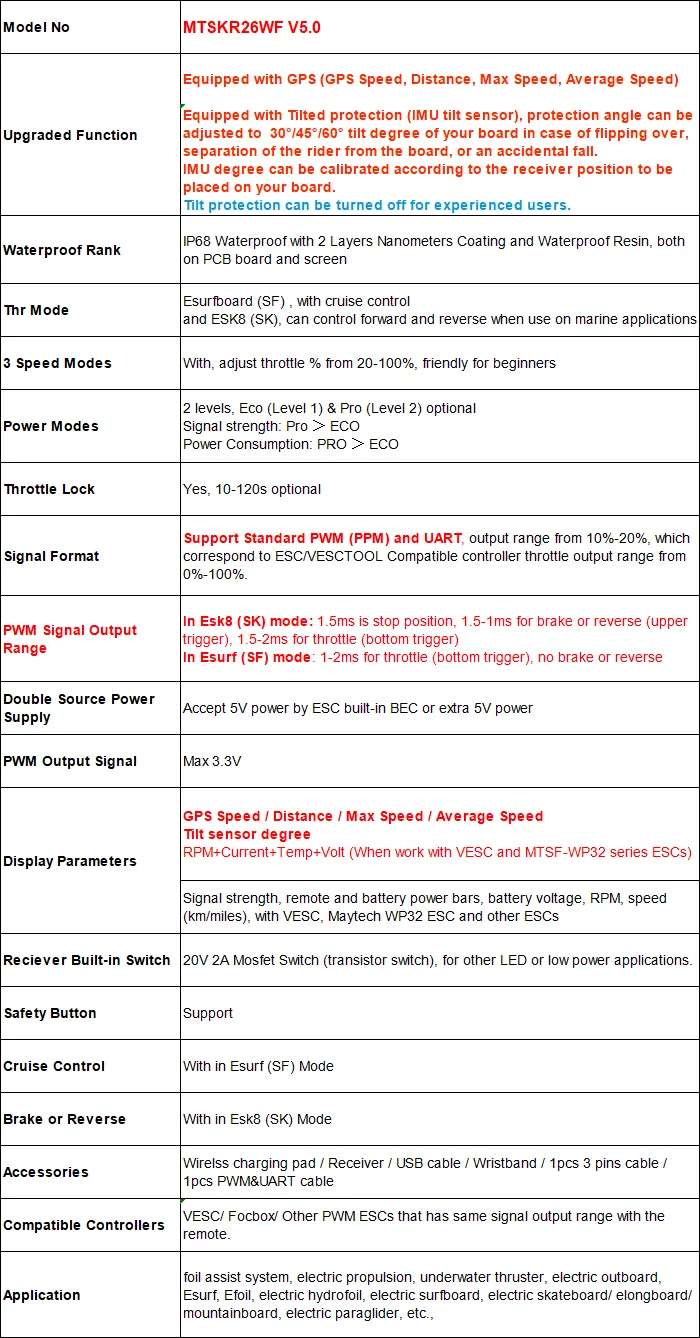

Specifications

.

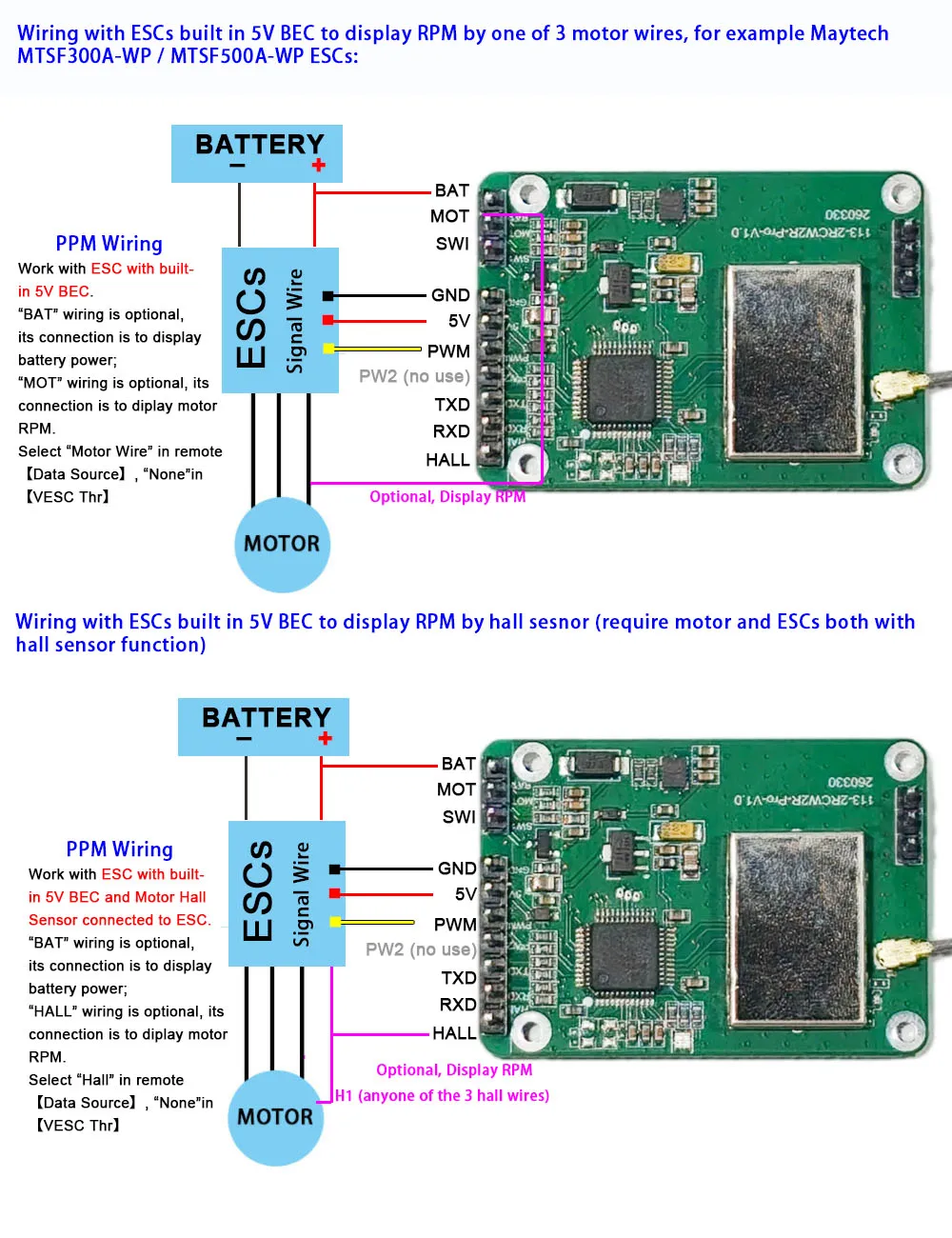

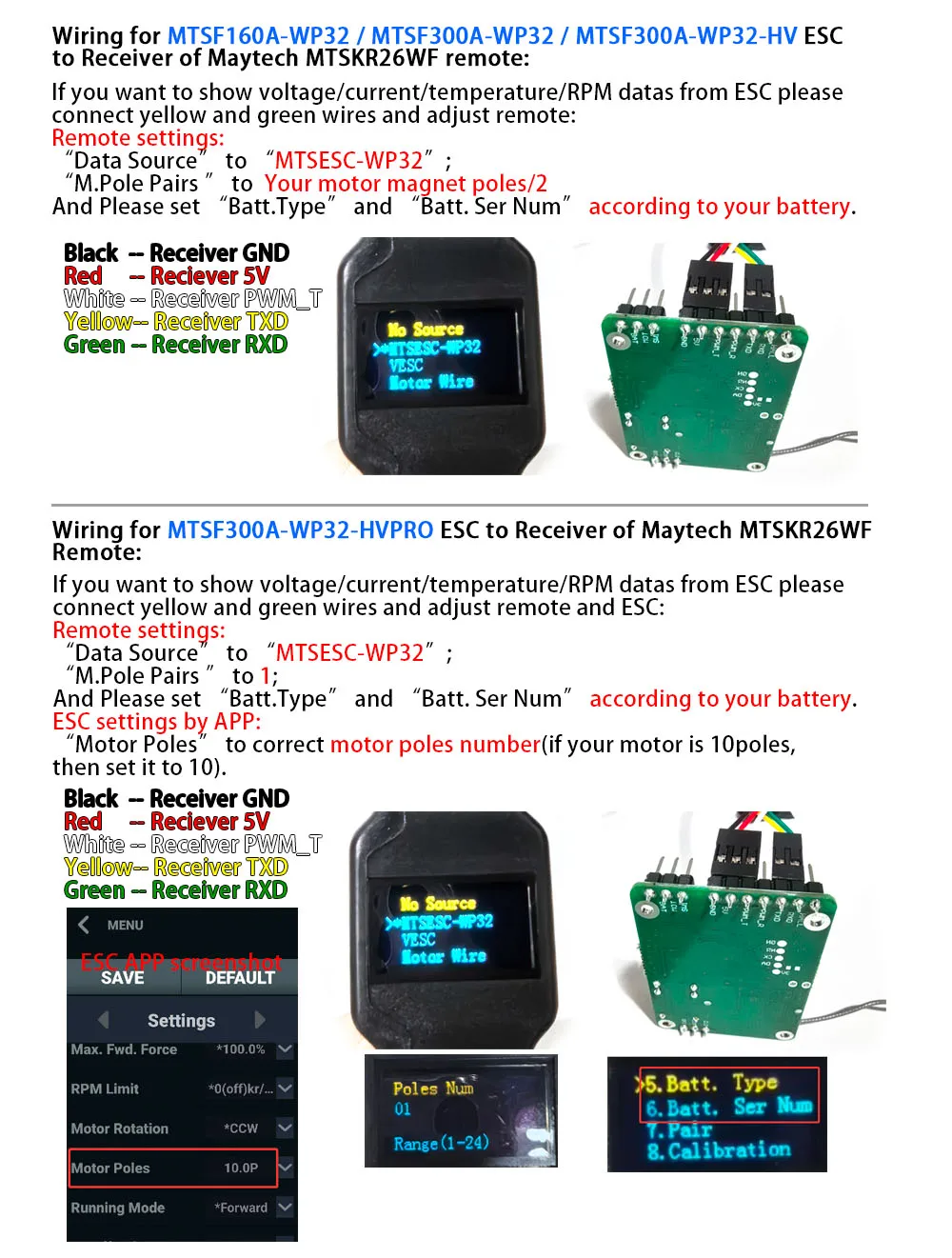

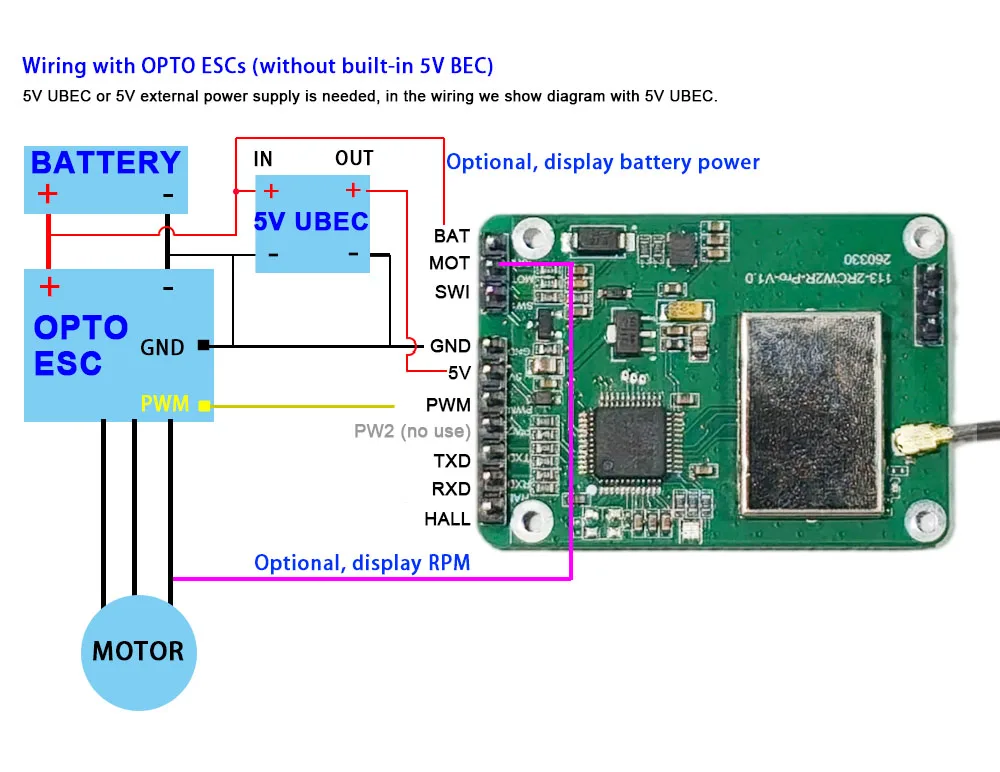

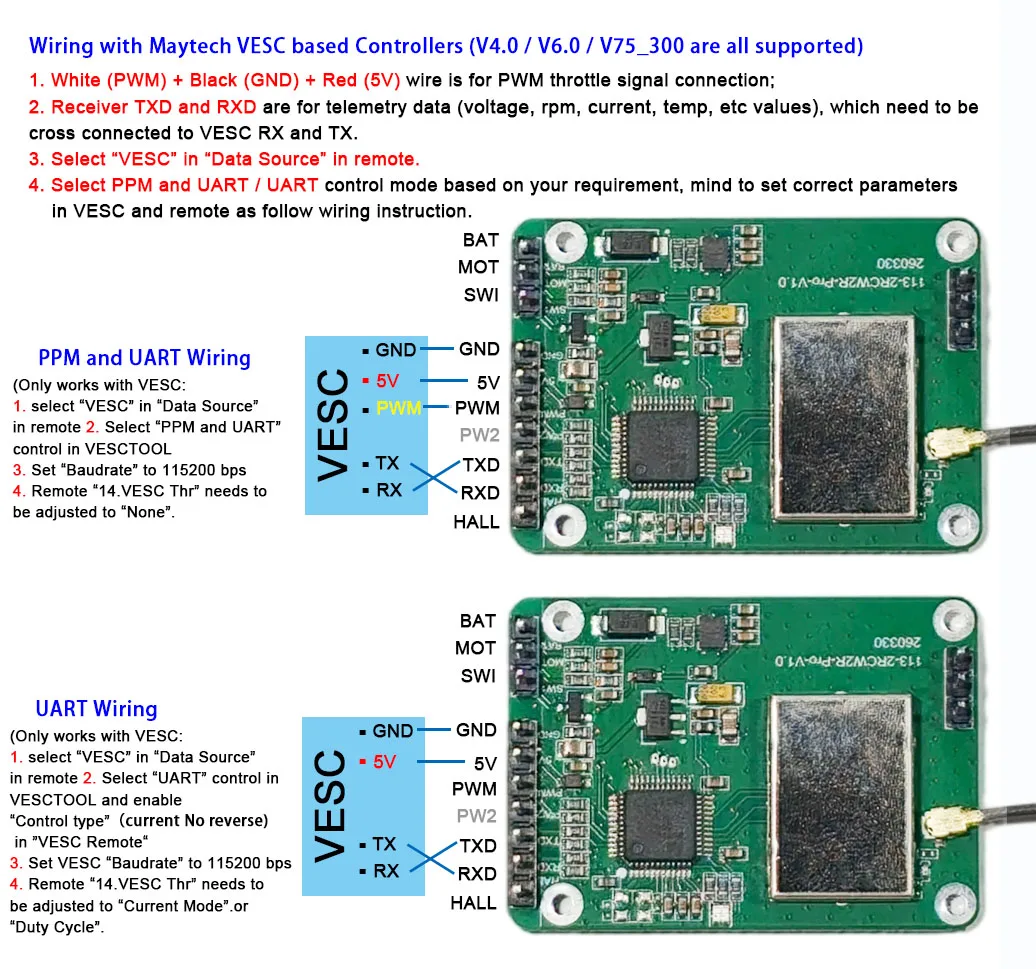

Wiring Digram for different Data Source Option:

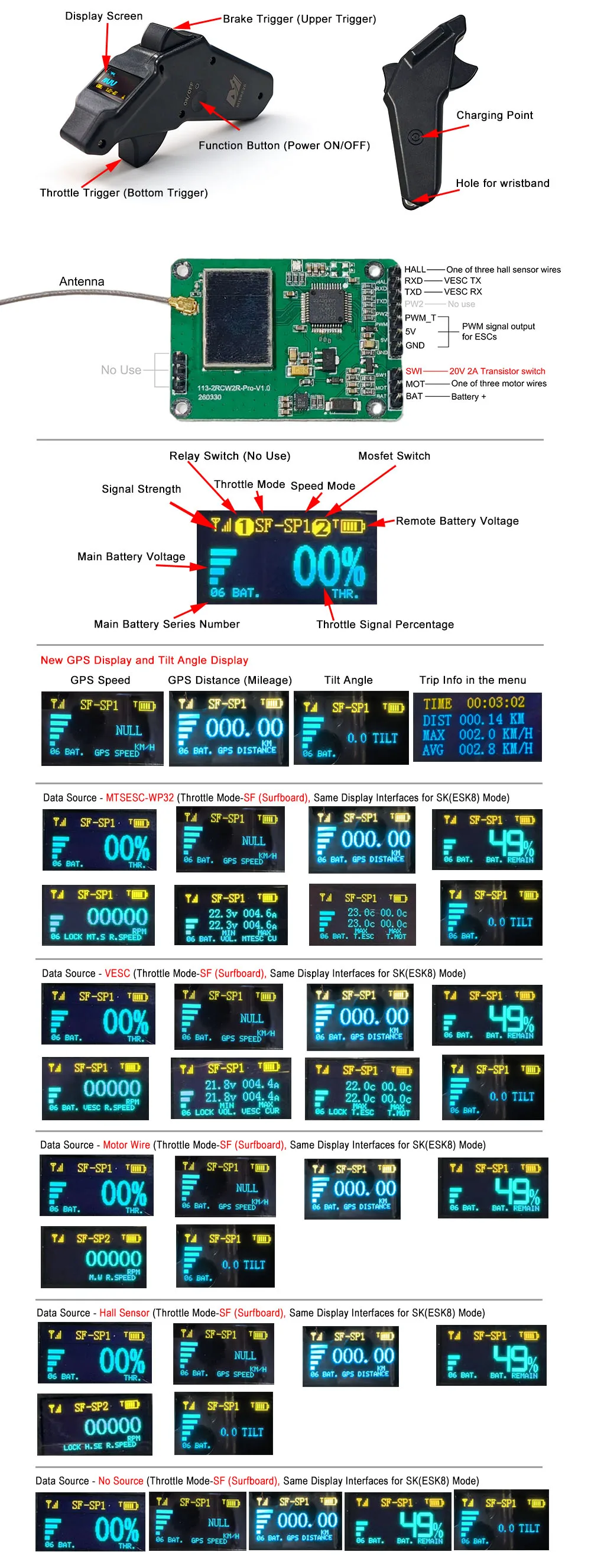

Screen Display for different Data Source and Throttle Mode:

Tips of Usage:

1. Wash the remote in freshwater after using in salt water.
2. The remote PCB and screen are sealed by waterproof nano-coating and double protected by glue. The remote case is not sealed, when use it in water, water will get in remmote case. It won't influence using. When you don't use it, please put it in dry place and it will dry slowly.
3. When charge the remote, please keep remote dry.
4. Receiver is not waterproof. Please put receiver in dry place.
5. Because each customer using situation is different, some customers may need replace the antenna with longer one . If you mount the reciever deep in your board, recommend to change to a long 2.4ghz antenna and lead the antena near to your top cover of your board for better signal.
6. When soldering, please pay attention that the two pins do not touch each other, otherwise it is easy to burn the receiver.
7. The extended antenna 1m and 3m PCBs are not waterproof.

Related Produts:

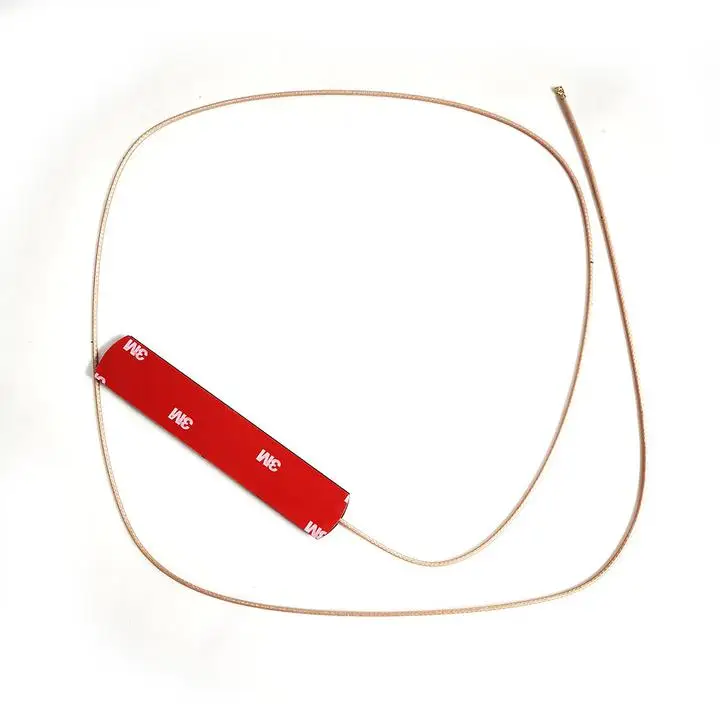

1. Longer Extend Antenna to Strenghten the Signal:
