Motorcycle Gear Indicator Display For SUZUKI DL650 V-Strom DL 650 Vstrom DL 1000 DL1000 Boulevard M90 C90 SV650 SV1000 GSF GSXR

Note：

1.Before purchasing the product, please check whether your motorcycle connector is compatible with my product connector.

▶Fitment:

For Suzuki GSX650F 2008 - 2010

For Suzuki Boulevard C50 2005 - 2010

For Suzuki Boulevard M50 2005 - 2018

For Suzuki Boulevard M90 2009 - 2010

For Suzuki Boulevard C90 2005 - 2012

For Suzuki Boulevard C109R/T 2008 - 2015

For Suzuki Boulevard M109R/R2 2006 - 2010

For Suzuki DL650 V-Strom 2004 - 2011

For Suzuki DL1000 V-Strom 2004 - 2013

For Suzuki GSF650 Bandit 2007 - 2010

For Suzuki GSF1250 Bandit 2007 - 2010

For Suzuki GSF1250 N/NA Bandit 2007 - 2009

For Suzuki GSF1250 S/SA Bandit 2007 - 2016

For Suzuki GSX1400 2004 - 2009

For Suzuki Intruder C800 2005 - 2010

For Suzuki Intruder M800 2005 - 2015

For Suzuki Intruder C1500 2005 - 2012

For Suzuki Intruder M1500 2009 - 2015

For Suzuki Intruder C1800R 2008 - 2015

For Suzuki Intruder M1800R 2006 - 2010

For Suzuki Intruder M1800R2 2008 - 2010

For Suzuki RMX-450Z All Years

For Suzuki RM-Z250 (EFi model) All Years

For Suzuki RM-Z450 (EFi model) All Years

For Suzuki SV650 2003 - 2014

For Suzuki SV1000 2003 - 2009

For Suzuki VL800 Intruder Volusia 2005 - 2010

For Suzuki VL1500 Intruder 2005 - 2012

For Suzuki VLR1800 2008 - 2015

For Suzuki VZ800 Marauder 2005 - 2015

For Suzuki VZ1500 2009 - 2015

For Suzuki VZR1800 2006 - 2010

(If you encounter any questions, please be sure to contact me first, please do not leave negative comments first, I very much hope to answer your questions, thank you)

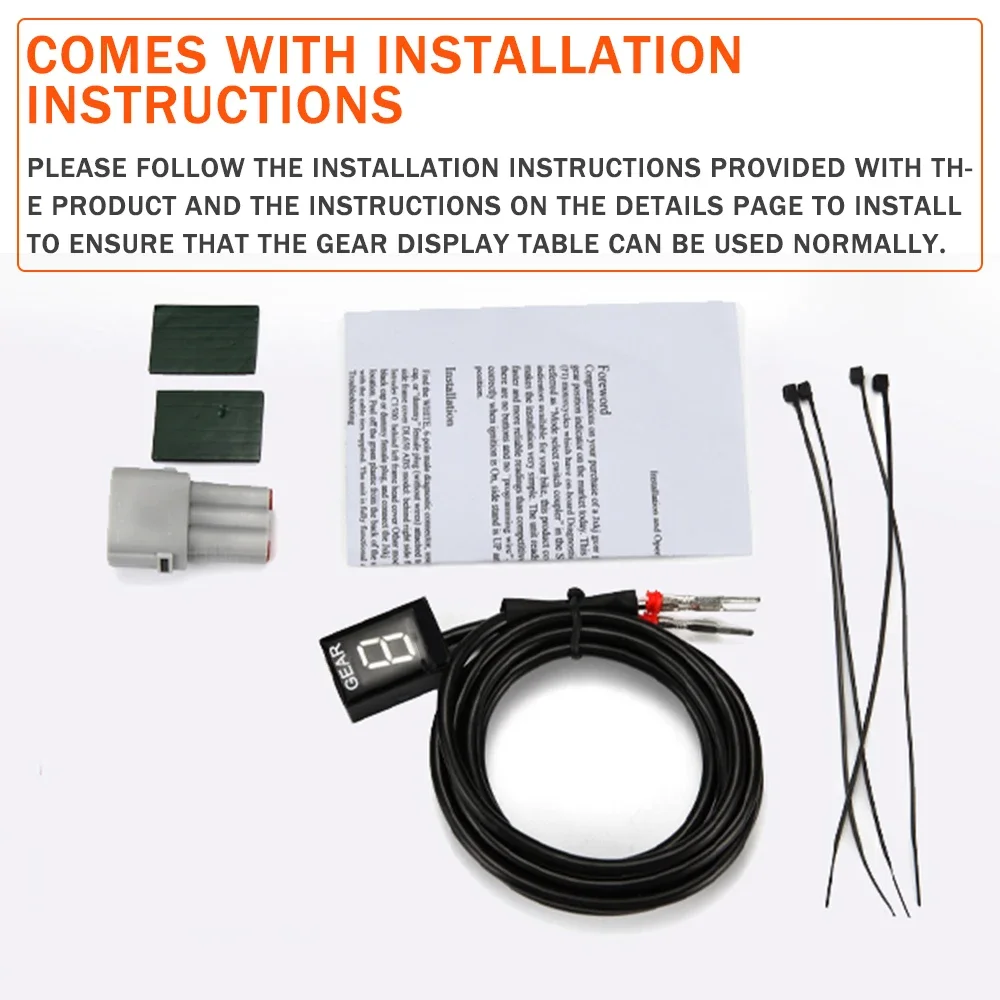

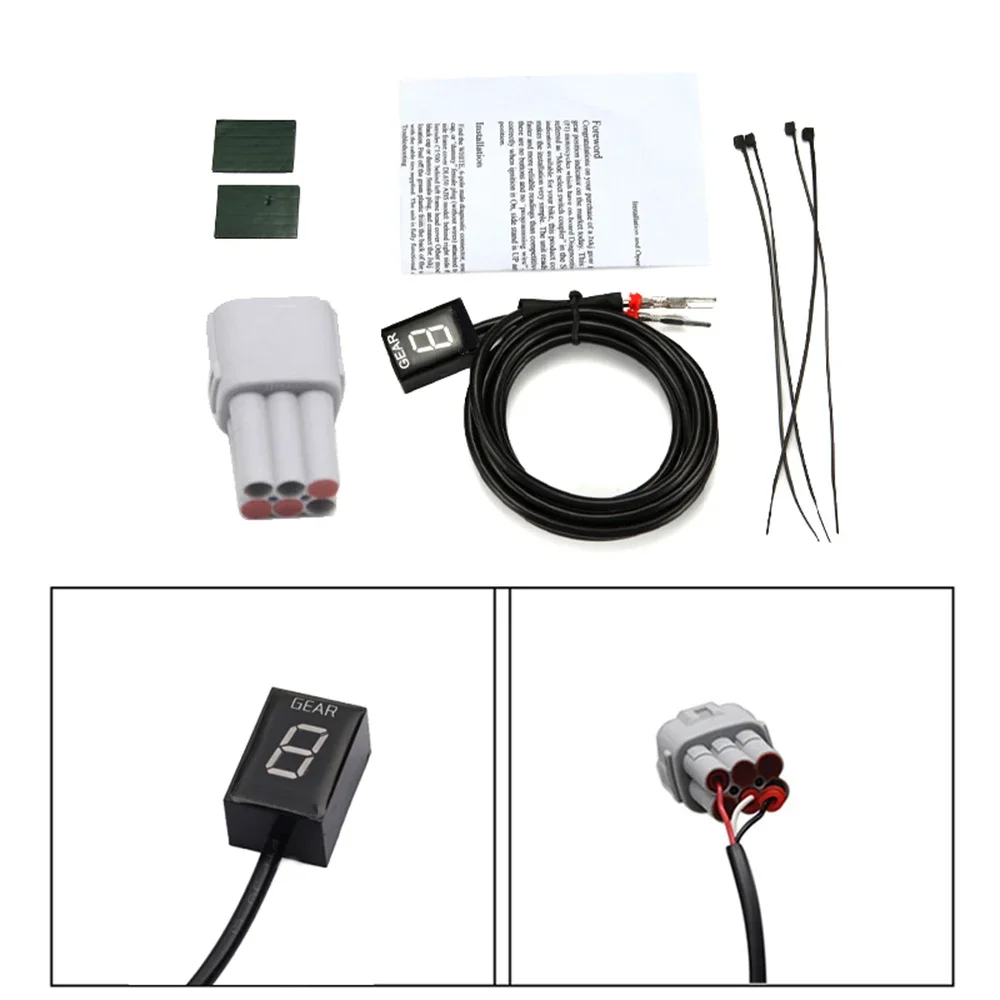

Package List:

1 x Motorcycle Speed Gear Display

Description:

Condition: 100% New

Item Name: Speed Gear Display Indicator

Size: 4cm * 4cm * 4cm / 1.57 inches * 1.57 inches * 1.57 inches

Preface:

Congratulations on your purchase of a jxkj gear position indicator. It is the most advanced gear position indicator on the market today. This product will fit all fuel injected (fi) suzuki motorcycles that have onboard diagnostic system connector. This connector is referred to as "coupler select switch mode" in the suzuki manuals. Unlike other gear indicators available for your bike, this product plugs into the diagnostic connector. Makes the installation very simple. The unit reads data directly from the ECM, offering faster and more reliable readings than competitive products. The unit is fully automatic, there are no buttons and no "programming wire", the display will indicate all gears correctly when the ignition is on, the side stand is up and the engine stop switch is in the run position.

Installation:

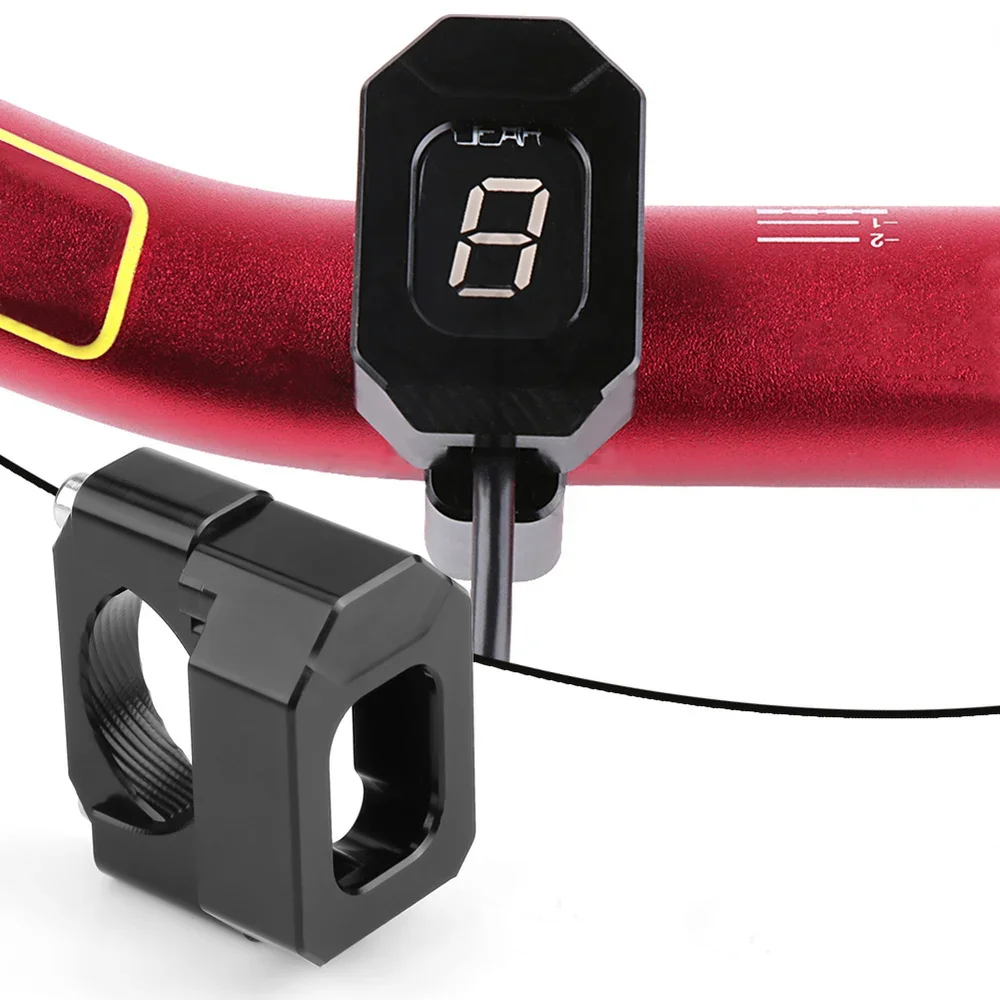

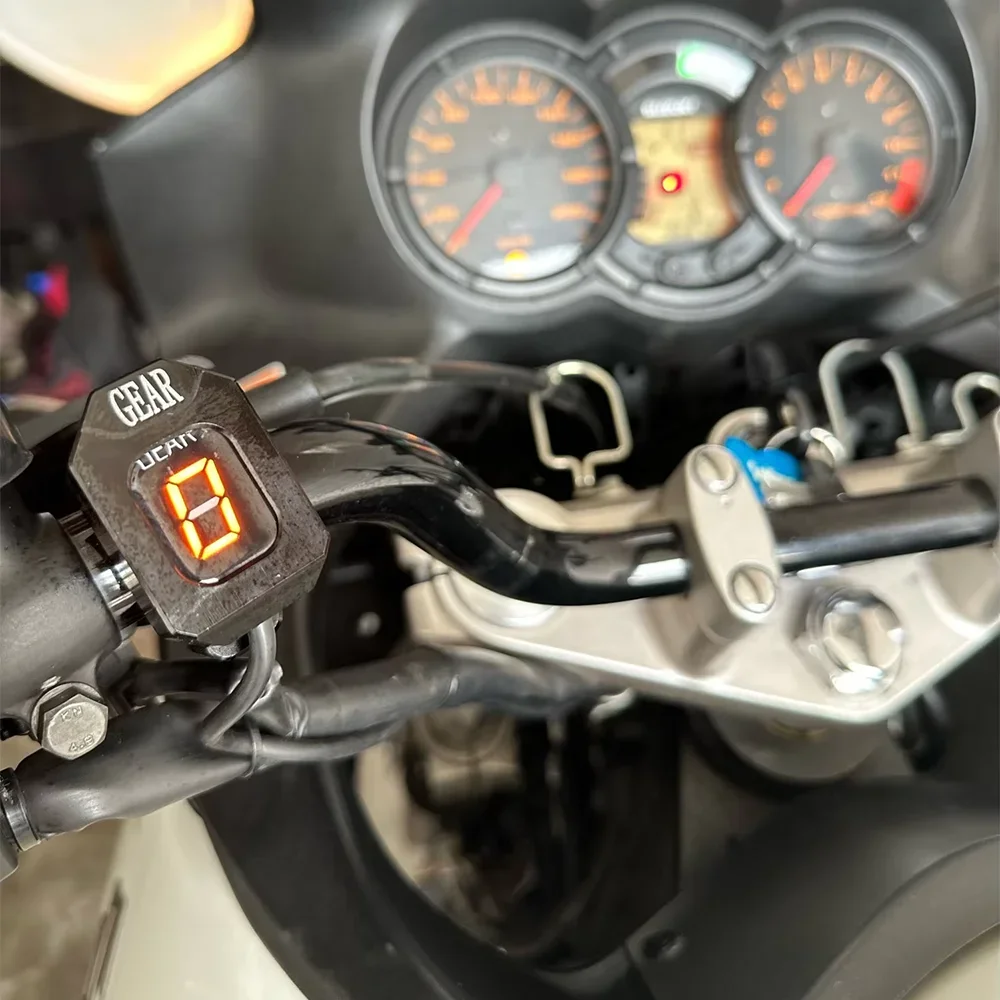

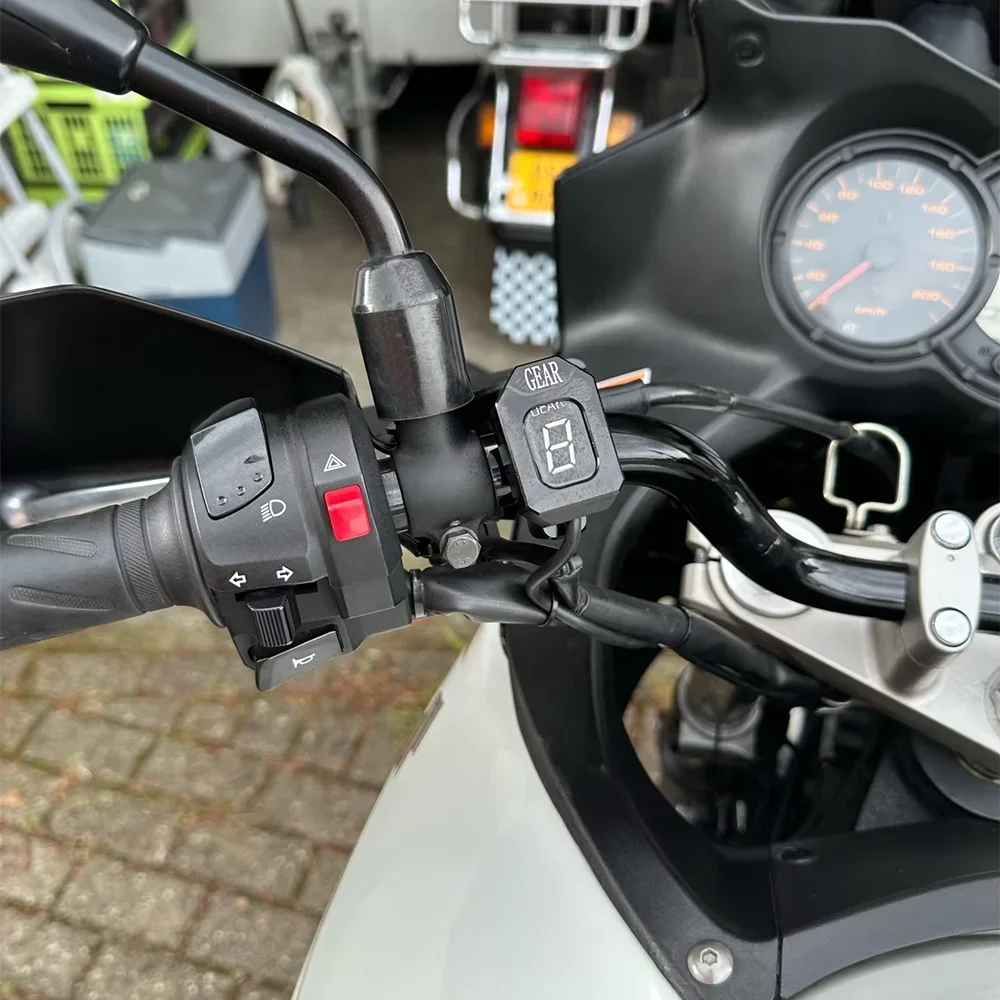

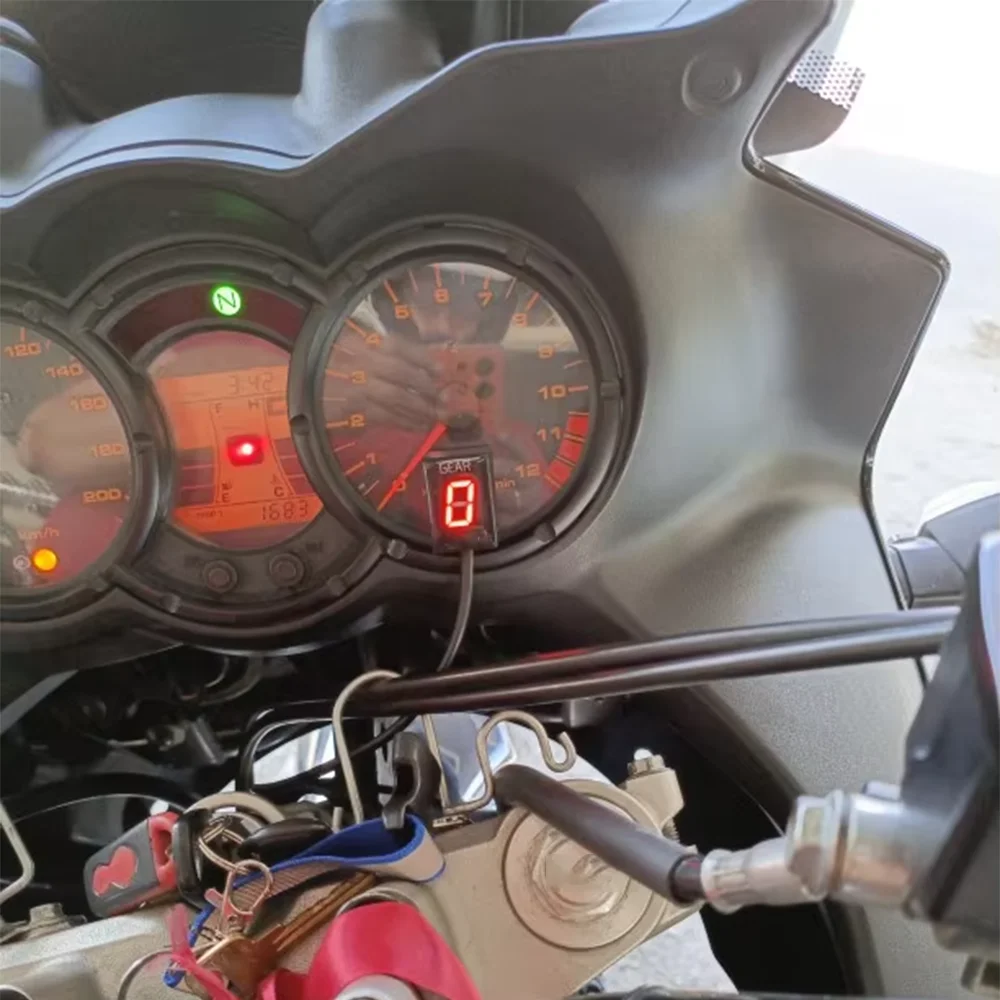

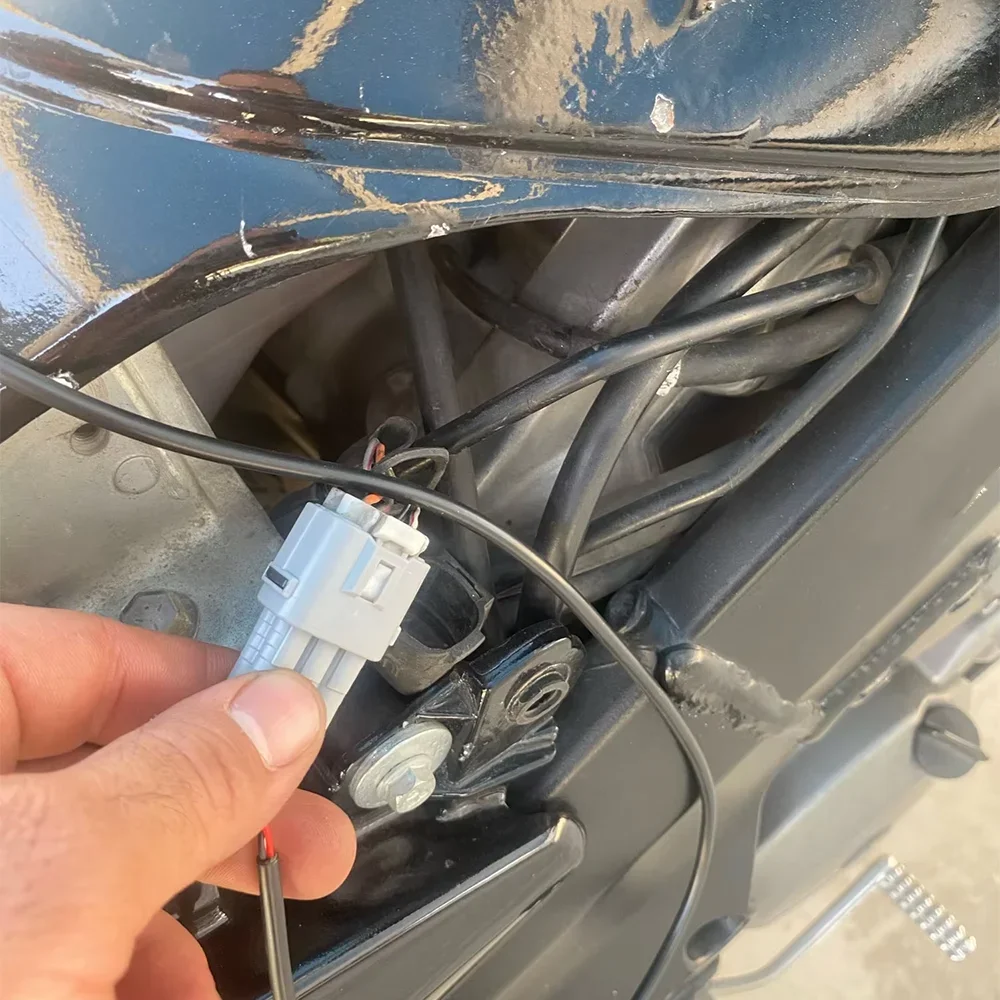

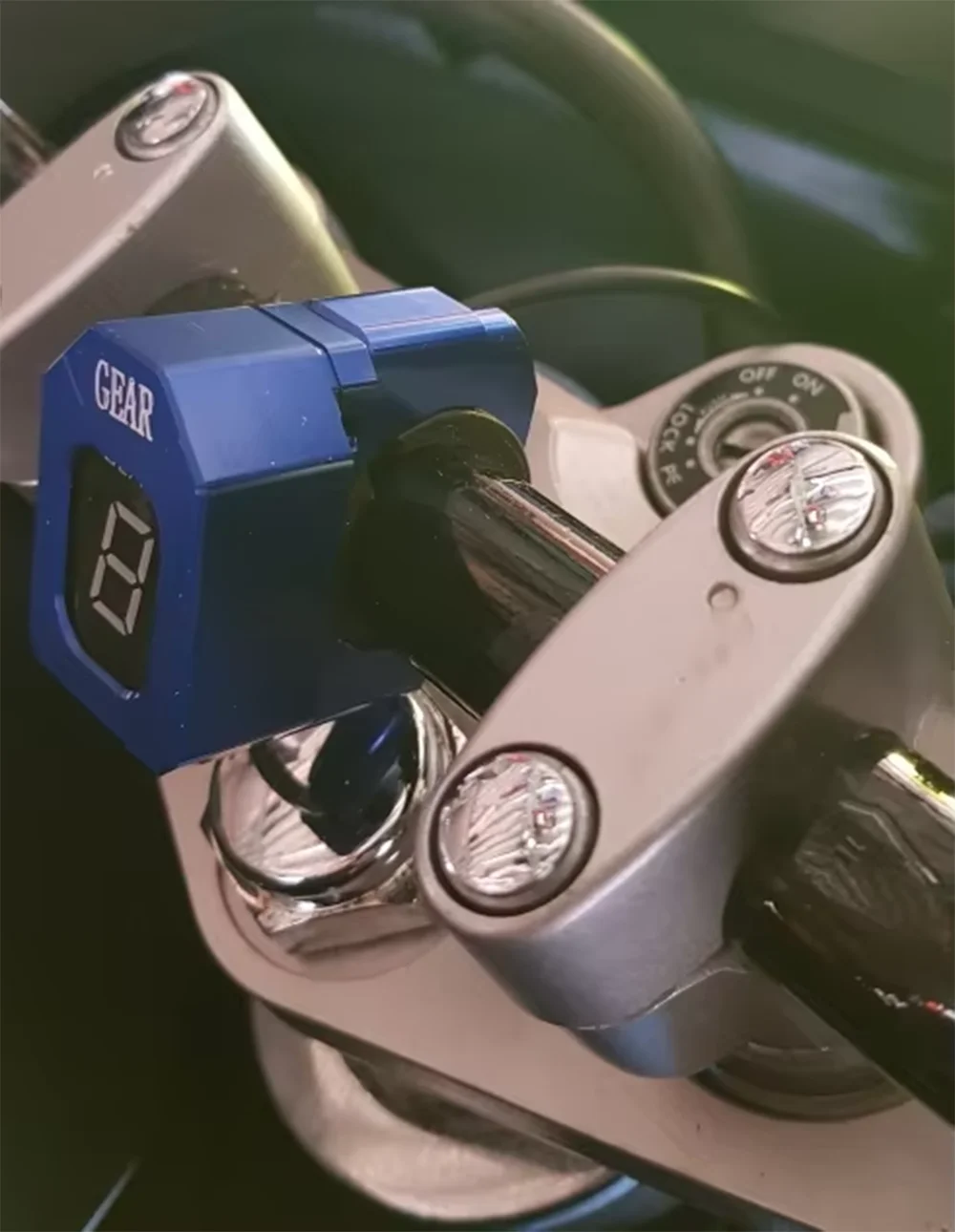

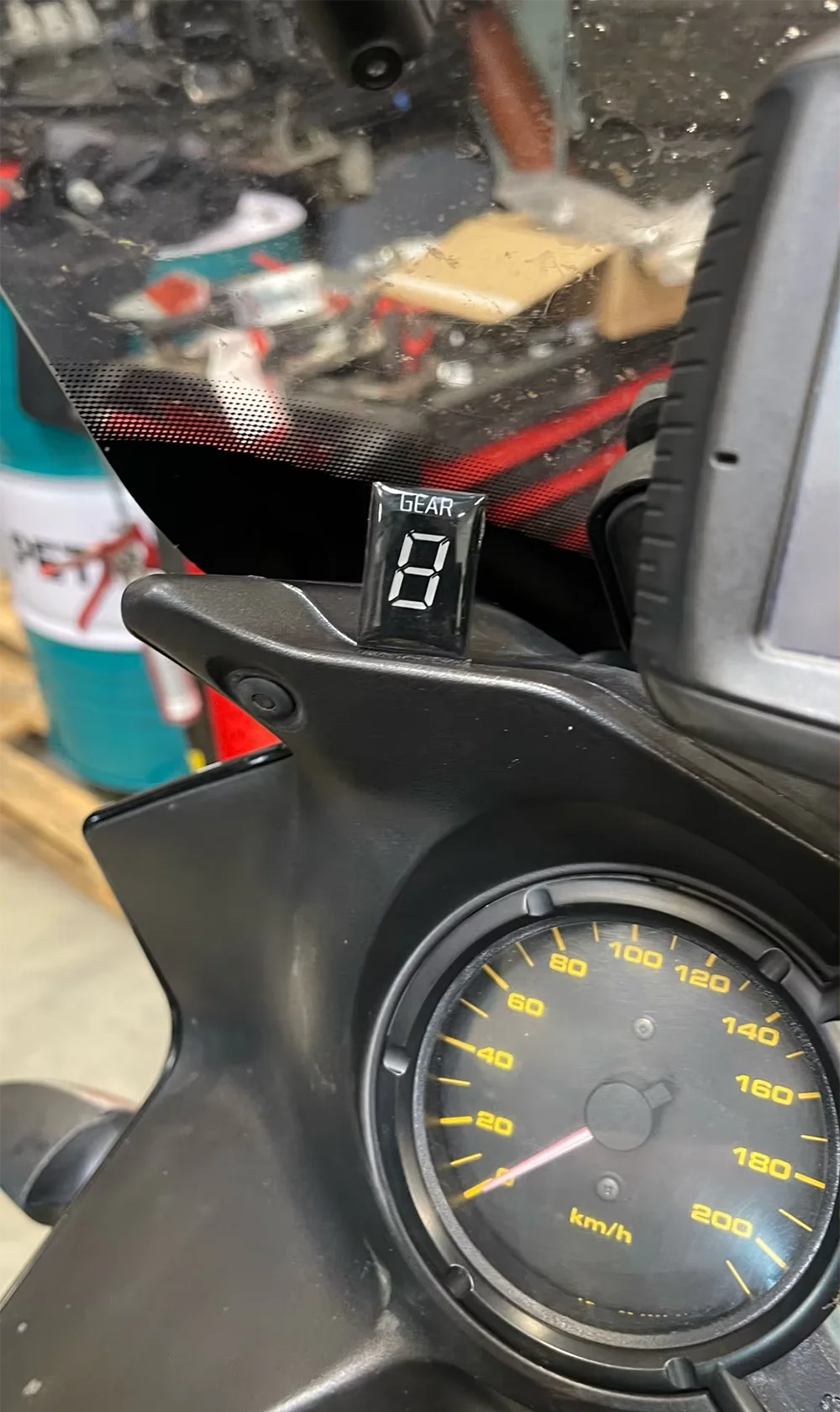

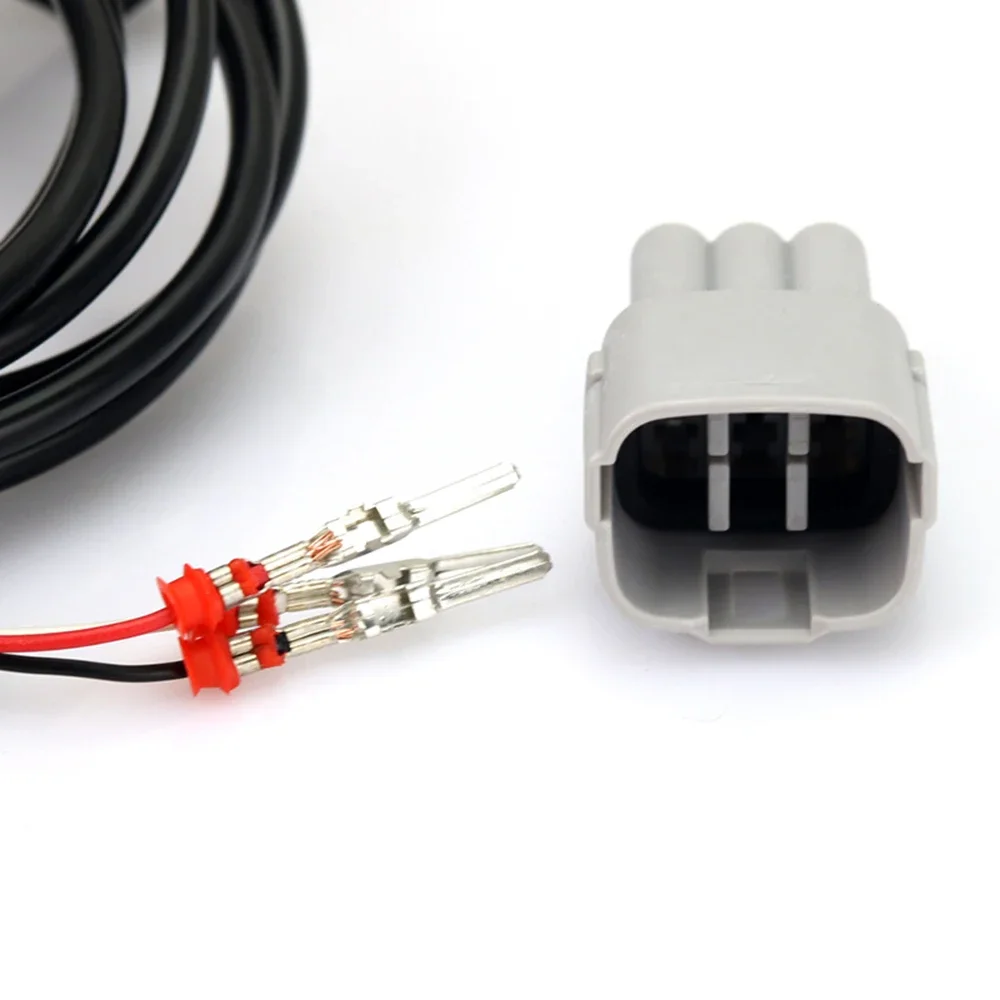

Find the white 6-pole male diagnostic connector, usually near the ecm box. You may have a black cap, or a "dummy" female plug attached to it. gsf650 bandit / gsf1250; under the right side frame cover abs model dl650; behind the right side fuel tank cover vl1500 / boulevard c90 / intruder c1500; behind the head cover of the left frame other models; under the seat (pilot or pillion) Remove the black cover or female plug from the dummy, and plug in the jxkj plug. route the cable to the mounting location. remove the green plastic from the back of the unit and mount the display. secure the cable with the supplied cable ties. The unit is fully functional after installation. No need for configuration. Problems solution.

Disconnect the jxkj connector and check that the pins are broken, bent, or pushed out of position. And make sure all connections are good and the connector is fully seated. Make sure the ignition is on, the side mount is up, and the engine stop switch is in working position when you test the gear position indicator. If some gears are not indicated correctly, the position of the Switch gear is probably defective, modified, or a tre box is installed. If the gears indicated are correct except under hard acceleration or braking, there is interference with the bike and wiring and the ecm receives incorrect values from the sensor gear position. This jxkj model indicates the position of the gear as known by the Ecm. do not.
