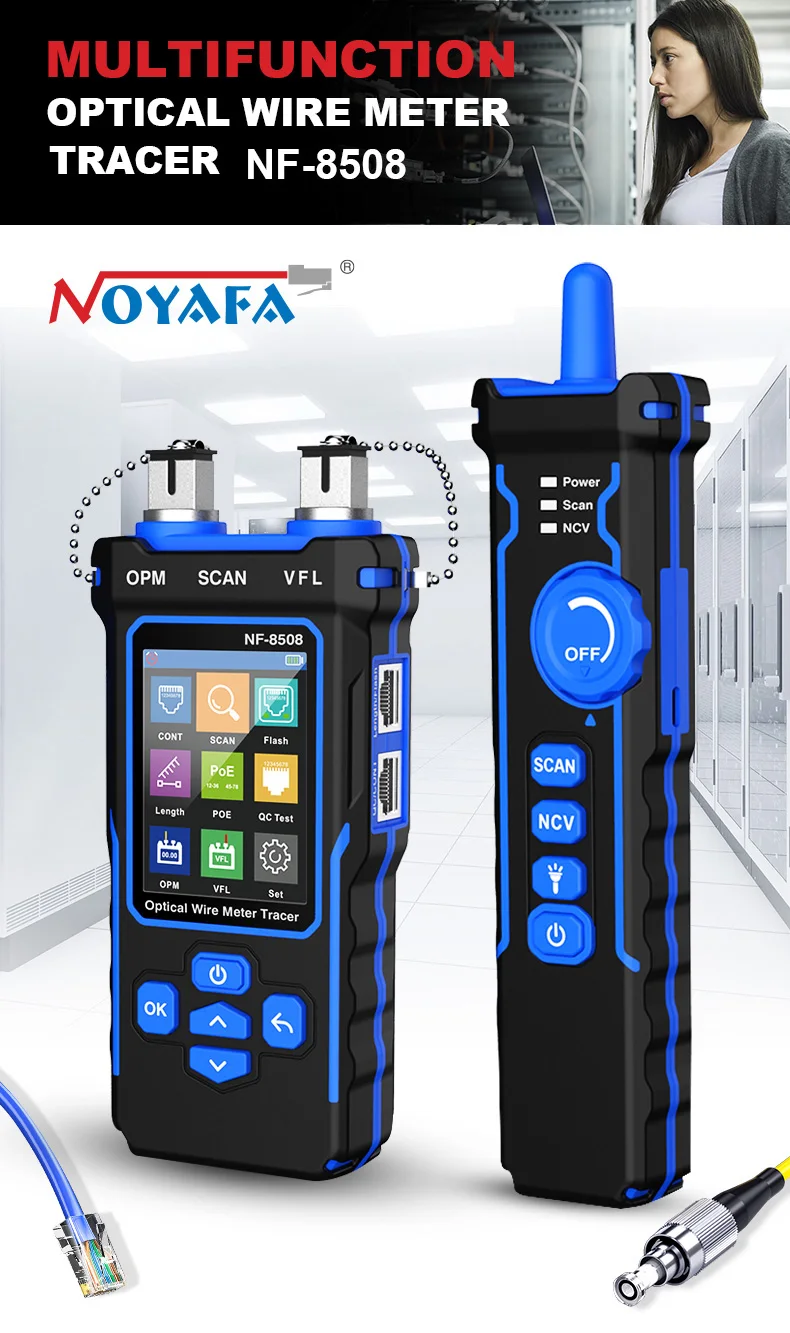

NOYAFA NF-8508 Network Cable Tester LAN Optical Power Meter Tester LCD Display Measure Length Wiremap Tester Cable Tracker

Product Features:

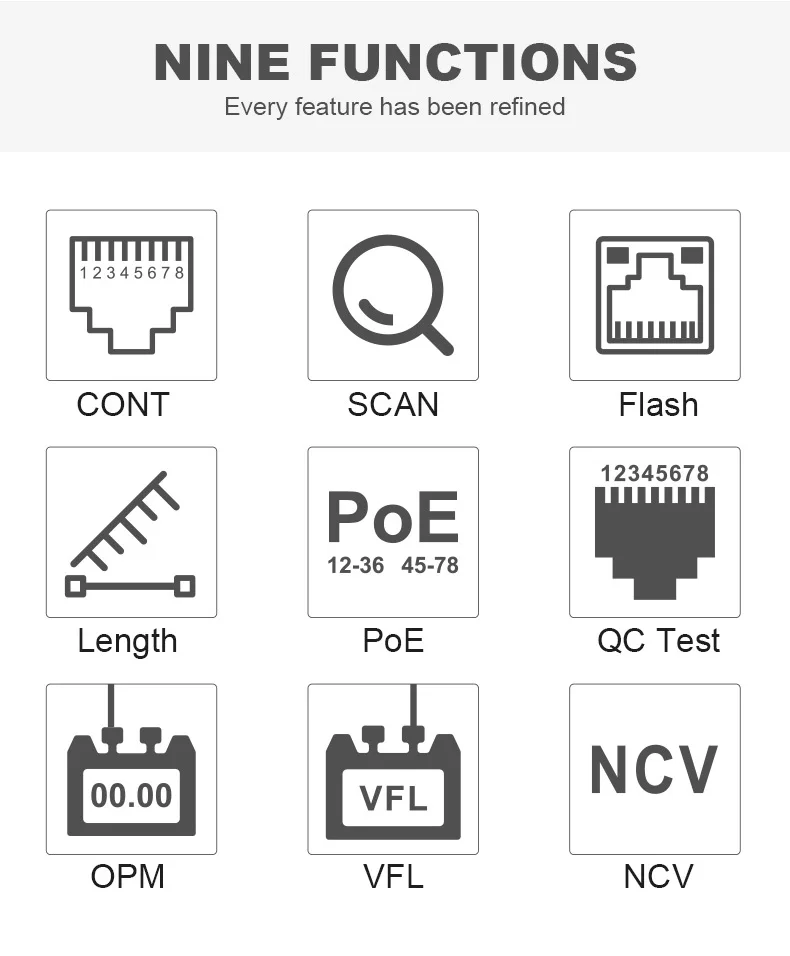

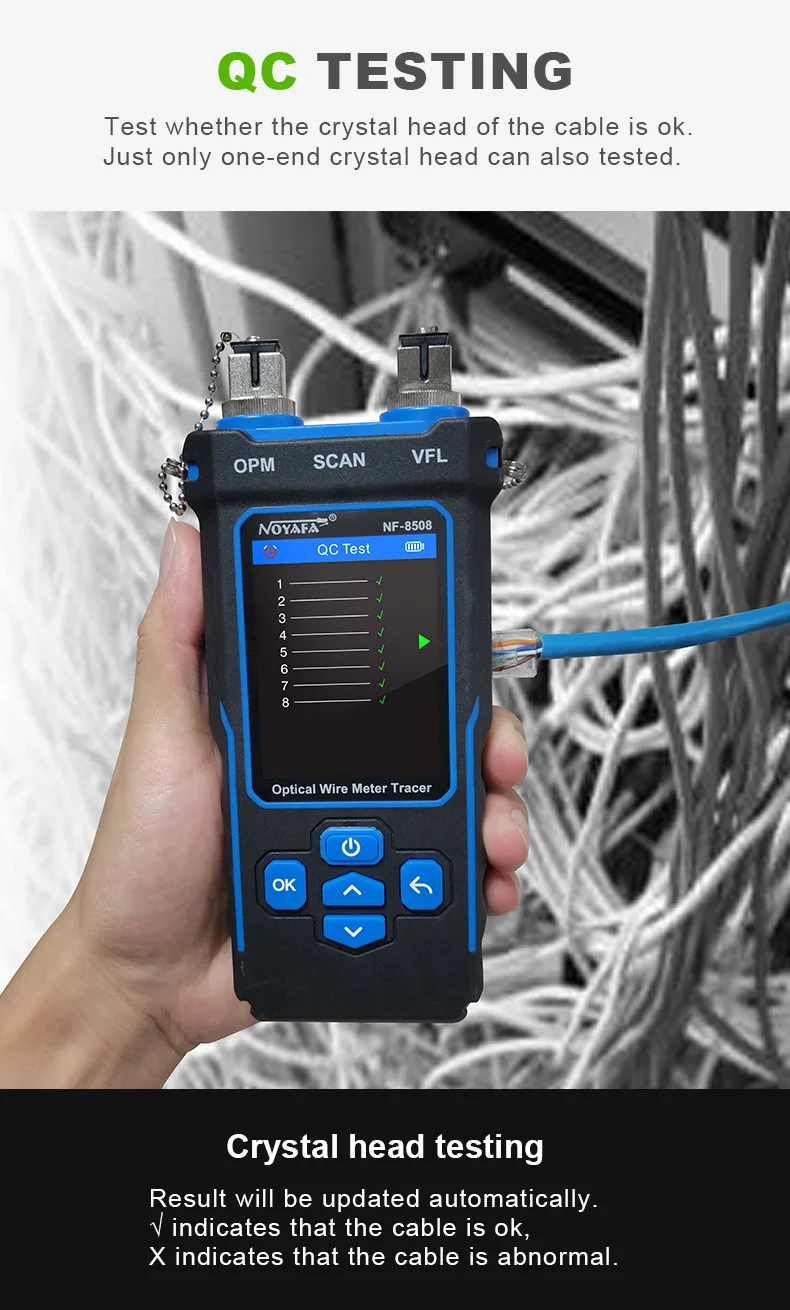

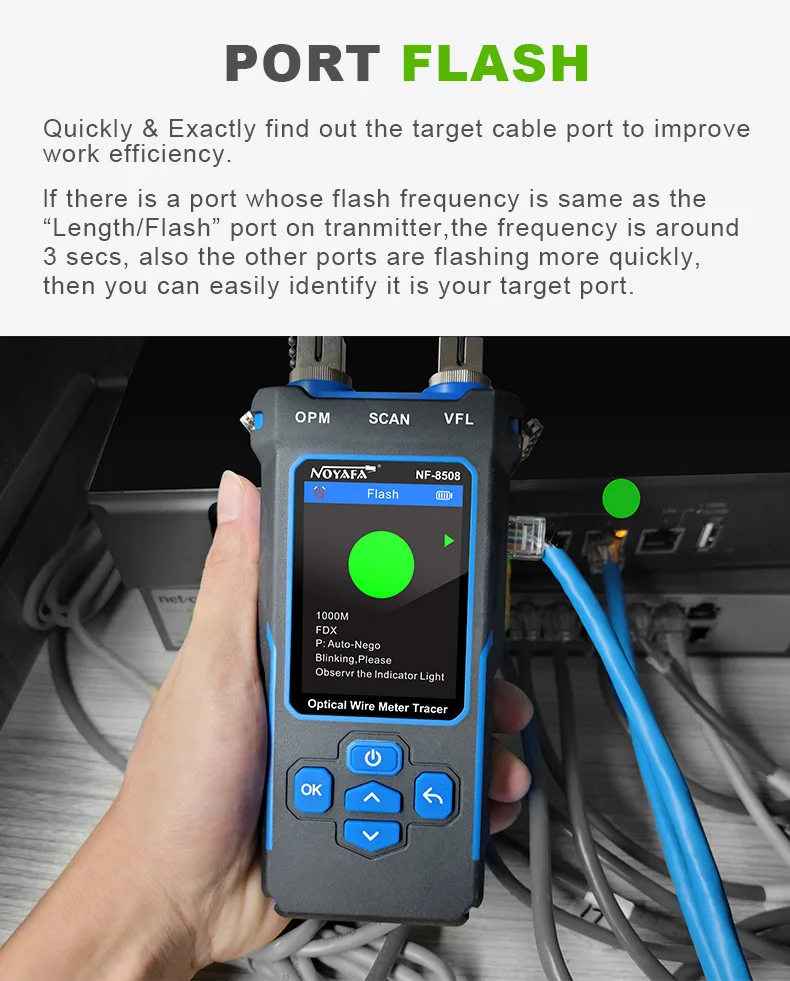

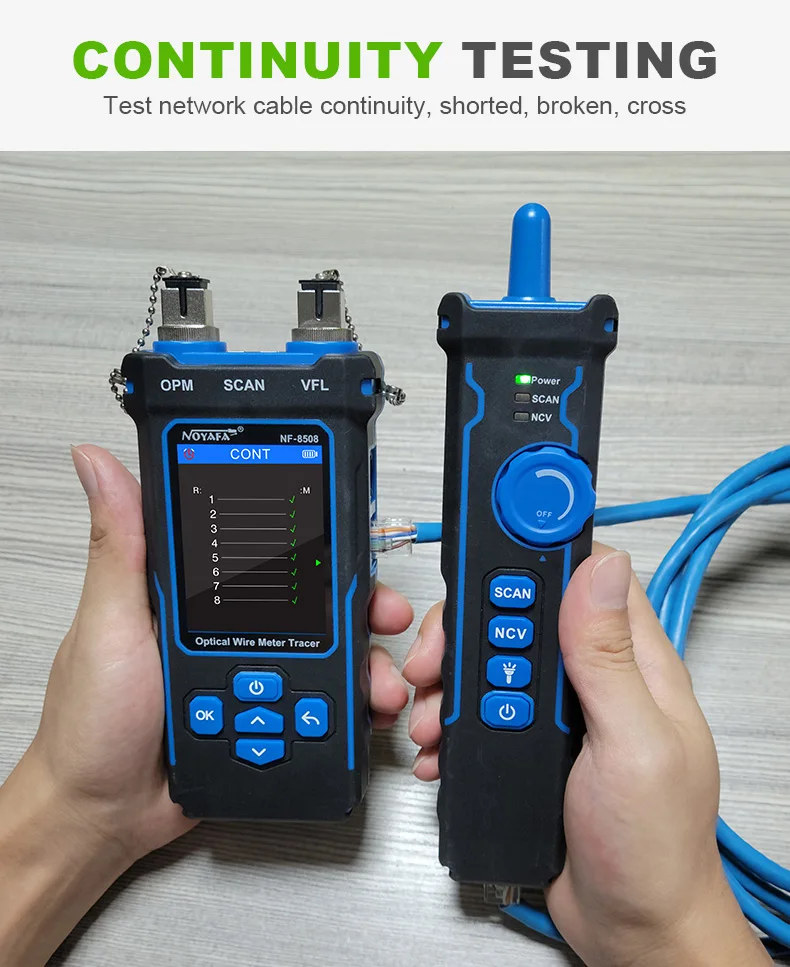

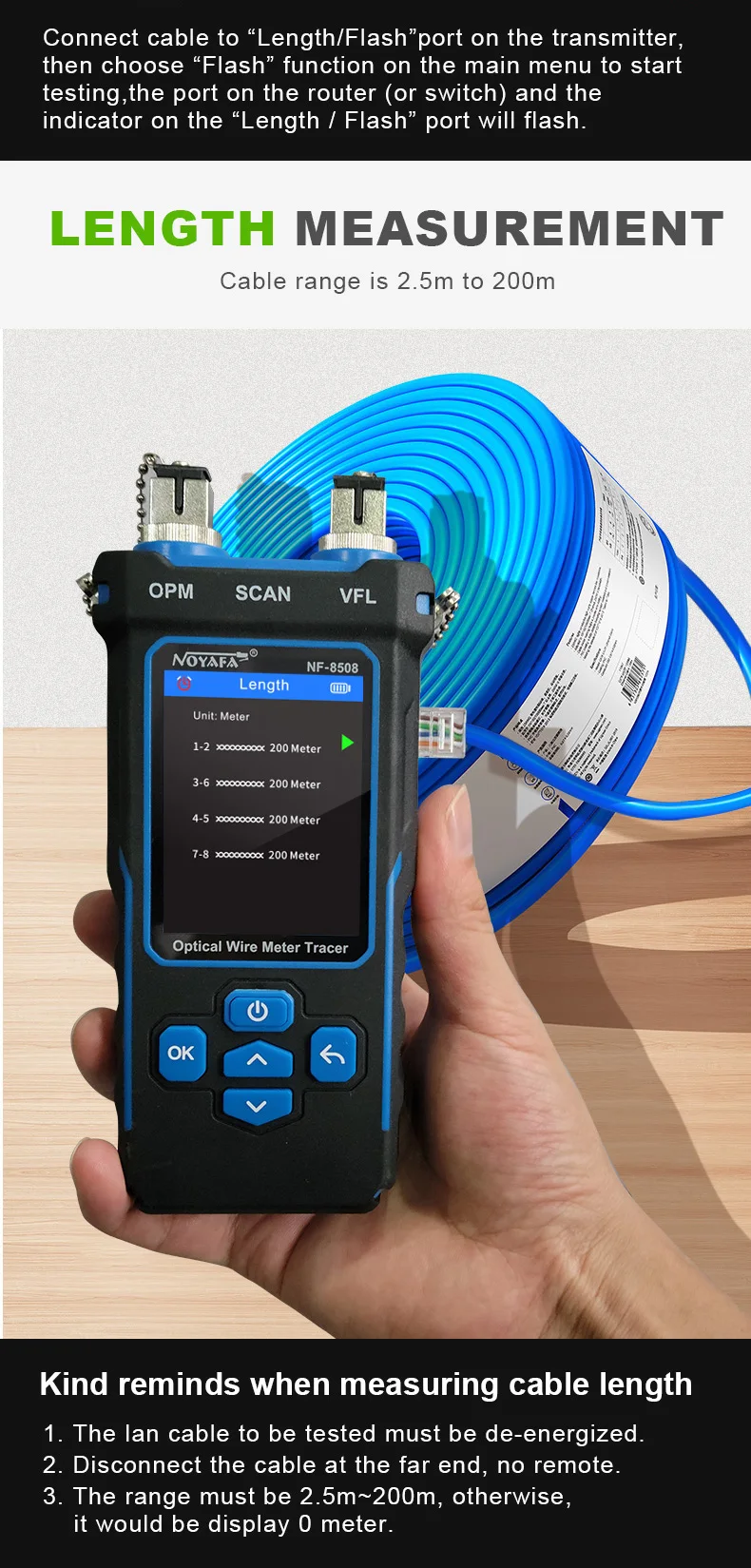

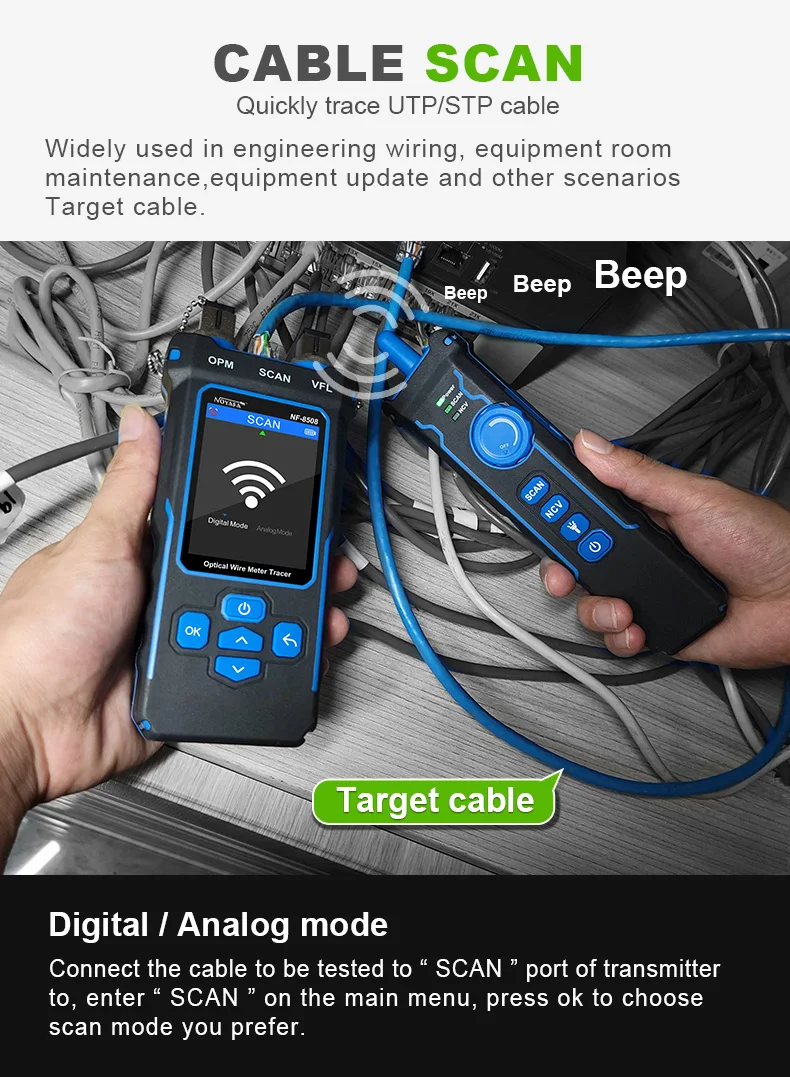

1. Transmitter Testing Function: Including cable continuity testing, cable scan, port flashing, cable length measurement, PoE test, QC testing for crystal head, OPM(optical power meter) and VFL(visual fault location) function.

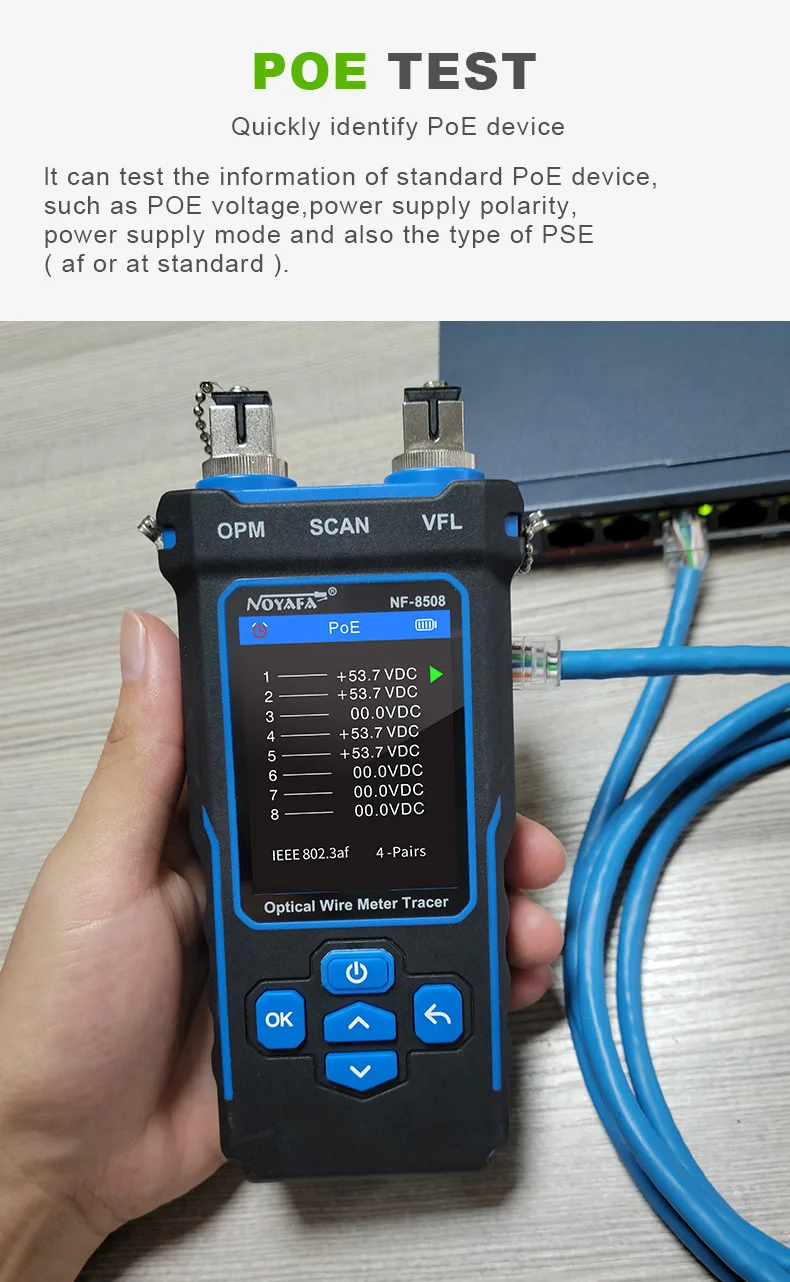

2. POE Test: Automatic identification of midspan/endspan/power by 8 cores, automatic identification of standard and nonstandard device.

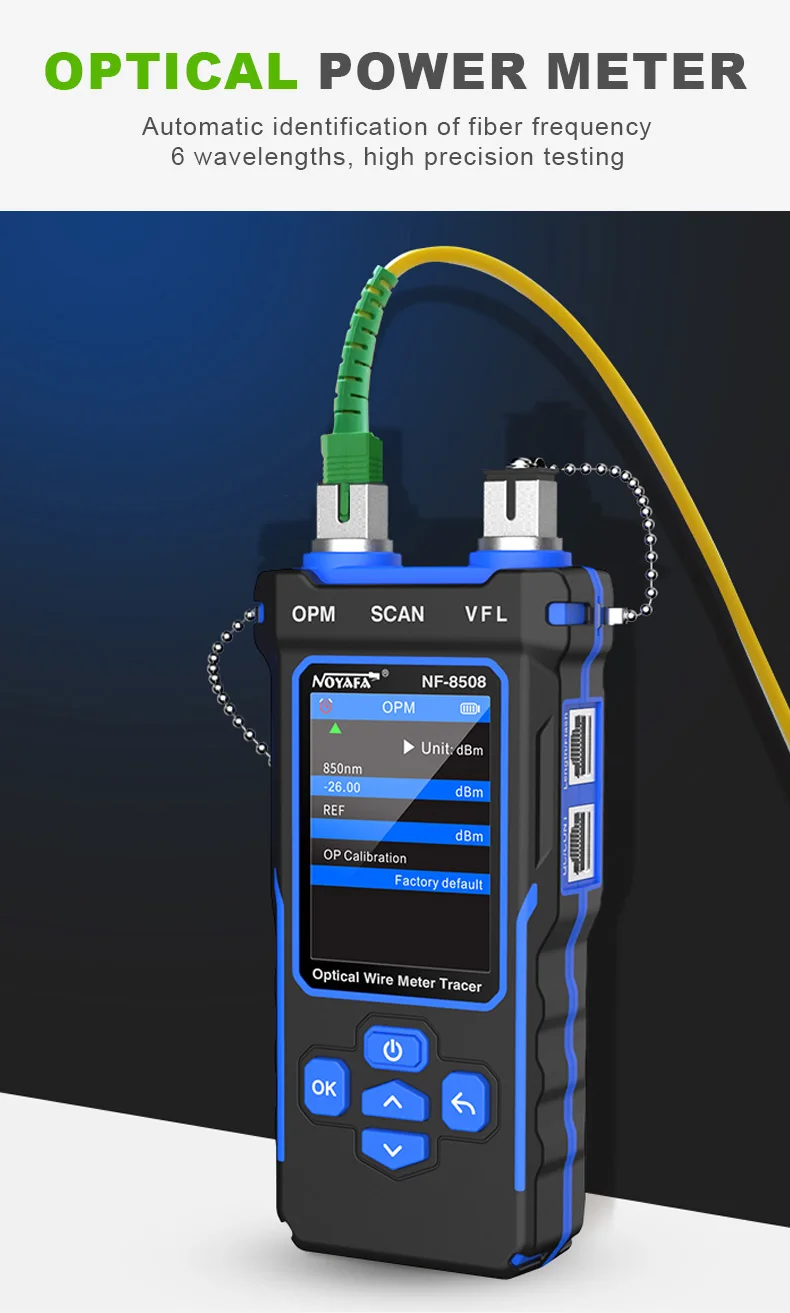

3. Optical Power Meter: 850/1300/1310/1490/1550/1625nm wavelength switching; unit switching at dBm, dB, or mw, uw, nw; and REF switch.

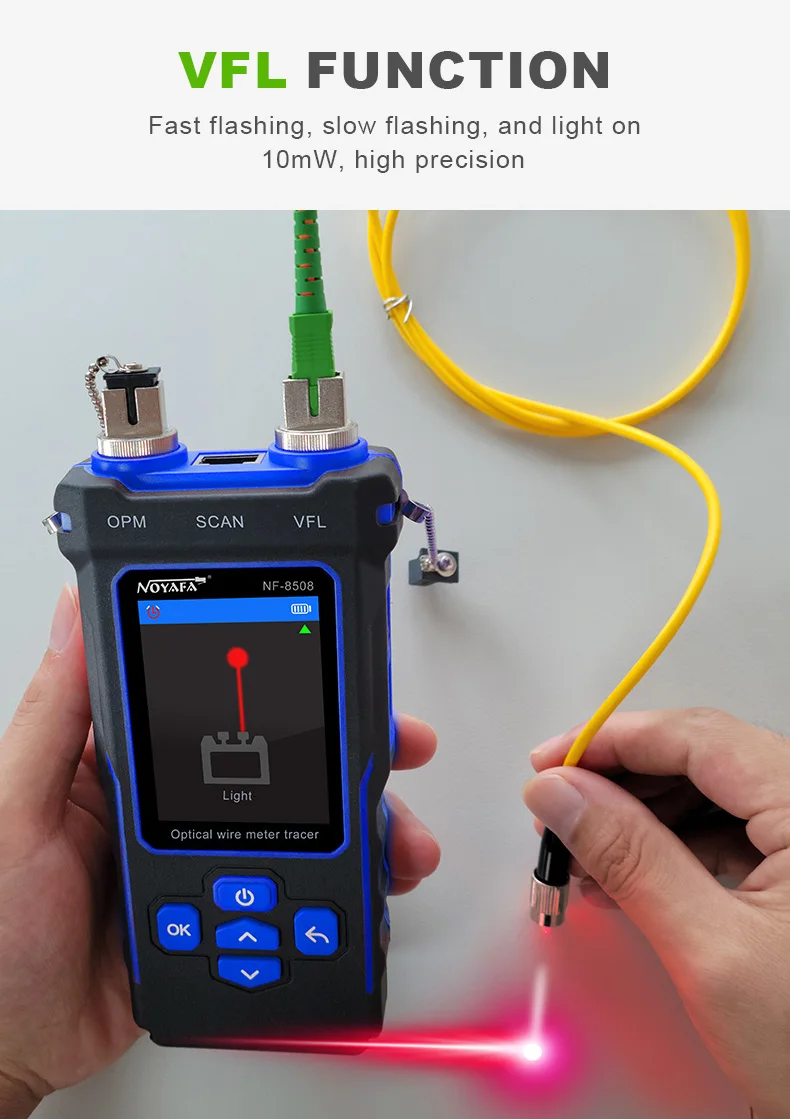

4. Visual Fault Location Function（VFL）: Detect and locate fiber breaks, as well as problems such as poor connections, fiber bends or cracks.

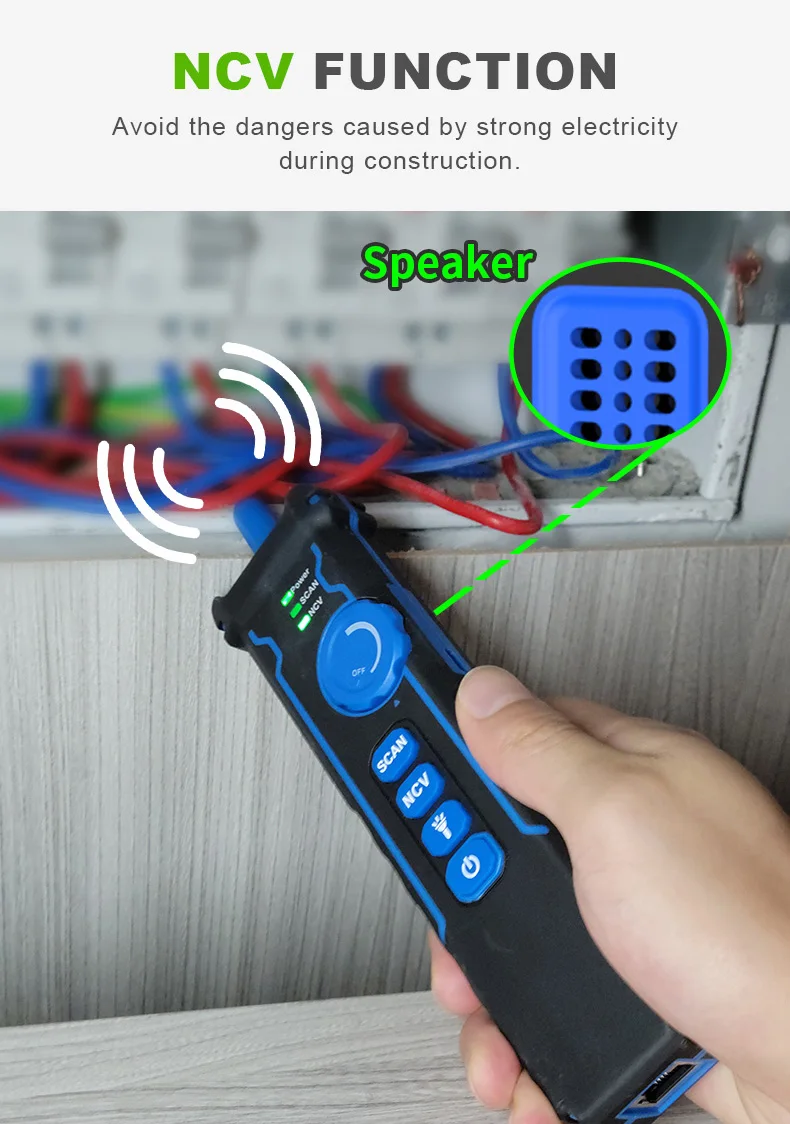

5. Receiver Function: Sensitivity adjustment, 300m no-load shielded network cable/non-empty shielded network cable, NCV detection, lighting function, etc.Non-contact Voltage Detecting: the receiver can be used to detect the AC voltage of household electrical wiring.

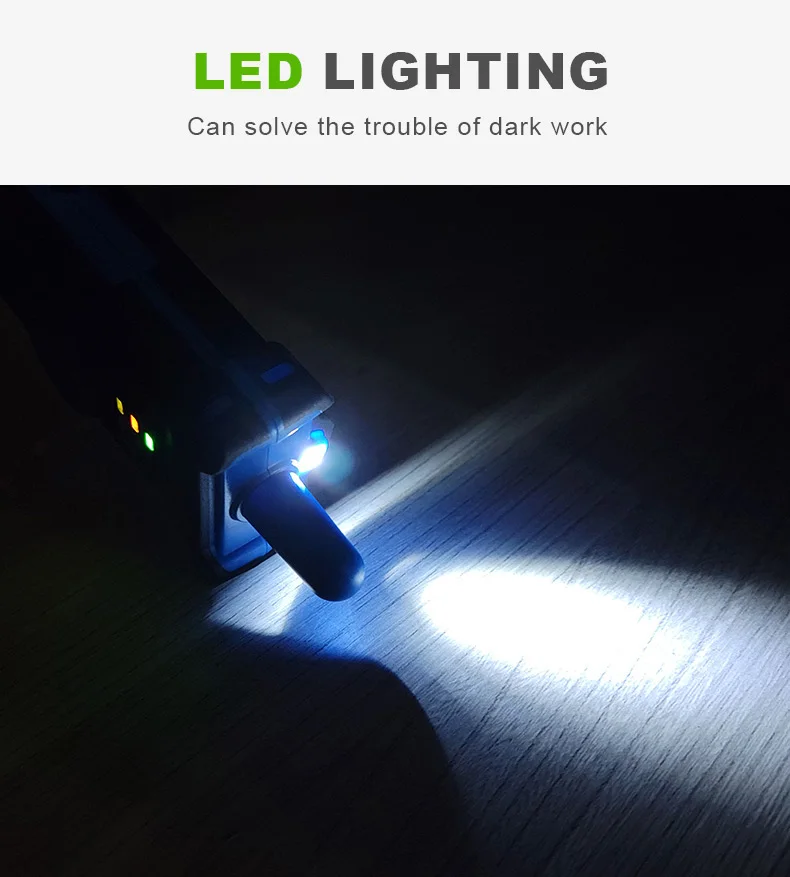

6. Lighting Function: the receiver designed with lamp for auxiliary lighting up the working areas during operation.

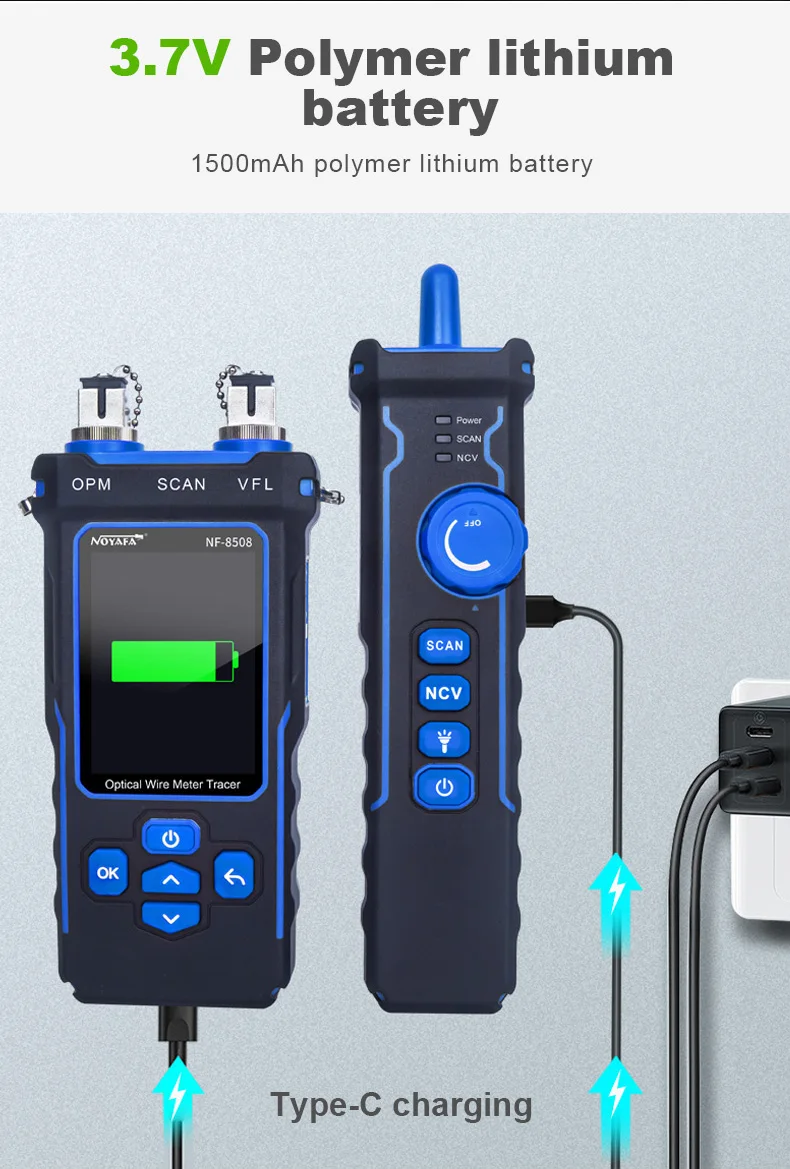

7. Battery Operated: both the transmitter and the receiver are built-in with 1500mAh polymer battery, no need to change batteries, type-C charging, with charging indicator and low battery indicator.

8. Other Settings: backlight brightness(level 1/2/3), backlight time(MAX/1min/30S/15S), auto-off time(15min/30min/1h/2h/off), red light flash under VFL function(fast flashing/slow flashing/ON).

9. Wide Applications: suitable for the network line engineering and maintenance work of telecommunication, computer, other metal conductor, etc.

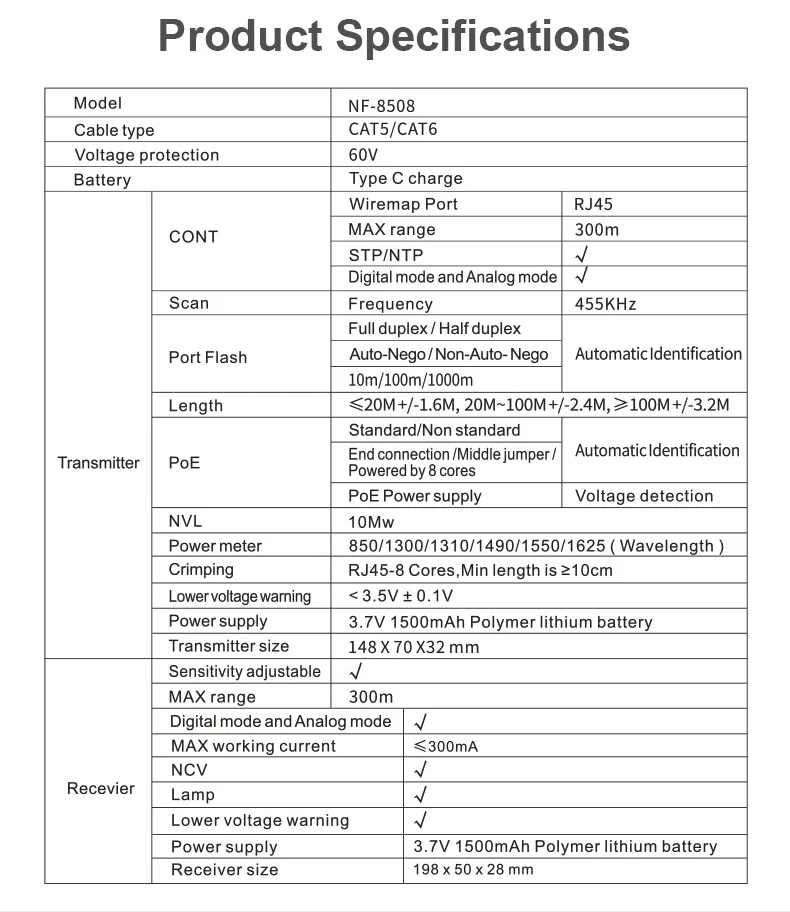

Product Specifications:

TRANSMITTER:

Material: ABS

Cable Type: CAT5/CAT6

Voltage: 60V

TRANSMITTER:Wiremap Port: RJ45

Remote Continuity: ≥300m

Cable Sequence and Fault Test: Yes

STP/NTP: Yes

Short Circuit Reminder: Yes

Anti-jamming and Normal Mode: Yes

VFL: 10mW

Power Meter: 850/1300/1310/1490/1550/1625nm (wavelength)

Crimping: RJ45-8 cores, min length is ≥10cm

Low Voltage Prompt: <3.5V±0.1V, power indicator flashes

Power Supply: 3.7V 1500mAh polymer lithium battery

RECEIVER:

Scan Current: ≤300mA

Remote Continuity: ≥300m

NCV Detection: Yes

Lamp: Yes

Low Voltage Prompt: Yes

Power Supply: 3.7V 1500mAh polymer lithium battery

Package Size: 24 * 16.5 * 5.5cm / 9.45 * 6.50 * 2.17in

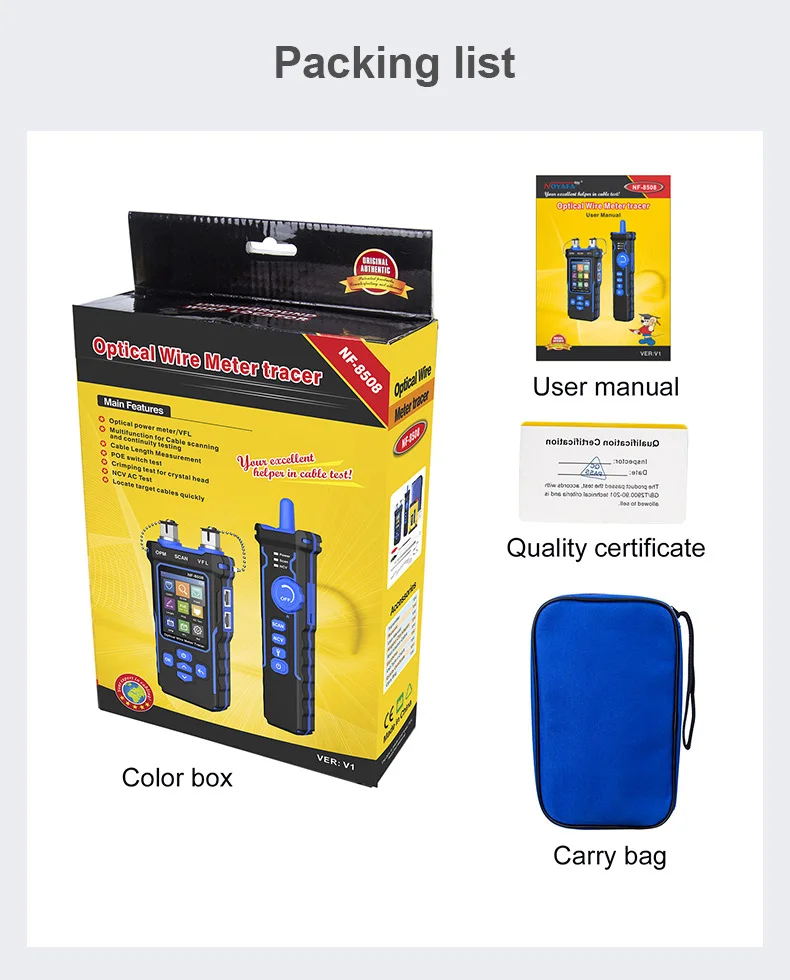

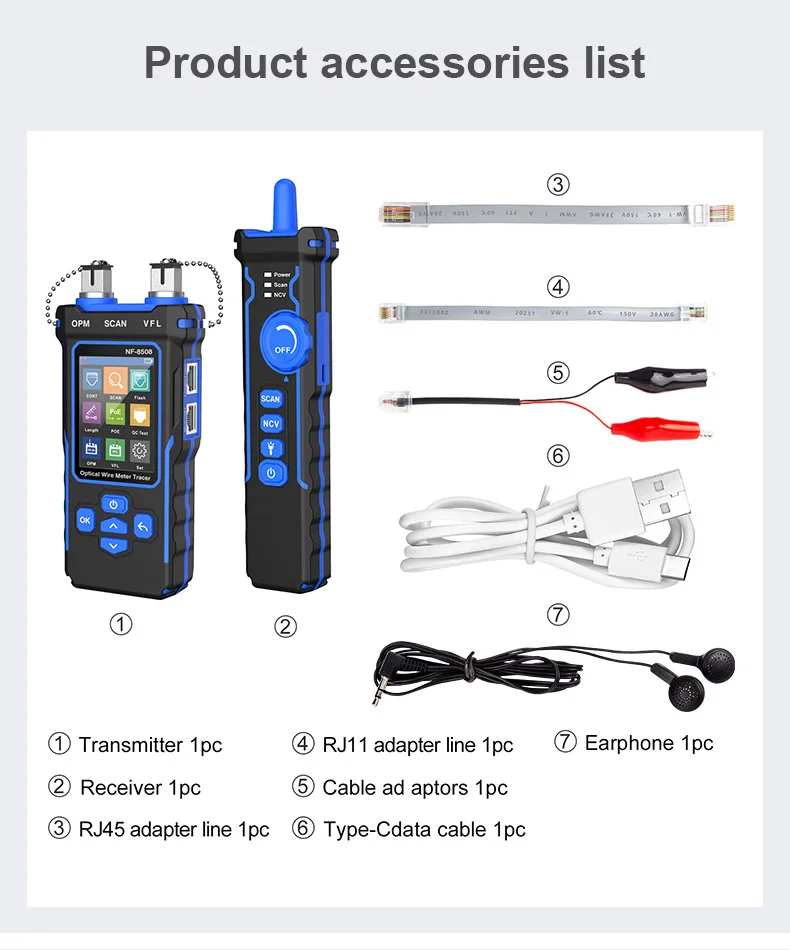

Package List:

1Pcs * Transmitter

1Pcs * Receiver

1Pcs * RJ45 Adapter Line

1Pcs * RJ11 Adapter Line

1Pcs * Crocodile Clip Test Line

1Pcs * Type-C Data Cable

1Pcs * Earphone

1Pcs * Carry Bag

1Pcs * Manual (English)
