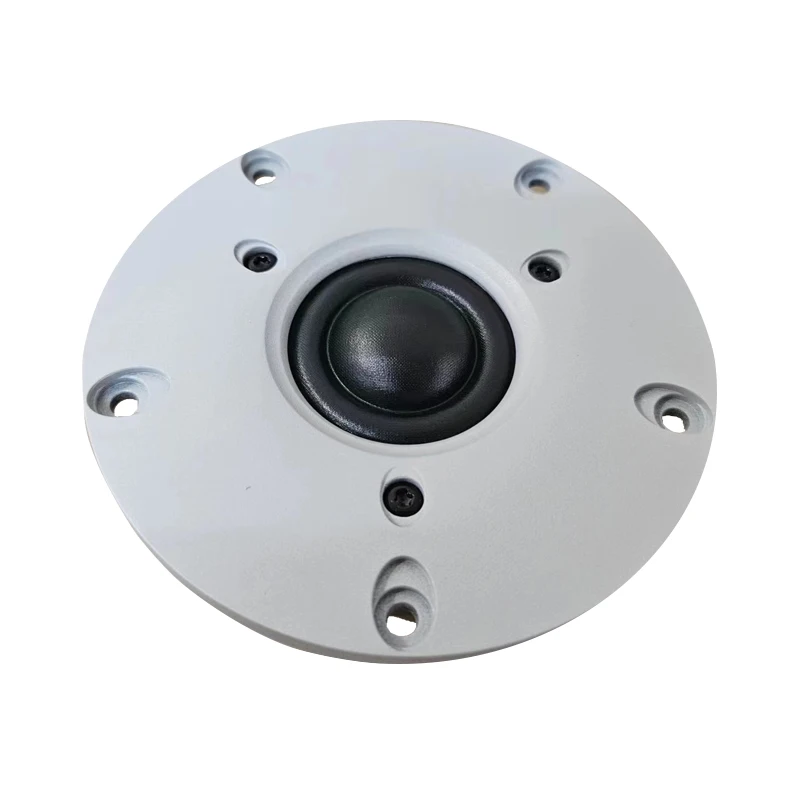

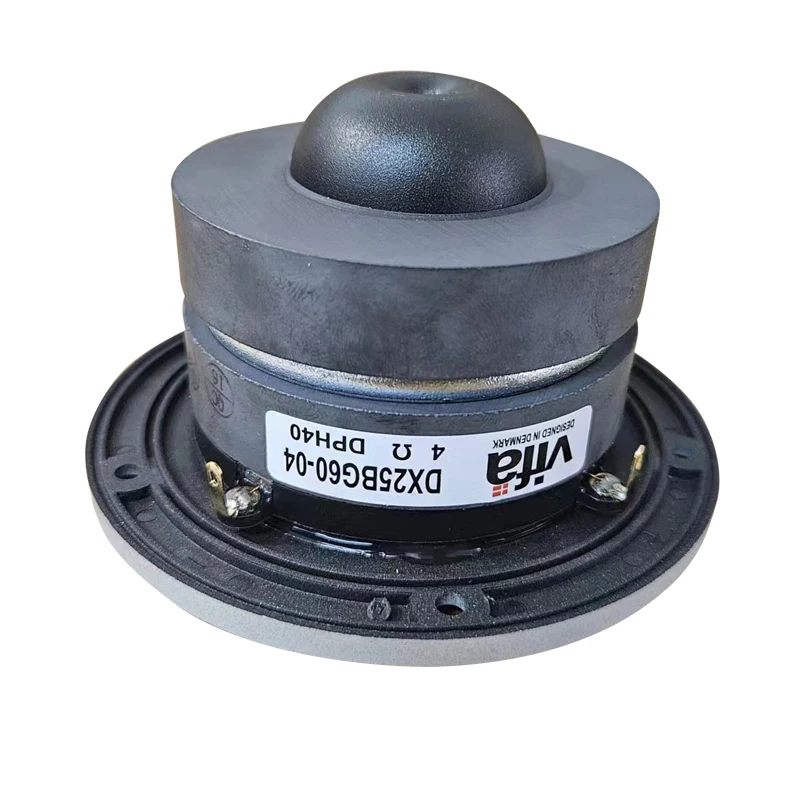

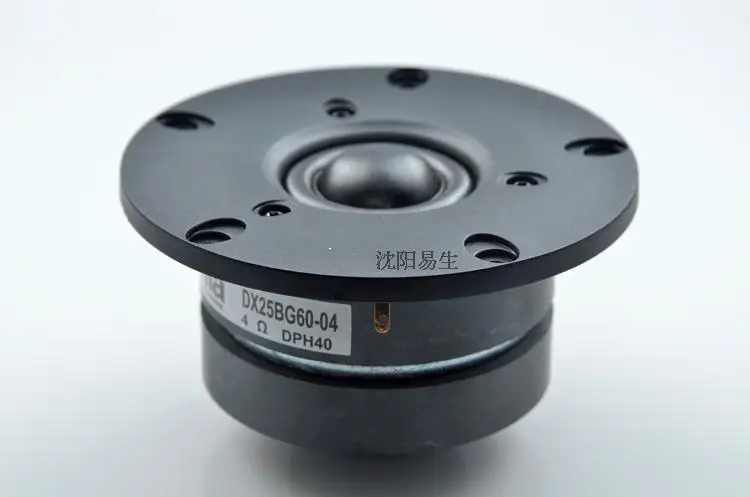

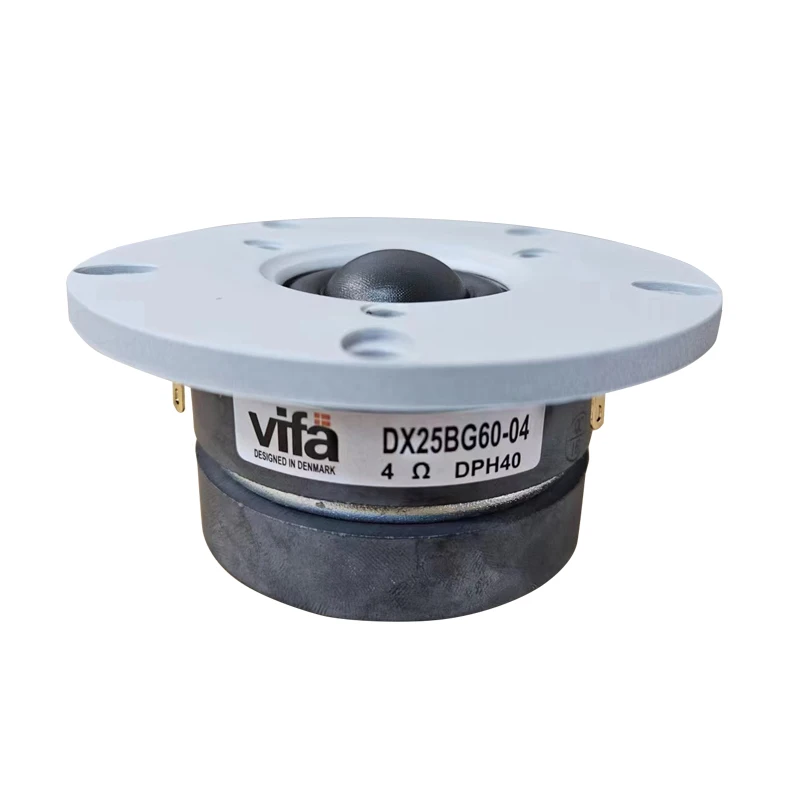

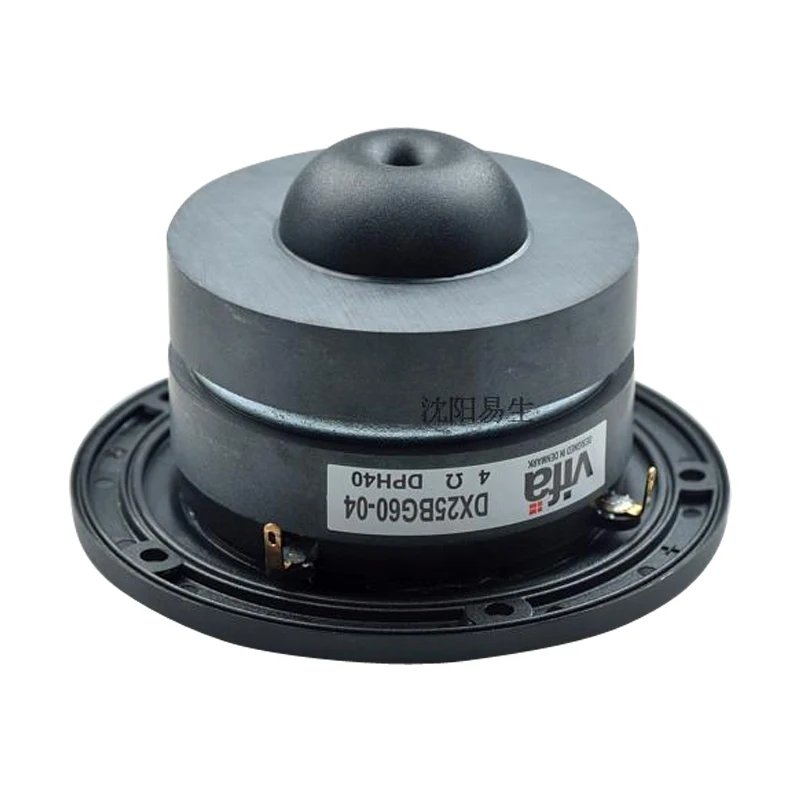

Original Vifa DX25BG60-04 4'' Home Audio DIY Dome Tweeter Speaker Driver 4ohm/100W Fs=650Hz 93.5db Silver Panel Option
$186.65
Reference price: $192.36
Save 3%
Qty:
- Fast delivery
- 30-day returns
Ships to Canada · Delivery Approximately 2 days (supplier estimate)
Sold by TBII
Original Vifa DX25BG60-04 4'' Home Audio DIY Dome Tweeter Speaker Driver 4ohm/100W Silver Panel Option
The sales price is for 2 pieces of speakers(one pair)
The sales price is for 2 pieces of speakers(one pair)
Electrical Data
- Nominal impedance (Zn): 4 ohm
- Minimum impedance (Zmin): -- ohm
- Maximum impedance (Zo): 19 ohm
- DC resistance (Re): 2.75 ohm
- Voice coil inductance (Le): -- mH
T-S Parameters
- Resonance Frequency (fs): 650 Hz
- Mechanical Q factor (Qms): 4.32
- Electrical Q factor (Qes): 0.79
- Total Q factor (Qts): 0.67
- Force factor (Bl): 2.2 Tm
- Mechanical resistance (Rms): 0.47 Kg/s
- Moving mass (Mms): 0.42 g
- Suspension compliance (Cms): -- mm/N
- Effective cone diameter (D): -- cm
- Effective piston area (Sd): 7 cm²
- Equivalent volume (Vas): -- ltrs
- Sensitivity (2.83V/1m): 93.5 dB
Power handling
- Long-term Max Power (IEC 18.3): -- W
- Short Term Max power (IEC 18.2): -- W
Voice Coil and Magnet Parameters
- Voice coil diameter: 25 mm
- Voice coil height: -- mm
- Voice coil layers: --
- Height of the gap: 2 mm
- Flux density of the gap: -- mWb
- Total useful flux: -- mWb
- Diameter of magnet: -- mm
- Height of magnet: -- mm
