Paulkitson UA845 5Channels Signal Amplifier Antenna Distribution System Audio RF Distributor For Wireless Mic UHF 500-950MHz

Paulkitson UA845 5Channels Signal Amplifier Antenna Distribution System Audio RF Distributor For Wireless Mic UHF

SHURE Wireless Mic

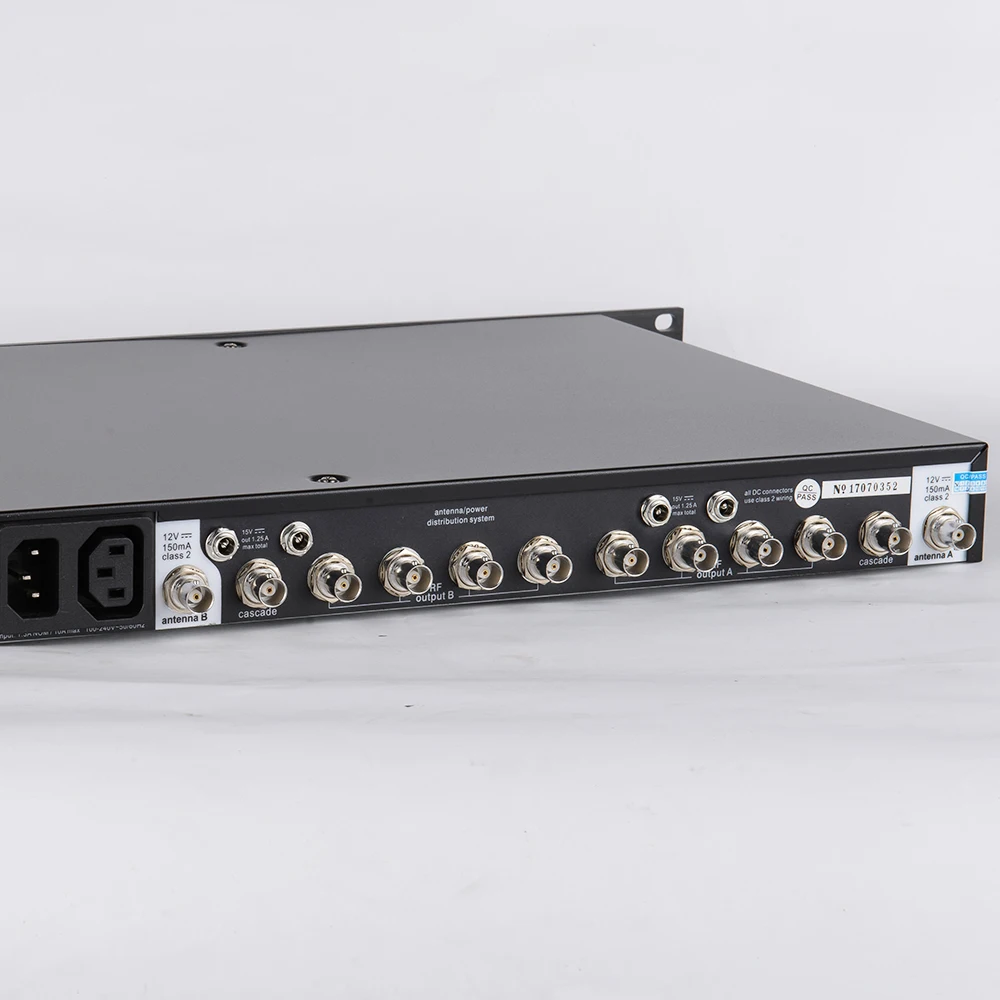

ANTENNA DISTRIBUTION SYSTEM:

RF signal antennas, can connect up to 5 wireless receivers, or use the cascade method to cascade up to 8 antenna splitters for 32 sets of wireless receivers , And power the active antenna through the BNC cable. Ultra-wide working frequency band 450-970MHz. The RF signal overload indication and adjustable RF signal level settings ensure that the maximum working distance can be achieved even if different lengths and different types of cables are used.

1 Gain amplifier technical index

■ Frequency:U section 450-970MHz
■ Input/output impedance:50 ohms
■ Interface:B-type female seat
■ Gain:+12dBm (typical)
■ 3rd order intermodulation intercept point:+38dBm (typical)
■ Gain flatness:+1dB, full frequency band
■ Power supply:AC100-260VAC/T2A 47-63 Hz

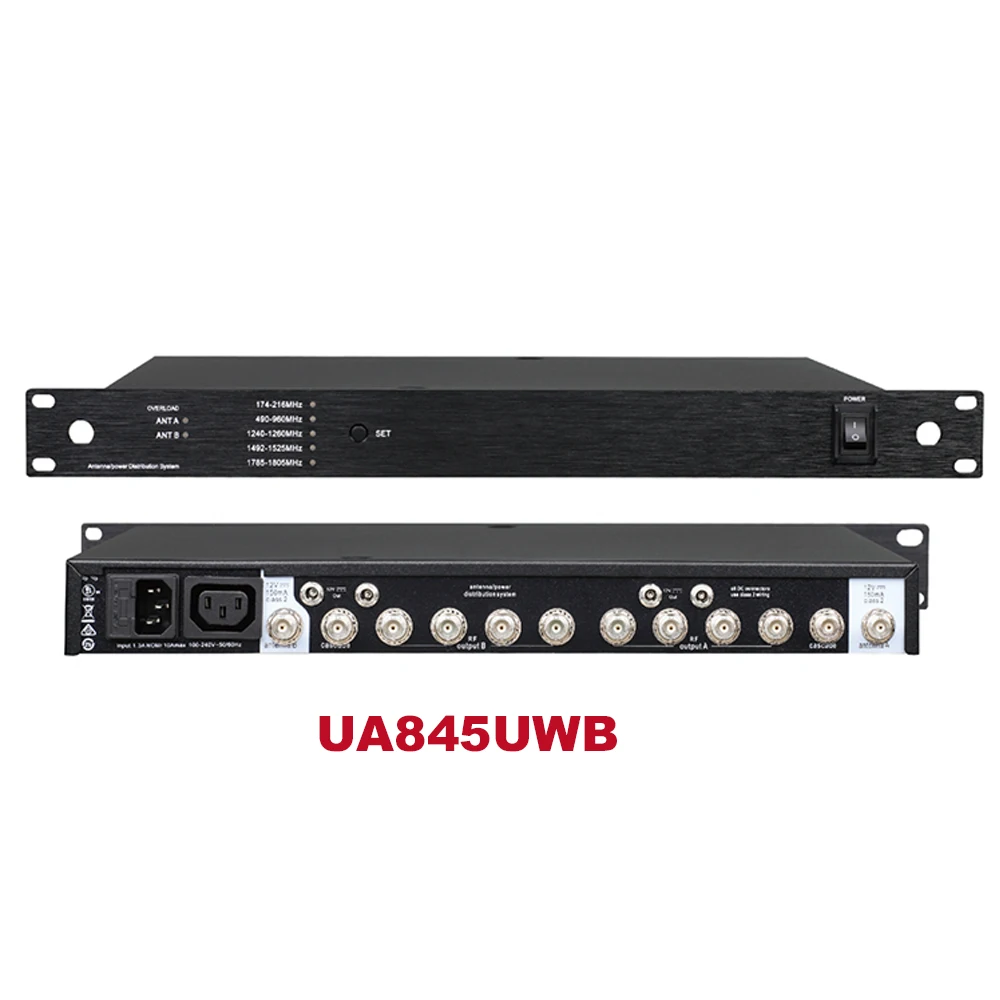

UA845UWB MAIN SPECIFICATION:

Antenna Type:directional antenna
Receiver support:5 Sets
Frequency:500-950MHZ
Gain:6db typical
Impedance:50Ω
Direction:Oval 180 degree typical
Direction Polarity:Vertical
Connecting terminal: Fixed right-angle BNC pcb jack
Structure:glass copper and copper film coating

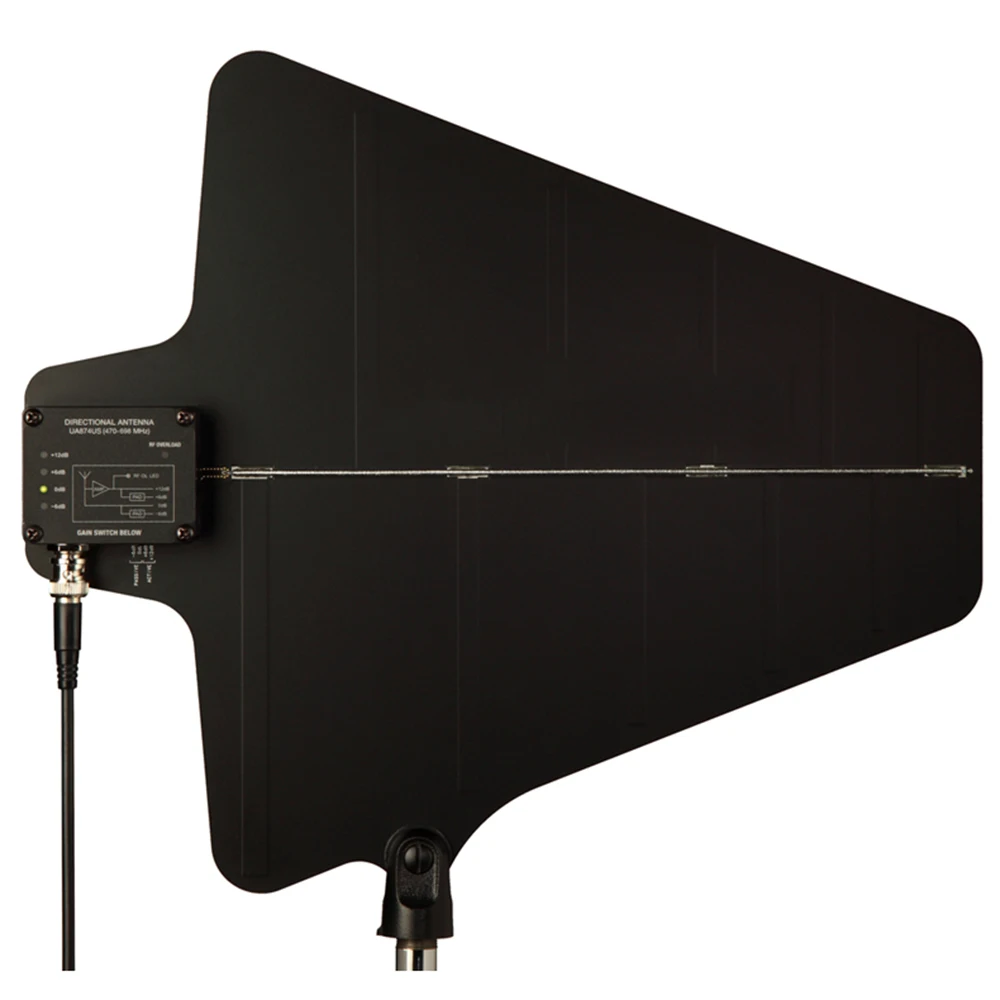

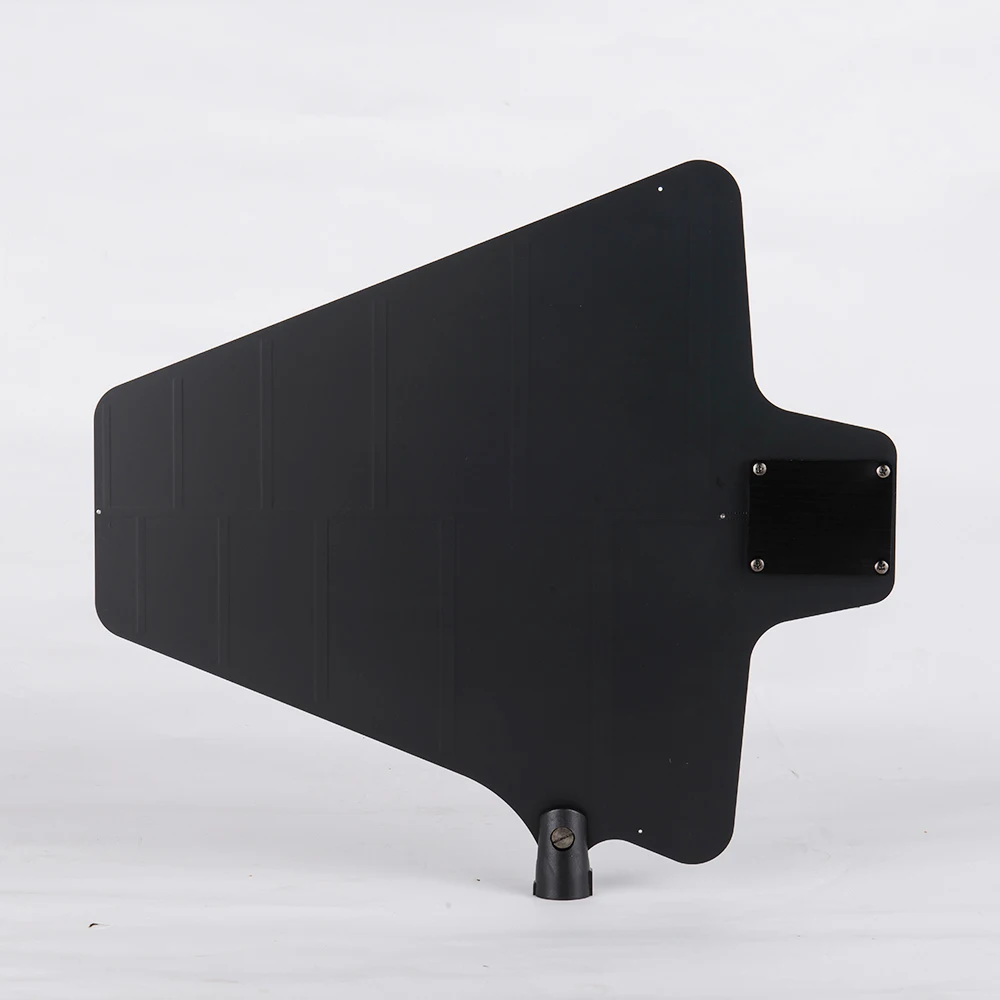

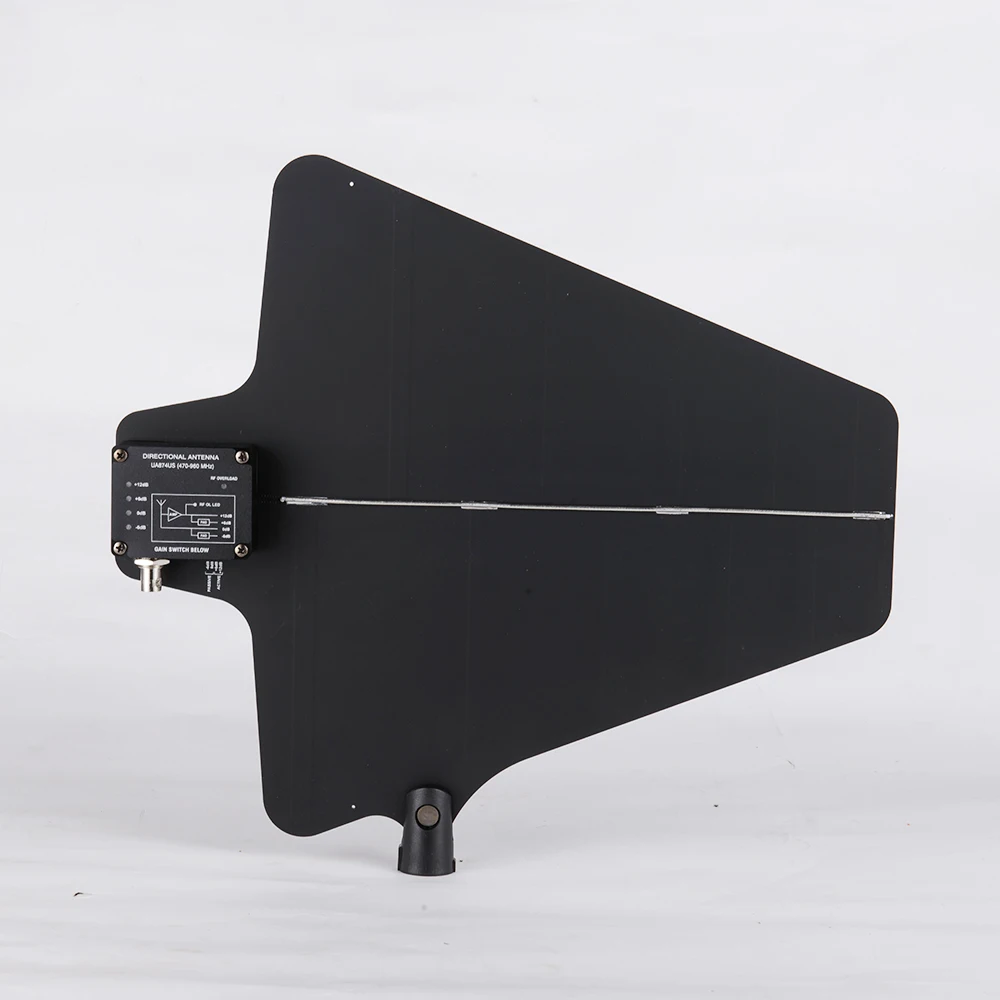

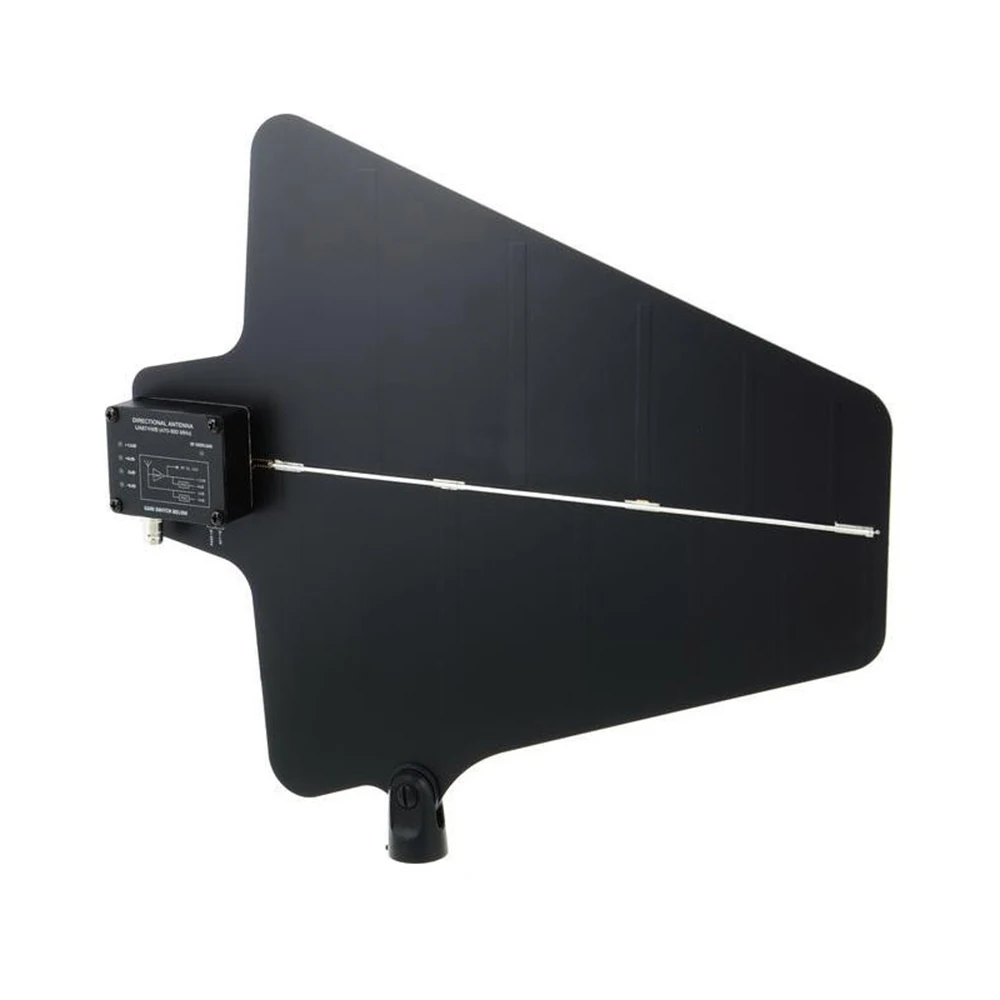

U87 is a broadband U-segment LPDA antenna

♦Enhance signal reception by 12dB, radiation angle 90 degrees
♦Integrated CNC adjustable 12dB gain amplifier
♦Antenna size: 360mmX323mmX28mm
♦Structure: epoxy glass fiber
♦Surface: black matte
♦Frequency: U section 450-950MHz
♦Input/output impedance: 50 ohms
(SWR<=1:1.5;Typical=1:1.4)
♦Interface: B-type female
♦Gain (maximum): -6 12dB (typical)
♦3rd order intermodulation intercept point: +45dBm (typical)
♦Gain flatness: +1dB, full frequency band
♦Power supply: +9V to 12V (typical), 150mA

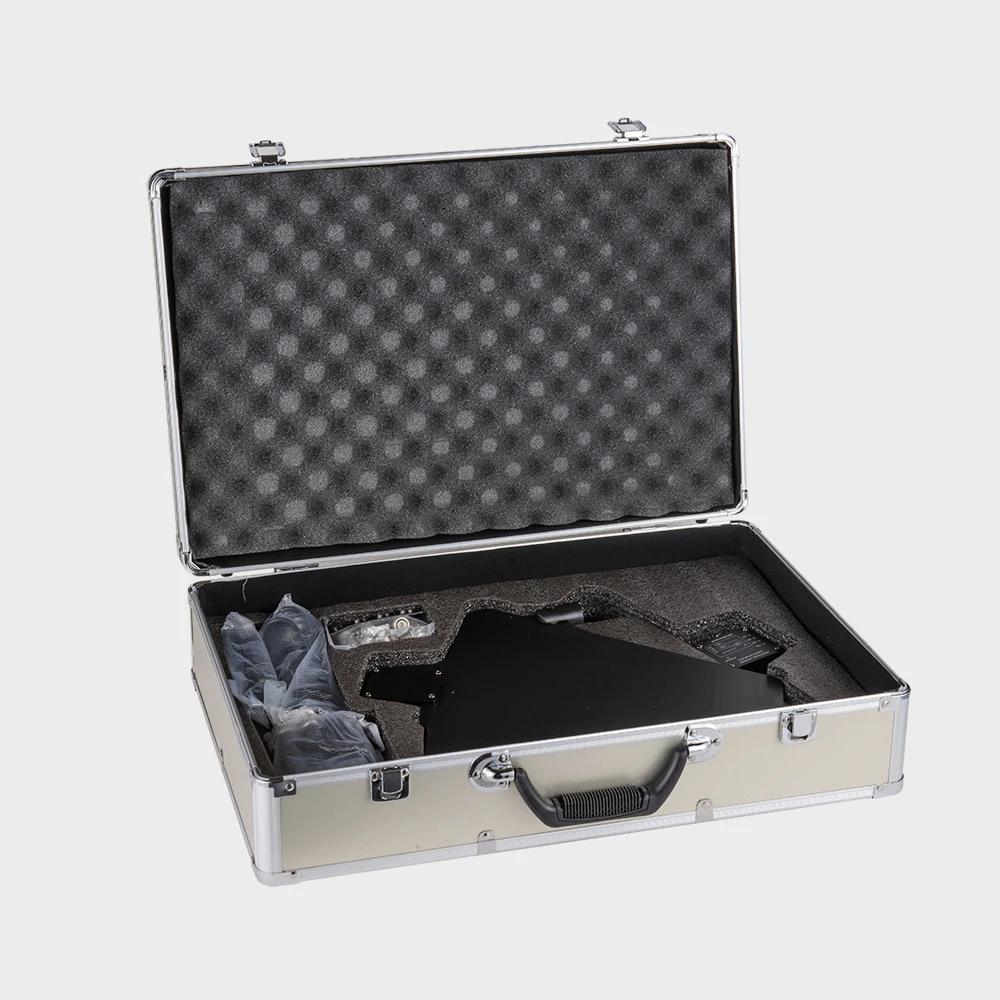

Product real photo display:
