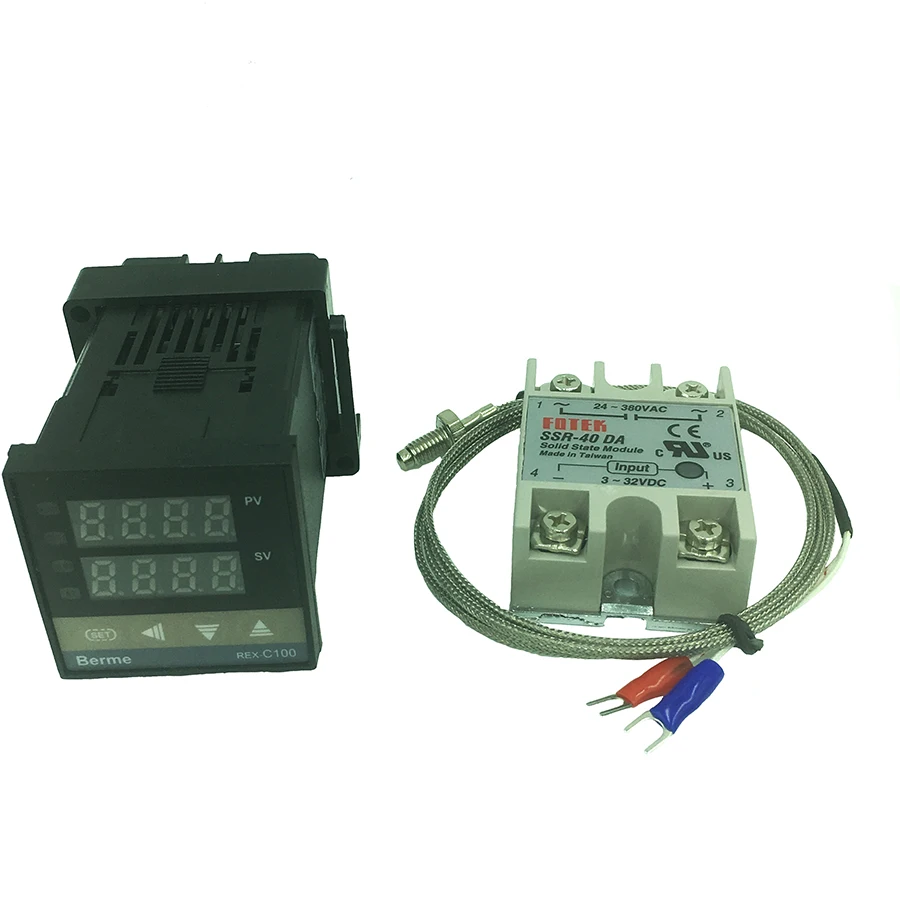

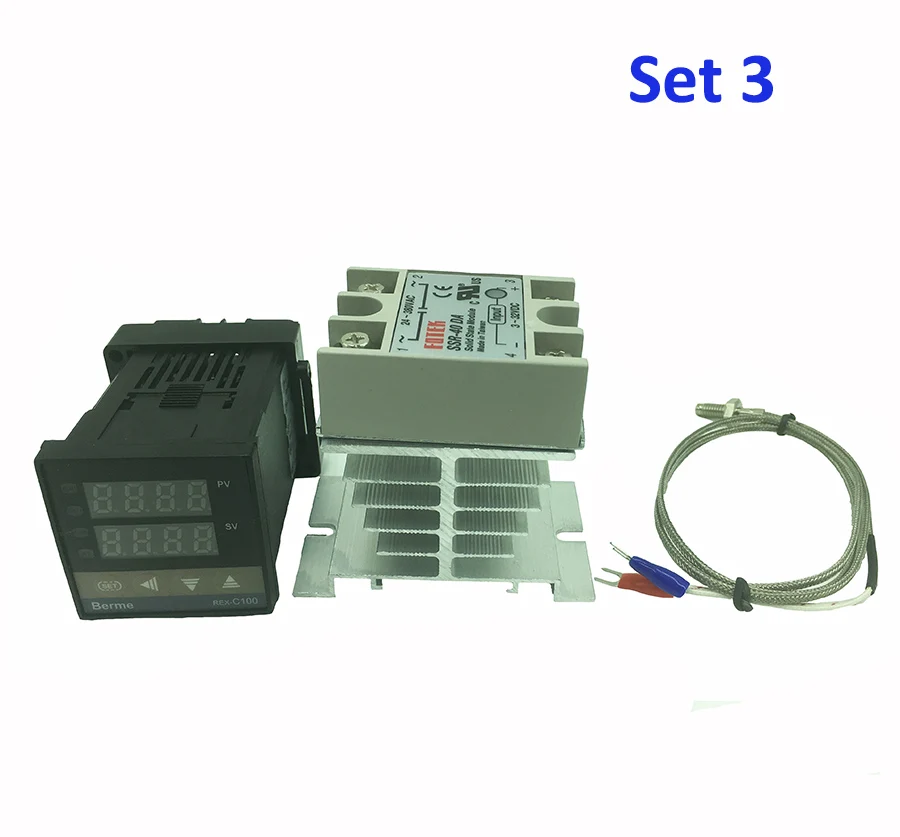

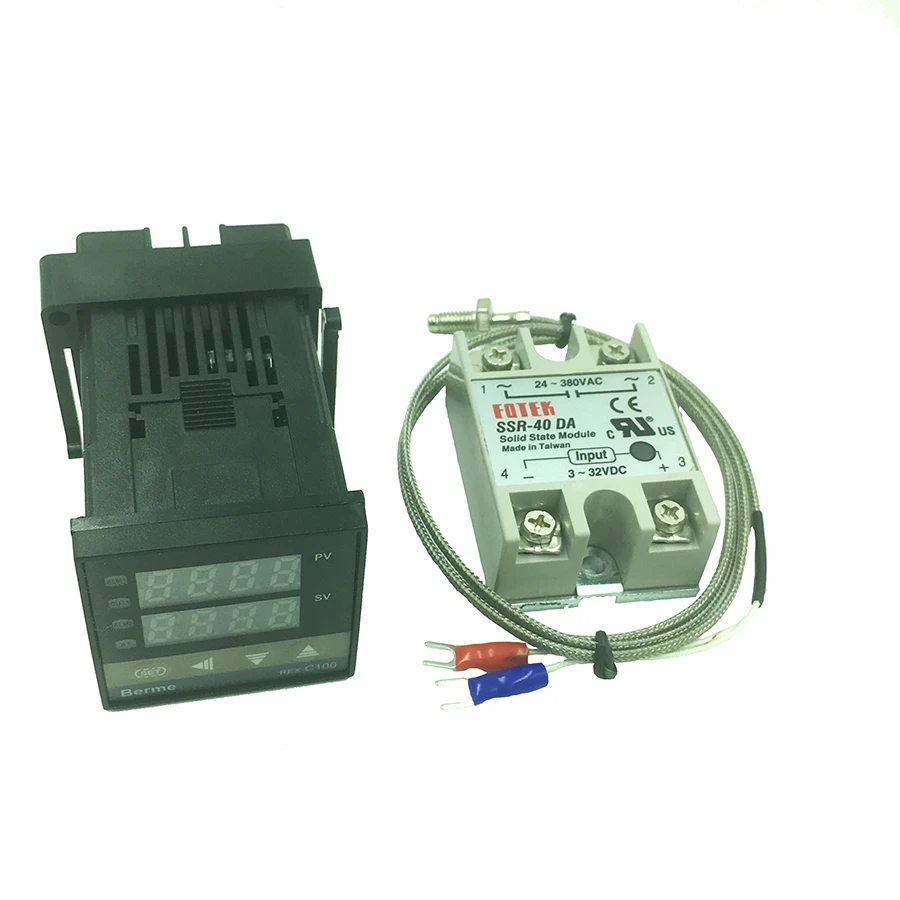

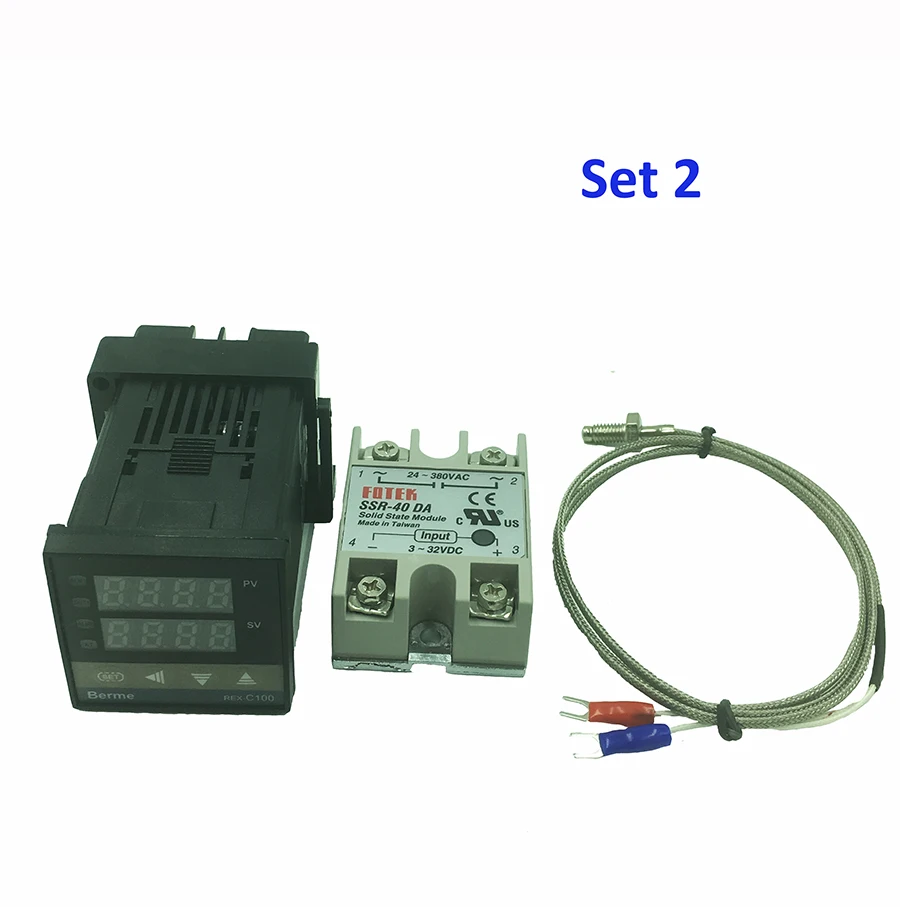

REX-C100 Digital Thermostat Temperature Controller SSR Output K Type Thermocouple Sensor 48 X 48 +SSR 40DA Solid Relay+Sensor

REX-C100 digital thermostat  temperature controller SSR output  K type  thermocouple sensor 48 x 48 +SSR 40DA solid relay+sensor

Specifications:

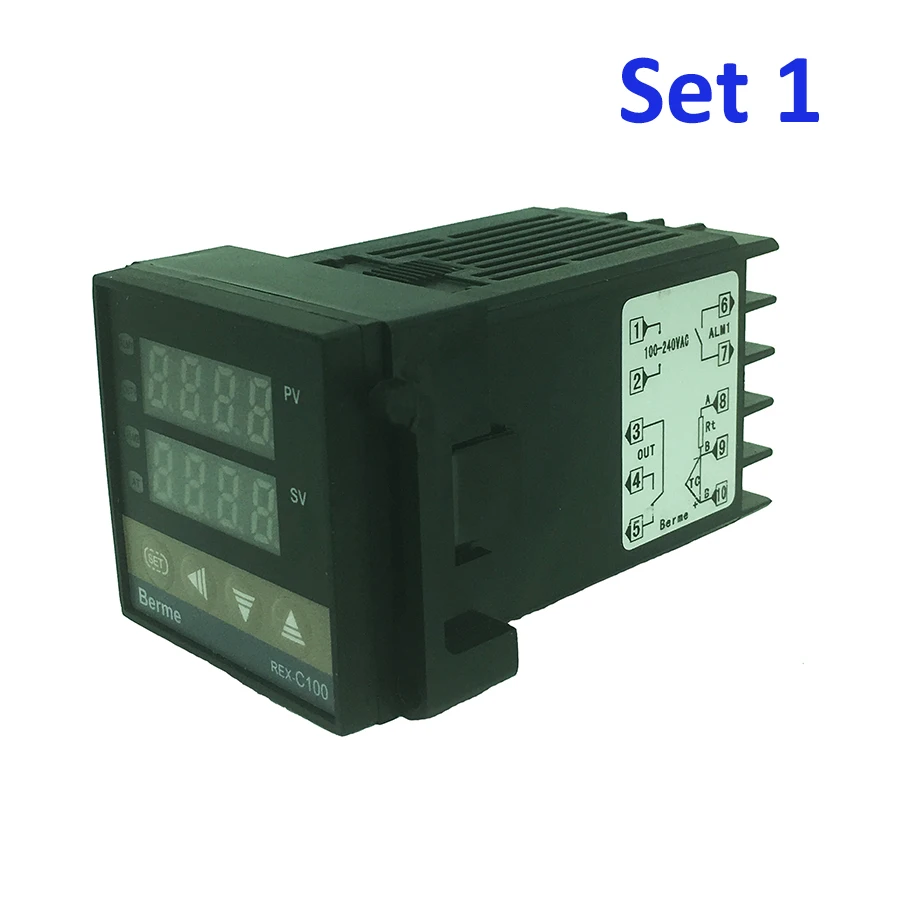

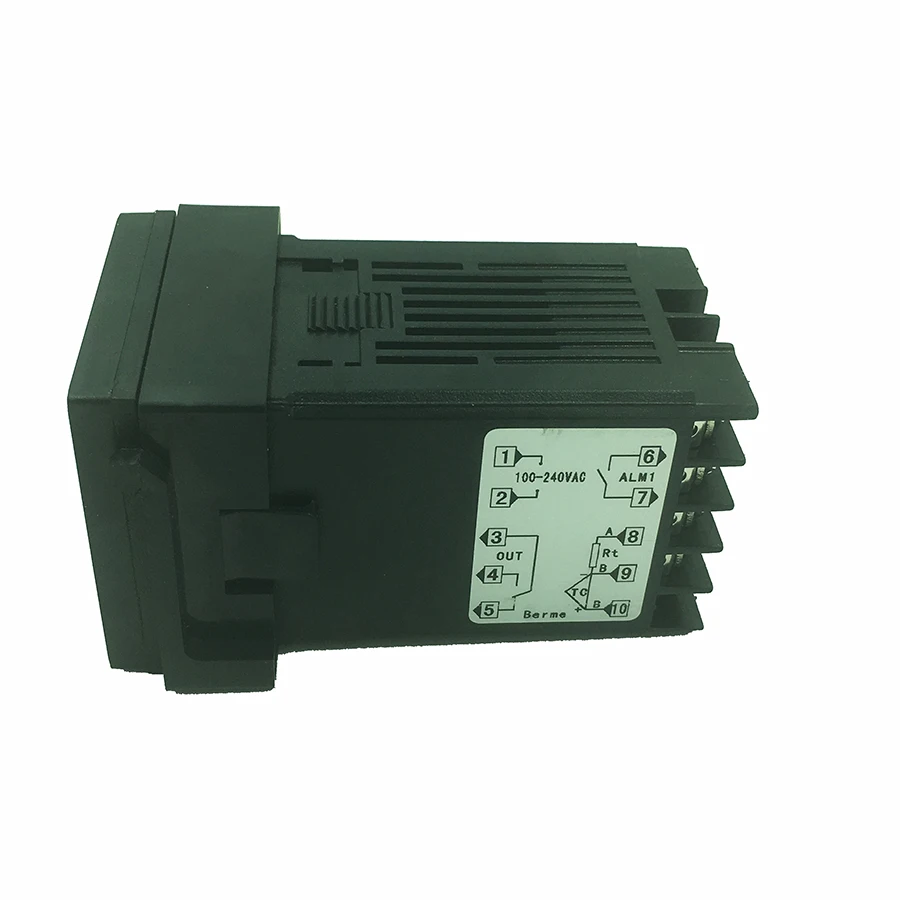

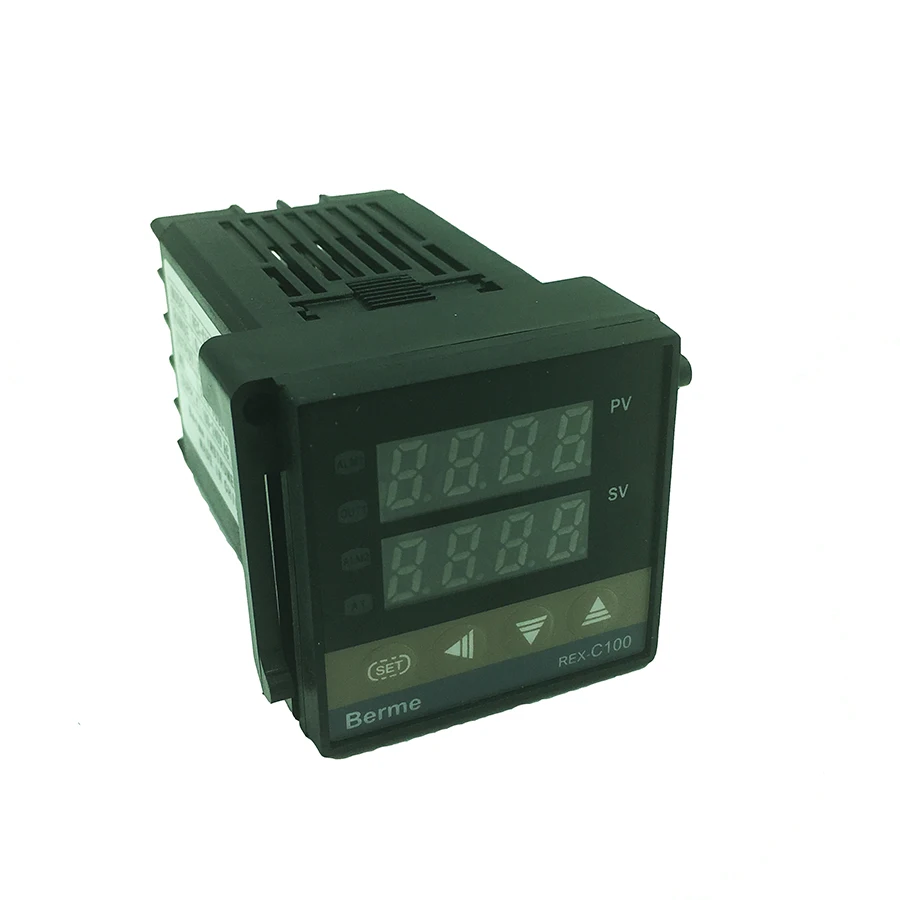

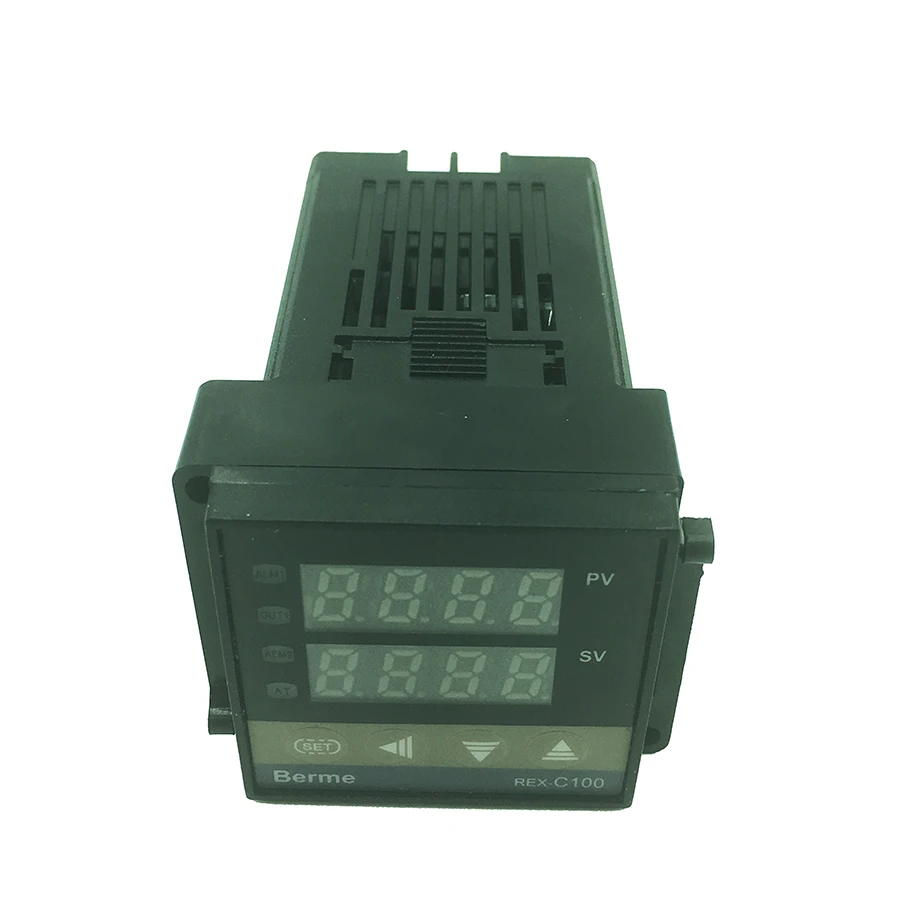

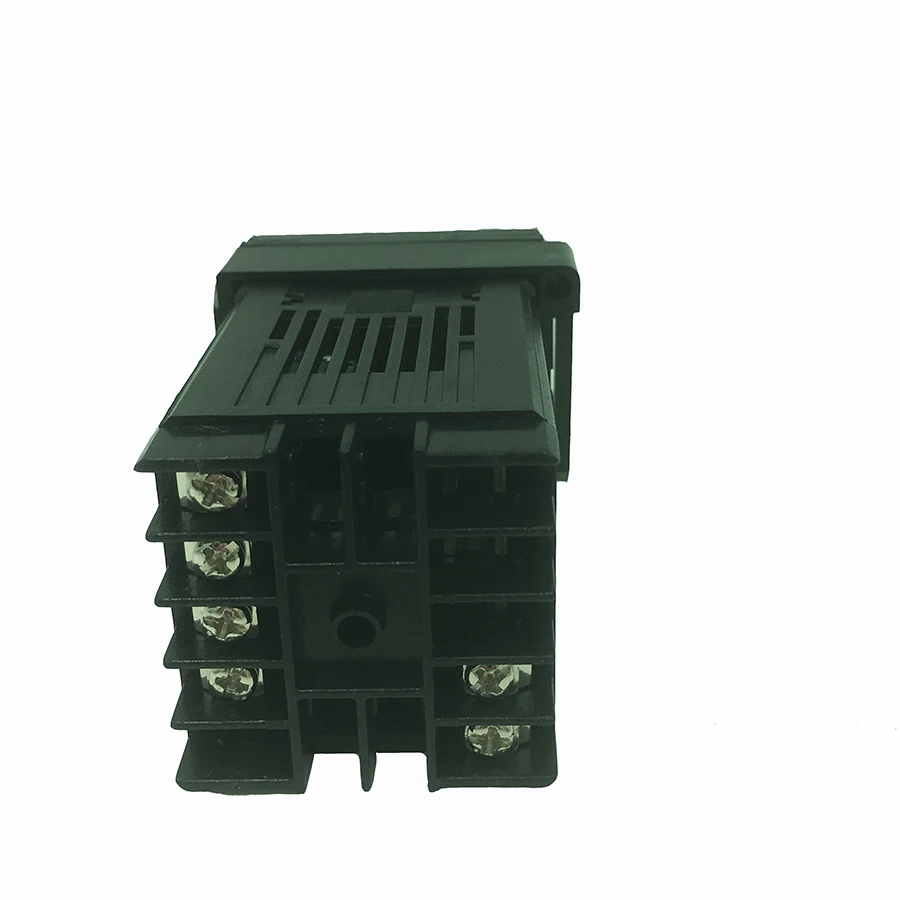

1.Thermostat

• Measuring accuracy: ±0.5%FS

• Cold-end compensation tolerance: ±2 ( can be modified by software in 0~50 )

• Resolution: 14 bit

• Sampling cycle: 0.5 Sec

• Dimensions:48 x 48 x 88 (mm) ±0.2mm

• Process value (PV), Setting value (SV)

• Output can be indicated by: LED

• Self-tuning control

• output: contact capacity 250V AC 3A (resistive load

• Contact capacity of output: 250V AC 3A (resistive load)

• Setting value (SV): identical to measuring range (PV)

• Proportional band (P): 0~full range (ON/OFF control when set to 0)

• Integral time (I): 0~3600 sec (No integral action when set to 0)

• Derivative time (D): 0~3600 sec (No derivative action when set to 0)

• Heat-reset proportional cycle: 1~100 sec

• temperature range: 0 to 400

• Insulation resistance: >50M ohm(500V DC)

• Insulation resistance: 1500V AC/min

• Power Consumption: 10 VA

• Service environment: 0~50,

• environment with no corrosive gas 30~85% RH

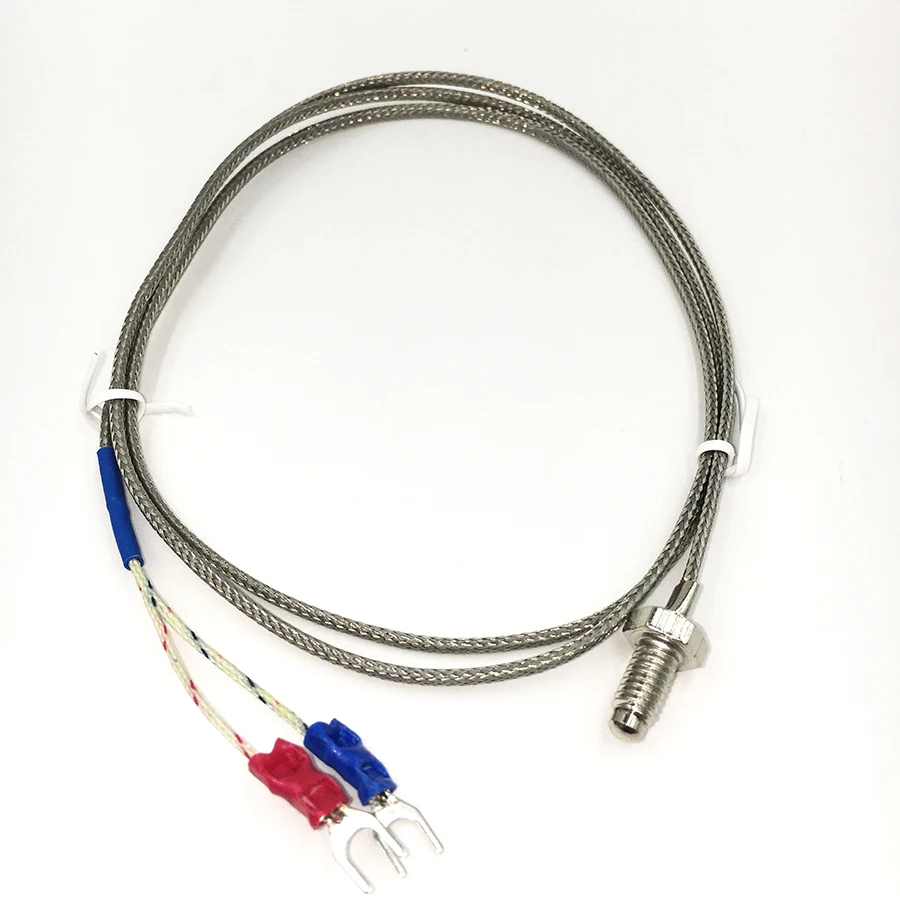

K Type Probe Sensor :

• Cable Length: 1M

• Sensor diameter:4.5mm

• Temperature rang :0-600

• Internal Insulation: Fiberglass

• External Shielding: Insulated Shielding

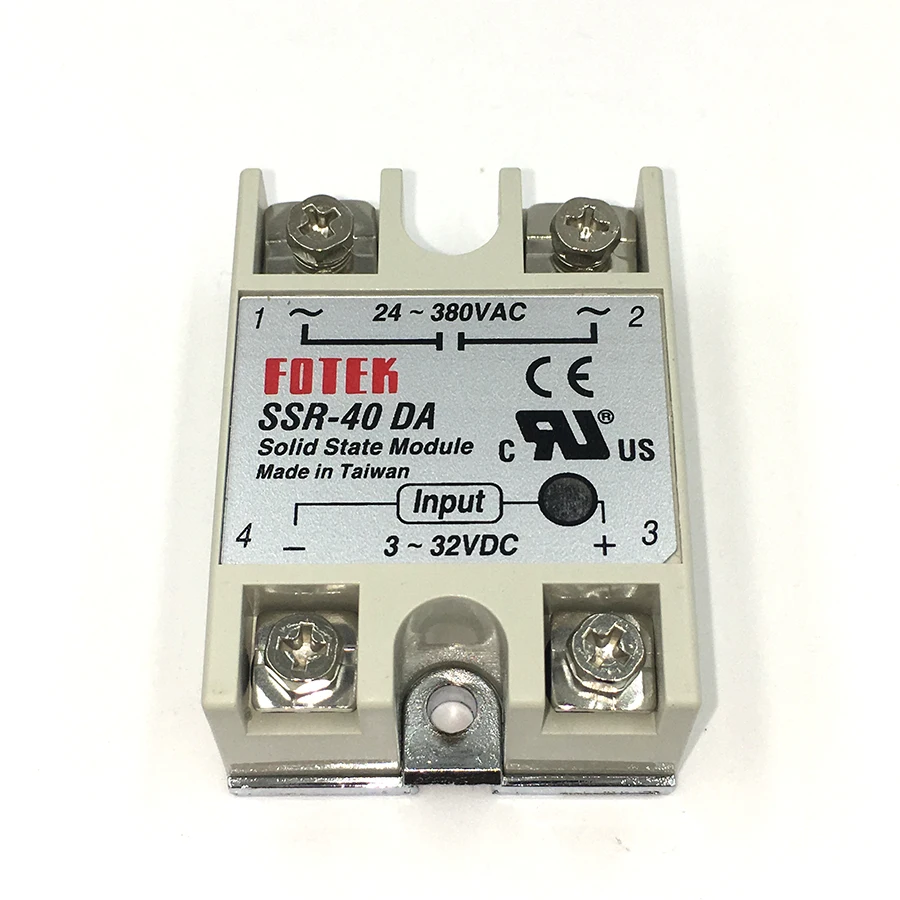

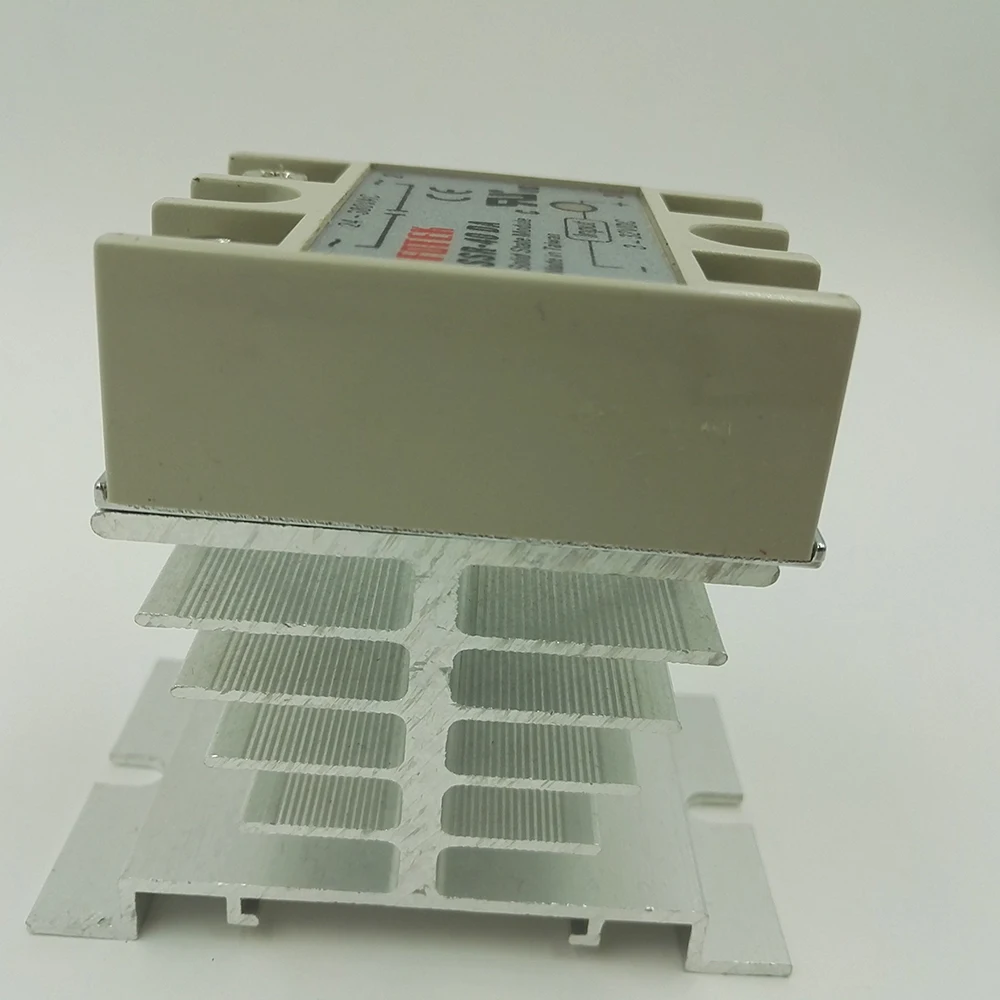

SSR 40DA  Solid state relay

• 1.Output Current:40A
  2.Input Voltage:DC 3-32V
  3.Output Voltage:24-380V AC
  4.Output Voltage Range:Standard Type
