Sclmotos- M5 Thread Carburetor Main Jet AD/DS Racing For Dellorto SHA PHBG NC PHVA Carb Main Injector Nozzle Pilot Jet #30-#135

Dellorto Carb have 5mm (M5) or 6mm (M6) thread sizes main jets. They are not same.Please check the thread of old jet before buying.

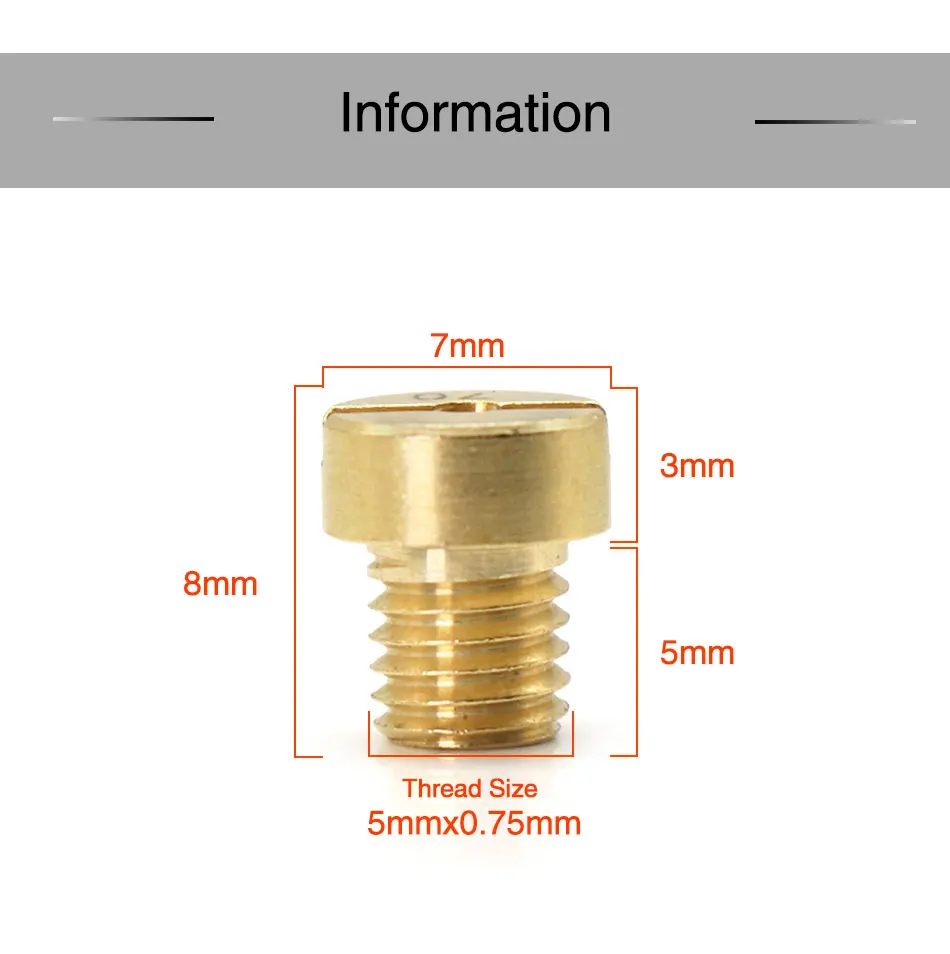

Specifications:

1, Total length 8mm

2, Diameter of head: 7mm

3, Thickess of Head: 3mm

4, Thread: 5x0.75mm

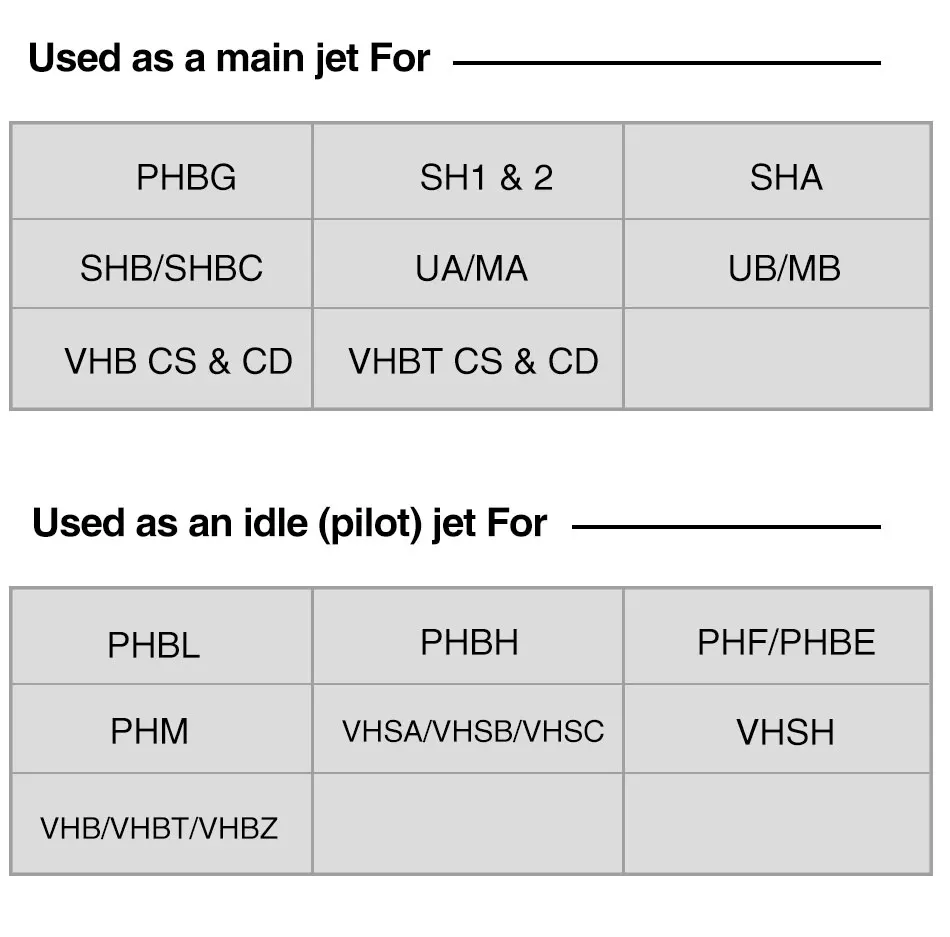

Used as a main jet on the following carburettors:

PHBG

SHA

VHB CS & CD versions only

VHBT CS & CD versions only

UA/MA

UB/MB

SHB/SHBC

SH1 & 2

Used as an idle (pilot) jet on the following carburettors:

PHBL

PHBH

PHF/PHBE

PHM

VHSA/VHSB/VHSC

VHSH

VHB/VHBT/VHBZ – Except CS & CD versions

NOTE:

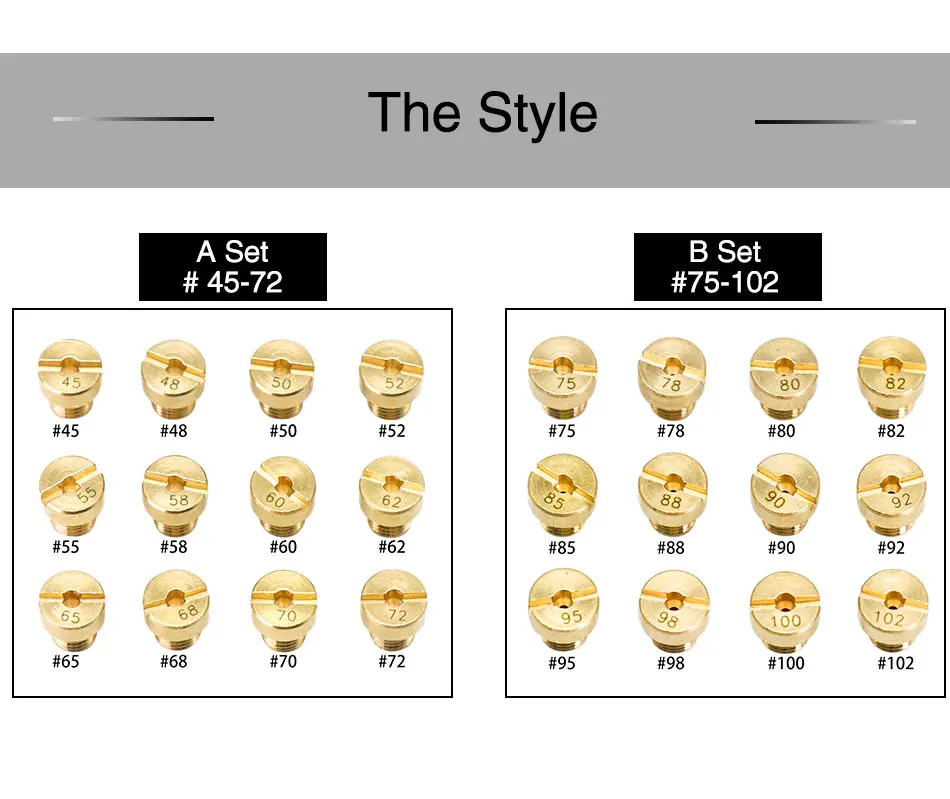

Model C:  you can choose 10pcs from #30-135 which you want by message.

if no massage we will send (Model B03: #70#72#75#76#78#80#82#85#86#88)
