SmallRig FX3/FX30 HawkLock Quick Release Half Cage for Sony FX3 / FX30, W Removable NATO Rail for Original XLR Top Handle -4772

I. Product Name in Package:

SmallRig HawkLock Quick Release Half Cage for Sony FX3 / FX30 4772

II. Product Name in Marketing:

SmallRig HawkLock Quick Release Half Cage for Sony FX3 / FX30 4772

III. Key Features:

1.Built-in HawkLock Quick Release mounting points, improve the efficiency of disassembling and assembling.

2.Modular design with removable NATO rail; supports the original XLR top handle.

3.Arca-Swiss quick release plate at the bottom quickly attaches DJI RS 2 / RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro gimbal and Arca-Swiss tripod.

4.Multiple mounting points: 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes, cold shoe mounts, NATO rail and QD socket support handles, microphones, LED lights, monitors, etc.

SmallRig HawkLock Quick Release Half Cage for Sony FX3 / FX30 4772 is designed to protect camera and provide accessory mounting points. The modular cage consists of a top plate（NATO rail） and a L-shaped cage. The NATO rail is secured on the top via two 1/4"-20 screws and removed to allow installing the original XLR top handle; the L-shaped cage is fixed via 1/4"-20 screw on left side and at the bottom to prevent twisting, with a cushion against scratches. The patented self-developed quick release structure (named HawkLock) covers the cold shoe, NATO rail and Arca-Swiss plate, and is used in conjunction with HawkLock eco-accessories, such as the Top Handle 4483, the Side Handle 4485, the Arca-Swiss Clamp 4486, etc., to achieve smooth sliding in and self-locking to improve the efficiency of disassembling and reassembling; and at the same time, it is compatible with the traditional cold shoe, NATO Clamp, and the Arca-Swiss Clamp eco-accessories. In addition, the cage is built-in 1/4“-20 threaded holes,ARRI 3/8”-16 Locating Hole, 1/4”-20 locating holes, QD socket, strap slot, and can be expanded with accessories such as Magic Arm 3873, Top Handle 2165C, Rod Clamp 3598, QD Shoulder Strap, Hand Strap 3848, and Shoulder Strap PSC2428 for professional creation.A magnetic wrench is also included for easy assembly and disassembly.

Designer: Tracy Joy

Note:

1.When using the top plate, compatible hot shoe accessories include: Sony ECM-M1 microphone, Sony ECM-B1M microphone, Sony HVL-F32M flash, DJI Mic 2 Camera Adapter. Incompatible hot shoe accessories include: Sony ECM-W3 /W3S, Sony ECM-W2BT microphone.

2.Please remove the top NATO rail before installing the original XLR handle.

IV. Compatibility:

for Sony FX30

for Sony FX3

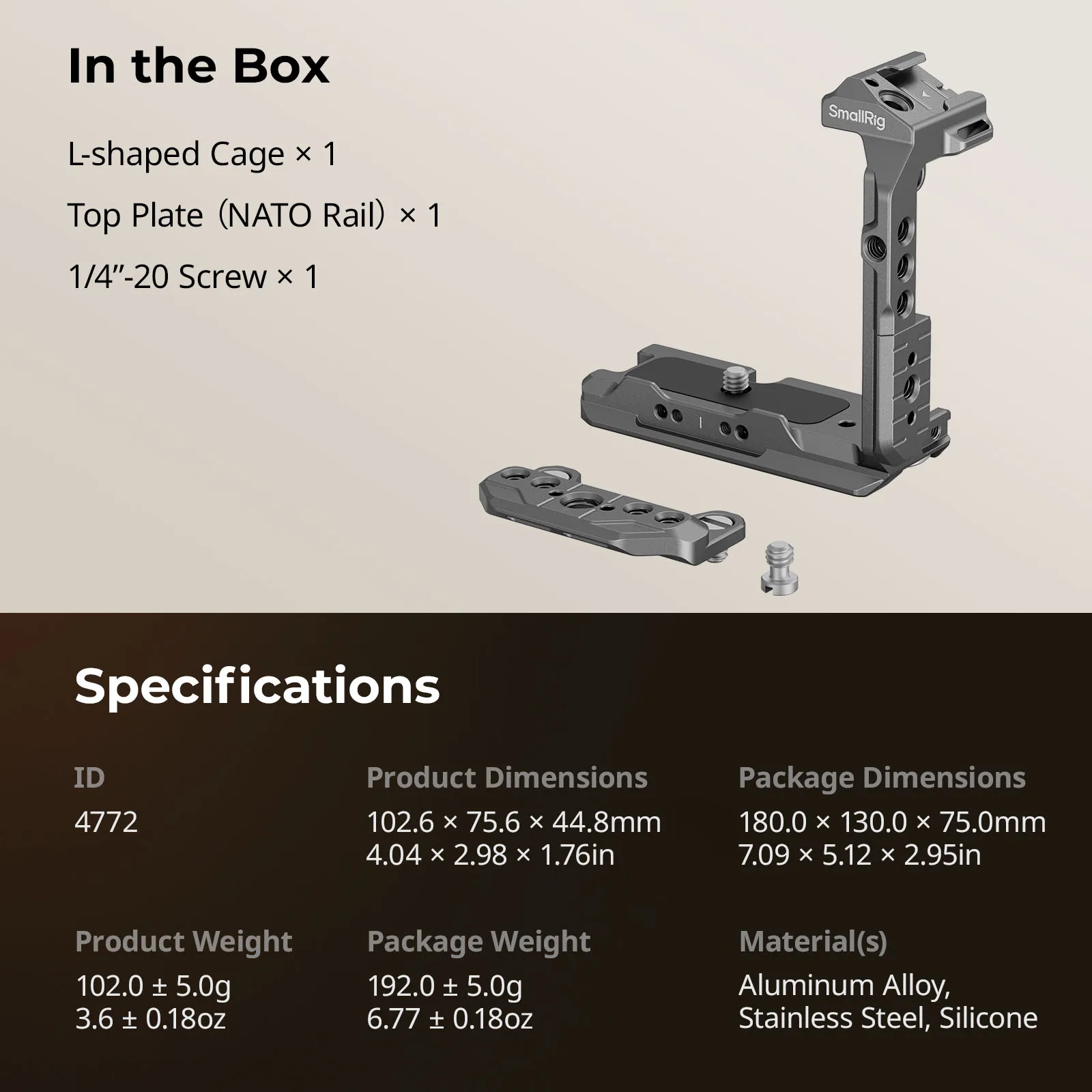

V. In the Box:

L-shaped Cage × 1

Top Plate（NATO Rail） × 1

1/4”-20 Screw × 1

VI. In the Box:

Product Dimensions: 102.6 x 75.6 x 44.8mm

Package Dimensions: 180.0 × 130.0 × 75.0mm

Product Weight: 102.0±5.0g

Package Weight: 192.0±5.0g

Material(s): Aluminum Alloy, Stainless Steel, Silicone

Related Products: 4183、4184、4770、4771、4829、4830、4505、4483、4485、4486
