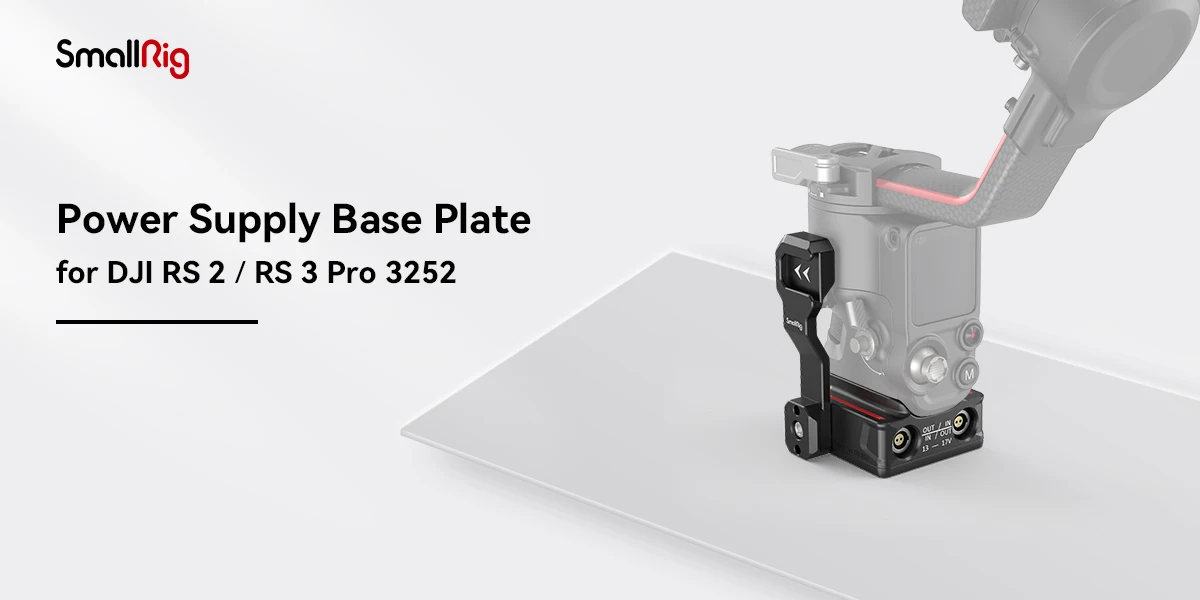

SmallRig Power Supply Base Plate for DJI RS 2 / RS 3 Pro/ RS 4 Pro/RS 5 External Feeding Solution For DJI RS 2 / RS 3 Pro 3252

SmallRig Power Supply Base Plate for DJI RS 2 / RS 3 Pro/RS 4 Pro/RS 5 3252

1. Allows DJI RS 2/ RS 3 Pro to work with different equipment in more shooting scenarios, such as car, handheld ring and jib shooting;

2. Directly connects DJI RS 2 / RS 3 Pro,solid and safe, with no risk of shaking and falling off, ensuring shooting stability in a wide range of motion;

3. Two power ports (input or output), either of which can power camera or Wi-Fi image transmitter‘’

4. Comes with NATO ports on both sides in addition to reinforced NATO connection;

5. Supports DJI's original car shooting suction mount, stabilizer tripod and Manfrotto quick release plate；

SmallRig Power Supply Base Plate for DJI RS 2/ RS 3 Pro 3252 is designed to work with batteries to extend runtime. It employs a quick-release cartridge design to attach DJI RS 2 / RS 3 Pro and its NATO for extra stability and also supports Sling Handgrip 3028 and Dual Handgrip 3027. Once installed, its adapter cable can connect a D-tap battery to power DJI RS 2/ RS 3 Pro via one OB302 port, while the other OB302 port outputs up to 60W of power to charge 3251. Two 1/4″-20 and one 3/8″-16 threaded holes at the bottom fit DJI's original car shooting suction mount, stabilizer tripod and Manfrotto quick release plate.

Designer: Kevin Wong

Note: When one power port serves as an input port, the other becomes an output port, or vice versa. Two plugs can’t be input power at the same time.

Compatibility:

for DJI RS 2

for DJI RS 3 Pro

for DJI RS 4 Pro

Package Includes:
1 x Power Supply Base Plate
1 x OB302 to D-tap Adapter Cable
1 x Side Plate
1 x Allen Wrench

Product Dimensions: 70 x 53 x 44mm
Package Dimensions: 137x104x52 mm
Net Weight: 170g±5g
Package Weight: 226g±5g
Material: Aluminum Alloy, TPE
