SmallRig TEC Cooling Fan for Sony Selected Cameras for Sony ZV-E1/ZV-E10/ZV-1/A7 IV/A7S III/A7C/A7C II/A7CR/A6700/FX3/FX30 5152

I. Product Name:SmallRig Cooling Fan for Sony Selected Cameras 5152

Product Name in Marketing: SmallRig Cooling Fan for Sony Selected Cameras 5152

II. Key Features:

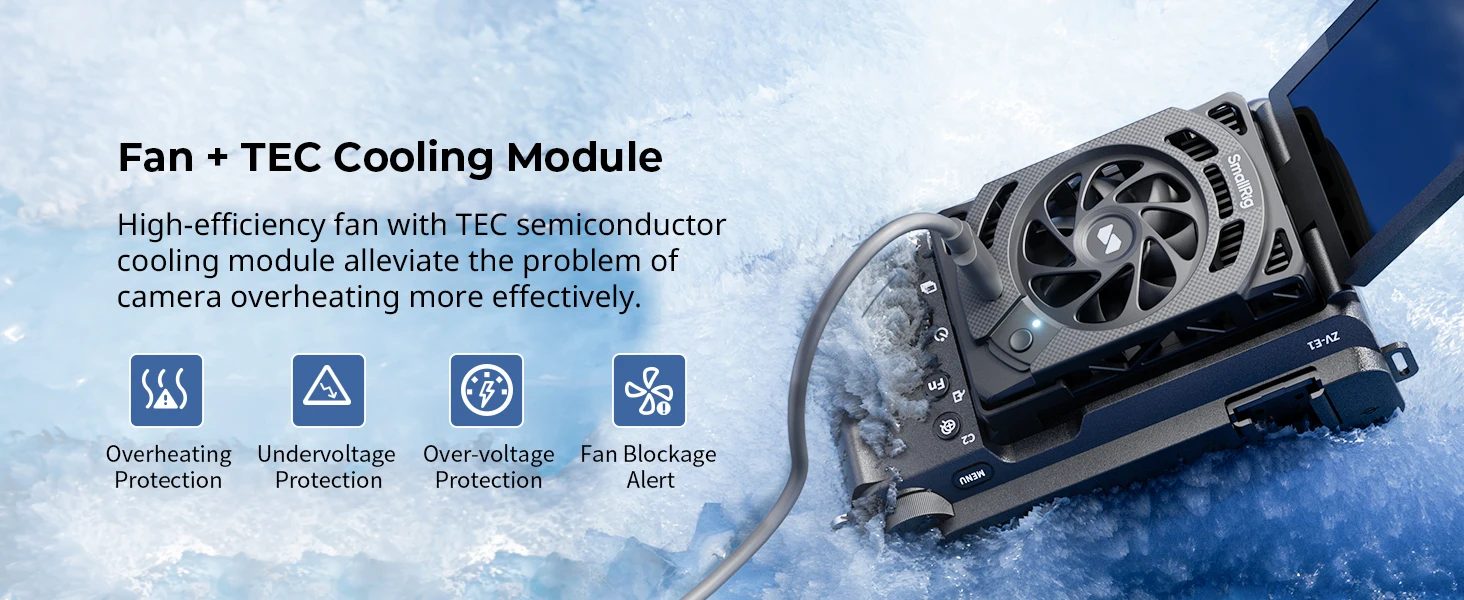

1.7000 rpm high speed fan with TEC cooling module to quickly cool down the camera.

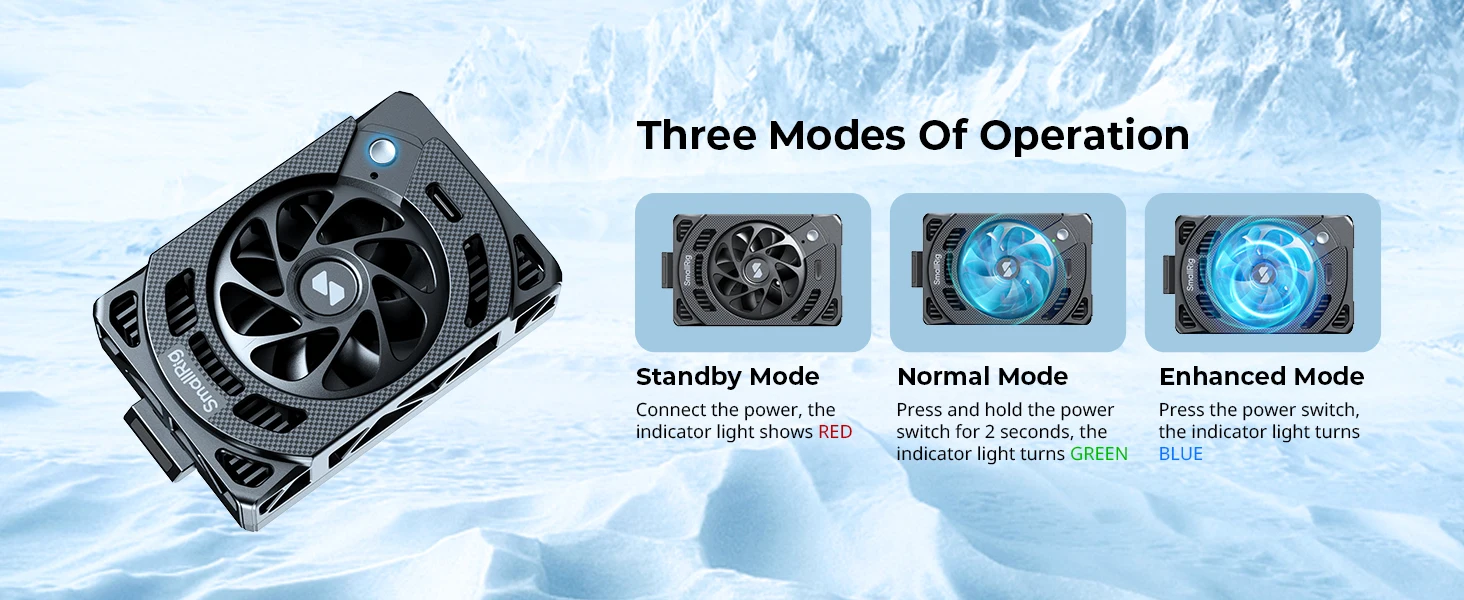

2.Two-speed adjustable to meet different needs.

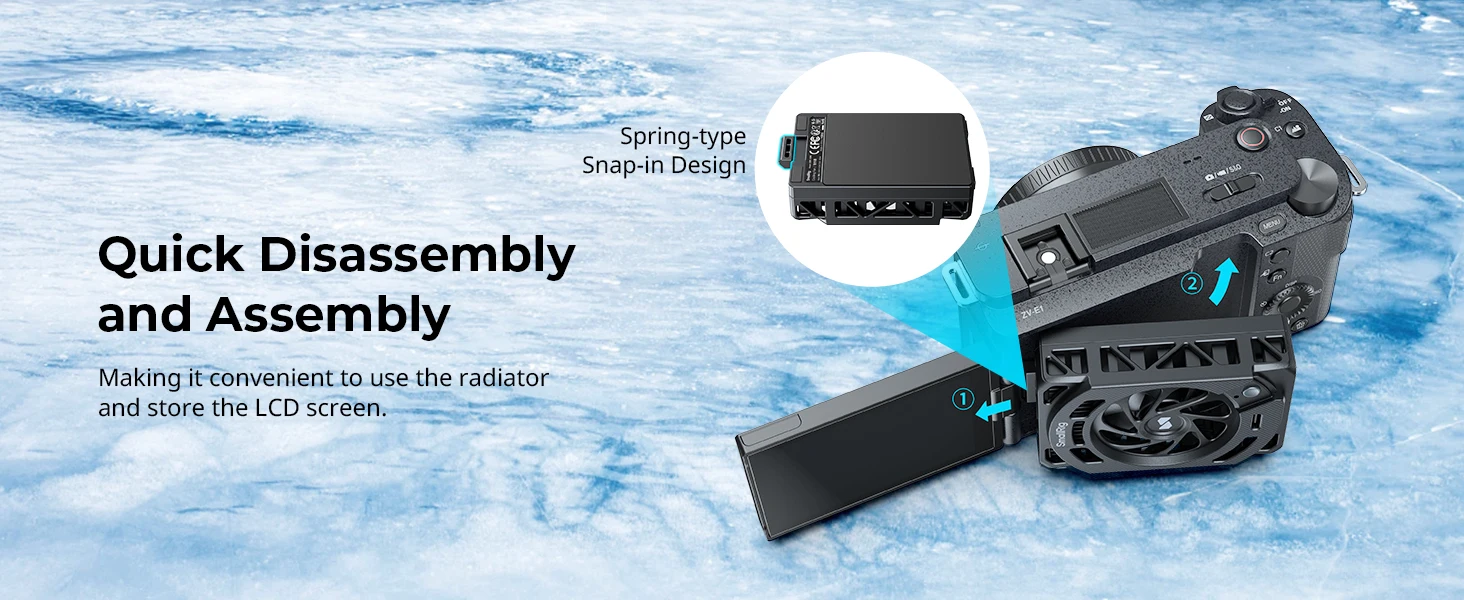

3.Quick mounting and dismounting design, easy to use the cooling fan and camera’s LCD screen storage.

4.Can be used with or without camera cage, lighter and freer to use.

III. Product Description

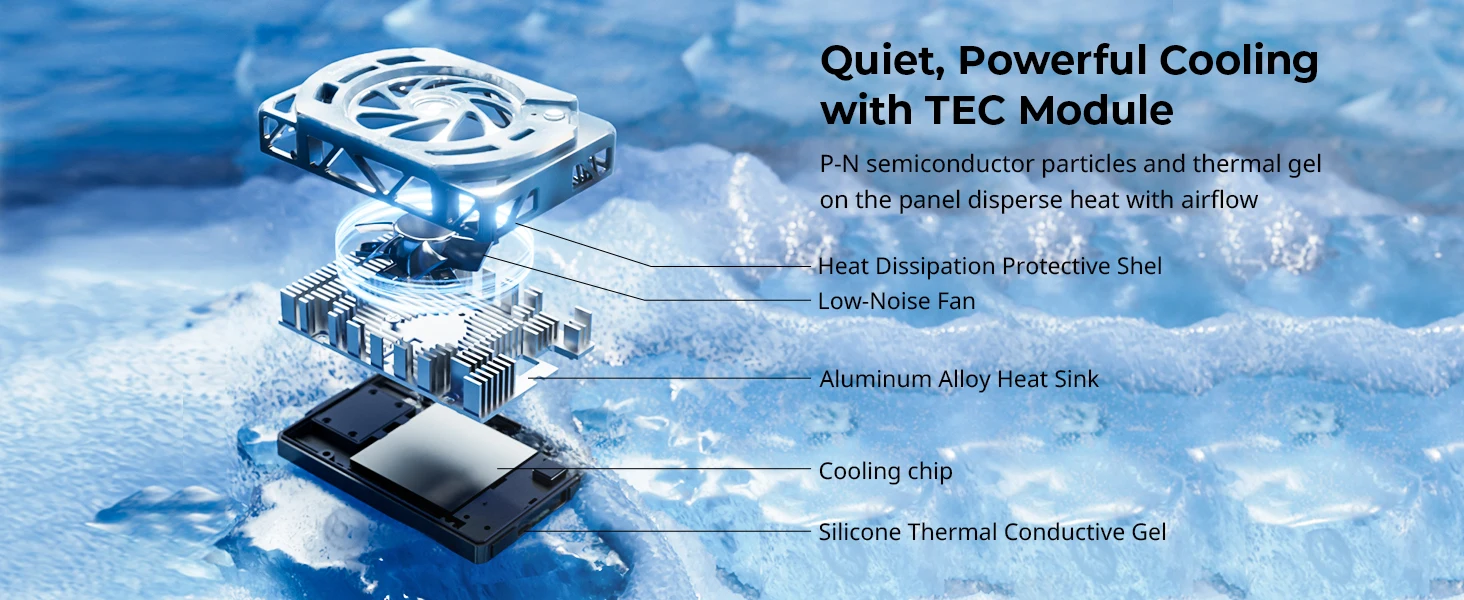

SmallRig Cooling Fan for Sony Selected Cameras 5152 is designed to cool down Sony mirrorless cameras and enhance the recording duration of high specification videos. The cooling fan utilizes a high speed fan with a TEC cooling module to quickly cool the camera and effectively alleviate overheating problems. The cooling fan is adjustable in two speeds to meet different shooting needs. Spring-loaded snap-in mounting design for quick mounting and dismounting, easy access to the cooling fan and storage of the camera’s LCD screen. Can be used with or without camera cage, lighter and freer to use. The cooling fan is compatible with V-Mount Battery Mount Plate Kit 4505 / 4064B / 4063B, with V-Mount battery 3579 / 3580 / 4292 use, heat dissipation, power supply without worry.

Notes:

①　After installing this product, the camera's LCD screen will not be able to be stowed. If you need to store the LCD screen, please remove the cooling fan first.

②　This product does not have a built-in battery and needs to be powered by connecting to an external power source for proper operation.

③　This product is not waterproof, please do not store or use it in a humid environment.

④　Do not block the air inlet or outlet when the cooling fan is in operation.

⑤　Do not use the cooling fan to continue cooling the camera when the camera is not operating to prevent condensation inside the camera.

⑥　When not in use, press and hold the power switch for about 2 seconds to enter standby mode or disconnect the power cord to turn off the device.

IV. Compatibility

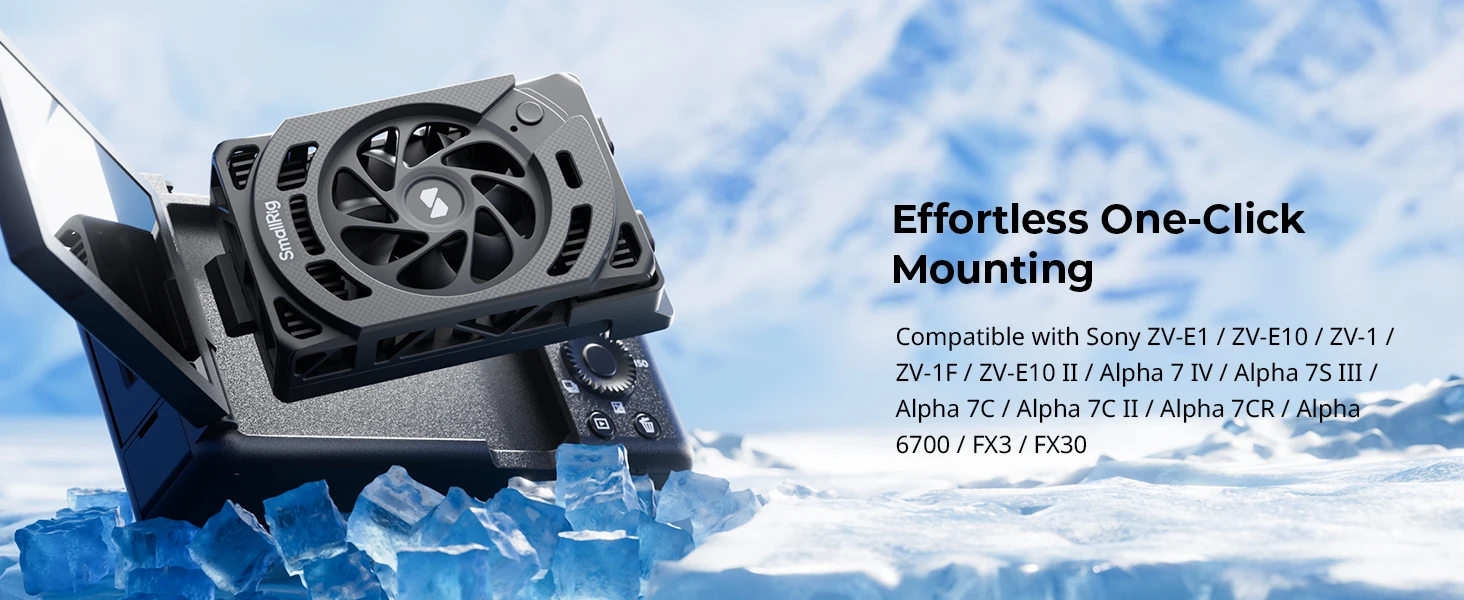

for Sony ZV-E1 / ZV-E10 II / ZV-E10 / ZV-1 / ZV-1F / Alpha 7 IV / Alpha 7S III / Alpha 7C / Alpha 7C II / Alpha 7CR / Alpha 6700 / FX3 / FX30

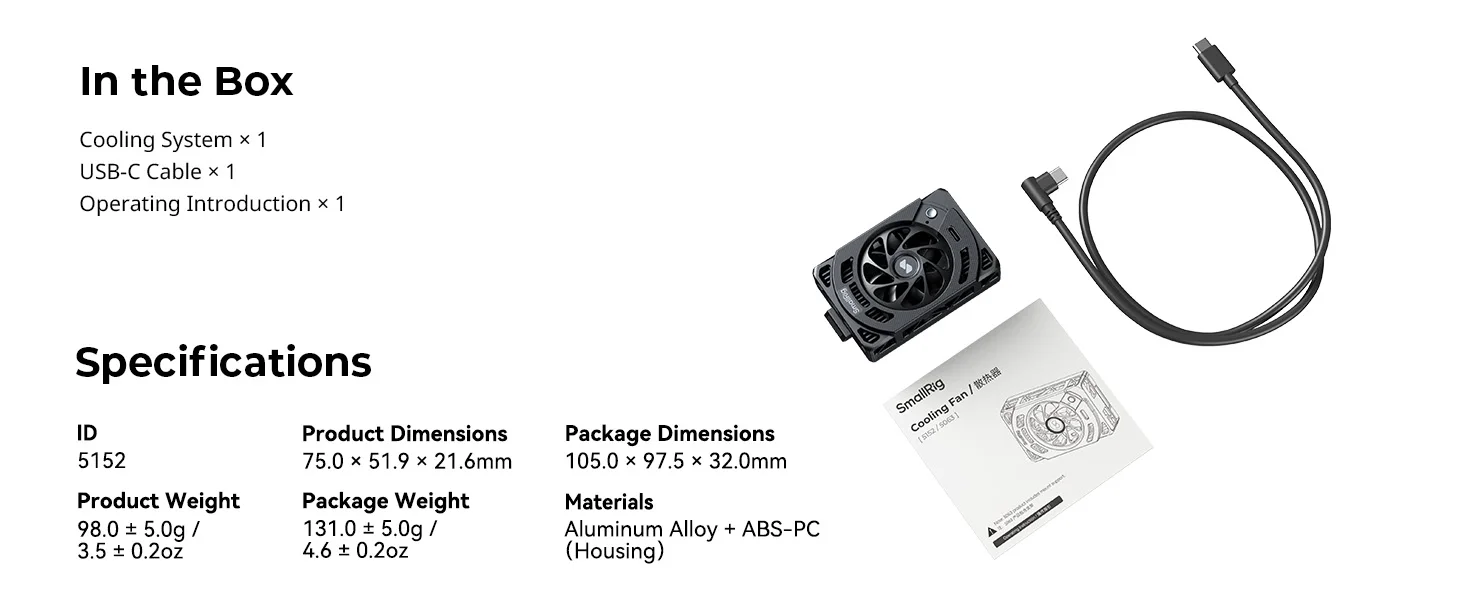

V. In the Box:

1 x cooling fan

1 x USB-C Cable

1 x Operating Introduction

1 x Guarantee Card

VI. Specifications

Operating Voltage 4.5-10.8V

Operating Current 1-2A

Operating Power 5-18W

Operating Temperature 0 to 45℃ / 32℉ to 113℉

Cooling Principle TEC Cooling

Noise Level Normal Mode: ＜40dB

Enhanced Mode: ＜50dB

Fan Speed Normal Mode: 4500RPM

Enhanced Mode: 7000RPM

Product Dimensions 75.0 × 51.9 × 21.6mm

Package Dimensions 105.0 × 97.5 × 32.0mm

Product Weight 98.0±5.0g / 3.5±0.2oz

Package Weight 131.0±5.0g / 4.6±0.2oz

Materials Aluminum Alloy+ABS-PC（Housing）
