SmallRig Wireless Receiver Motor Lite, Controller It Can Deliver a Peak Torque of 4.3 kgf·cm, for DSLR, Mirrorless Lenses -4297

4297 Product Description

I. Product Name in Package: SmallRig Wireless Receiver Motor (Lite) 4297

II. Product Name in Marketing: SmallRig Wireless Receiver Motor (Lite) 4297

III. Key Features:

1.Precision gear assembly design provides a high torque output of around 4.3 kgf·cm, enabling easy control of zoom lenses;

2.Intuitive and user-friendly operation for precise control;

3.Supports PD and QC fast charging protocols, offering up to 21 hours of standby time.

IV. Description

SmallRig Wireless Receiver Motor (Lite) 4297 is designed to provide a high torque and low latency follow focus shooting experience. The motor features red and blue indicator lights to signify connection status and channel (blue light - F00-1; green light - F15-1), offering intuitive and user-friendly operation guidance for simple and efficient control. Operating within a wide voltage input range of 5V-18V, the receiver motor supports PD and QC fast charging protocols. With a variable gear design, it can deliver a peak torque of 4.3 kgf·cm for high torque output, effortlessly driving zoom lenses. Additionally, it supports cross-control with the Magic FIZ system, providing users with more options for adapting to different lenses.

Designer: Victor Tang

V. Precautions

1.The blue light (F00-1) and green light (F15-1) can be interchanged for use with MagicFIZ Wireless Follow Focus Basic Kit (ID: 3781).

2.When the Handwheel Controller and Receiver Motor lights (blue and green) match, it indicates a successful automatic connection.

3.The Wireless Receiver Motor is compatible with the PD and QC protocols. Please use the provided power cord or a USB 3.0 cable to avoid insufficient torque issues.

4.Prolonged high torque zooming may result in the motor surface heating up, which is a normal phenomenon. Please exercise caution to prevent burns.

5.In the event of abnormal motor rotation, please refer to the user manual for instructions on performing a controller reset operation.

6.A flashing red light indicates a low battery or abnormality. Please address any problems promptly.

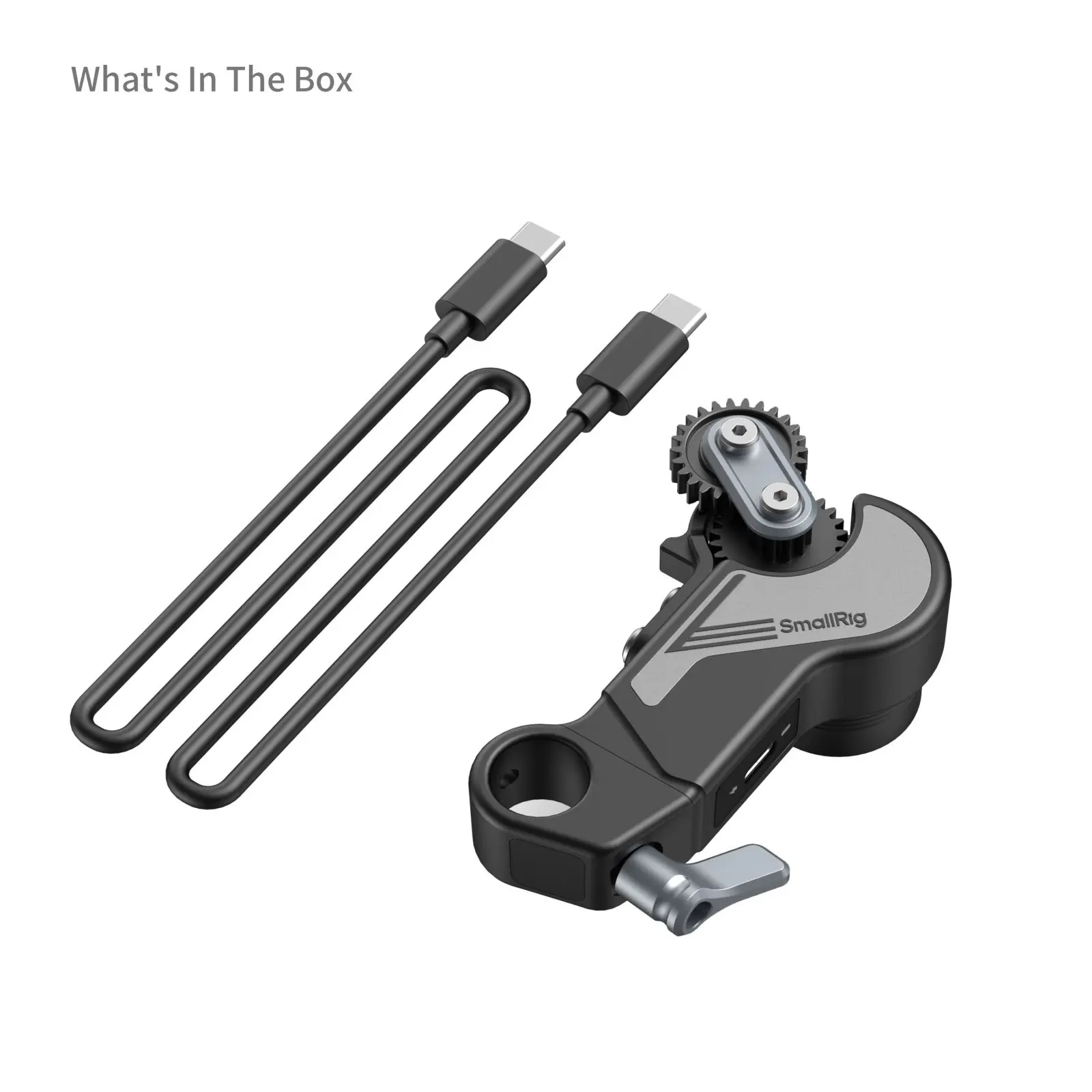

VI. Package:

Wireless Receiver Motor x 1

USB-C to USB-C Cable x 1

VI. Specifications

Product Dimensions: 94 x 56.3 x 35.7mm

Package Dimensions: 130.5 x 81.5 x 40.5mm

Product Weight: 97.5g ± 5g

Package Weight: 150g ± 5g

Material(s): Aluminum Alloy, ABS, Stainless Steel

VII. Related Products

4295, 3262
