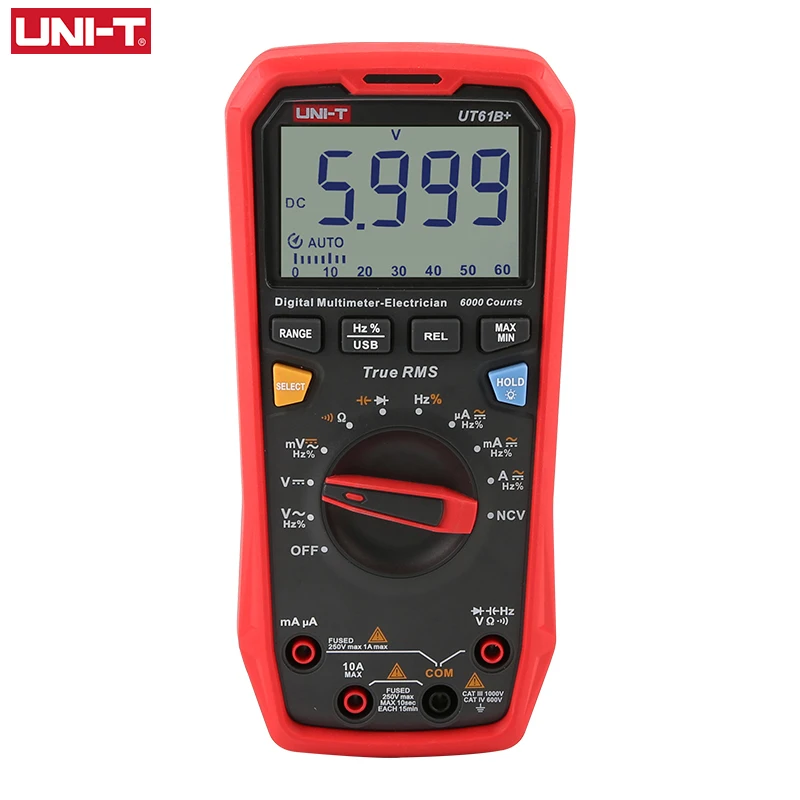

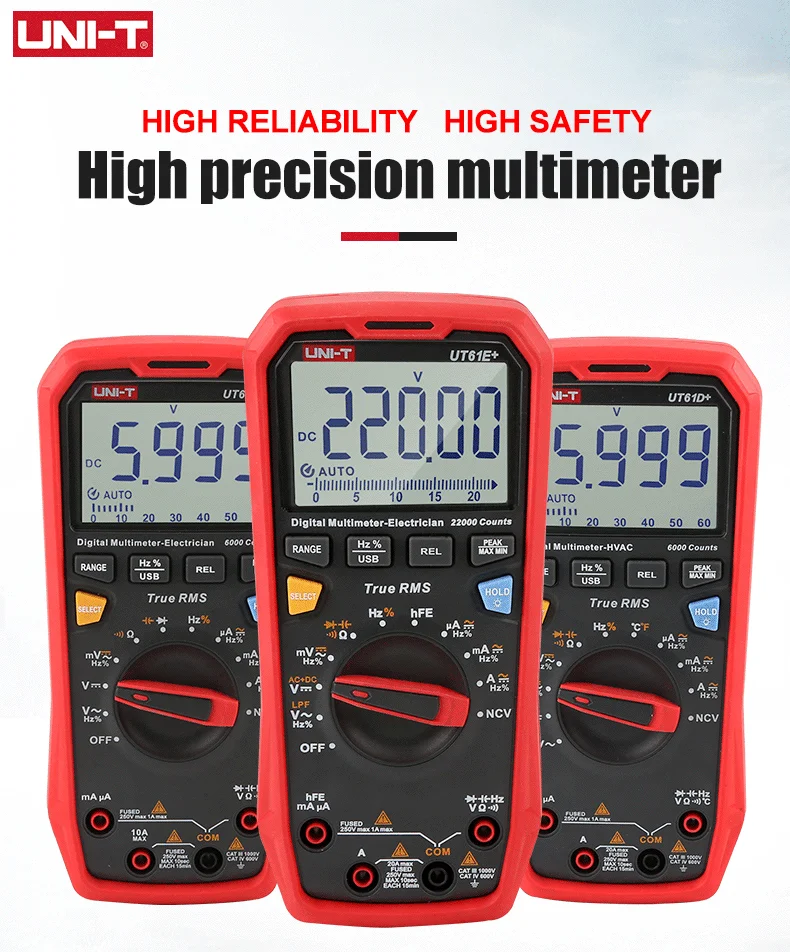

UT61E+ UT61D+ UT61B+ 1000V True RMS Digital Multimeter
UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC. Equipped with audible and visible alarm, this series can provide warning expecially when measuring high voltage/current and temperature.

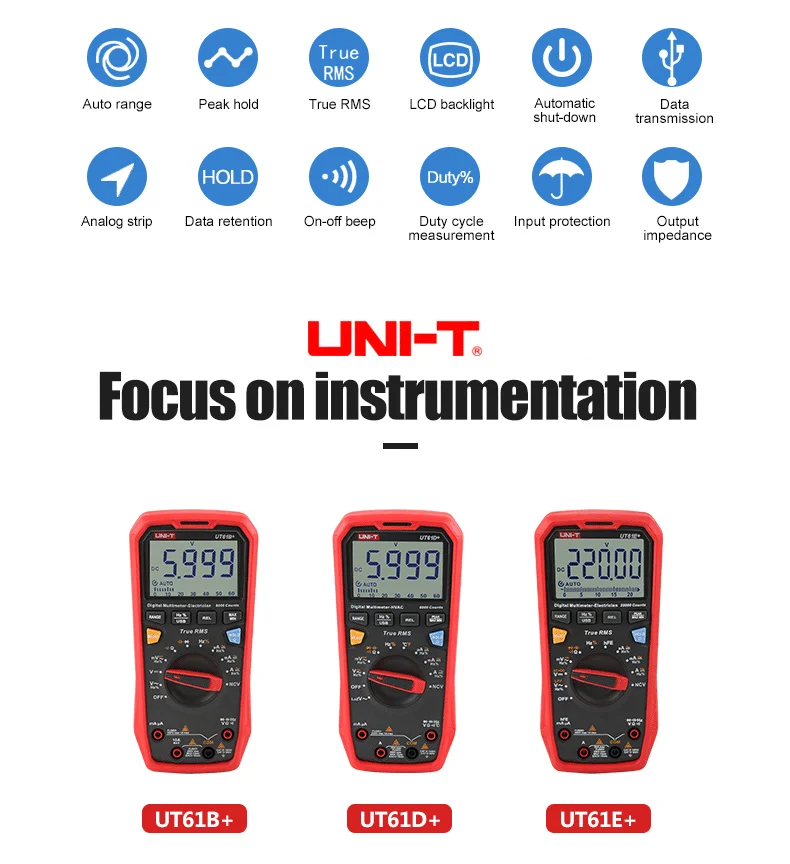

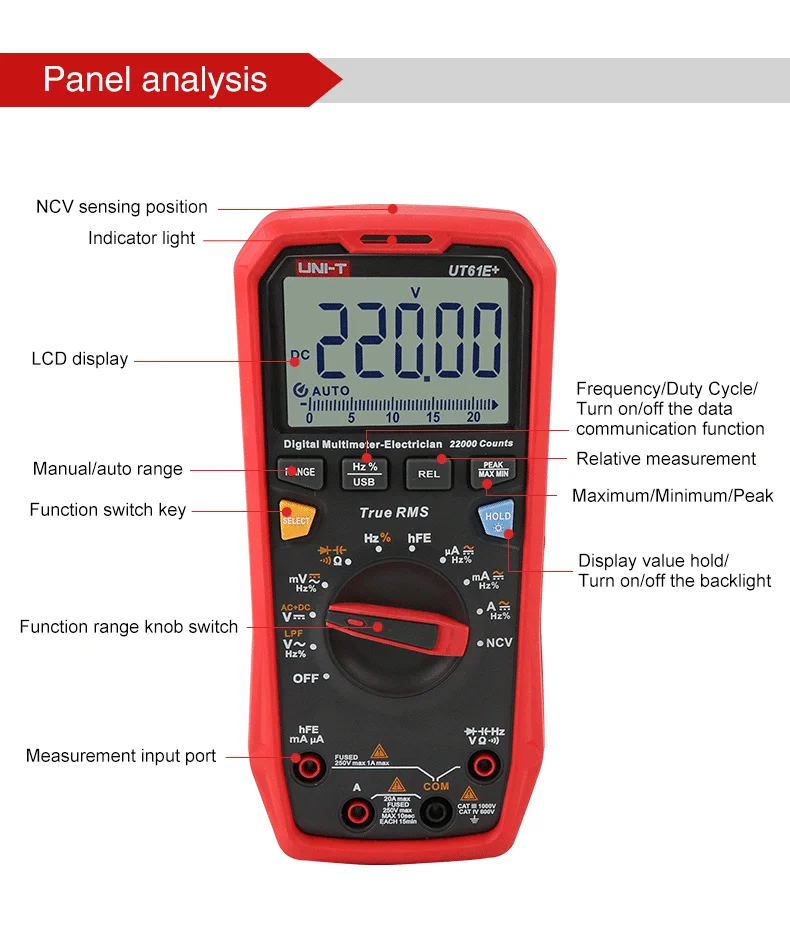

Features：
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
Notice please: battery no include!

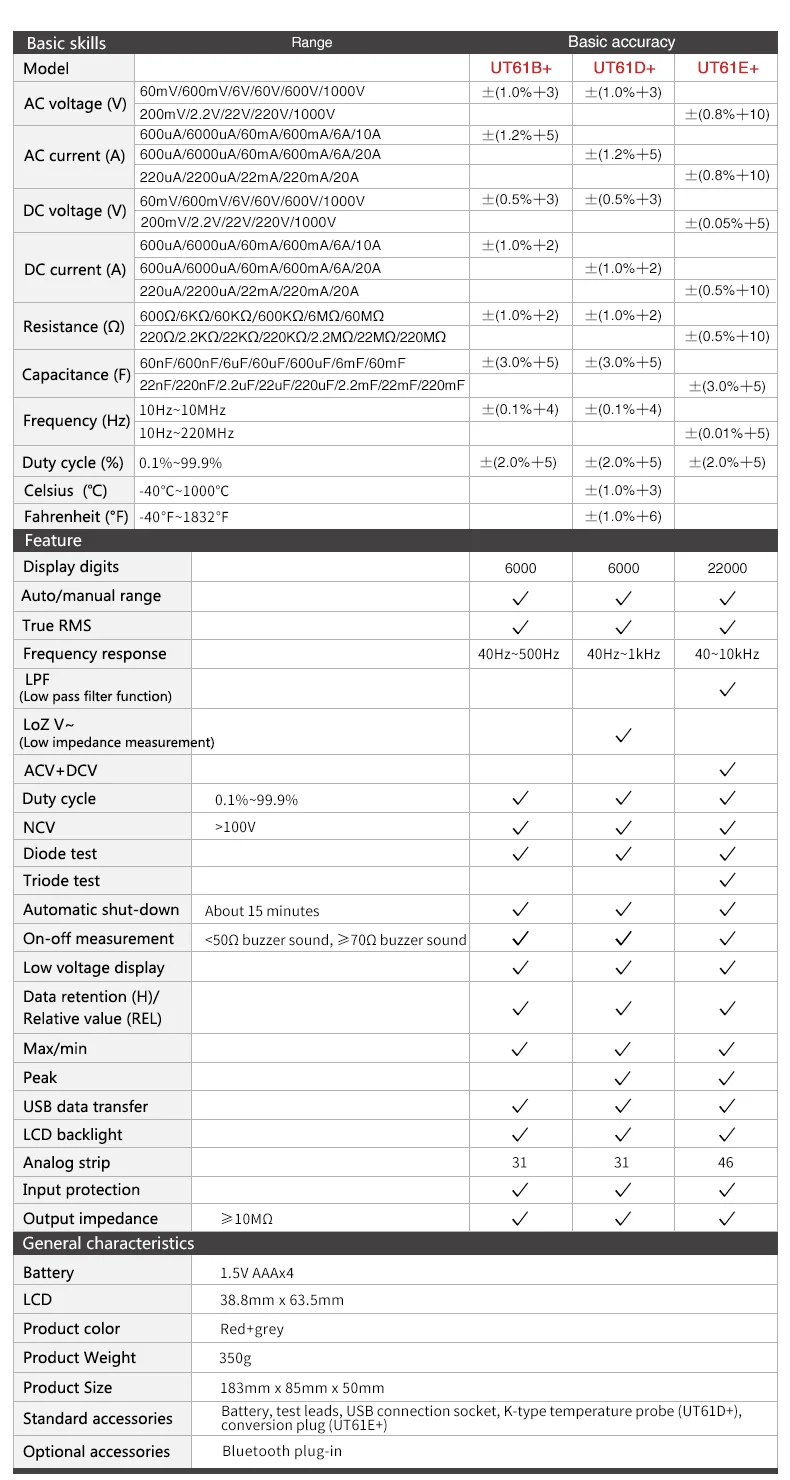

Specifications
Range | UT61B+ | UT61D+ | UT61E+ | |
AC voltage (V) | 1000V | ±(1%＋3) | ±(1%＋3) | ±(0.8%＋10) |
DC voltage (V) | 1000V | ±(0.5%＋3) | ±(0.5%＋3) | ±(0.05%＋5) |
AC current (A) | 10A | ±(1.2%＋5) | ||
20A | ±(1.2%＋5) | ±(0.8%＋10) | ||
DC current (A) | 10A | ±(1%＋2) | ||
20A | ±(1%＋2) | ±(0.5%＋10) | ||
Resistance (Ω) | 60MΩ | ±(1%＋2) | ±(1%＋2) | |
220MΩ | ±(0.5%＋10) | |||
Capacitance (F) | 60mF | ±(3%＋5) | ±(3%＋5) | |
220mF | ±(3%＋5) | |||
Frequency (Hz) | 10MHz | ±(0.1%＋4) | ±(0.1%＋4) | |
220MHz | ±(0.01%＋5) | |||
Duty cycle (%) | 0.1%~99.9% | ±(2%＋5) | ±(2%＋5) | ±(2%＋5) |
Temperature (℃/℉) | -40℃~1000℃ | ±(1%＋3) | ||
-40℉~1832℉ | ±(1%＋6) | |||
Display count | 6000 | 6000 | 22000 | |
Bandwidth (Hz) | 40Hz~500Hz | 40Hz~1kHz | 40~10kHz | |
LPF ACV | √ | |||
LoZ ACV | √ | |||
ACV+DCV | √ | |||
Transistor hFE | √ | |||
Peak Hold | √ | √ | ||
Analog bar | 31 | 31 | 46 | |
General Characteristics | ||||
Power | 1.5V battery (R03) x 4(No include) | |||
Product net weight | 350g | |||

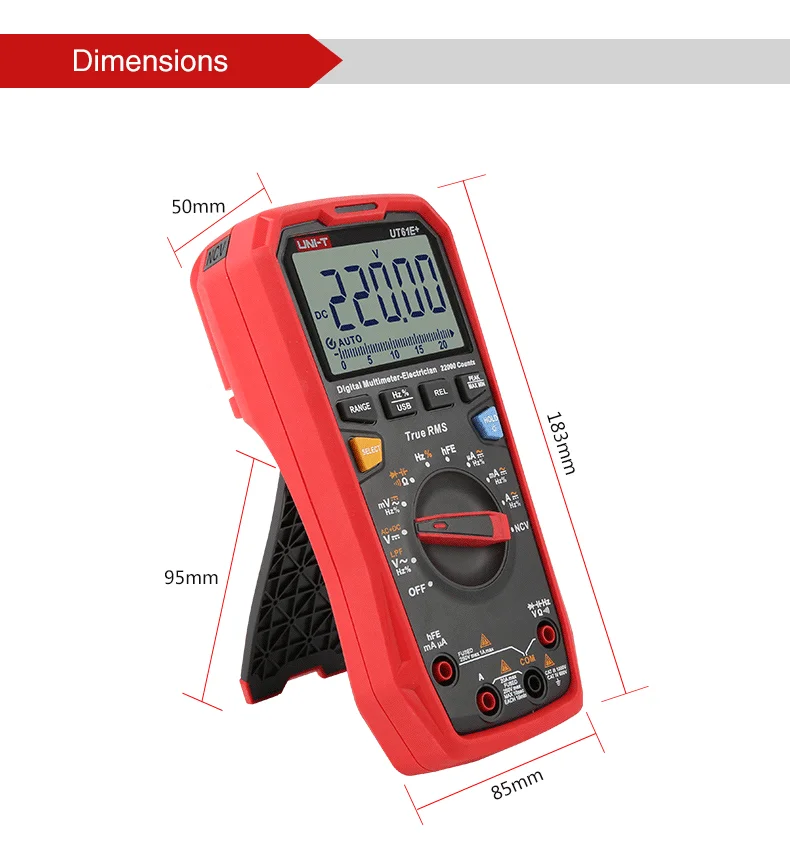

Product size | 190mm x 90mm x 50mm | |||

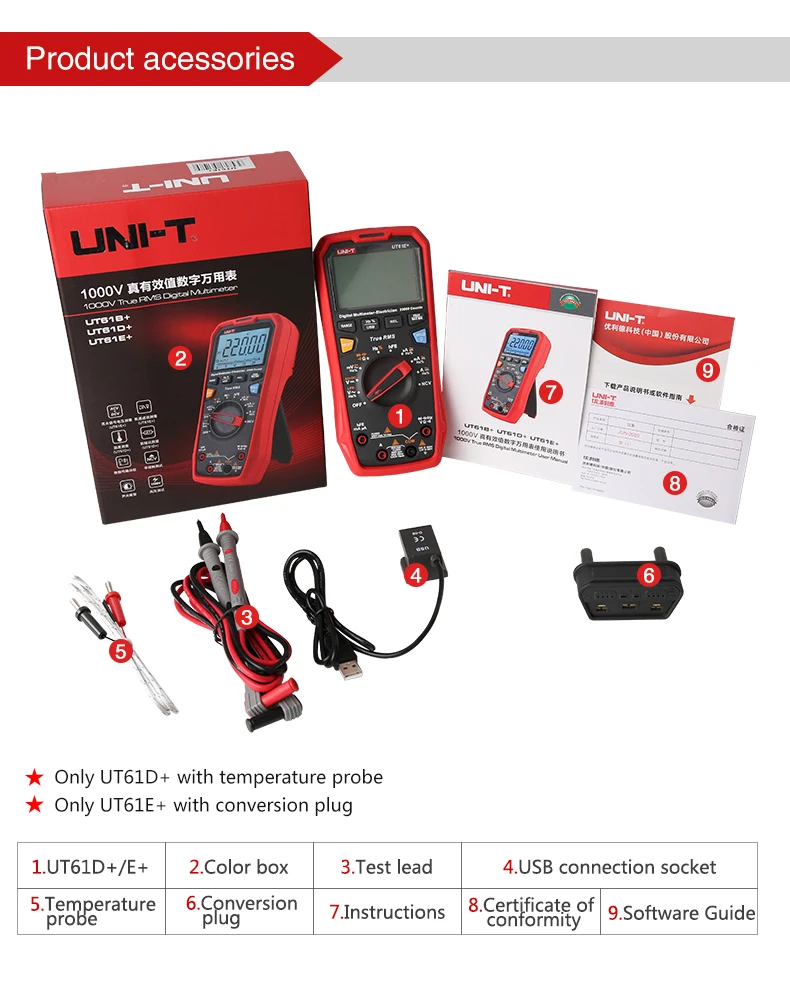

Standard accessories | Gold plated test leads, USB cable, temperature probe (UT61D+),multi-purpose socket (UT61E+), English manual | |||
