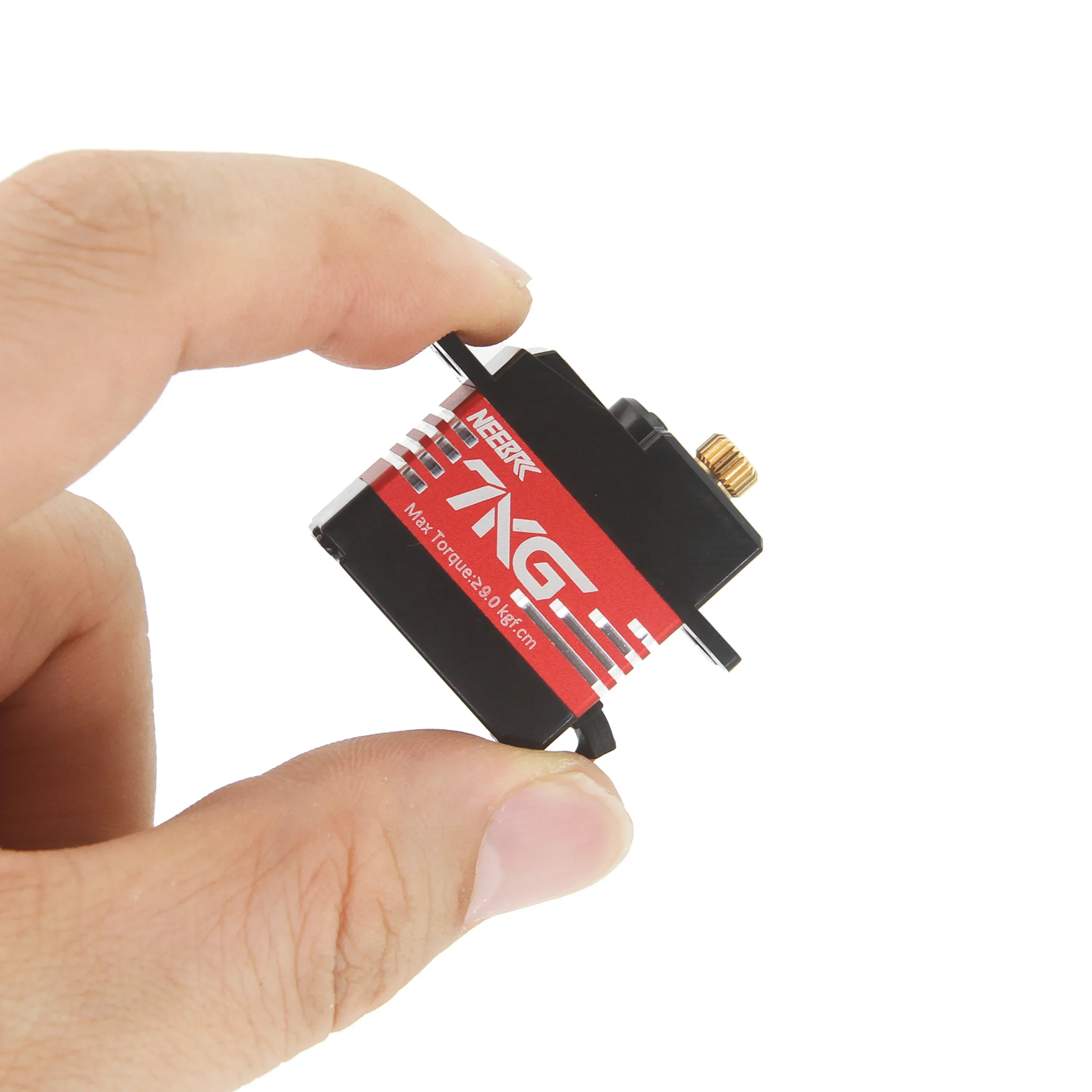

NEEBRC 7KG 17G 21G Metal Gear Half Aluminum Case Micro Servo for 1/16 1/14 1/12 RC Car Wltoys 144010 MJX Hyper Go MN99 MN82 WPL

NEEBRC 7KG 17G 21G Metal Gear Half Aluminum Case Micro Servo for 1/16 1/14 1/12 RC Car Wltoys 144010 MJX Hyper Go MN99 MN82 WPL

Features:

High performance digital standard

Low noise and long service life

Small volume and large torque

Suit for RC car boat helicopter model.

Specifications:
Item name: NEEBRC S007C
Quantity: 1pcs
Operating Voltage: 4.8~6V DC
Rated Voltage:6V
Rated Torque:≥1kgf·cm
Standby Current:≤ 20mA
Constant speed current* (No Load):≦80mA
No Load Speed:≤0.12sec/60°
Stall Current:≦1.3A
Stall Torque:≥9kgf·cm
Dynamic Torque:≥5.8kgf·cm
Rotating Direction:CCW(500~2500us)
Max. Operating Travel Angle:180°±10° (1000~2000μs)
Remote Controller Angle: About 90 Degree
Operating Travel Angle:90° ±1°
Mechanical Limit Angle:360°
Back Lash:≤ 1°
Noise: ≤ 65dB
Case Material:Aluminium alloy(middle shell)/ABS(upper and lower shell)
Gear Material:Metal Gear
Horn Gear Spline:Φ6.0x25T
Motor Type:Core Motor
Communication Interface: PWM
Size: 40× 13.2 × 29.6 mm
Length of Connector cable: 300±10mm (exposed without plug)
Weight:25 ± 2.0g

Package included:
1 * 7KG Metal Gear Digital Servo
1 * Servo Arm Accessories
