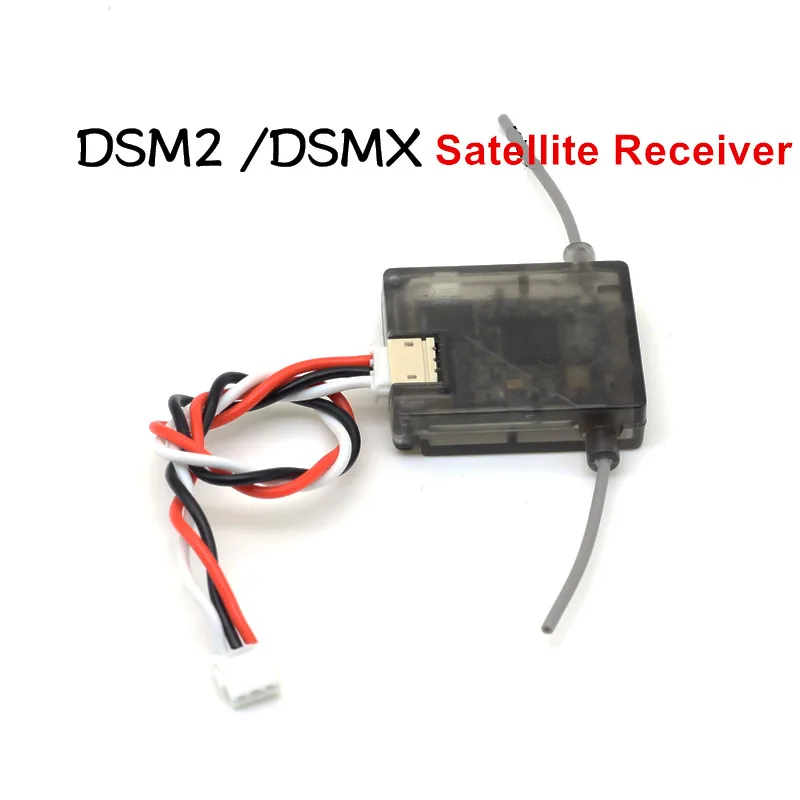

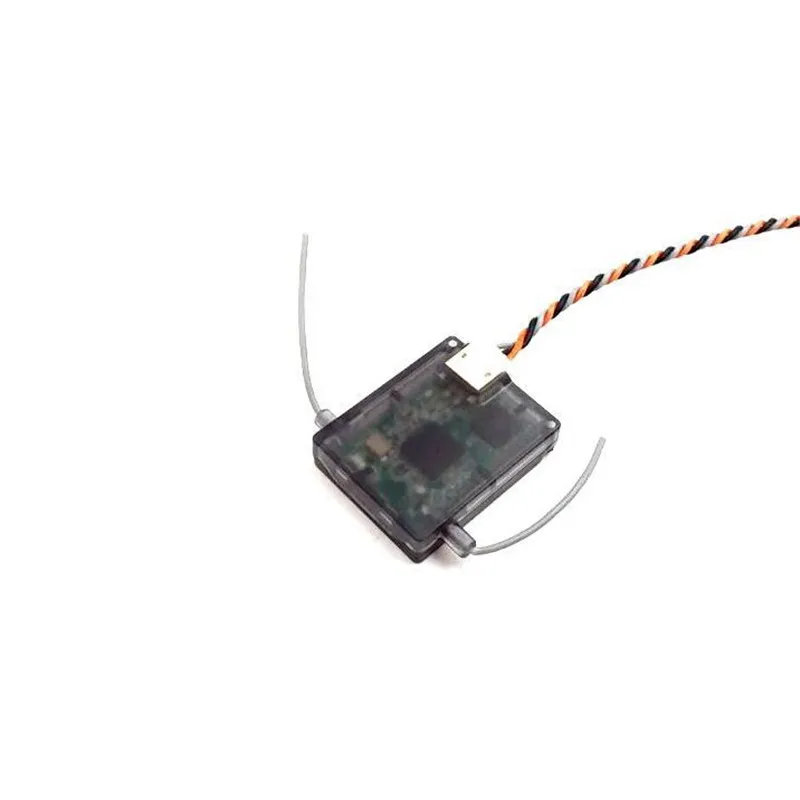

DSMX DSM2 2.4G 8CH Satellite RX Compact Anti Interference Spektrum AR6210 AR8000 AR9020 RC Drone Car Boat Quadcopter

DSMX DSM2 2.4G 8CH Satellite RX Compact Anti Interference Spektrum AR6210 AR8000 AR9020 RC Drone Car Boat Quadcopter

✅ Dual Protocol Compatibility – Supports both DSMX and DSM2, works seamlessly with Spektrum AR6210, AR8000, AR9020, AR12120 and other main receivers, ensuring broad compatibility for your RC system.

📡 Compact Satellite Design – Ultra‑lightweight and miniature size fits easily into tight spaces in RC drones, cars, boats, and quadcopters, reducing weight and allowing flexible placement for optimal signal reception.

🔒 Anti‑Interference Technology – 2.4GHz frequency hopping with advanced filtering delivers a stable, glitch‑free link, minimizing signal loss and interference from other devices even in crowded environments.

🔋 Wide Voltage Range – Operates from 3.5V to 9.6V, compatible with 1S‑2S LiPo, LiFe, or NiMH batteries, making it versatile for various power systems without additional regulators.

⚡ 8‑Channel Support & Easy Installation – Designed for 8‑channel systems, plug‑and‑play via standard satellite port, instantly expanding your main receiver’s range and reliability with no complicated setup.

How to Use:
1. Insert the dual frequency plug into the BIND channel of the receiver, and insert the battery (or power on the ESC) into any other unused channel. At this time, the LED lights of the internal receiver and the external receiver are flashing.
2. The transmitter sets the state of each channel (it is the protection state when out of control, under normal circumstances, the throttle is at the lowest ), press and hold the code key (light) on the remote control, and turn on the power of the transmitter, (preset full channel protection function set here).
3. At this time, the LED light of the internal receiver changes from fast flashing to slow flashing, and the LED lights of the receiver and the external receiver turn steady on within a few seconds.

Specification:
Item Type: DSMX Satellite
Product Material: Plastic, Electronic Components
Channels: 8
Modulation: Dsmx
Frequency Band: 2.4Ghz
Voltage Range: 3.5V-9.6V
Applicable To: for AR6210 AR12120 AR9020 Universal

Note:
1. Please allow 1‑3mm error due to manual measurement. Thanks!
2. The monitor calibration is inconsistent, the color of the item shown in the photo may be slightly different from the actual object.

• 100% Brand New

• 1X DSM2 DSMX Satellite Receiver
