Surpass Hobby Waterproof RC ESC M35A/45A/60A Brushless Speed Controller 2-3S for 1/10 1/12 1/14 1/16 RC On-road Buggy Monster

Surpass Hobby Waterproof RC ESC M35A/45A/60A Brushless Speed Controller 2-3S for 1/10 1/12 1/14 1/16 RC On/Off-road Buggy Monster Car

Feature:

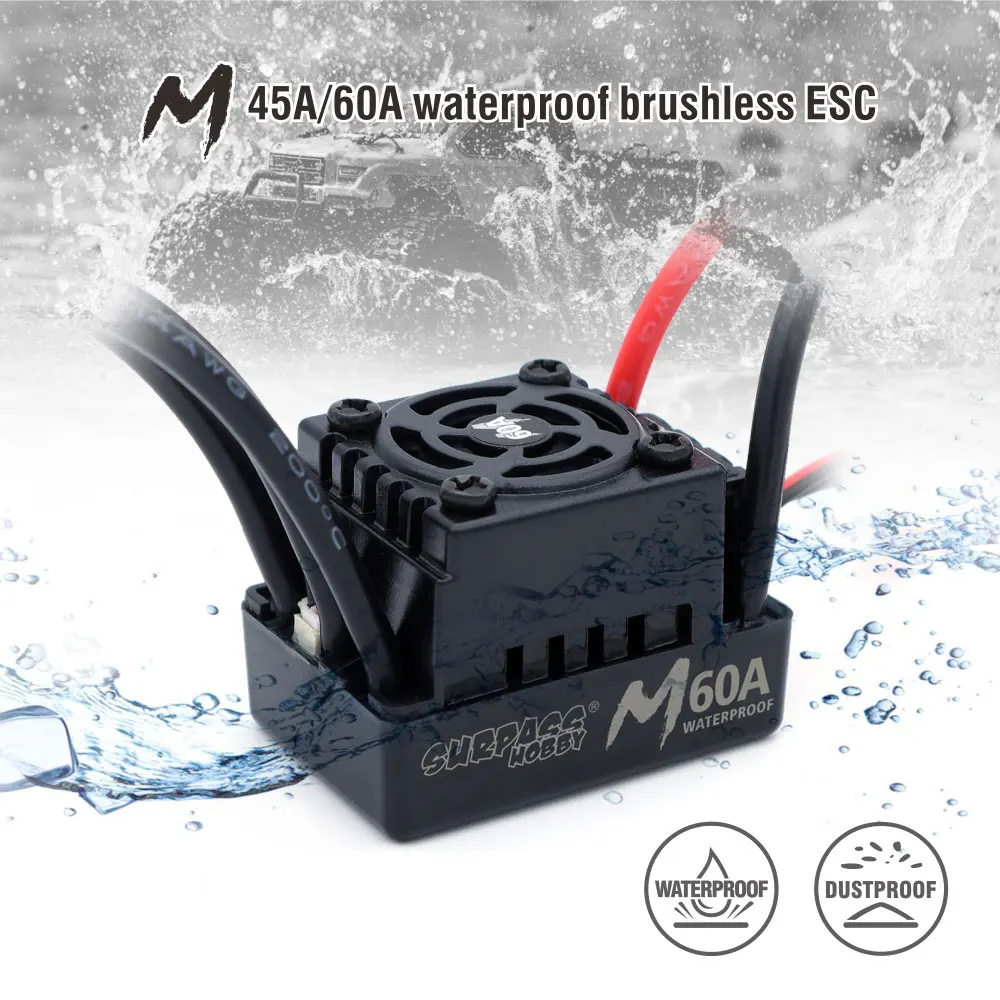

1. Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)

2. Specially designed for RC car with excellent start-up, acceleration and linearity features.

3.Compatible with sensorless brushless motor.

4. The strong resistant current capability,excellent heat dissipation.

5. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery/Throttle signal loss protection /Motor blocked protection.

6. Low voltage cut-off protection the motor emits"Beep-Beep"and the LED flashes.

7.Built-in switch-mode BEC 5.3V/2A(M35A Built-in analog-mode BEC 5V/2A) for usage with high torque and high voltage servos.

8. Easily programmed and compatible with pocket-sized program card.

Specification:

Model:M35A

Cont.Current/ Burst Current: 35A/120A.

Motor Type: Sensorless Brushless Motor

For 2S Lipo or 6 cells NiMH:

1.on-road:28XX-size or smaller motor with the KV<6000

2.Off-road /Buggy/Monster:28XX-size or smaller motor with the KV<4000

For 3S Lipo or 9 cells NiMH:

1.On-road:28XX-size or smaller motor with the KV<4000

2.Off-road /Buggy/Monster:28XX-size or smaller motor with the KV<3000

Suitable Car: 1/16,1/14 car

Resistance:0.0021ohm

Battery: 2~3 cells Lipo, 4~9 cells NiMH

BEC Output: 5V/2A(Analog mode)

Connet to motor:3.5mm

Dimension:40x29x29.2mm

Weight:47g

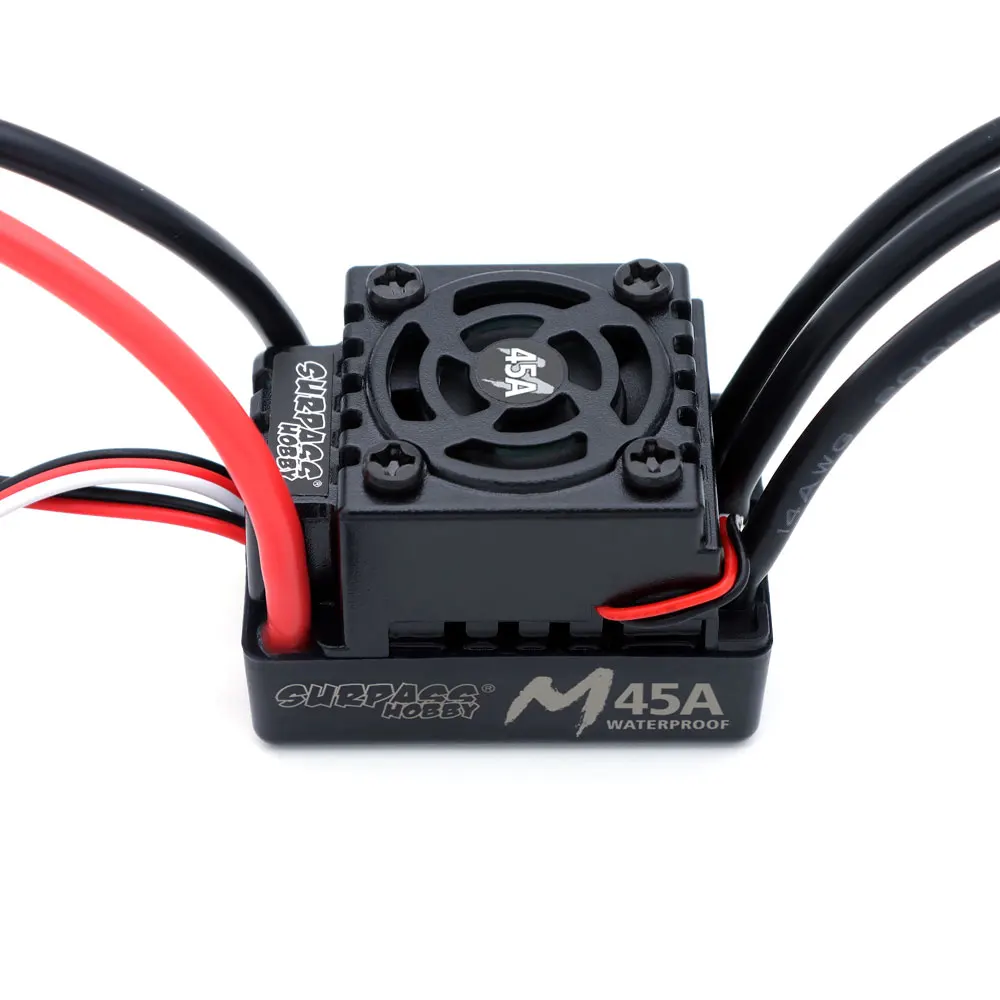

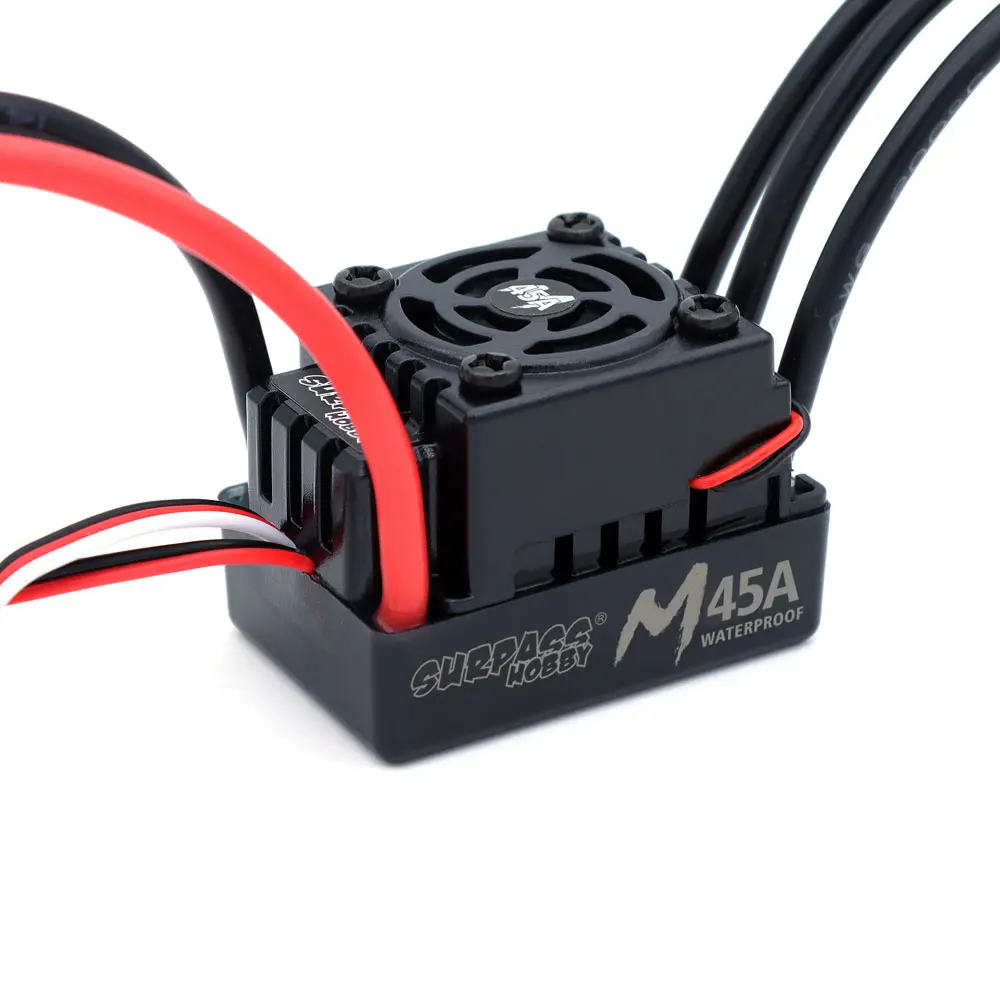

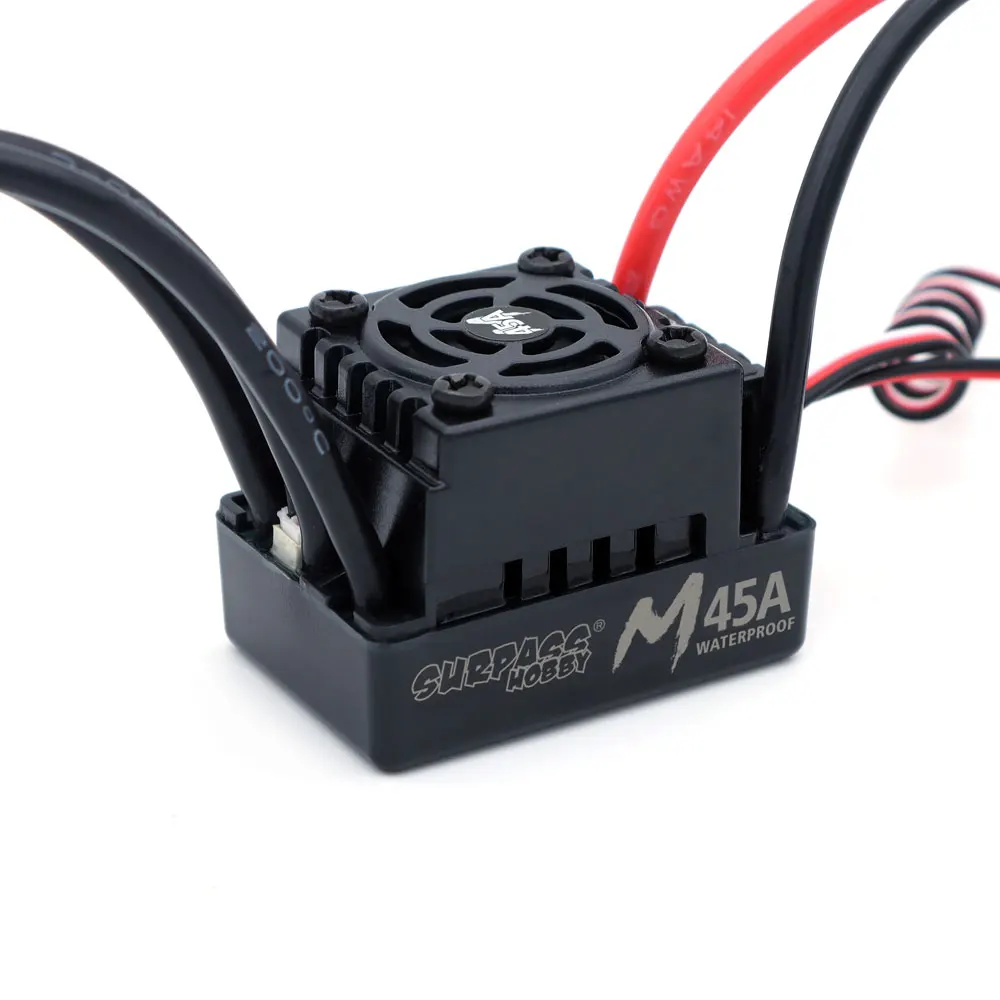

Model:M45A

Cont.Current/ Burst Current: 45A/200A.

Motor Type: Sensorless Brushless Motor

For 2S Lipo or 6 cells NiMH:

1.on-road:F540 or smaller motor with the KV<6500

2.Off-road /Buggy/Monster:F540 or smaller motor with the KV<4500

For 3S Lipo or 6 cells NiMH:

1.On-road:F540 or smaller motor with the KV<4000

2.Off-road /Buggy/Monster:F540 or smaller motor with the KV<3000

Suitable Car: 1/14,1/12,1/10 car

Resistance:0.0014ohm

Battery: 2 cells Lipo, 4~6 cells NiMH

BEC Output: 5.3V/2A(Switch mode)

Connet to motor:4mm

Dimension:42.5x29x30mm

Weight:56g

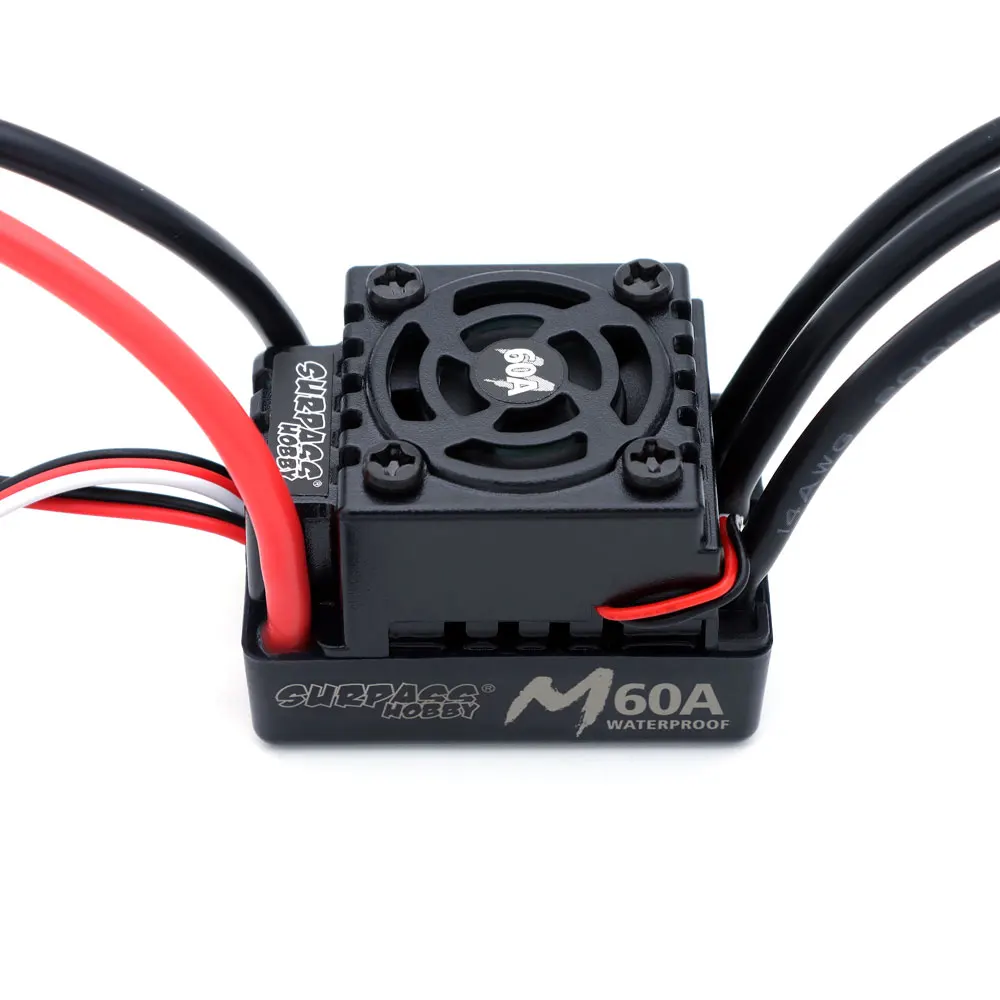

Model:M60A

Cont.Current/ Burst Current: 60A/320A.

Motor Type: Sensorless Brushless Motor

For 2S Lipo or 6 cells NiMH:

1.on-road:3650 or smaller motor with the KV<6000

2.Off-road /Buggy/Monster:3650 or smaller motor with the KV<4000

For 3S Lipo or 9 cells NiMH:

1.On-road:3650 or smaller motor with the KV<4000

2.Off-road /Buggy/Monster:3650 or smaller motor with the KV<3000

Suitable Car: 1/14,1/12,1/10 car

Resistance:0.0007ohm

Battery: 2~3 cells Lipo, 4~9 cells NiMH

BEC Output: 5.3V/2A(Switch mode)

Connet to motor:4.0mm

Dimension:42.5x29x30mm

Weight:61g
