Hobbyocean 50mm 3-4S BRUSHLESS EDF Duct Fan 40A ESC 4900KV 4300KV 11-Propeller for Brushless Motor Rc Jet Airplane EDF Plane

Hobbyocean 50mm 3-4S BRUSHLESS EDF Duct Fan 40A/50A ESC 4900KV 4300KV 11-Propeller Brushless Motor Rc Jet Airplane EDF Plane

Hobbyocean 50mm 3-4S BRUSHLESS EDF Duct Fan 40A/50A ESC 4900KV 4300KV 11-Propeller Brushless Motor Rc Jet Airplane EDF Plane

Description:

Adopt composite processing and injection molding, dynamical system with light weight, and with rigidity and toughness.

Perfect dynamic balance of the . The bucket fits the air duct in the right position, and the sound and efficiency are comparable to metal.

Good dissipation performance allows the engine to operate more efficiently, providing optimum performance while extending engine life.

Small size and lightweight, well designed with strong anti-interference.

Exquisite workmanship, perfectly fit the model, easy for installation.

Specification:

Brand: Hobbyocean

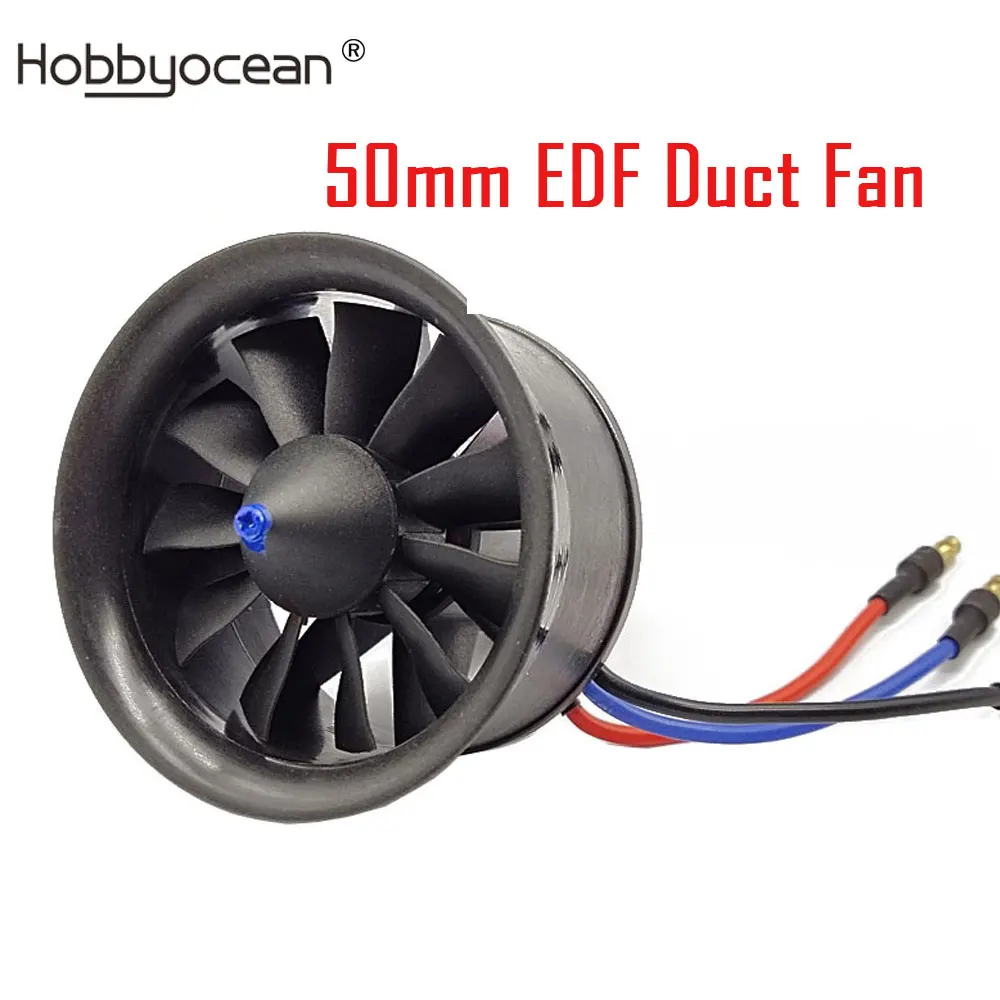

Item Product: EDF Duct Fan

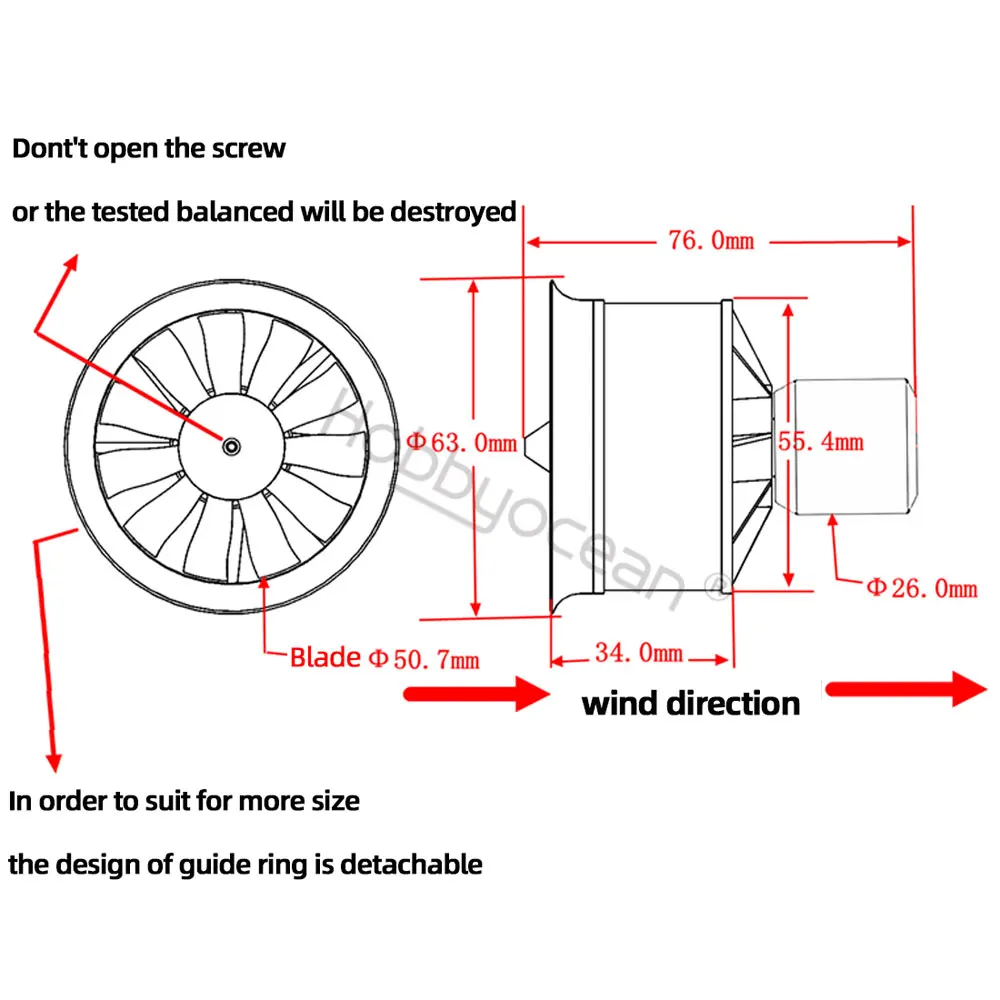

For EDF Unit: Approx. 50mm/2in 11

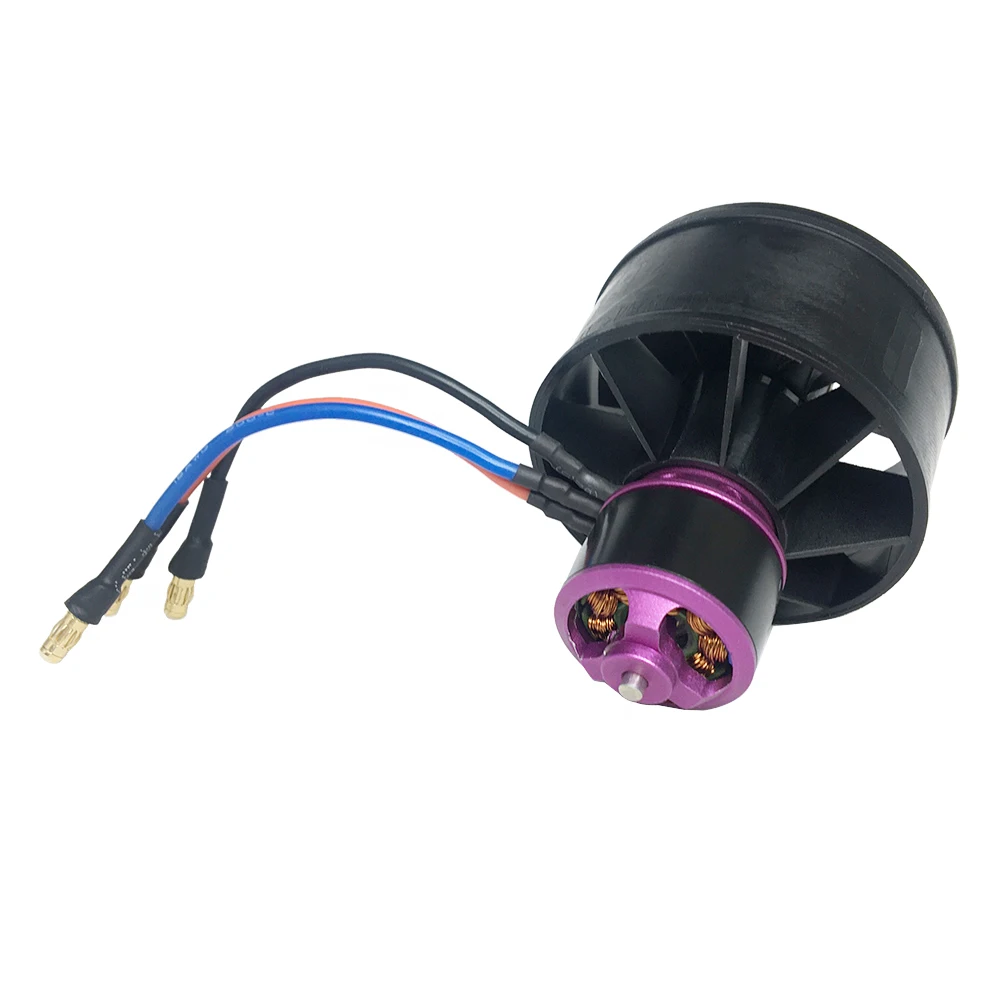

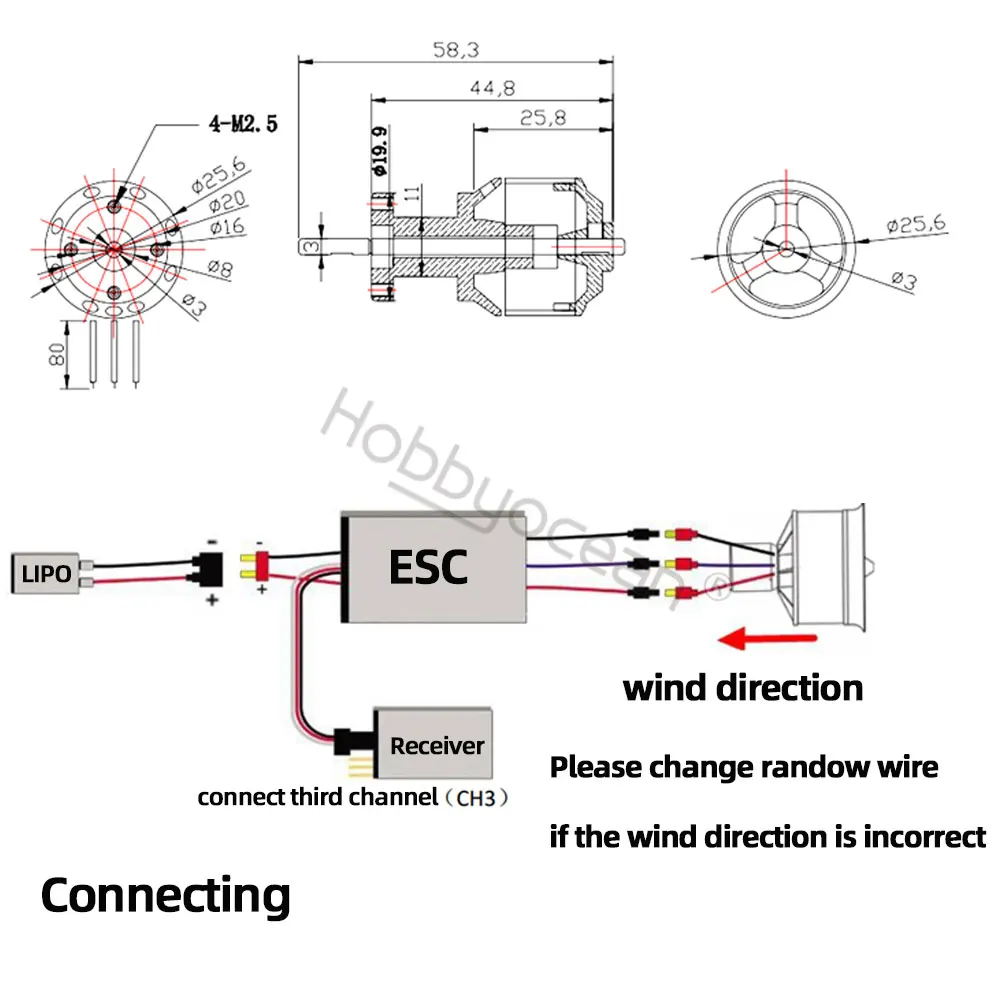

Brushless Motor: D2627 4900KV/4300KV(Optional)

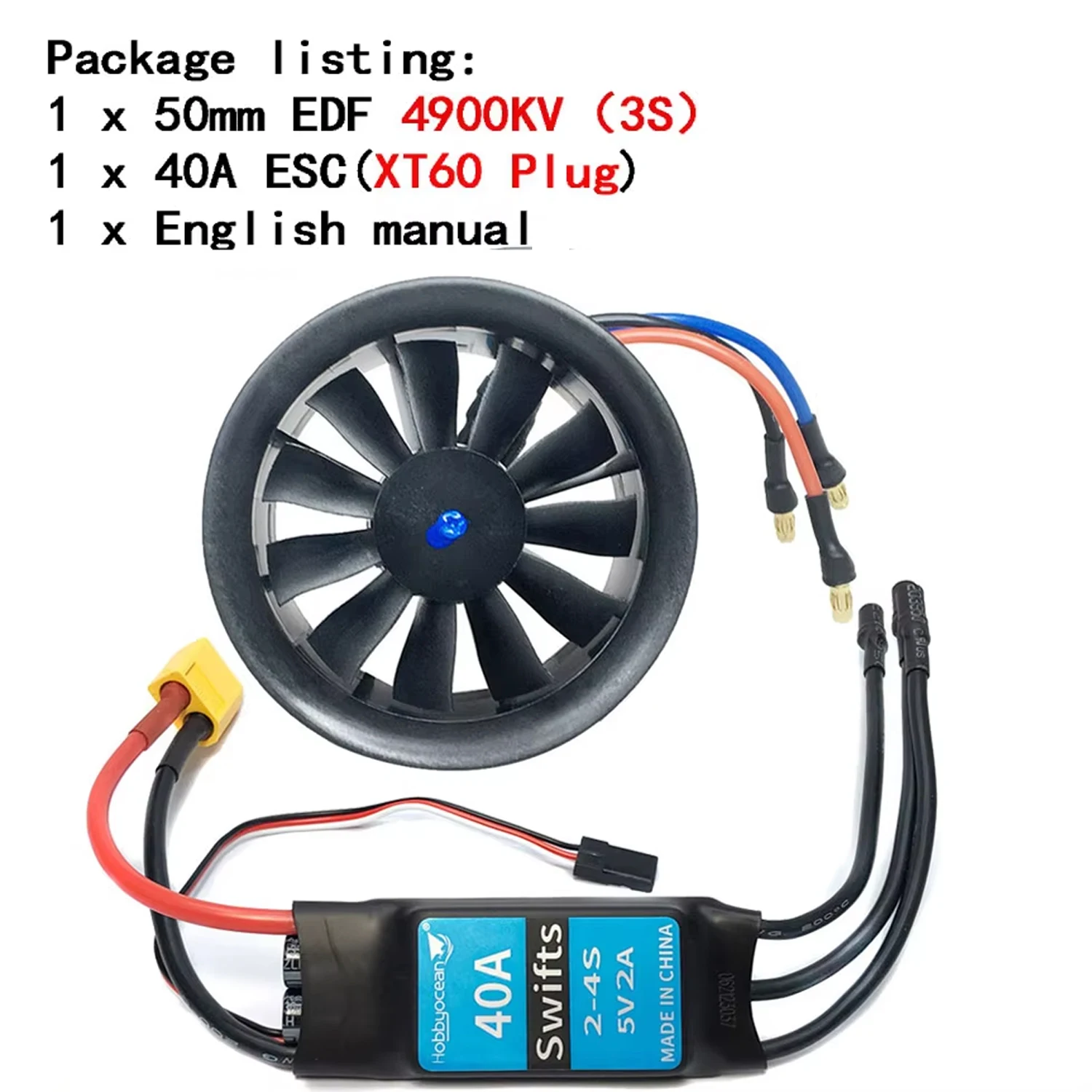

Motor 4900KV Specifications:

- KV: KV4900(3S Lipo)

- Number of Batteries (Lipo) : 3S(4900KV)

- Maximum Voltage: 12.6 V

- Maximum Continuous Current (A)/60 s: 38A

- Total Power Load: 478W

- Max thrust: 770g

- Recommended ESC: 40A

- Recommended Battery: 35C 3 S 1500mAh (NOT included)

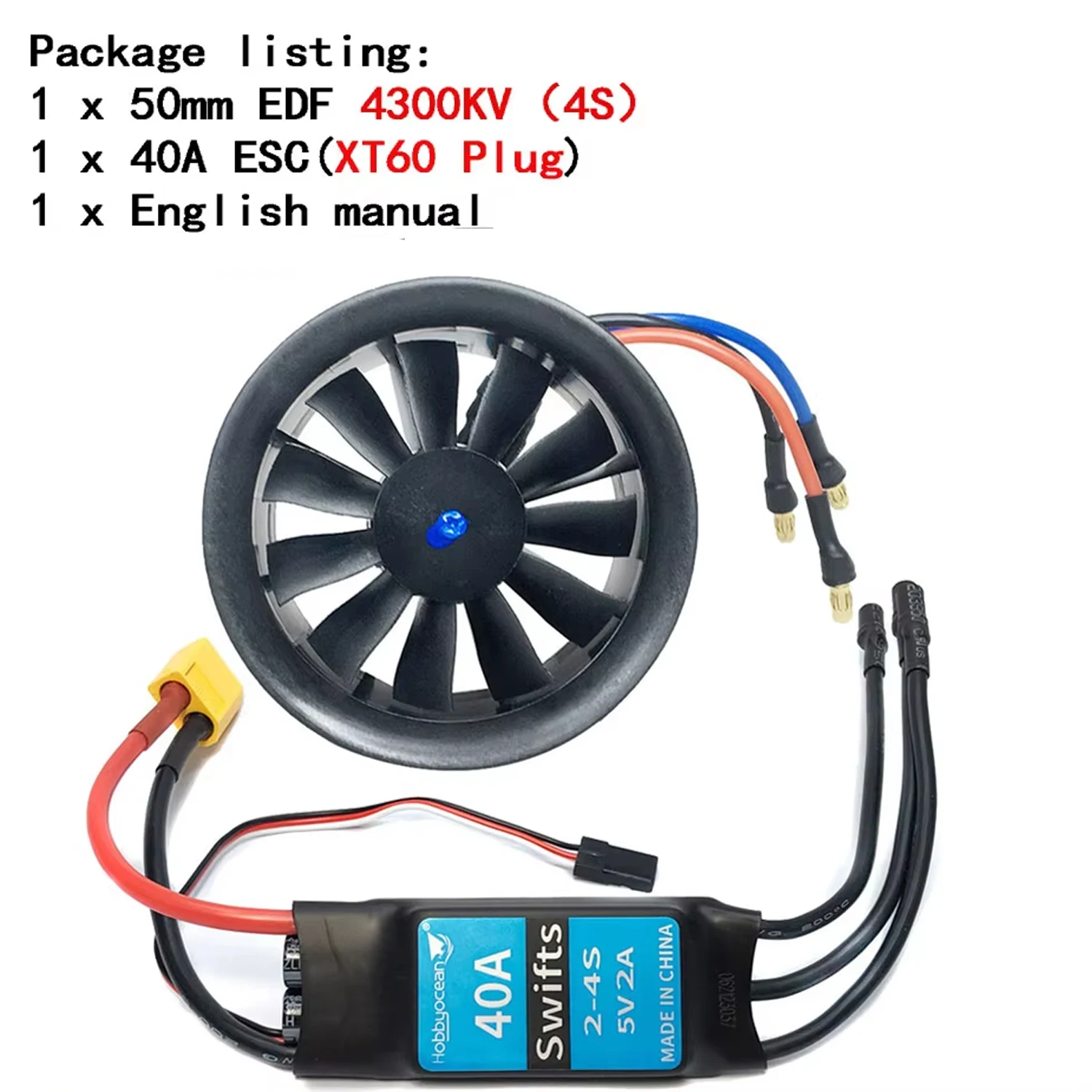

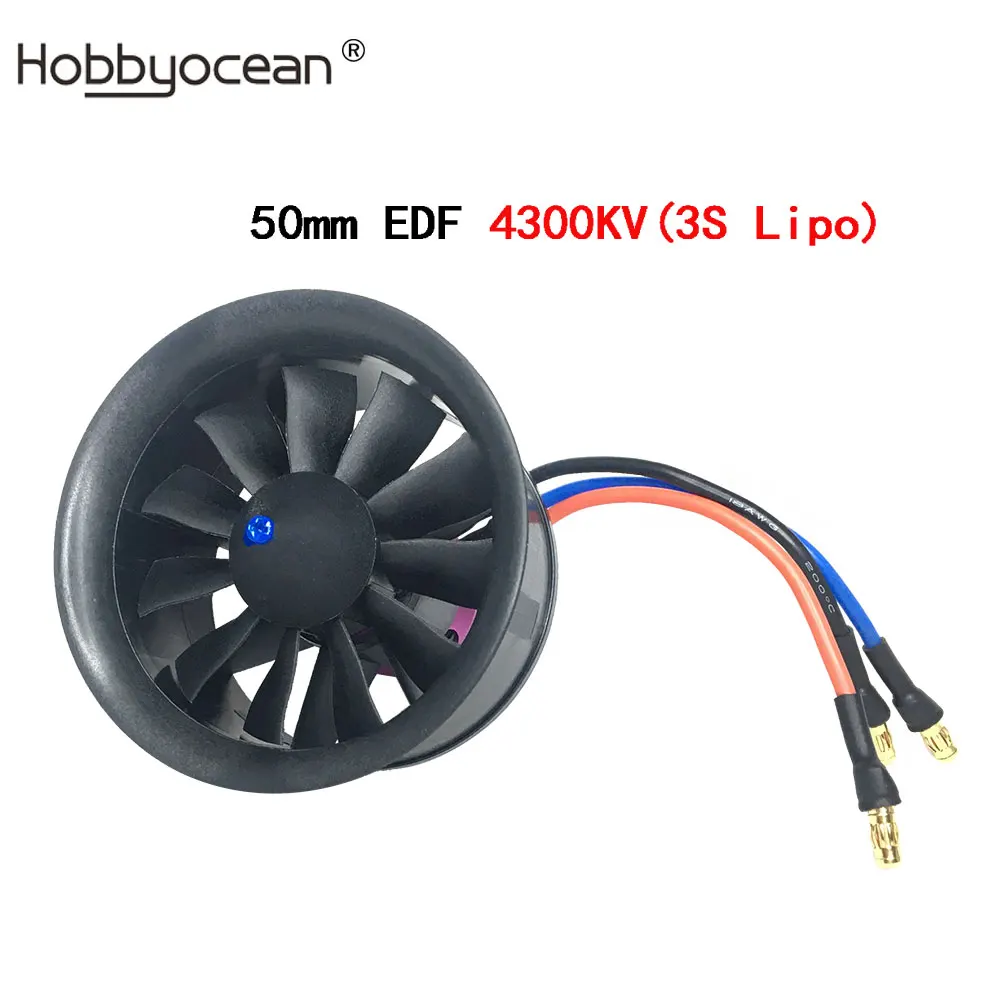

Motor 4300KV Specifications:

- KV: 4300KV (4S Lipo) Optional

- Number of Batteries (Lipo) : 4S(4300KV)

- Maximum Voltage: 16.8 V

- Maximum Continuous Current (A)/60 s: 38A

- Total Power Load: 670W

- Max thrust: 950g

- Recommended ESC: 40A

- Recommended Battery: 35C 4S 1800mAh (NOT included)

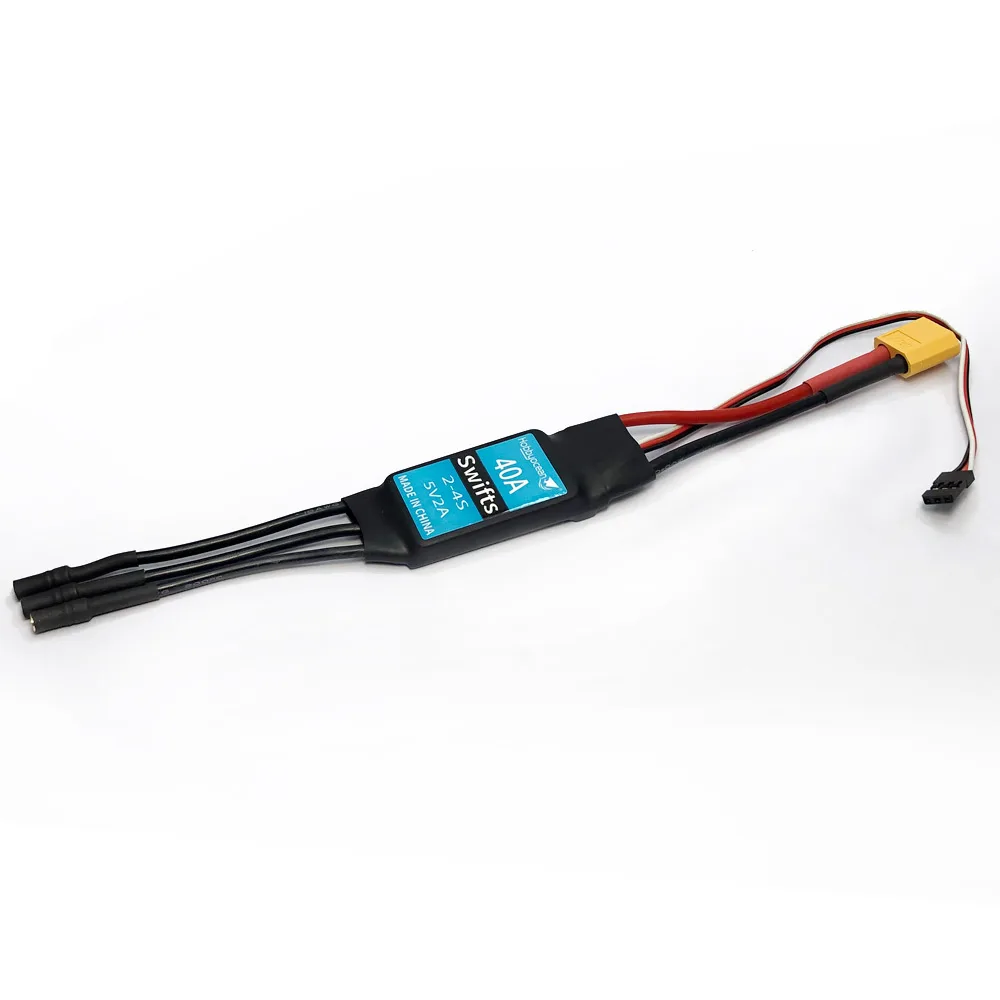

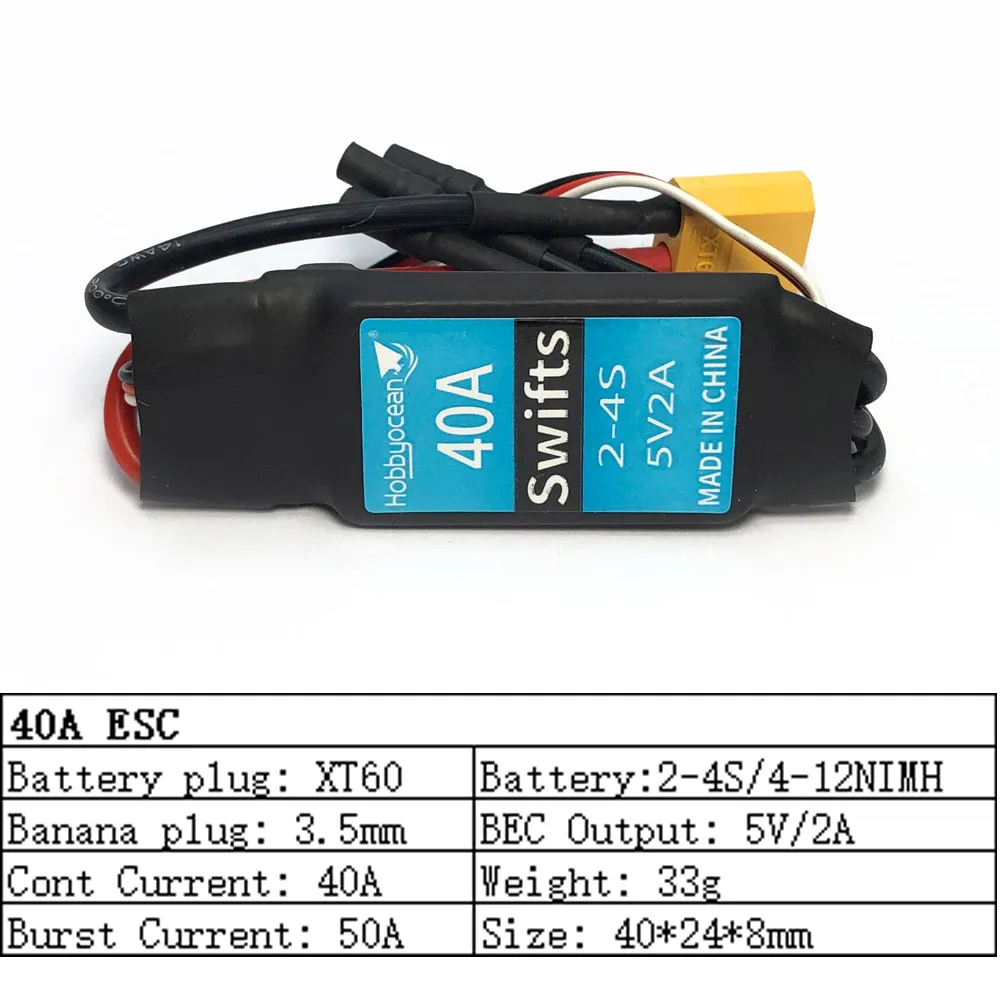

40A ESC Specification：

Brand: Hobbyocean

Model: Swifts 40A

Con. Current: 40A

Burst Current: 50A

BEC: 5V / 2A

Lipo: 2-4S

Weight: 51g

Banana Plug: 3.5mm

Size: 65*26*15.5mm

Suit for: RC FMS E-flite EDF Jet Airplane
