BZGNSS BZ-181 251 GPS Module M10 GNSS Receiver 5V 10Hz UBLOX Ceramic Antenna 72CH Mini Racing Drone FPV Navigation RC Model

BZGNSS BZ 121 BZ 181 BZ 251 Dual Protocol GPS Positioning Module Suitable FPV Out Of Control Rescue Fixed-wing Crossing Drones

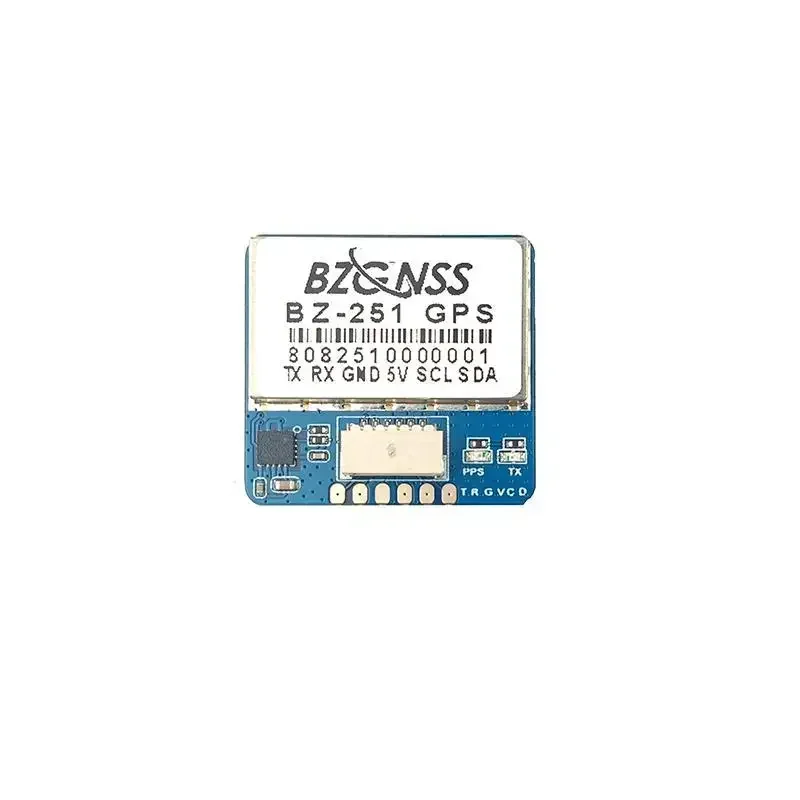

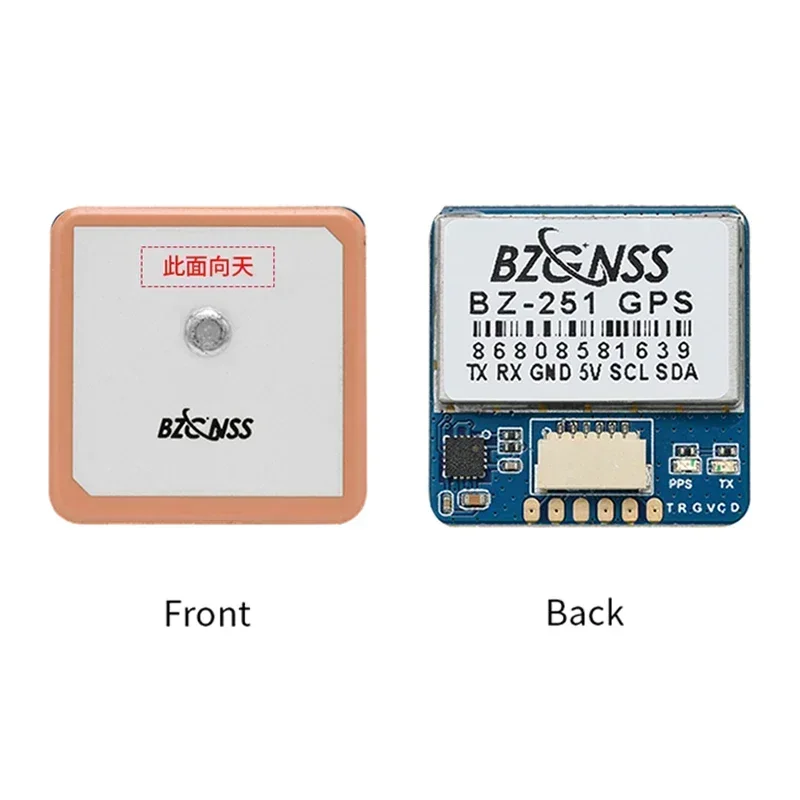

Product Name: BZ-251GPS
Product Specifications:
Chip: M10 (ten generation chip)
Frequency: GPSL1,GLONASS L1,BDS B1,GALILEO E1,SBASL1,QZSSL1
Power:5V

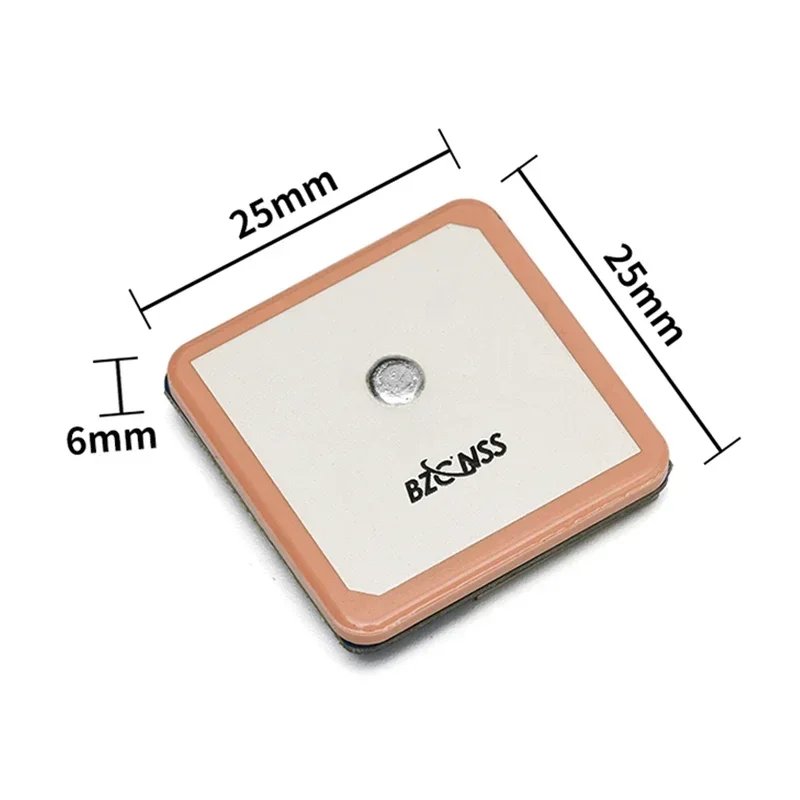

Size:25mmx25mmx8mm
Antenna: ceramic antenna (oil spraying process, prevent scratching and oxidation)
Receiving channels: 72 search channels
Compass:QMC5883
Baud rate:115200dps
Output protocol: NMEA/UBLOX (dual protocol)
Output frequency: 1Hz-10Hz. Default 10Hz
Speed accuracy:0.05m/s
Horizontal positioning accuracy: 2DACC1.5m(open air)
Receiving sensitivity:Trace-162dBm
Capture -160dBm
Dynamic characteristics:
Altitude:50000m
Speed:500m/s
Acceleration:4G
Operating temperature:-40°C-+85'C
Storage temperature:-40°C-+105°C

--------------------------------

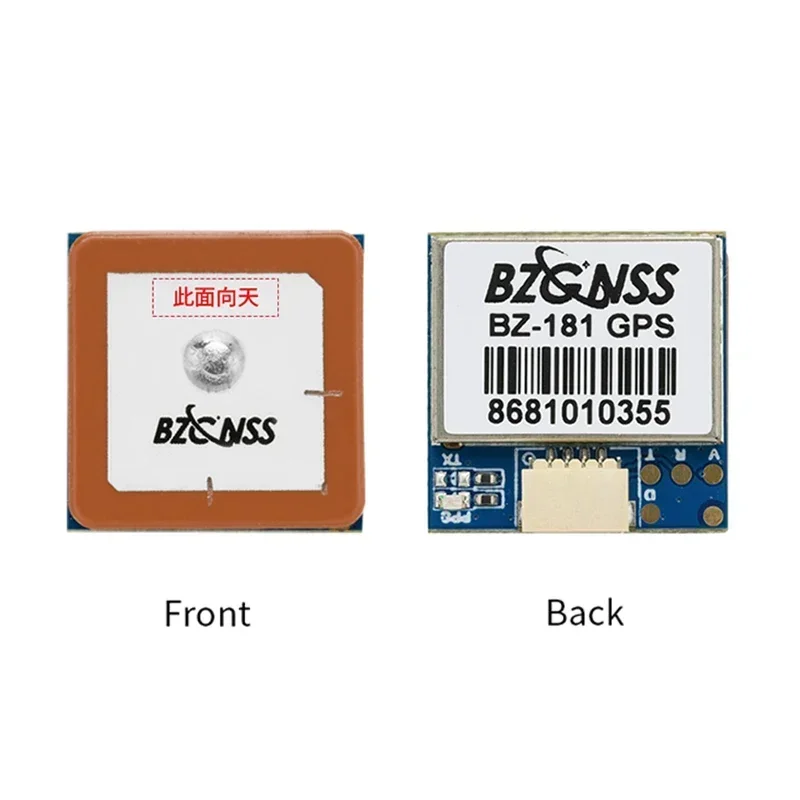

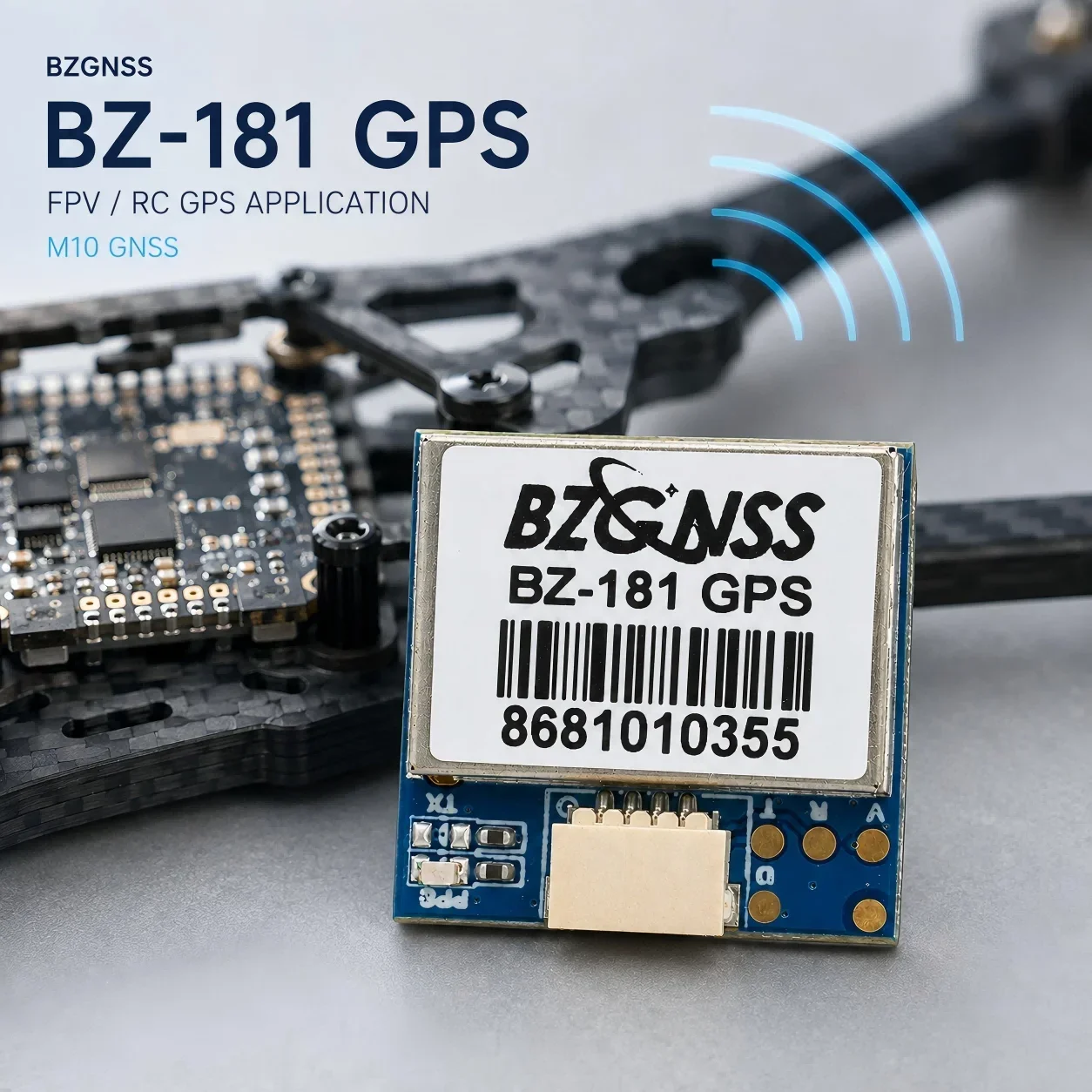

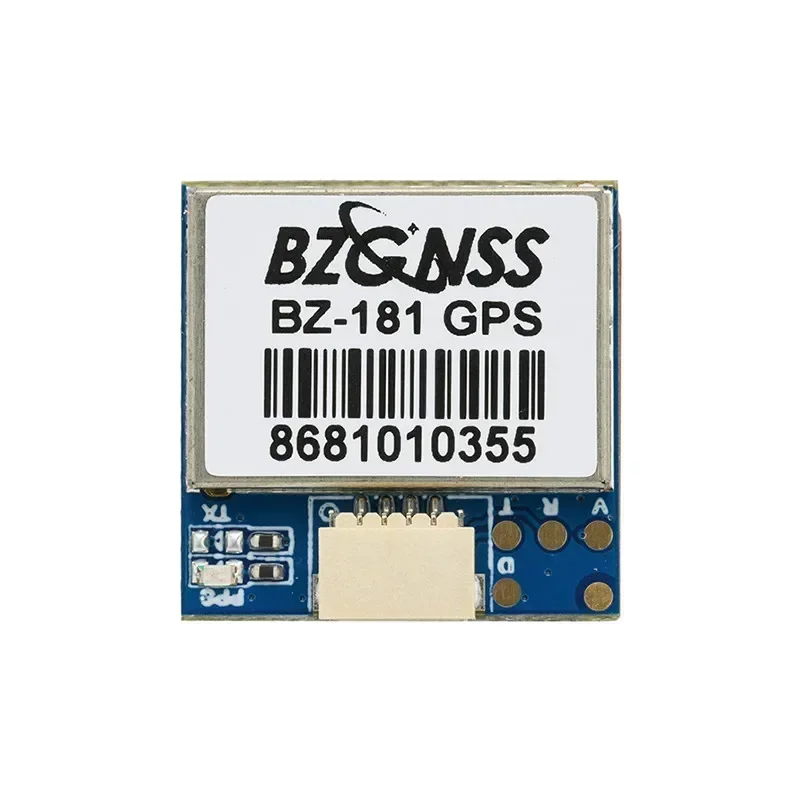

Product Name:BZ-181GPS
Product Specifications:
Chip: M10 (ten generation chip)
Frequency: GPSL1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSSL1
Power:5V
Size:18mm*18mm*8mm
Antenna: ceramic antenna (oil spraying process, prevent scratching and oxidation)
Receiving channels: 72 search channels
Compass:
Baud rate:9600dps
Output protocol: UBLOX
Output frequency: 1Hz-10Hz, default 1Hz
Speed accuracy:0.05m/s
Horizontal positioning accuracy: 2DACC1.5m(open air)
Receiving sensitivity: trace -162dBm
Capture -160dBm
Dynamic characteristics:
Altitude:50000m
Speed:500m/s
Acceleration:4G
Operating temperature:-40*C-+85'C
Storage temperature:-40°C-+105°C

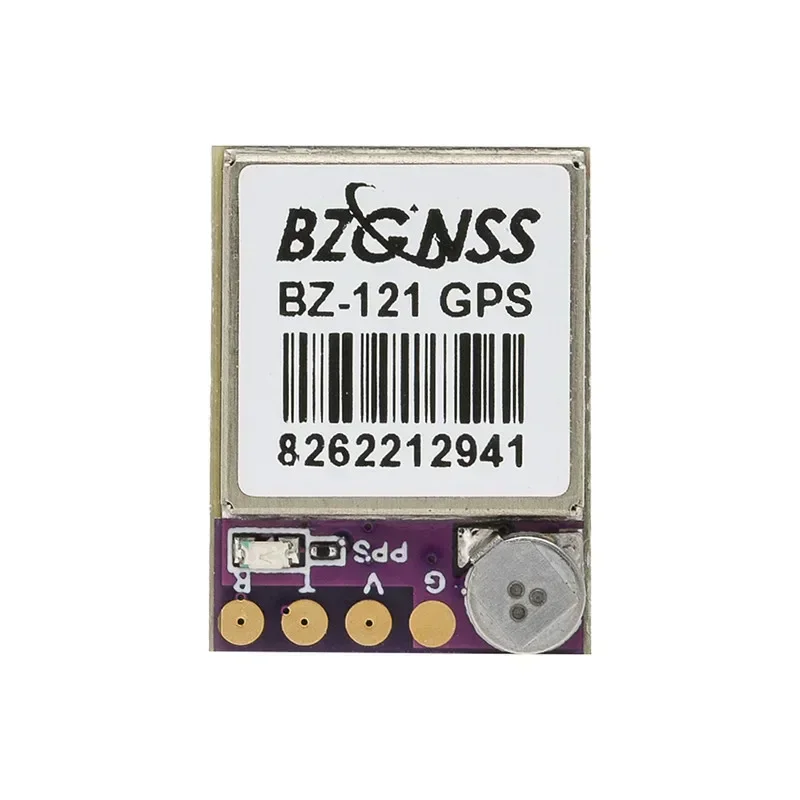

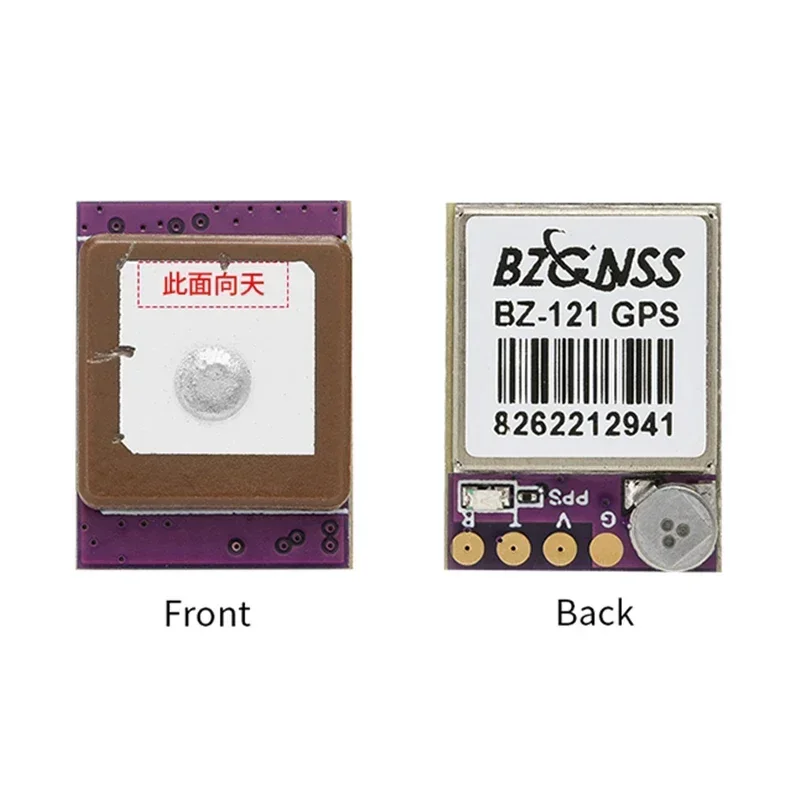

BZ-121
Chip:u-blox M10050(Ten Generation Chip)
Pattern: GPS,GLONASS,BDS,GALILEO,SBAS,QZSS(Default GPS+GLONASS+BDS joint positioning)
FLASH:Supported
Frequency:GPS L1,GLONASS L1,BDS L1,GALILEO L1,SBAS L1,QZSS L1
Power:5V
Size:12x16x4.5mm

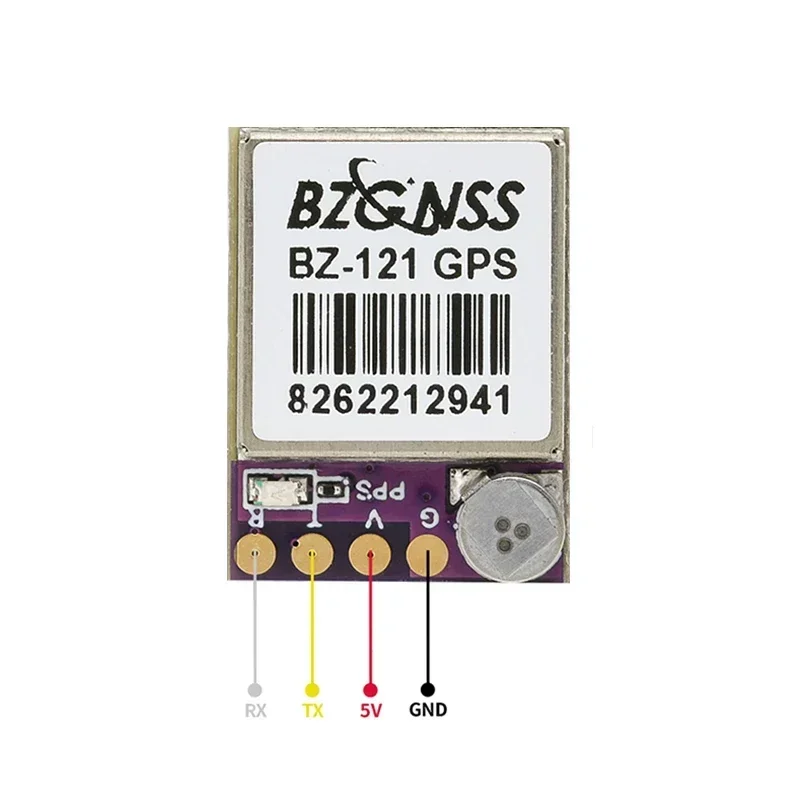

Interface:PCB Pad

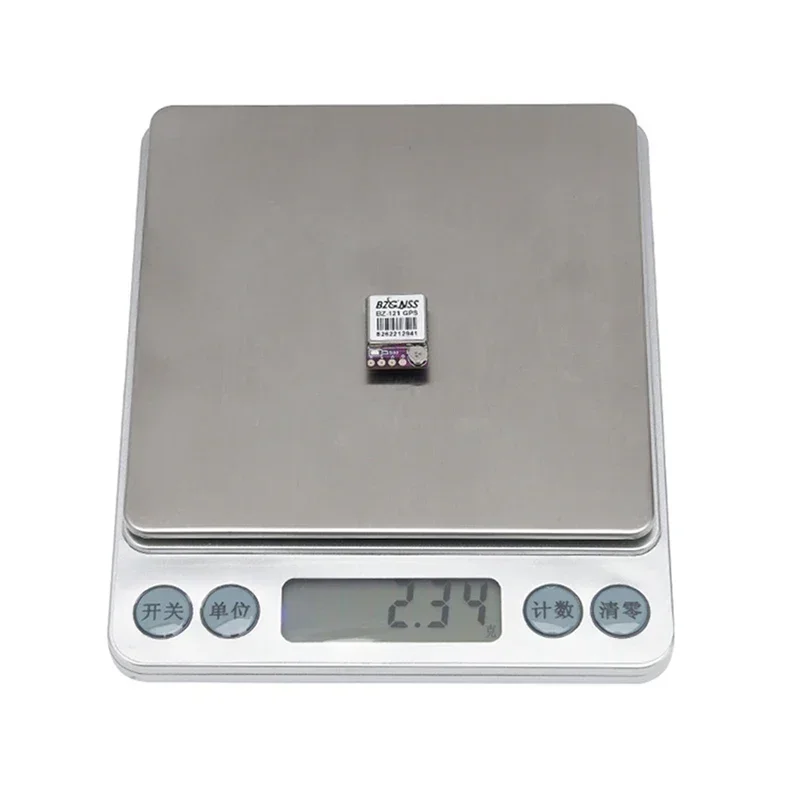

Weight:2.2g
Antenna:Ultrathin Ceramic Antenna (oil spraying process, prevent scratching and oxidation)
Receiving channels:72 search channels
Baud rate:115200dps
Output Protocol:NMEA / UBLOX (Dual protocol)
Output Frequency:1Hz-10Hz. Default 10Hz
Speed accuracy:0.05m/s
Horizontal Positioning Accuracy: 2D ACC 1.5m(open air)
Receiving Sensitivity:Trace-162dBm / Capture -160dBm
