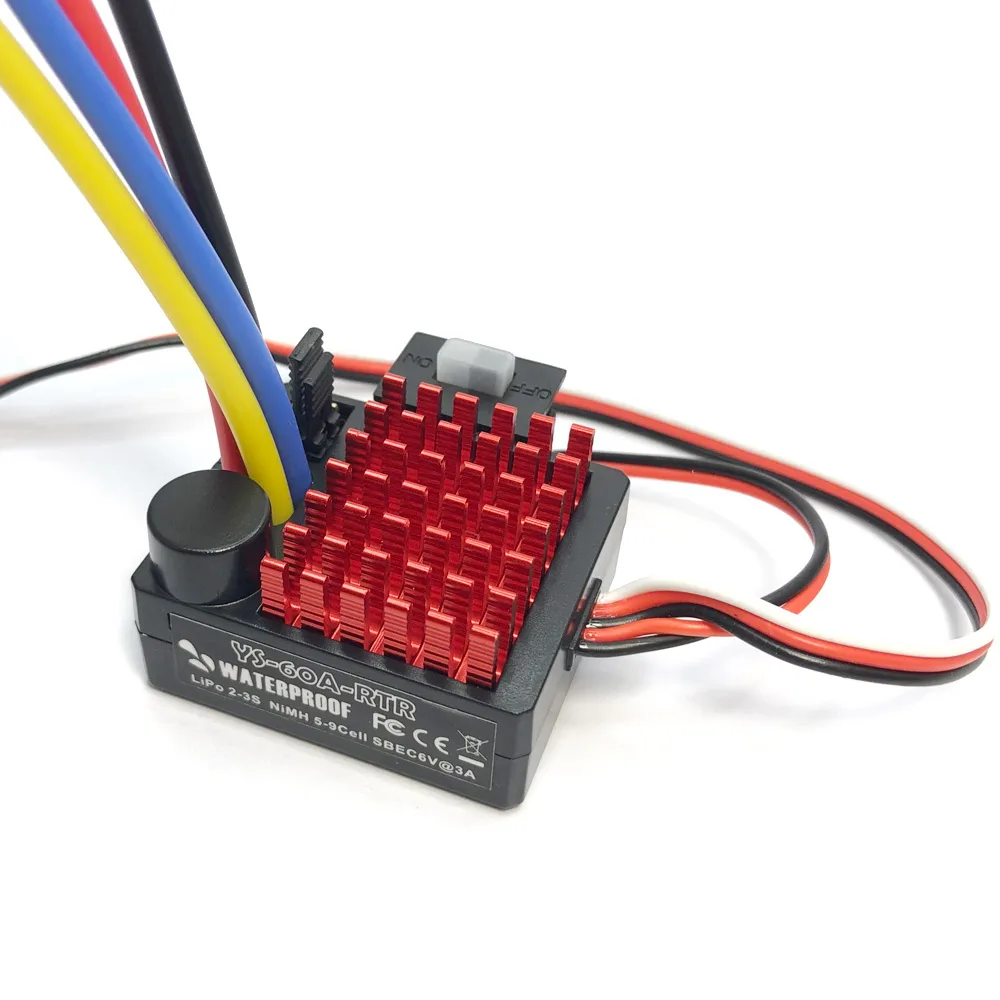

Waterproof 1060 RTR 60A Brushed Electronic Speed Controller ESC For 1:10 1:12 RC Boat HSP Car RC Car Axial scx10 VS QuicRun

Features:

-Waterproof and dustproof.

- Eight Low internal resistance, high current mos tubes

-8 Low internal resistant, high current MOS transistors applied

- Overheat protection, low battery voltage cutoff, and throttle automatic detection

Specifications：

Brand: YSIDO

Product Model: YS-60A-RTR

BEC Output: 6V/ 3A

Rated Voltage Range: Suited for 2-3S (Li-Po) or 5-9cell (Ni-MH)

Motor Type: 540/550/750 Motors

Current(A): Follow Current (60A) ,Peak Current (480A)

For RC Products: RC Vehicles/Boats/Tanks

Dimensions: 38(L)*31.6(W)*20.5(H)mm

Water proof: YES

Weight: 38.2g

Functions: Three different control modes ( Mode 1:Forward/Push to brake/Reverse, Mode 2:Forward/ brake,

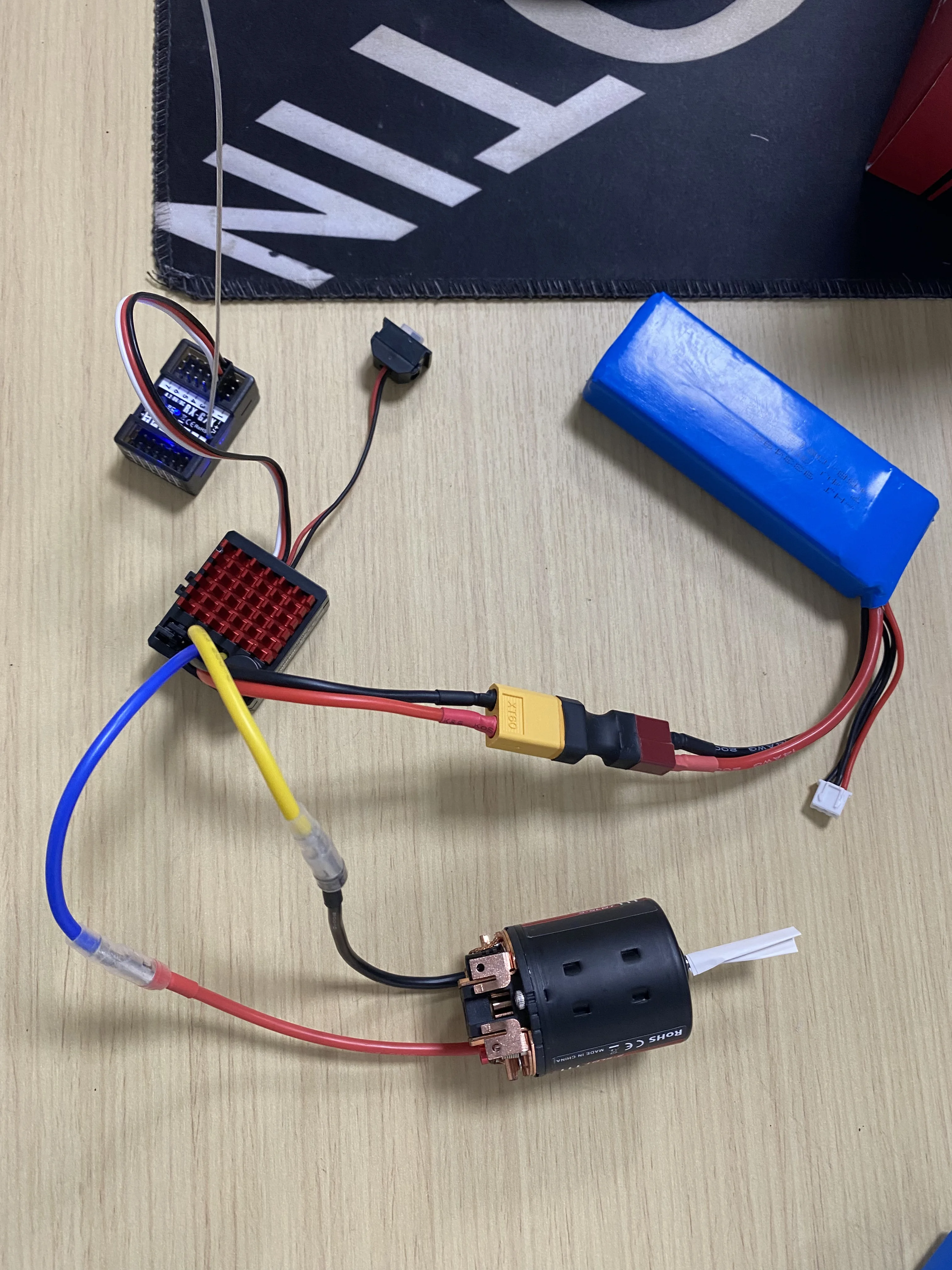

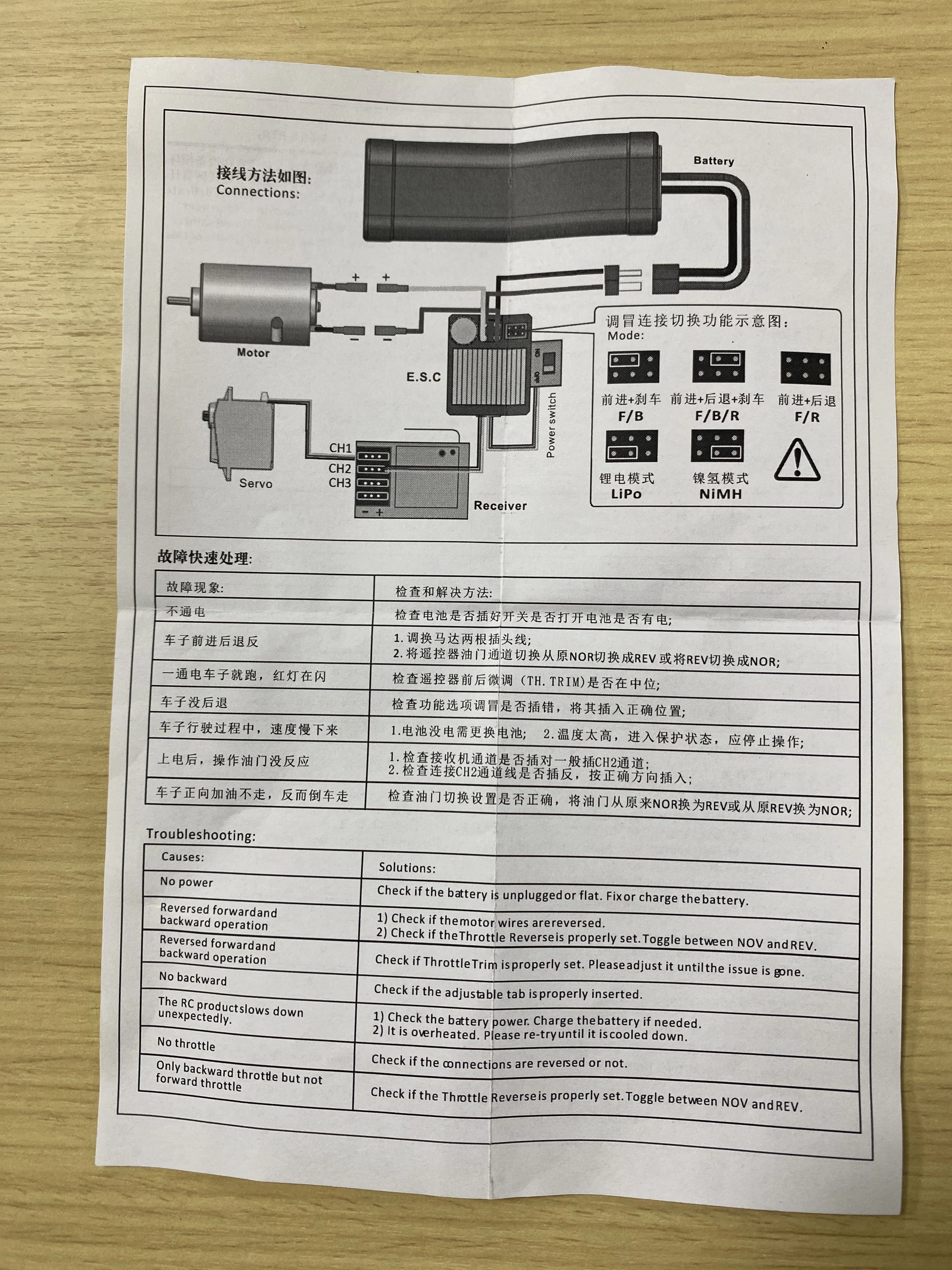

Mode 3: :Forward/Centre Trigger to brake/Reverse (to adjust please use the adjustable tabs.)Connection Graph

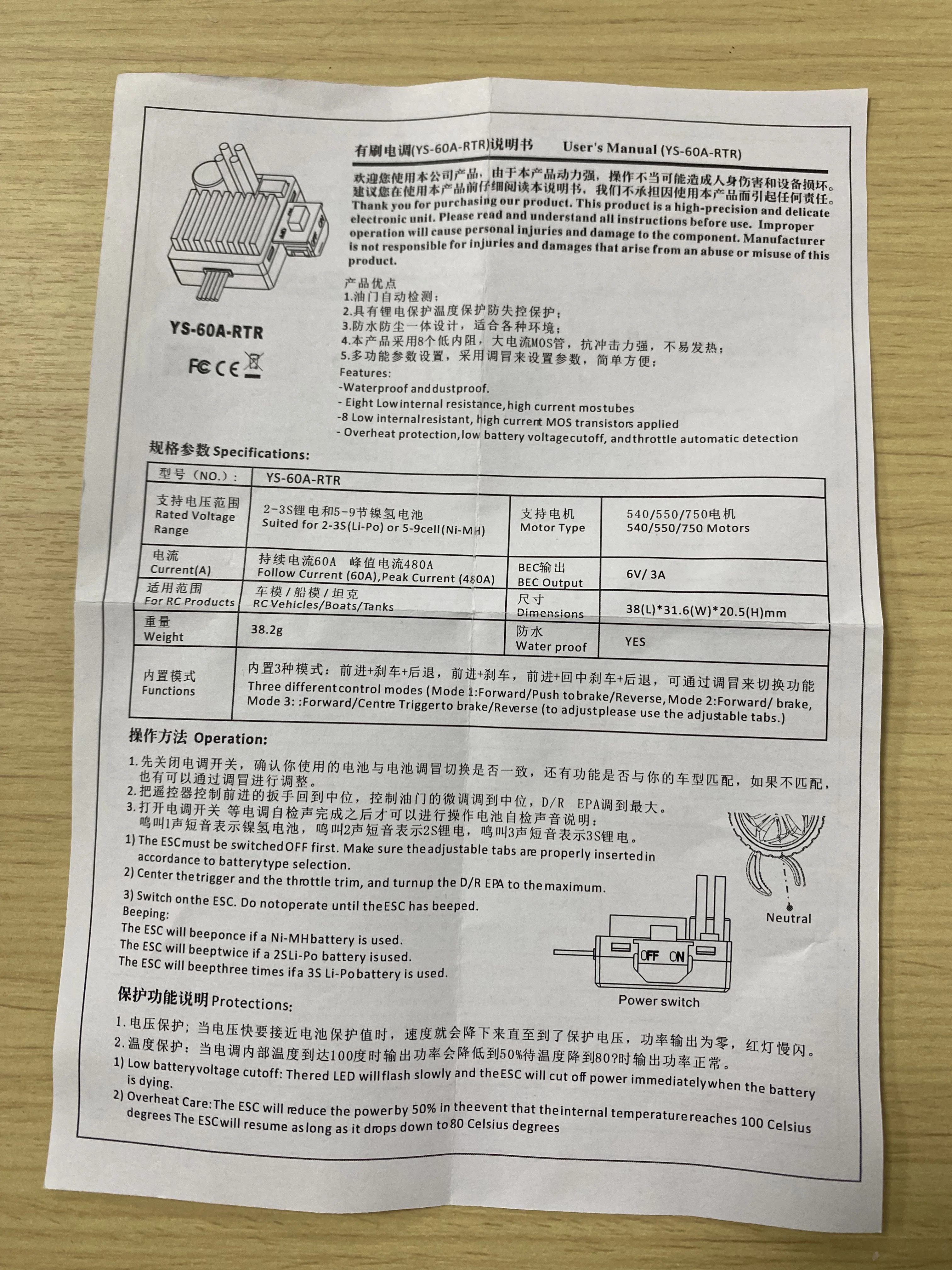

Instructions
