Dsservo Waterproof RC Servo DS3218 20KG DS3225 25KG DS3235 35KG 180/270 Degree for 1/8 1/10 1/12 RC Car Metal Gear Digital Servo

Features:
1.High performance digital standard servo.
2.High-precision metal gears with hard anodizing.
3.CNC aluminium middle Shell.
4.Dual ball bearings .

Description:
Dsservo Waterproof Servo DS3218 20KG DS3225 25KG DS3235 35KG 180/270 Degree Metal Gear Digital Servo for 1/8 1/10 1/12 RC Cars Robotic DIY.

Specifications:

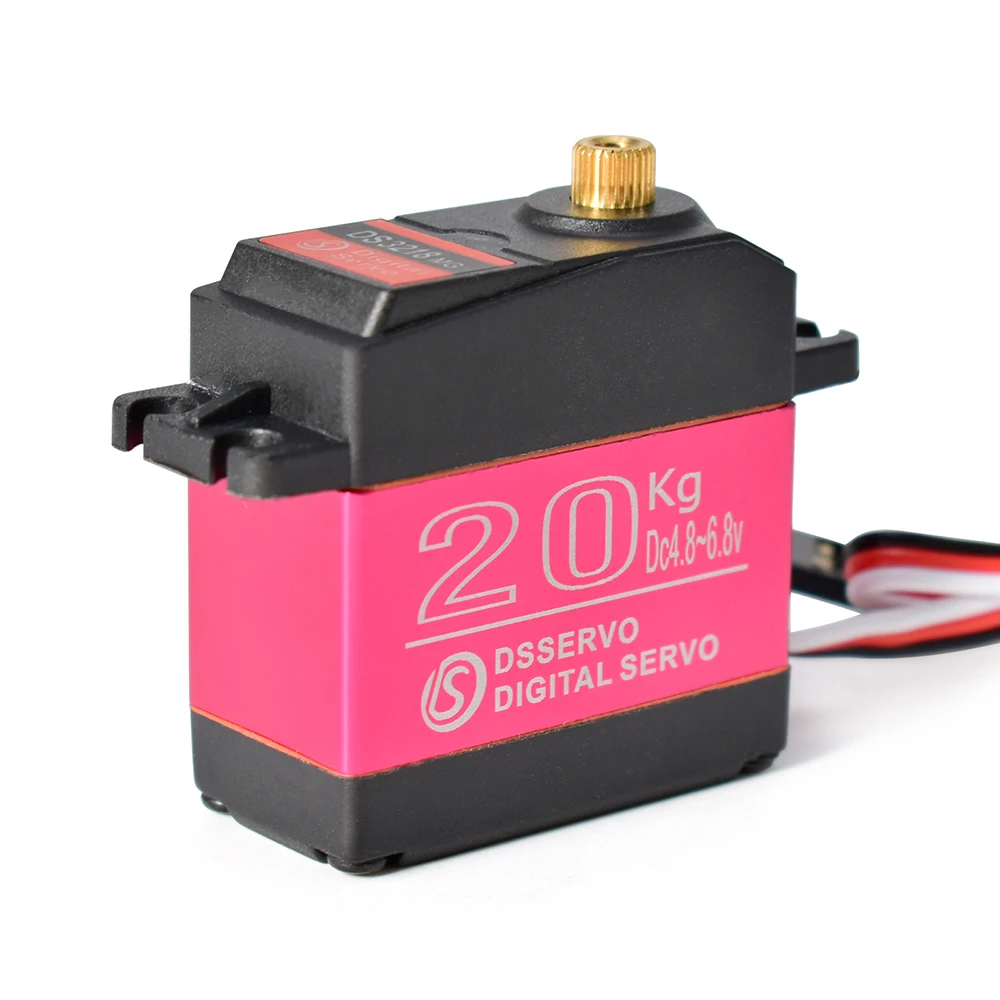

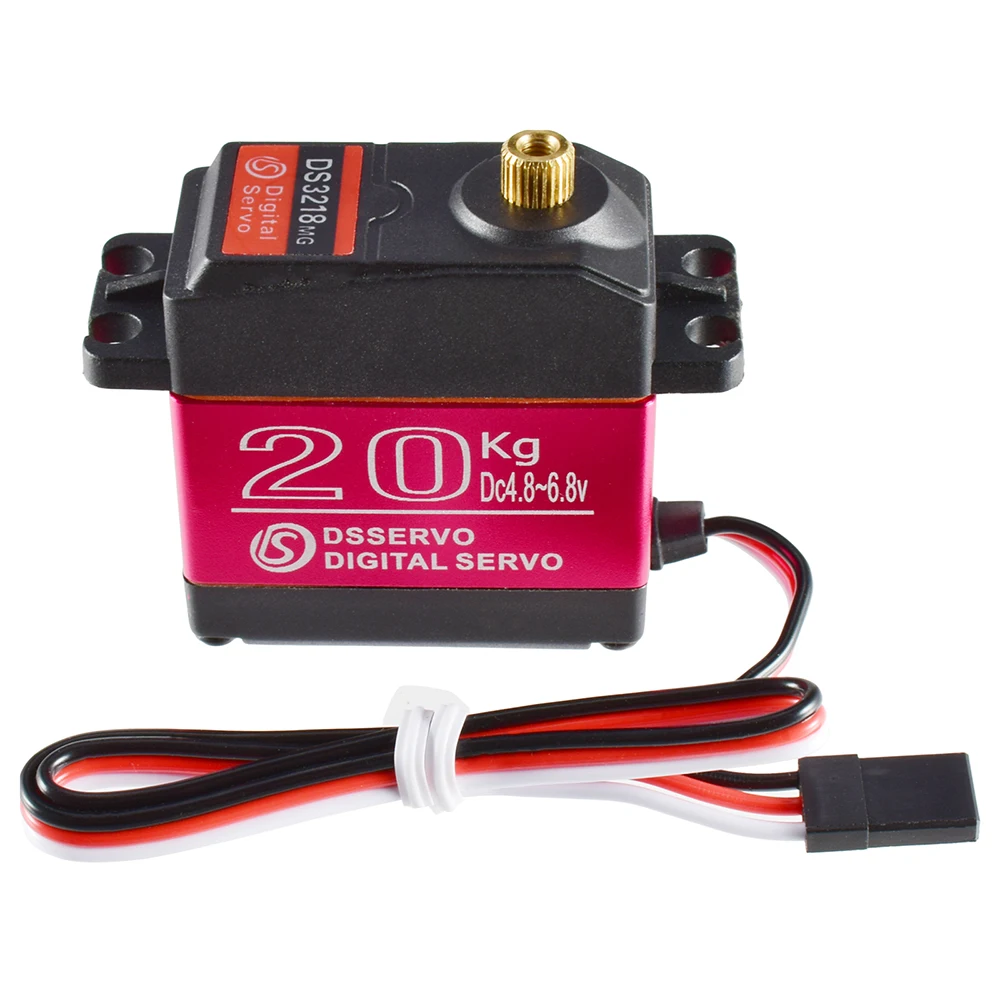

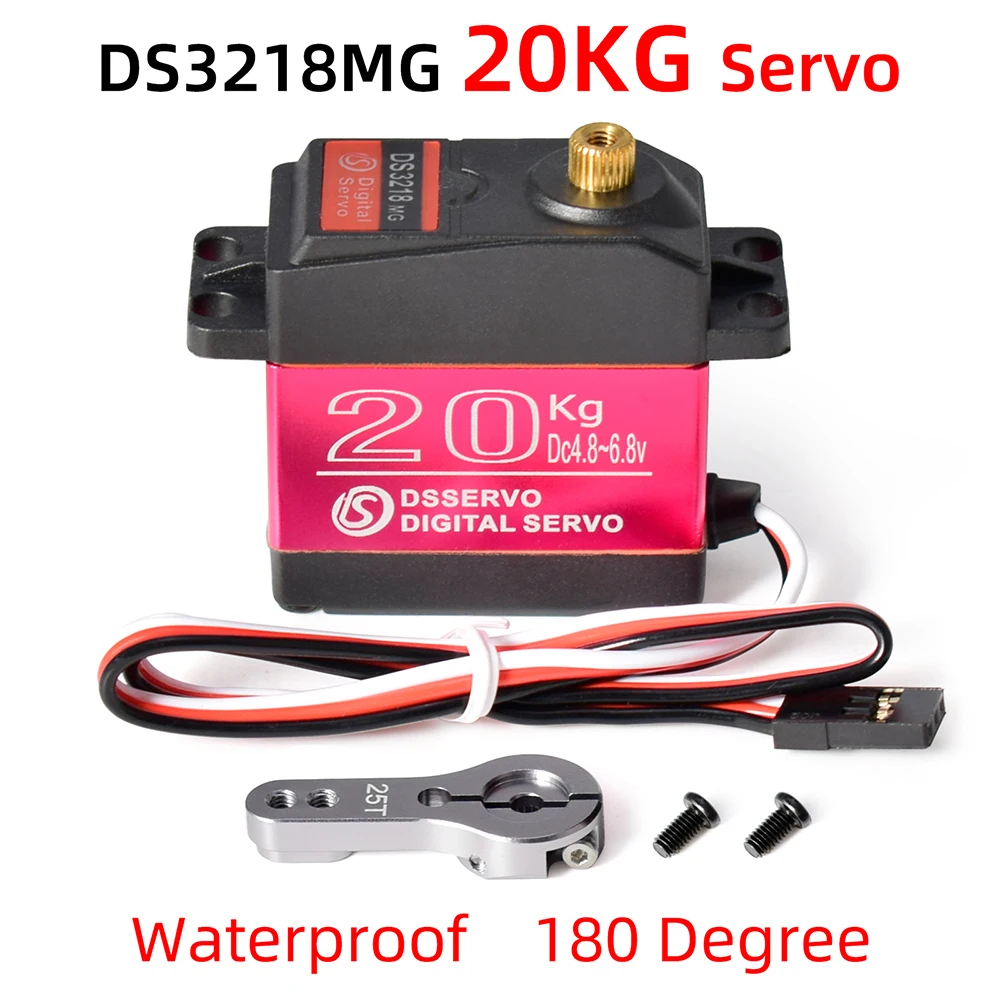

Model: DS3218MG
Item Name: DS3218MG Digital Servo
Rotation angle:180 degree,270 degree optional
Dead Band: 3μsec
Operating Voltage: 4.8V~6.8V
Operating Speed (5V): 0.16sec / 60° at no load
Operating Speed (6.8V): 0.14sec / 60° at no load
Stall Torque (5V): 19 kg/cm (263.8oz/in)
Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
Motor Type: Carban Brush Motor
Gear Type: Copper & Aluminum
Working Frequency: 1520μs / 333hz
CE Certification: Yes
Size: 40.5 * 40 * 20mm
Weight: 60g

Model: DS3218MG pro
Item Name: DS3218MG pro Digital Servo
Rotation angle:180 degree,270 degree optional
Dead Band: 3μsec
Operating Voltage: 5.0V~6.8V
Operating Speed (5V): 0.12sec / 60° at no load
Operating Speed (6.8V): 0.09sec / 60° at no load
Stall Torque (5V): 21 kg/cm
Stall Torque (6.8V): 23.5 kg/cm
Motor Type: Carban Brush Motor
Gear Type: Copper & Aluminum
Working Frequency: 1520μs / 333hz
CE Certification: Yes
Size: 40.5 * 40 * 20mm
Weight: 60g

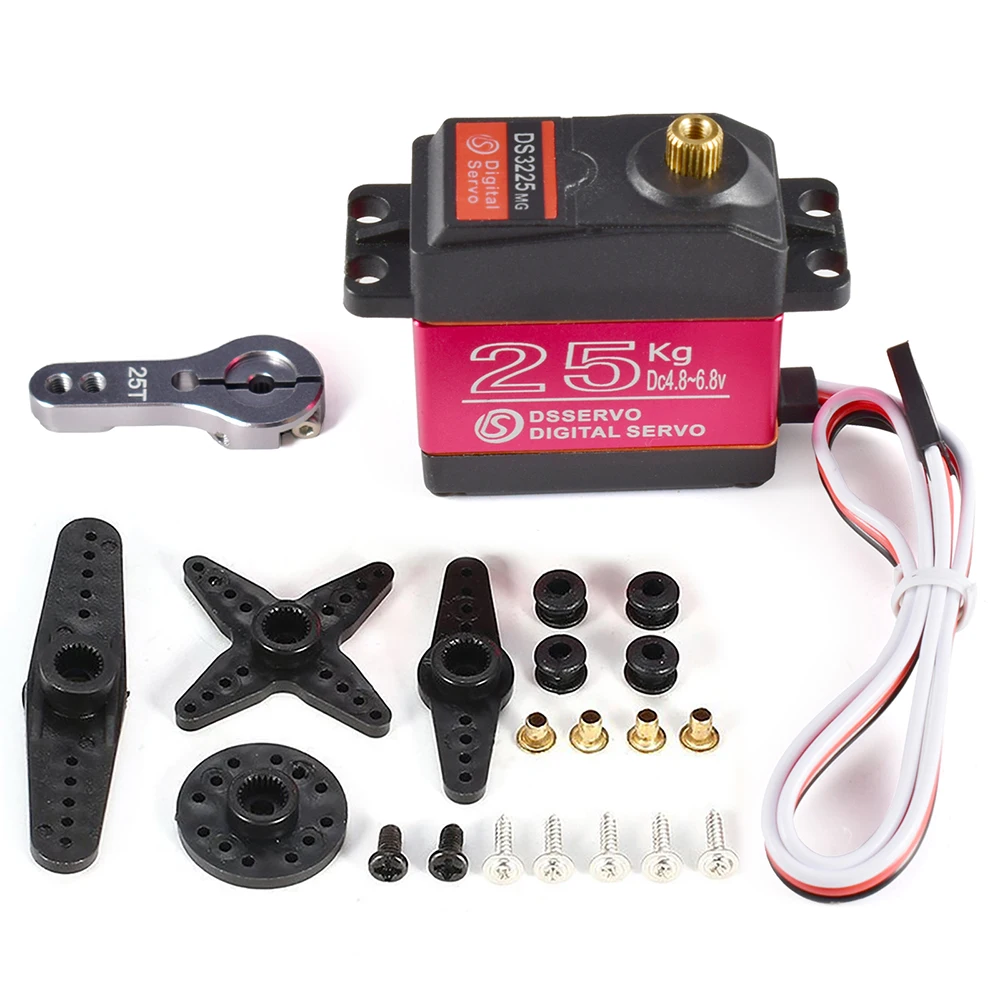

Model: DS3225MG
Item Name: DS3225MG Digital Servo
Rotation angle:180 degree,270 degree optional
Dead Band: 3μsec
Operating Voltage: 4.8V~6.8V
Operating Speed (5V): 0.15sec / 60° at no load
Operating Speed (6.8V): 0.13sec / 60° at no load
Stall Torque (5V): 21 kg/cm (263.8oz/in)
Stall Torque (6.8V): 24.5 kg/cm (298.5 oz/in)
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Working Frequency: 1520μs / 333hz
CE Certification: Yes
Size: 40.5 * 40 * 20mm(1.58 x 0.79 x 1.60 in)
Weight: 60g

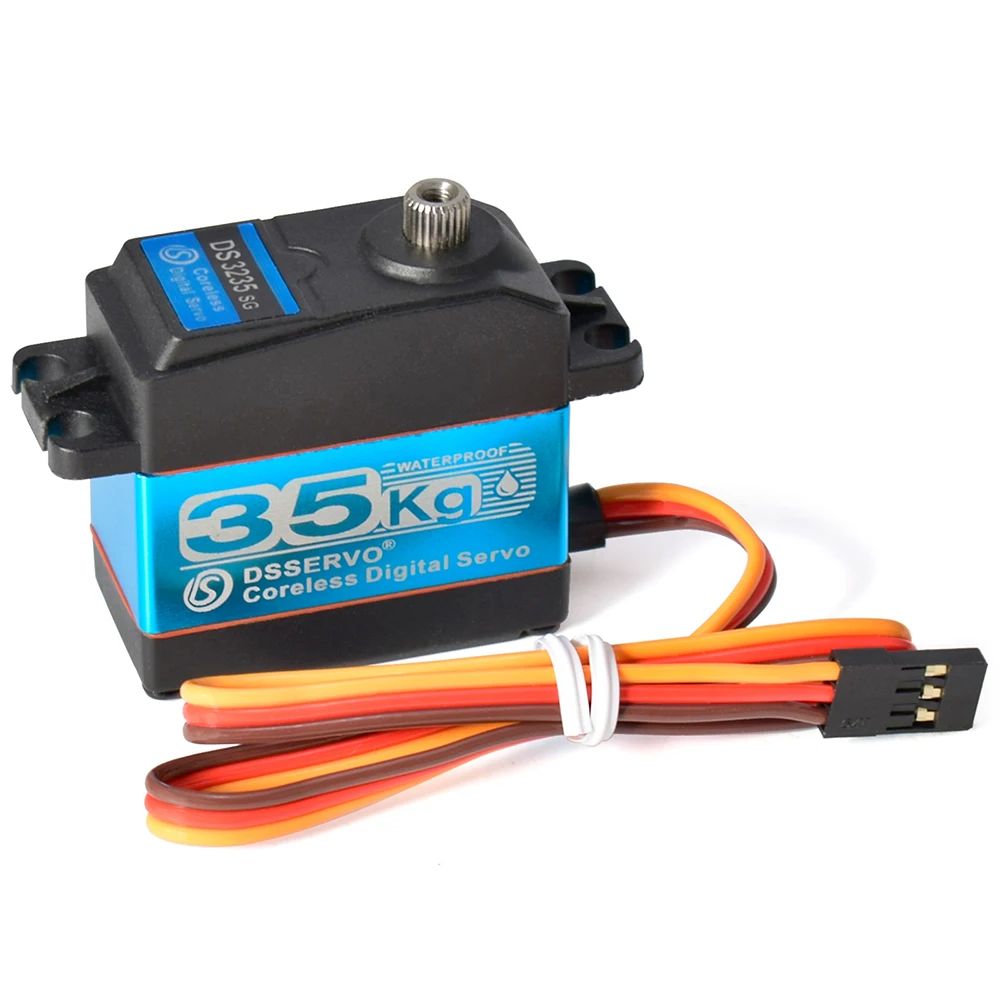

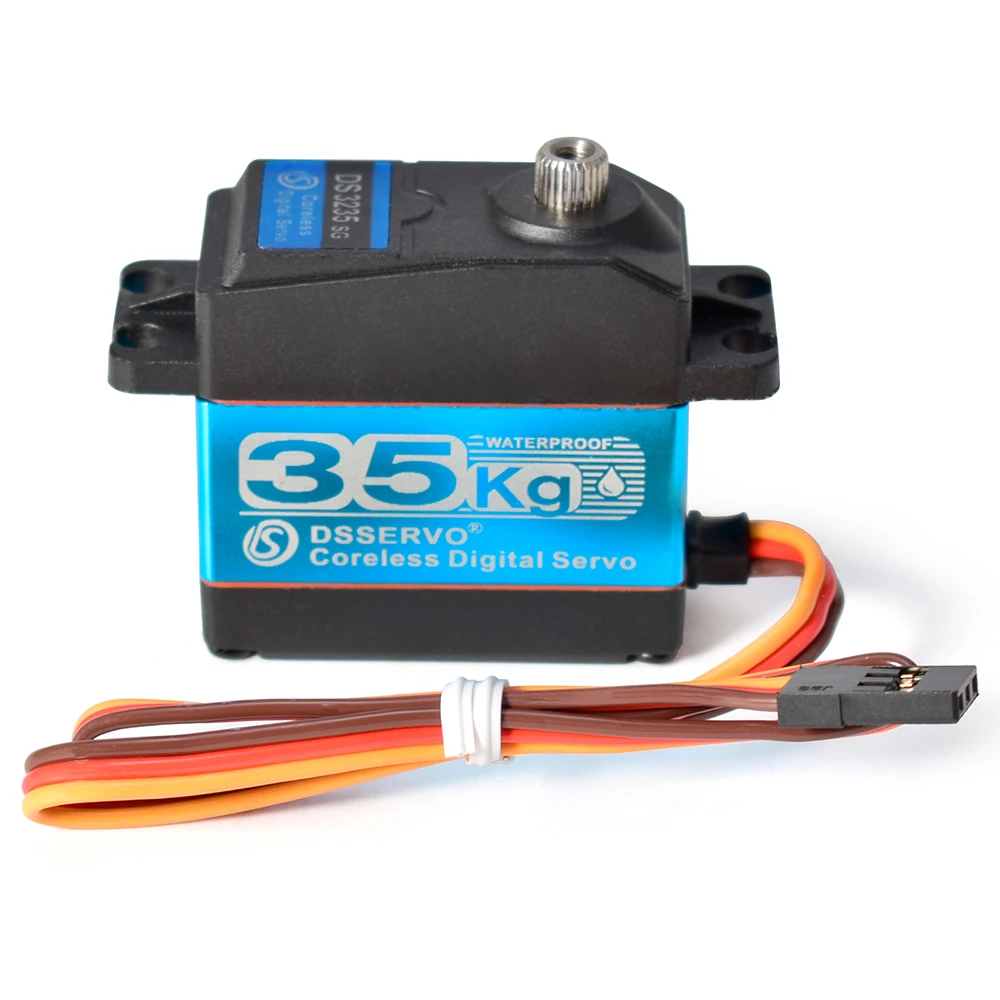

Model: DS3235MG
Item Name: DS3235MG Digital Servo
Rotation angle:180 degree,270 degree optional
Operating voltage range: 5-7.4V  Operating speed (at no load) : 0.13 sec/60 degree @5.0V
Operating speed (at no load): 0.12 sec/60 degree @6.0V
Operating speed (at no load): 0.11 sec/60 degree @ 7.4V
Stall torque  (at locked): 29kg/cm @5.0V
Stall torque  (at locked): 32kg/cm @6.0V
Stall torque (at locked) : 35kg/cm @7.4V
Stall current (at locked): 1.9A @5.0V
Stall current (at locked): 2.1 A@6.0V
Stall current (at locked): 2.3A@7.4V
Item:DS3235 35KG Coreless Stainless Steel Gear Waterproof Digital Servo
Operating Voltage: 5 ~ 7.4 DC Volts
Dead brand: 3μs / 2 μs
Motor Type: Coreless Motor
Gear Type: Copper & Aluminum / Stainless Steel & Aluminum
Working frequence: 50-333Hz
Size: 40 x 20 x 38.5 mm ( 1.58 x 0.79 x 1.50 in)
Weight: 60 g (2.12 oz)

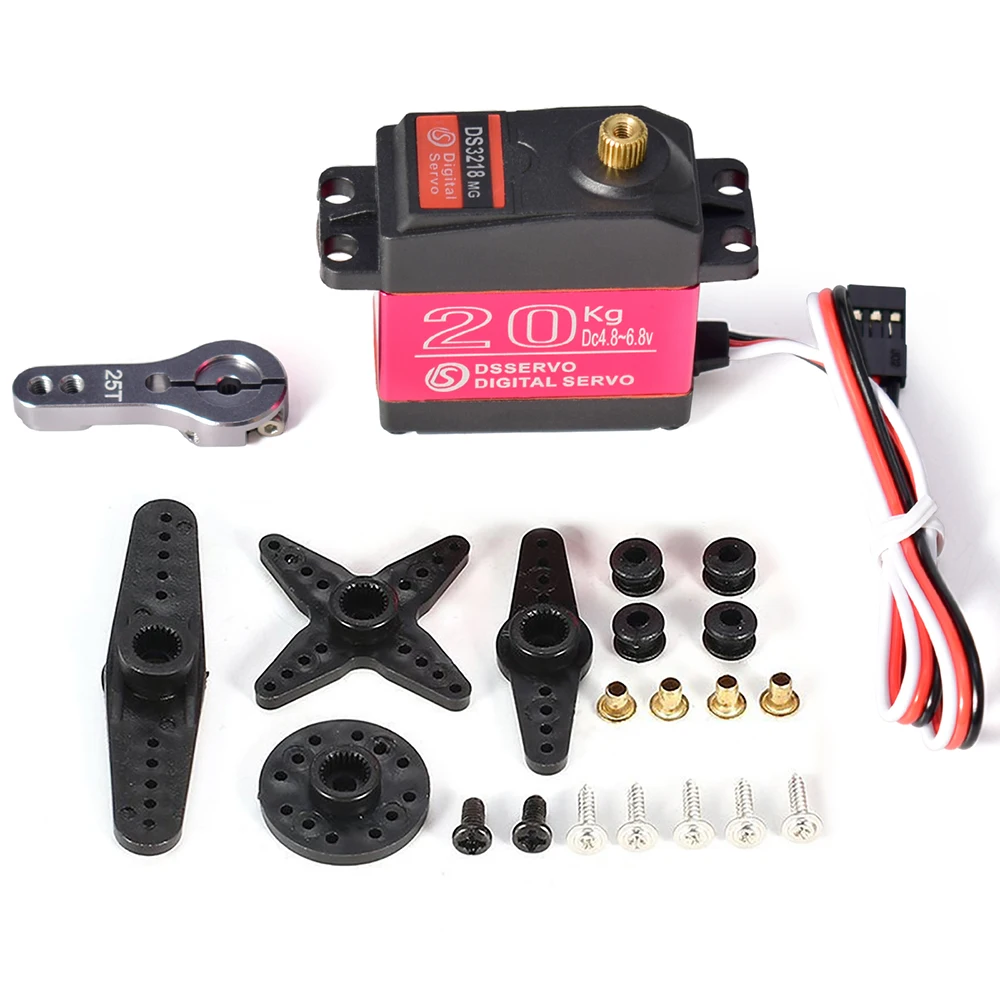

Package included:
1 x Digital Servo
1 x 25T Metal Servo Arm

Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!

Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.

After purchase:
1.If you are satisfied，please give us 5 stars praise.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems.
if you receive a defect item,please contact us at once with item picture or video.
