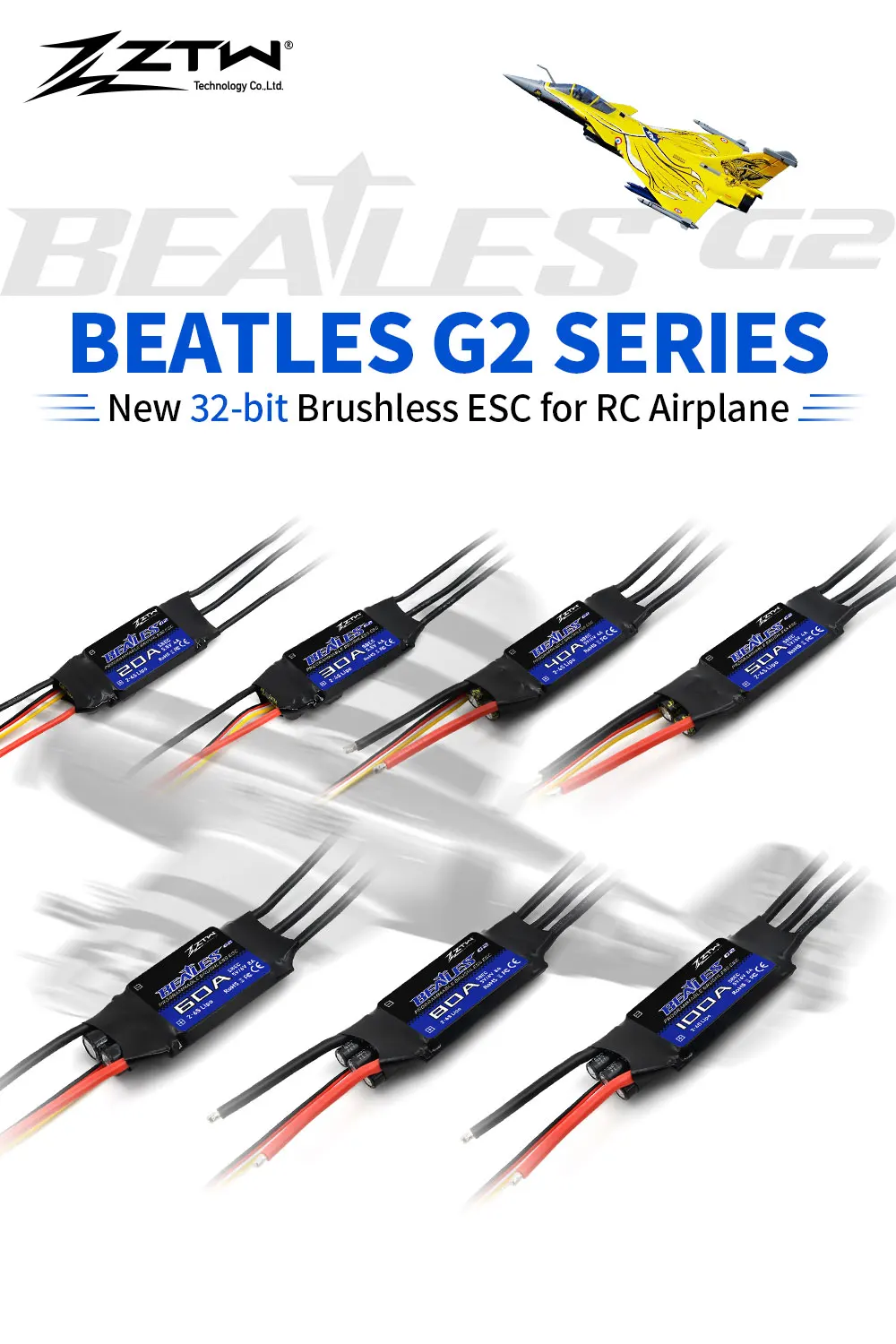

ZTW Beatles G2 ESC 20A/30A/40A/50A/60A/80A/100A/120A 2-6S SBEC 5V/6V 8A Speed Control For RC Airplane Aircraft Fixed-wing

ZTW Beatles G2 ESC 20A/30A/40A/50A/60A/80A/100A/120A 2-6S SBEC 5V/6V 8A Speed Control For RC Airplane Aircraft Fixed-wing

Key Features:

1. Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.

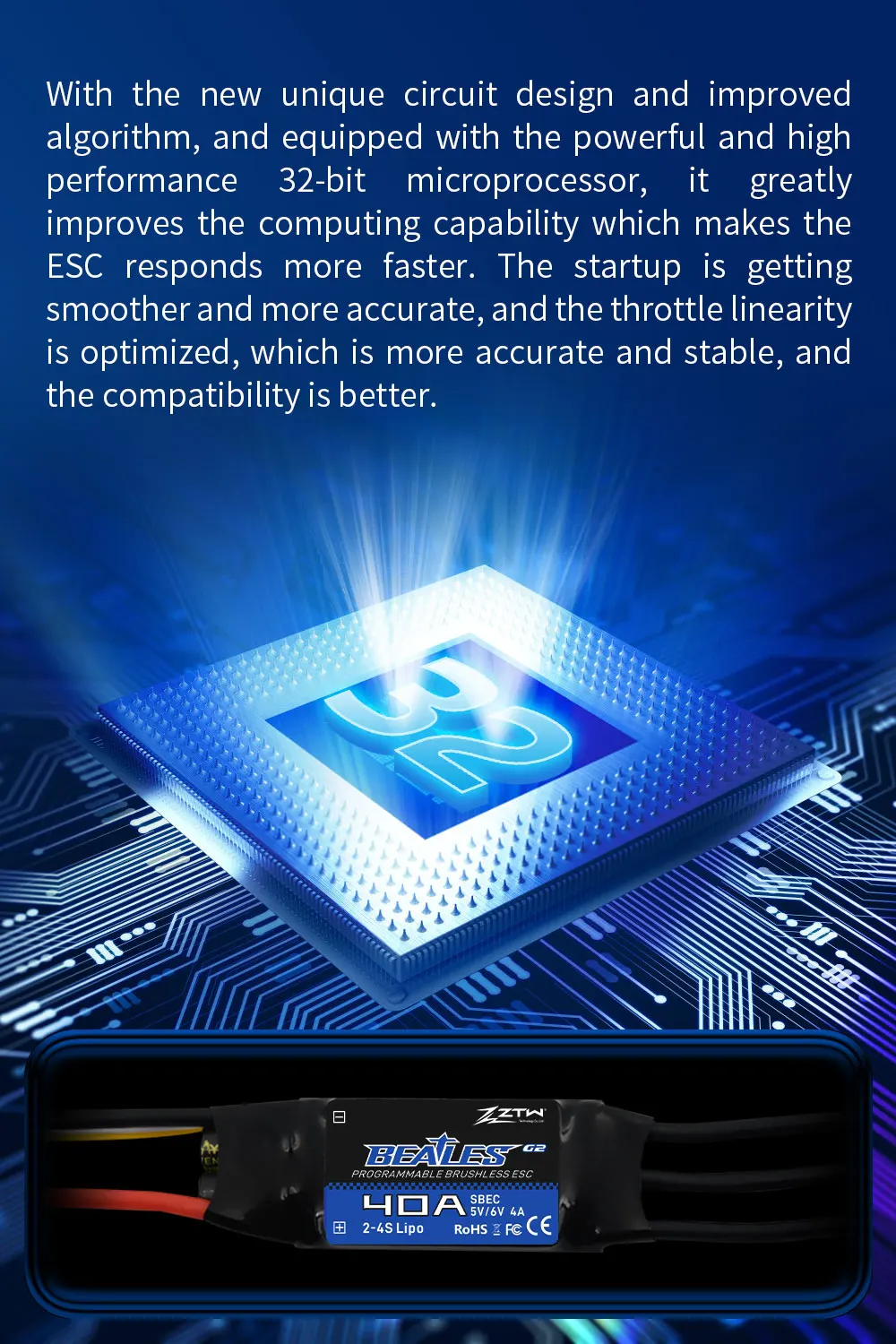

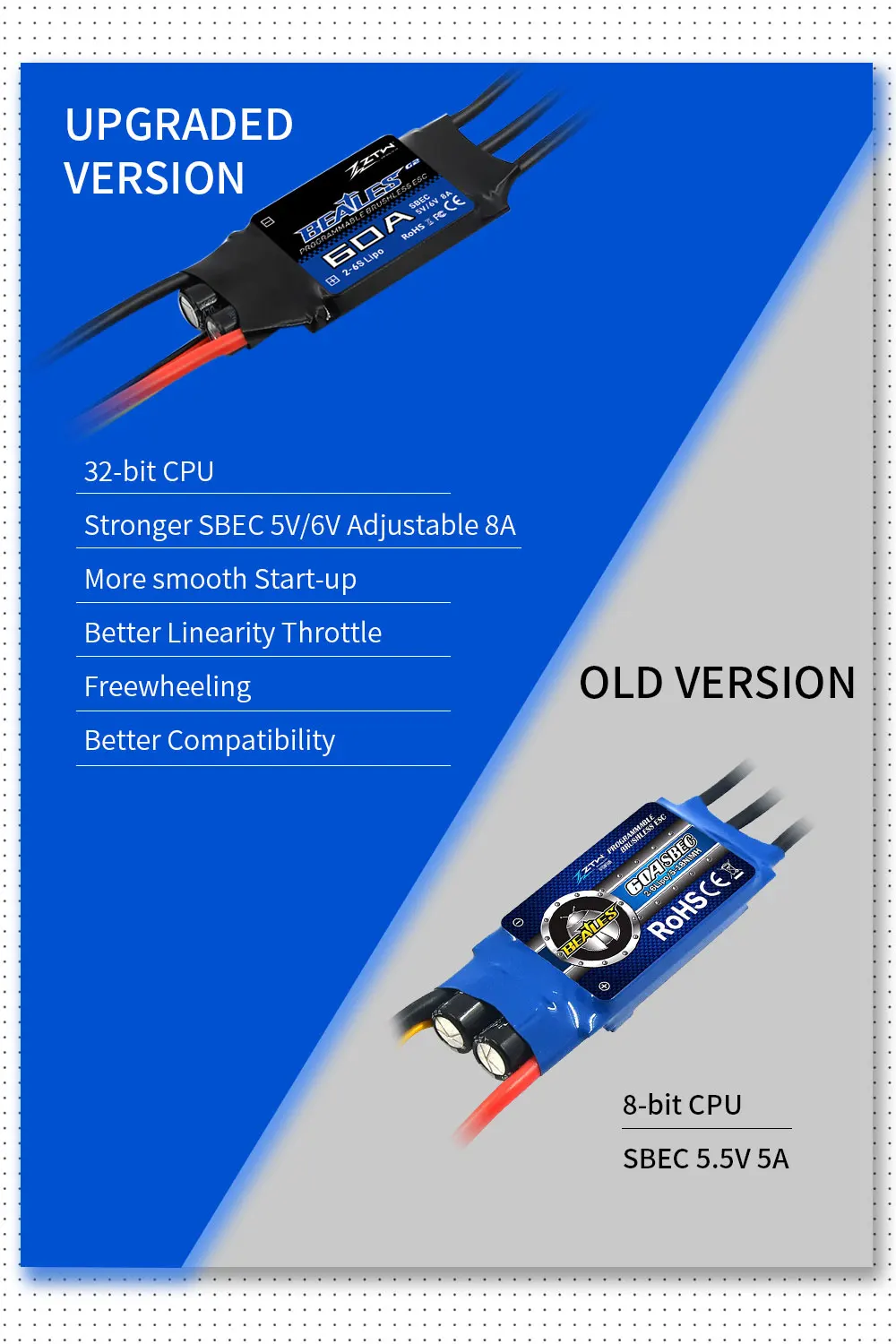

2. Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.

3. Super smooth start-up and accurate throttle linearity.

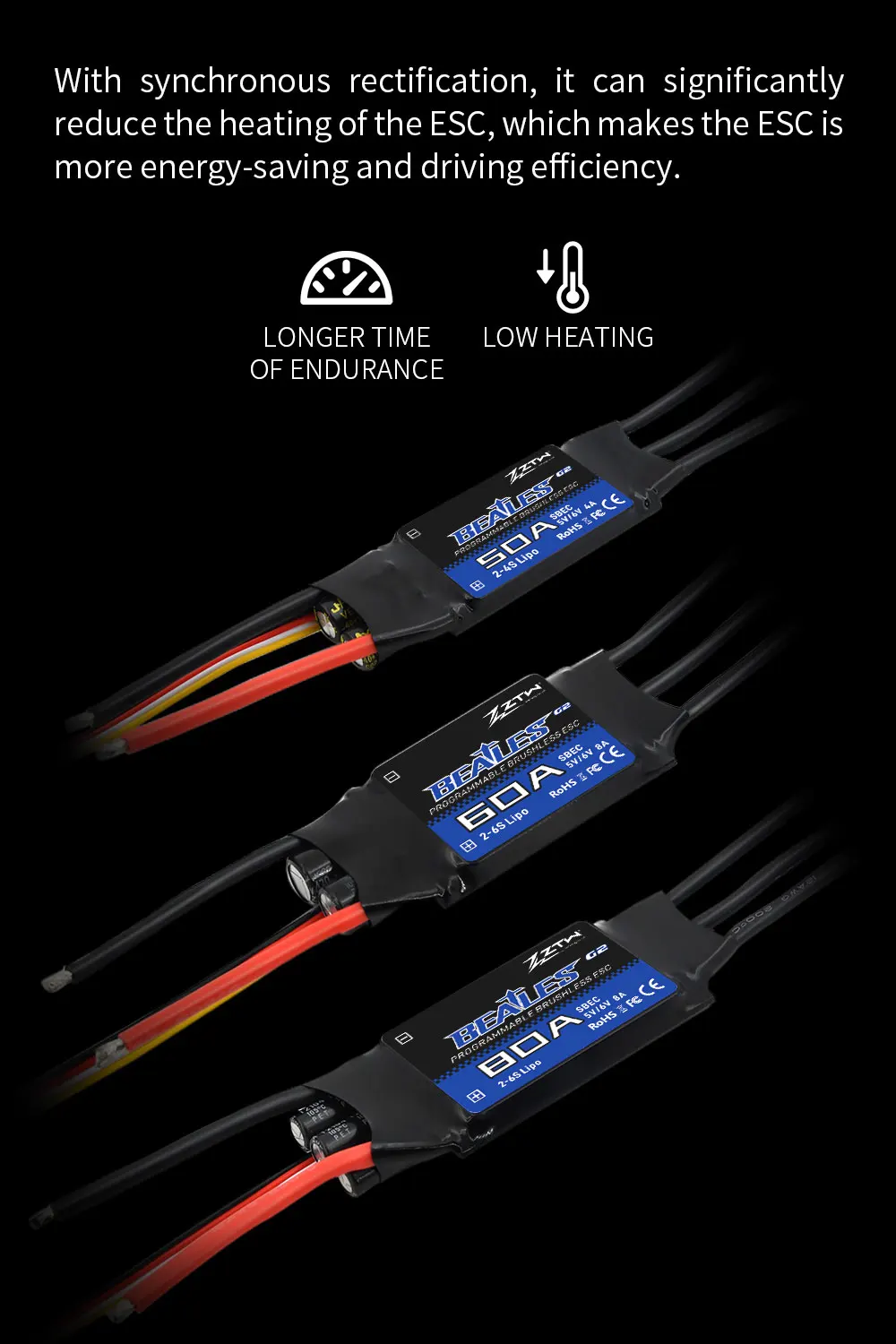

4. Freewheeling make the ESC with higher driving efficiency and more energy-saving.

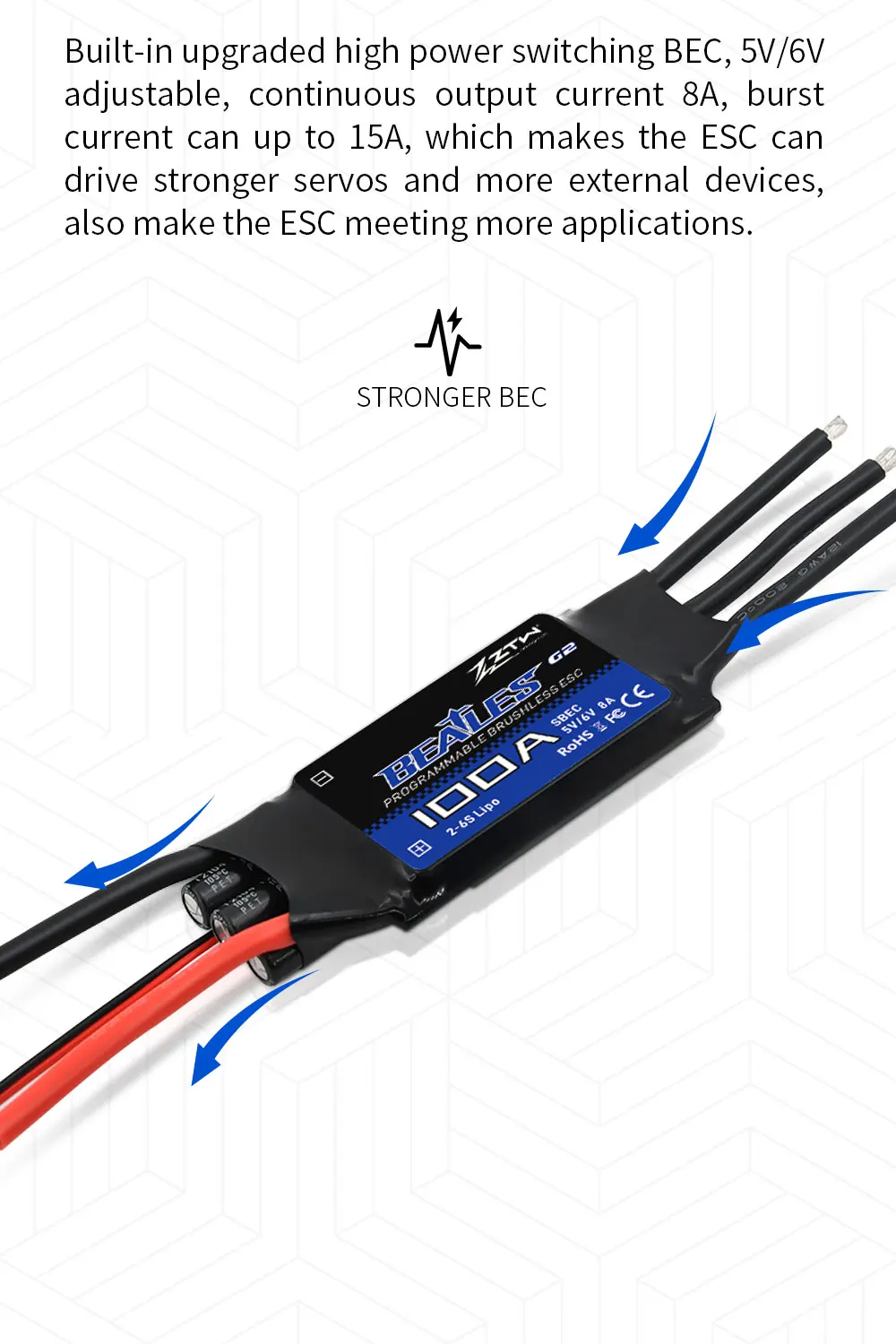

5. Adjustable SBEC 5V/6V output voltage 5V/6V provides more powerful power to the servo.

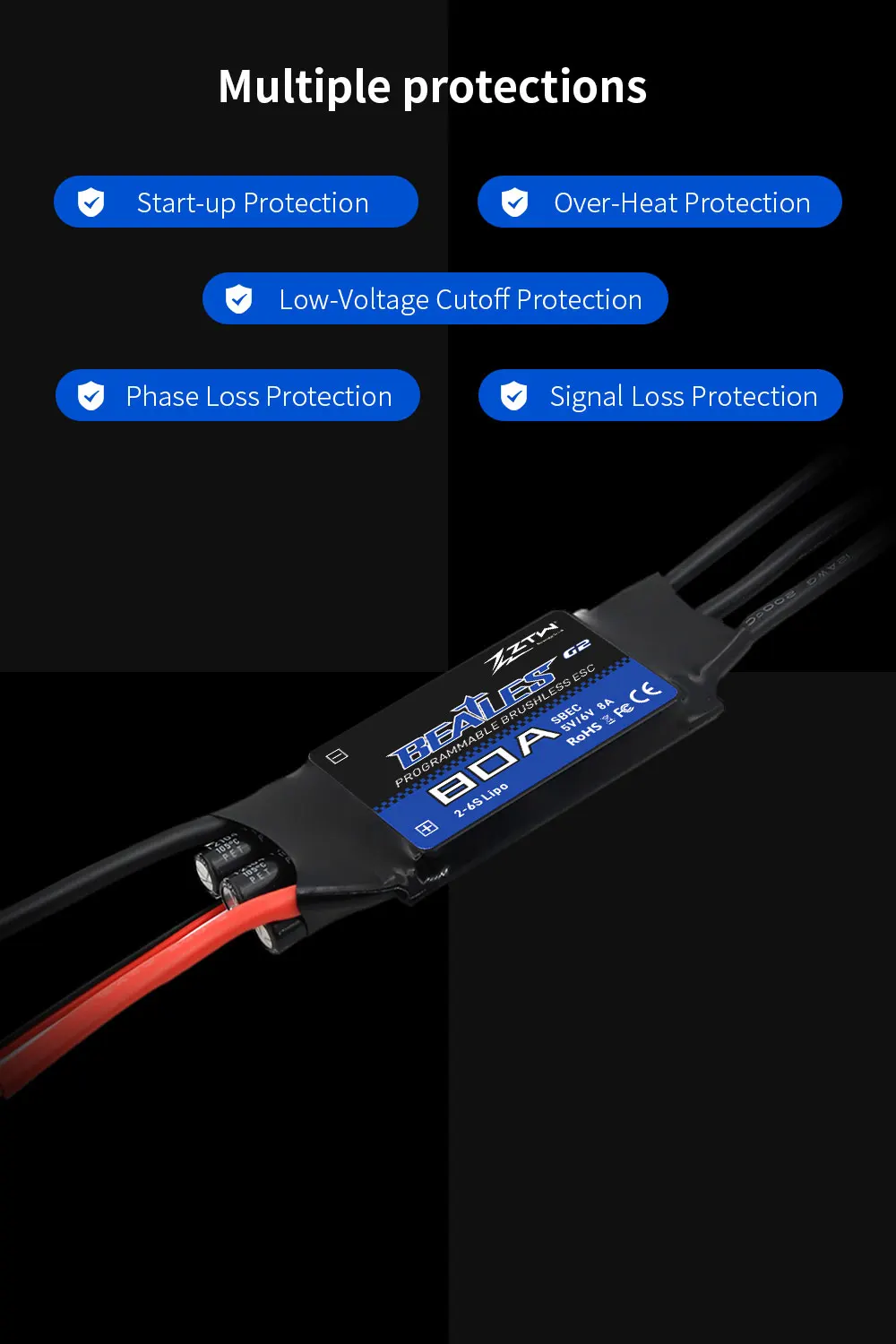

6. Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss etc.

7. Support high RPM motors, and compatible with most motors in the market.

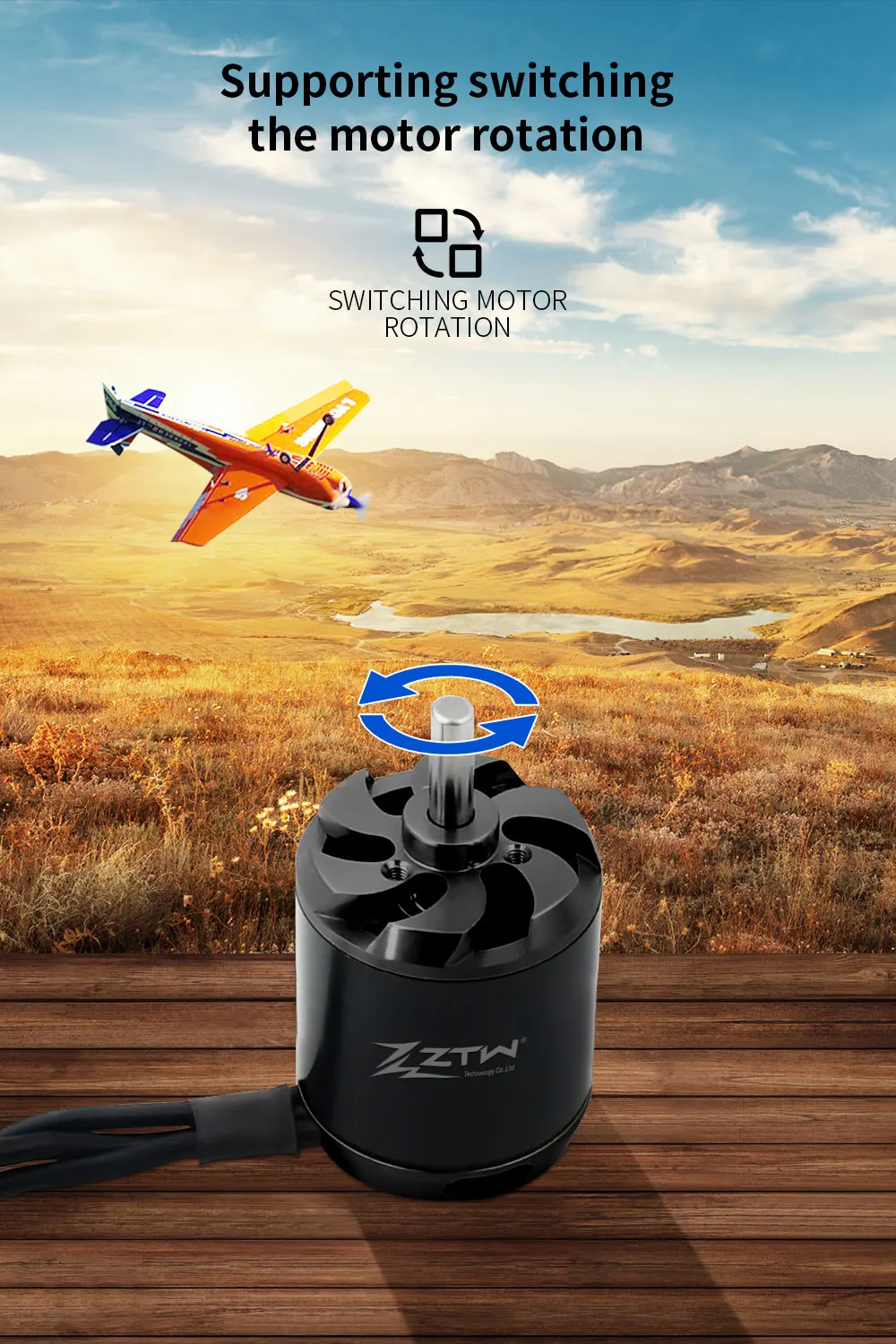

8. SMR Function: it supports switching the motor rotation to decelerate when the airplane landing to the ground.

Note: The factory default is OFF, the 1Pin signal wire is completely invalid at this time. If you need to turn it on, using Phone App or transmitter to program it “ON”, plug the 3Pin signal wire into the throttle channel, and plug the 1Pin signal wire into any 2-stage switch channel of the receiver, then turn on the transmitter 2-stage switch. The SMR function is turned on now, you can change the forward and reverse directions of the motor by flipping the 2-stage switch of the transmitter.

Warning: This function can only be effective when the throttle is below 50%, and it is only allowed to be used when the airplane is landing on the ground, otherwise it may cause the ESC to burn!

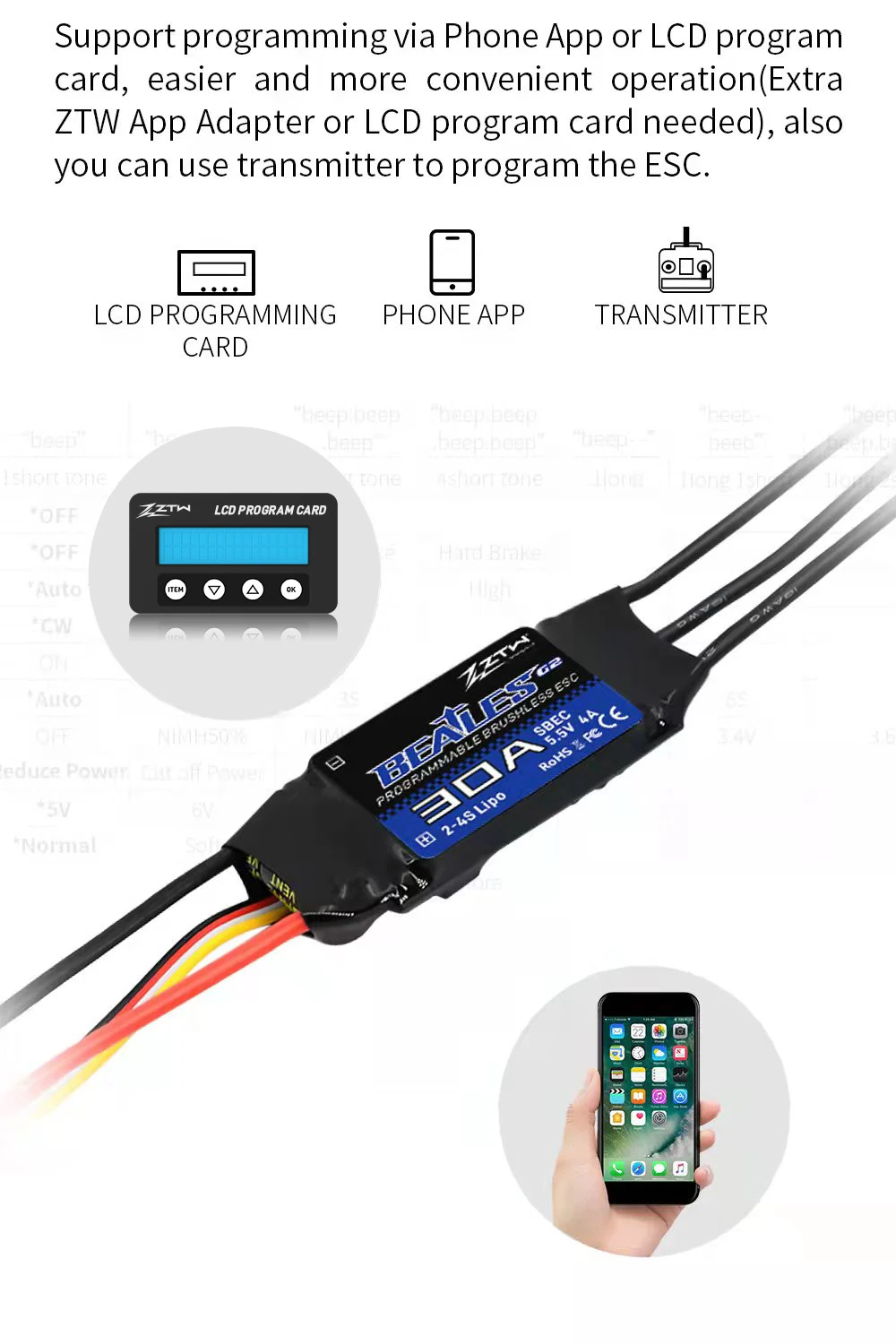

9. Fully programmable via ZTW new programming box G2 or Phone APP(The bluetooth module will be needed).

Specifications:

Model: ZTW Beatles 20A G2 SBEC

Cont/Peak Current: 20A/30A

Battery NiXX/Lipo: 5-12NC/2-4Lipo

BEC Output: 5.5V/4A(Switch Mode)

Size(L*W*H): 60*25*10mm

Weight: 26g

Model: ZTW Beatles 30A G2 SBEC

Cont/Peak Current: 30A/40A

Battery NiXX/Lipo: 5-12NC/2-4Lipo

BEC Output: 5V/6V 4A(Switch Mode)

Size(L*W*H): 60*25*10mm

Weight: 31g

Model: ZTW Beatles 40A G2 SBEC

Cont/Peak Current: 40A/55A

Battery NiXX/Lipo: 5-12NC/2-4Lipo

BEC Output: 5V/6V 4A(Switch Mode)

Size(L*W*H): 68*25*10mm

Weight: 39g

Model: ZTW Beatles 50A G2 SBEC

Cont/Peak Current: 50A/65A

Battery NiXX/Lipo: 5-12NC/2-4Lipo

BEC Output: 5V/6V 4A(Switch Mode)

Size(L*W*H): 68*25*10mm

Weight: 39g

Model: ZTW Beatles 60A G2 SBEC

Cont/Peak Current: 60A/80A

Battery NiXX/Lipo: 5-18NC/2-6Lipo

BEC Output: 5V/6V 8A(Switch Mode)

Size(L*W*H): 70*34*12mm

Weight: 58g

Model: ZTW Beatles 80A G2 SBEC

Cont/Peak Current: 80A/100A

Battery NiXX/Lipo: 5-18NC/2-6Lipo

BEC Output: 5V/6V 8A(Switch Mode)

Size(L*W*H): 90*37*12.5

Weight: 92g

Model: ZTW Beatles 100A G2 SBEC

Cont/Peak Current: 100A/120A

Battery NiXX/Lipo: 5-18NC/2-6Lipo

BEC Output: 5V/6V 8A(Switch Mode)

Size(L*W*H): 90*39*13

Weight: 98g

Note: Please do make the throttle calibration for the first time using or changed the TX. Warning, here is the process:

1. Turn on the transmitter, move the throttle stick to the top position.

2. Connect the battery pack to the ESC and wait for about 2 seconds.

3. The motor will beep for twice, then move the throttle stick to the bottom position in 3 seconds.

4. The motor will beep several sounds, sounds time presents the amount of battery cells.

5. When the motor emits ”Beep----Beep”, means the ESC is ready to work.
