DS3225 25Kg RC Digital Servo 180 270 Degree Waterproof Servo High Torque Full Metal Gear for DIY Baja Car RC Robotic Arm
- Fast delivery
- 30-day returns
DS3225MG servo is suitable for 1/8, 1/10, 1/12 Scale Crawler Truck, RC Car / Robotic arm / Boat and other remote control models.
It is water resistant servo, not waterproof servo, it works if gets a little wet, but can't work under the water, so pls be careful not to get it submerged in water, otherwise, it will be ruined.
Control system: PWM(Pulse width modification), sensitive response, Pulse width range is around 500~2500μsec.
Full metal gear in copper&aluminum, CNC aluminum middle Shell. 25Kg.cm High torque steering servo for robotic arm, boats, vehicles and other remote control toys.
DS3225MG digital servo
Model: DS3225MG
Type: Digital Servo
Torque: 25kg/cm
Control angle: 180 / 270 degree
Control system: PWM(Pulse width modification)
Operating voltage: 4.8-6.8V
Gear ratio: 275:1
Waterproof performance: IP66 (it can't work under the water, please be careful not to put it under the water)
Full metal gear, dual ball bearings, CNC aluminium middle Shell.
Electrical Specification
Operating Voltage: --------------5V-----------6.8V
Idle current(at stopped): -------4mA----------5mA
Operating speed (at no load): 0.16 sec/60°---0.14sec/60°
Stall torque (at locked): -------24.5 kg-cm----28 kg-cm
Stall current (at locked): --------2.1A----------2.9A

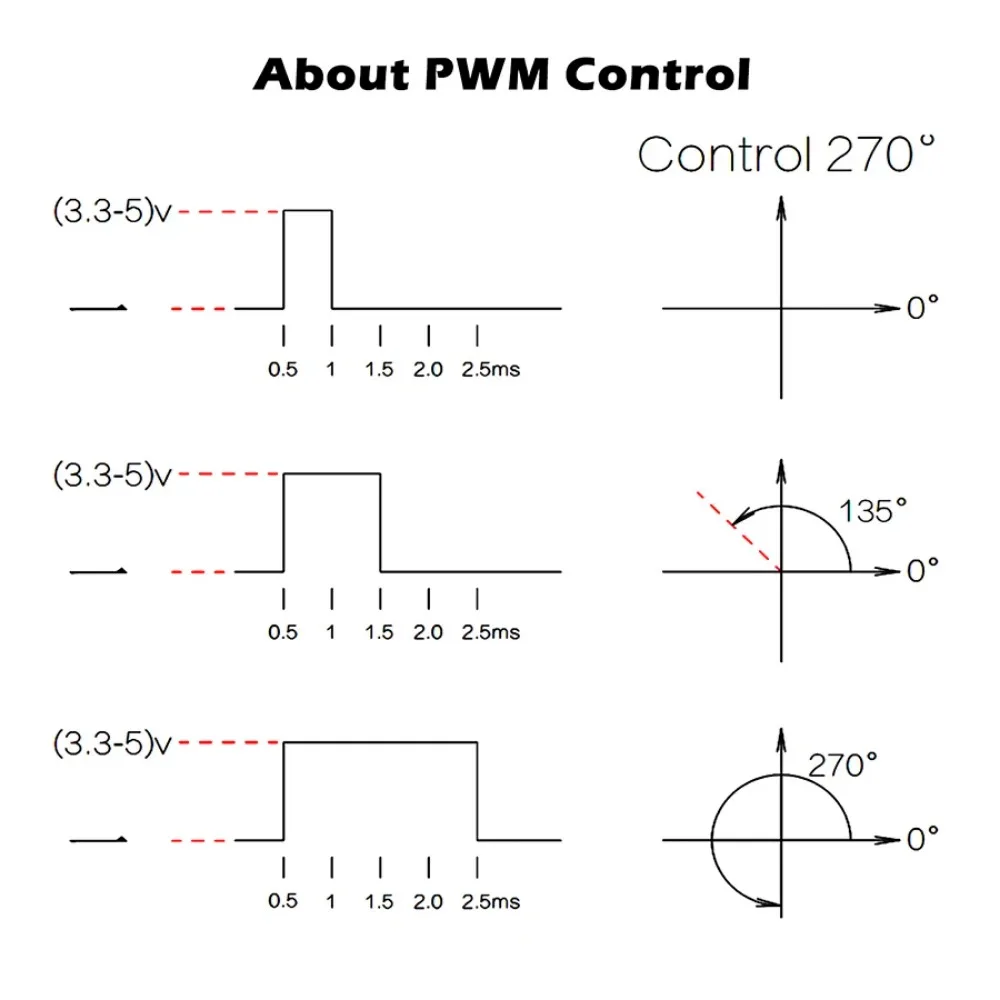

Control Specification
Control System: PWM(Pulse width modification)
Pulse width range: 500～2500µsec
Neutral position: 1500µsec
Running degree: 180° or 270°(when 500～2500 μ sec)
Dead band width: 3 µsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500～2500 µsec)
DS3225MG digital servo 3Pin wire
DS3225MG servo is with 3Pin Plug wire.
Plug type: JR, FUTABA General
Red wire: ''+'' (power positive)
Black wire: ''-'' (power negative''
White wire: Signal
