Mark4 V2 Mark 4 7 Inch/8 Inch/9 Inch/10 inch FPV Racing Drone Quadcopter Freestyle DIY Frame Kit Assembly Kits Parts
$31.16
$45.97
Save 32%
QTY:
- Fast delivery
- 30-day returns
Ships to Canada · Delivery Approximately 7 days (supplier estimate)
Sold by TBII
modname=ckeditor
Mark4 V2 7Inch Frame
Parameters:
Frame structure: X-Type
Wheelbase: 295mm
Size: 193.75mm * 223.06mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm
Mark4 V2 8Inch Frame
Parameters:
Frame structure: X-Type
Wheelbase: 367mm
Size: 230.35mm * 278.52mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm
Mark4 V2 9Inch Frame
Parameters:
Frame structure: X-Type
Wheelbase: 387mm
Size: 234.35mm * 282.52mm
Bottom plate thickness: 3.0mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 6.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm
Mark4 V2 10Inch Frame
Parameters:
Frame structure: X-Type
Wheelbase: 427mm
Size: 268.18mm*332.07mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 7.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm
Package Included: (Send it as your choice)

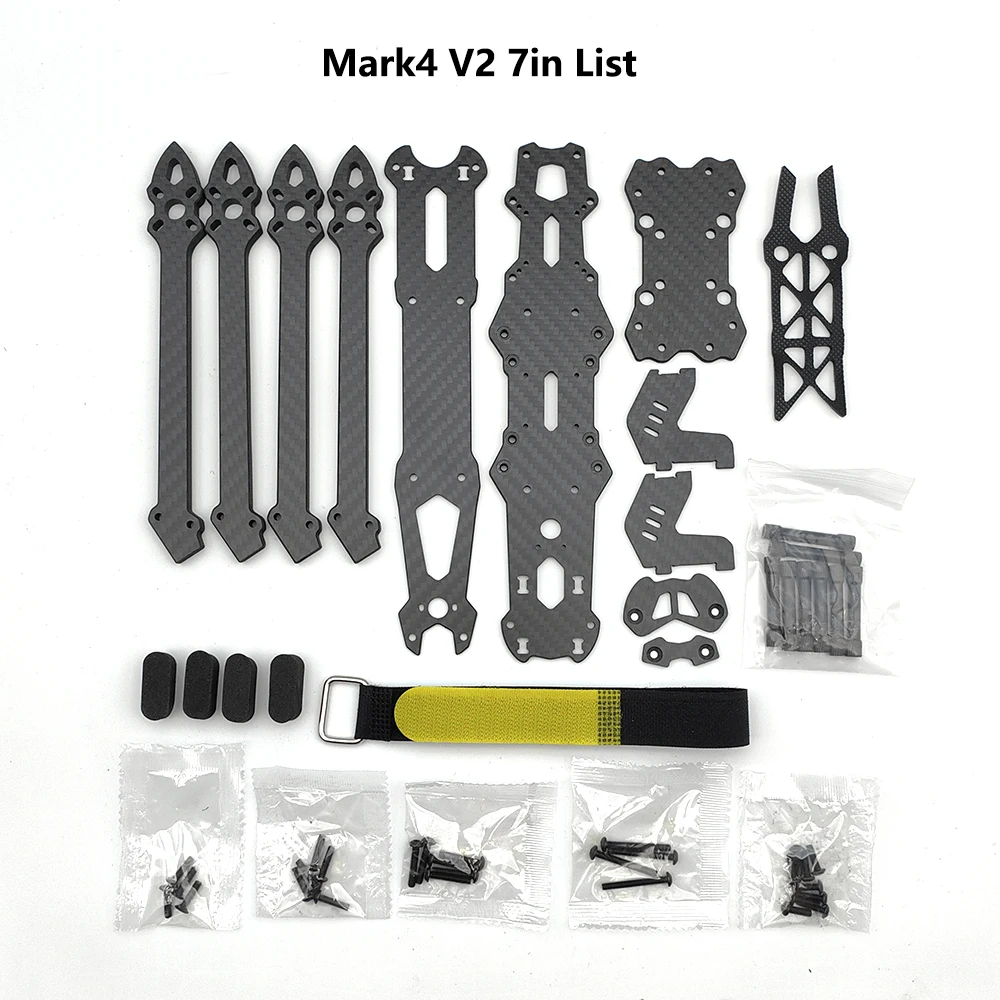

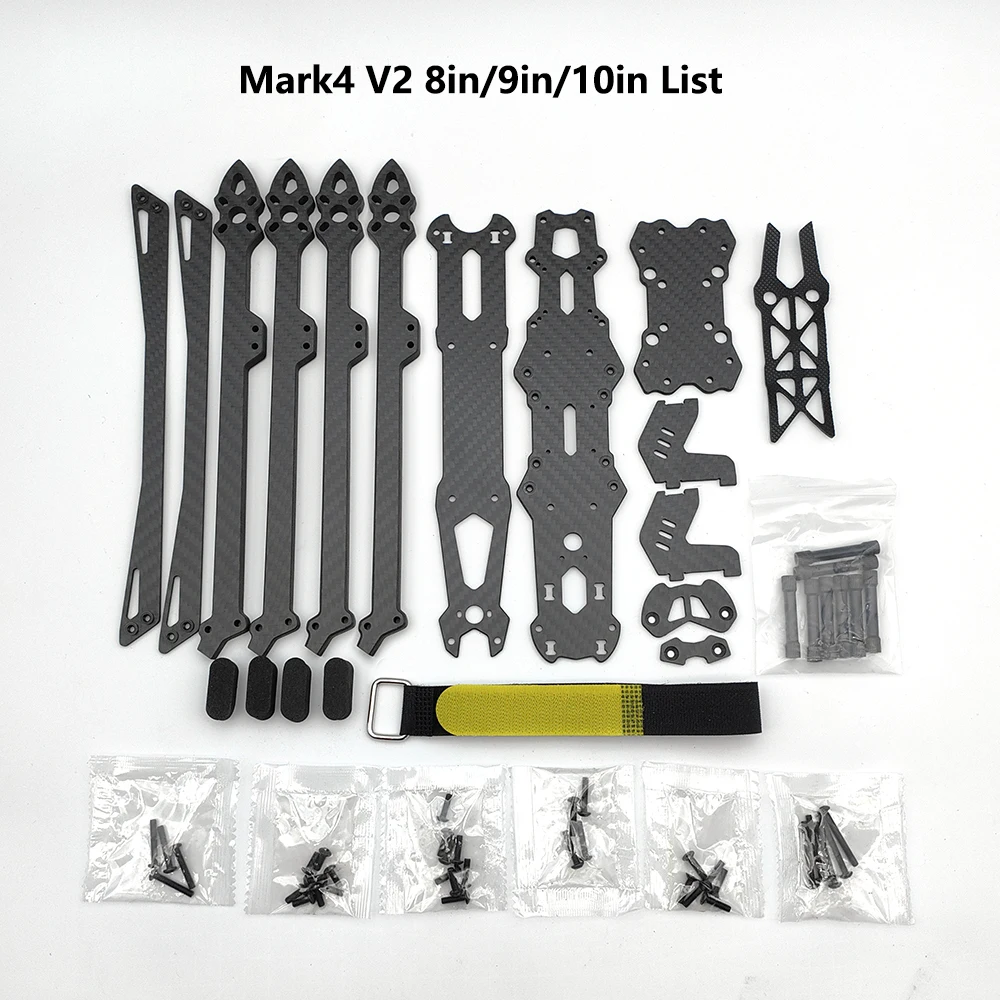

1Set x Mark4 V2 7Inch/8Inch/9Inch/10Inch Carbon Fiber Frame Kit
Mark4 V2 10Inch Frame
Parameters:
Frame structure: X-Type
Wheelbase: 427mm
Size: 268.18mm*332.07mm
Bottom plate thickness: 3.0mm
Medium plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 7.0mm
Connecting plate: 2.0mm
Camera side plate thickness: 2.5mm
Camera installation hole spacing: 19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 20*20mm & 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm
Package Included: (Send it as your choice)
1Set x Mark4 V2 7Inch/8Inch/9Inch/10Inch Carbon Fiber Frame Kit
1pcs 20*300 Battery strap
