SpeedyBee Nano Dual Band 2.4GHz RX TCXO ELRS Receiver IPEX1 Plug Long Range Low Latency for FPV Drone RC Model

Light indicator

Double red blinking: binding;

Slow red blinking: powering up but unlinked, no packages received from the transmitter;

Solid red: receiver is connected, with signal received;

Fast red flashing: Wi-Fi is turned on, and updating via Wi-Fi is available;

PS.

To turn on Wi-Fi, wait for 60 seconds after powering on or long press button for 3 seconds

Quick to cut off the power 3 times, it enters the binding mode

SpeedyBee Nano Dual Band 2.4GHz/915MHz ELRS Receiver IPEX1 Plug Long Range Low Latency for FPV Drone RC Model

Model: SpeedyBee Nano 2.4GHz RX TCXO

Name: ExpressLRS 2.4GHz Receiver

Frequency: 2.4Ghz

Antenna: T-antenna (56*82mm, 0.6g)

Chip: SX1281+ESP8285

Power: 100mW (Measured around 170mW)

Input voltage: 5V

Antenna connector: IPEX1

Weight: 0.7 gram(without antenna)

Dimension: 10.4mm*18.4mm

Default Firmware: SpeedyBee Nano 2.4GHz RX 3.4.3

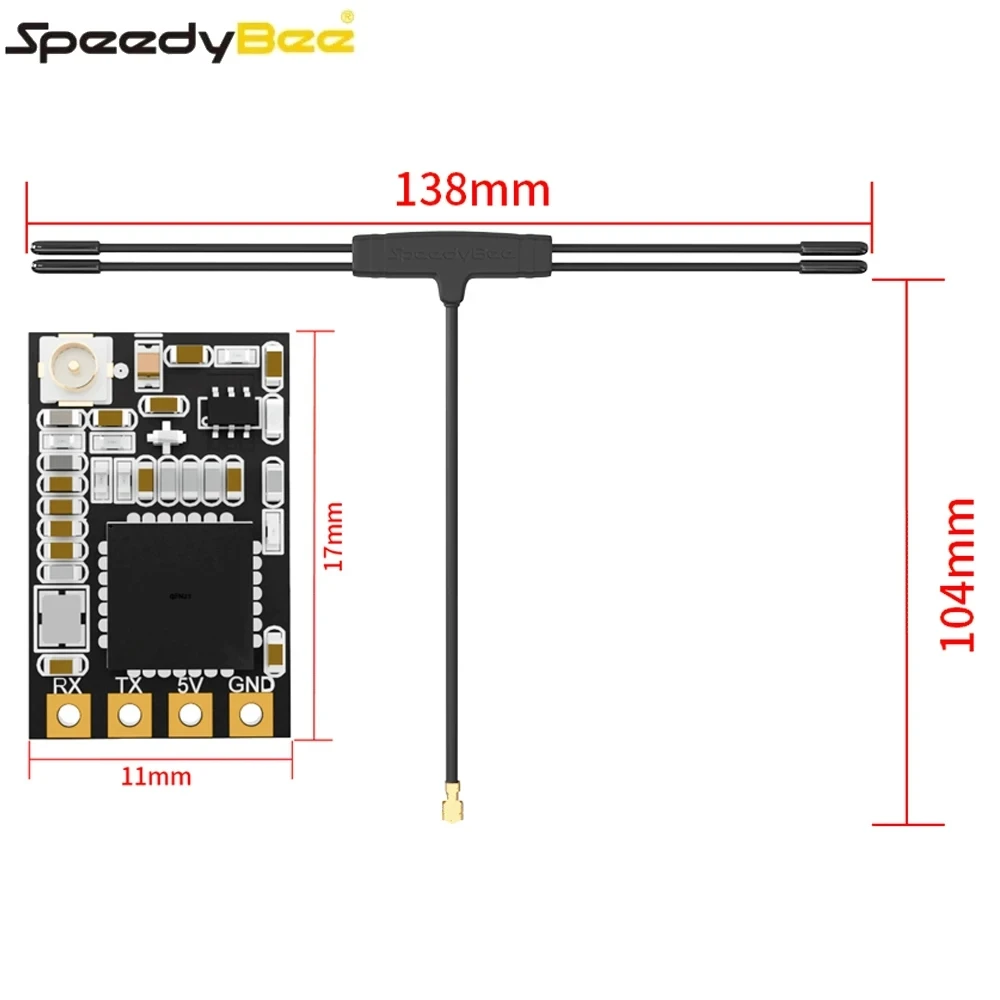

Model: SpeedyBee Nano 915MHz RX

Name: ExpressLRS 915MHz Receiver

Frequency : 915MHz

Antenna: T-antenna (138*104mm, 3g)

Chip: SX1276+ESP8285

Power: 50mW

Input voltage: 5V

Antenna connector: IPEX1

Weight: 0.7 gram(without antenna)

Dimension: 11mm*17mm

Default Firmware: SpeedyBee Nano 915MHz RX 3.4.2
