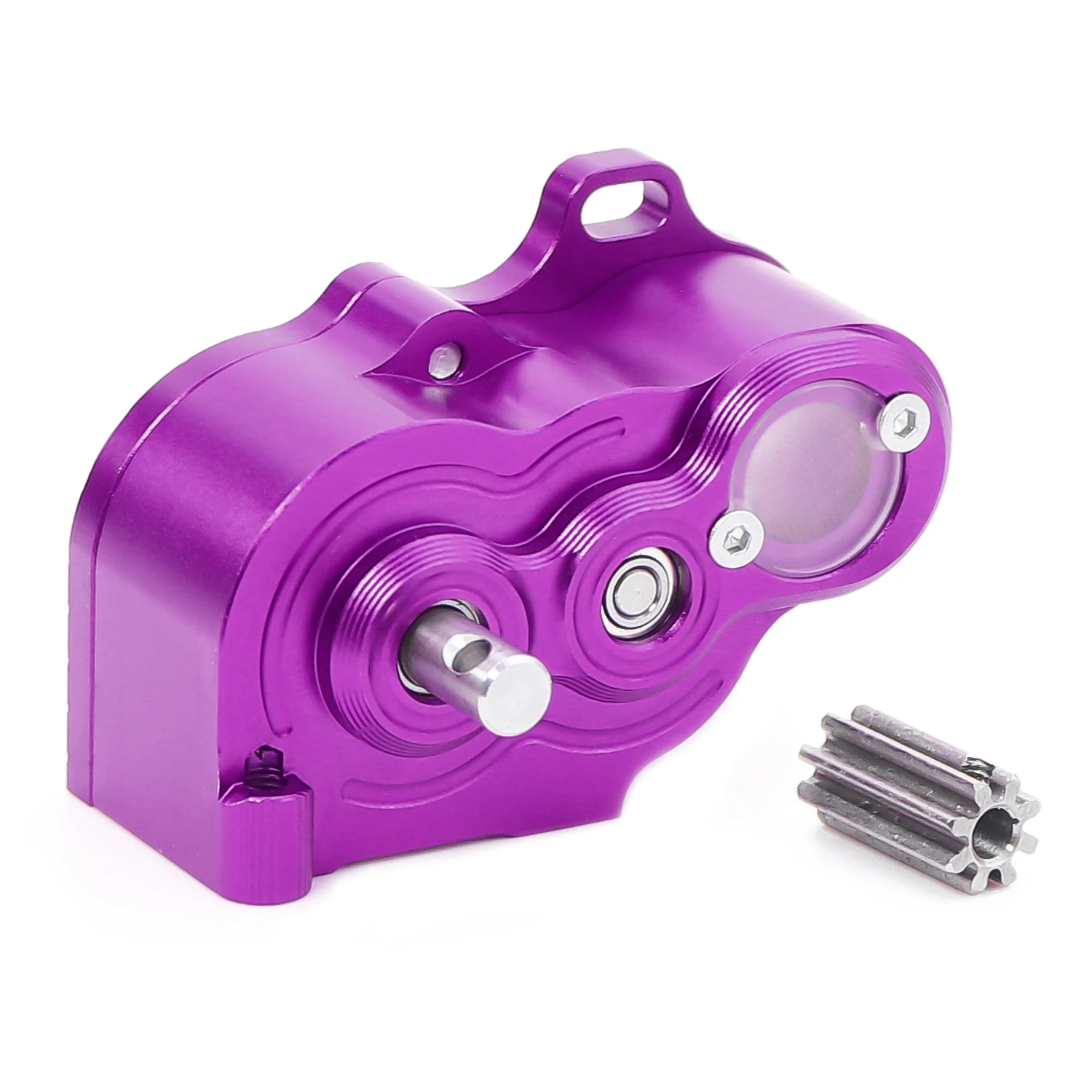

Ultra Light LCG Metal Transmission Low/High Speed Gearbox With Motor Gear For 1/10 RC Car SCX10 TRX4 RC4WD Capra Upgrade Part

Features:

1.Extremely compact and light weight 47.4g / 1.67oz.
2.Dimensions:52mmLx40mmWx36mmH(not including output shaft).
3.Heat treated Stainless Steel gears and output shaft.Optimize the size of the output shafts atboth ends, which is more reasonable than other R2 Gearbox on the market.
4.Ultra low center of gravity (LCG).It's a smoother ride for your RC Car.
5.Two speed options, low-speed gear ratio: 1:10.54, high-speed gear ratio: 1:5.9
6.Equipped with acrylic small window, visually adjustable motor teeth without disassembly.
7.Easy 3 hole mounting with extra room for long screws without hitting the gears.

Specifications:

Material: aluminum alloy (shell), Stainless Steel (gear)
Motor teeth:8T
Low Speed Gear ratio: 1:10.54
High Speed Gear ratio: 1:5.9
Compatible motor: 540,550/outer rotor (3.17mm shaft)
Output shaft: 5mm
Compatible base plate: SCX10 model (three hole)
Colors:Purple, Red,Black
Weight: 47.4g / 1.67oz(excluding screws)

Package List:

1*Metal Transmission With Motor Gear/Gear Set

Note:

Only the above package content, other products are not included.
Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
