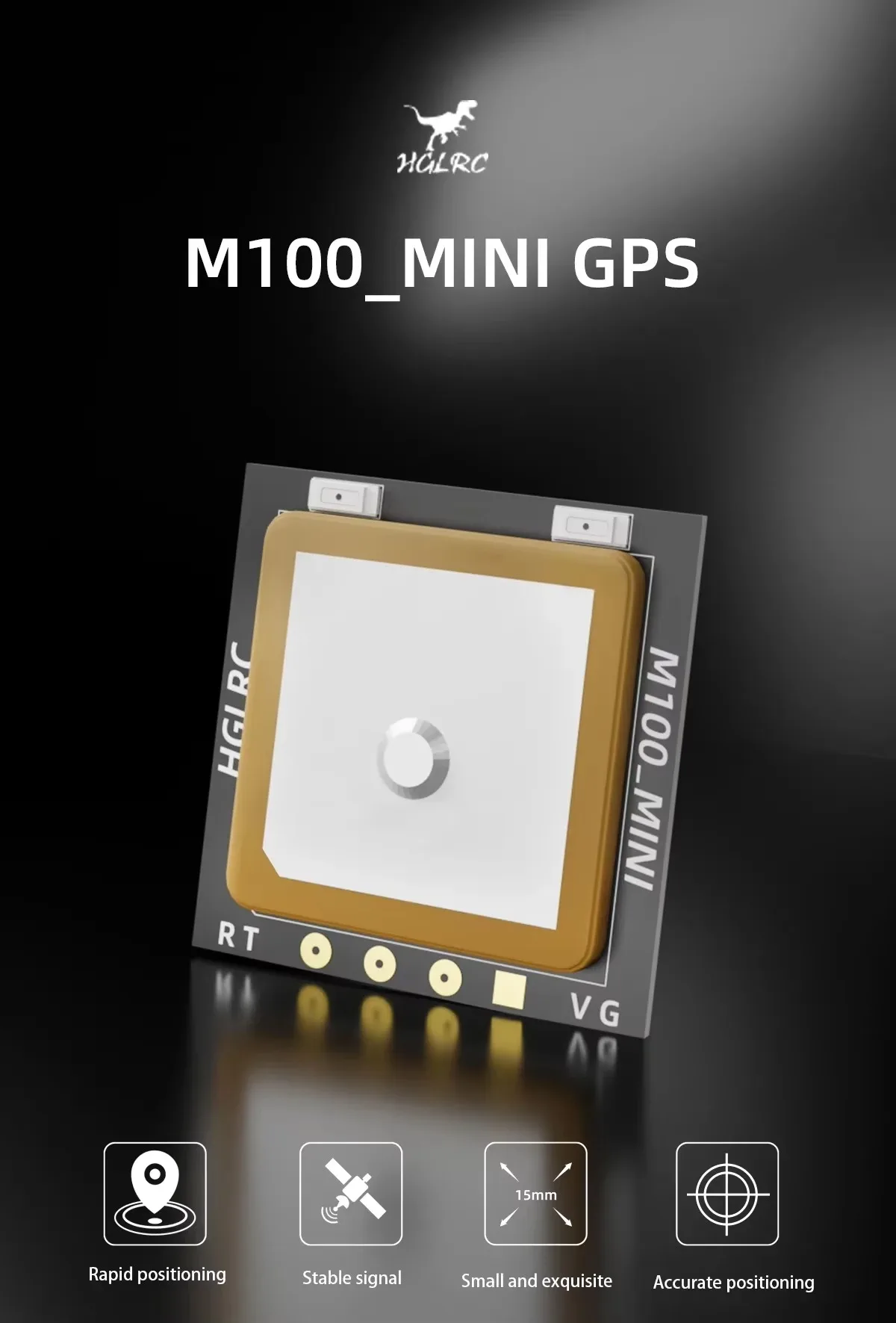

HGLRC M100 Mini Pro 5883 GPS Receiver Model Options M10 GNSS Module For FPV Freestyle Drone RC Aircraft Repair Replacement Parts

Features:

1.Using the new 10th generation chip design, fast and accurate positioning..
2.Small size, compatible with 2-7 inch traversal Drone on the market

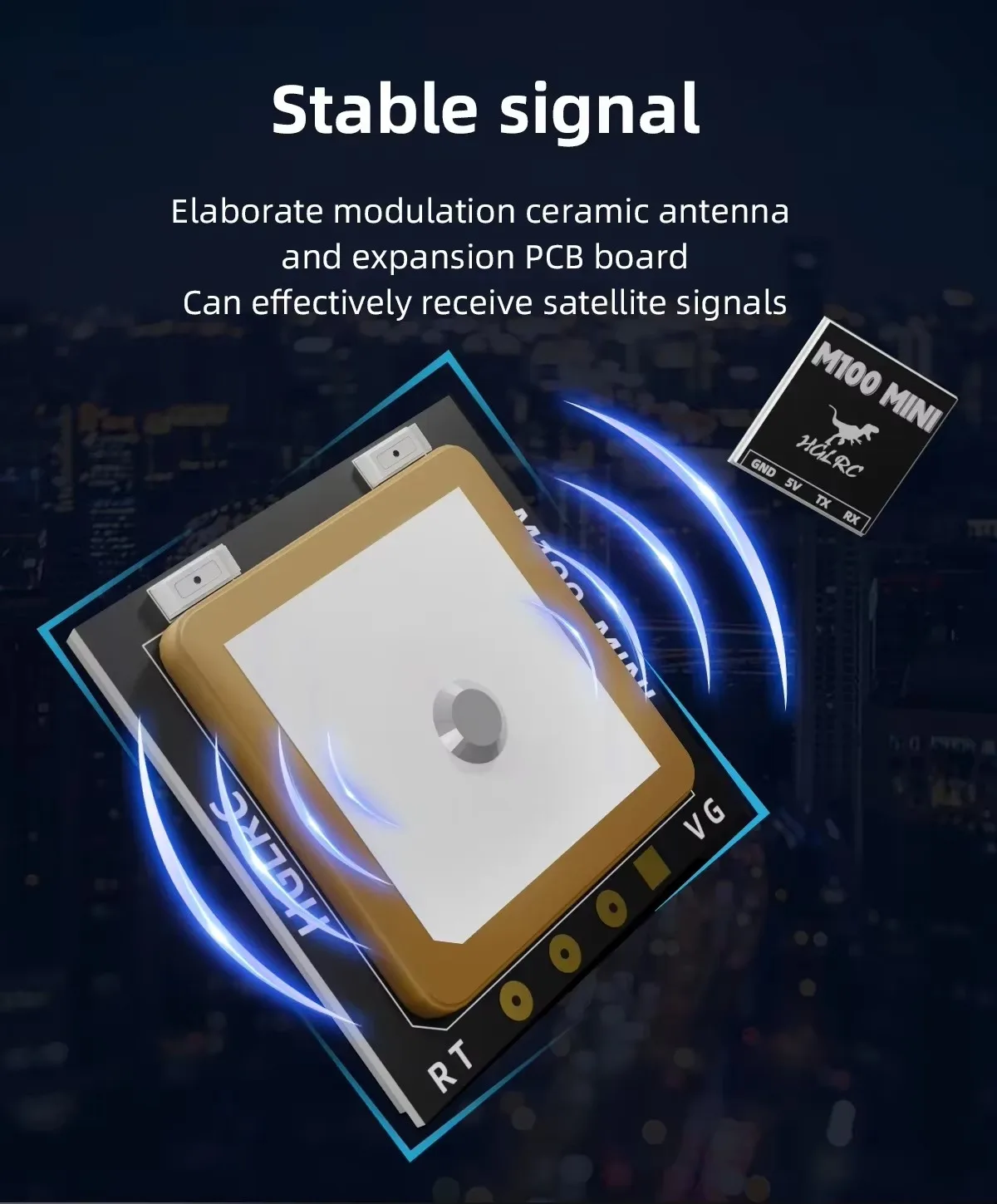

3.Selected ceramic antenna and externally expanded PCB design to effectively receive satellite signals
4.Support GPS, Galileo, BDS three-mode positioning, fast positioning in any area

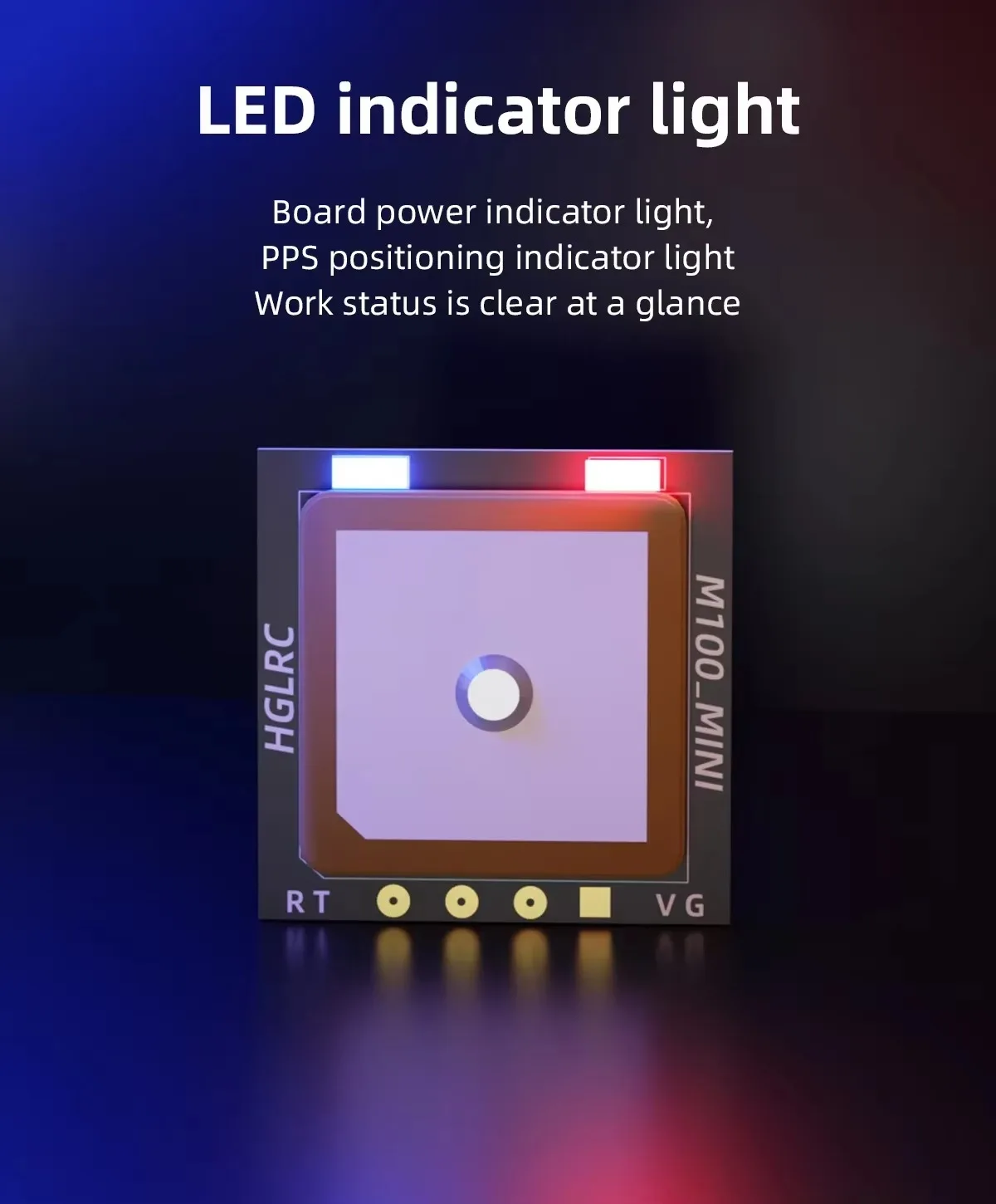

5.Onboard POWER and PPS indicator lights, the working status is clear at a glance
6.Compatible power supply, support 3.3V-5V DC power input
7.Using output protocol and 10Hz output frequency

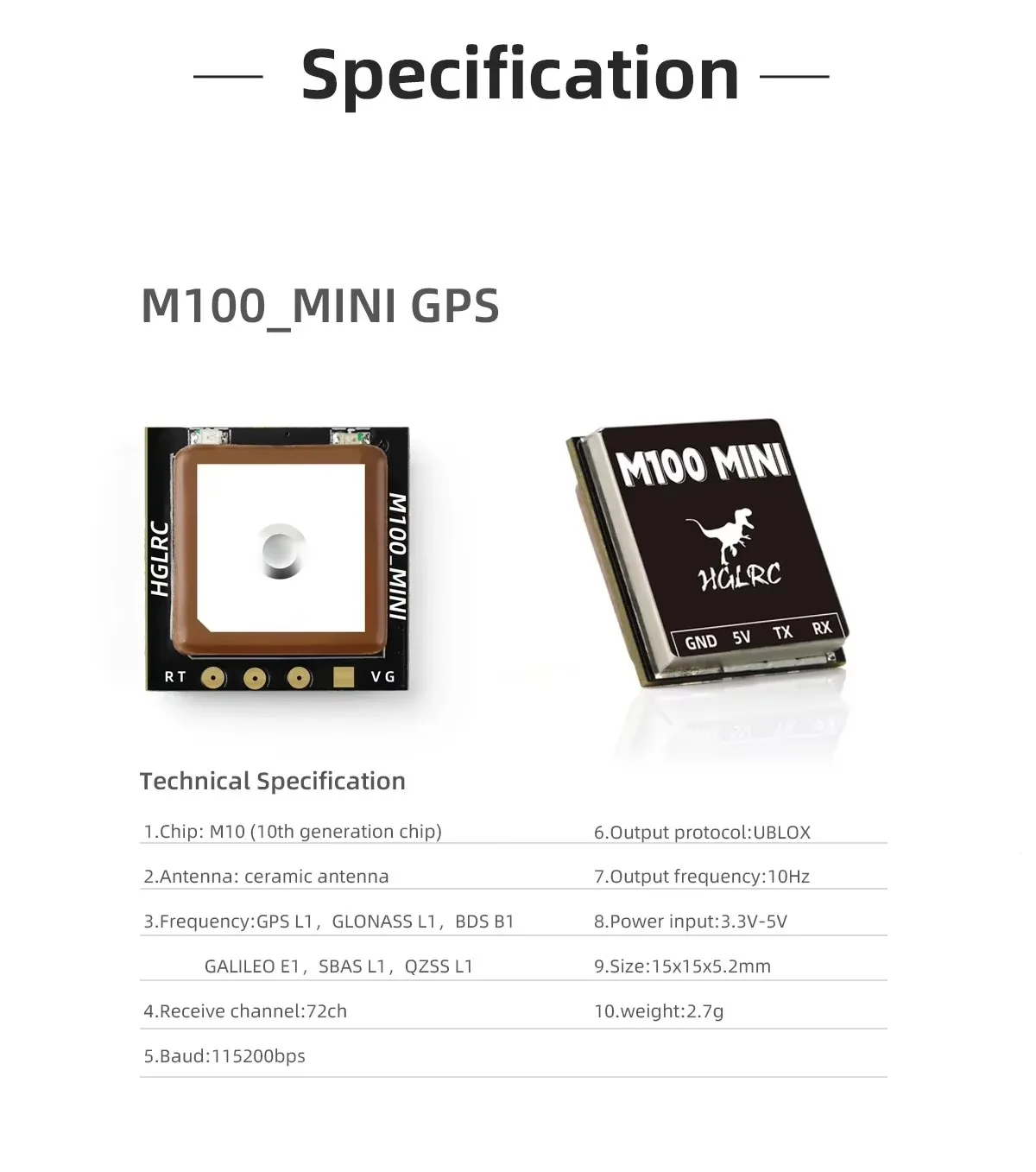

Specification

Chip: M10(10th Generation Chip)
Antenna: Ceramic Antenna
Frequency: GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,OZSS L1
Receive Channel: 72ch
Baud Rate: 115200bps
Output Frequency: 10Hz
Input: 3.3V-5V

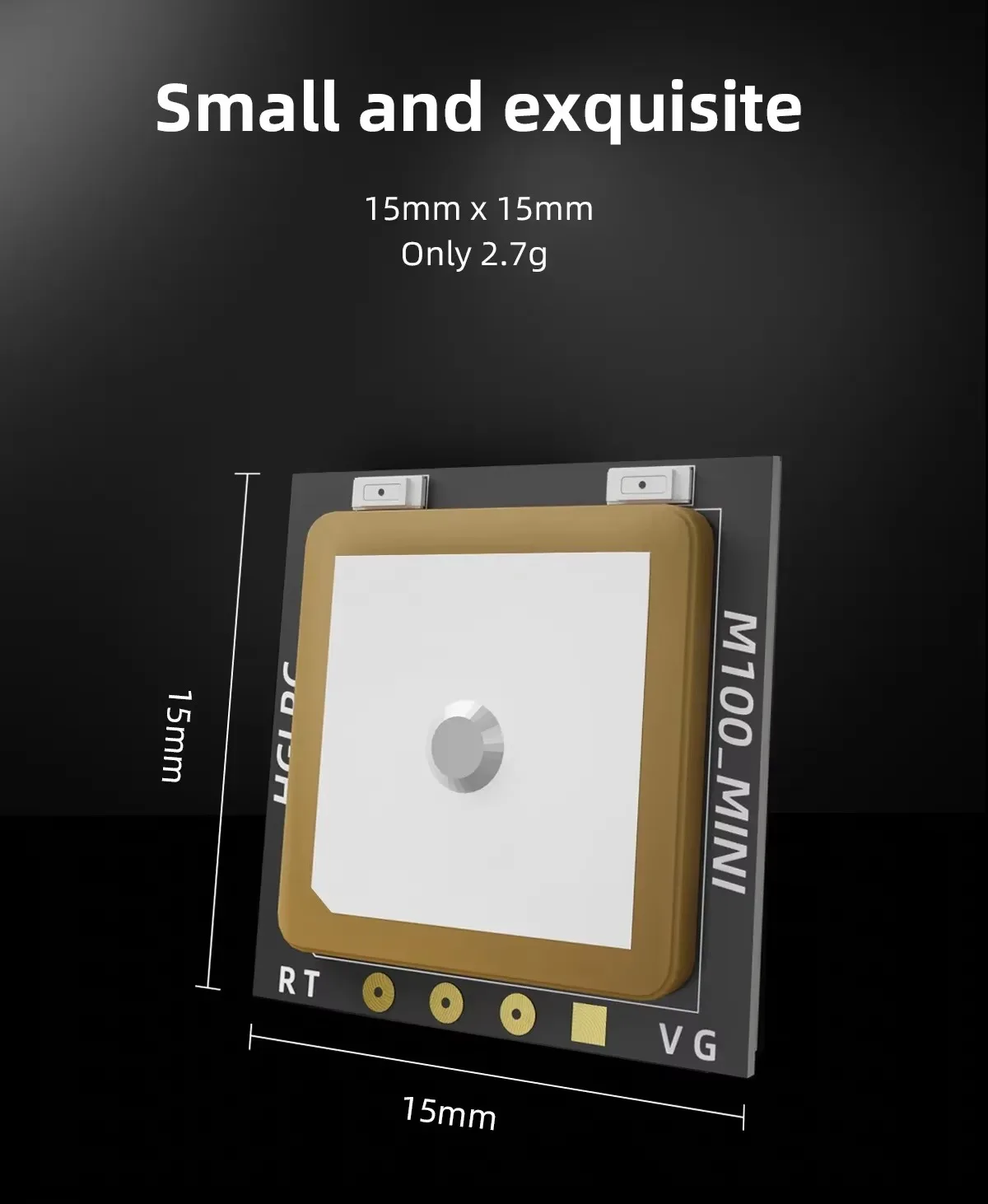

Size: 15x15x5.2mm
Weight: 2.6g
Speed Accuracy: 0.05m/s
Horizontal positioning accuracy: 2D
ACC2.0m(Outdoor)
Receiver Sensitivity: Trace -166dBm
Capture -160dBm
Characteristics: High:50000m,
Speed: 500m/s,
acceleration 4G
Operating temperature: -40°C - +85°C
Storage temperature: -40°C - +105°C
